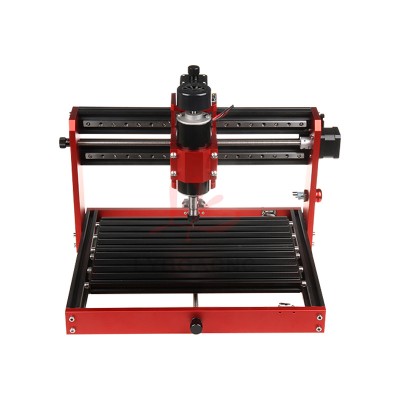

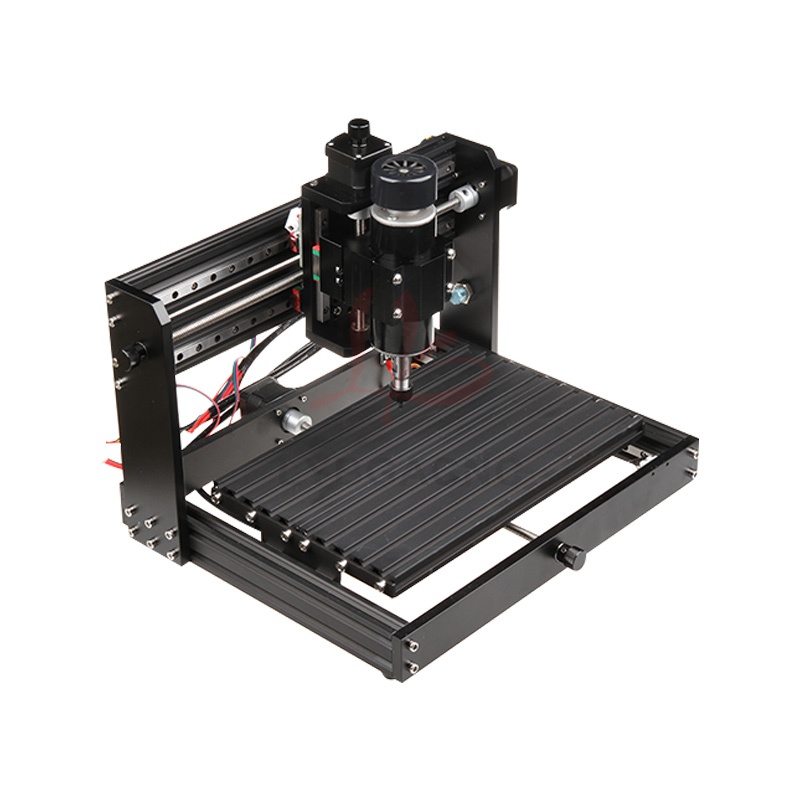

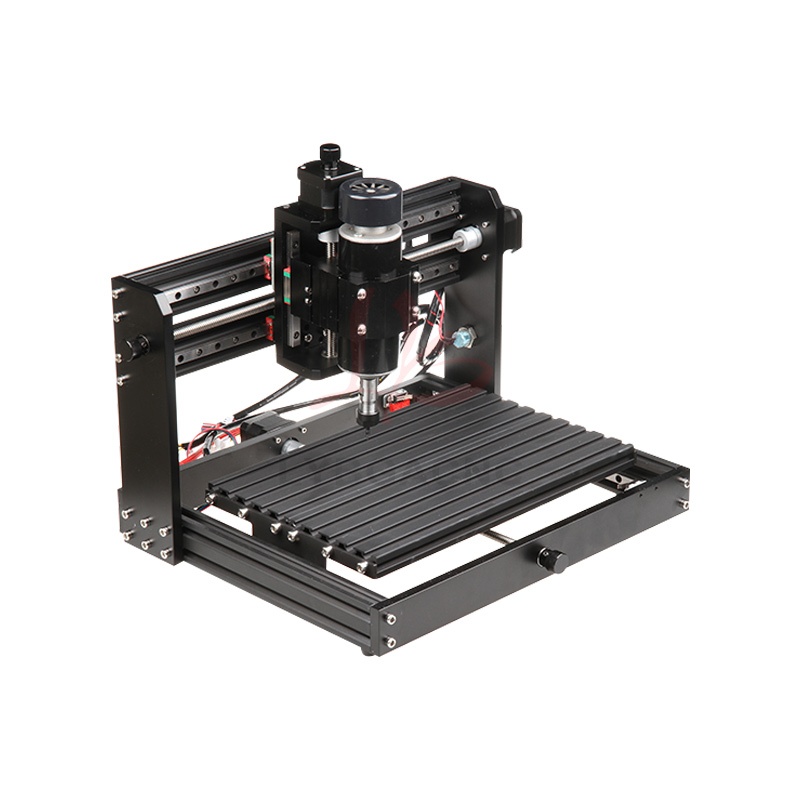

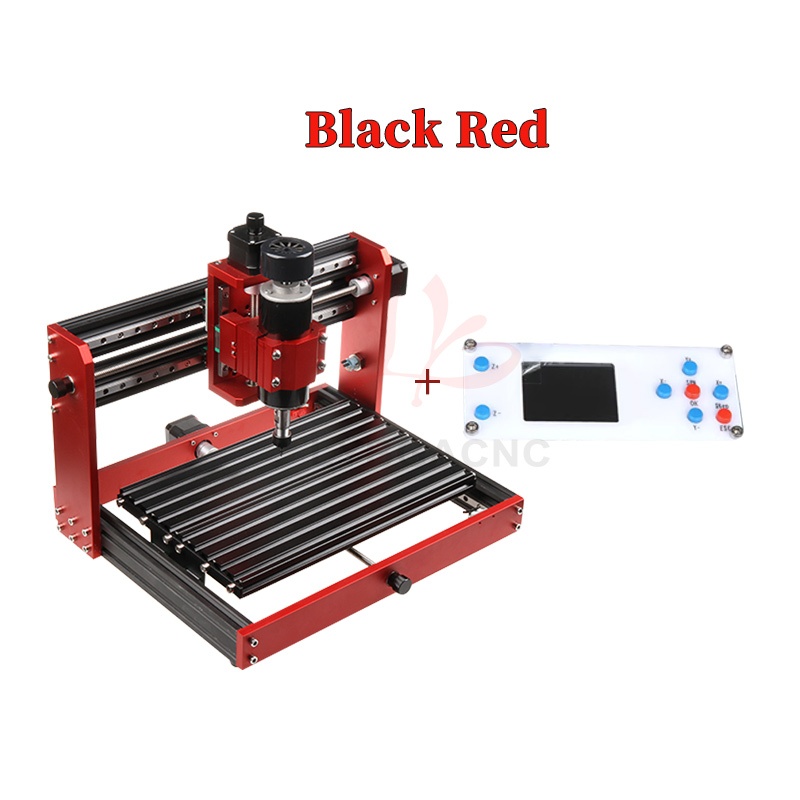

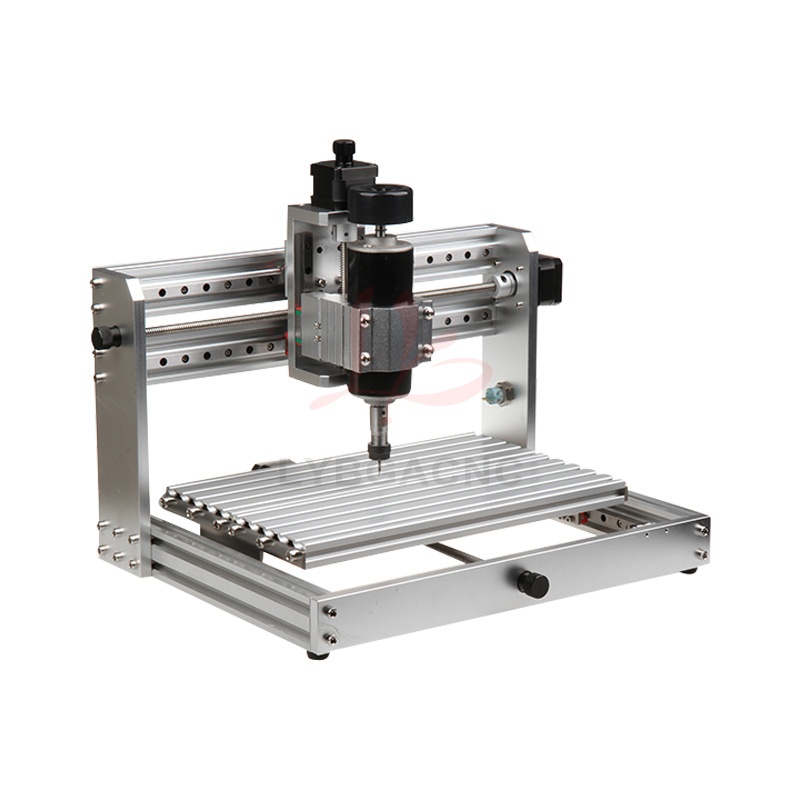

LY 3020 Plus High Accuracy All 3 Axis Square Rails Full Metal Desktop CNC Engraving Cutting Machine For Wood PVC Acrylic PCB Copper Aluminum Support Laser Module With Offline Controller

LY 3020 Plus High Accuracy All 3 Axis Square Rails Full Metal Desktop CNC Engraving Cutting Machine For Wood PVC Acrylic PCB Copper Aluminum Support Laser Module With Offline controller

Specification:

Brand: LY

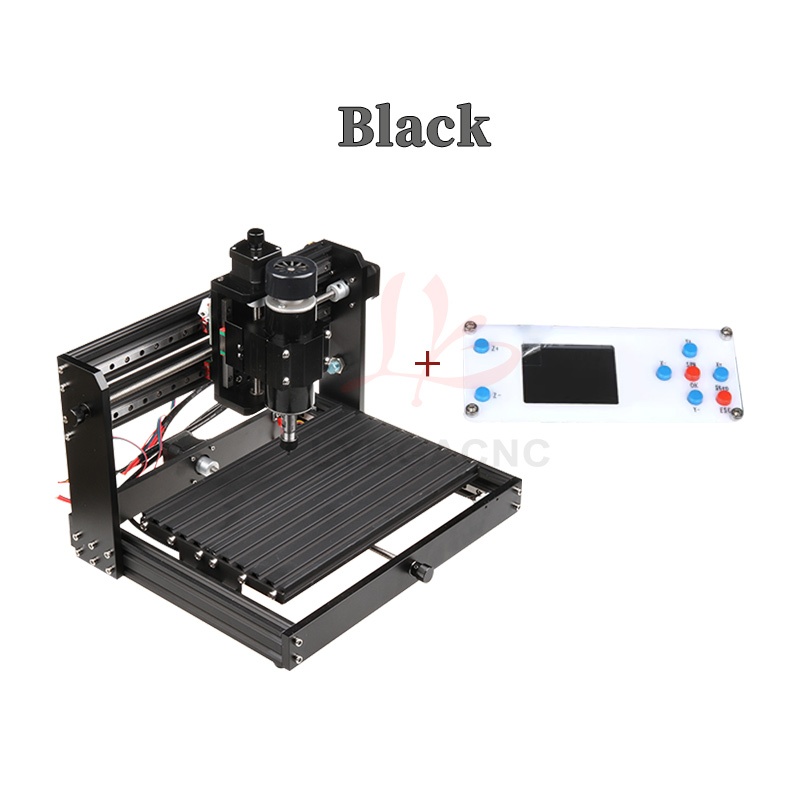

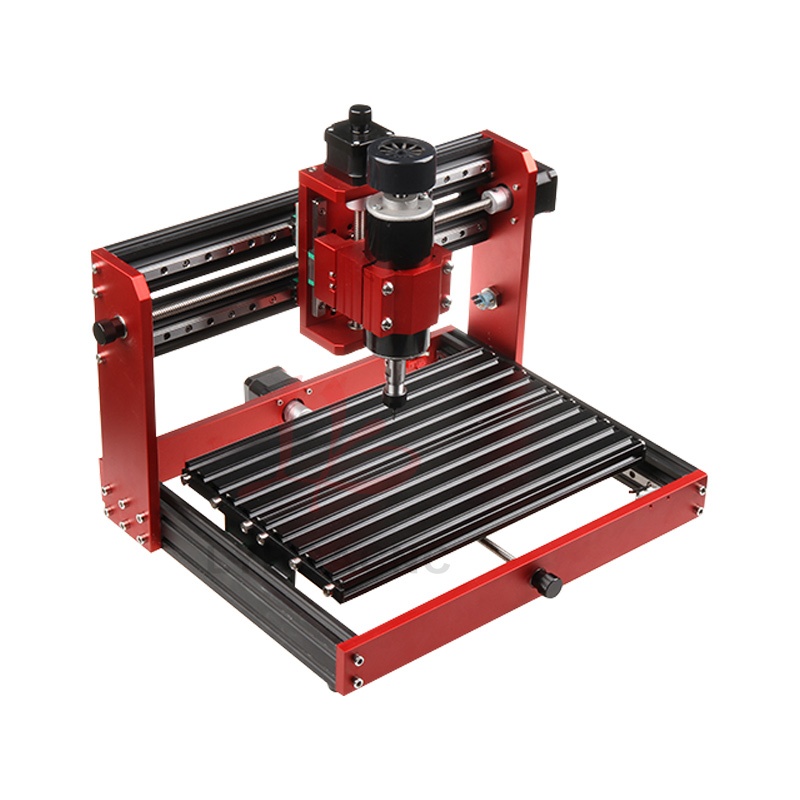

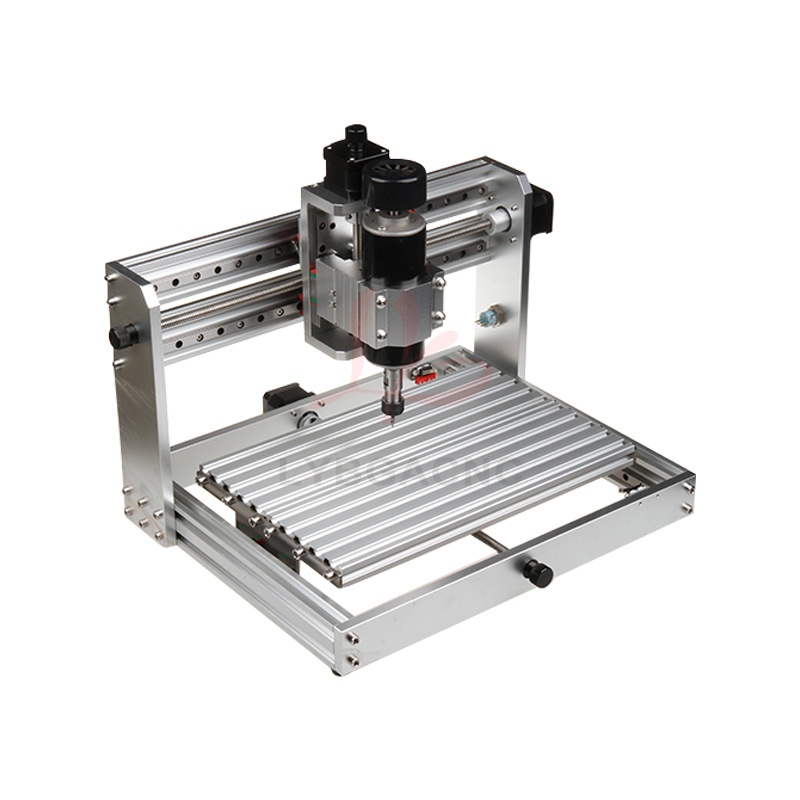

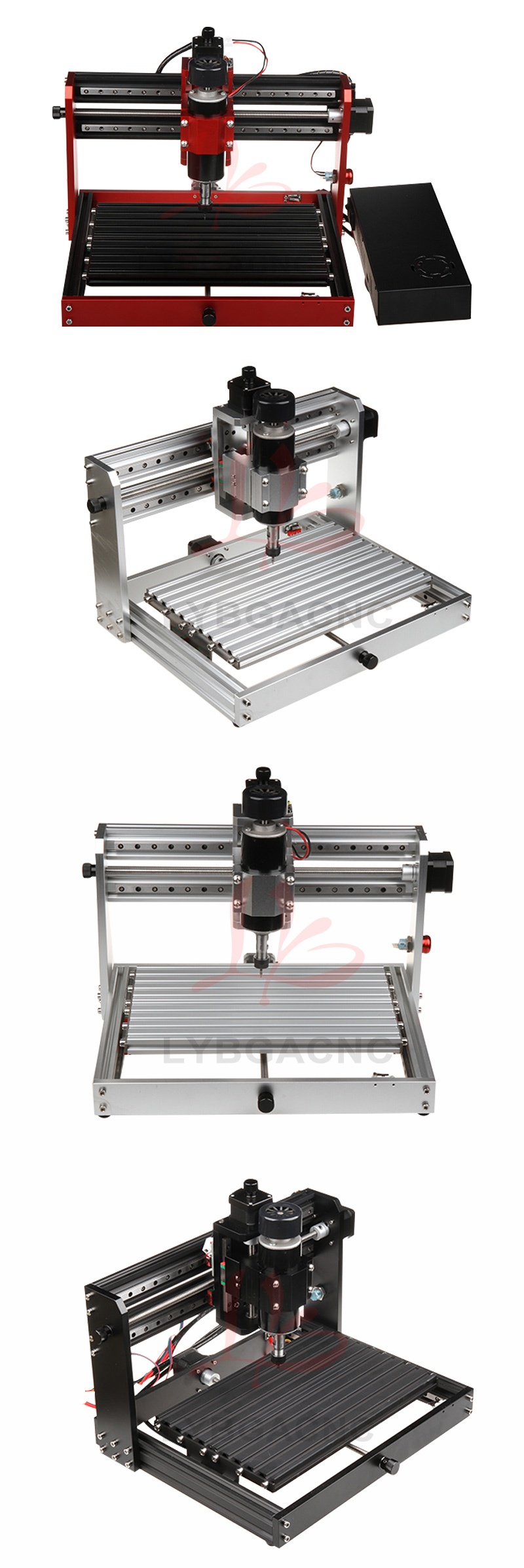

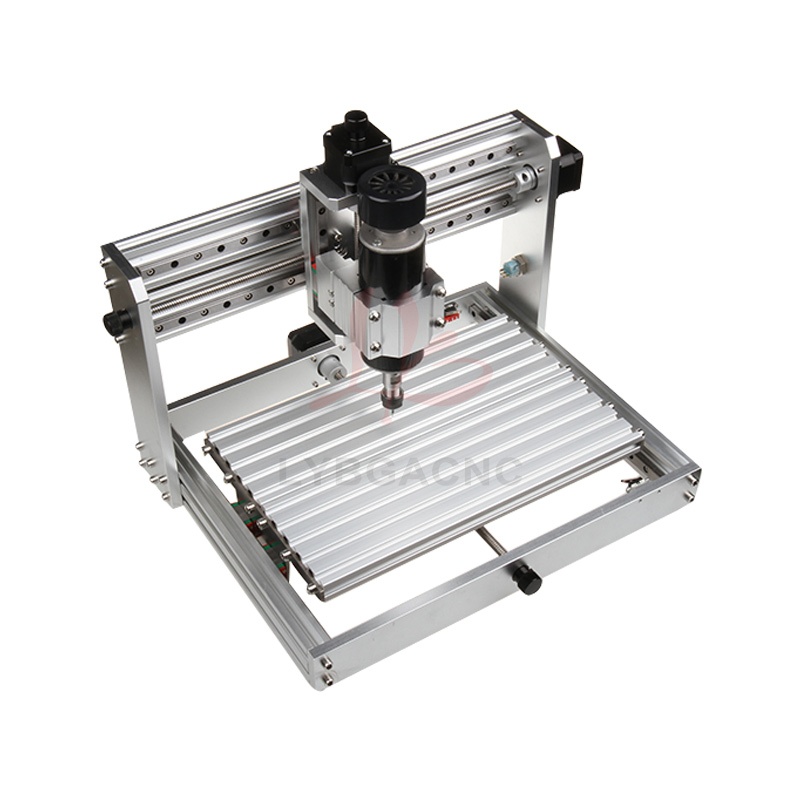

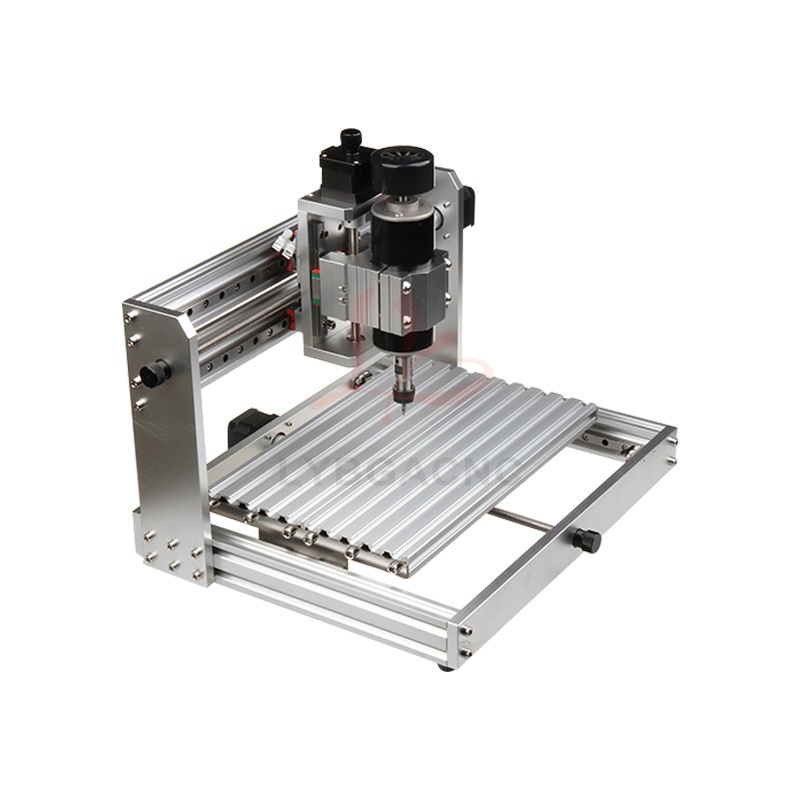

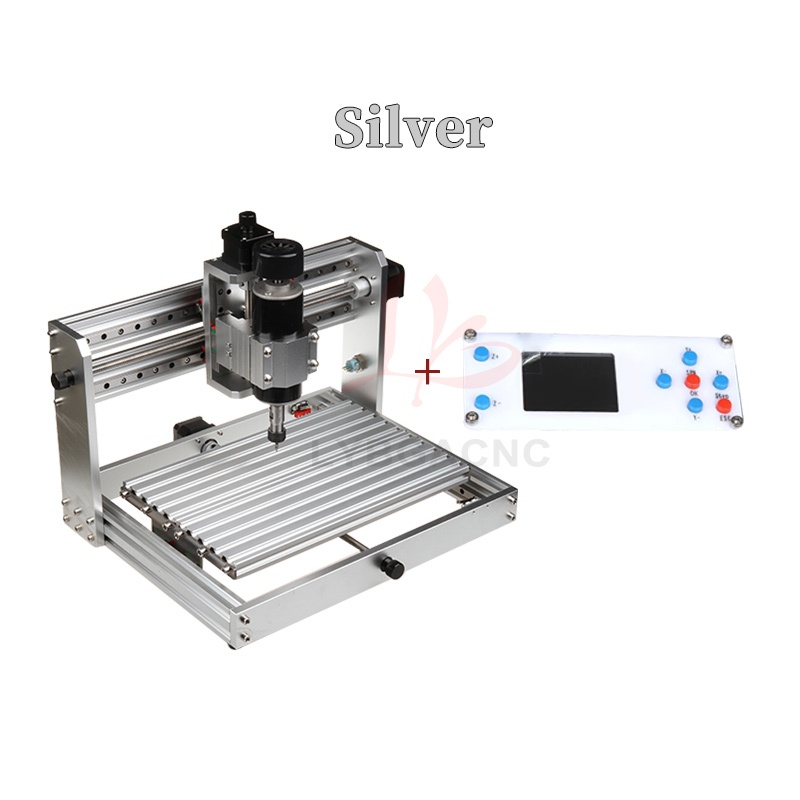

Color: Red / Black / Silver

Input Power: 220V AC + DC 12V 5A

Machine Weight: 13.0 kg

Repeatability: 0.08 mm

Tool shank diameter: 3.175 mm ER11

Stepping motor: 42mm 0.5N/m

Working stroke: 300x200x60mm

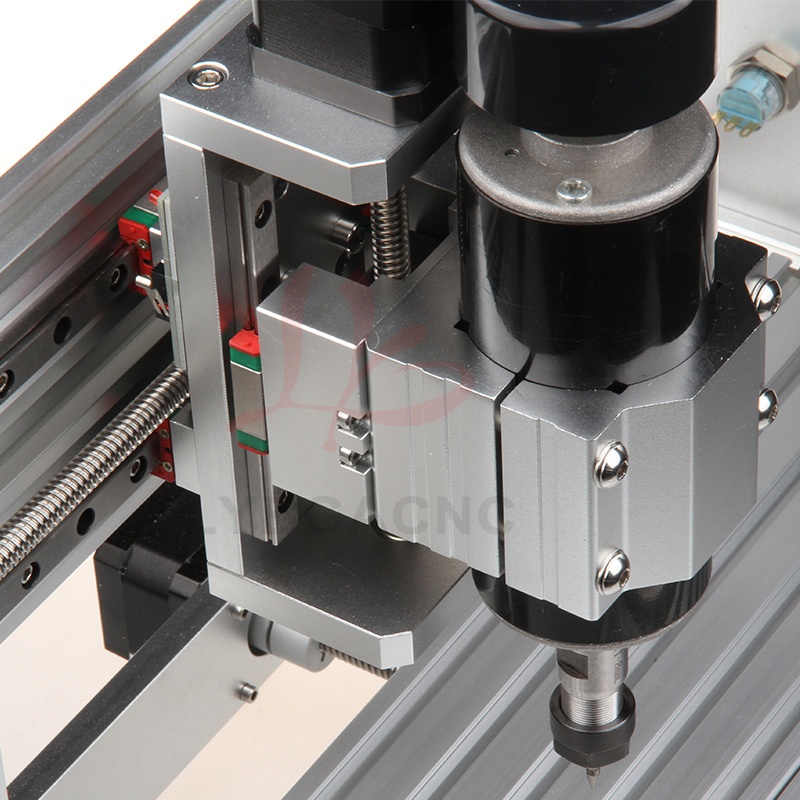

Spindle parameters: 48V 500W 10000 rpm

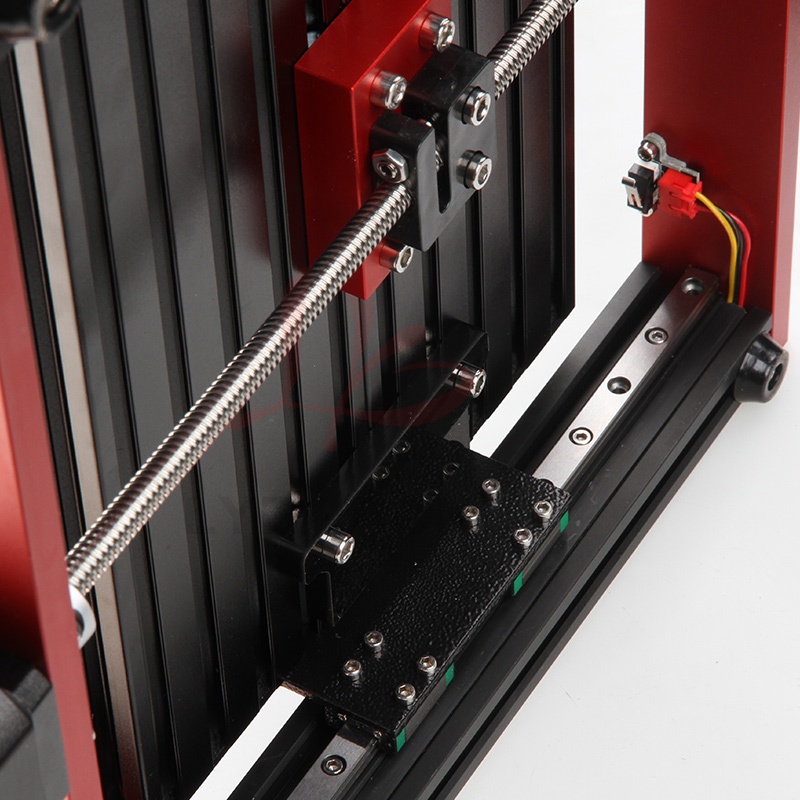

Limits: 6 hardware limit switches for three axes

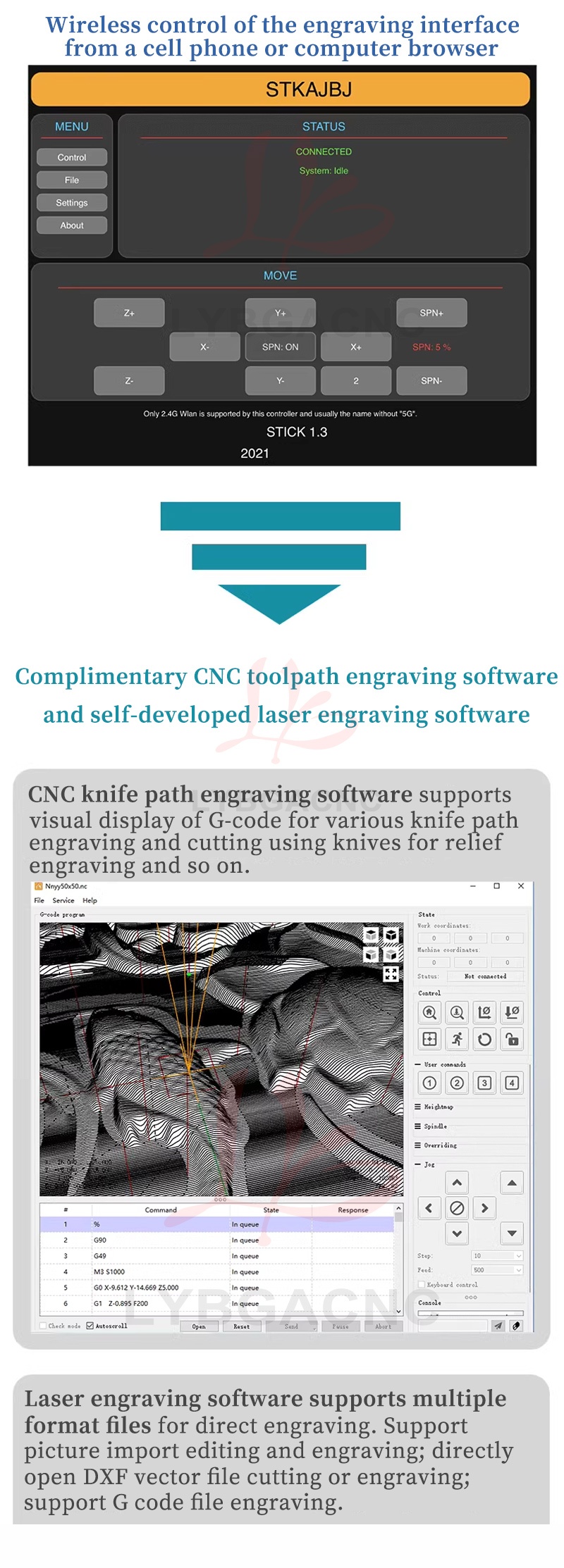

Control software: standard GRBL

Body Material: All Aluminum Alloy

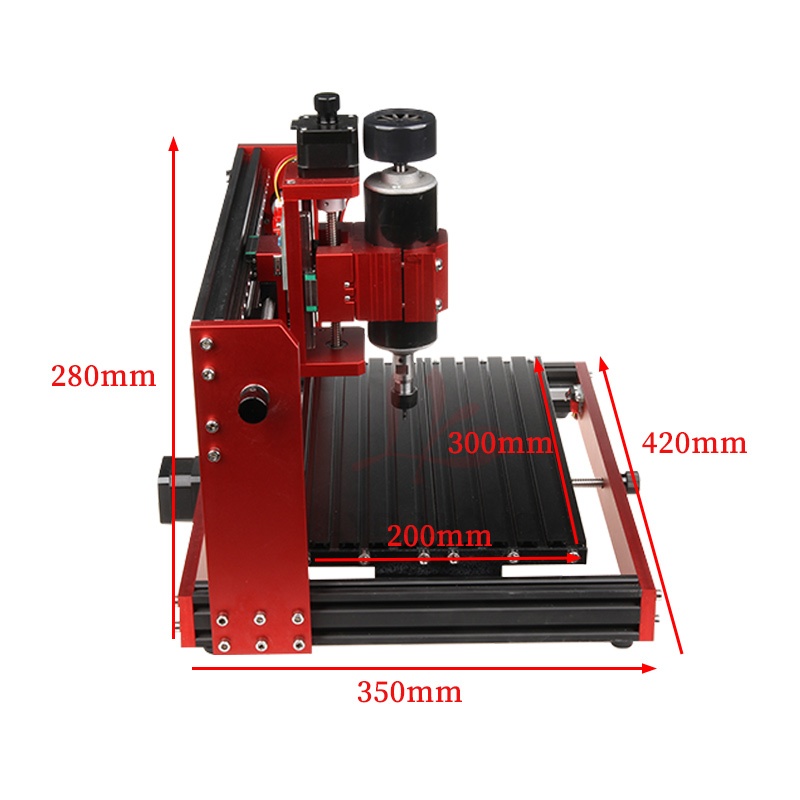

Overall Dimension: 420 x 350 x 280 mm

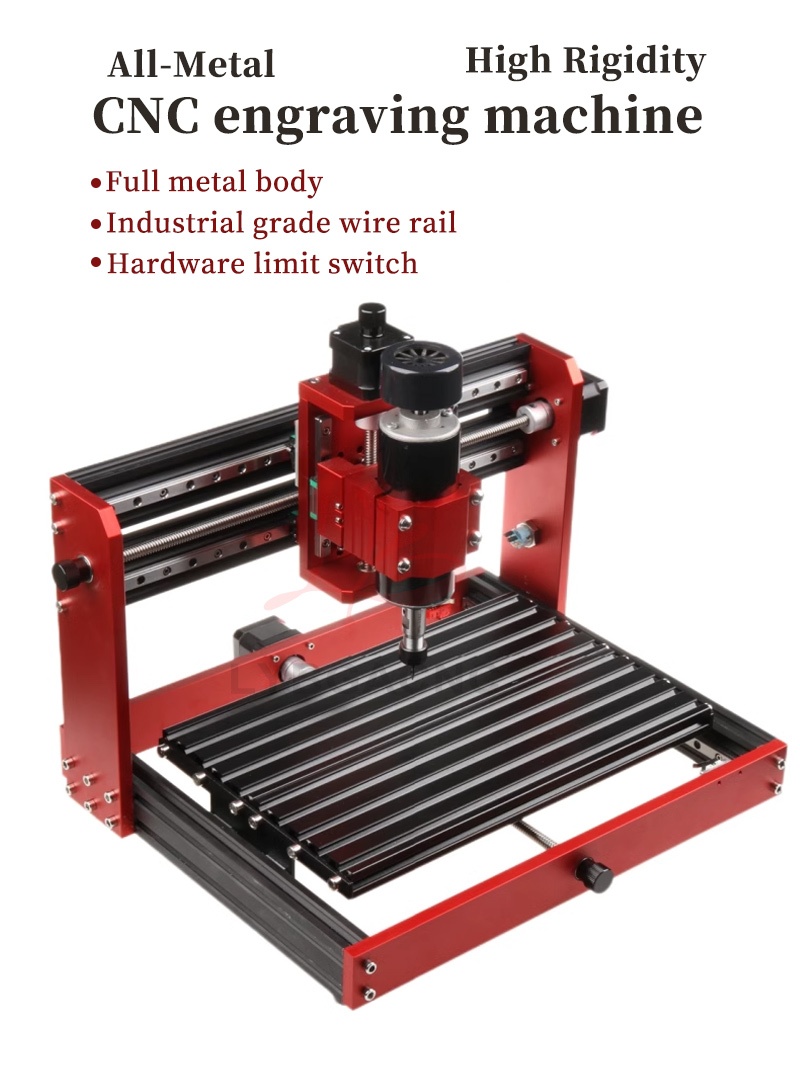

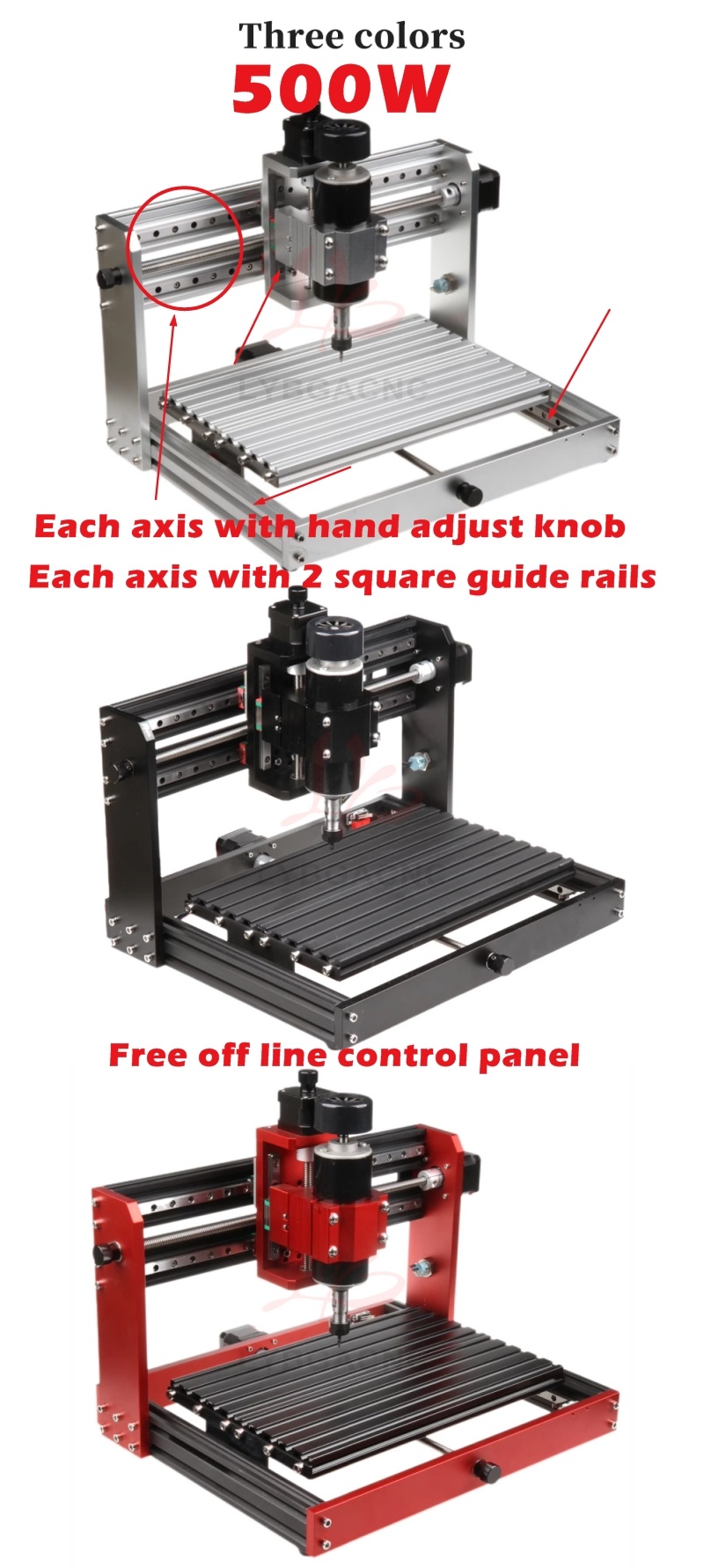

3020 Plus Advantages:
1.A set of accessories are all metal materials, higher steel, can also be used for processing some soft metal materials.

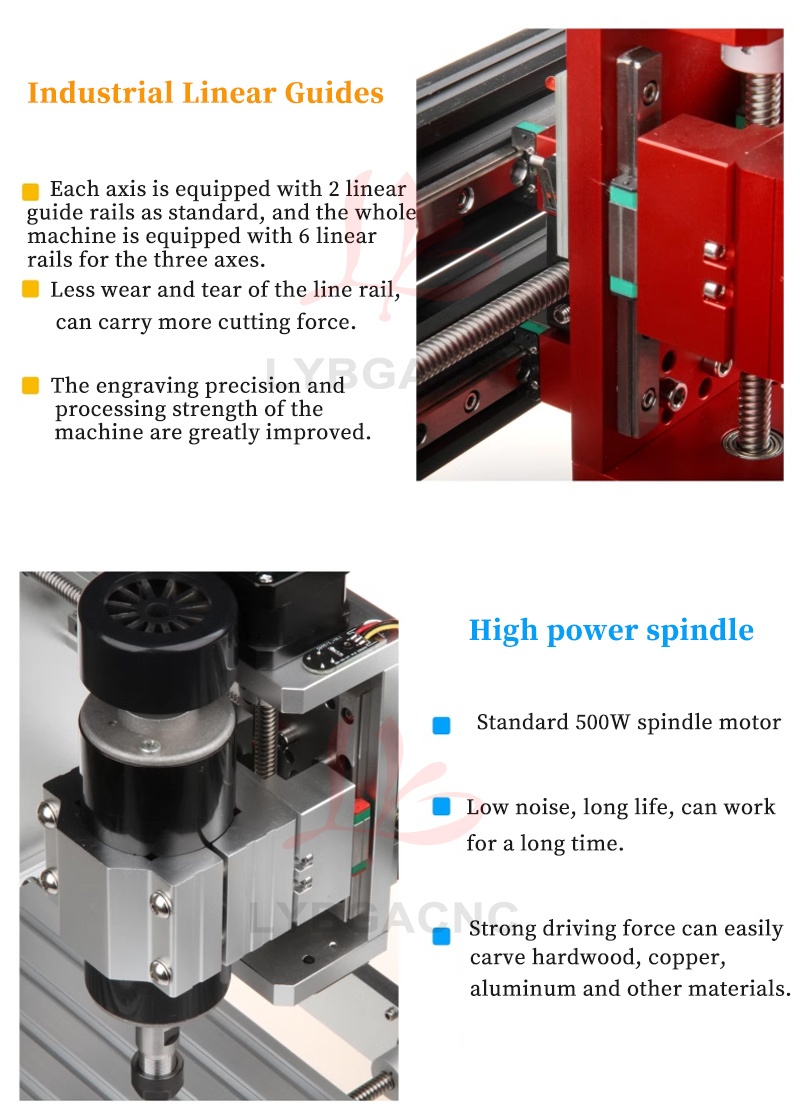

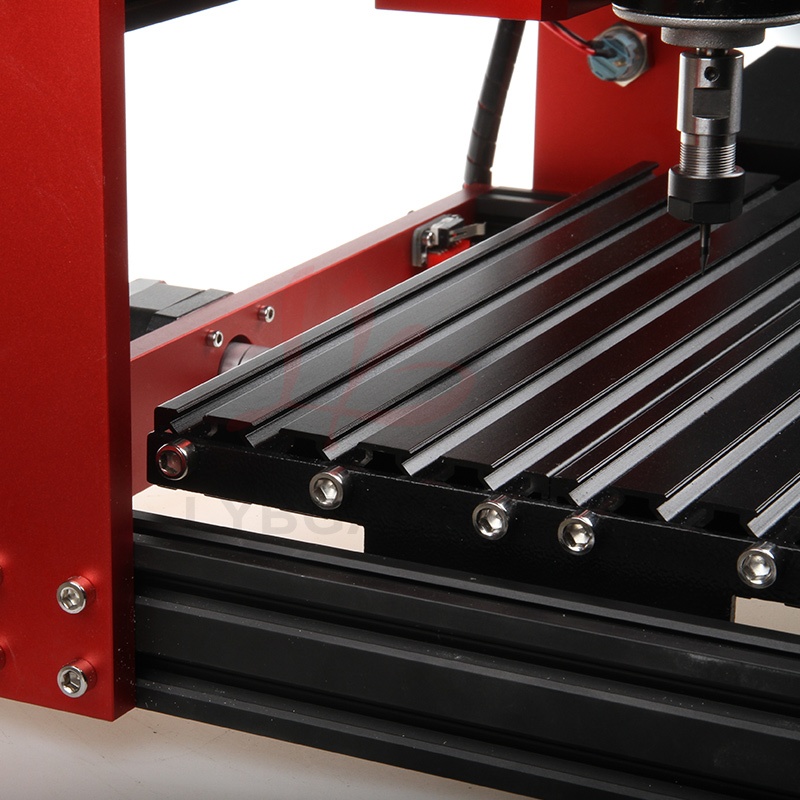

2.6 sets of 3 groups are industrial line rail structure, processing precision 0.05mm, higher precision.

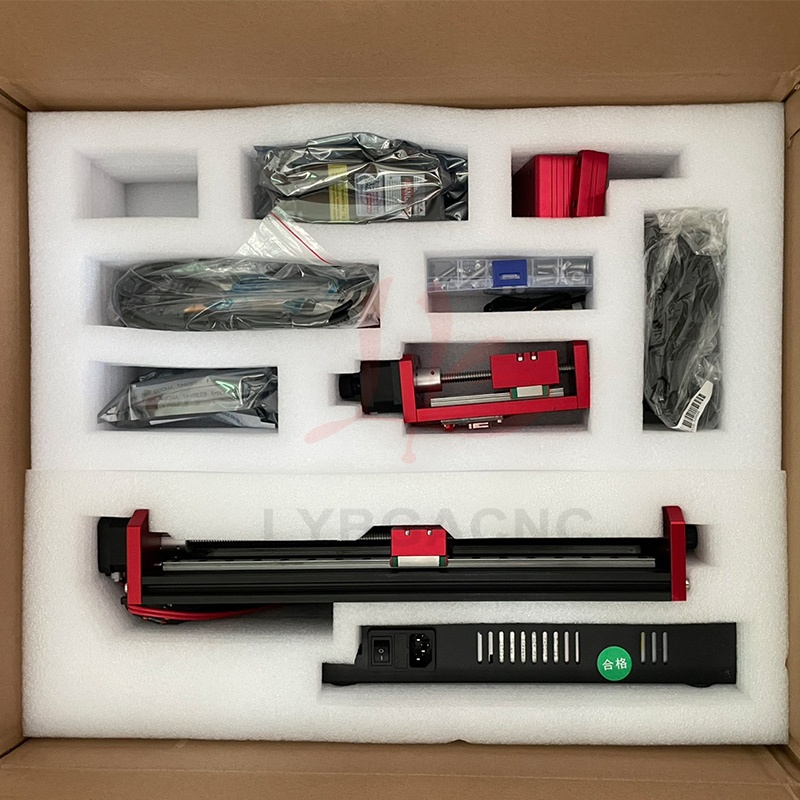

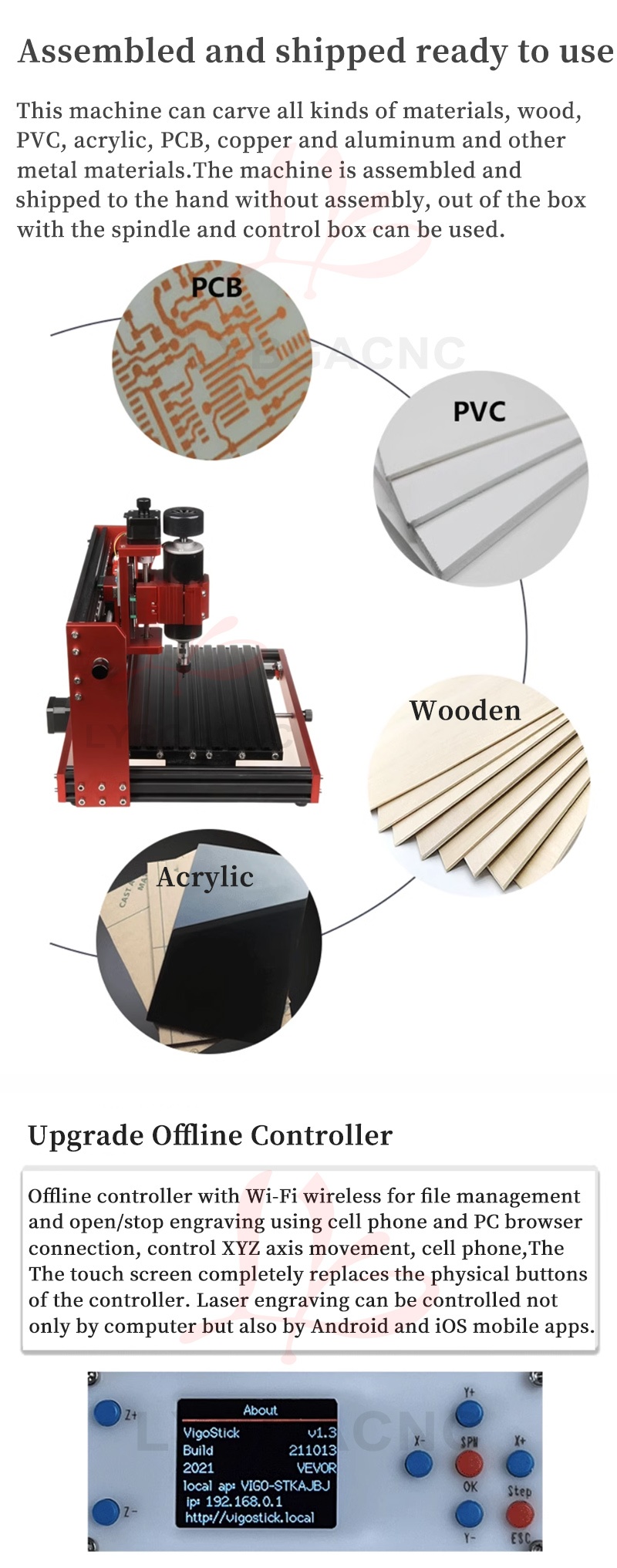

3. This is a finished machine assembled, with three colors to choose from.

4. Equipped with a separate electronic control box

5. High power motor 500W, higher efficiency.

CNC tool processing range:

1. Cutting tool engraving materials: wood, plastic, acrylic, resin, carbon fiber and other non-metallic materials. Aluminum alloy, copper, brass and other soft metals can be engraved.

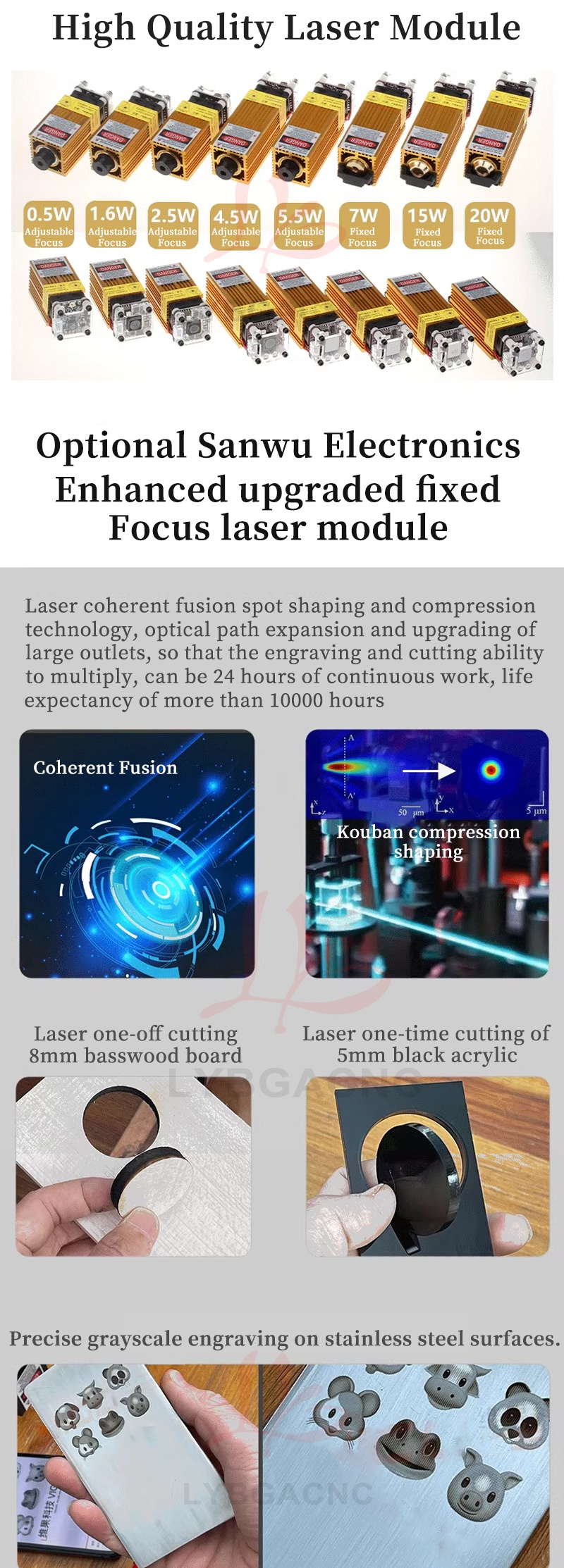

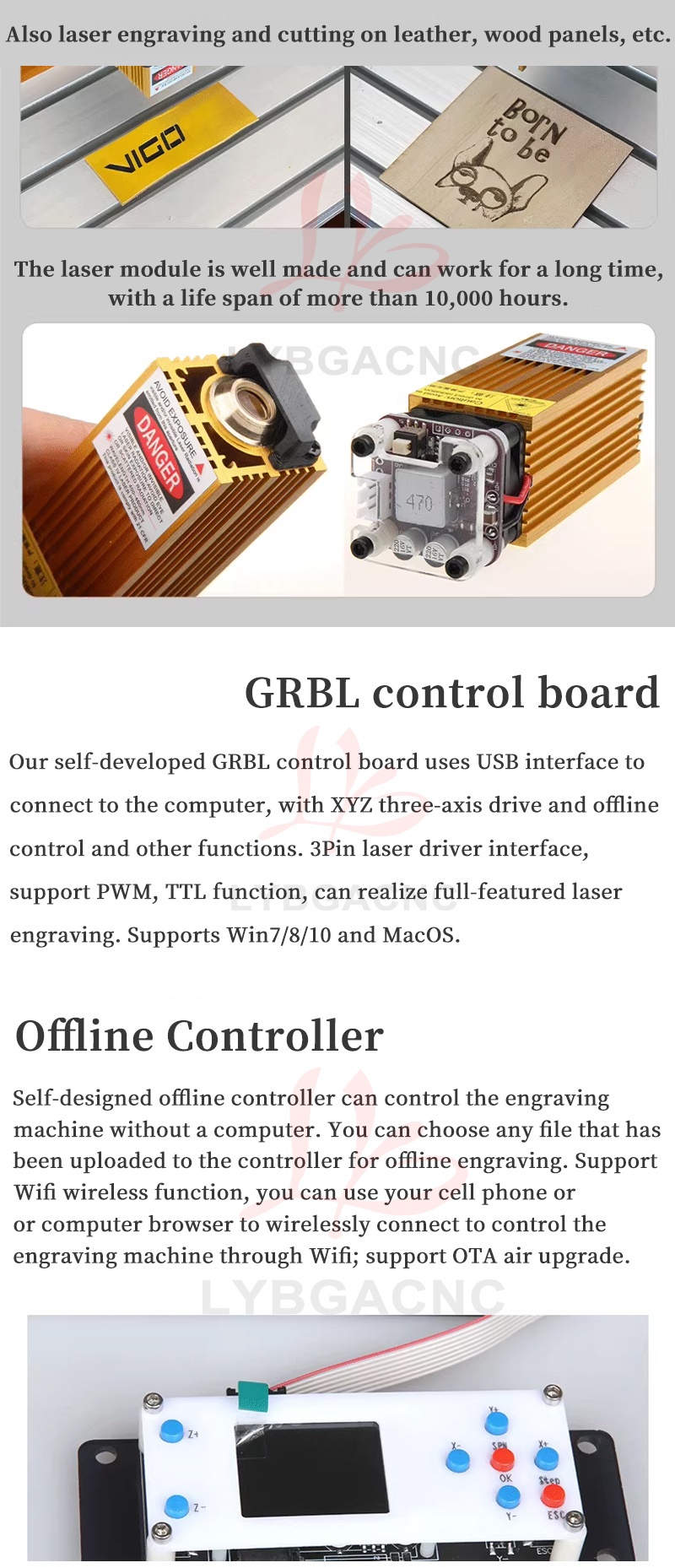

Laser engraving/cutting range: (For use with laser)

1. Laser engraving: wood. Paper, plastic. Leather, bamboo, dark colored pebbles, ceramic pieces, leaves, rubber, PVC, horn, bone, crab shell, ivory, resin, stainless steel and metal painted surfaces and other combustible materials.
2. Laser cutting: 40W

l  10mm or so: paper/leather/fabric/dark-colored compressed sponge; 2. 8mm or so light wood.

l  8mm or so: light wood (linden board).

l  8mm or so dark color opaque acrylic.

l  8mm or so dark-colored plastic, dark-colored PVC, etc.

Suggested engraving parameters:

1. Tool engraving parameters: feed F value, non-metal 300 ~ 500 mm / min, soft metal 50 ~ 100 mm / min, single undercutting step, non-metal 1 ~ 2 mm, soft metal 0.5 ~ 1 mm
2. Laser engraving parameters: combustible materials, speed 1000 ~ 2000 mm / min, power 30% ~ 100%, non-combustible materials, speed 500 ~ 1000 mm / min, power 70%6 ~ 100%
