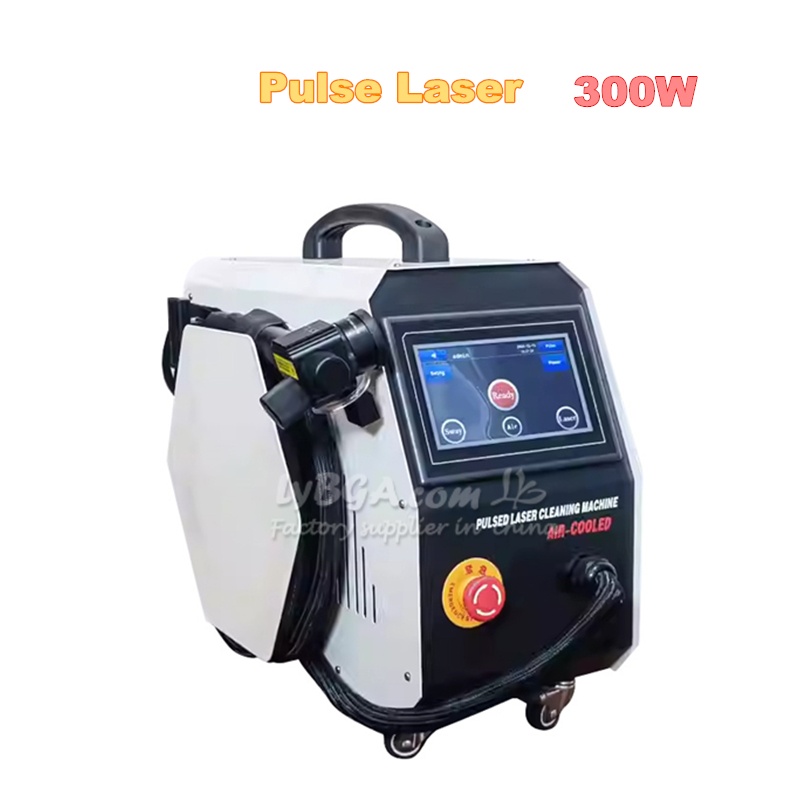

300W Portable Pulse Laser Cleaning Machine Air-cooled 200W Industrial Rust Removal Device Does not Damage The Substrate 100W Metal Cleaner For Oil Wood Gold Coatings Rust
Reviews(0)
Product Detail
Product Tags

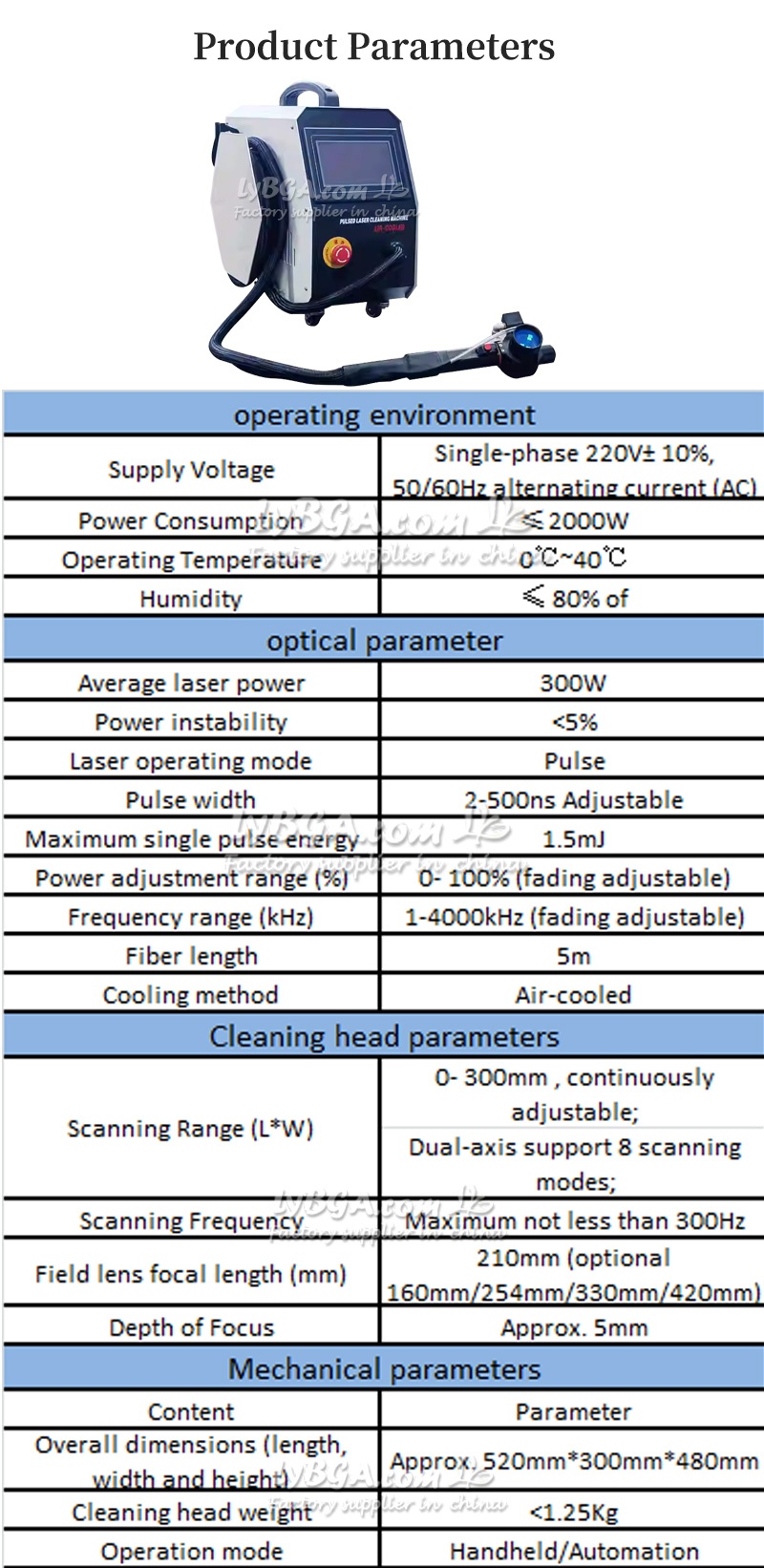

Equipment parameters
|
Operating environment |
|
|
Supply Voltage |
Single-phase 220V± 10%, 50/60Hz alternating current (AC) |
|
Power Consumption |
≤2000W |
|
Operating Temperature |
0℃~40℃ |
|
Humidity |
≤ 80% of |
|
Optical parameter |
|
|
Average laser power |
100W/200W/300W |
|
Power instability |
<5% |
|
Laser operating mode |
Pulse |
|
Pulse width |
2-500ns Adjustable |
|
Maximum single pulse energy |
1.5mJ |
|
Power adjustment range (%) |
0- 100% (fading adjustable) |
|
Frequency range (kHz) |
1-4000kHz (fading adjustable) |
|
Fiber length |
5m |
|
Cooling method |
Air-cooled |
|
Cleaning head parameters |
|
|
Scanning Range (L*W) |
0- 300mm , continuously adjustable; |
|
Dual-axis support 8 scanning modes; |
|
|
Scanning Frequency |
Maximum not less than 300Hz |
|
Field lens focal length (mm) |
210mm (optional 160mm/254mm/330mm/420mm) |
|
Depth of Focus |
Approx. 5mm |
|
Mechanical parameters |
|
|
Content |
Parameter |
|
Overall dimensions (length, width and height) |
Approx. 520mm*300mm*480mm |
|
Cleaning head weight |
<1.25Kg |
|
Operation mode |
Handheld/Automation |
Configuration list
|
Name |
Model Specification |
unit (of measure) |
quantity |
|
Laser cleaning main unit |
Table |
1 |
|
|
Laser cleaning head |
unit |
1 |
|
|
Process Database |
Built-in |
Sets |
1 |
|
Laser protective glasses |
SD-3 |
Sets |
1 |
|
Protective Lenses |
43*2 |
Piece |
5 |
|
Lens Cleaning Kits |
|
Pieces |
10 |
Detail page text

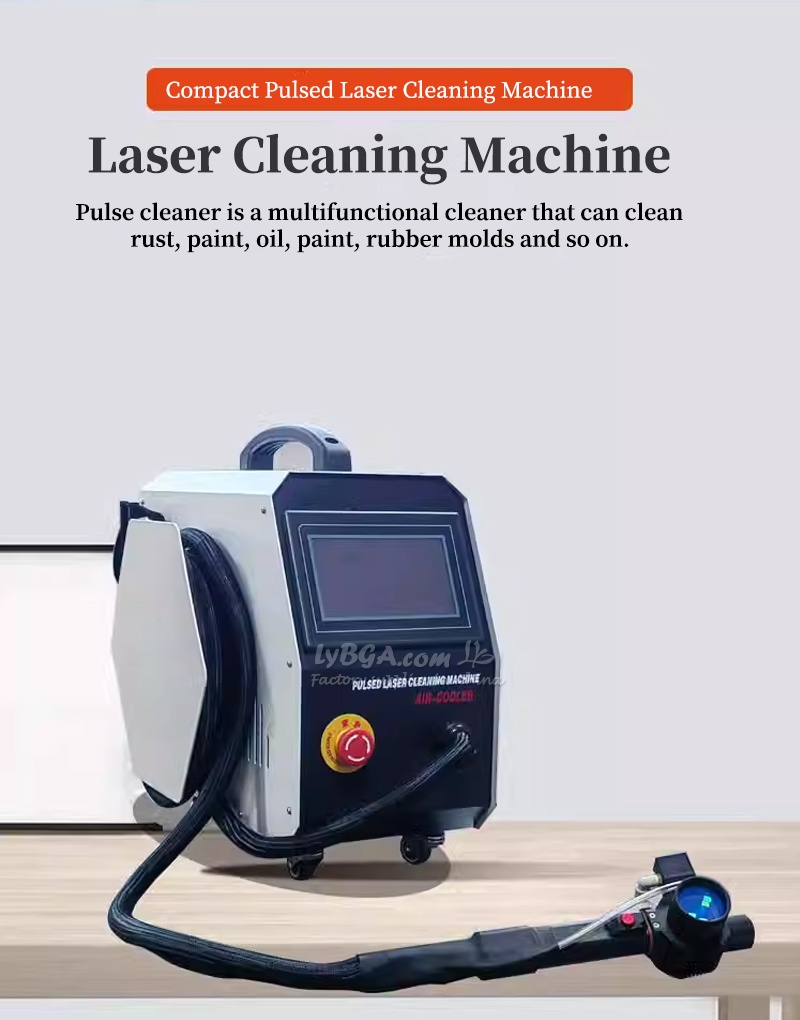

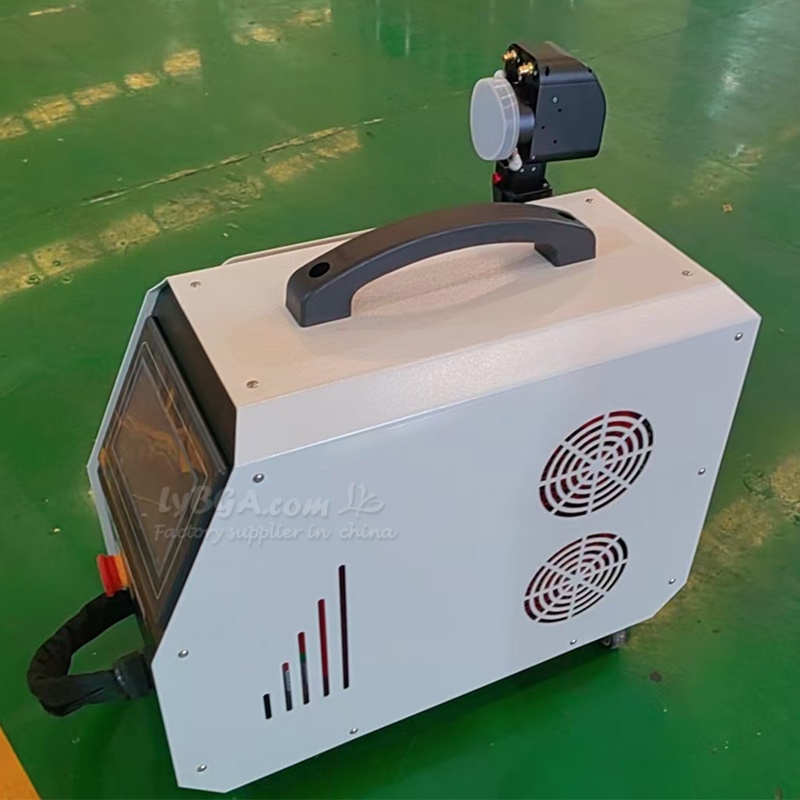

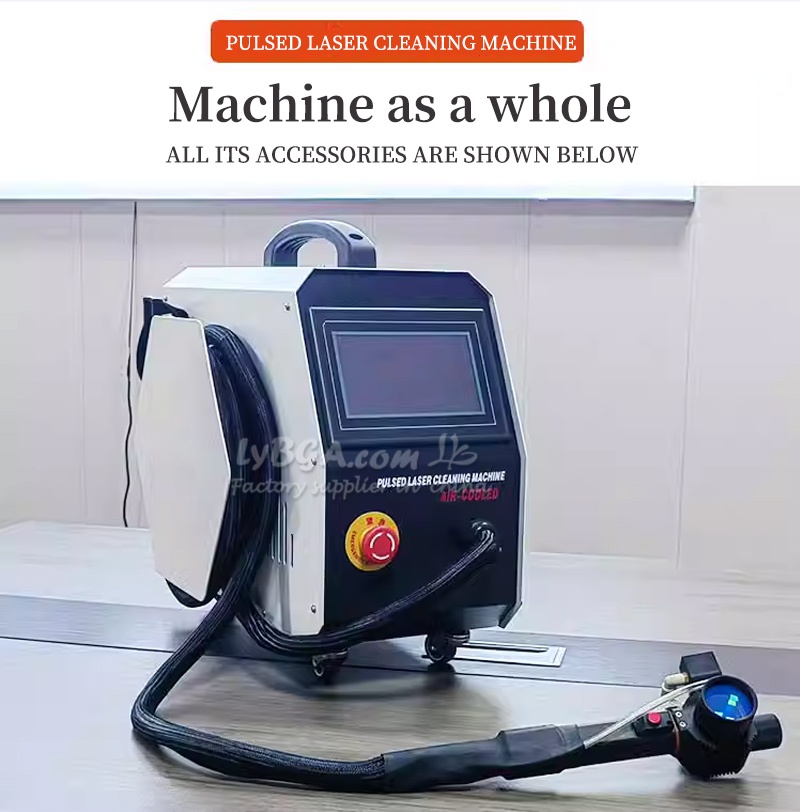

Compact Pulsed Laser Cleaning Machine
Pulse cleaner is a multifunctional cleaner that can clean rust, paint, oil, paint, rubber molds and so on.

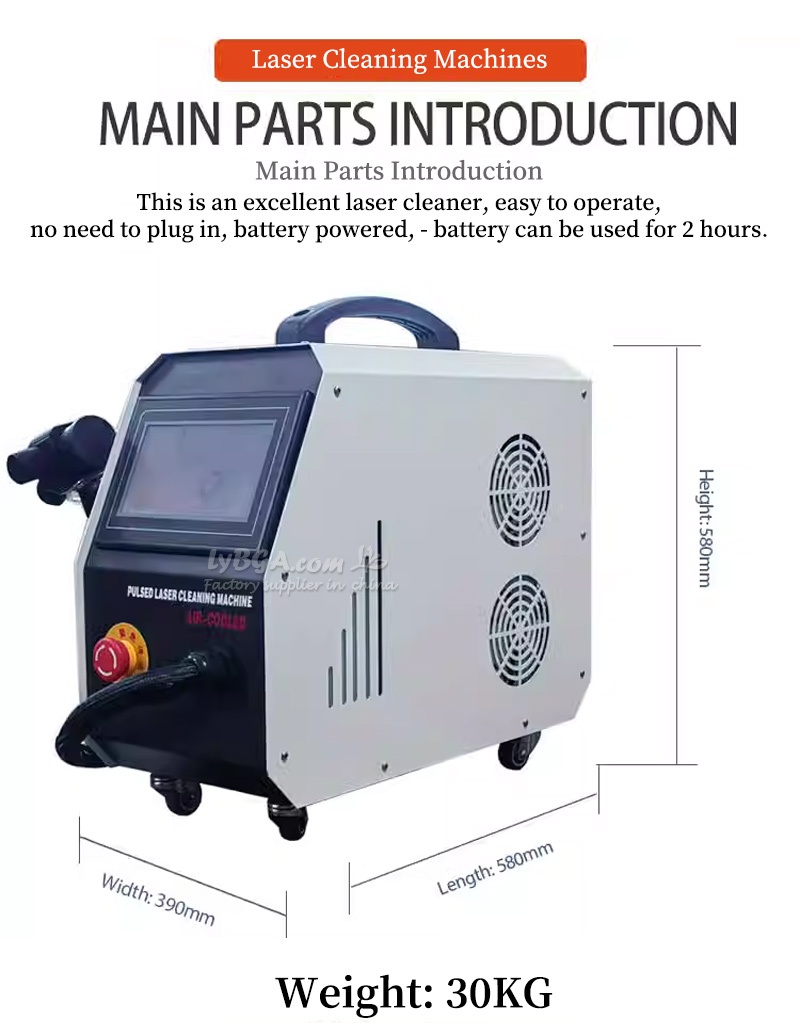

L*W*H: 580*390*480mm
N.W: 30KG

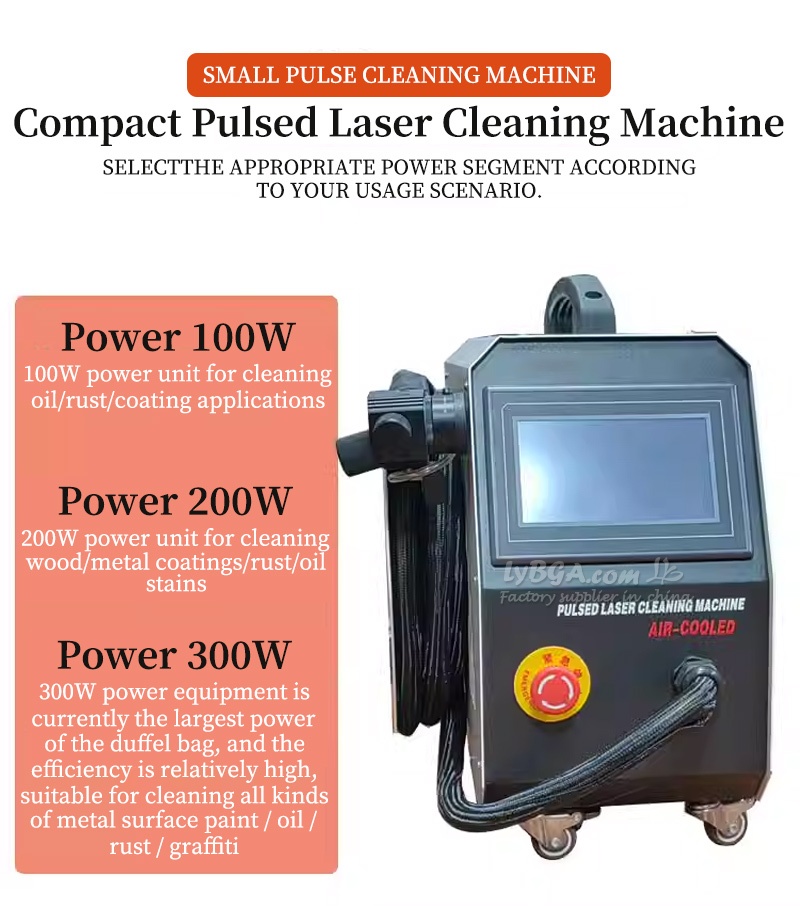

SELECTTHE APPROPRIATE POWER SEGMENT ACCORDING TO YOUR USAGE SCENARIO
Power 100W
100W power unit for cleaning oil/rust/coating applications
Power 200W
200W power unit for cleaning wood/metal coatings/rust/oil stains
Power 300W
300W power equipment is currently the largest power of compact, and the efficiency is relatively high, suitable for cleaning all kinds of metal surface paint/oil/rust/ graffiti
Usage Scenario
WE CLEAN RUST, PAINT, MOLD, ETC. THE EFFECT IS IN THE FOLLOWING PICTURE, YOU CAN CLEARLY UNDERSTAND ITS EFFECT.
1. Tire Mold Cleaning
2. Removing rust from iron plates
3. Shoe Mold Cleaning
4. Paint Cleaning

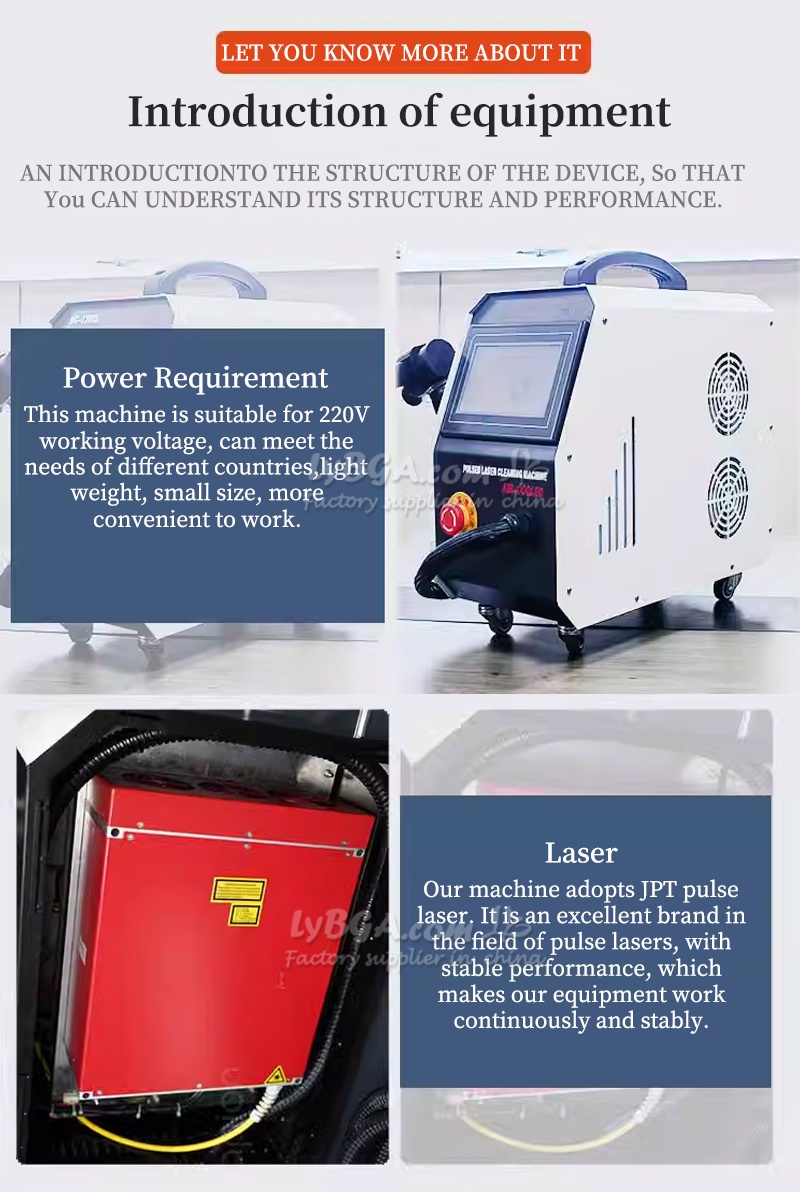

Introduction of equipment
Power Requirement
This machine is suitable for 220V working voltage, can meet the needs of different countries, light weight, small size, more convenient to work.
Laser
Our machine adopts JPT pulse laser, it is an excellent brand in the field of pulse lasers, with stable performance, which makes our equipment work continuously and stably.

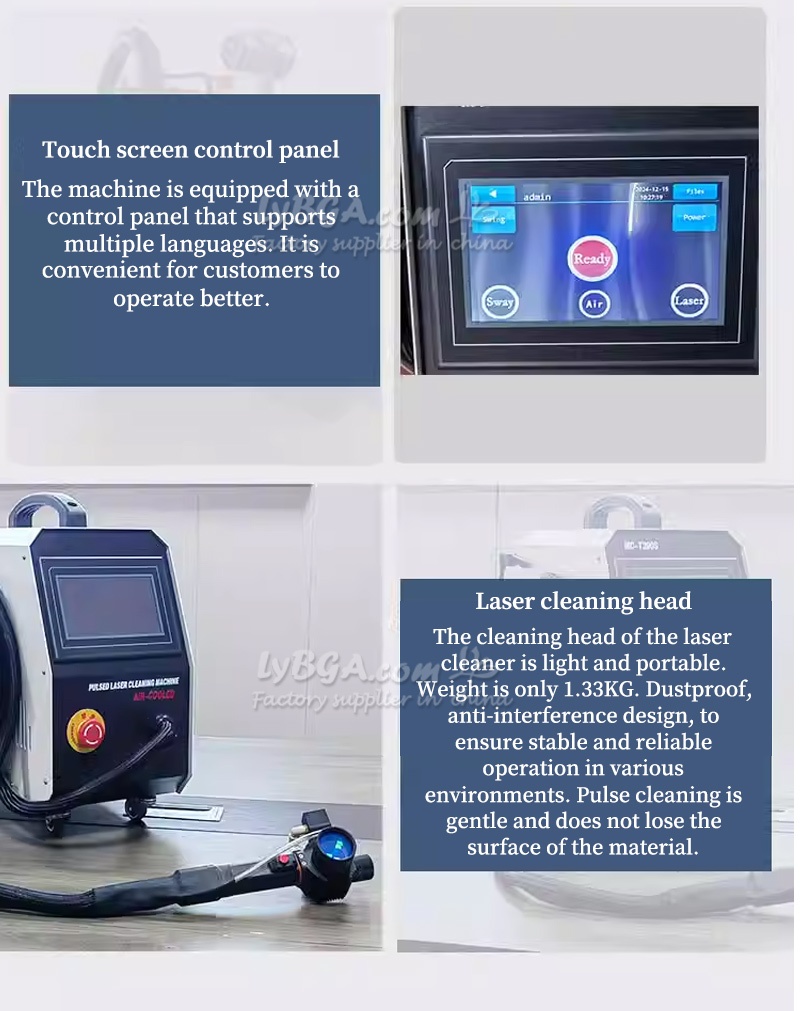

Touch screen control panel
The machine is equipped with control panel that supports multiple languages. It is convenient for customers to operate better.
Laser cleaning head
The cleaning head of the laser cleaner is light and portable. Weight is only 1.33KG. Dustproof, anti-interference design, to ensure stable and reliable operation in various environments. Pulse cleaning is gentle and does not lose the surface of the material.
Thanks for your order!

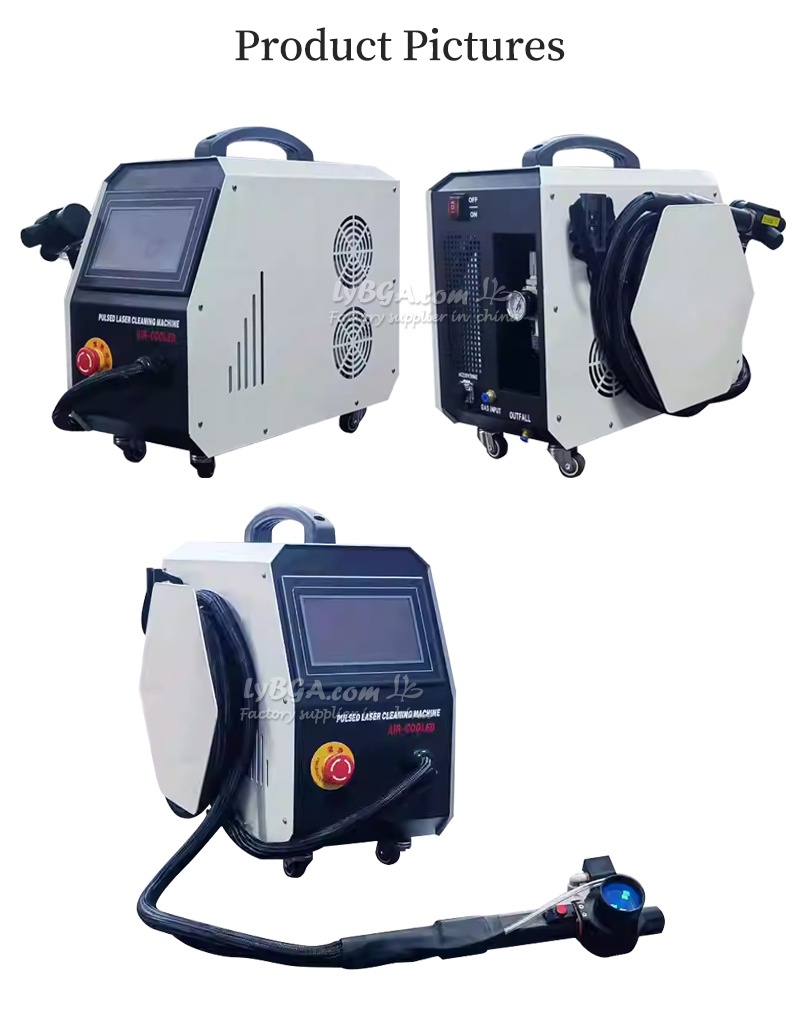

Product Pictures
