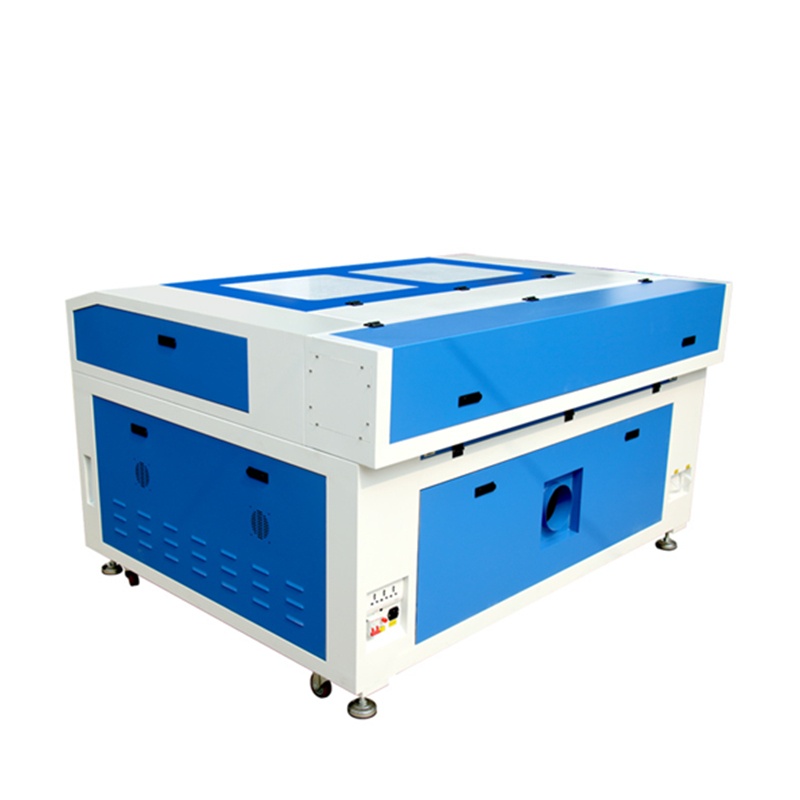

LY DSP1390 USB CO2 Laser Engraving Cutting Machine RUIDA Touch Screen Offline Working System RDC6445G Optional  Water Chiller CW3000 CW5000 Auto Focus Linear Guide Rotary Axis Support Laser Cutter Engraver

LY DSP1390 USB CO2 Laser Engraving Cutting Machine RUIDA Touch Screen Offline Working System RDC6445G Optional Water Chiller CW3000 CW5000 Auto Focus Linear Guide Rotary Axis Support Laser Cutter Engraver

item ID: 68736
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$6000 USD$3338 (% off)
Payment

Product Detail

Product Tags

LY DSP1390 USB CO2 Laser Engraving Cutting Machine RUIDA Touch Screen Offline Working System RDC6445G Optional  Water Chiller CW3000 CW5000

Auto Focus Linear Guide Rotary Axis Support Laser Cutter Engraver

(RE: Optinal features not included in standard kit,if customer want to get more upgrade features, just leave message to us,we will send new quotation after checked adding cost.)





About shipping:



Russia and EU Buyes FREE TAX!!!



1/ We will ship this machine to Moscow by Toanda from China, and transfer to you from Moscow by Russia local shipping company with door to door shipping way. the machine will be deliveried to your home.

the delivery time is usually 20-40 days. and no tax fee by this way!



2/ Germany/  France/ Spain/ Italy/ Poland/Austria/ Belgium/ Czech Republic/ Denmark/ Lithuania/ Bulgaria/ Estonia/ Greece/ Romania/ Slovenia/ Croatia/ Luxembourg/ Finland/ Ireland/ Portugal/ Sweden


All above country buyers free tax!!!


We will ship the machine to EU by traincontainer, and we will pay the tax for you, please leave me your address, i will check the shipping cost and give you the best price.

3/ For other countries: We will ship from China by sea to your sea port, CIF terms.

(If you want EXW price, please contact us.)







Why buy from us?

*We order all our products directly from factory, no agents,no middle man, which guarantee the lowest prices for our customers.
*We have some stocks in Ontario ,Dallas ,New Jersey warehouse
*We are looking for distributors USA, Australia ,EU countries and some area around the world, contact us for more detail.
*For group buy for schools and club purchases up to a certain amount, we will offer a great discount.
*Customers can choose to join our membership program for reward points or discounts and we offer VIP sales or events for our members.





Feature

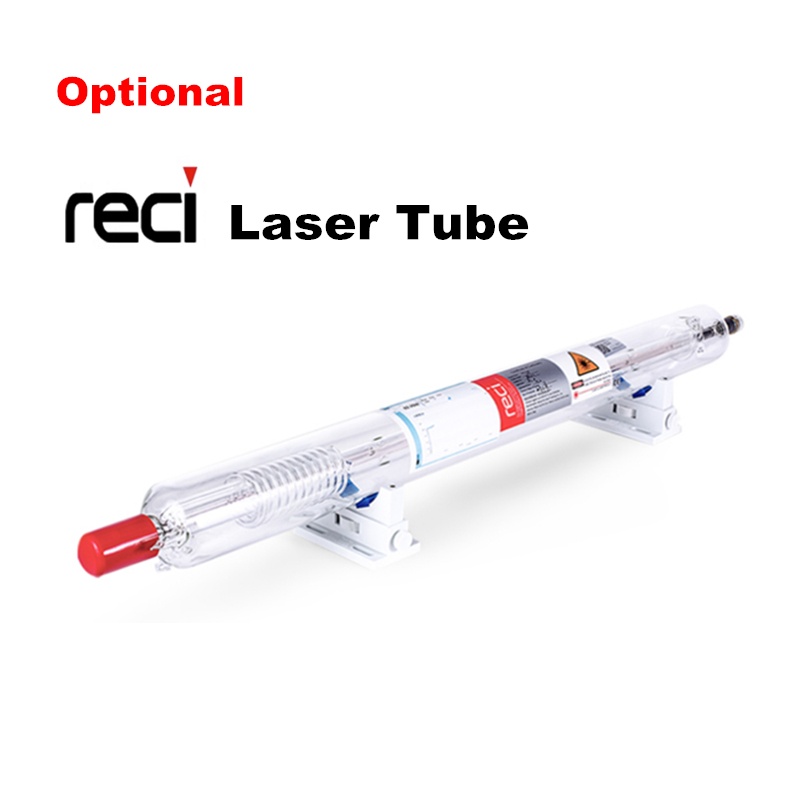

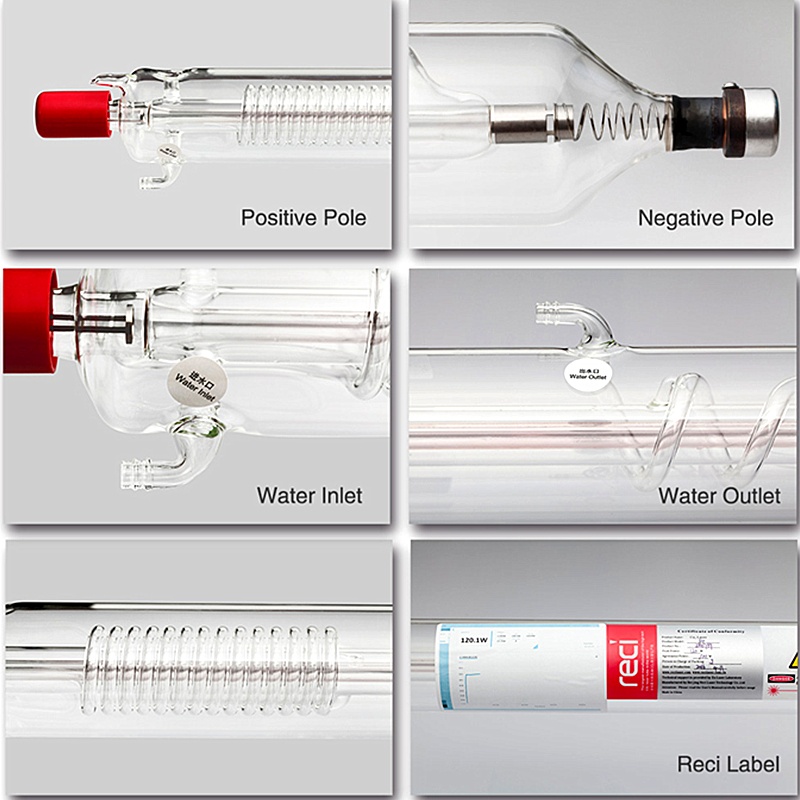

• NEW! 60/80/100/130/150/180W Laser tube, More power for working!!!
• NEW! 1300*900MM working area, Meet the requirements of different size materials!!!

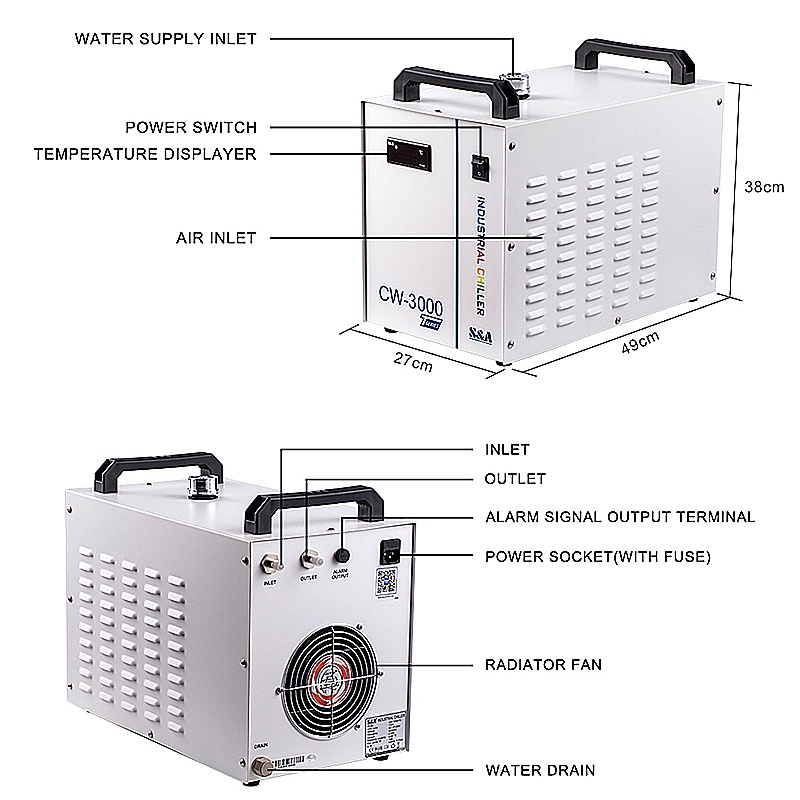

• NEW! Water Chiller w/pump CW-3000/5000 keeps water flowing thru CO2 Tube at ambient temperature!!!

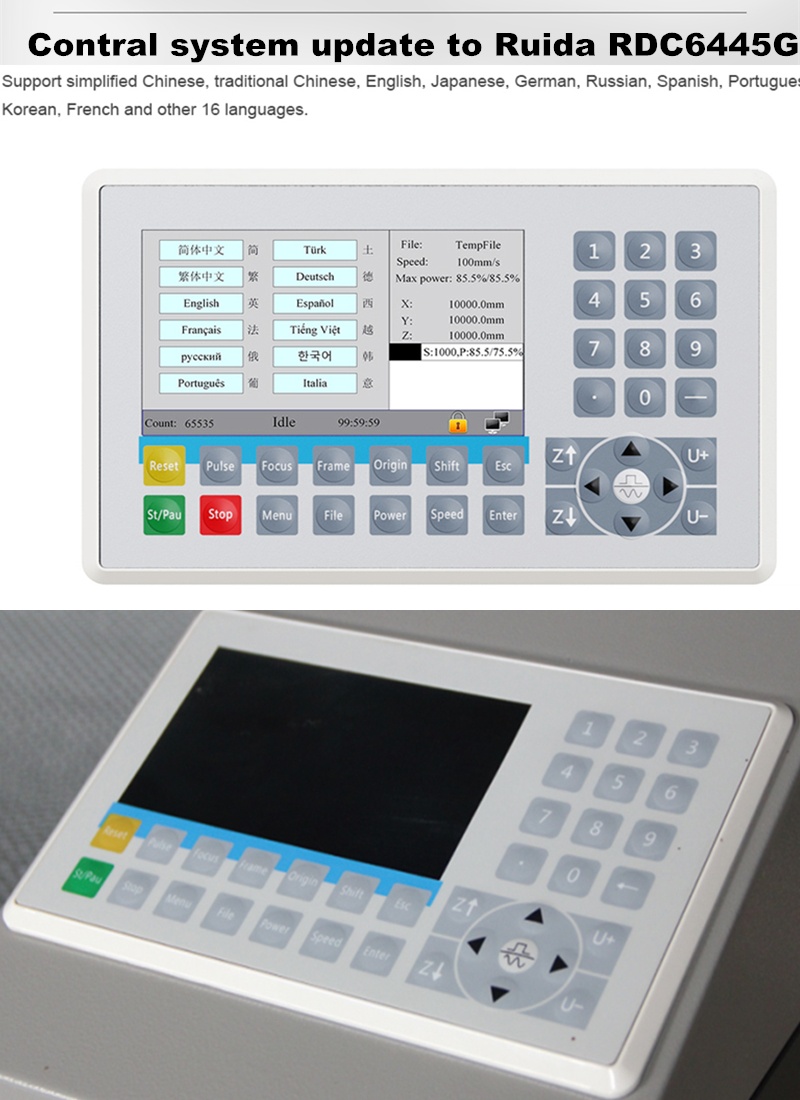

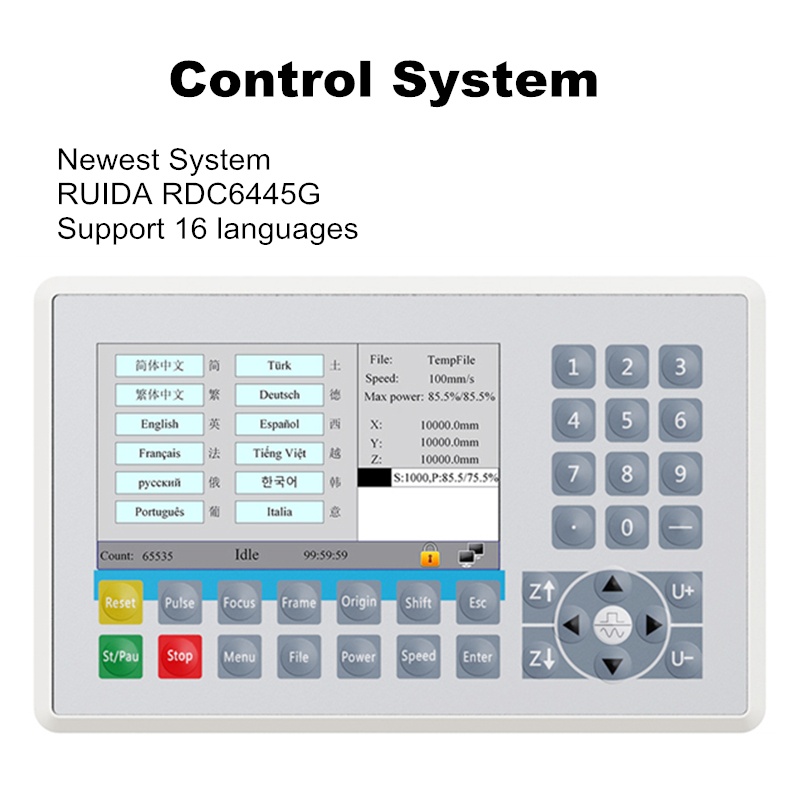

• NEW! System upgraded toRDC6445G Touch screen 5 inch control

• NEW! Inline Beam Combiner precisely illuminates a red dot over the material for improved accuracy and alignment!!!
• NEW! Emergency Stop Button!!!

• More friendly control panel with Color Screen
• Separation of cutting up to 256 Colors

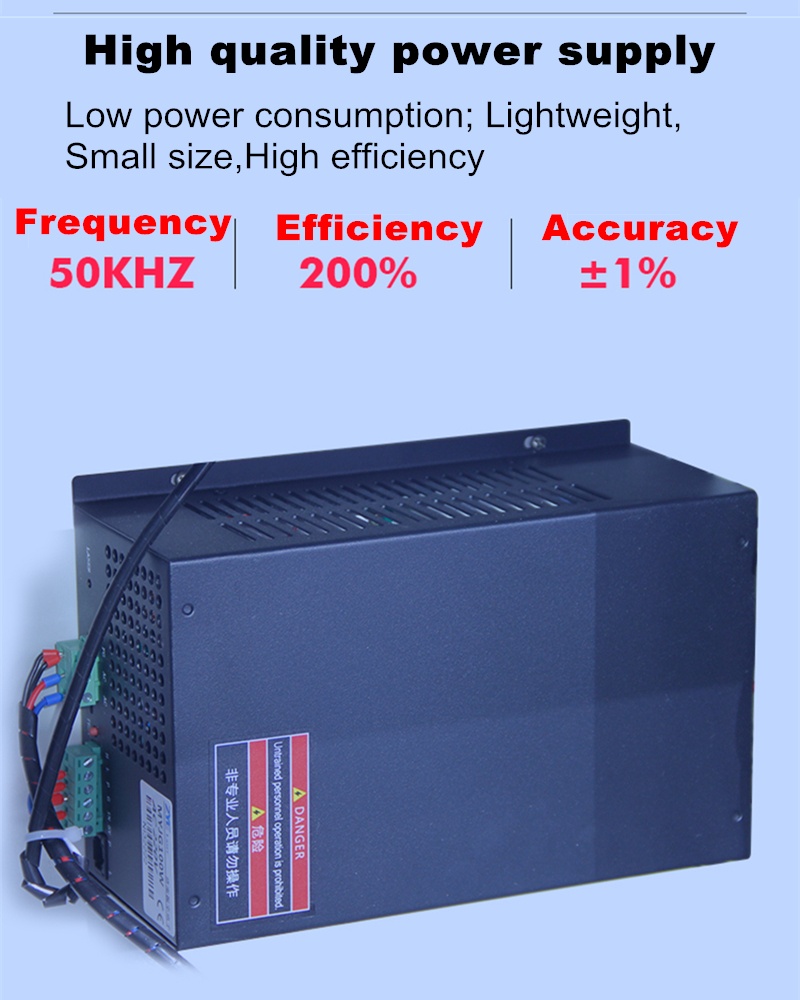

• Adopt advanced DSP digital control system, international standard laser power supply, integrated framework style
• Illuminated LCD panel for automated laser head control
• Motorized Z-Table lowers for larger materials
• Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
• USB Interface, U-Flash Disk Supported, Machine will read files from memory stick, you can work even without a PC.
• Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
• Embedded Exhaust Fan, Easier install, Safer transport.
• Drag – and – chain transmission line
• Laser focal length: 5CM

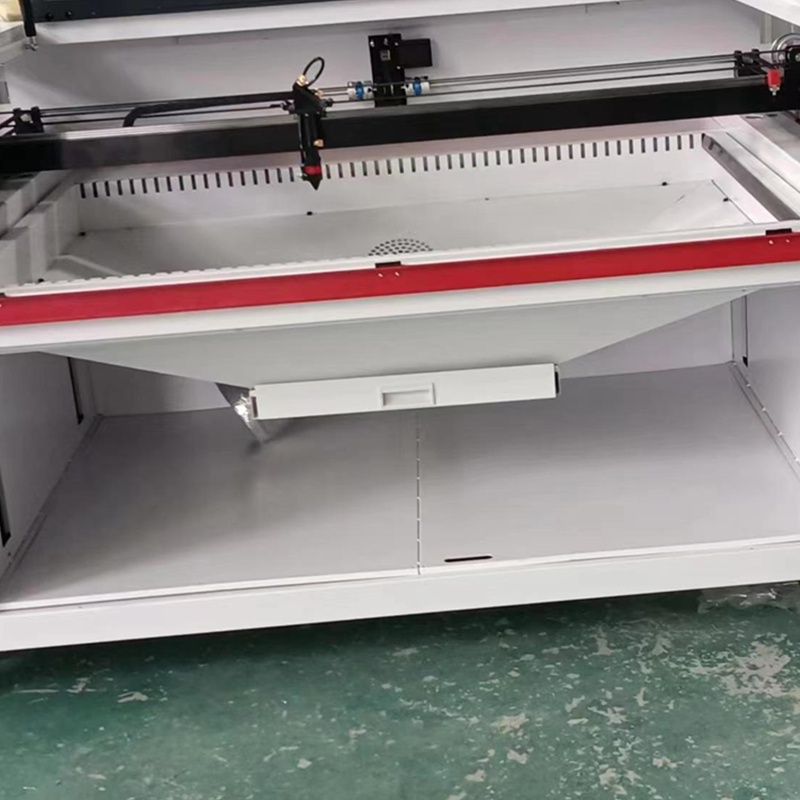

• Convenient vacuum table under the Z-table collects finished product into sliding tray
• Aluminum knife platform included for securing maximum material capacity
• Machined parts in stock for long term service and reliability

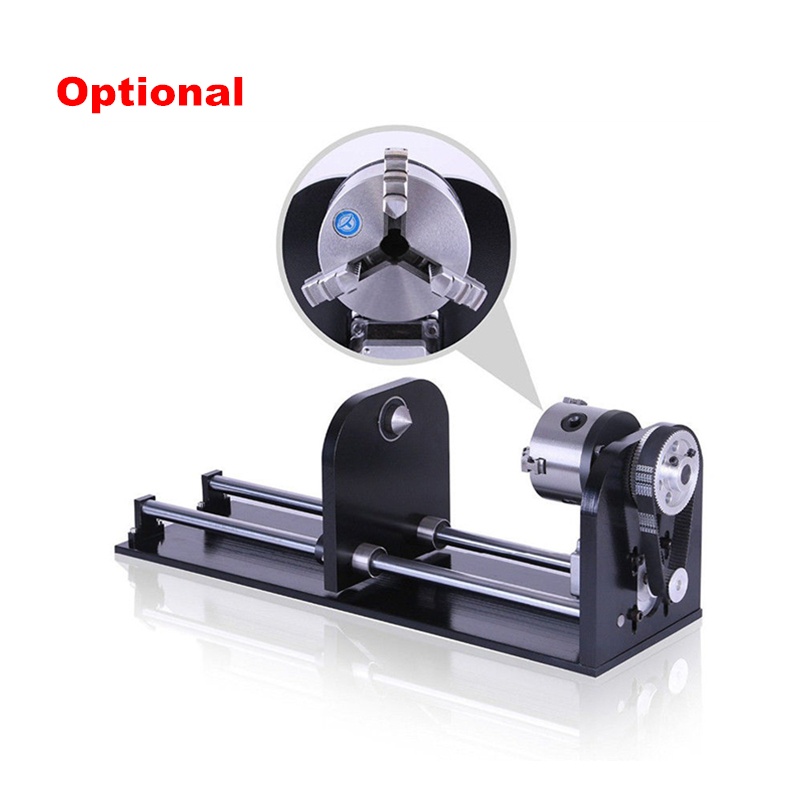

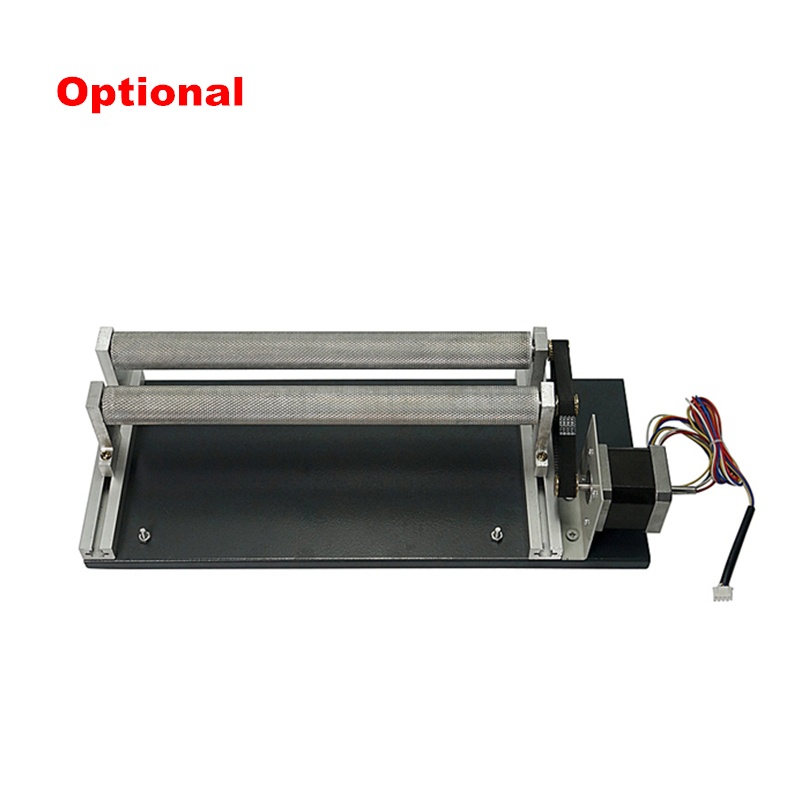

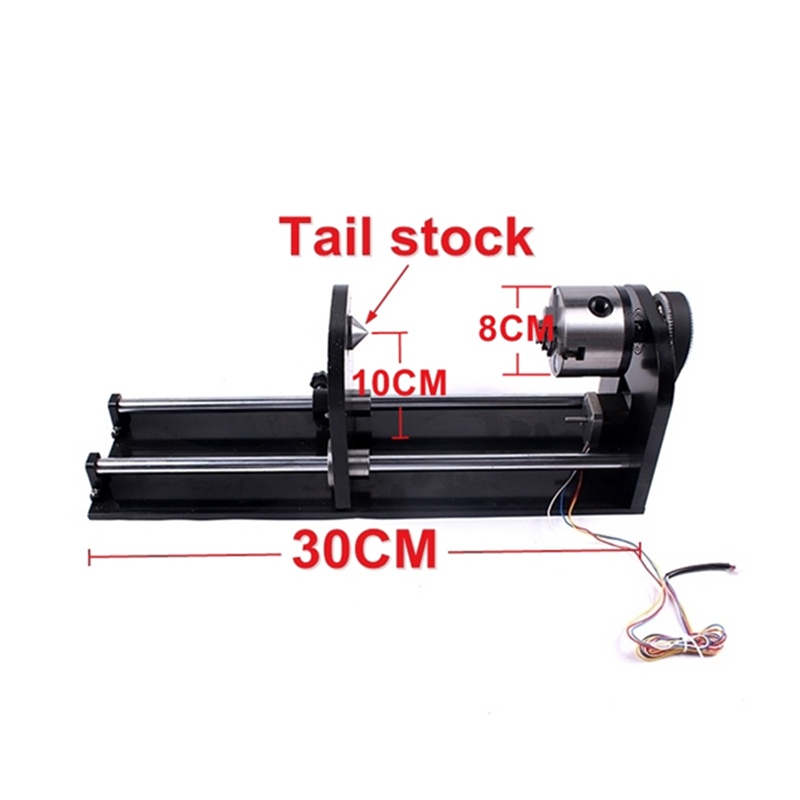

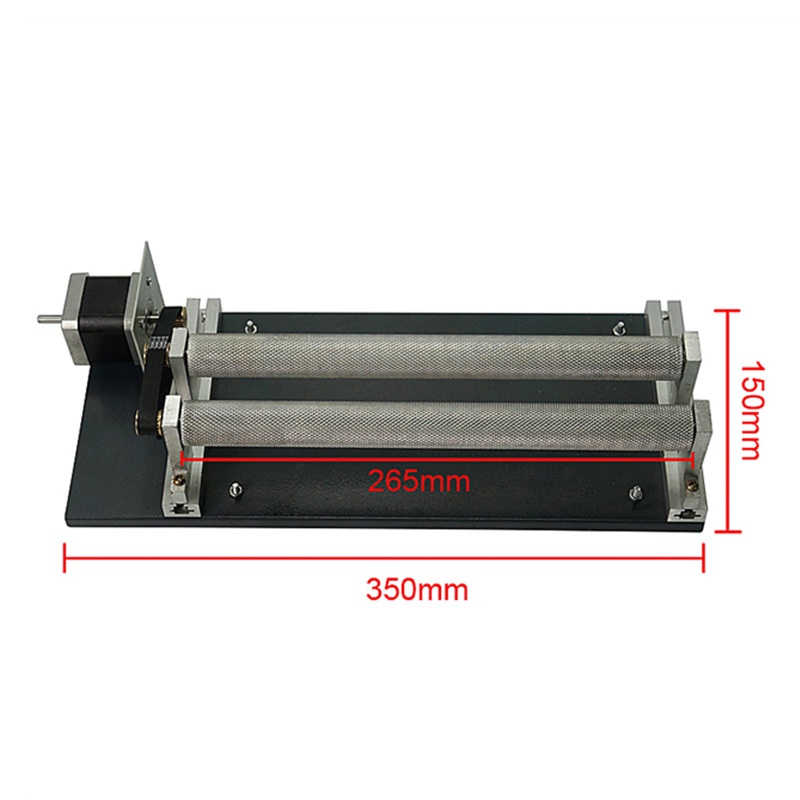

• Roller attachment for etching cylindrical objects
• Dedicated technical support from qualified service technicians and engineers
• Free Lifetime Tech Support via. phone, email, chat, or remote computer access
• Machine service life: 7200H at least for laser tube, 5-8 years for machine body
• 1-Year Warranty covers parts replacement

Parameter:

Laser type :CO2 laser engraving machine

Total power <1000W
Laser power : 60W/80W/100W/130W/150W/180W

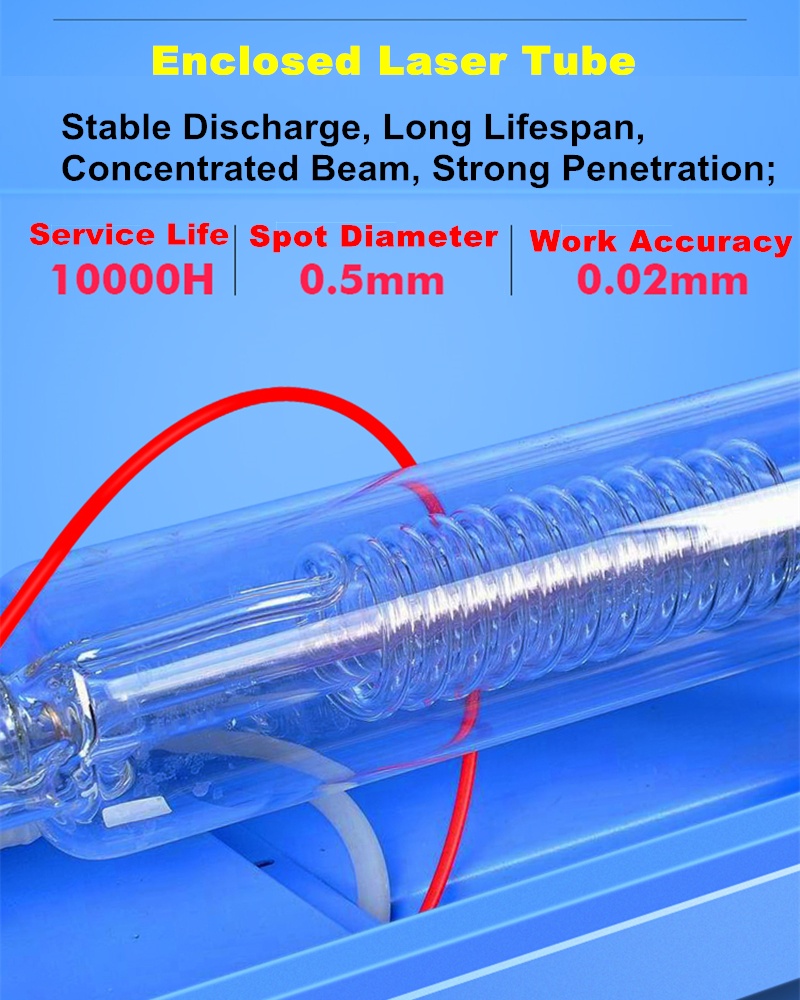

Laser tube working time :7000-10000 hour
Power supply : AC 220V/110V
Working area :900*1300 mm
Engraving depth :0-30 mm (different material differ)
Cutting depth :0-20 mm (different material differ)
Engraving speed :0-1000mm/s (different material differ)

Cutting speed :0-300mm/s (different material differ)
Lifting platform :0-200 mm Honeycomb Worktable
Locating precision :± 0.1mm
Min shaping character Character: 1mm
Working temperature :5℃-45℃
Working humidity :5%-98%

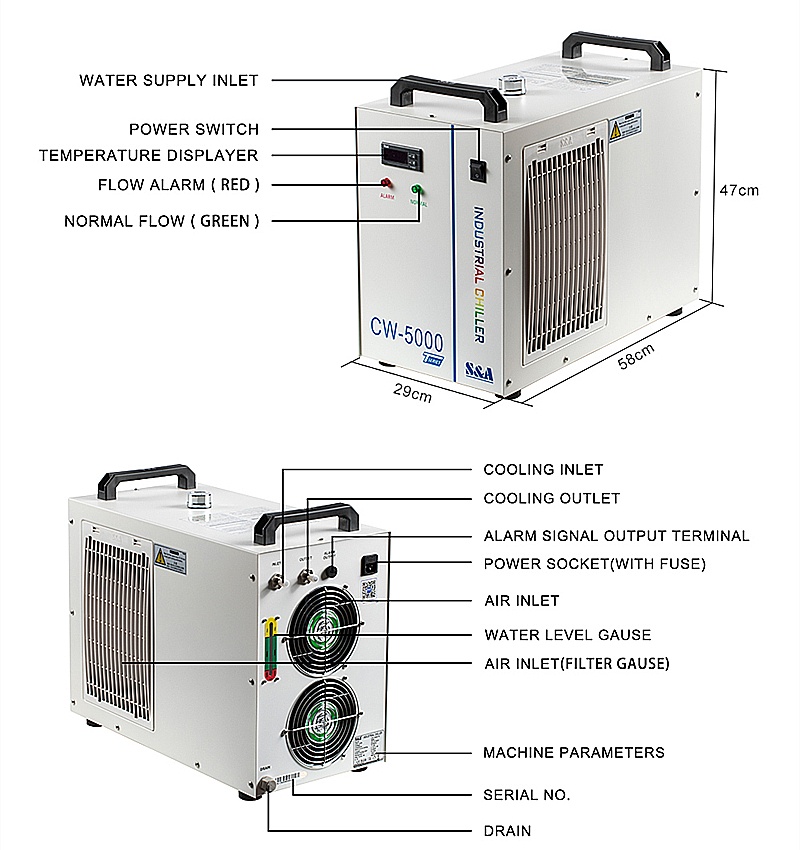

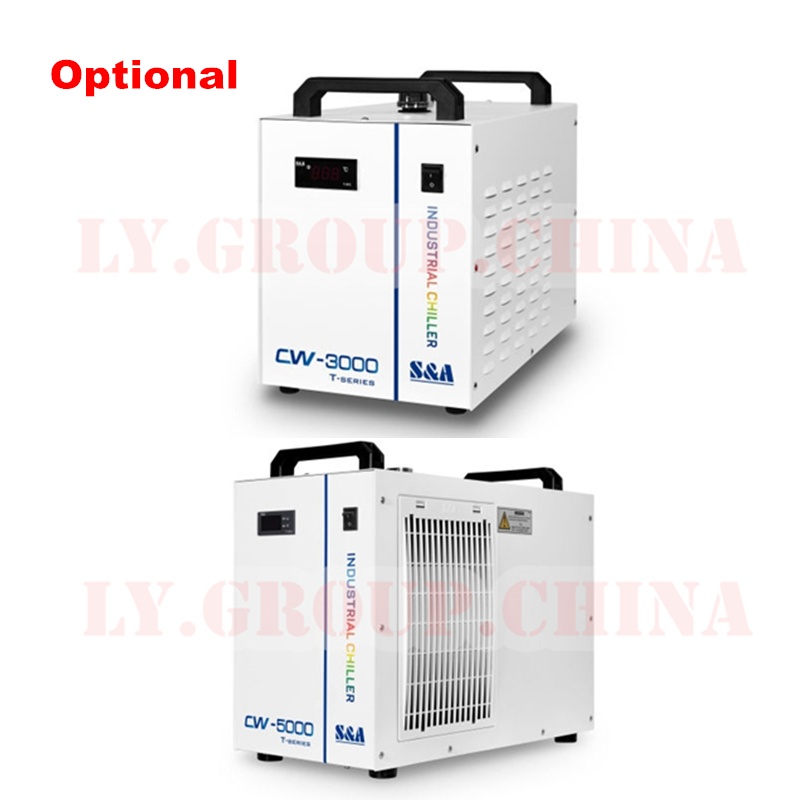

Cooling : Optional Water Cooling and protection system with CW3000/CW5000 chiller
Graphic Format :Supported BMP,PLT,DST,DXF,Al

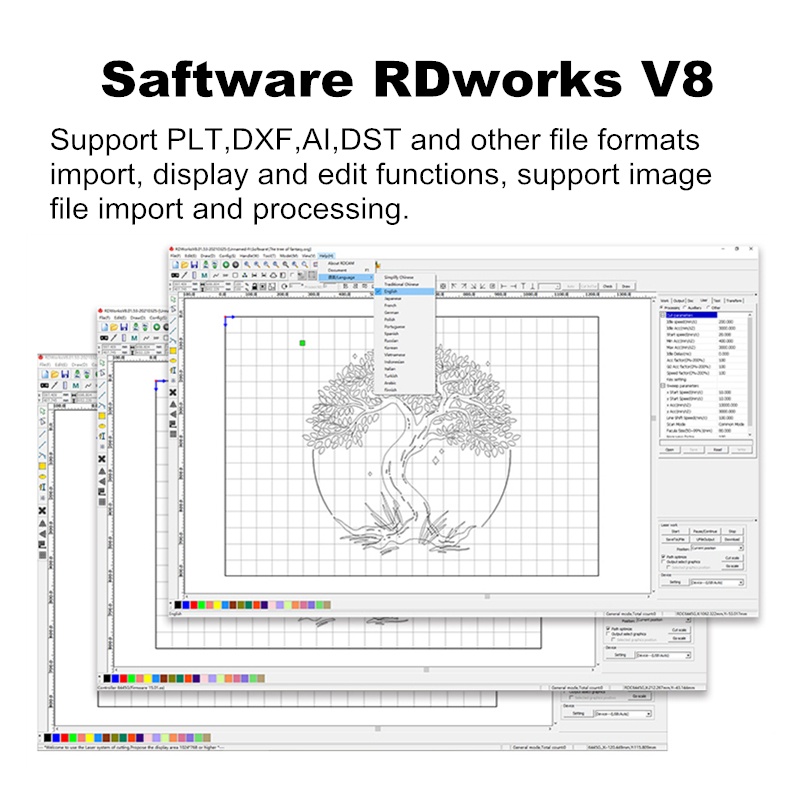

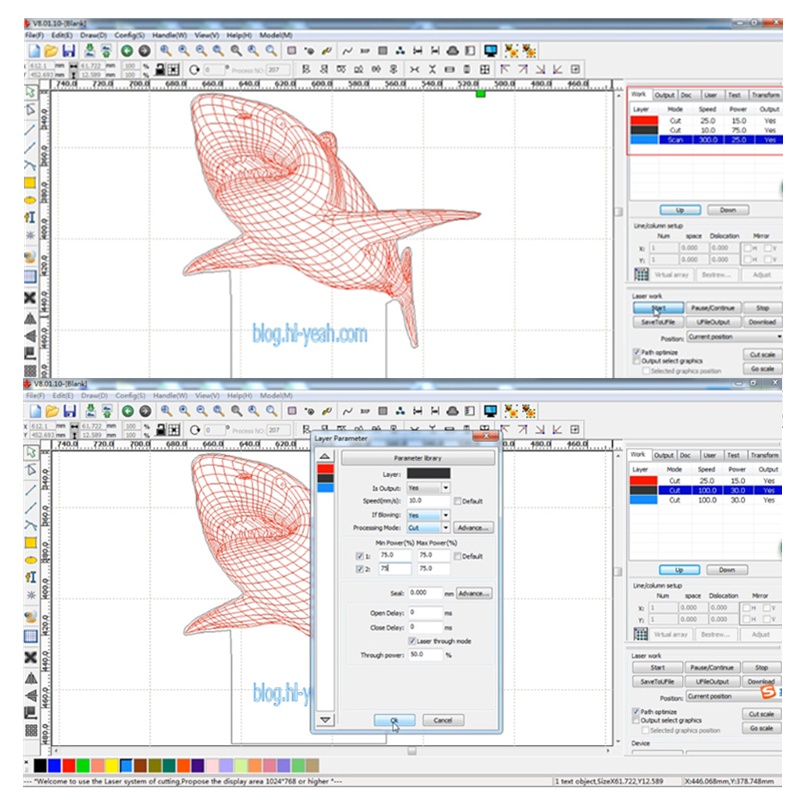

Work software :RUIDA works (RDworks)
Color separation :Yes
Auto-focus: Optional
Protection :Emergency stop button and Stop working when water broken

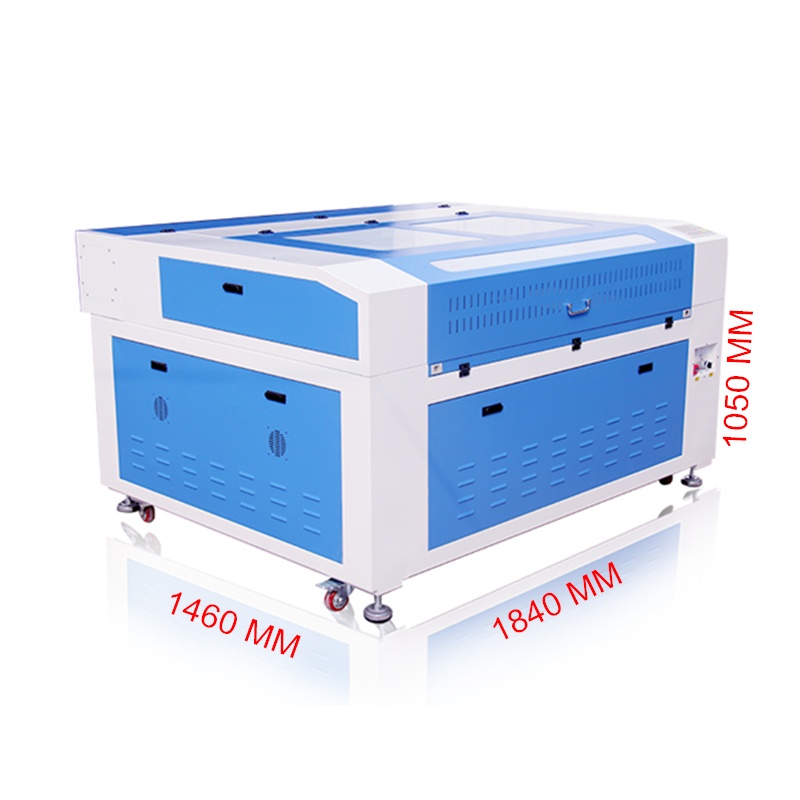

Machine Dimensions :1840*1460*1050 mm

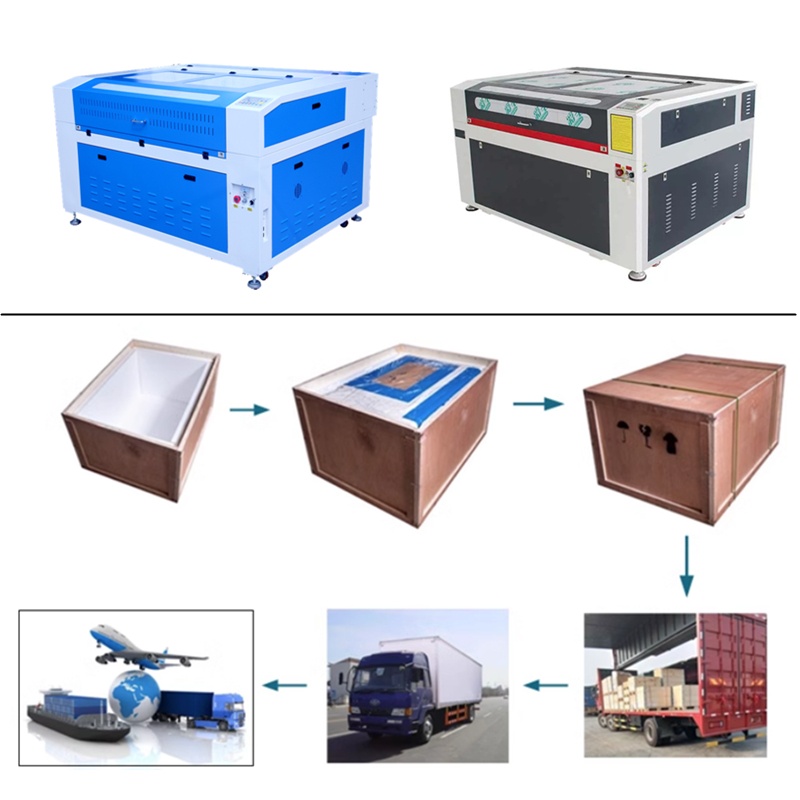

Machine Package :Wooden box with foam inside
Package Dimension :210*155*125cm
Gross weight :380KG
CW-3000/5000 Chiller Package :Carton box with foam inside
Package dimension :63*53*35CM
Package weight :30KG

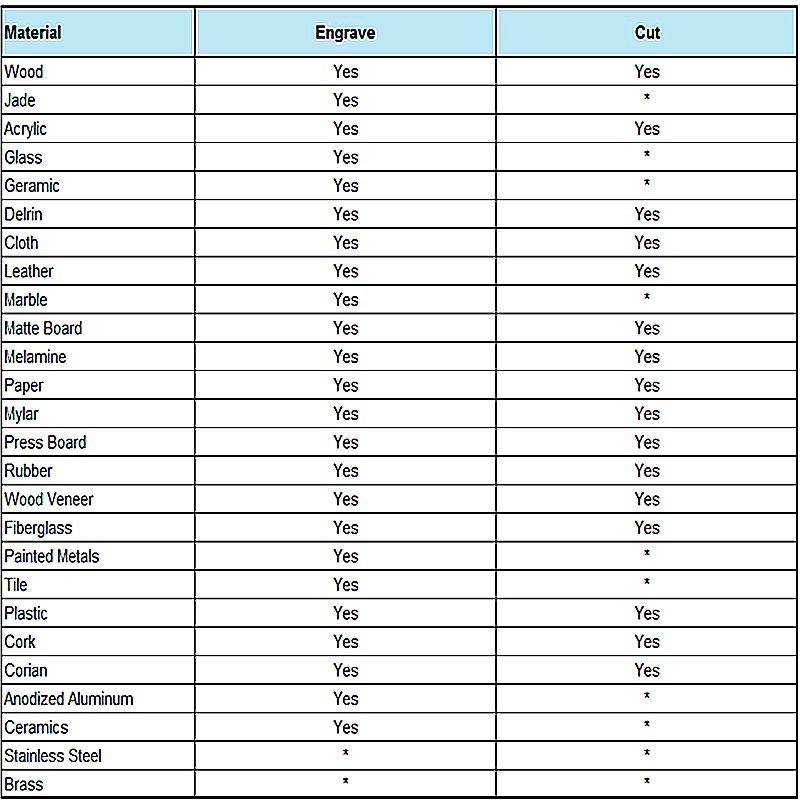

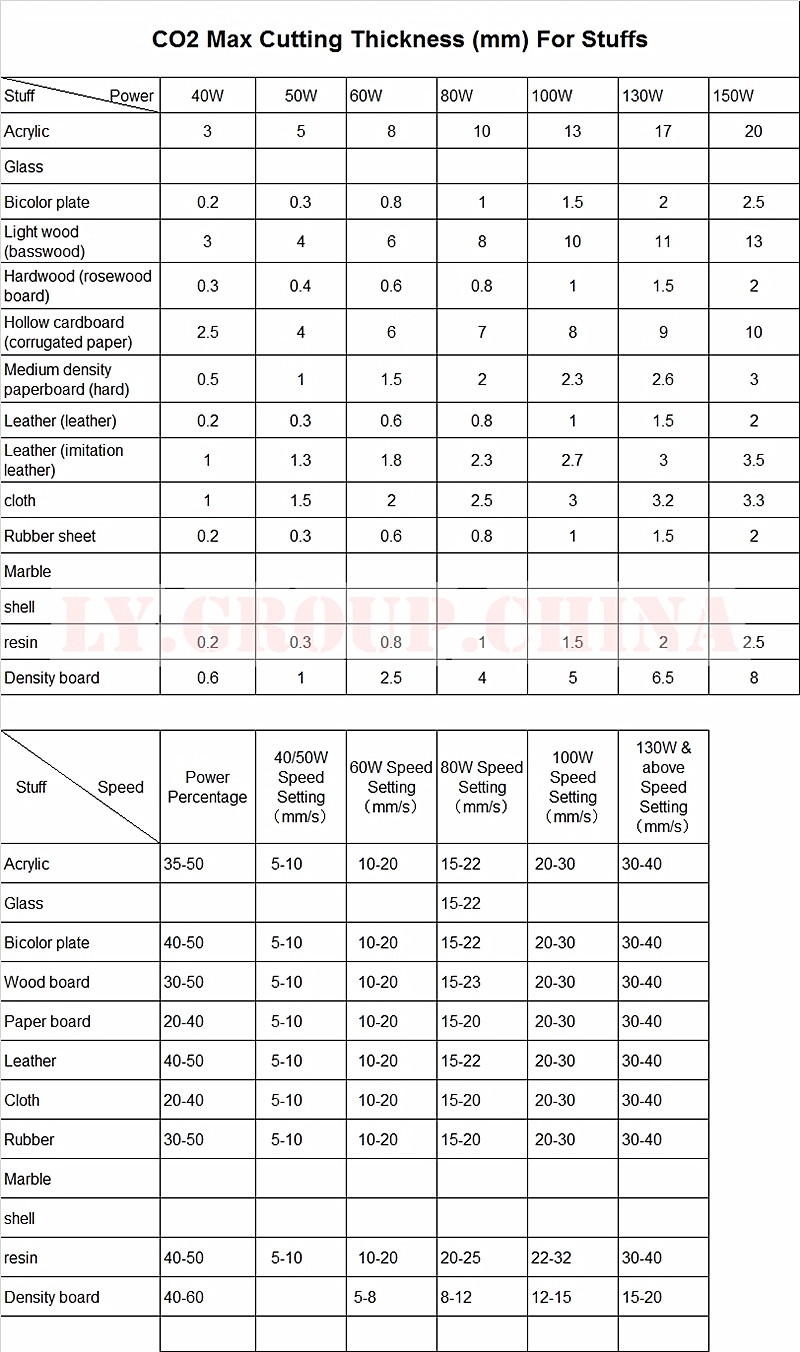

About the material ( “*”means you have to use a spray called “thermark” to spray the surface of the material and then you can mark on)







Q&A:

Q: I am fresh man to the machine. Can I buy it?

A: Machine is always required to setup/install(NOT ready to use). You are suggested to buy only when knowledge base is qualified.



2. Q: I have received my machine but it is too difficult to setup. Can I return it?

A: Yes, return is accepted. Buyer need to pay return shipping charge and bear 25% of purchase value as restocking fee.



3. Q: Do you solve hardware&software issue?

A: The product was tested PASS before shipping. After delivery, we assist you to solve problem. Buyer is responsible for parts replacement. We disclaim computer compatible issue is covered by warranty.



4. Q: I received my machine but box was seriously damaged so machine was heavily damaged. What can I do?

A: If machine was received heavily damage, we will pay for return shipping cost. Please don’t worry.



5. Q: I received my machine but I found tiny deformation on side panel. What can I do?

A: In this case, please check/test whether the machine works in order. If so, we send some gifts in small value. On the other hand, if machine doesn’t work in order, buyer was asked to take a video and we send replacement parts. Buyer is responsible for parts replacement. Return is NOT accepted for such reason. We send some gifts in small value



6. Q: I receive my machine but it doesn’t work in order for parts/accessories are broken. What can I do?

A: I will send parts/accessories for free. Buyer is responsible for parts replacement. Please don’t worry. Return was NOT accepted. We send some gifts in small value



7. Q: I receive my machine but product appearance different to photo in listing (like panel, switch, pump, fan…) can I return it?

A: Manufacturer own the right to change/upgrade the product without notice. If product works in order, return was NOT accepted. We send some gifts in small value . If appearance was concerned, please kindly ask us to take photo before shipping.



8. Q: I receive my machine with a lot of scratches. It is used one. Can I return it?

A: The machine was economic solution to business. Appearance was not care too much. It is NOT used, just born with a lot of scratches. Return is NOT accepted. If you mind it, please consider it before bidding.





After-sales service process :

1/ After-sales service contains:
a.    Machine installation and adjustment
b.    Software Settings and using (not include G code programming)
c.    Machine quality problem
d.    the machine using problem

2/ When the machine have problem:
a.    Machine problem pictures or video is asked.
b.    General problem solve way will be supplied in 1~2 days,
       Complex problem solve way will be supplied in 2~3 days.

3/ General problem solve way: (Machine warranty is 1 year)
a.    Machine operation and installation problem, we will supply video or pictures to show you.
b.    Machine quality problem, machine parts will be resent free.
