A03 type manual filling machine Hand pressure filling machine Paste filling machine Liquid filling machine

A03 type manual filling machine Hand pressure filling machine Paste filling machine Liquid filling machine

Equipment Model: A03 type (paste liquid dual)

Introduction to equipment:

A03 manual paste liquid filling machine with piston structure, the liquid, paste and other materials 0-50g quantitative filling. It can be filled with liquid, fluid food, lubricants, shampoo, shampoo cream and other liquid material, with a paste liquid filling machine function. Applicable to medicine, cosmetic, food, pesticide and special industries, can also be used for quantitative filling of the sealing hose, is the ideal paste liquid filling equipment.

Equipment Features:

The machine structure is simple and reasonable, easy to operate manually, without    any energy.

With the filling volume adjustment device knob, quantitative discharge, filling the filling speed can be manually controlled.

Meet the food, pharmaceutical production and health requirements.

The machine hopper capacity of 10 kg, the user can be set according to the need for filling capacity.

Technical Parameters:

Work the way:  manual
Working speed:  20-30 times / min (varies from person to person)
Filling range:  0-50ml (external knob, adjustable)
Filling mouth diameter:  7mm * 8mm (ID * OD)
Filling accuracy:  ±1%

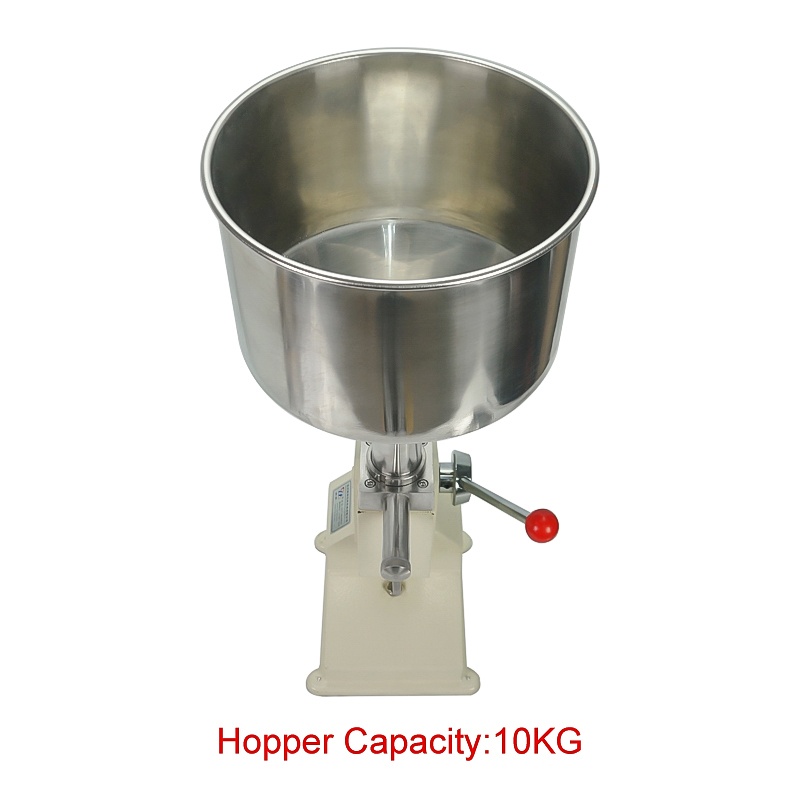

Hopper volume:  10 kg

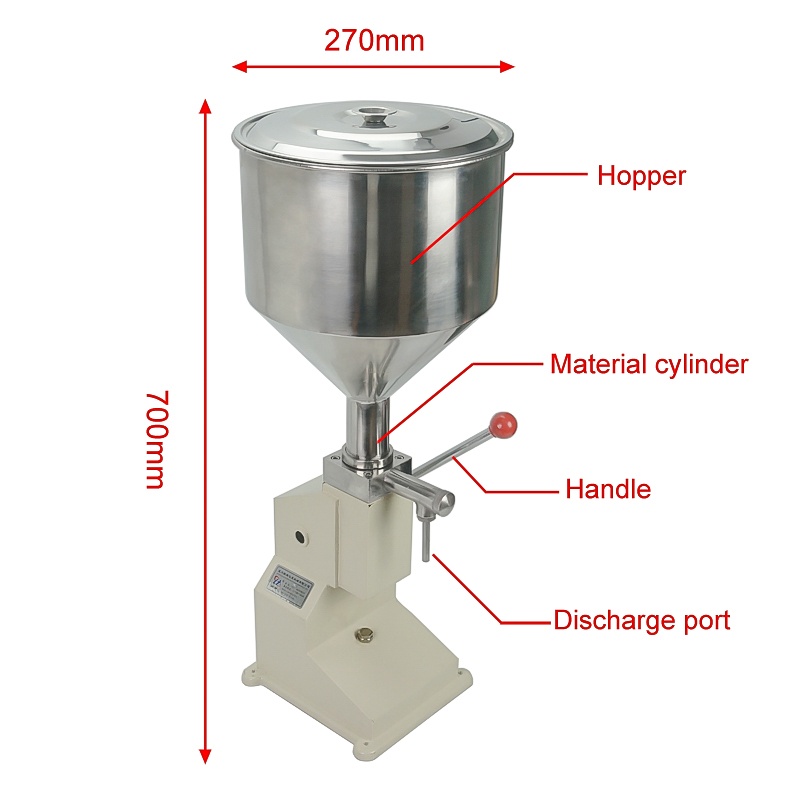

Dimensions:  270*270*700mm
Total Weight:  12KG
