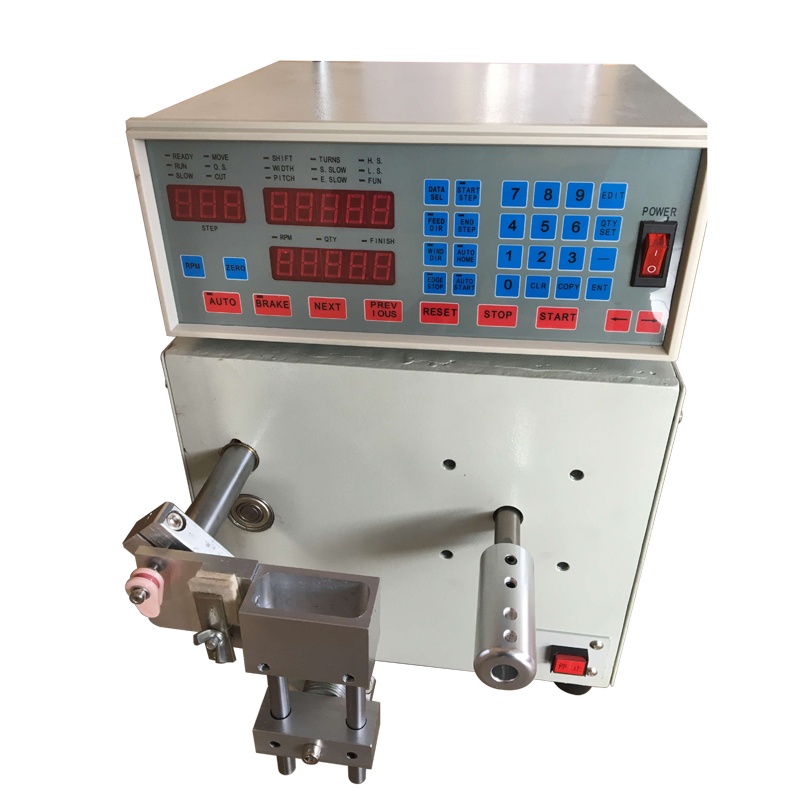

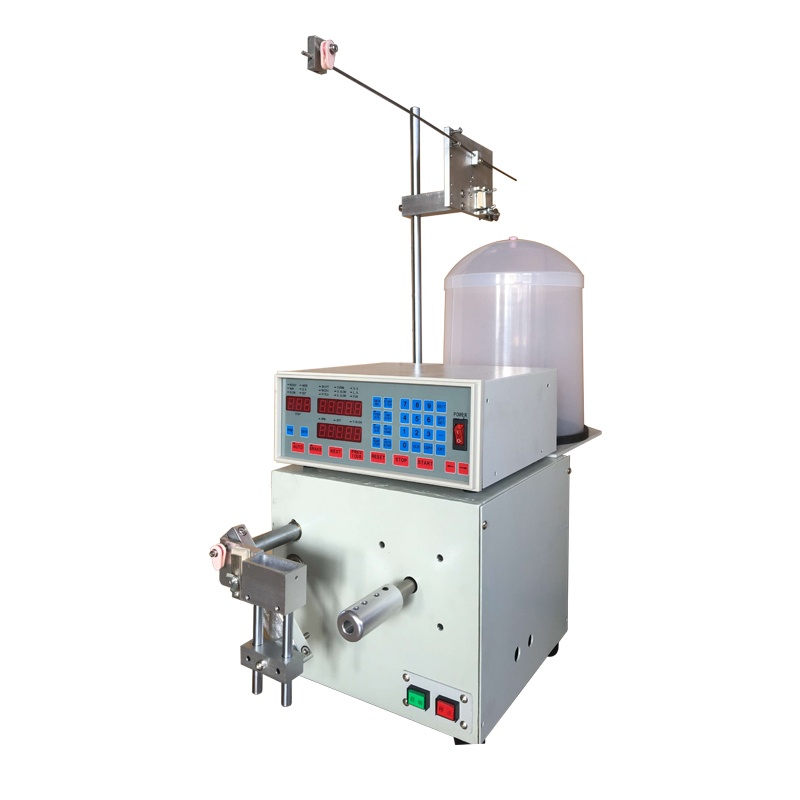

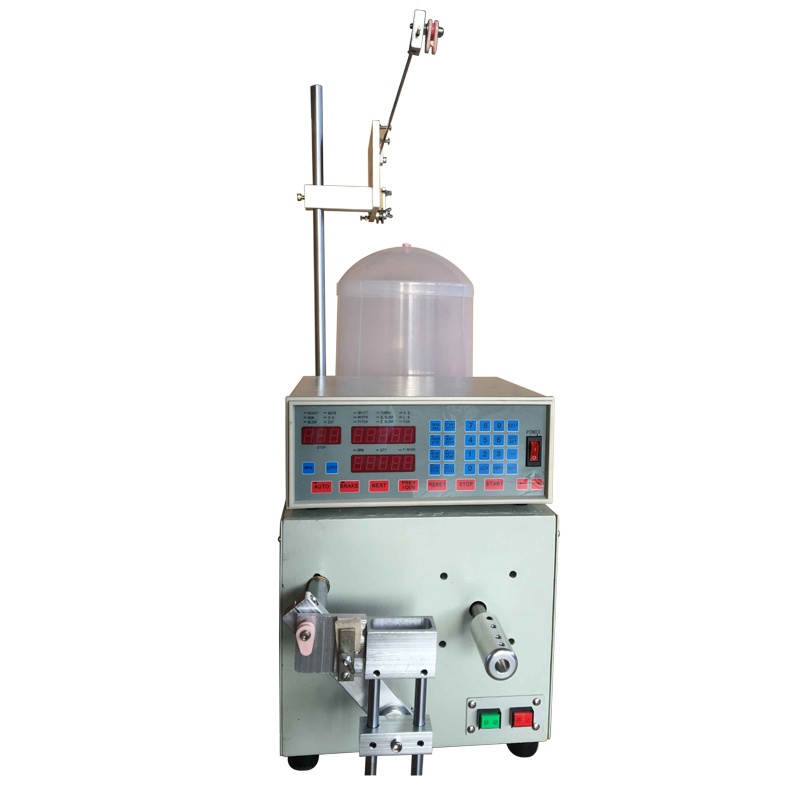

LY-860 self-bonding wire paper tube voice coil winding machine 220v 110v

LY-860 self-bonding wire paper tube voice coil winding machine 220v 110v

item ID: 63152
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$2000 USD$1374 (% off)
Payment

Product Detail

Product Tags

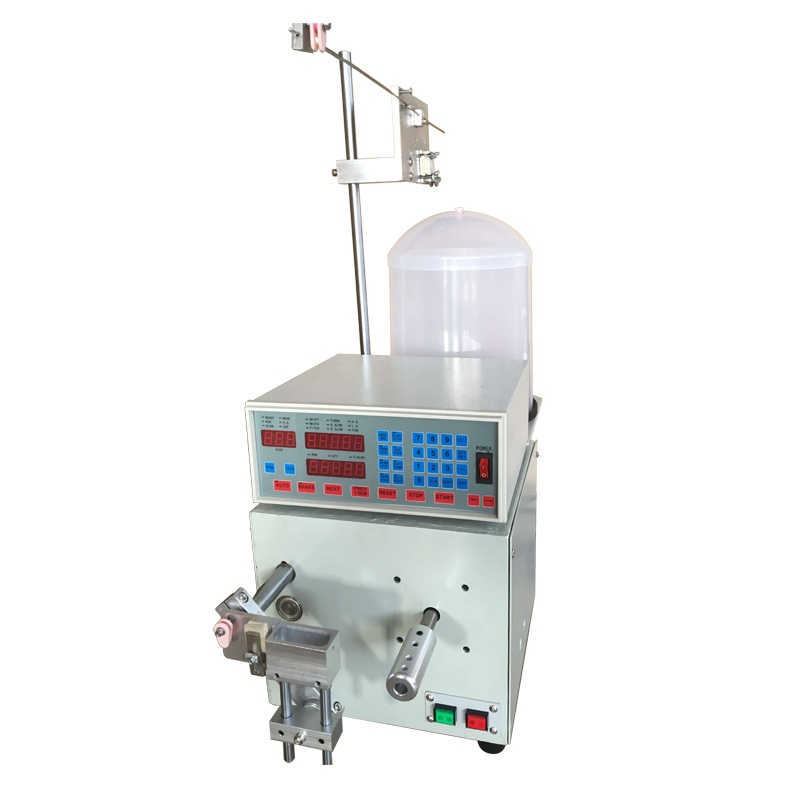

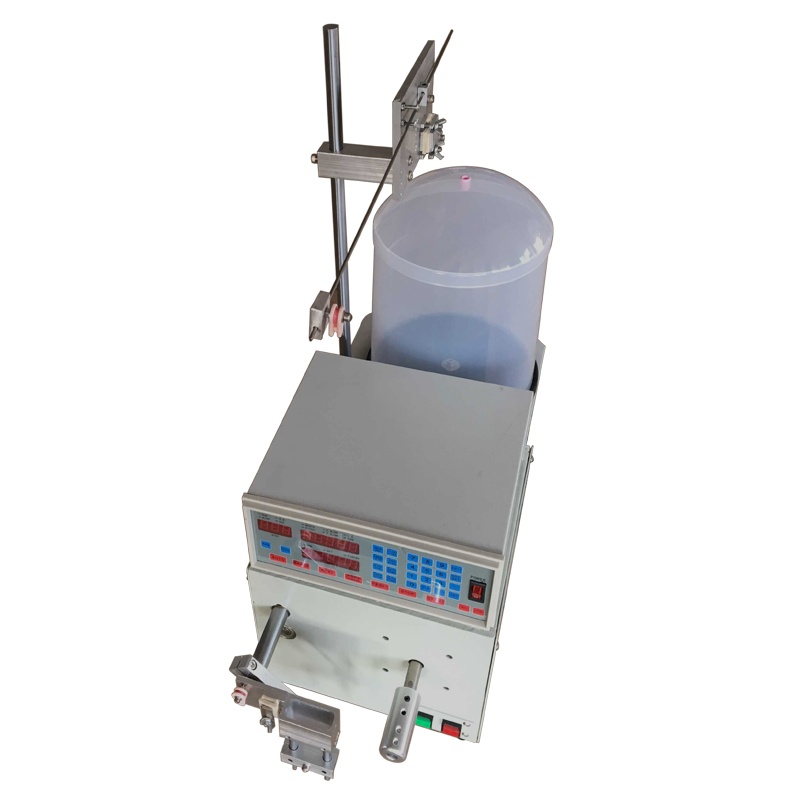

LY-860 self-bonding wire paper tube voice coil winding machine 220v 110v

Features:

1. Microcomputer controller used,set the data easily.

2. Stepper motor is used for wiring, which is driven by current control circuit with high speed and accuracy.

3. The position of starting and winding points can be input in a teachable way, and the current position of the spool can be displayed.

4.0-999 sets of files to set the capacity, which can store up to 999 kinds of products of different specifications. As long as the step sequence of the product is called out, the product can be directly produced.

5. The starting and winding points, width, line spacing, winding number and speed of the product can be segmented to achieve multi-segment and multi-speed targets.

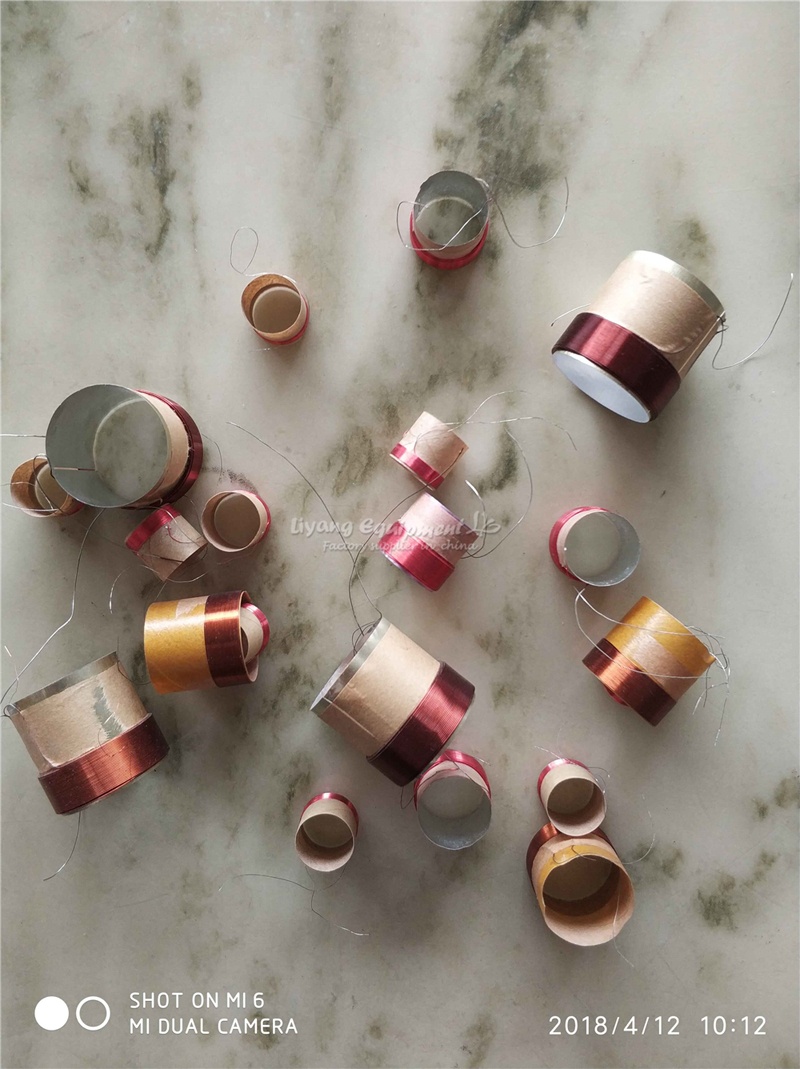

6. Pedal switch device, quick and convenient production operation.Application: speaker coil, paper coil, hollow coil, communication coil, etc.



Technical specification:

Model LY-860 voice coil wind machine
Axis 1
Wire diameter 0.03-1.0mm
Wire distance 0-9.999mm
Breadth 100mm(Max)
Screw diamater 120mm(Max)
Spindle motor Brushless
Flex cable motor Step motor
Max RPM 6000 rpm
Memory files 999
Power 220V/110V 50/60HZ
Size 55*33*100cm
Weight 55KG
