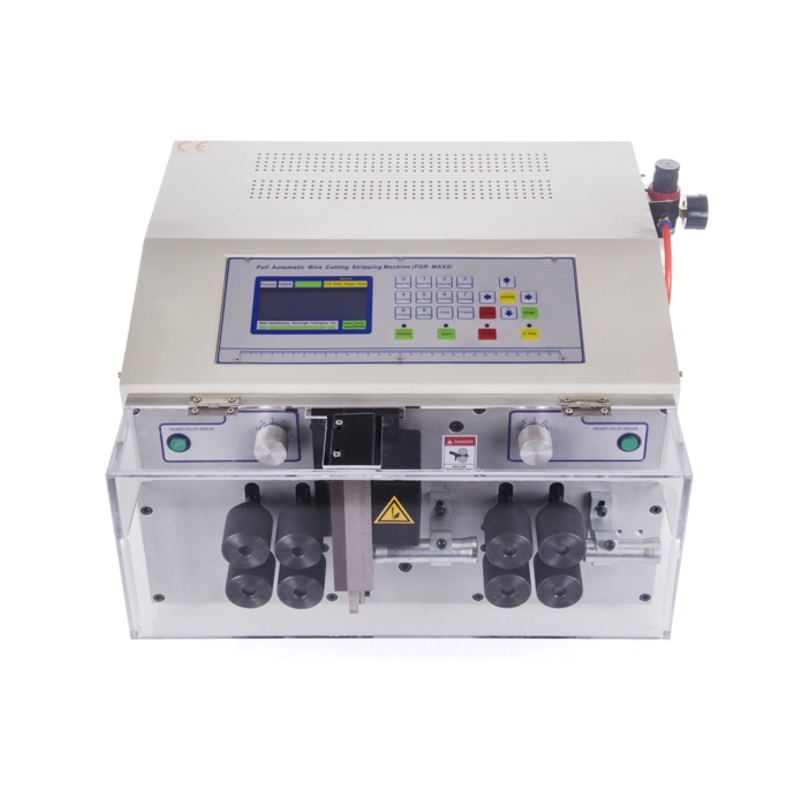

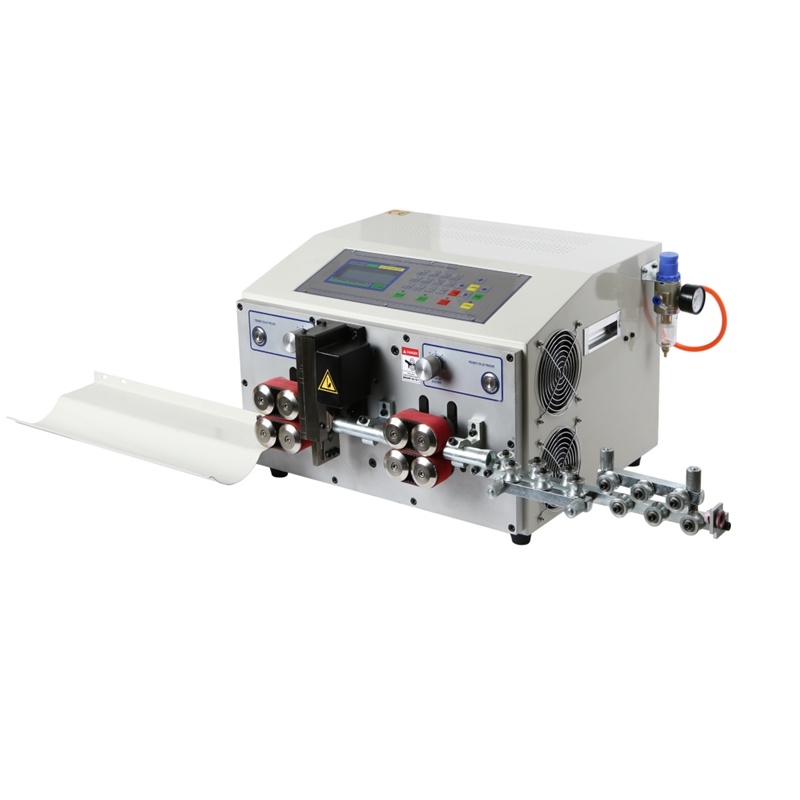

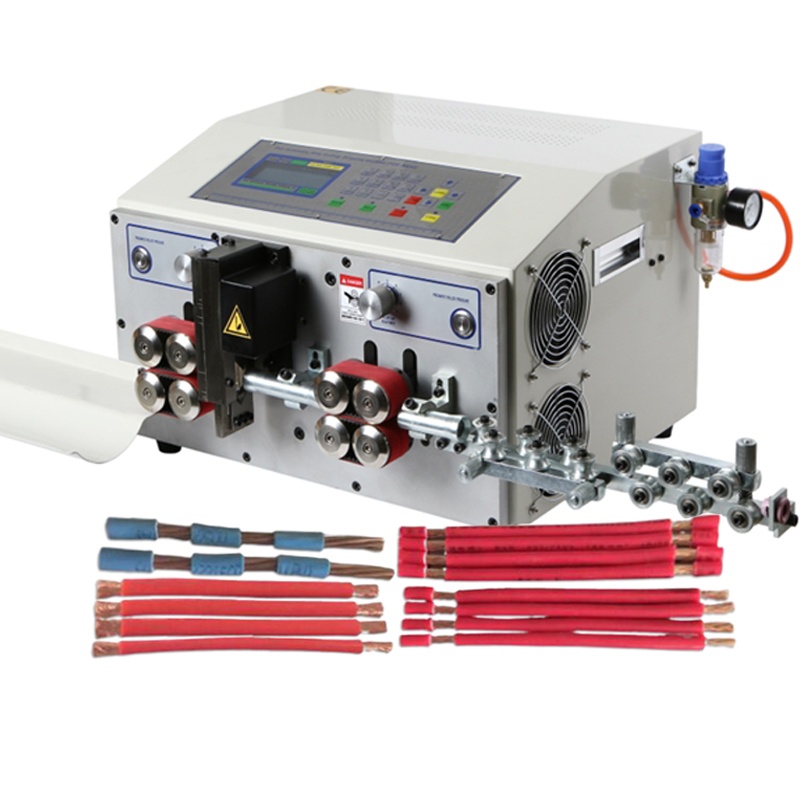

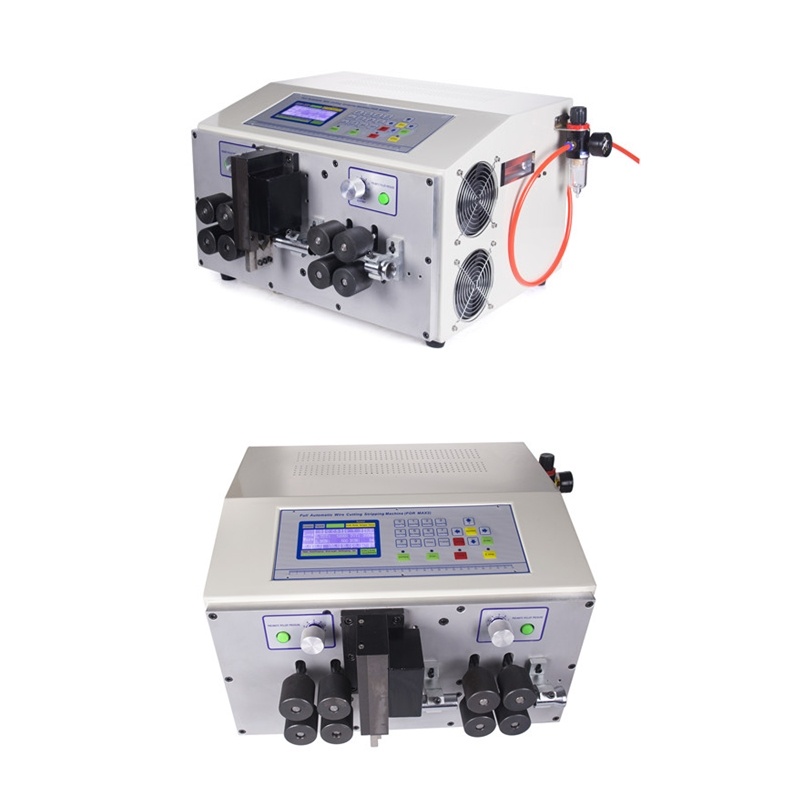

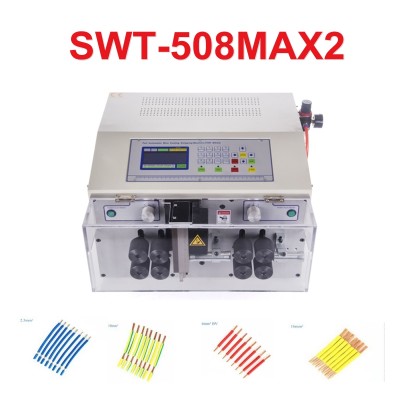

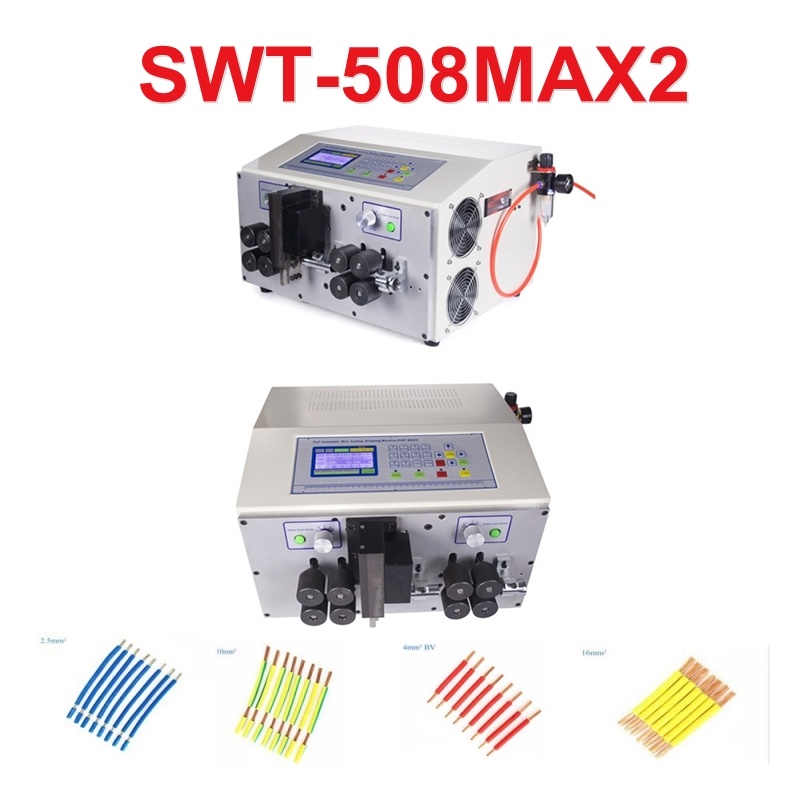

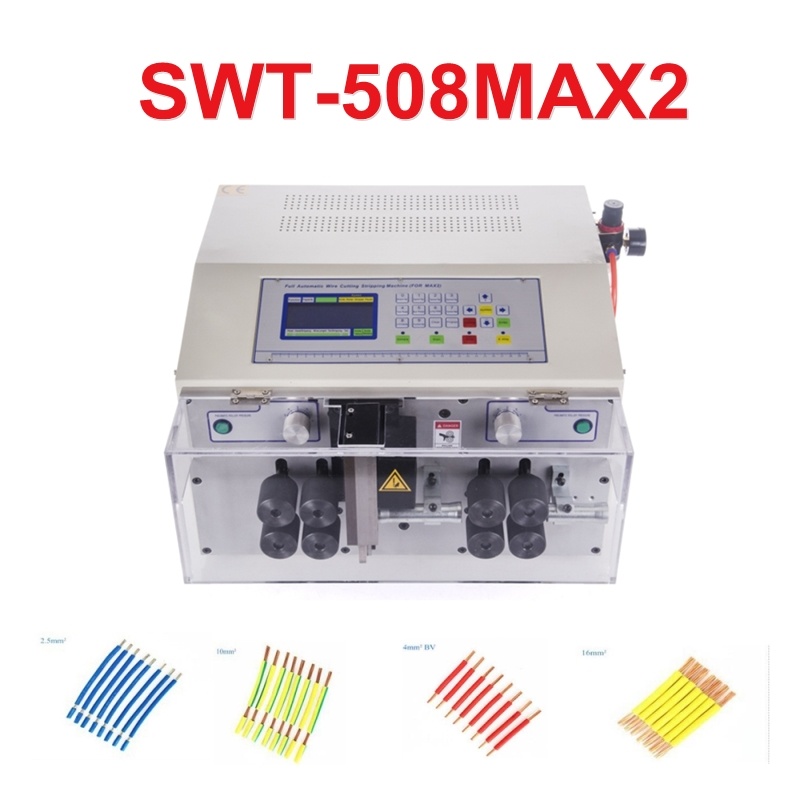

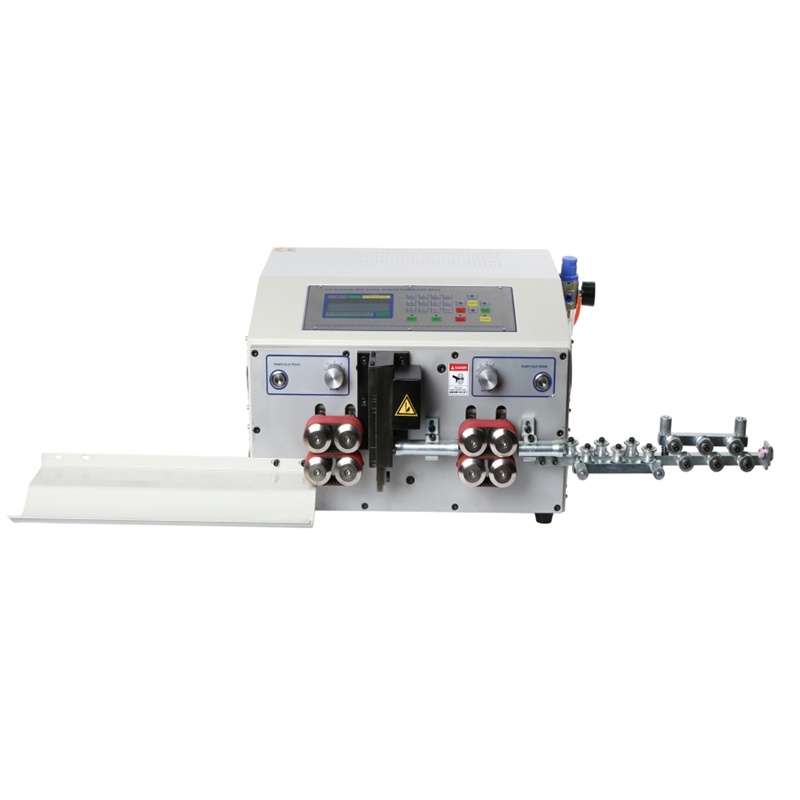

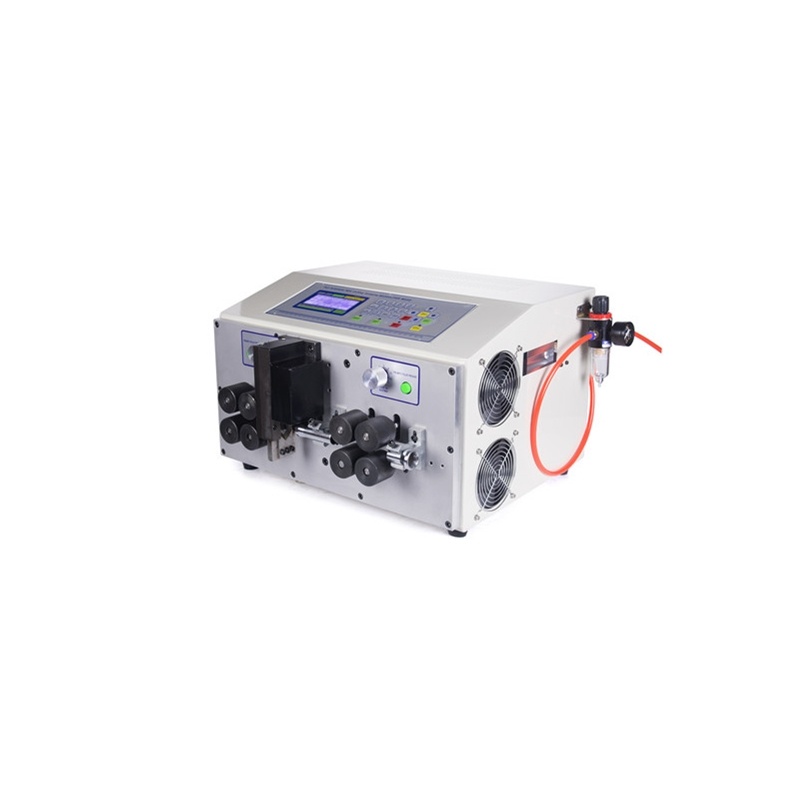

SWT508MAX2 8 wheels Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 1-70mm2 AWG28 to AWG3/0 power 1000W

SWT508MAX2 8 wheels Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 1-70mm2 AWG28 to AWG3/0 power 1000W

item ID: 62779
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$4500 USD$2879 (% off)
Payment

Product Detail

Product Tags

SWT508MAX2 8 wheels Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 1-70mm2 AWG28 to AWG3/0 power 1000W



(RE:

1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 above models with Wire Cable Straightener only, other models need to buy extra.

2.Such as E/S, SD/S, DB2/S, JE/S, JE2/S, MAX1-4S, HT2/S are touch screen panel models.

3. Crystal Protect case not included, if need please leave message to seller.

4. Wire collector not included, if need please leave message to seller.)



Features :

Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment. Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc.

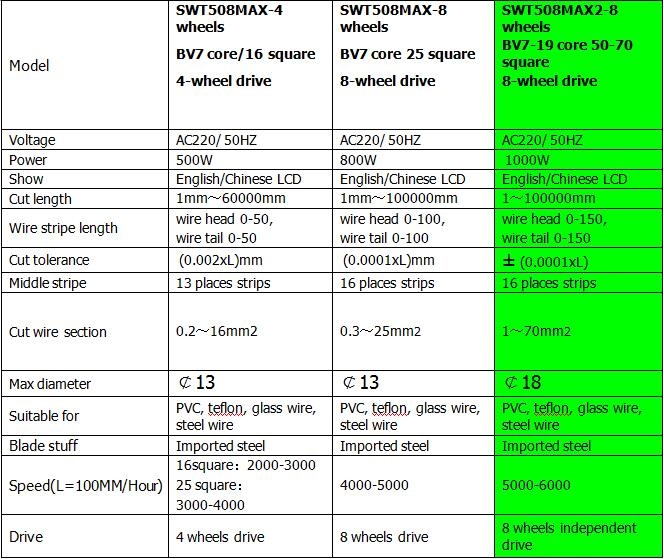

 Technical parameters:

Model SWT508MAX-4 wheels SWT508MAX-8 wheels SWT508MAX2-8 wheels
BV7 core/16 square BV7 core 25 square BV7-19 core 50-70 square
4-wheel drive 8-wheel drive 8-wheel drive


Voltage AC220/ 50HZ AC220/ 50HZ AC220/ 50HZ
Power 500W 800W  1000W
Show English/Chinese LCD English/Chinese LCD English/Chinese LCD
Cut length 1mm~60000mm 1mm~100000mm 1~100000mm
Wire stripe length wire head 0-50, wire head 0-100, wire head 0-150,
wire tail 0-50 wire tail 0-100 wire tail 0-150
Cut tolerance  (0.002xL)mm  (0.0001xL)mm ± (0.0001xL)
Middle stripe 13 places strips 16 places strips 16 places strips
Cut wire section 0.2~16mm2 0.3~25mm2 1~70mm2



Max diameter ¢13 ¢13 ¢18
Suitable for PVC, teflon, glass wire, steel wire PVC, teflon, glass wire, steel wire PVC, teflon, glass wire, steel wire

Blade stuff Imported steel Imported steel Imported steel
Speed(L=100MM/Hour) 16square:2000-3000 4000-5000 5000-6000
25 square:
3000-4000
Drive 4 wheels drive 8 wheels drive 8 wheels independent drive
