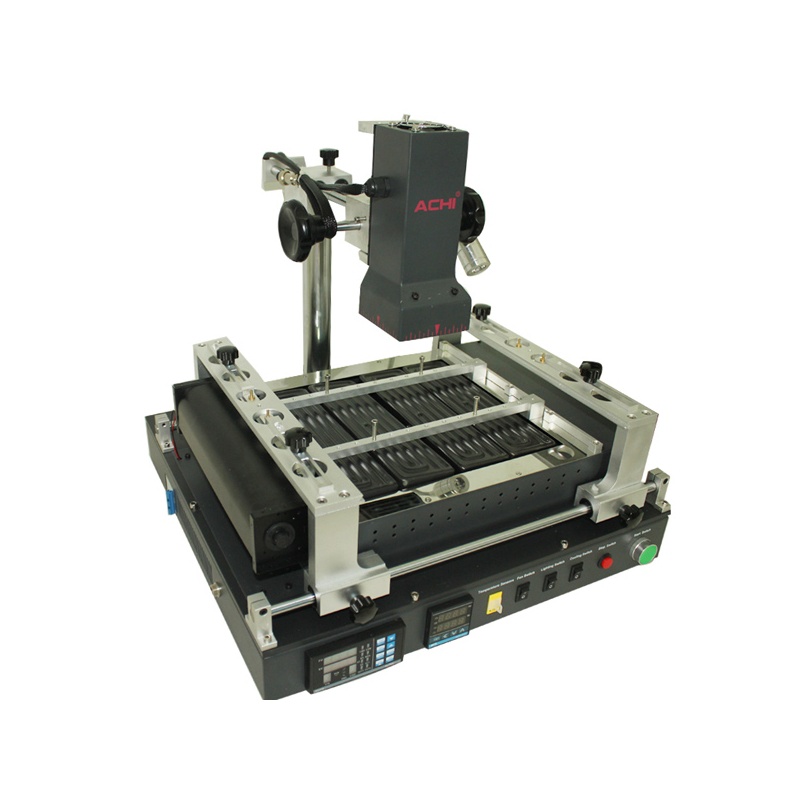

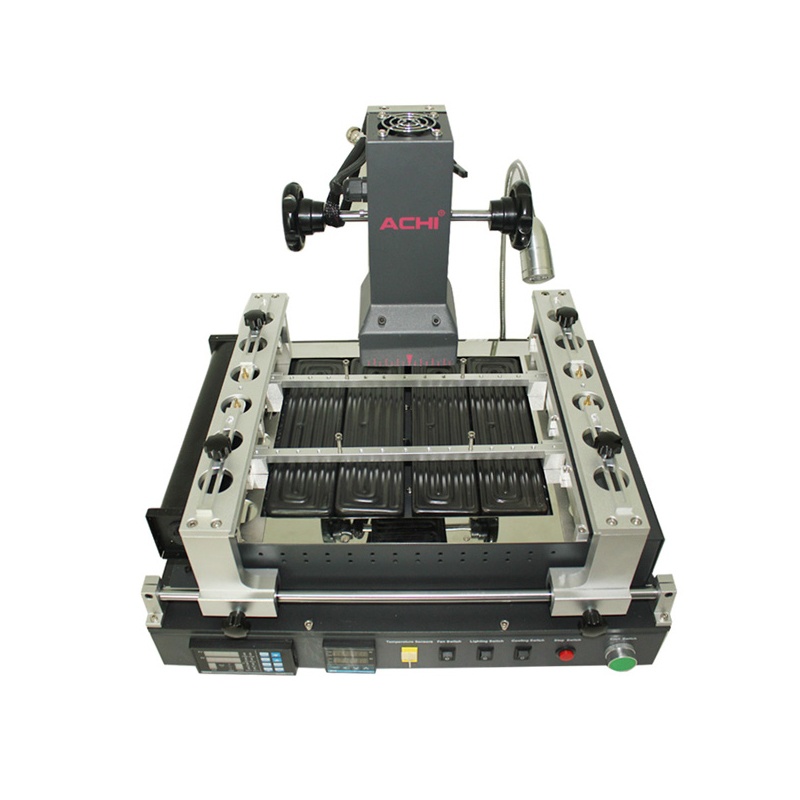

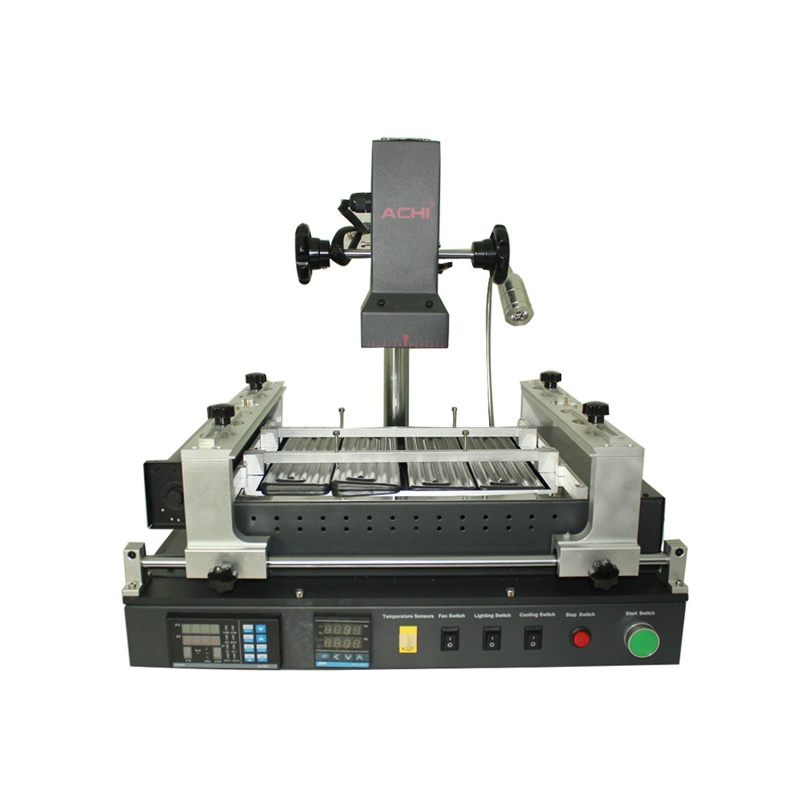

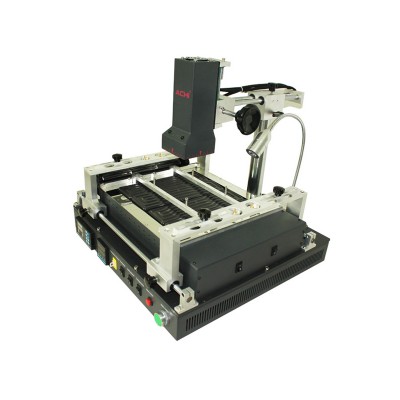

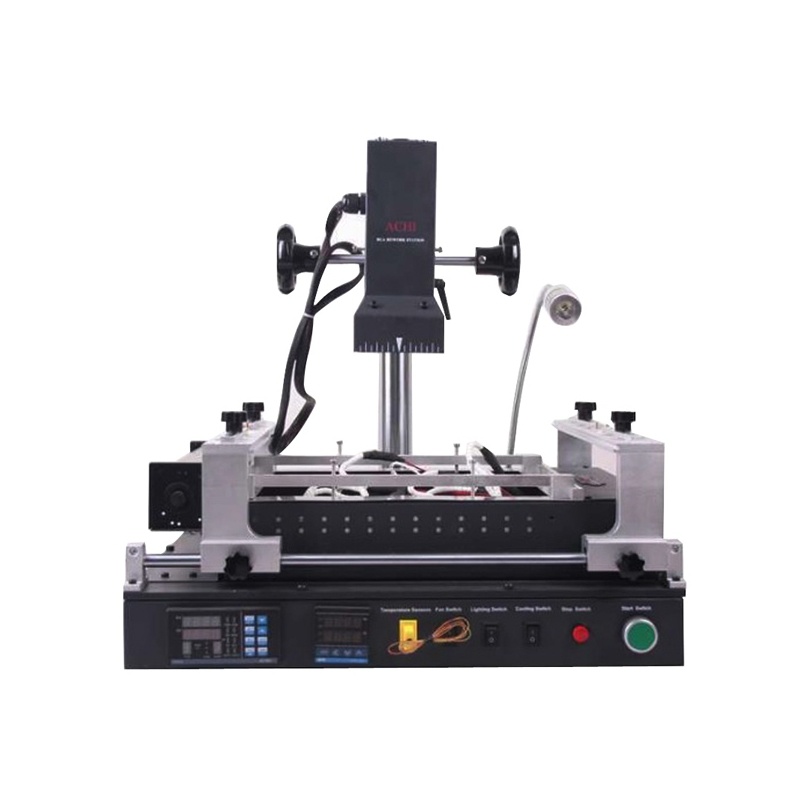

ACHI IR PRO SC infrared BGA Soldering Rework Station For Motherboard Chip PCB Refurbished Repair Machine ACHI IR-PRO-SC

ACHI IR PRO SC infrared BGA Soldering Rework Station For Motherboard Chip PCB Refurbished Repair Machine ACHI IR-PRO-SC

item ID: 59265
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(2)
USD$772.1
Payment

Product Detail

Product Tags

ACHI IR PRO SC infrared BGA Soldering Rework Station For Motherboard Chip PCB Refurbished Repair Machine ACHI IR-PRO-SC

Introduction
1. ACHI  BGA Rework Station is designed to meet the increasing demands of today`s BGA Rework environments .Products apply to the welding of CBGA CCGA CSP QFN MLF PGA, all the green epoxy type BGA chip and other special parts such as metal shielding cover, plastic connector replacement of various and soft PCB.

2. Machine comes along with Manual ,The information is easy to understand. Even if you have never engaged in BGA rework , it can be quickly mastered the technology.

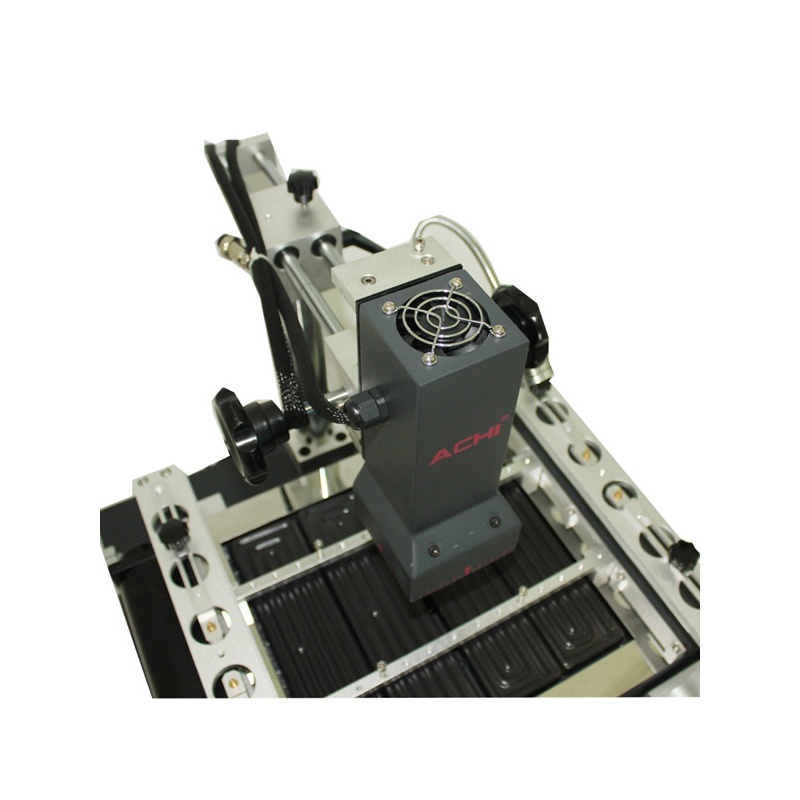

3.The height of Top heating head may adjust by rotating the handle. The Top Infrared heater could rework BGA ICs of large size up to 70*70mm.

IR-PRO-SC can be connected to a computer with USB port. It can be controlled by the software.

What is difference with ir-pro-sc v3

1)ACHI ir-pro-sc V4 add build-in high quality pump suction pen

2)Use more better quality heater plates



3)CE approvaled

Technical Parameters:
Total Power: 2800W
Upper heater power: 400w
Bottom heater power: 2400w
Rated voltage: 220v,50-60hz
Temperature control method: K-type sensor+closed-loop control
PCB positioning method: V-groove slot+PCB adjustable bracket
Maximum PCB board: 450x300mm
Dimensions: 480x480x420mm



Gross weight: 32KG

Cartoon size:60X60X52MM
