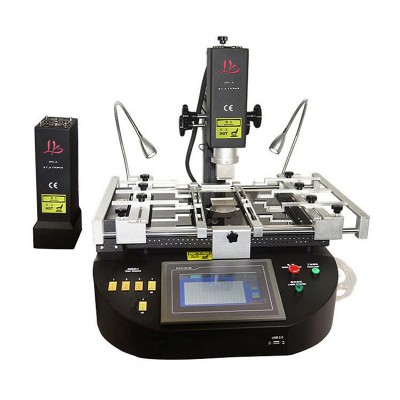

LY OMEGA XD universal bga rework station 3 zones 2 zones hot air & Infrared 5500W 220V

LY OMEGA XD universal bga rework station 3 zones 2 zones hot air & Infrared 5500W 220V

item ID: 58982
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(3)
USD$1955.9
Payment

Product Detail

Product Tags

LY OMEGA XD universal bga rework station 3 zones 2 zones hot air & Infrared 5500W 220V

Technical Parameters





Basic Parameters
Heating IR and HR
Dimension L550mmx W550mmx H500mm
Weight 45kg
Total weight About 70 kg, vary with the differen need of the users
Electrical Parameters
Power 220V AC

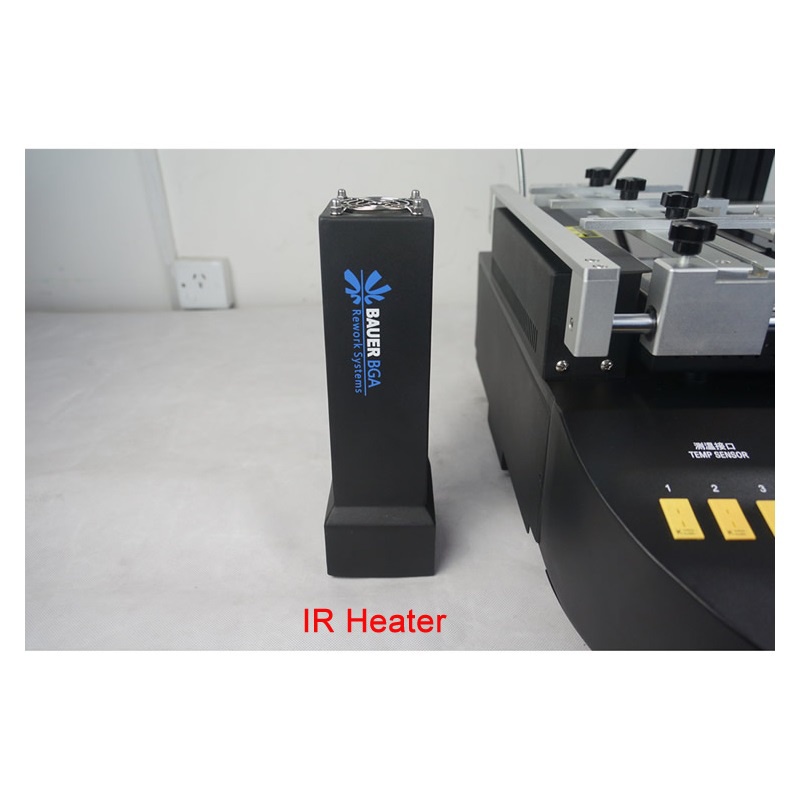

Upper Heating IR and HR
Size of upper (IR) 80*80mm
Consumption of upper (IR)

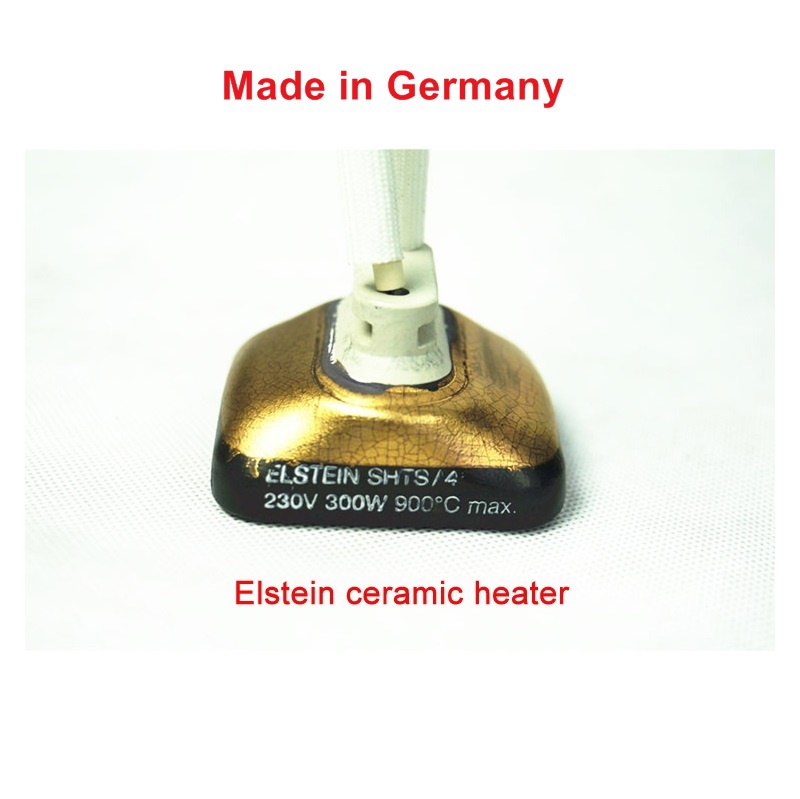

300W (ELSTEIN heating plate SHTS/4)

Nozzle of upper(HR) 4 pcs: 15×15, 31×31, 38×38, 45x45mm
Consumption of upper (HR) 800W
Bottom Heating HR
Nozzle of bottom(HR) 1 pcs  58x58mm
Consumption of bottom (HR) 800W
Bottom Preheat IR
Consumption of preheat (IR) 4600W
General power 5.5KW
Temperature Control
Control mode of Upper Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, Alarm
Control mode of Bottom Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, NO Alarm
Rework Function
SMD Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI
metallic shield product and solder/lead free Rework welding
Size of applicable chips ≤80mm x80 mm
Size of applicable PCB ≤450mm x350mm

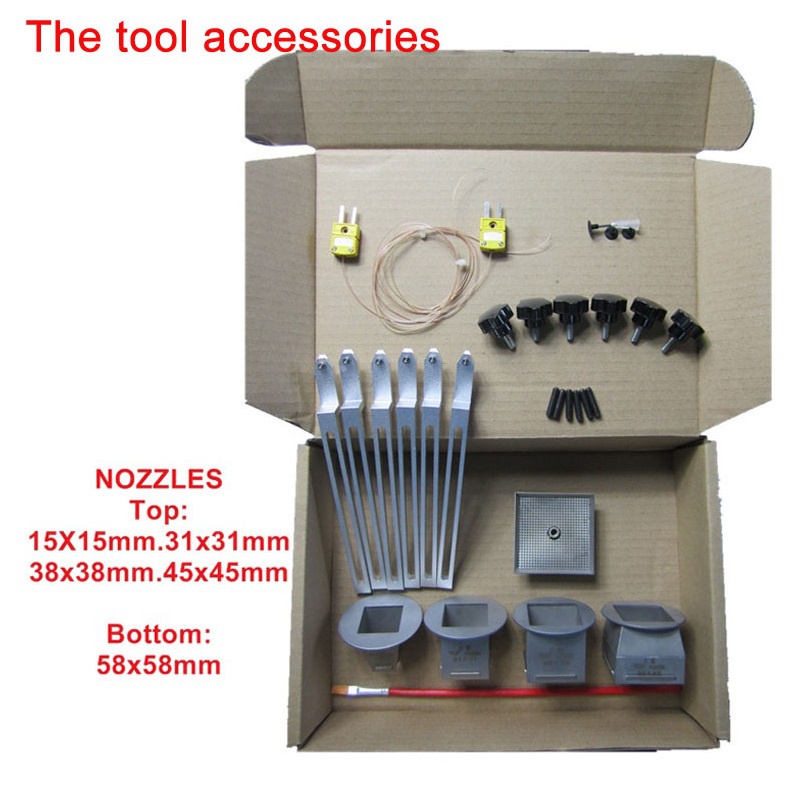

Packing list:

1× bga rework station (with IR Top and Hot air Top)

2× pcb bottom support

6× pcb jig (with screw)

5x nozzles (4 pcs for top 1 pcs for bottom)

2× k-type Omega thermocouple

1× brush

1× CD of manual and software (if not get, may be lost in customs, please contact us)

How to use

Please refer to the CD of USER MANUAL and to see how to use

Please refer to the SETTING OF THE TEMPEATURE PARAMETERS MANUAL HERE and to see how to set temperature

Warranty

  • 1 year full warranty directly from factory  .

Shipping

  • By DHL & UPS & FEDEX with tracking number, need 4~7 days;
  • By SEA , need 40~50 days;
  • We will mark the item at the very low value, so that you do not need to pay for the tax or pay a little tax.

What information need for delivery the item to you

  • Please email us your phone number after you pay for the item only for delivery purpose.

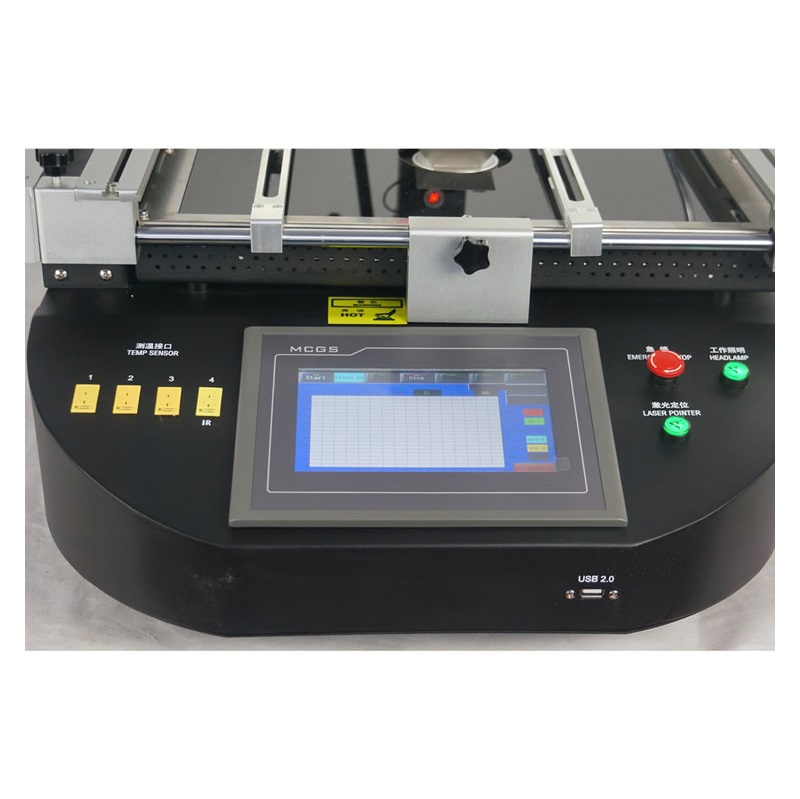

BAUER OMEGA XD (4) BAUER OMEGA XD (8) BAUER OMEGA XD (6) BAUER OMEGA XD (7) BAUER OMEGA XD (10) BAUER OMEGA XD (13) BAUER OMEGA XD (15) BAUER OMEGA XD (16) BAUER OMEGA XD (17)
