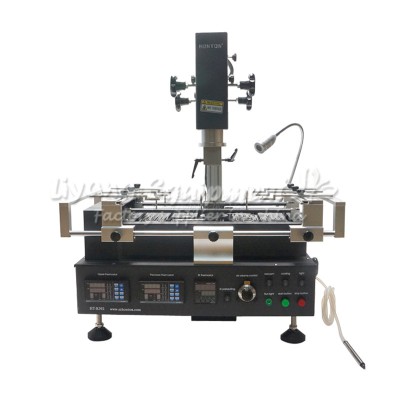

Classic 3 zones hot air bga model HT-R392 BGA Rework Station years old brand 220V 110V black color

Classic 3 zones hot air bga model HT-R392 BGA Rework Station years old brand 220V 110V black color

item ID: 59001
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(3)
USD$705.9
Payment

Product Detail

Product Tags

Classic 3 zones hot air bga model HT-R392 BGA Rework Station years old brand 220V 110V black color

Technical Parameters

Basic Parameters
Heating HR
Dimension L580mmx W580mmx H650mm
Weight 32kg
Total weight About 35 kg, vary with the differen need of the users
Electrical Parameters
Power 220V AC
Upper Heating HR
Size of upper (IR) —————
Consumption of upper (IR) —————
Nozzle of upper(HR) 4pcs: 19×19, 29×29,34×34,37×37 mm
Consumption of upper (HR) 800W
Bottom Heating HR
Nozzle of bottom(HR) 1 pcs: 50×50 mm
Consumption of bottom (HR) 800W
Bottom Preheat IR
Consumption of preheat (IR) 2400W
General power 4KW
Temperature Control
Control mode of Upper Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, Alarm
Control mode of Bottom Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, NO Alarm
Rework Function
SMD Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI
metallic shield product and solder/lead free Rework welding
Size of applicable chips ≤80mm x80 mm
Size of applicable PCB MIN 10mm*10mm         MAX 350mm*400mm

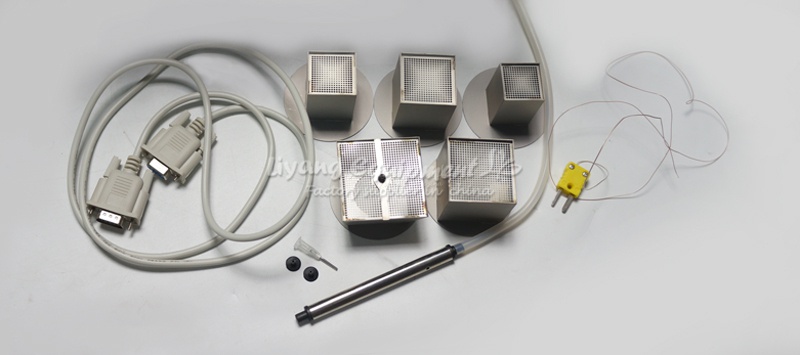

Packing list:

1× bga rework station

5× nozzles: 4 pcs top(19,29,34,37mm) and 1 pcs bottom(50mm);

6× pcb jig (with screw)

1x vacuum pen

1× k-type thermocouple

1x socket head wrench

1x Computer Cable

1× CD of manual and software (if not get, may be lost in customs, please contact us)

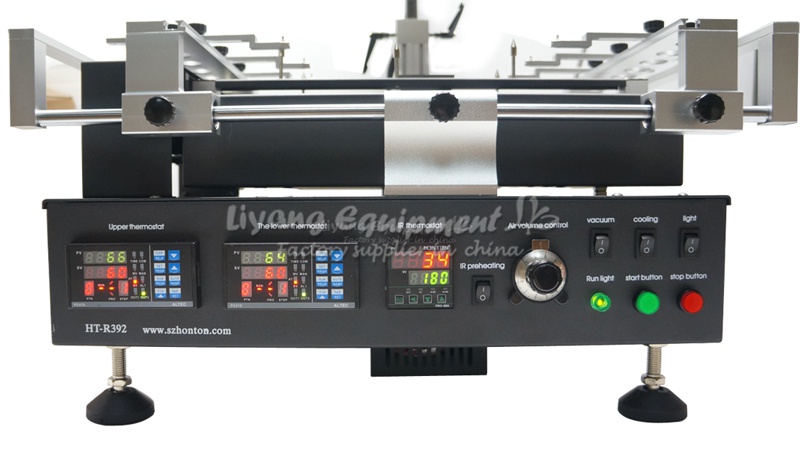

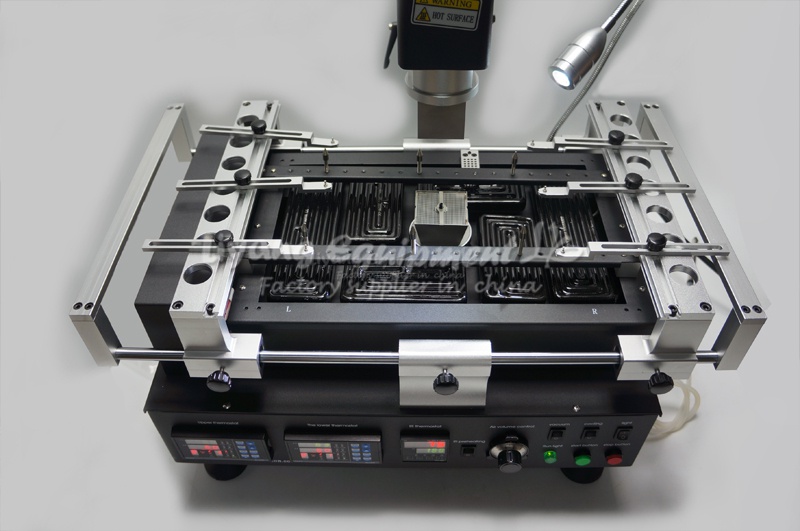

HT-R392 (5) HT-R392 (6) HT-R392 (7) HT-R392 (8) HT-R392 (9)
