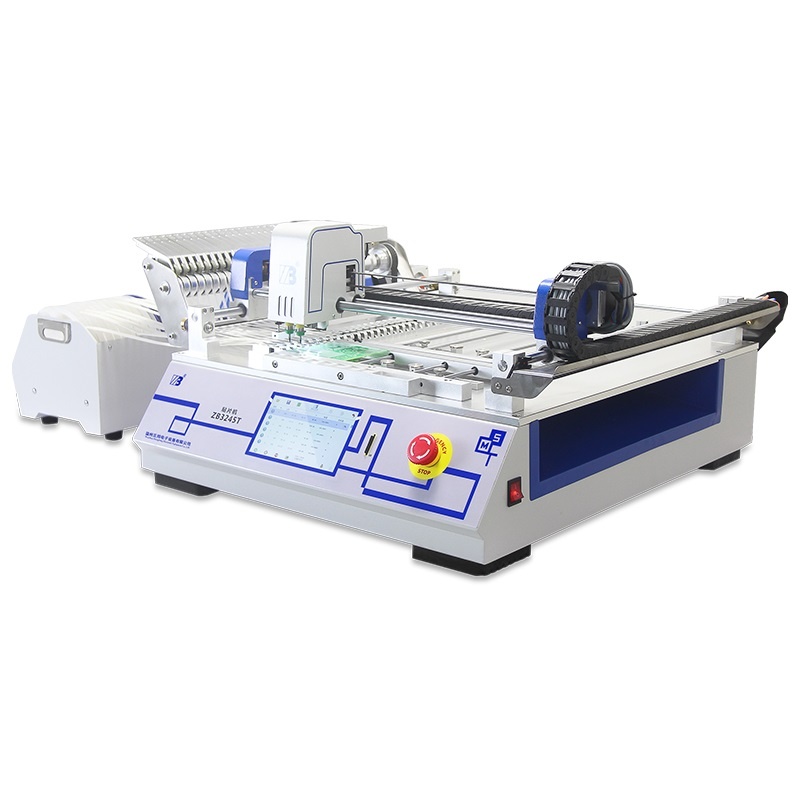

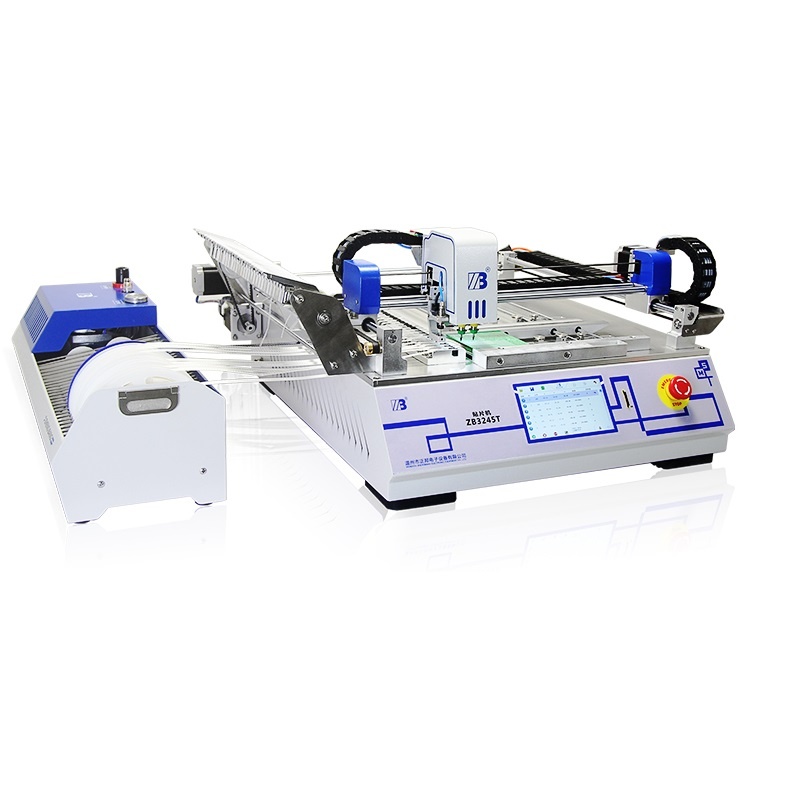

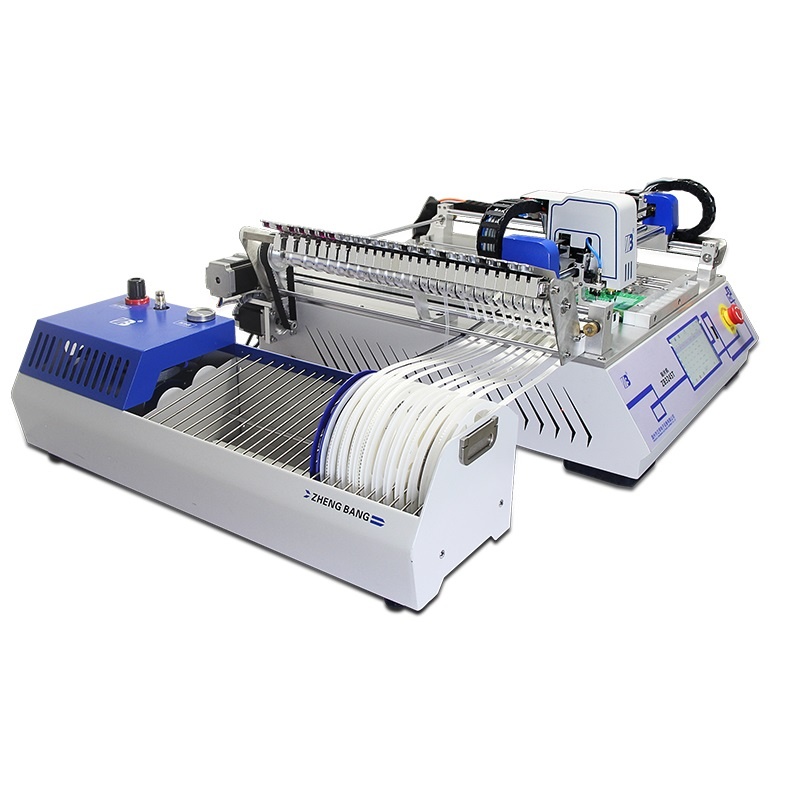

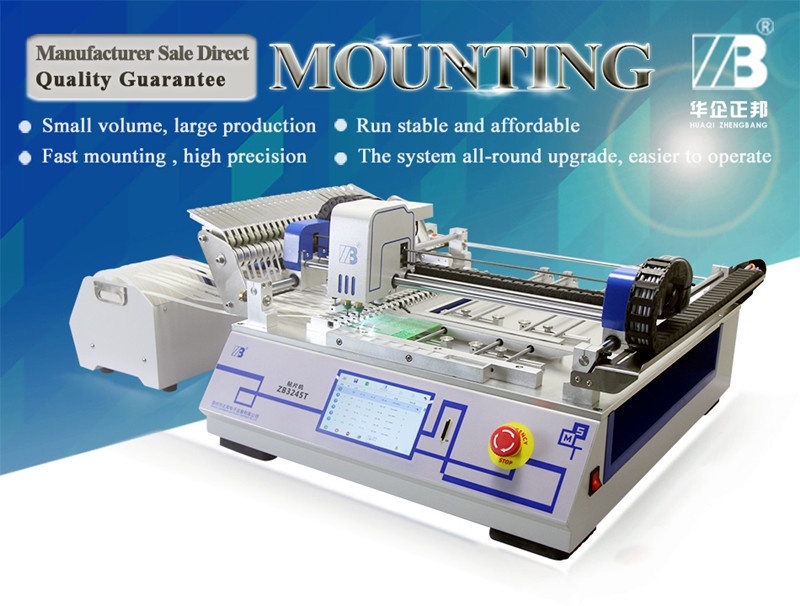

Desktop SMT pick and place machine 2 heads ZB3245T for assembly line Full Automatic 2 Heads Pick and Place SMT Machine ZB3245T

Model: ZB3245T

System

Items

Content

Mounting System

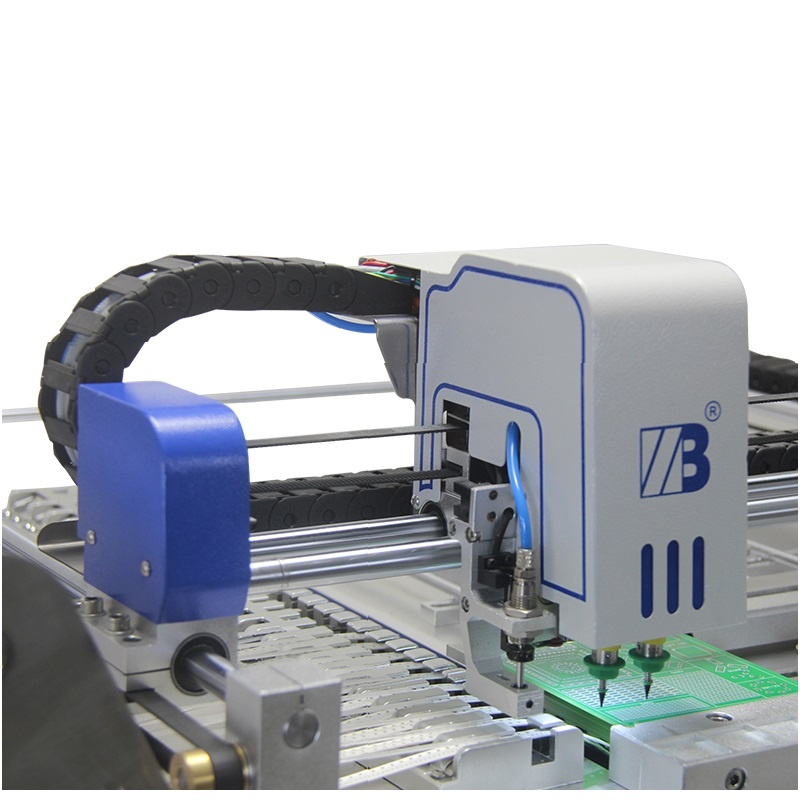

Mounting head number

2 PCS

Mounting accuracy

0.025mm

Mounting angle

0~360°

Theoretical Velocity

6500pcs/hour

Normal mounting

5000pcs/hour

Nozzle type

Juki nozzle

Elements for mounting

RC (0402, 0603, 0805, 1206, etc)

LED lamp (0603, 0805, 3014, 5050, etc)

Chip (SOT, SOP, QFN, BGA, etc)

Substrate

PCB minimal size

10×10mm

PCB maximum size (no tray)

320×450mm

PCB thickness

≤2mm

PCB warp allowable value

<1mm

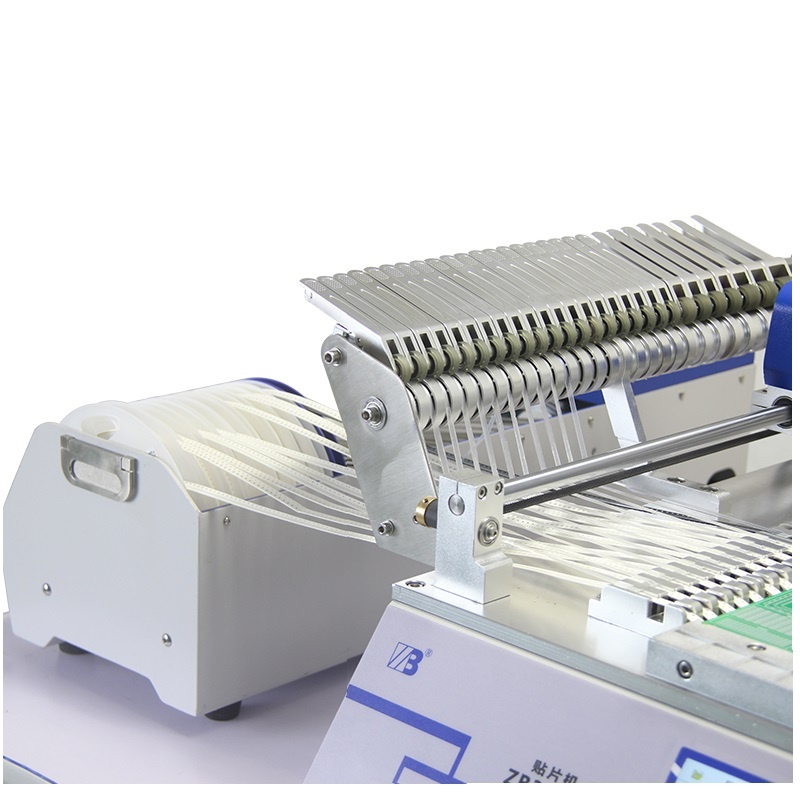

Feeder

8mm

20pcs

12mm

4pcs

16mm

2pcs

24mm

1pcs

Preposition IC material level

8pcs

X, Y, Z axis

X, Y axis moving range

410×490mm

Z axis moving range

10mm

Z axis rotation angle

0~360°

Control System

Operational software

Embedded HRM System

Compatible file format

CSV, TXT. format file

Programming mode

Support online and offline

Basic Parameter

Air Pressure

0.4mpa (the built-in pump)

The vacuum degree

-92kPa

storage

8G

Power

150W

Power supply

AC220V±10% 50Hz

Feeder Size

L235×W700×H245 mm

Machine Size

L800×W780×H380 mm

Net weight

56kg

Gross weight

85kg
