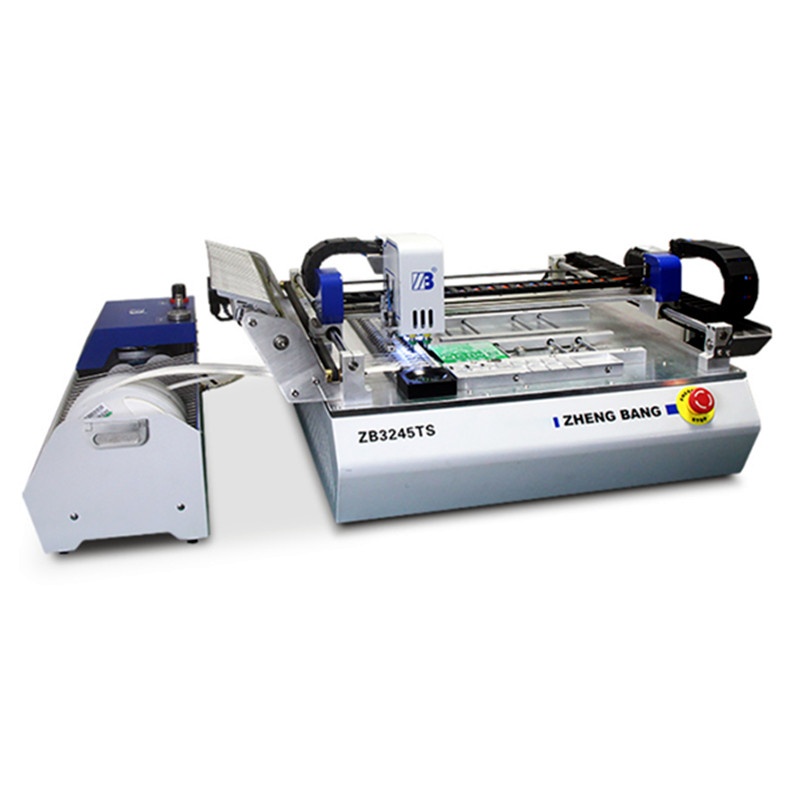

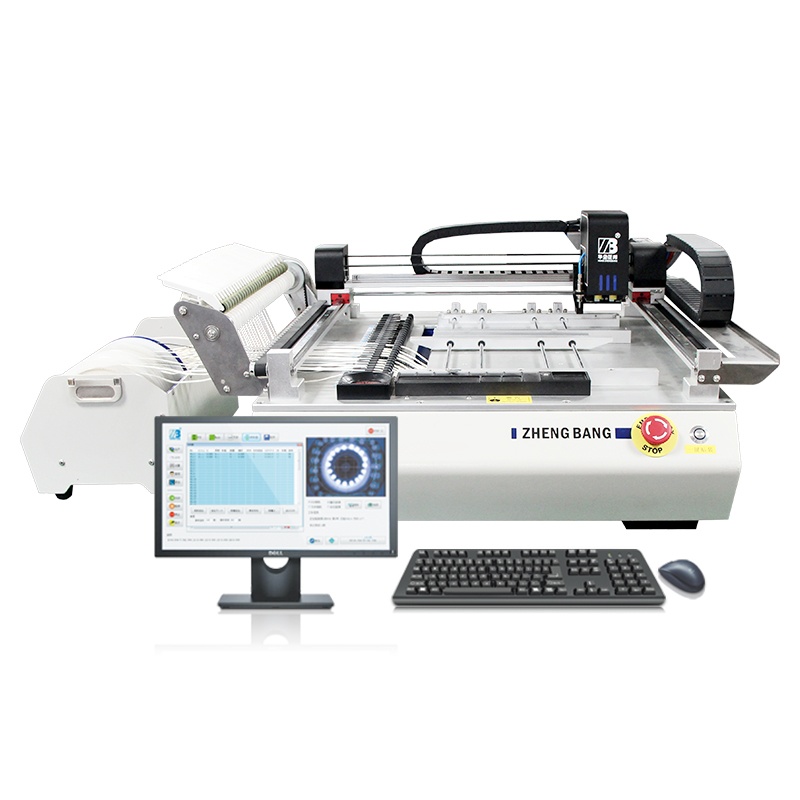

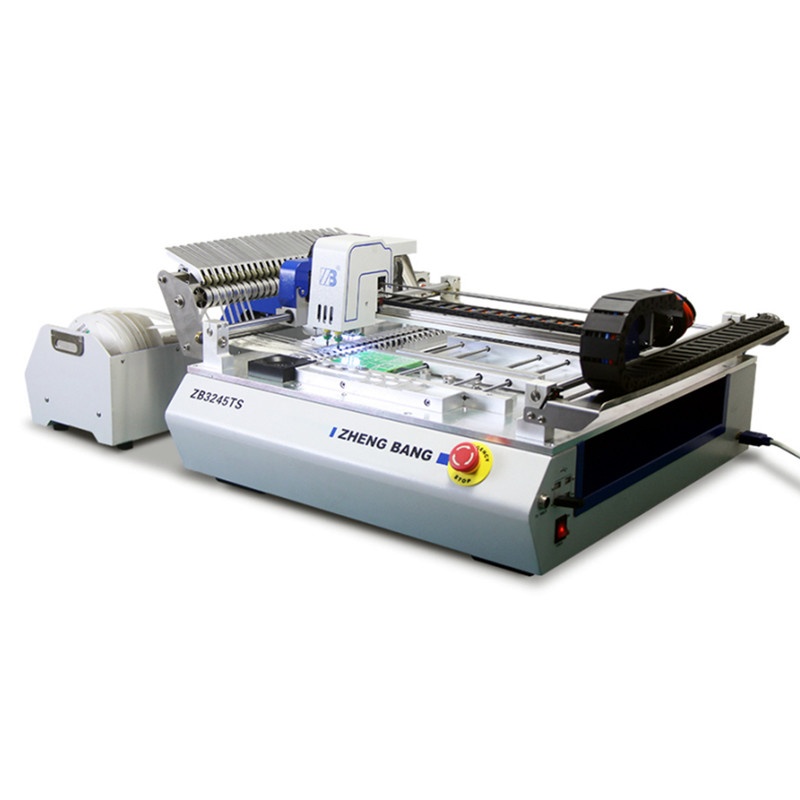

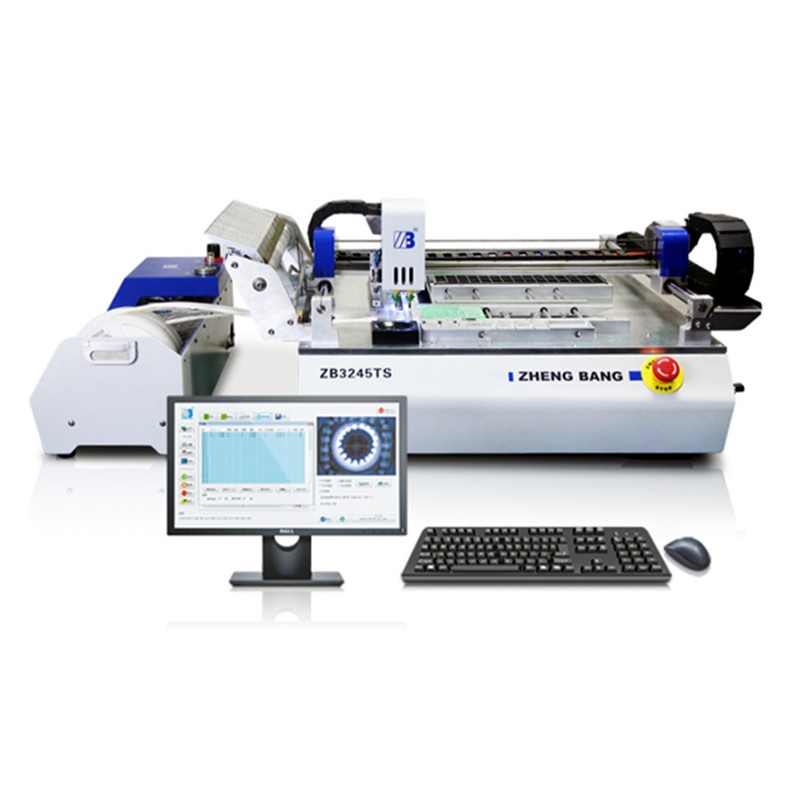

Full Automatic 2 Heads Pick and Place Machine With 2 Cameras Visual system ZB3245TS

Full Automatic 2 Heads Pick and Place Machine With 2 Cameras Visual system ZB3245TS

item ID: 65632
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$7000 USD$4323 (% off)
Payment

Product Detail

Product Tags

Full Automatic 2 Heads Pick and Place Machine With 2 Cameras Visual system ZB3245TS

Model: ZB3245TS

System

Items

Content

Mounting System

Mounting head number

2 pieces

Mounting accuracy

0.025mm

Mounting angle

0~360°

Theoretical Velocity

6500pcs/hour

Normal mounting

5000pcs/hour

Visual Mounting

3500pcs/hour

Nozzle type

Juki series nozzle

Elements for mounting

RC (0402, 0603, 0805, 1206, etc)

LED lamp (0603, 0805, 3014, 5050, etc)

Chip (SOT, SOP, QFN, BGA, etc)

Substrate

Substrate minimum size

10×10mm

Substrate maximum size (no tray)

320×450mm

Substrate maximum size (with tray)

320×220mm

Substrate thickness

≤2mm

Substrate warp allowed value

<1mm

Feeder

8mm

20pcs

12mm

4pcs

16mm

2pcs

24mm

1pc

Preposition IC material level

10pcs

Postposition IC tray

1pc

Tubular materials feeder

Zhengbang dedicated Five tubular materials feeder one (optional)

X, Y, Z axis

X, Y axis moving range

430*530mm

Z axis moving range

10mm

Z axis rotation angle

0~360°

Visual system

independent research and development

Visual System

Visual camera

CCD high-definition camera

Visual quantity

2 (Parts camera, PCB camera)

Identification ability

MAX.20*20mm

Control System

PC system

Microsoft  WIN7

Operational software

independent research and development

Compatible file format

CSV, TXT. format file

Programming mode

Support online and offline

Pressure

0.4 MPa (The built-in pump)

Basic Parameter

Vacuity degree

MINUS 92KPA

Power

150W

Power  supply

AC220V  50HZ

Main engine outline size

L 830*W 730* H375 mm

Materials feeder outline size

L 235*W 700*H 245 mm

Net weight

56kg

Gross weight

85kg

Outline package size

1190*850*560mm



Thanks for your order!

Voltage:
--- Please Select ---
Tags:

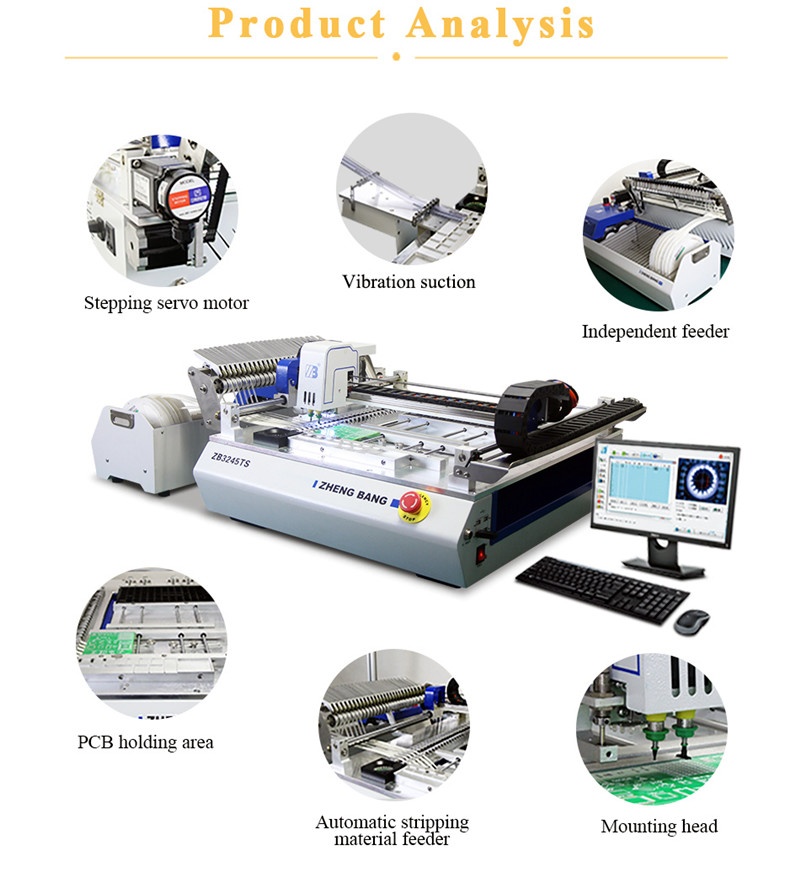

Product Pictures
