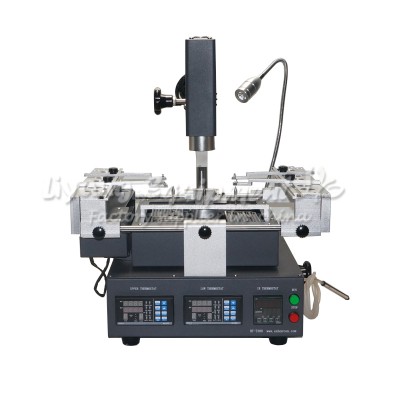

HT-T300 hot air BGA Rework Station 3 zones panel control with software control

HT-T300 hot air BGA Rework Station 3 zones panel control with software control

item ID: 59169
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(3)
USD$573.5
Payment

Product Detail

Product Tags

HT-T300 hot air BGA Rework Station 3 zones panel control with software control


CE Certification

Technical Parameters

Basic Parameters
Heating HR
Dimension L420mmx W400mmx H500mm
Weight 18kg
Total weight About 21 kg, vary with the differen need of the users
Electrical Parameters
Power 220V AC
Upper Heating HR
Size of upper (IR) —————
Consumption of upper (IR) —————
Nozzle of upper(HR) 2 pcs: 19×19, 29×29, mm
Consumption of upper (HR) 800W
Bottom Heating HR
Nozzle of bottom(HR) 1 pcs: 37×37 mm
Consumption of bottom (HR) 800W

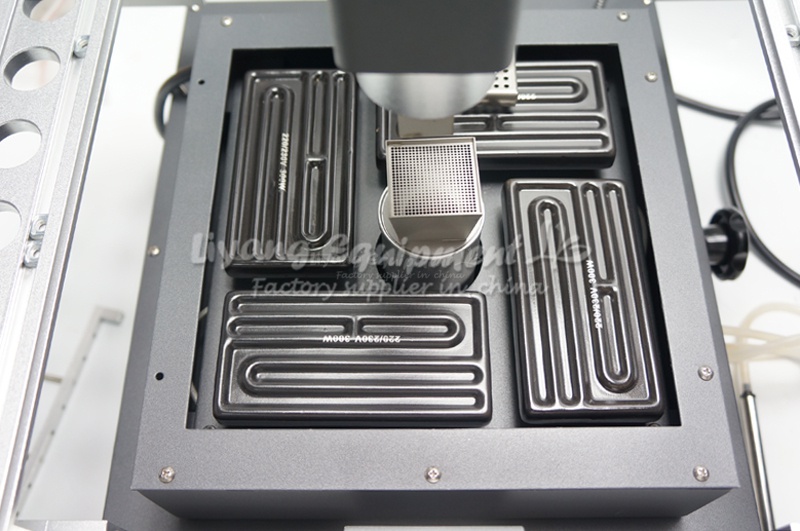

Bottom Preheat IR
Consumption of preheat (IR) 1200W
General power 3KW

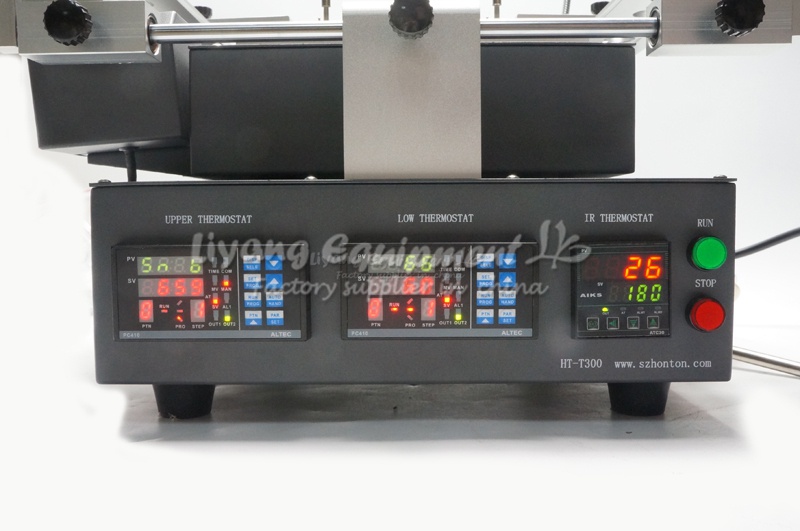

Temperature Control
Control mode of Upper Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, Alarm
Control mode of Bottom Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, NO Alarm
Rework Function
SMD Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI
metallic shield product and solder/lead free Rework welding
Size of applicable chips ≤80mm x80 mm
Size of applicable PCB MIN 10mm*10mm         MAX 300mm*250mm

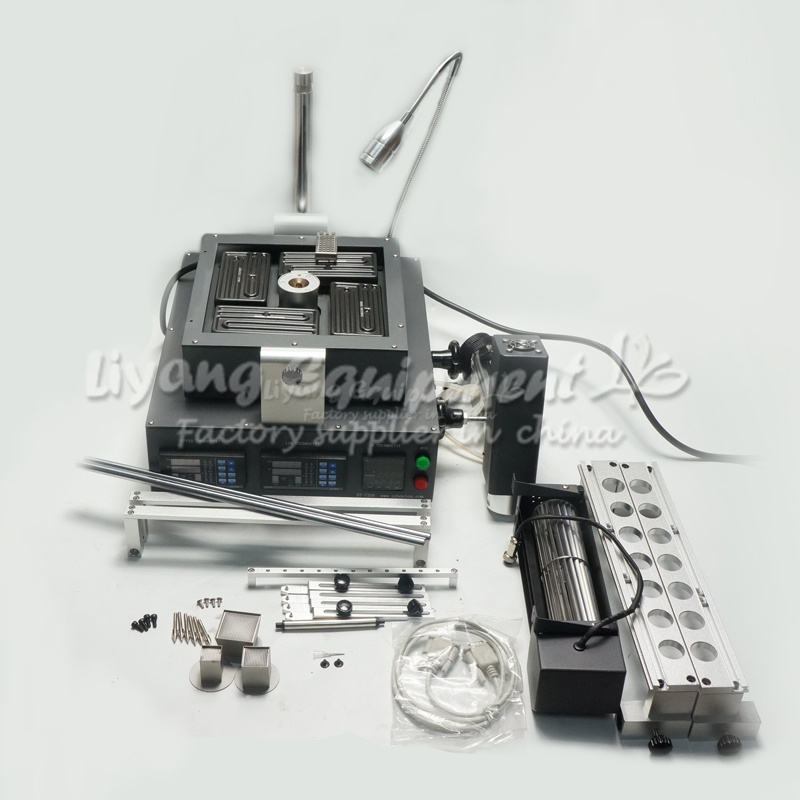

Packing list:

1× bga rework station

3× nozzles: 2 pcs top(19x19mm,25x25mm) and 1 pcs bottom(38mm);

6× pcb jig (with screw)

1x vacuum pen

1× k-type thermocouple

1x socket head wrench

1x Computer Cable

1× CD of manual and software (if not get, may be lost in customs, please contact us)

HT-T300 (7) HT-T300 (8) HT-T300 (9) HT-T300 (10)
