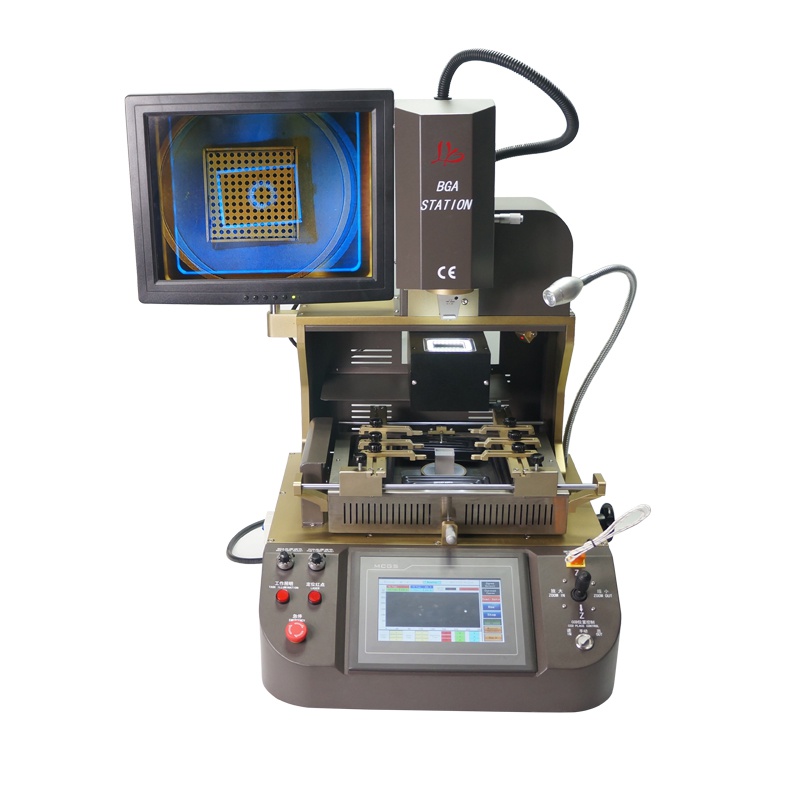

LY 5320 auto 3 zones mobile phone repair machine bga chip repair FOR IPHONE ,ipad .mini laptop motherboard chips ic soldering 4200W

LY 5320 auto 3 zones mobile phone repair machine bga chip repair FOR IPHONE ,ipad .mini laptop motherboard chips ic soldering 4200W

item ID: 59182
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(3)
USD$3808.8
Payment

Product Detail

Product Tags

LY 5320 auto 3 zones mobile phone repair machine bga chip repair FOR IPHONE ,ipad .mini laptop motherboard chips ic soldering 4200W

LY 5320 auto 3 zones mobile phone repair machine bga chip repair FOR IPHONE ,ipad .mini laptop motherboard chips ic soldering 4200W



Total Power

4200W

Upper heating Power

1200W

Lower heating power

1200W ,IR 1800W

Model Number

WDS-720 bga chip removal machine

Overall Dimension

 L450*W480*H670mm

Applicable  PCB

Max200*260mm    Min 5*5mm

Applicable IC

Max 60*60   Min 1*1mm

Power Supply

AC220V/110V  , 50/ 60Hz

Weight

40kg

Electric material

Driving motor+PLC smart temp.

controller+color touch screen

Locating Mode

V-shape card slot,

PCB holder can be adjustatble X&Y axex with universal jigs



  Independent 3 heating zones temperature control system

1.The upper and lower hot air heating,which can heat up at the same time from the top of he component to the bottom of the PCB;temperature precision control within ±1℃.8 segment temperature control independently.

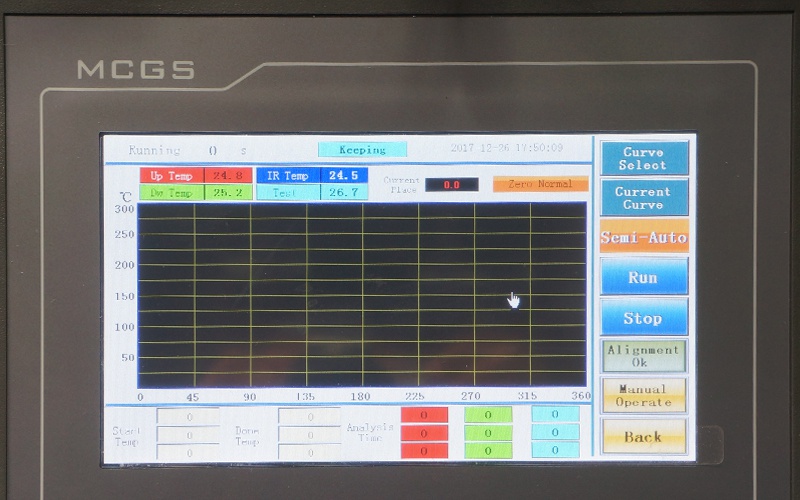

2.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed、set and correct on the touch screen at any time.



Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split、amplification、lessening、fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

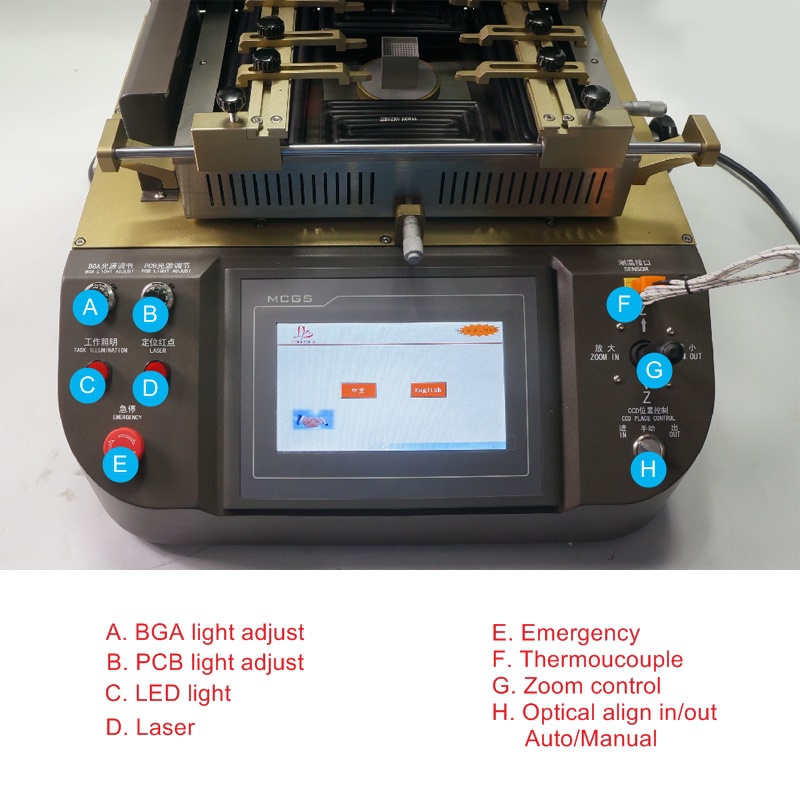

Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2.X、Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.

      Technology parameter



1 Power supply AC 110V/220V±10% 50/60Hz
2 Total power Max4200W
3 Heater power Upper temp.zone 1200W,second temp.zone 1200W,IR1800W
4 Electrical material Driving motor+PLC smart temp.controller+color touch screen
5 Temperature controlling (high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1℃

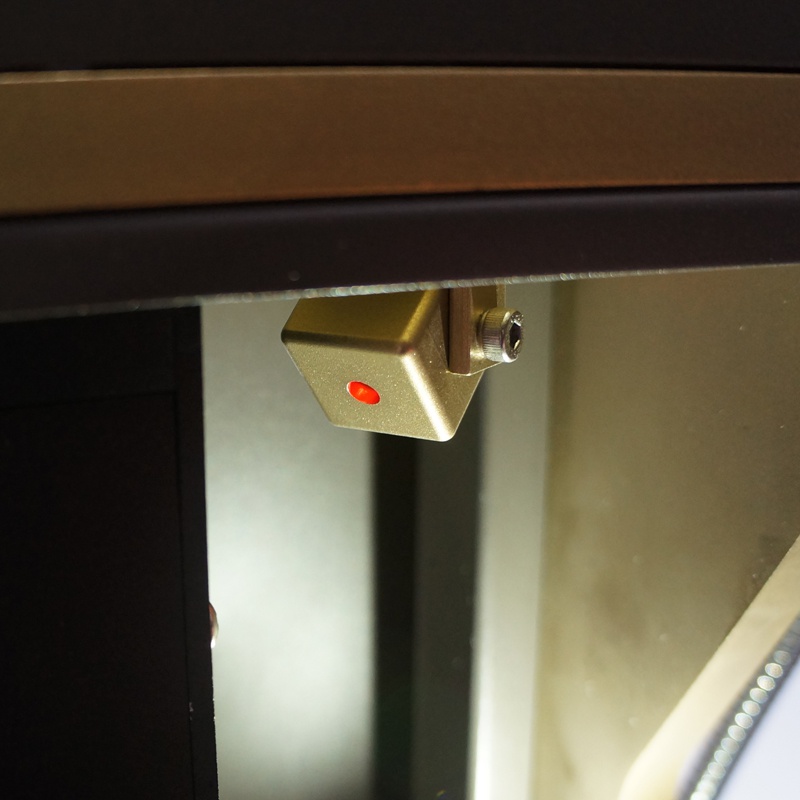

6 Locating way V shape slot,PCB support jigs can adjust,Laser position
7 PCB size Max 260×260mm Min5×5mm
9 Overall dimension L450×W480×H670mm
10 Chips Max 60×60mm Min 1×1 mm
11 Weight of machine 35KG
12 Color Gold&gray
13 camera Auto out & in
14 Optical system Industry prism+HD industry camera
15 Working mode Five mode for choosing: semi auto, manual,weld,remove,mount
