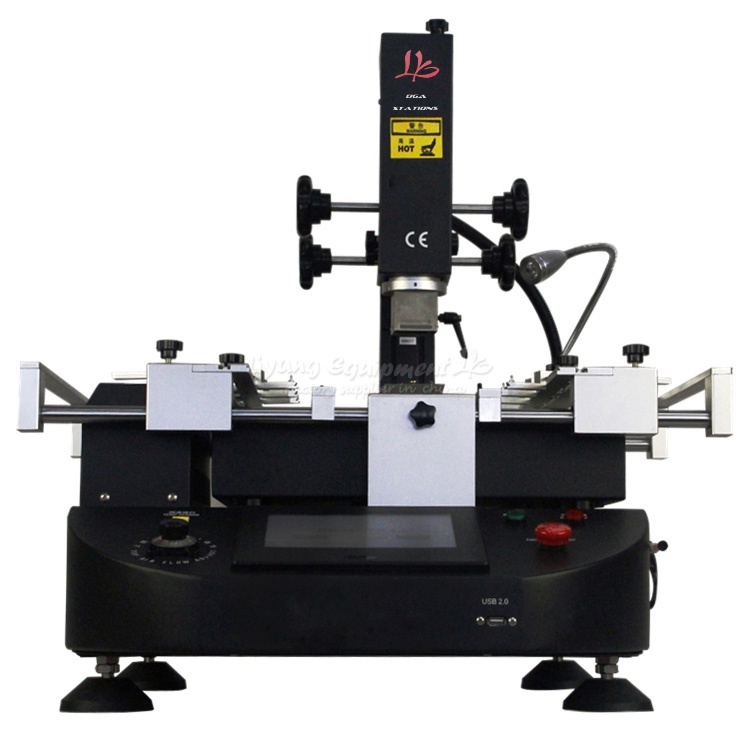

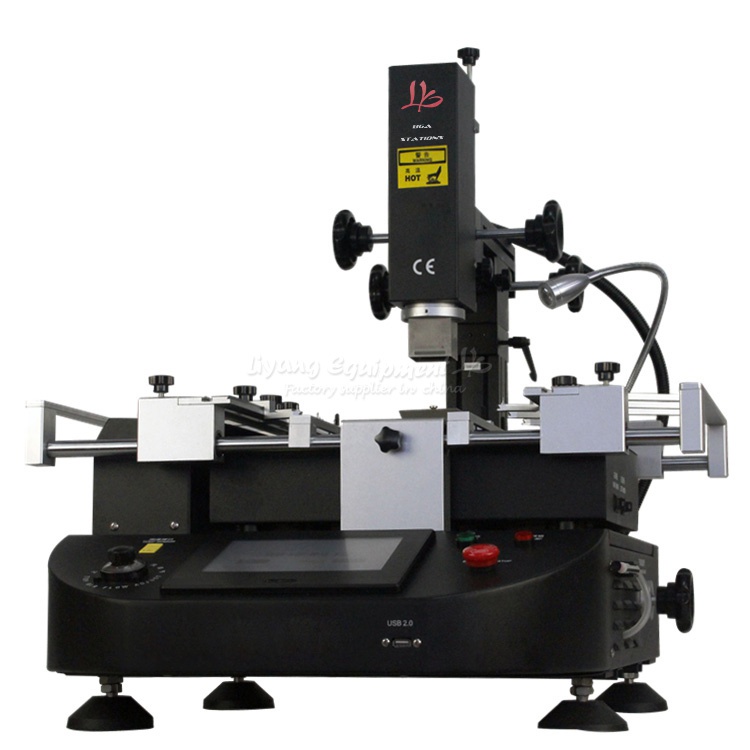

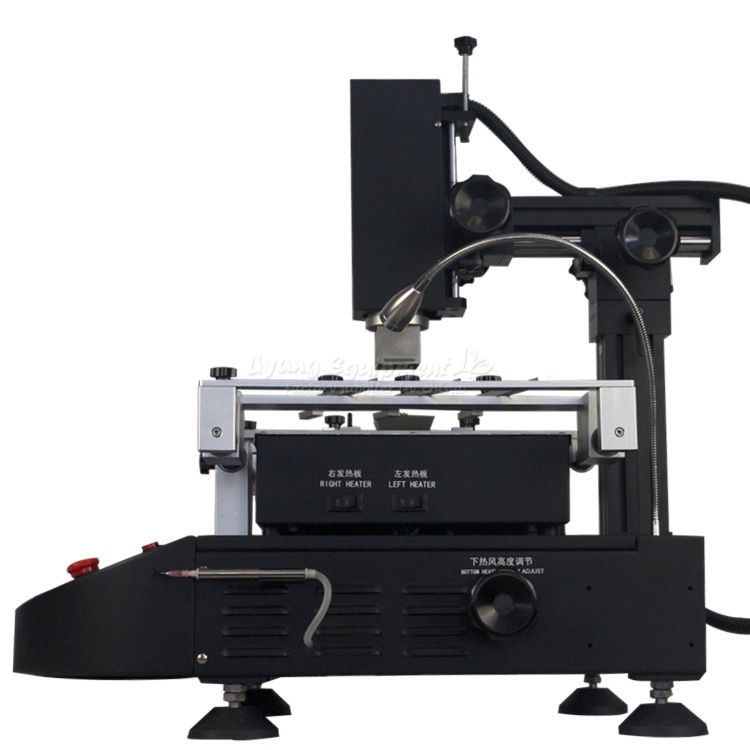

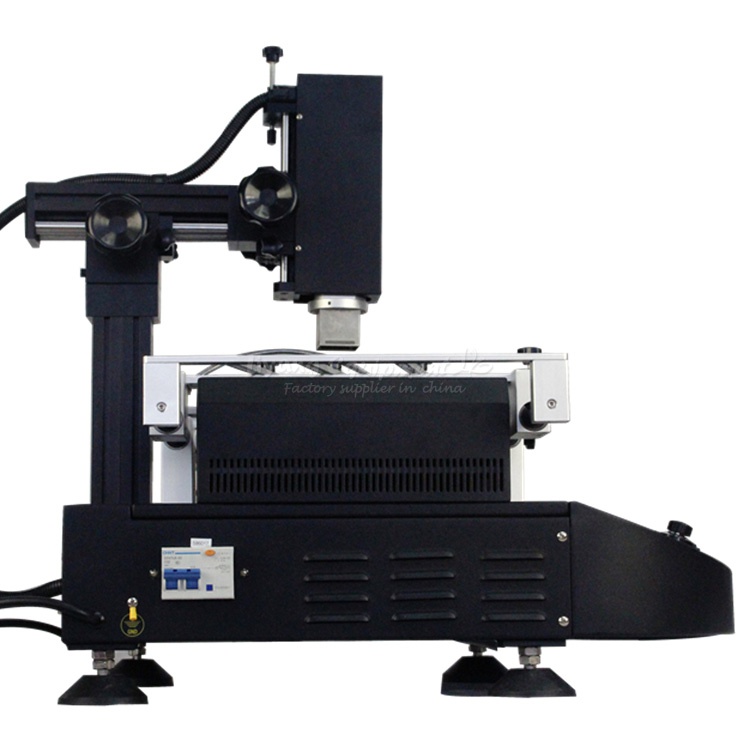

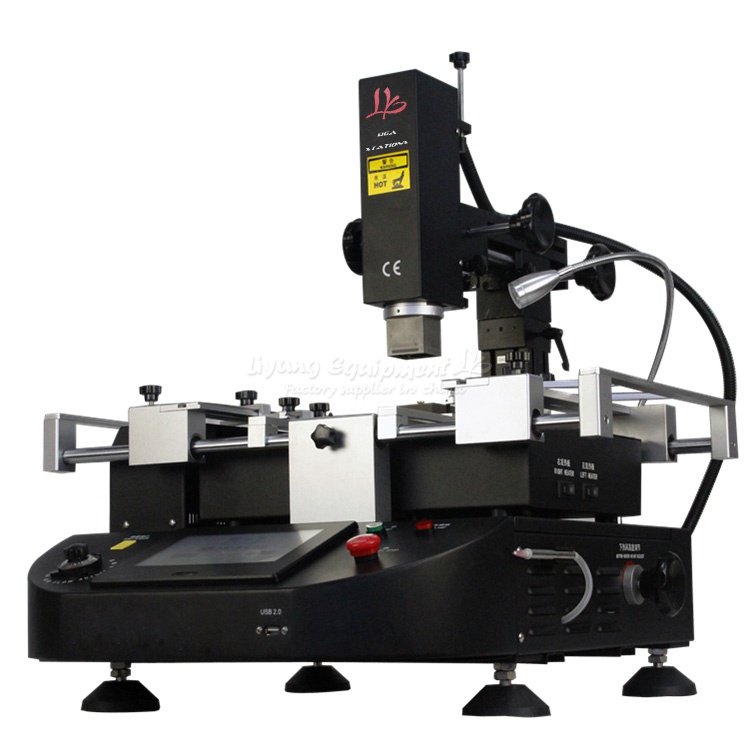

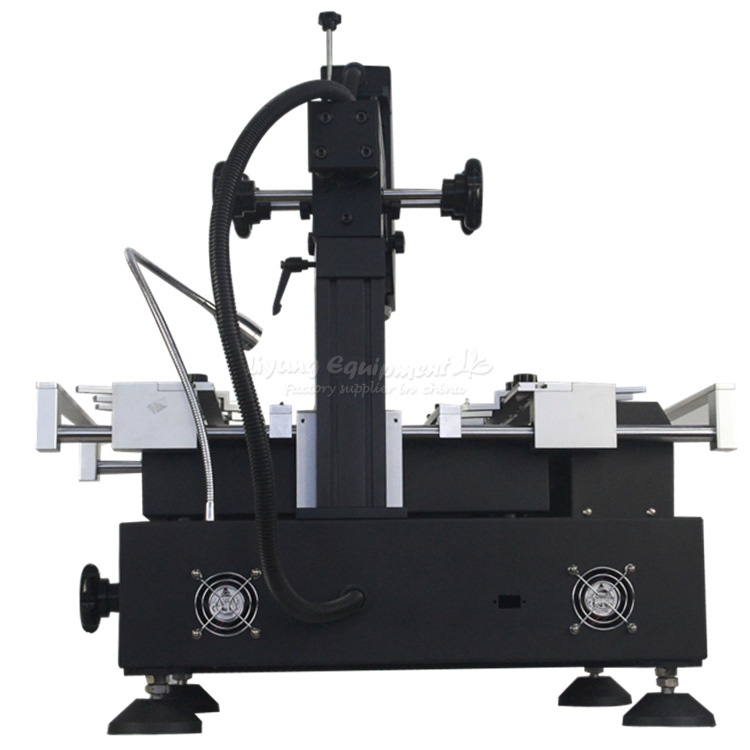

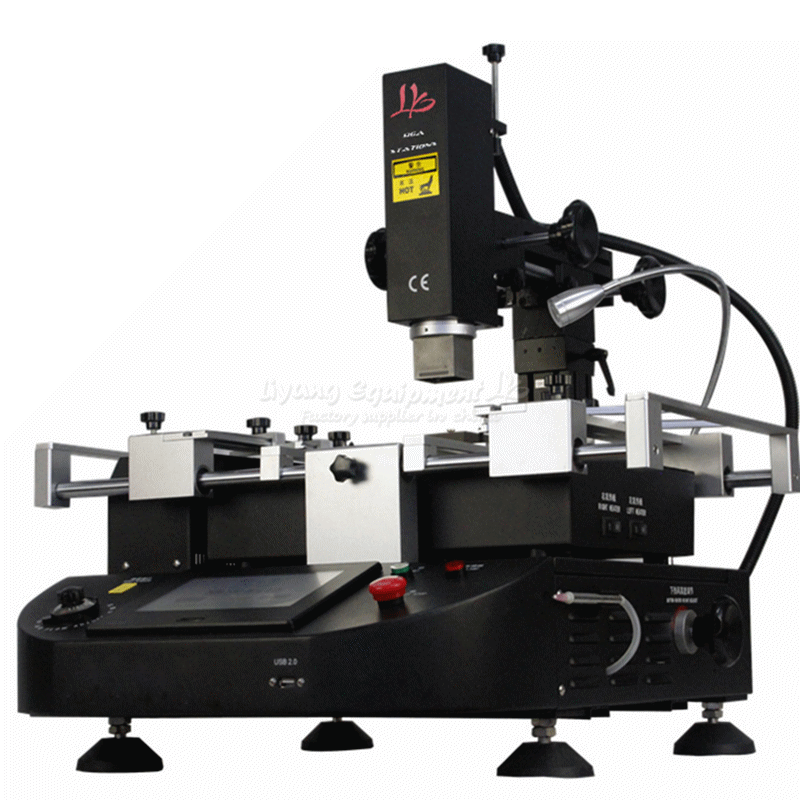

LY-5860 5860C touch screen BGA Rework Station hot air 3 zones for Laptop Motherboard Chip Repair 4800W ZM-5860

LY-5860 5860C touch screen BGA Rework Station hot air 3 zones for Laptop Motherboard Chip Repair 4800W ZM-5860

item ID: 58822
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(3)
USD$1441.2
Payment

Product Detail

Product Tags

LY-5860 touch screen BGA Rework Station hot air 3 zones for Laptop Motherboard Chip Repair 4800W ZM-5860



Specification:

Product name

BGA/SMD Reball Station

Voltage

AC220V±10% 50/60Hz

Power

4800W

Top heater

Hot air 800W

Bottom heater

Hot air 1200W, Infrared 2700W

Positioning

V groove, PCB support can be adjusted in X,Y direction and equipped with universal fixture

Temperature control

K sensor, closed loop control

Temp accuracy

±2°C

PCB size

Max 500x400mm, Min 22x22mm

minimum chip spacing

0.15mm

BGA chip

2*2-80*80mm

External Temperature Sensor

1(optional)

Machine dimension

64x71x60cm

N.W.

40KG

Main feature

1.three independent heating: top hot air heating, bottom hot air heating and IR preheating

2.HD touch screen

3.vacuum pen

4.good price bga rework station

5.LED light

Accessories

-1 piece user guide

-1 piece CD

-1 piece brush

-1 piece temperature sensor

- 5 pcs hot air nozzle: top nozzle 3pc(31x31mm,38x38mm,41x41mm), Bottom nozzle 2pcs (34x34mm,55x55mm)PS: Hot air nozzle size can be customized according to your chip size

-1 piece vacuum pen

-3 pcs vacuum sucker

-6 pcs universal fixture

-6 pcs plug knob

-4 pcs supporting screw

Main feature:

1.Adopt linear slide which makes X, Y, Z axis all can do micro adjust or rapid positioning, with high precision, easy operation.

2.High definition touch screen (Taiwan) , PCL control, can save multiple groups profile, password protection and modify function, equipped with instant temperature curve analysis function;

3.There are 3 independent heating areas. The 1st and 2nd are hot-air heaters, the 3rd is IR preheating.

4.Offer all kinds of hot-air nozzle, it can rotate 360°;With magnet, easy to install and change, customized is available;

5.K-type thermocouple (closed loop), heating independently, temperature precision within ± 3degree.

6.V-groove PCB support can be adjusted in any direction with external universal fixture, suitable for all kinds of BGA repair.

7.powerful cross-flow fan rapidly cool the PCB board to improve efficiency; Also built-in vacuum pump and external vacuum suction pen, pick up the chips rapidly.

8.After finishing desoldering & soldering, There is an alarming and alarming in advance.

9.CE certificate, with emergency stop and Automatic power off protection device when abnormal accident happens;with a double overheating protection control.

Thanks for your order!

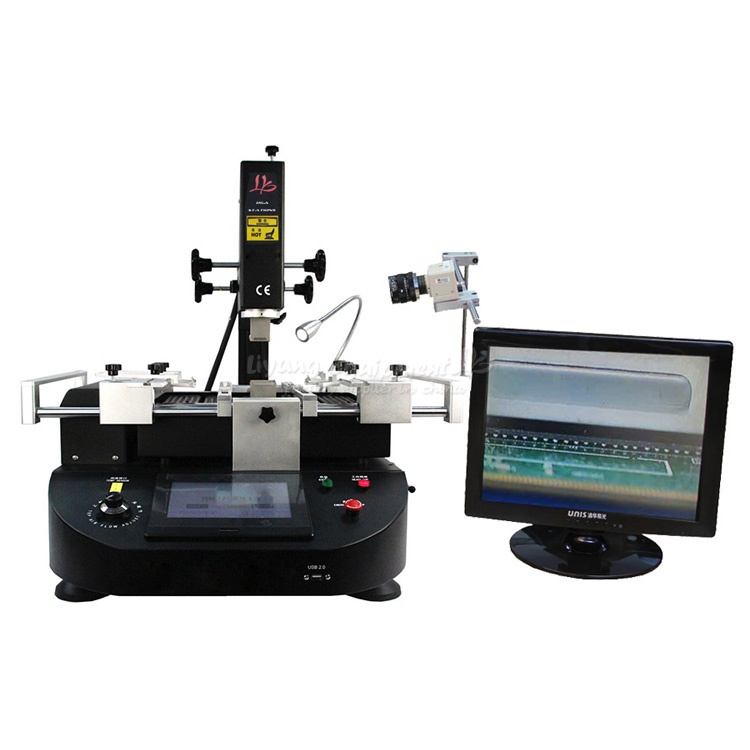

14'' CCD Camera:
