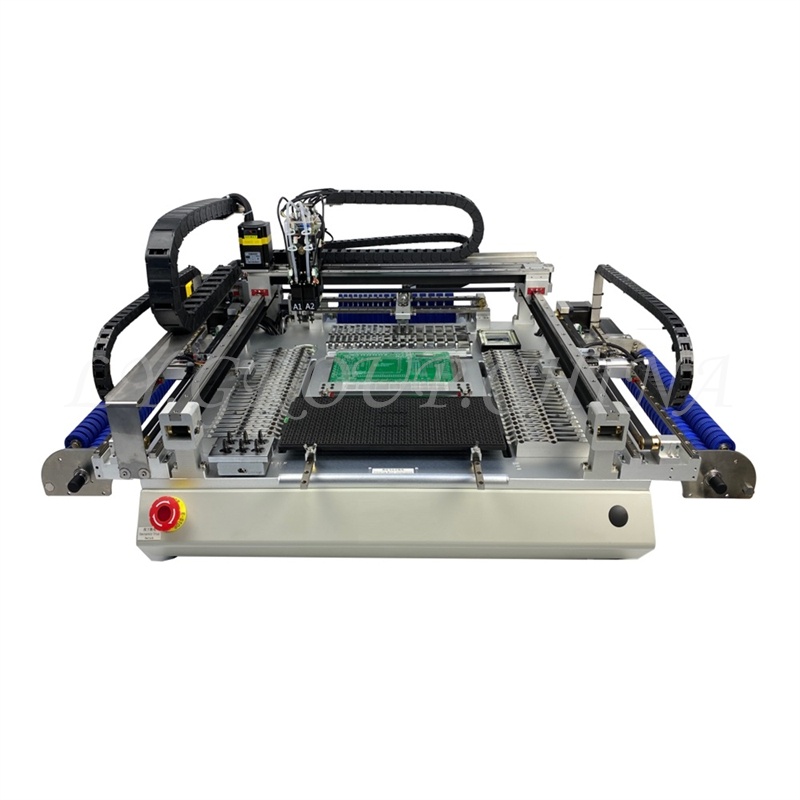

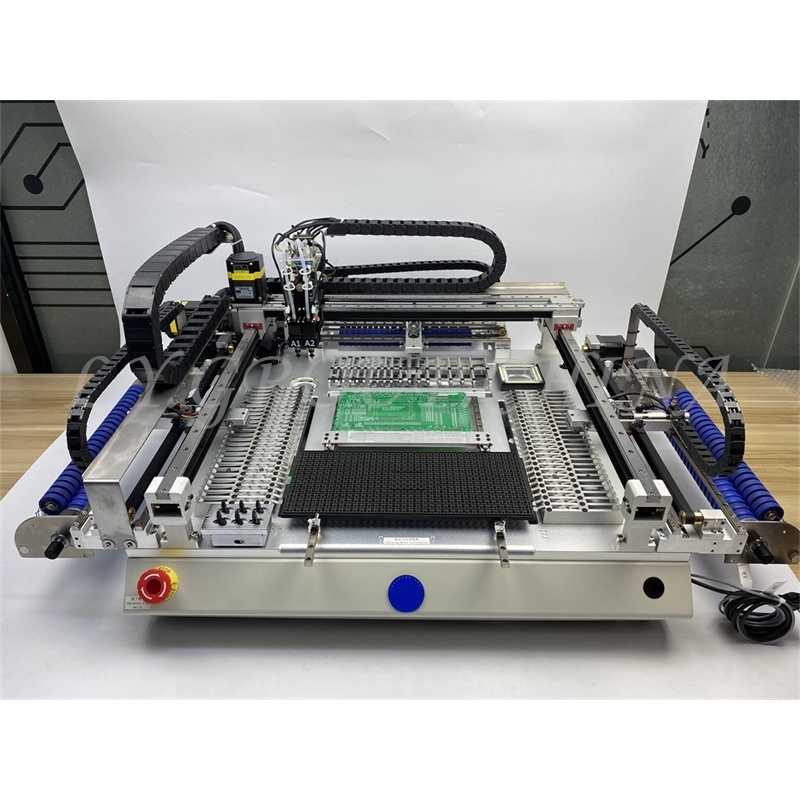

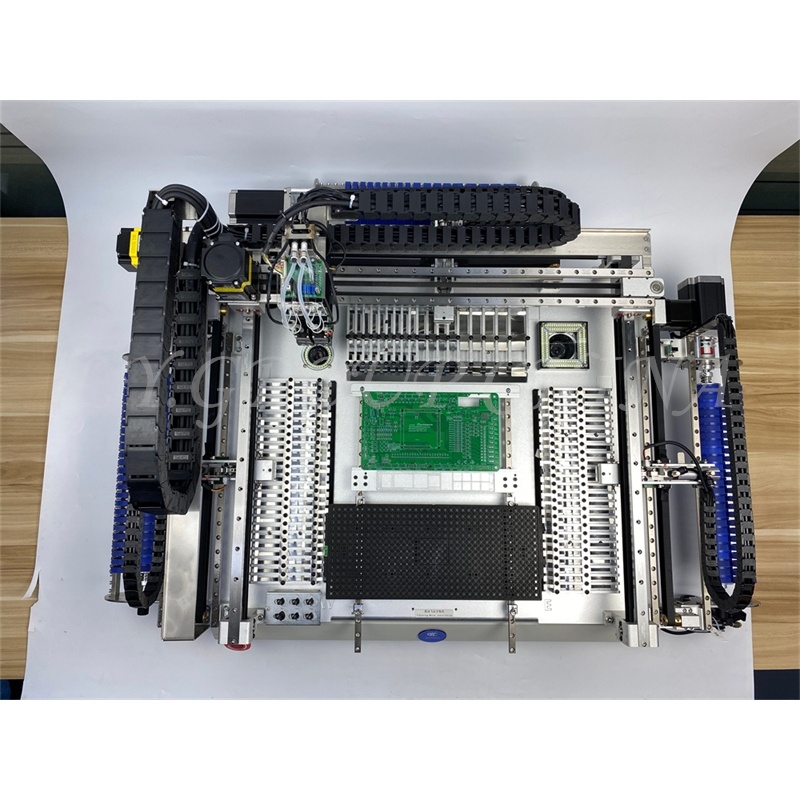

LY D600Plus High Speed 68 Bits With Full Vision Desktop Automatic SMT Pick And Place Machine Chip Mounter LED SMD 6 Heads For PCB Assembly Line

LY D600Plus High Speed 68 Bits With Full Vision Desktop Automatic SMT Pick And Place Machine Chip Mounter LED SMD 6 Heads For PCB Assembly Line

item ID: 65751
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$7000 USD$5944 (% off)
Payment

Product Detail

Product Tags

LY D600Plus High Speed 68 Bits With Full Vision Desktop Automatic SMT Pick And Place Machine Chip Mounter LED SMD 6 Heads For PCB Assembly Line

RE:

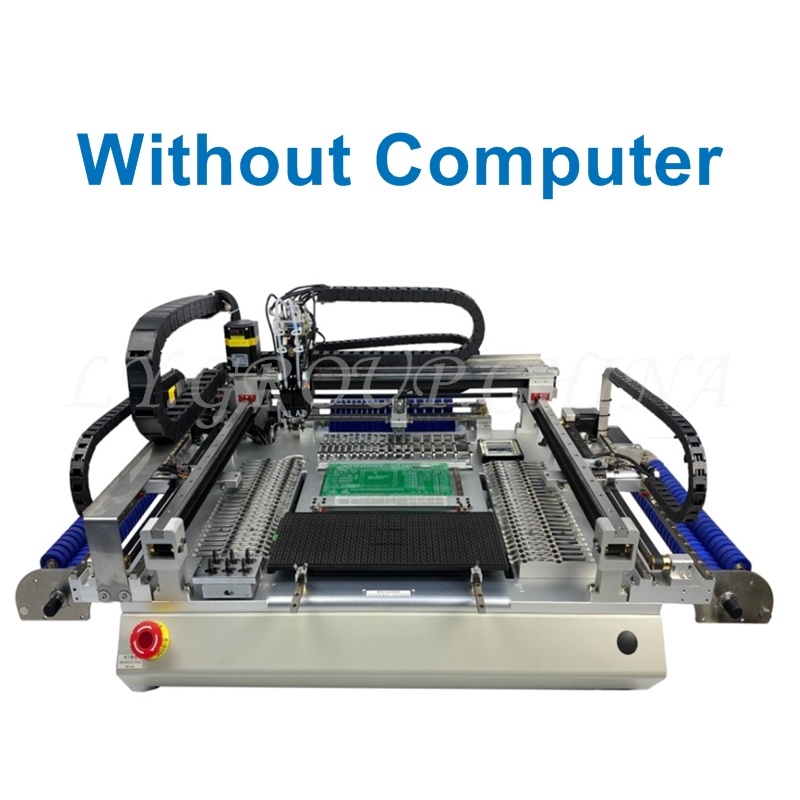

  1. Without computer:

 Need to link with external computer to use.

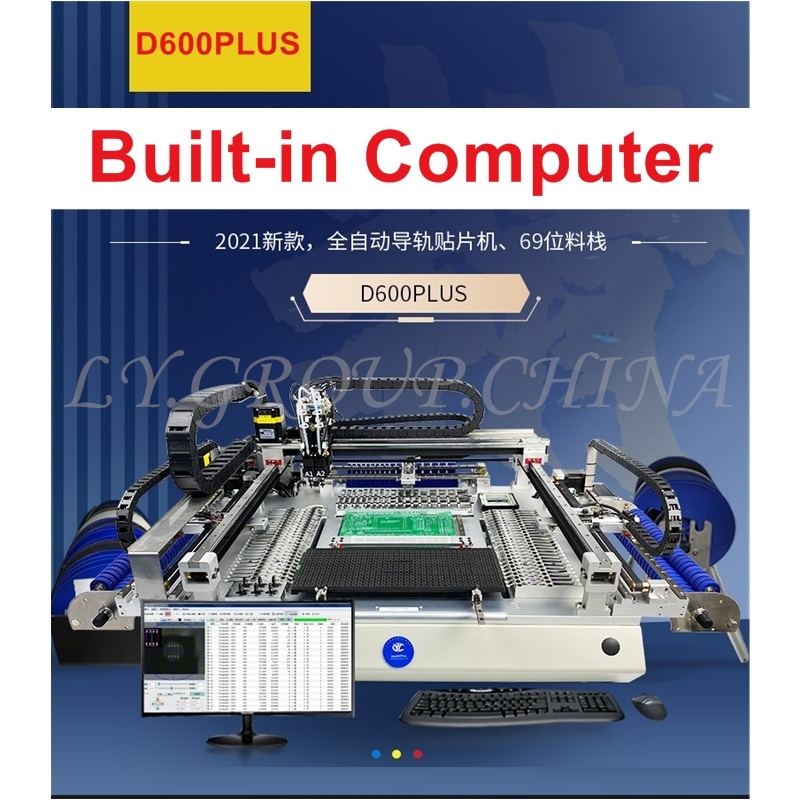

  1. Built-in computer:

With wireless keyboard & mouse, not with monitor.

Need to use with air compressor.

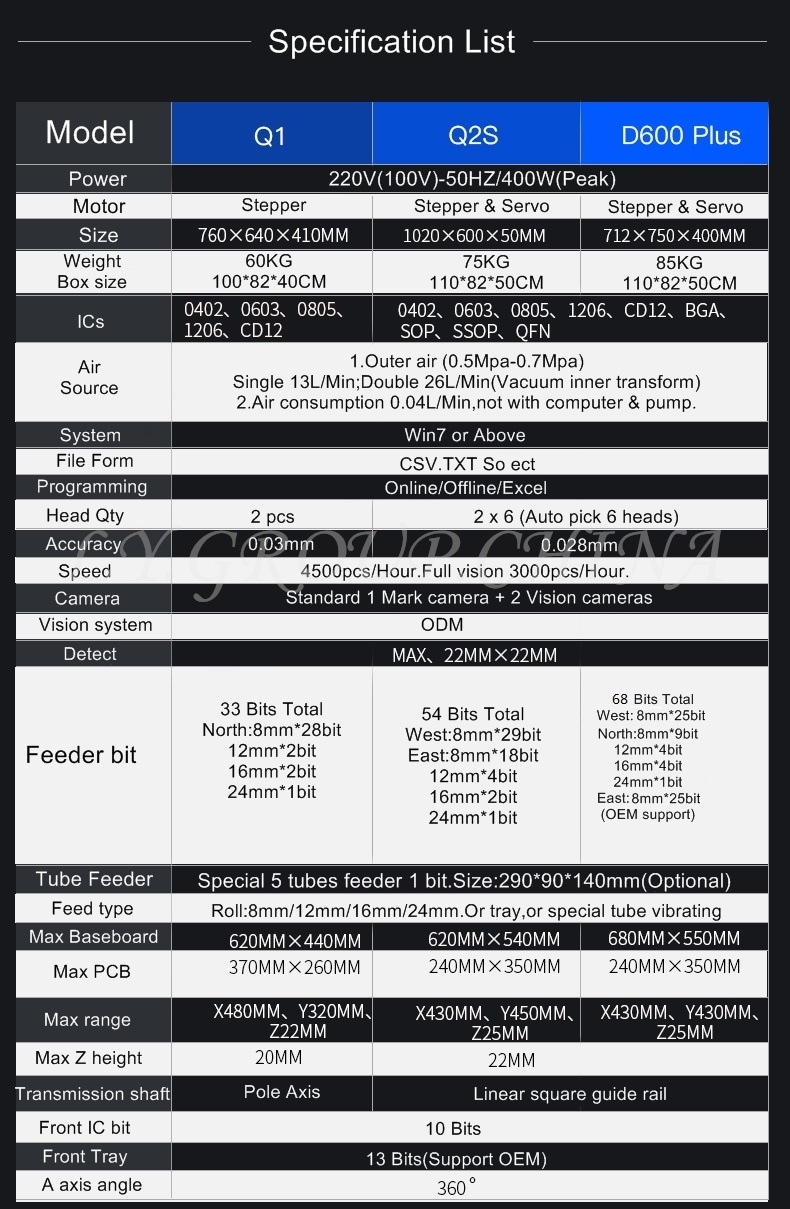

Power: 220V or 110V. 50HZ/400W

Motor: Stepper And Servo

Size:100*75*40CM

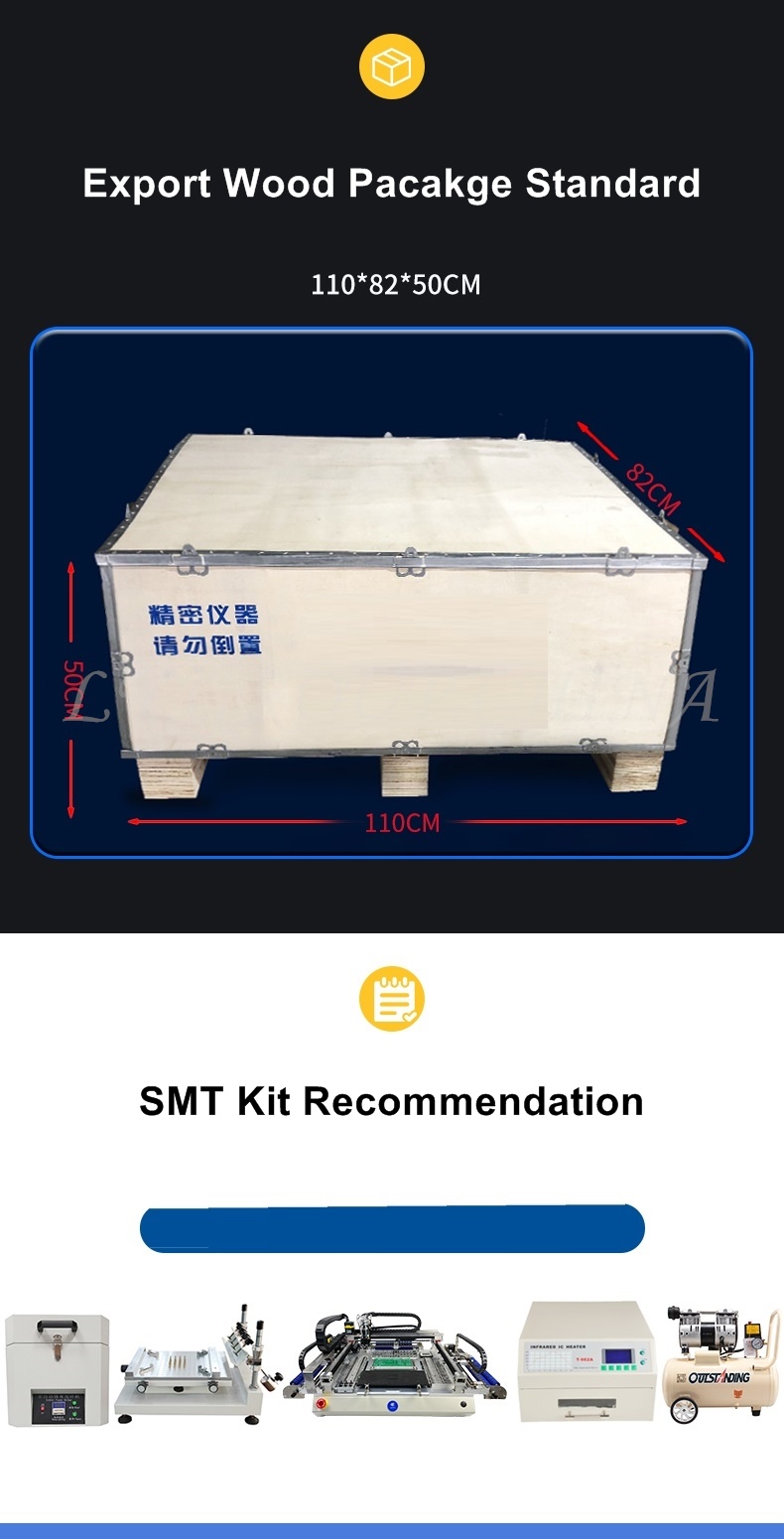

Cartoon size: 110*82*50CM

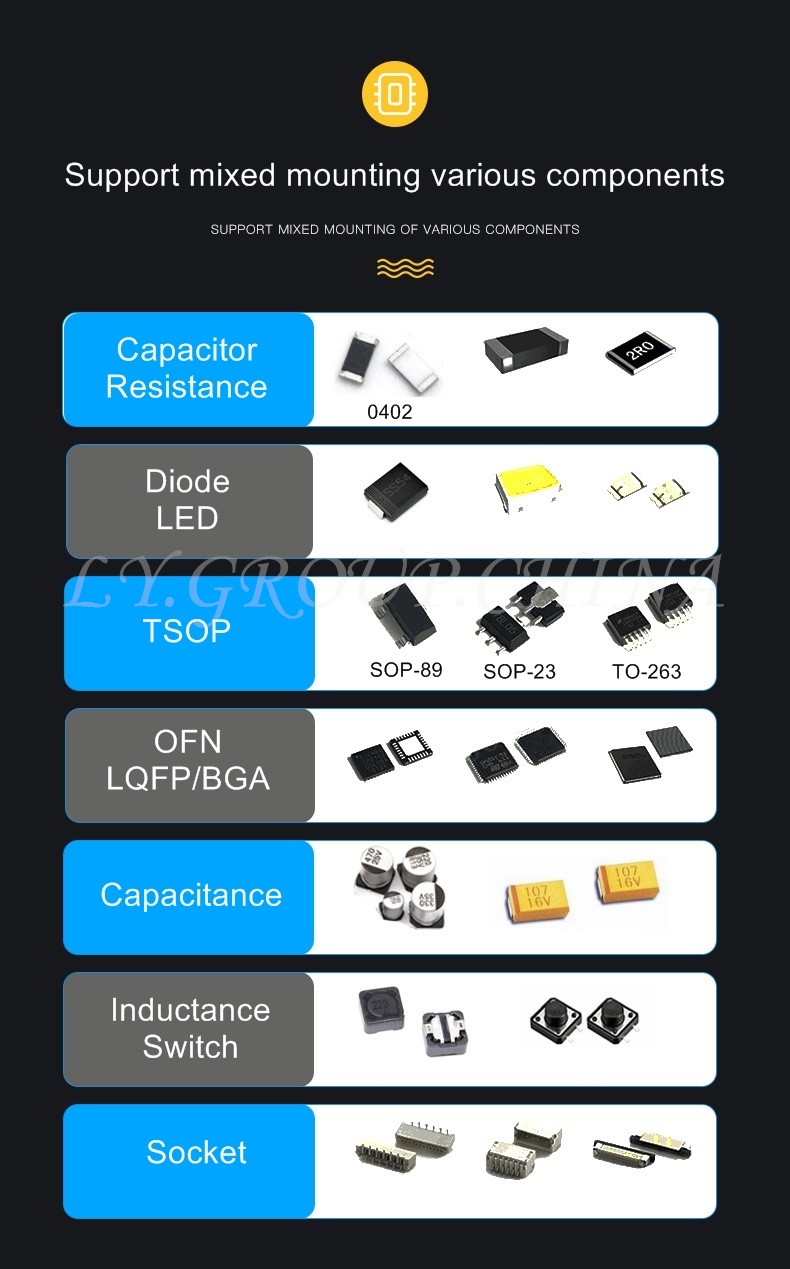

QFP Type: 0402,0603,0805,1206,CD12, BGA,SOP,SSOP,QFN, High Capacitor

Air In  : Air Compress 0.5MPA-0.7MPA,0.04L/Min

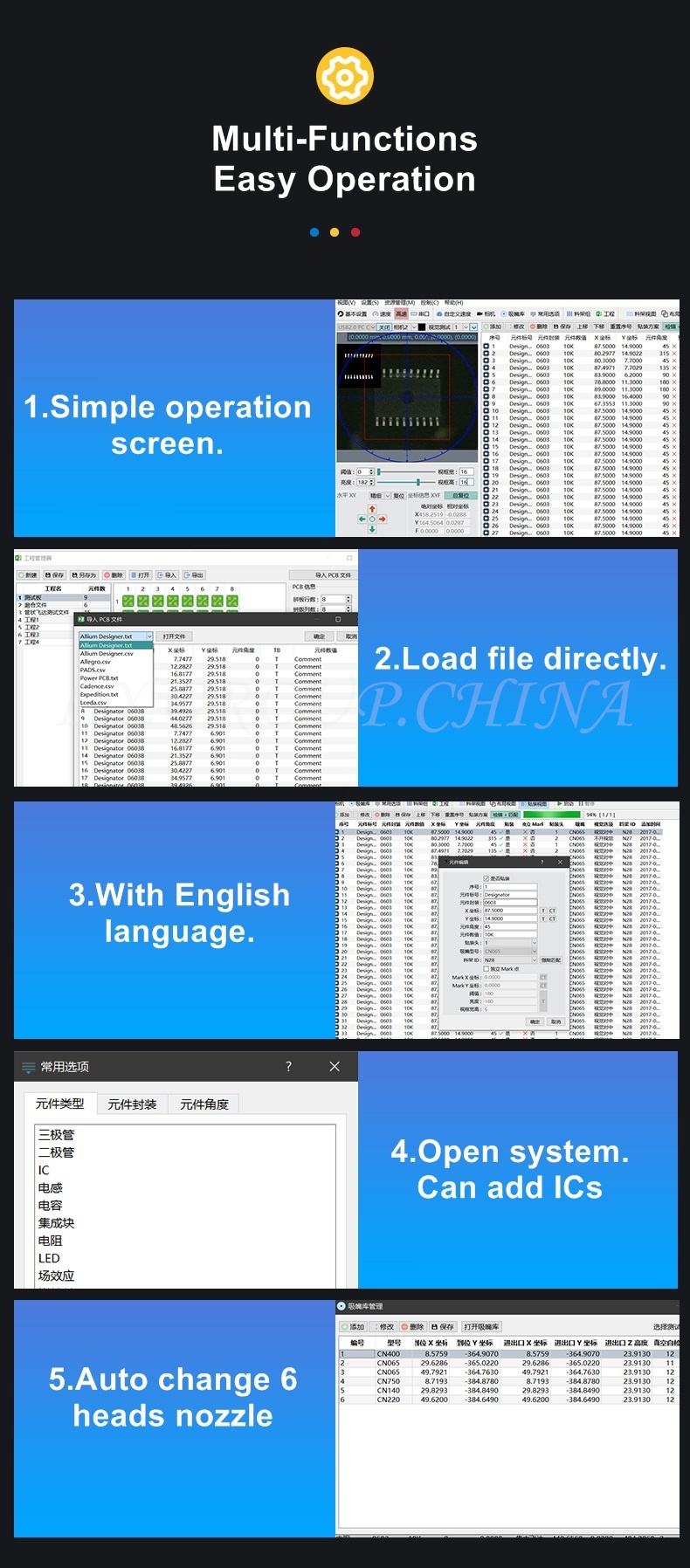

Operation: Win7 or above

File form: CSV,TXT

Program way: Online/ Offline/ Excel

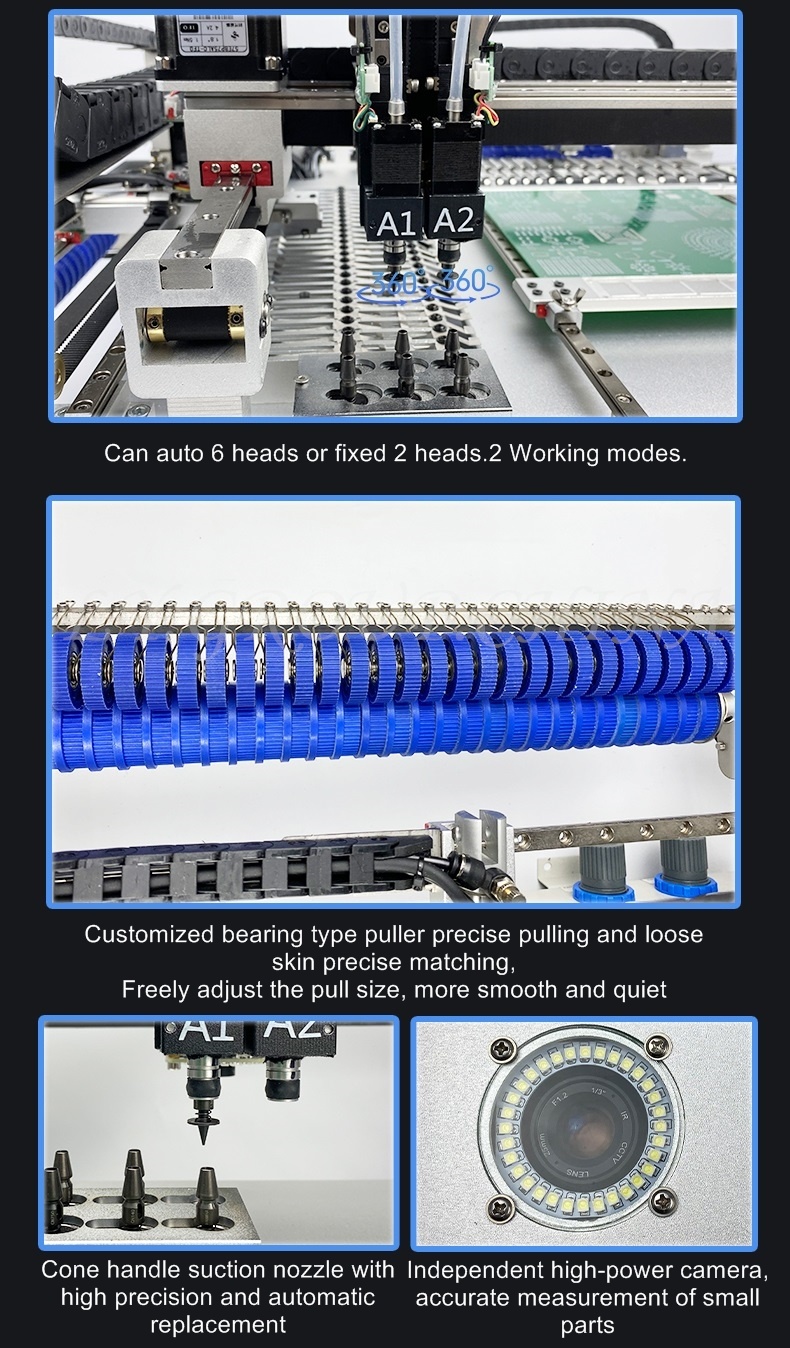

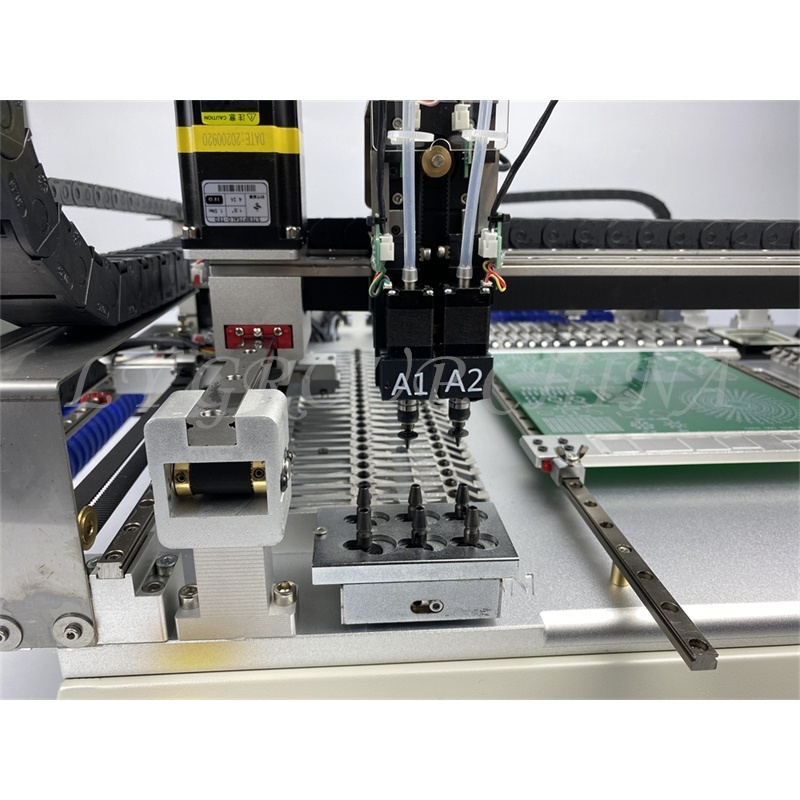

Nozzle QY: 2 x 6 (Auto change 6 pcs)

Accuracy: 0.028mm

Speed: Resistance 3500pcs/hour, Full vision 2500pcs/hour

Camera: 3pcs (Mark camera*1, vision camera *2)

Recognition : MAX, 17*17MM

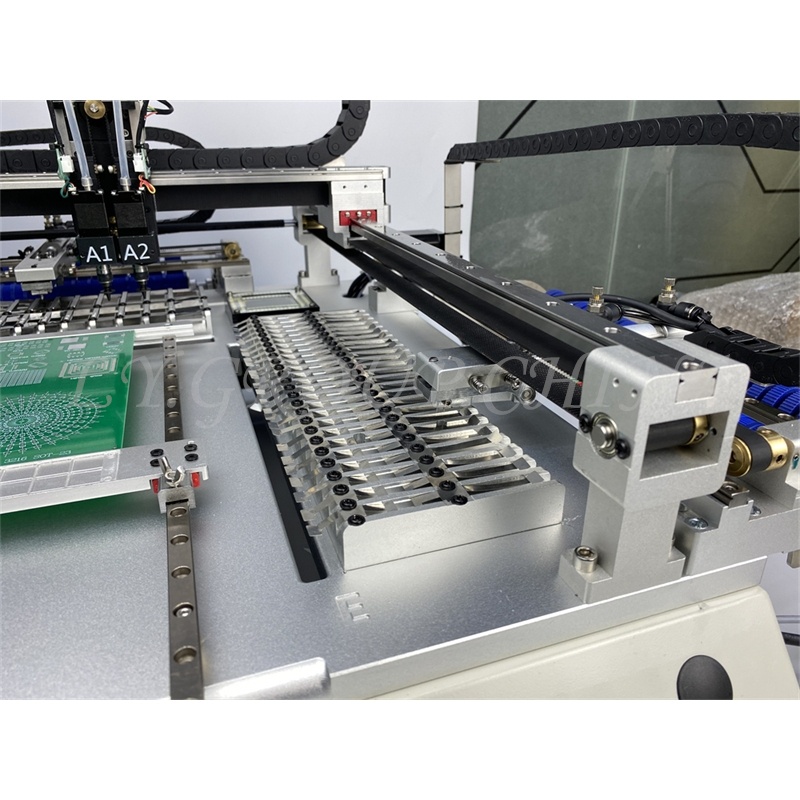

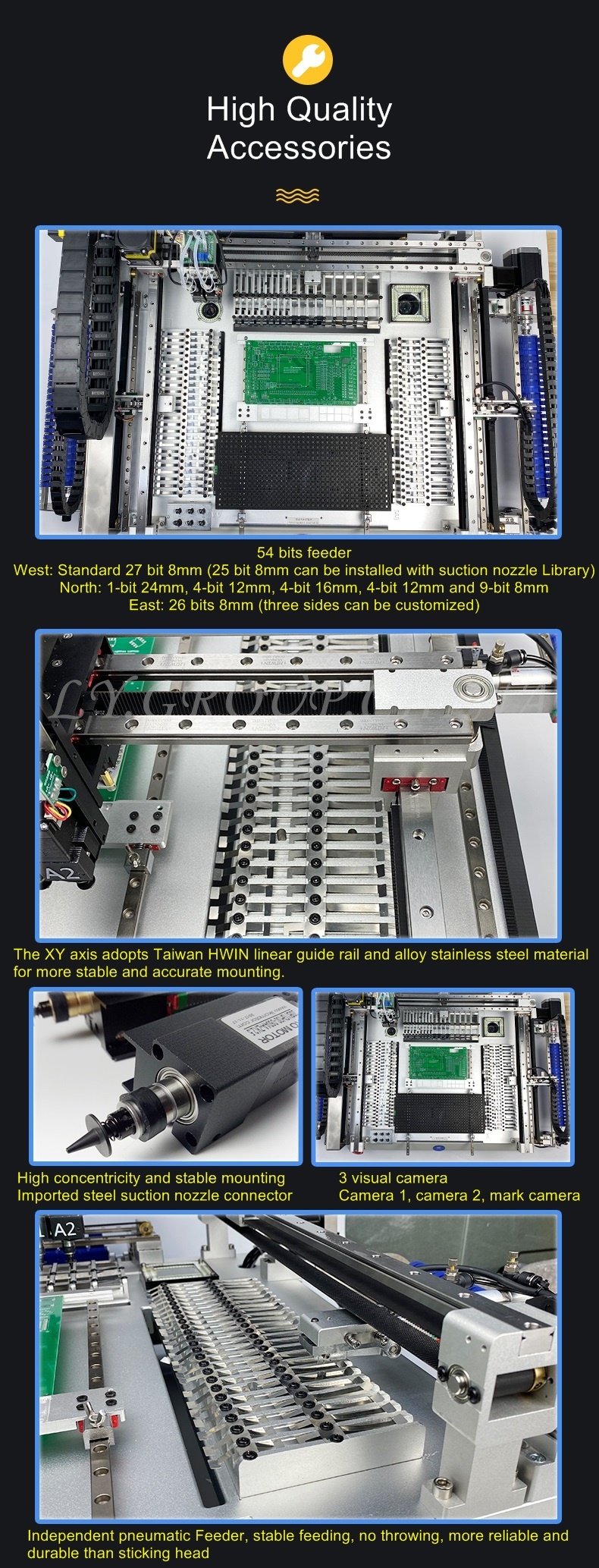

Feeder: 68 Bits (OEM Support)

West:8mm*25 bits/East:8mm*25bits/North:8mm*9 bits; 12mm*4 bits;16mm*4bit,24mm*1 bit

Tube feeder: 5 tubes, Size: 290*90*140mm (Optional)

Max Base board: 680*550mm

Max PCB Size: 240*350mm

Max range: X:430MM/ Y:430MM/ Z:22MM

Front IC Feeder: 10 Bits

Weight:85KG
