LY IR8500 Dark infrared 2 stages BGA Rework Station upgraded on IR-PRO-SC

LY IR8500 Dark infrared 2 stages BGA Rework Station upgraded on IR-PRO-SC

item ID: 58766
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(5)
USD$580
Payment

Product Detail

Product Tags

LY IR8500 Dark infrared 2 stages BGA Rework Station upgraded on IR-PRO-SC

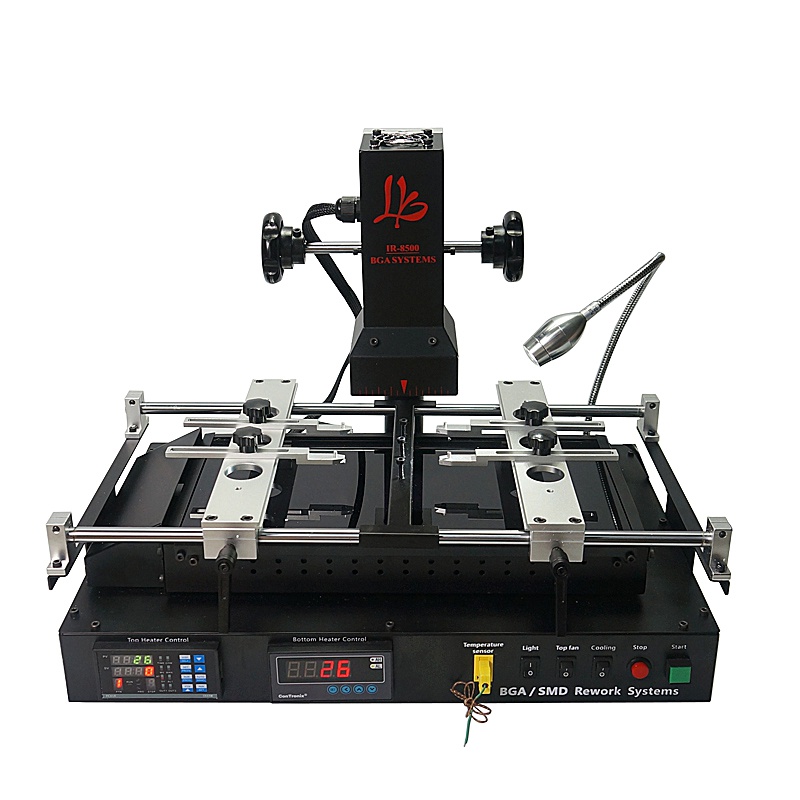

LY IR8500 BGA station (4)

Feature:

This is economic BGA model,substitute of IR-PRO-SC,if do small motherboard,can choose IR6500,if do big board,can choose IR8500.

LY IR8500 BGA station (9) LY IR8500 BGA station (10) LY IR8500 BGA station (11)

LY IR8500 BGA station (11.1) LY IR8500 BGA station (12) LY IR8500 BGA station (13) LY IR8500 BGA station (14) LY IR8500 BGA station (15)

Introduction

LY IR8500 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.

LY IR8500 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.

Technical Parameters

Basic Parameters
Zones 2
Heating IR
Operations Manual / Software
Dimension L780mmx W450mmx H260mm
Weight 18kg
Total weight About 21 kg, vary with the different need of the users
Electrical Parameters
Power 220V AC

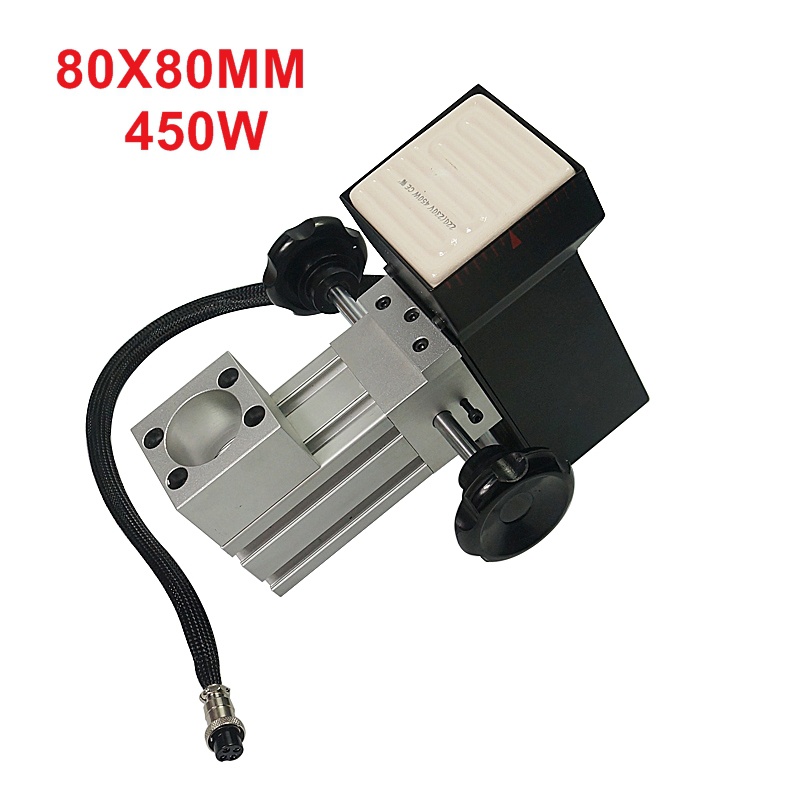

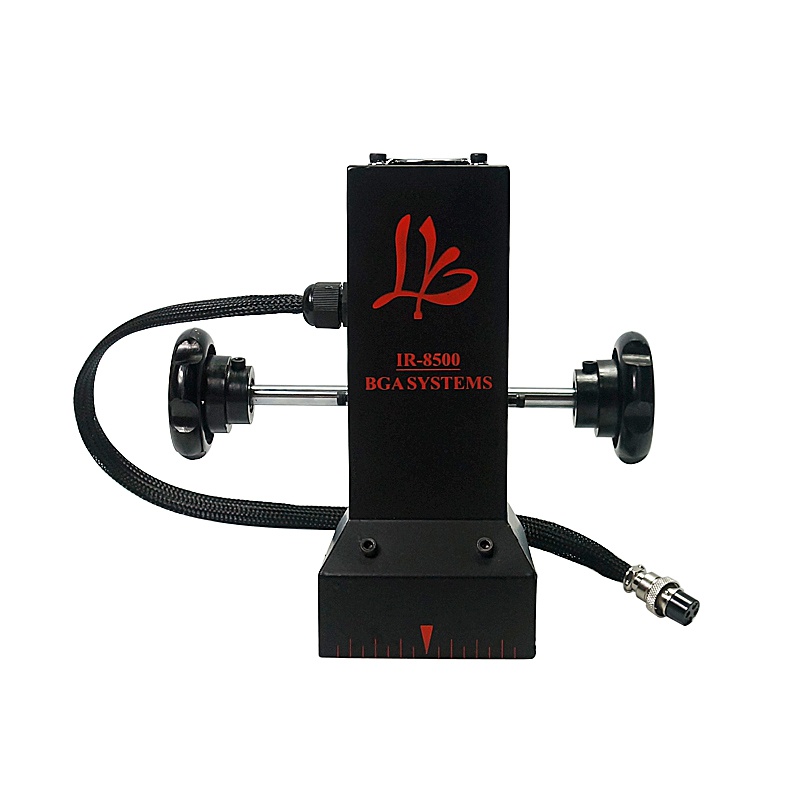

Upper Heating IR
Size of Upper heating 80mm x 80mm
Consumption of upper heating 450W
Bottom Heating IR
Size of Bottom heating 400mm x200mm
Consumption of Bottom heating 1600W
General power 2050W

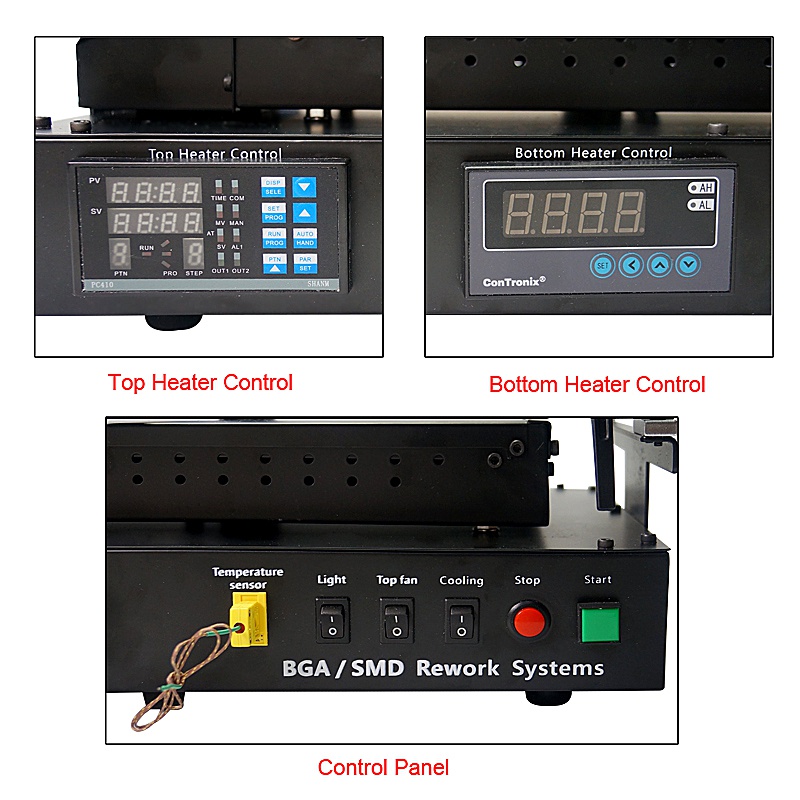

Temperature Control
Control mode of Upper Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, Alarm
Control mode of Bottom Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, NO Alarm
Rework Function
SMD Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI
metallic shield product and solder/lead free Rework welding
Size of applicable chips ≤70mm x70 mm
Size of applicable PCB ≤400mm x305mm

Packing list:

1× IR8500 BGA rework station

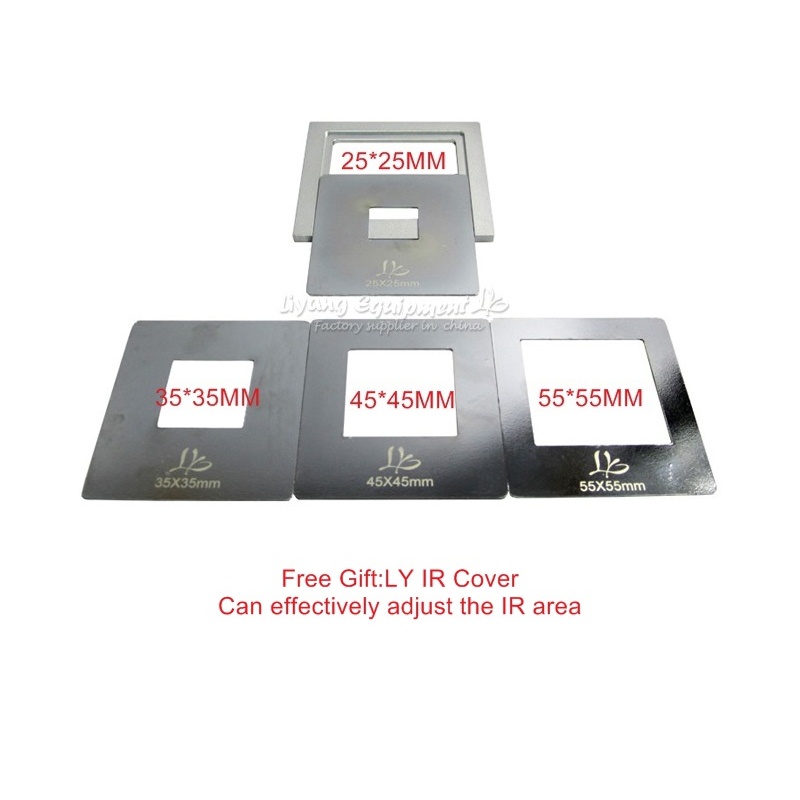

1x LY IR cover set

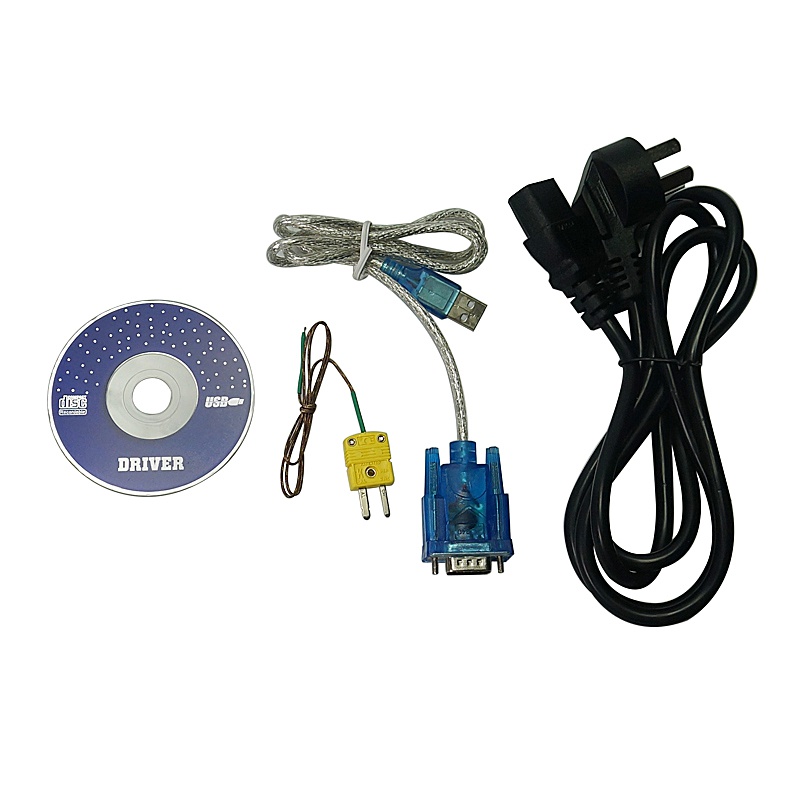

1× power cable

1× usb to rs232 port cable (with CD)

1× thermocouple

4x pcb jig with screw

1 x bottom supports

1× CD of manual and software (if not get, may be lost in customs, please contact us)

1x silver tape
