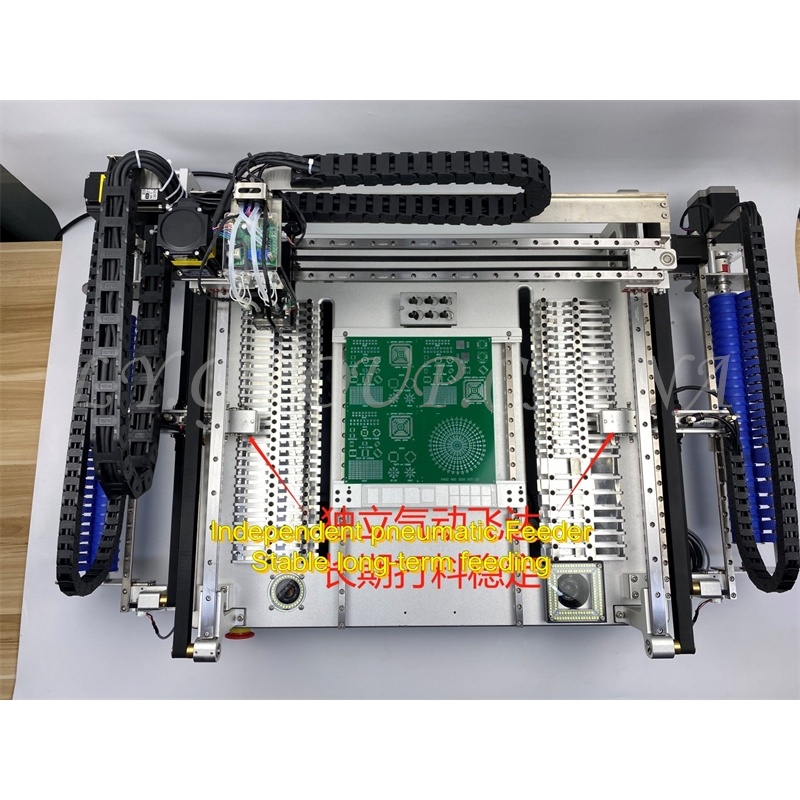

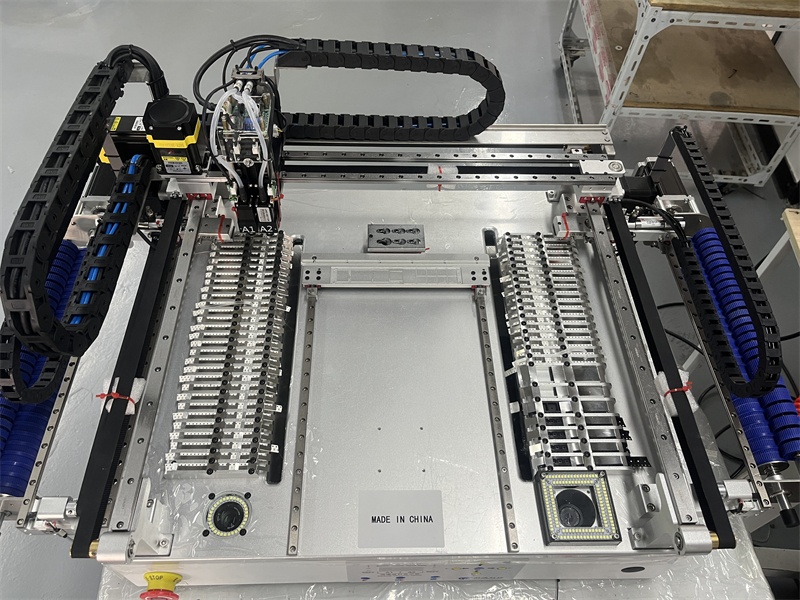

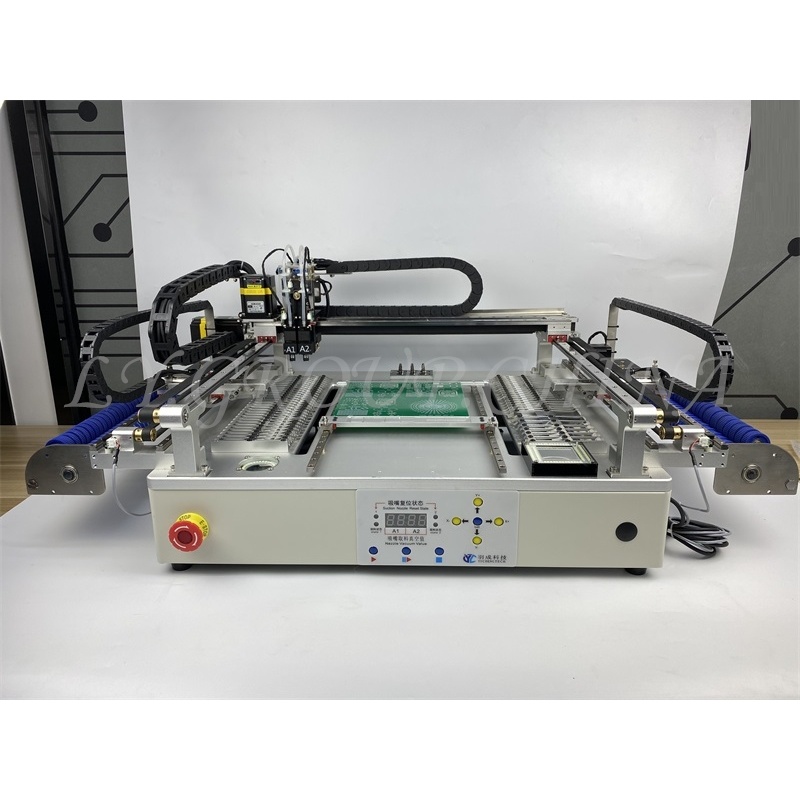

LY Q2S High Speed 54 Bits With Full Vision Desktop Automatic SMT Pick And Place Machine Chip Mounter LED SMD Dual 6 Heads For PCB Assembly Line

LY Q2S High Speed 54 Bits With Full Vision Desktop Automatic SMT Pick And Place Machine Chip Mounter LED SMD Dual 6 Heads For PCB Assembly Line

item ID: 65721
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$7000 USD$5066 (% off)
Payment

Product Detail

Product Tags

LY Q2S High Speed 54 Bits With Full Vision Desktop Automatic SMT Pick And Place Machine Chip Mounter LED SMD Dual 6 Heads For PCB Assembly Line

RE:

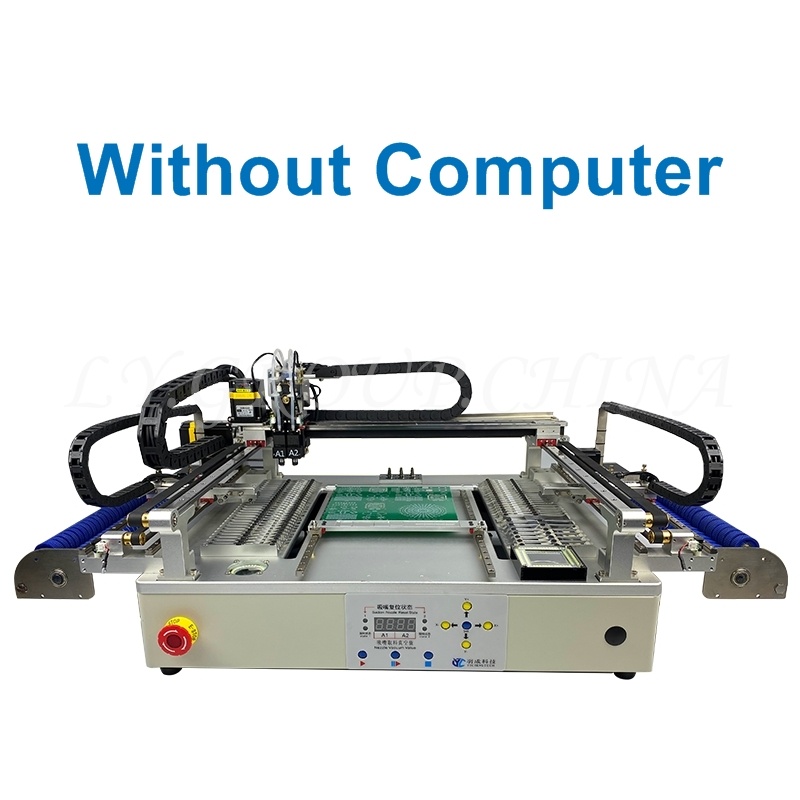

  1. Without computer:

 Need to link with external computer to use.

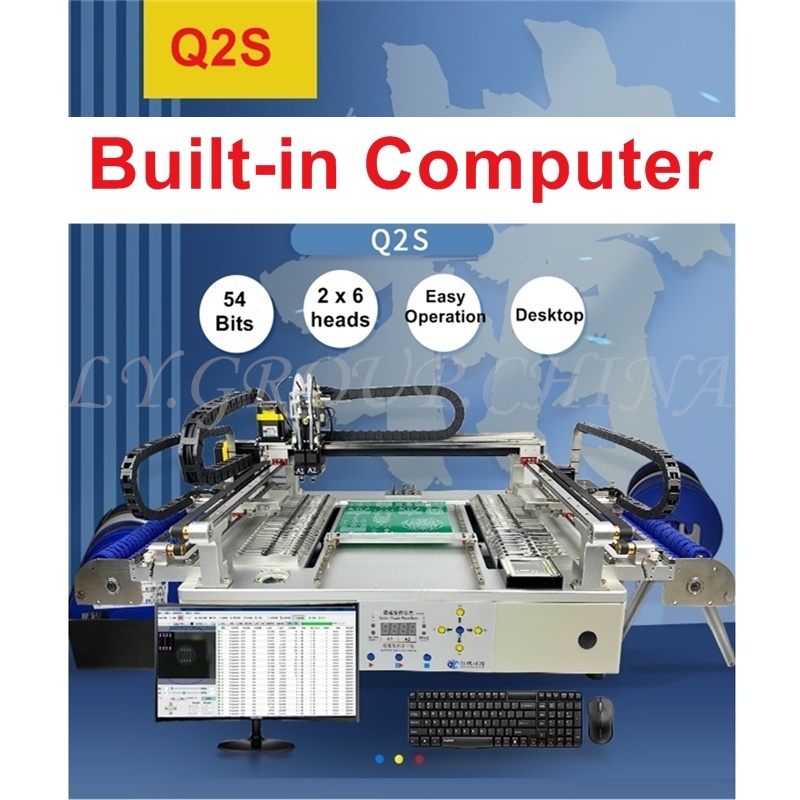

  1. Built-in computer:

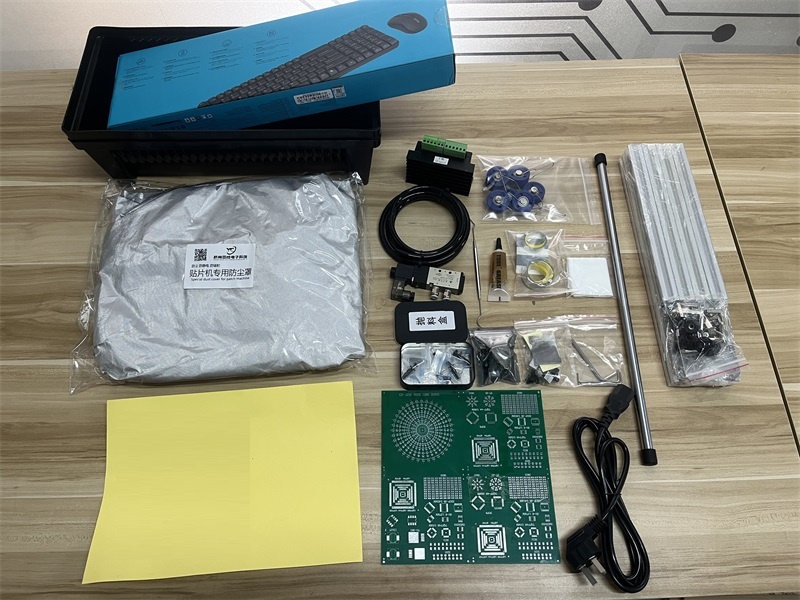

With wireless keyboard & mouse, not with monitor.



Need to use with air compressor.

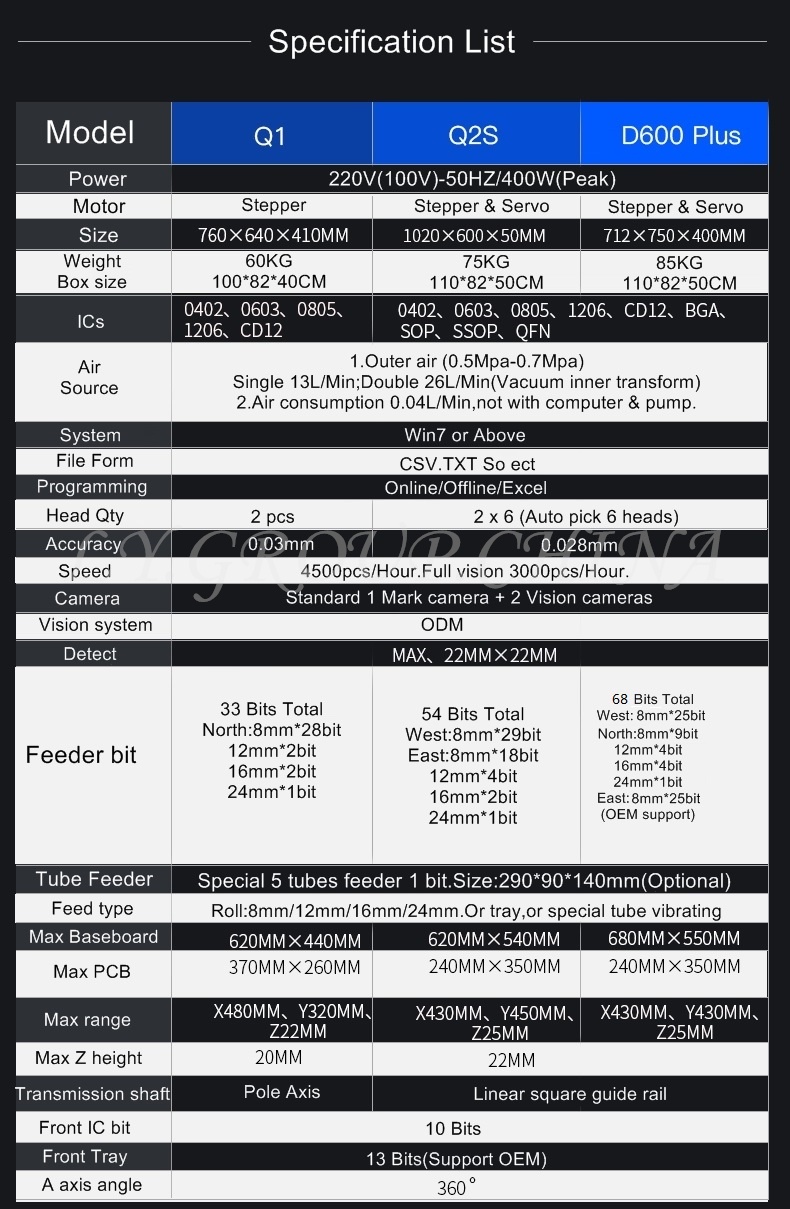

Power: 220V or 110V. 50HZ/400W

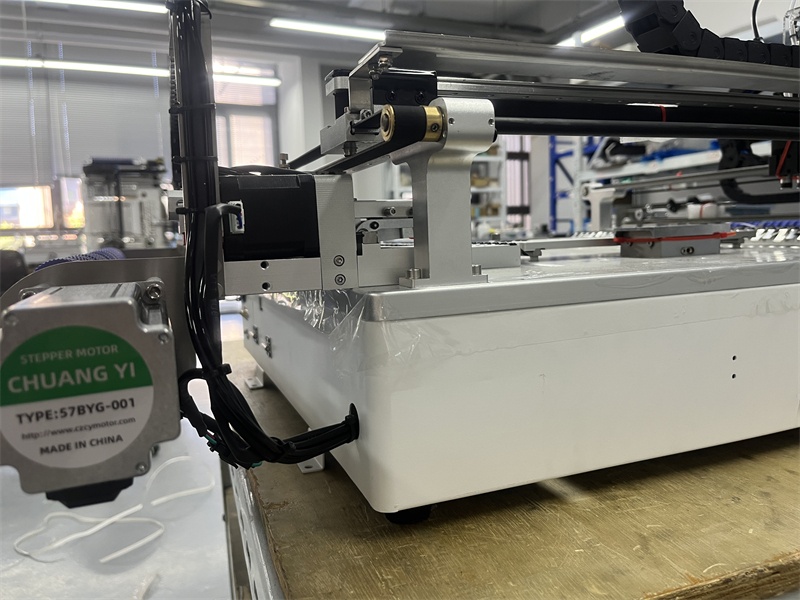

Motor: Stepper And Servo

Size:100*60*40CM

Cartoon size: 110*82*50CM

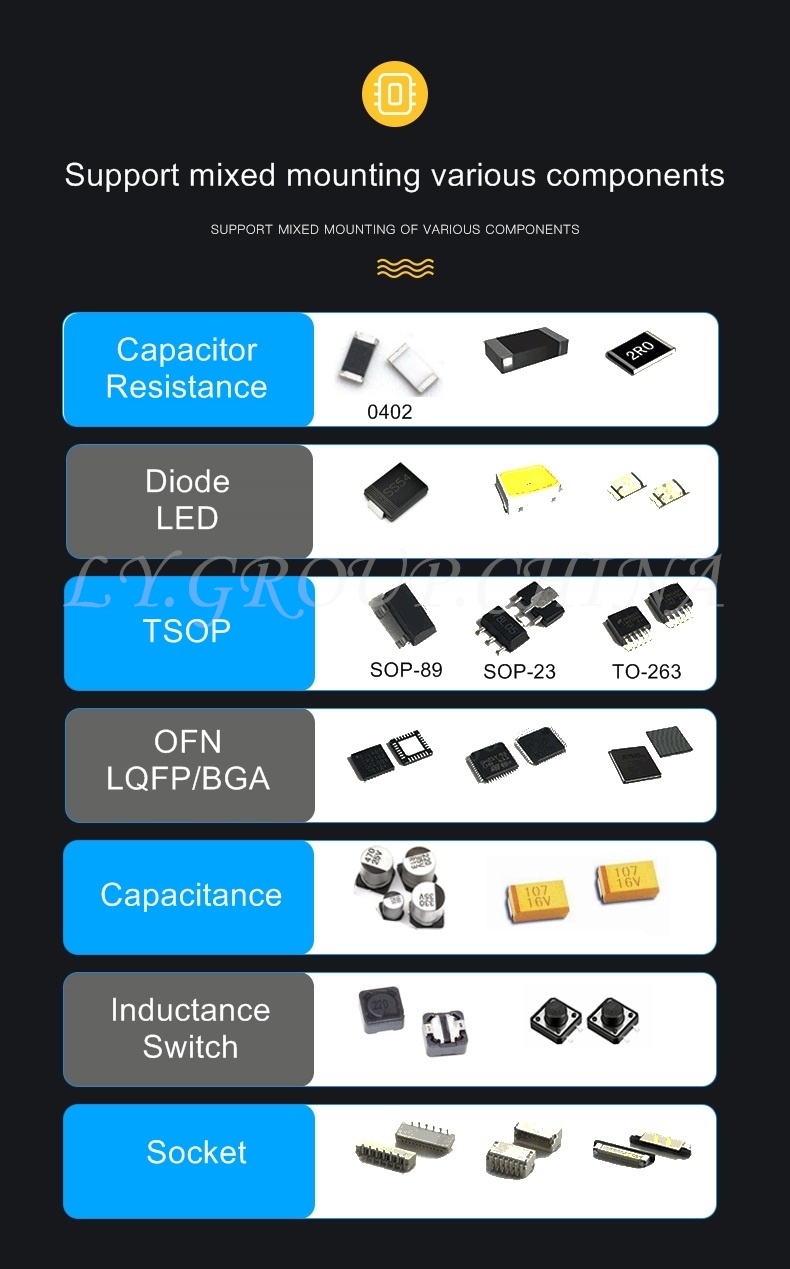

QFP Type: 0402,0603,0805,1206,CD12, BGA,SOP,SSOP,QFN, High Capacitor

Air In  : Air Compress 0.5MPA-0.7MPA,0.04L/Min

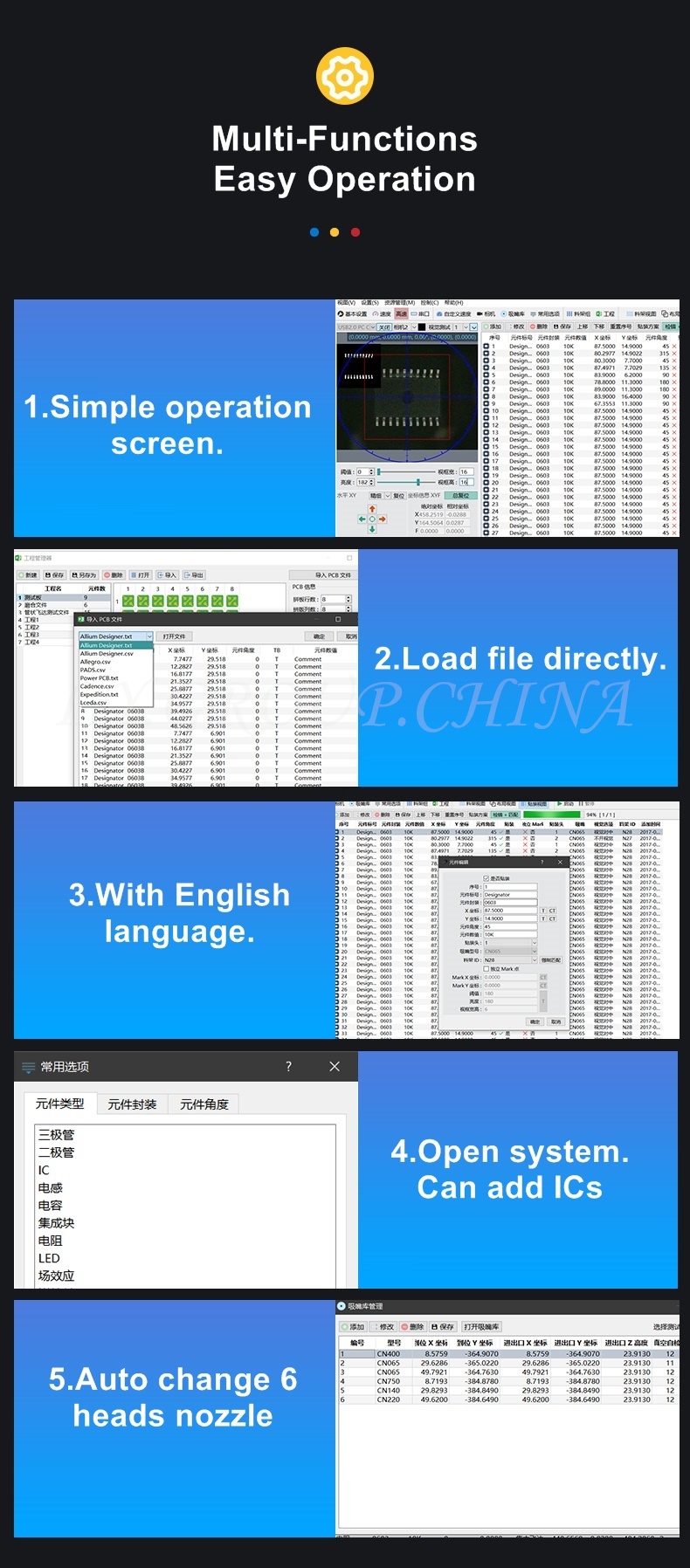

Operation: Win7 or above

File form: CSV,TXT

Program way: Online/ Offline/ Excel

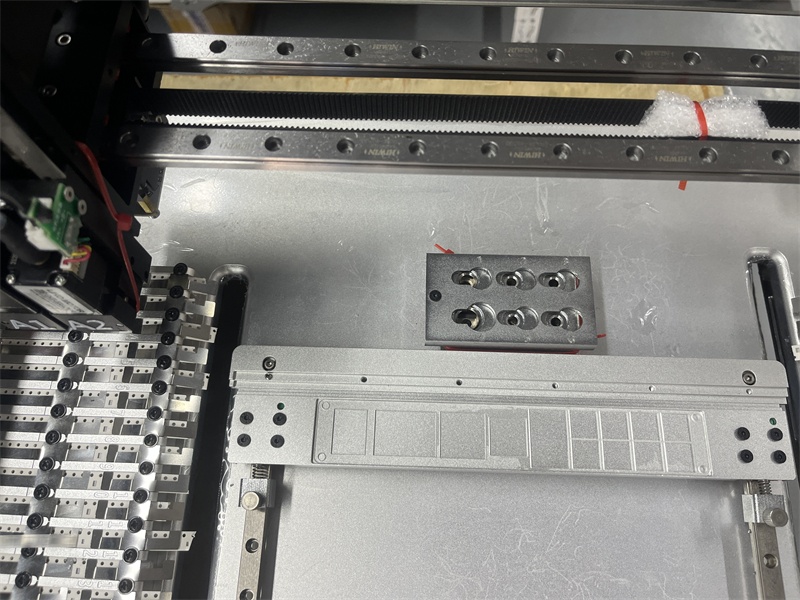

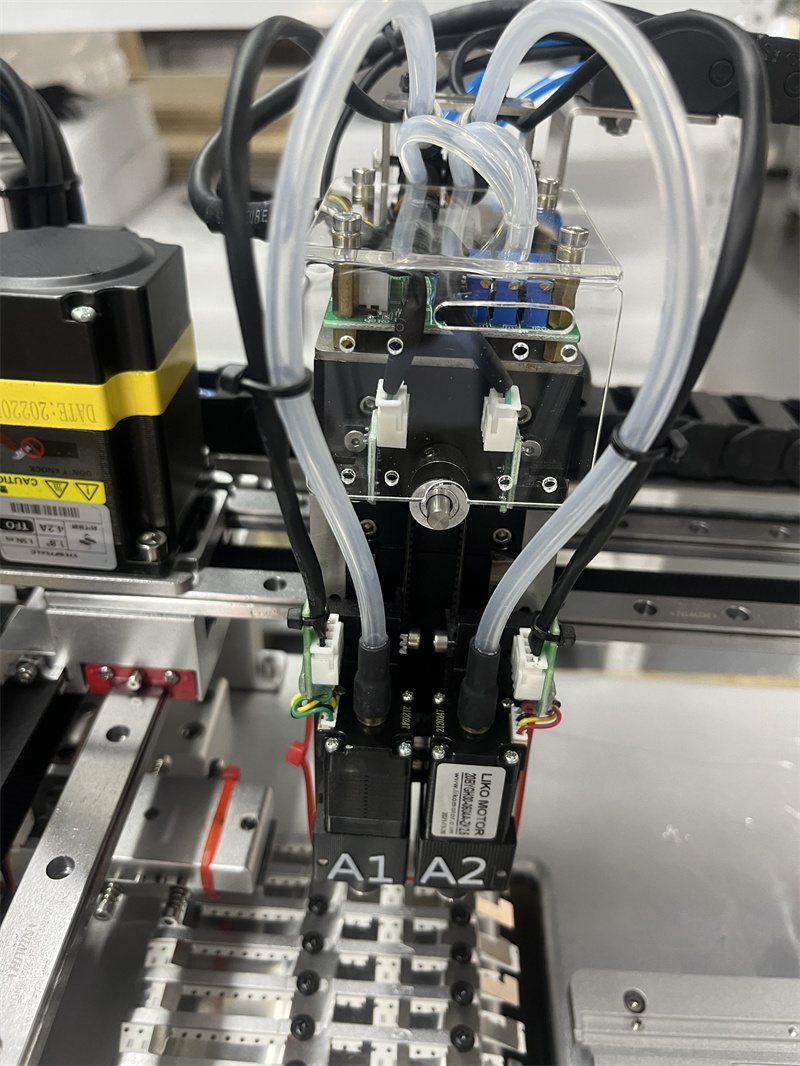

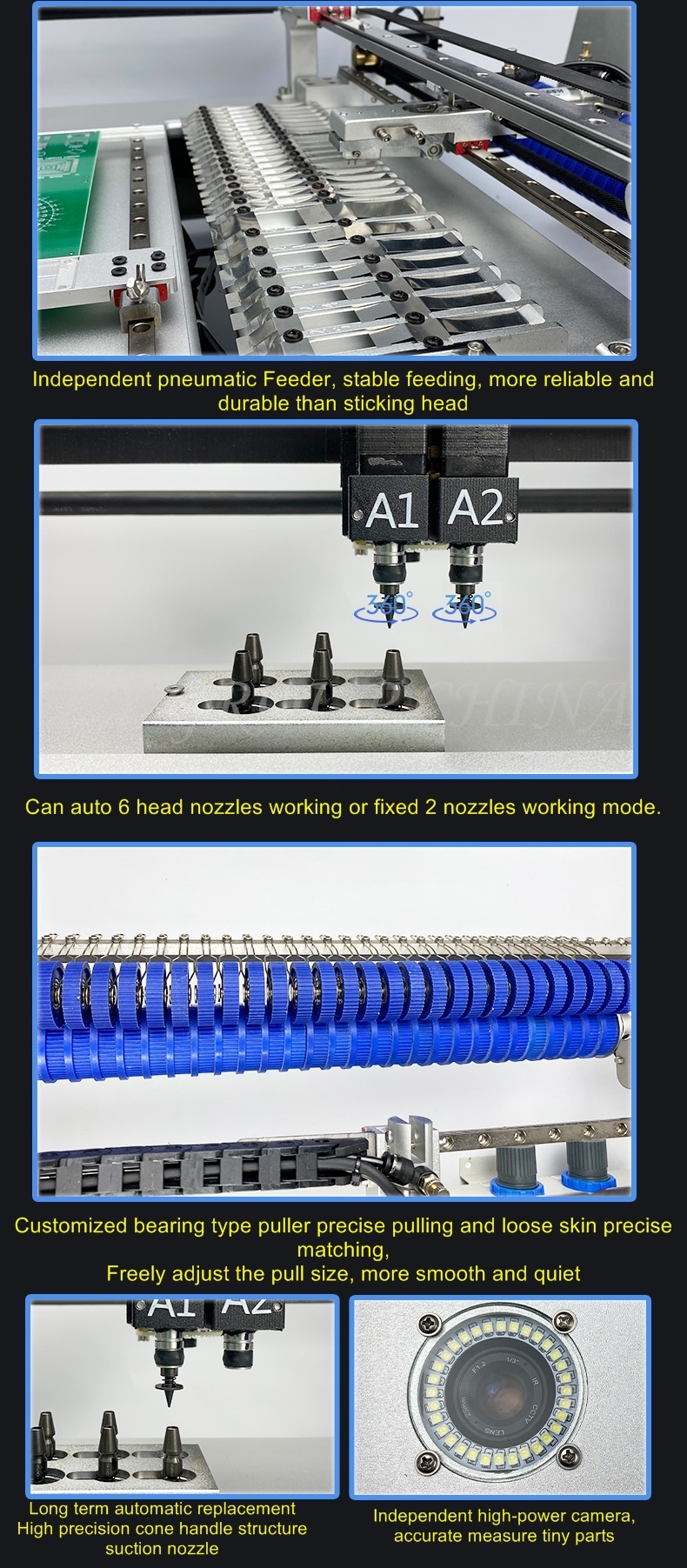

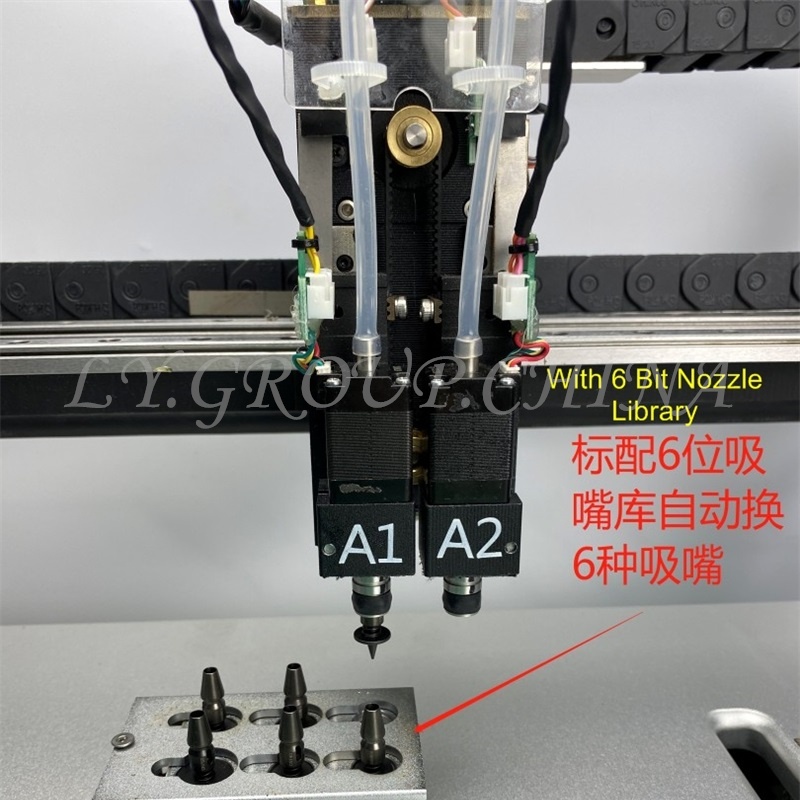

Nozzle QY: 2 x 6 (Auto change 6 pcs)

Accuracy: 0.028      mm

Speed: Resistance 3500pcs/hour, Full vision 2500pcs/hour

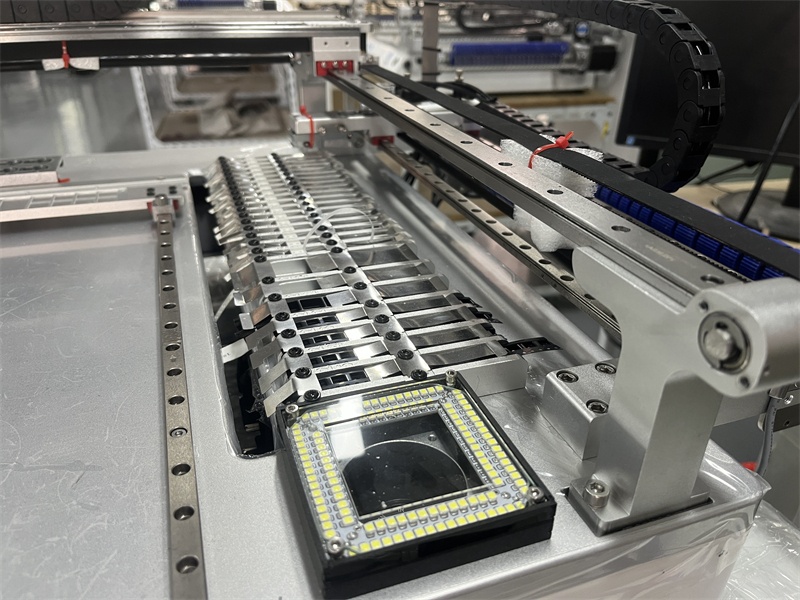

Camera: 3pcs

Recognition : MAX, 17*17MM

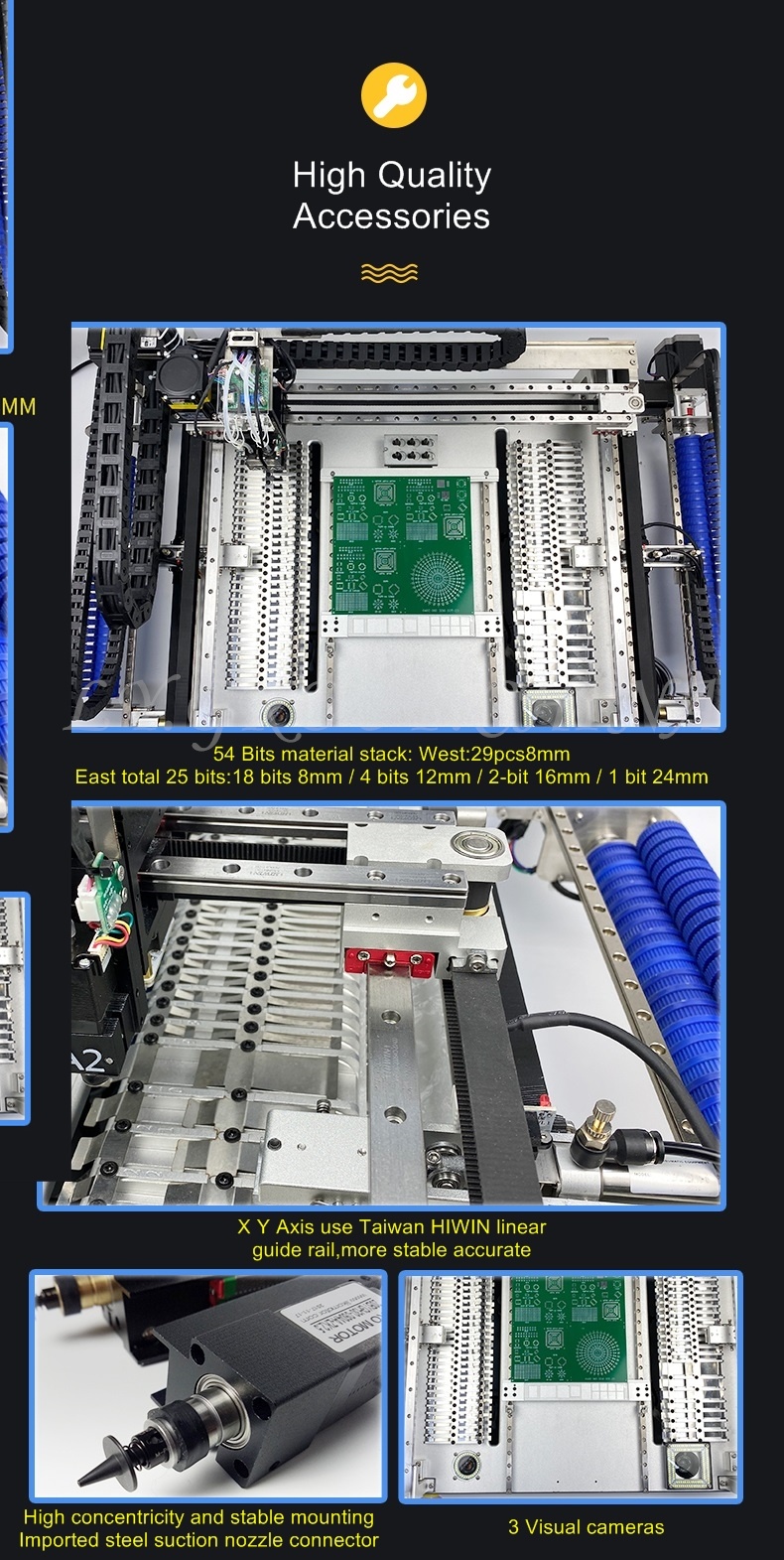

Feeder: 54 Bits (OEM Support)

West:8mm*29 bits/East:8mm*18bits; 12mm*4 bits; 16mm*2 bits; 24mm*1bit

Tube feeder: 5 tubes, Size: 290*90*140mm (Optional)

Max Base board: 620*540mm

Max PCB Size: 350*240mm

Max range: X:430MM/ Y:450MM/ Z:22MM

Front IC Feeder: 10 Bits

Weight:75KG
