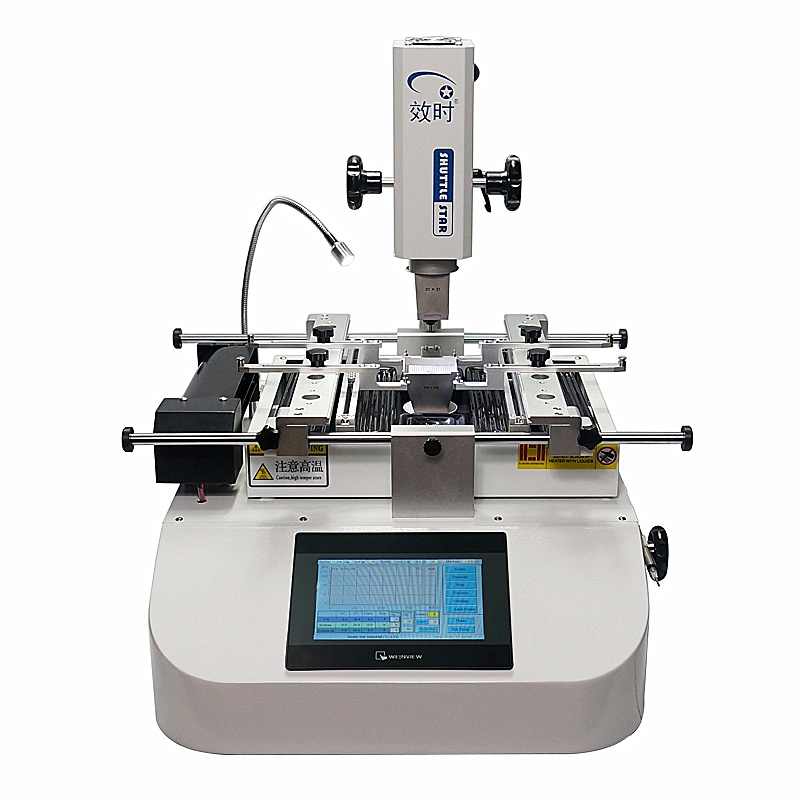

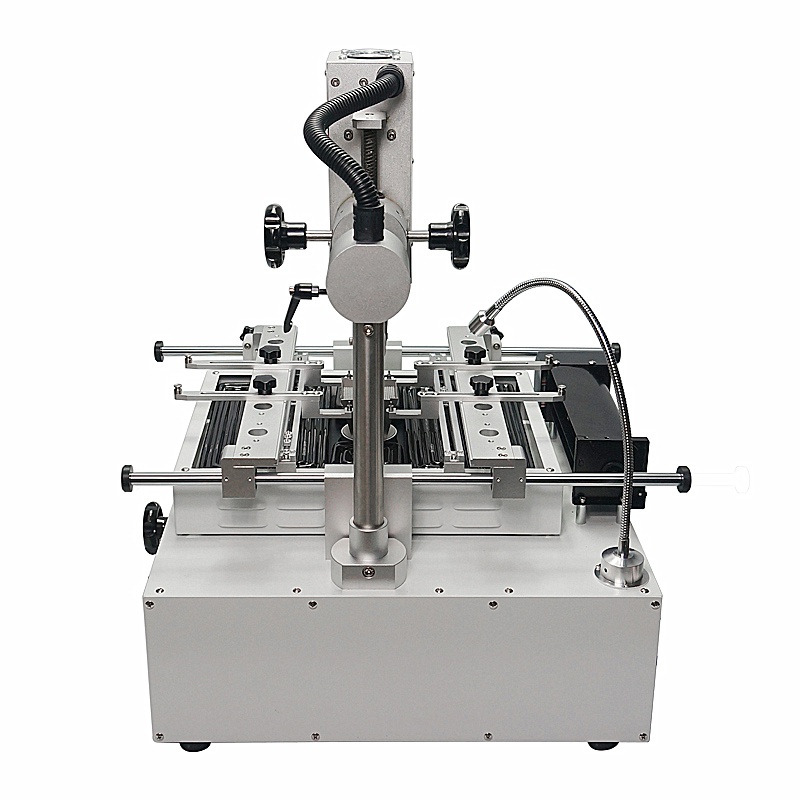

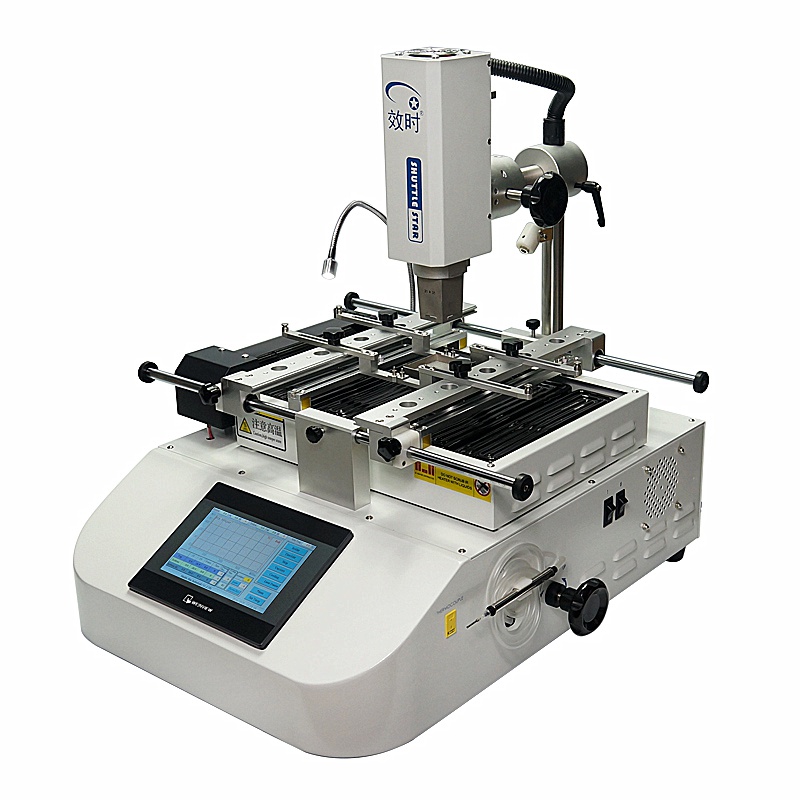

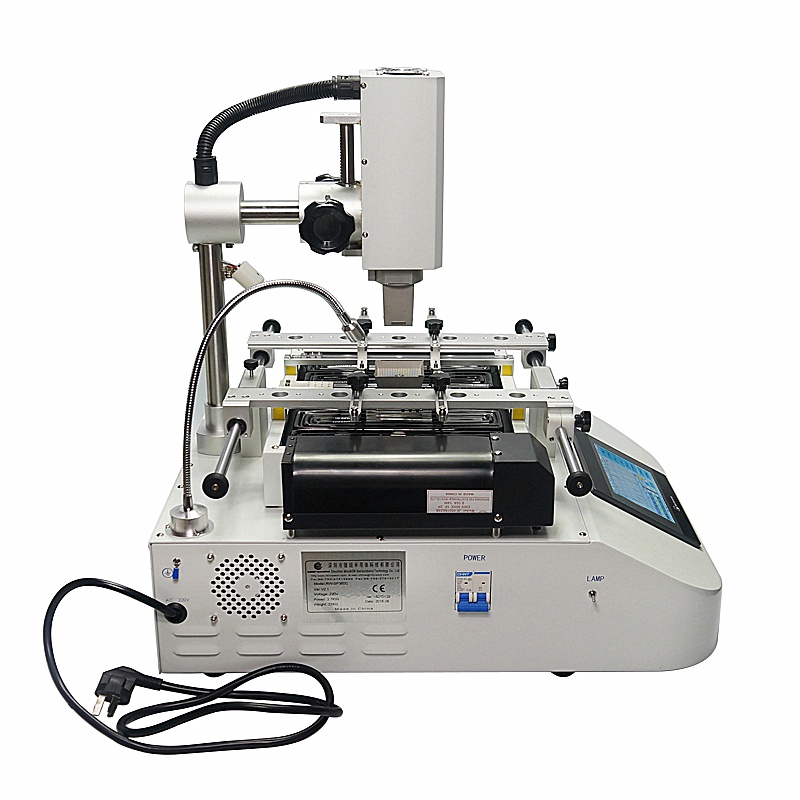

Shuttlestar machine SP360C for mobiles laptop game console BGA rework station 3 zones hot air

Shuttlestar machine SP360C for mobiles laptop game console BGA rework station 3 zones hot air

item ID: 58969
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
USD$1300 USD$1132.4 (% off)

Product Detail

Product Tags

Shuttlestar machine SP360C for mobiles,laptop,game console BGA rework station 3 zones hot air

Product Description

PCB Size W50*D50~W400*D420
PCB Thickness 0.5~3mm
Working table adjustment +/-50mm forward/backward,+200mm left/right
Temperature Control K-type thermocouple,close cycle controlled
PCB locating way outer
Upper heater hot air 800W
Bottom heater hot air 800W
Bottom preheat IR 2400W
Power Supply Single-phase 220V,50/60Hz,4KW
Machine size L620*W580*H650
Machine weight 36.0kg

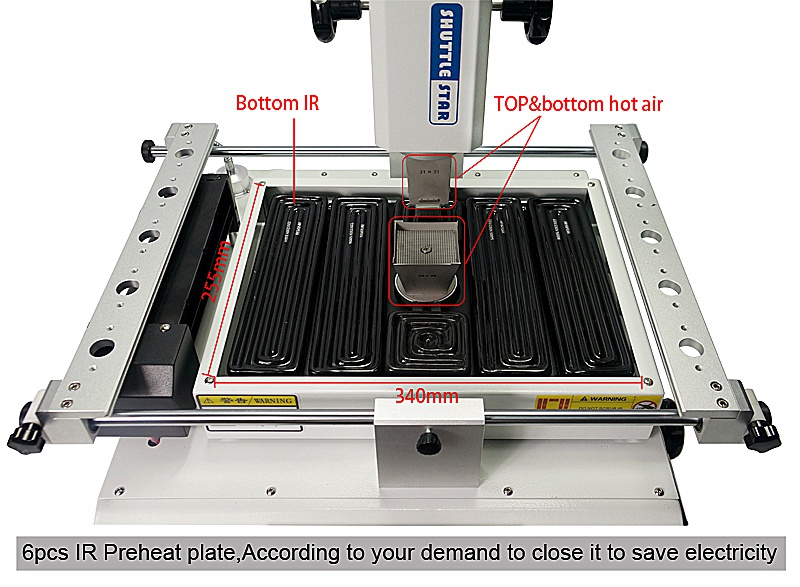

Three temperature zone:

1) Top hot air heater  800W

2) Bottom hot air heater 800W

3) Bottom IR preheat - Prevent PCB board deforming ,2400W .



1) Made of high quality heating material; desoldering and soldering procedures of BGA are precisely controlled;

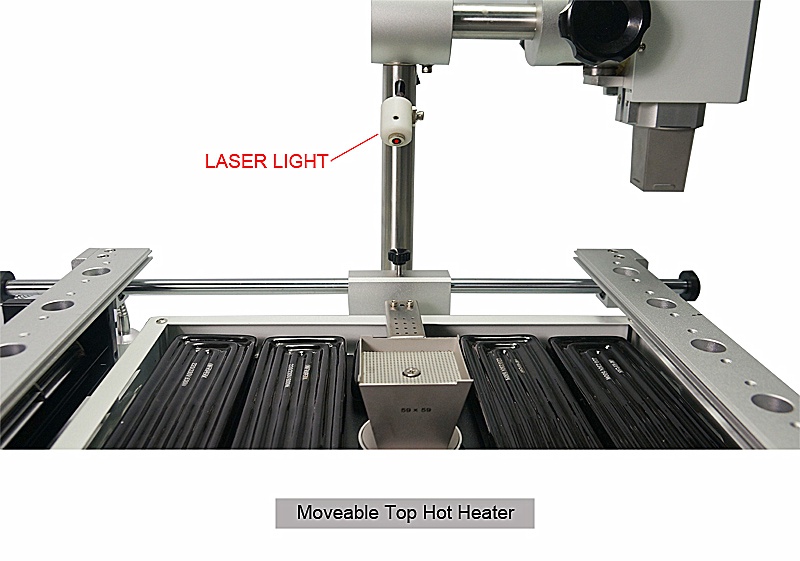

2) Movable heating head, which is able to move freely horizontally, easy to operated; - MOVEABLE TOP HEATER
3) Embedded industrial computer, PLC control, real-time profile display, able to display set profile and practically-tested             profile; big size screen, easy to operate; - PLC CONTROL


4) Profile saving no limit in this industrial computer, can analyze the two  practically-tested profiles, can input both English         and Chinese;  - ENGLISH ENABLE


5) The temperatures of the upper and lower hot air heaters can be precisely controlled according to their specific                          temperatures. The infrared constant temperature heating zone at the bottom area and the appropriate temperature-          control settings make the rework safer and more reliable. - REAM-TIME DISPLAY

6) The supports for the BGA soldering supporting frame are micro-adjustable to  restrain local sinkage.
7) Powerful cross flow fans cool the lower heating area rapidly; - COOL SYSTEM
8) The adjustable PCB positioning support, onto which the special fixtures for alloyed board could be installed, enables easy        and fast positioning of the PCB board;


9) Buzz after soldering is finished or desoldering; Hand vacuum pen is adjustable for removing BGA; - HAND VACUUM


10) Both the upper and lower parts are equipped with over-temperature alarming and protection apparatus.-ALARMING
11) With different alloy hot gas nozzles, easy to replace. It could be tailored as per the specific requirements.-NOZZLE
12) The integrated design of machine and chassis is room-saving. could be altered to instrument-control.
13) The software can be updated to auto-profile in future by USB, no need to set profiles. - INTELLIGENT
