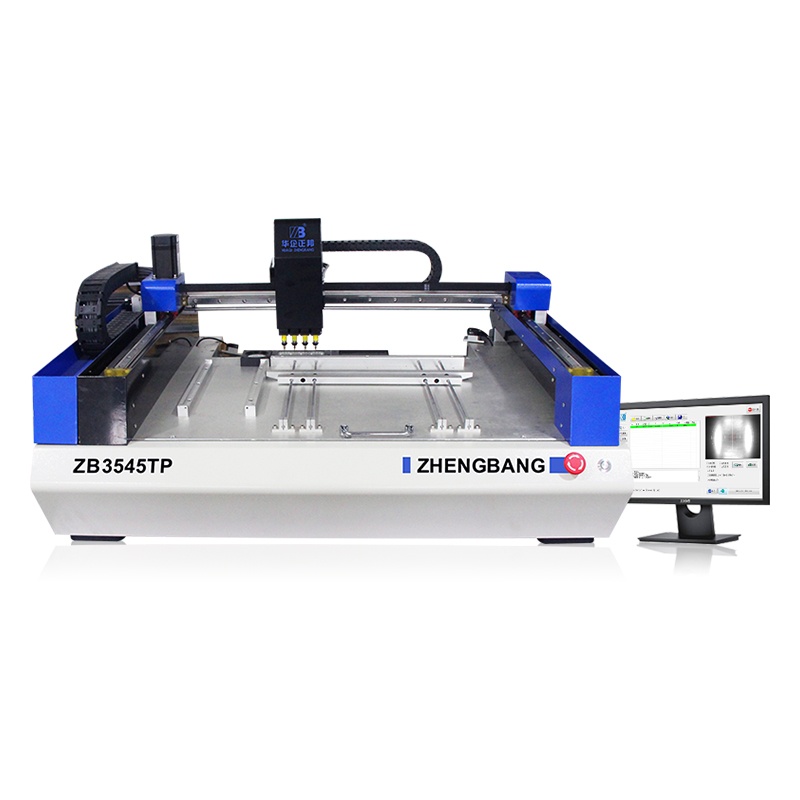

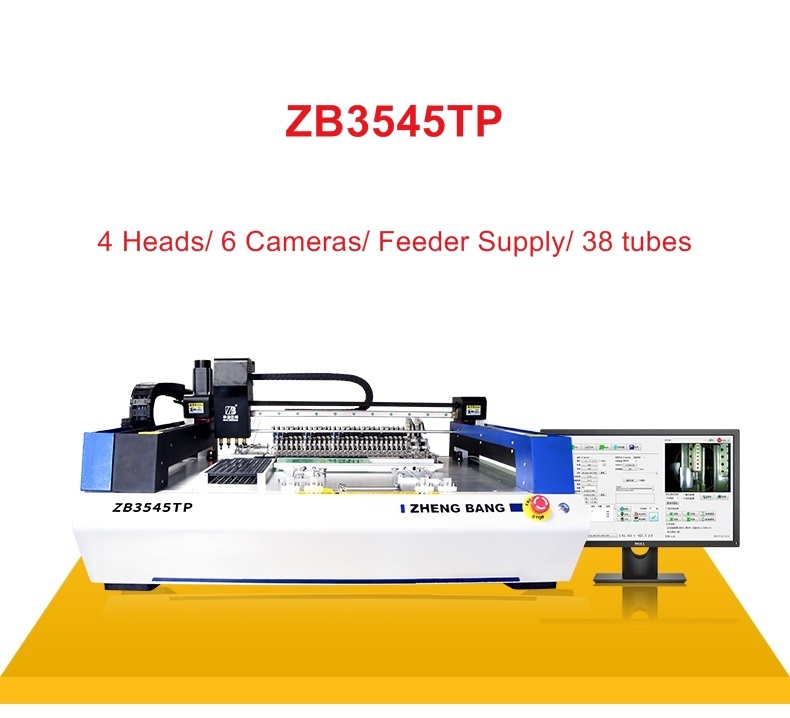

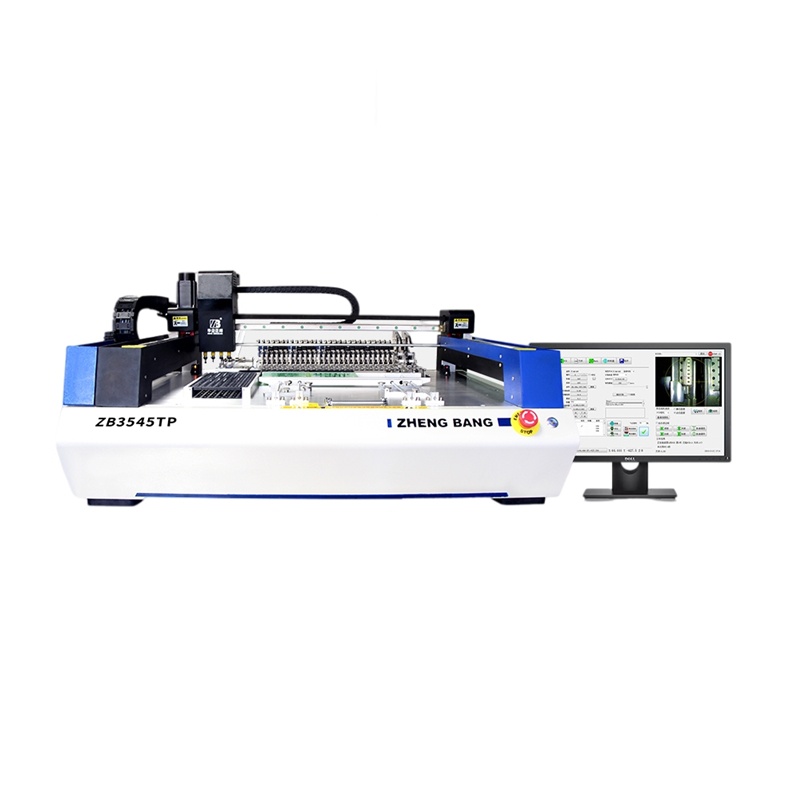

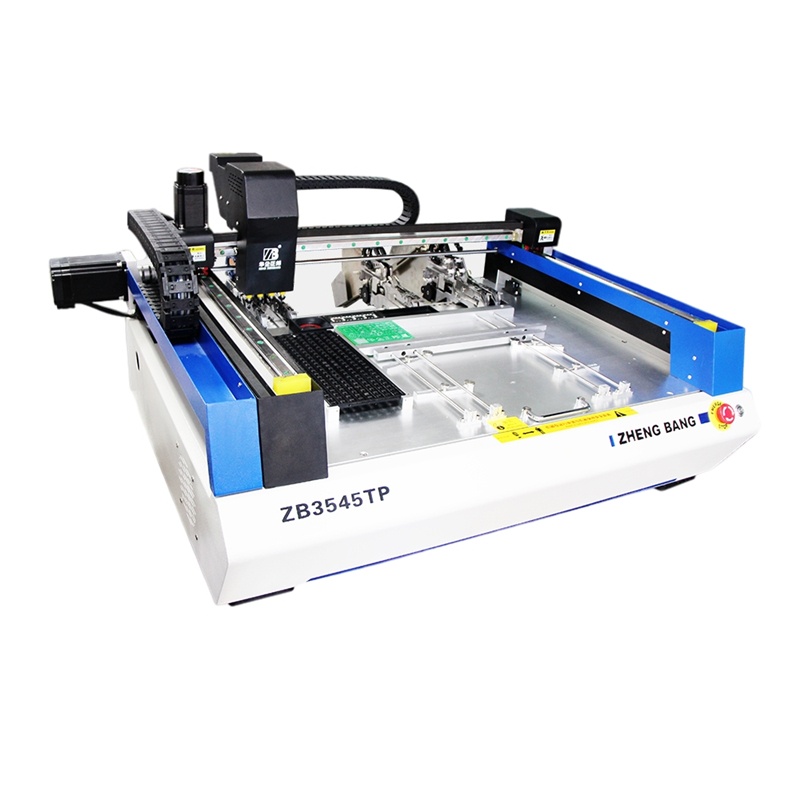

ZB3545TP Automatic SMT Desktop 4 Heads 6 Cameras 38 tubes Strap LED Pick And Place Chip Mounting Machine With Visual System Optional Yamaha Series Feeder Supply

ZB3545TP Automatic SMT Desktop 4 Heads 6 Cameras 38 tubes Strap LED Pick And Place Chip Mounting Machine With Visual System Optional Yamaha Series Feeder Supply

item ID: 65674
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$10000 USD$7012 (% off)
Payment

Product Detail

Product Tags

ZB3545TP Automatic SMT Desktop 4 Heads 6 Cameras 38 tubes Strap LED Pick And Place Chip Mounting Machine With Visual System Optional Yamaha Series Feeder Supply

(RE:

  1. This machine is necessary to use together with feeders, please provide your feeder size & qty after placed machine order, if unknown can tell us details.



  1. This machine is necessary to use together with air-compressor, please prepare it in local or buy it to ship together with machine.)

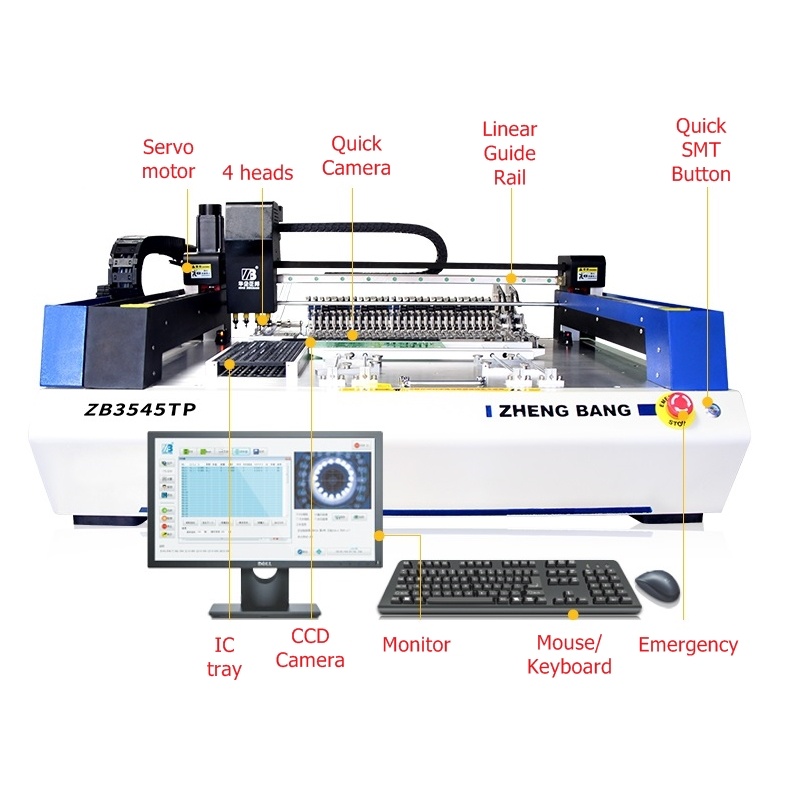

Details:

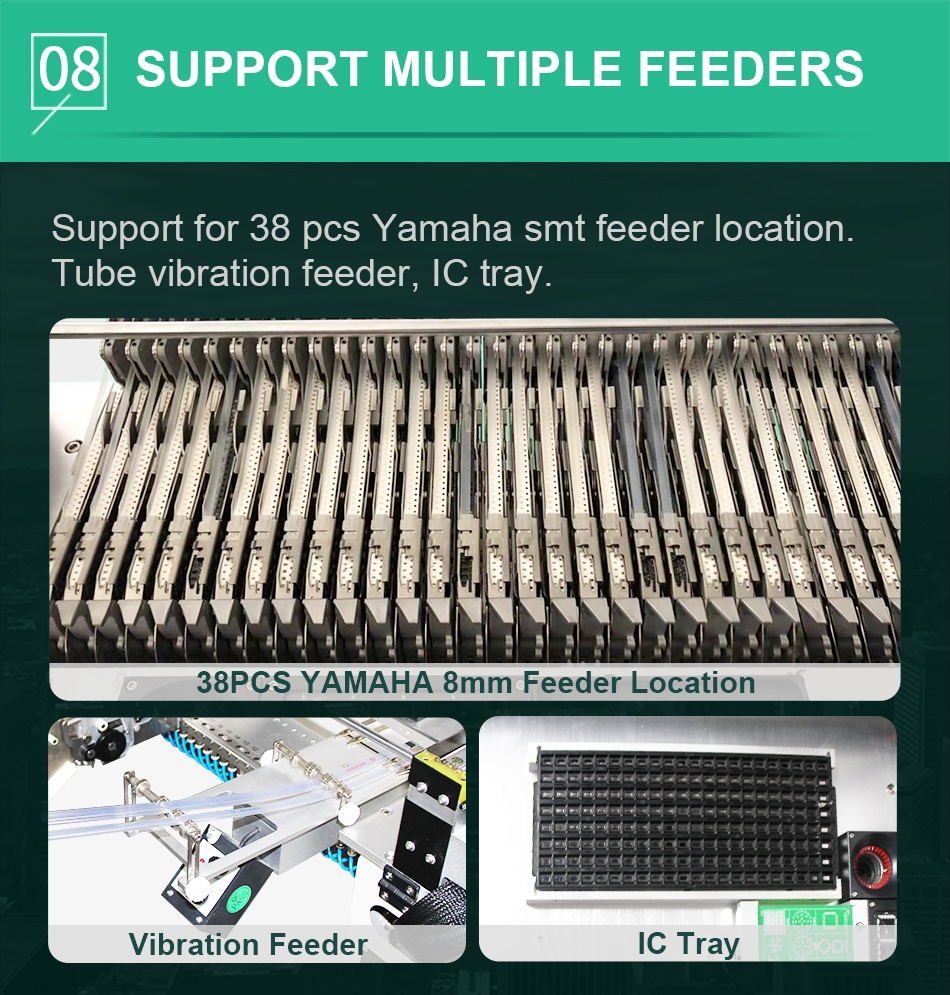

1).Main feeder (Optional)

Standard configuration:  YAMAHA CL series: 8mm/12mm/16mm/24mm, Vibration Feeder

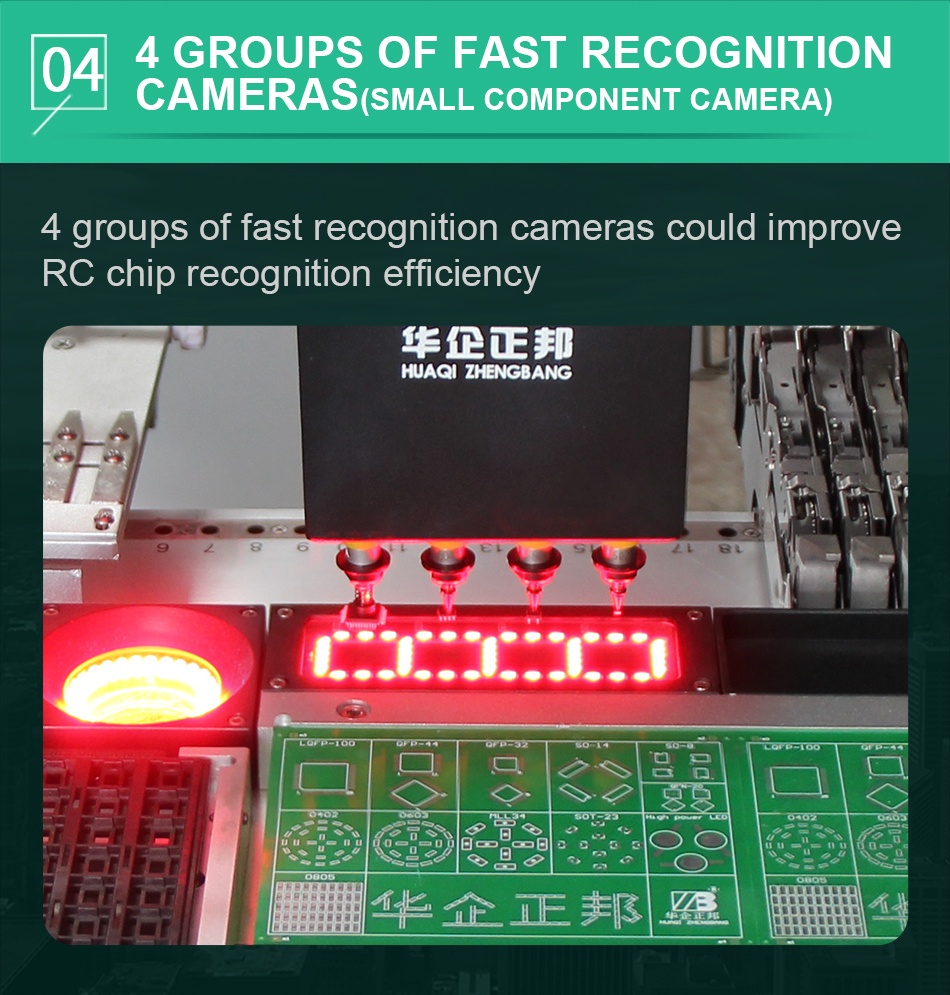

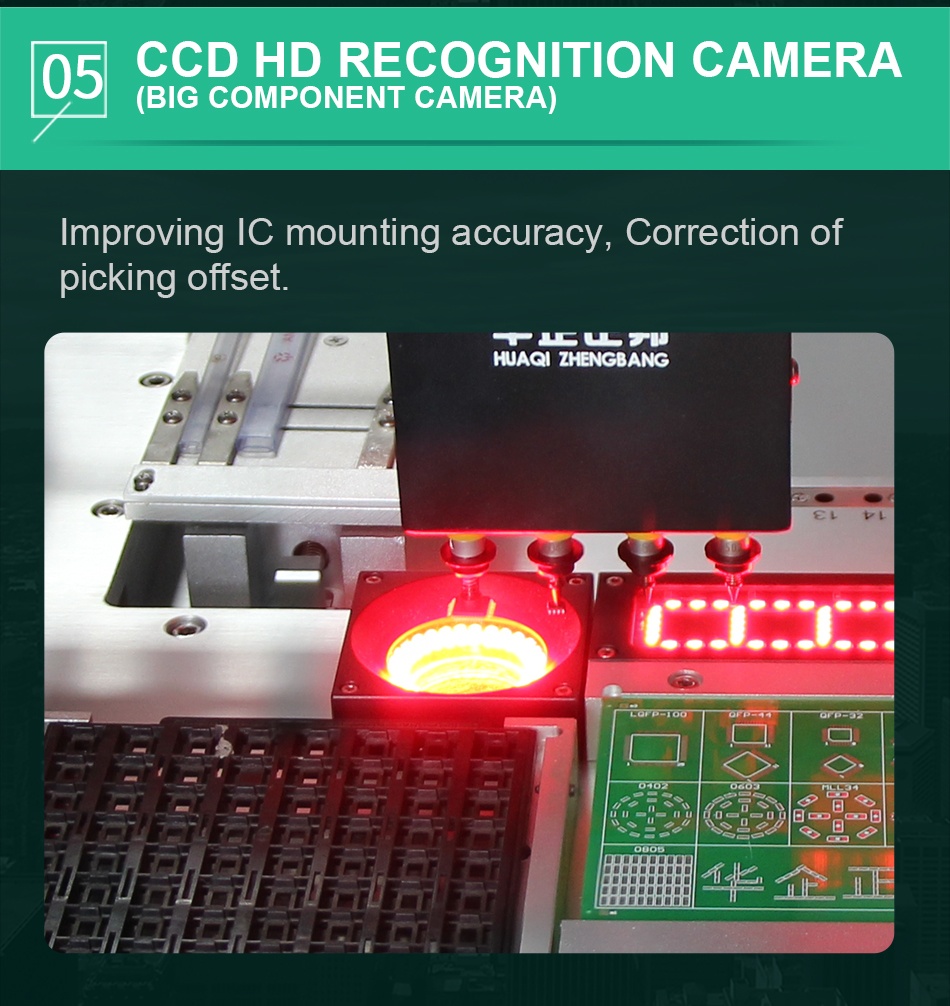

2).Industrial-strength up visual system
With professional visual algorithms to determine the center of the components, calculate the position offset and angel offset so that we can pick and place efficiently.

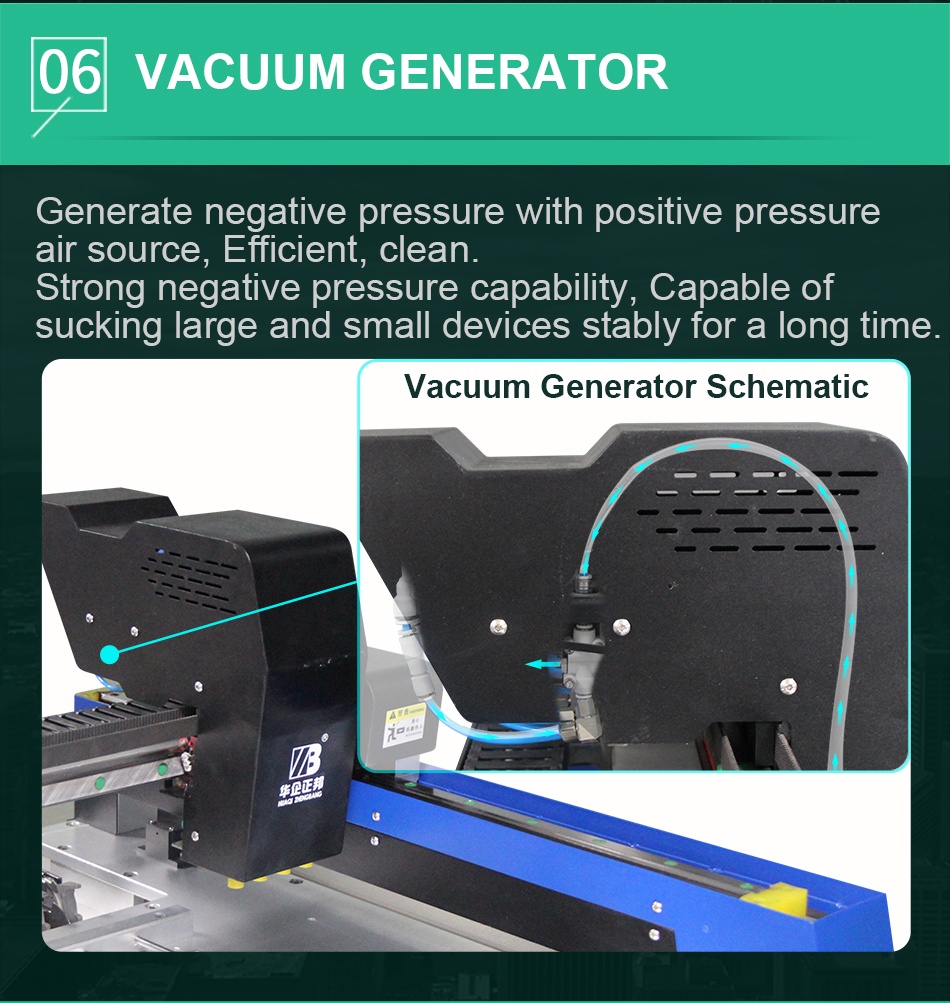

3).Mute vacuum pump
With 2 built-in imported mute vacuum pump and a blow air pump.

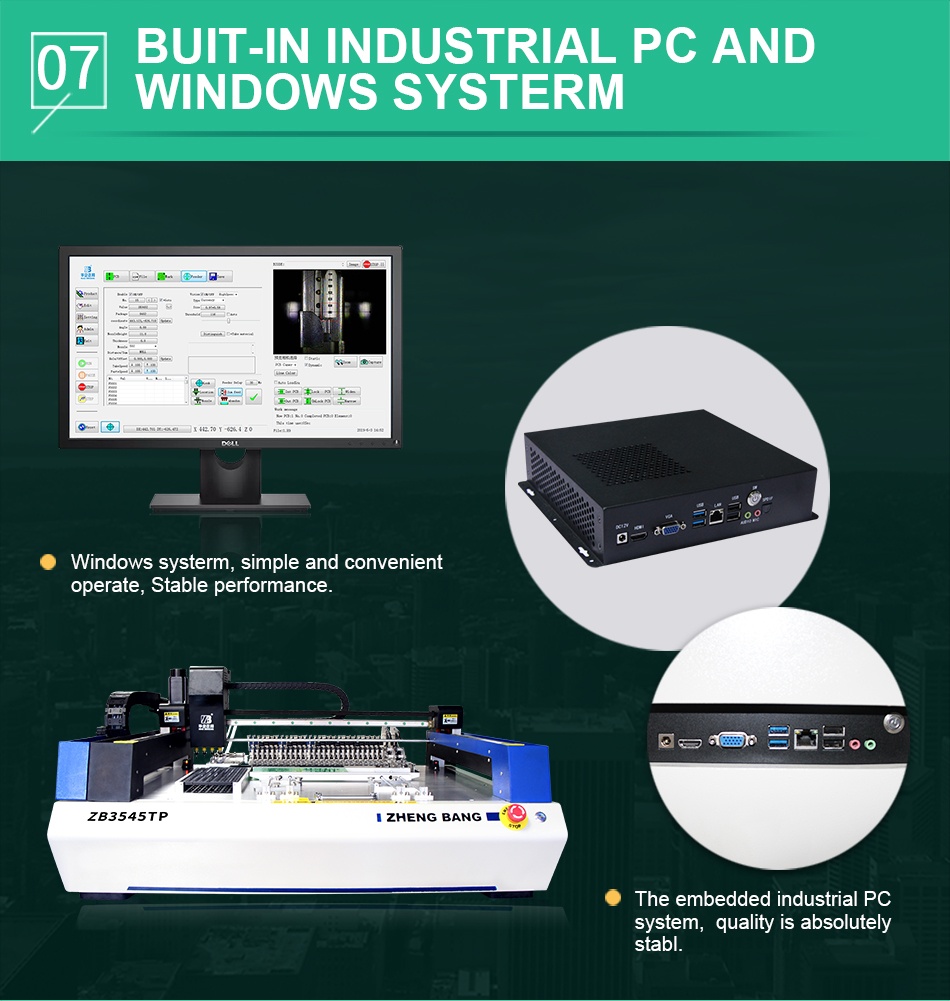

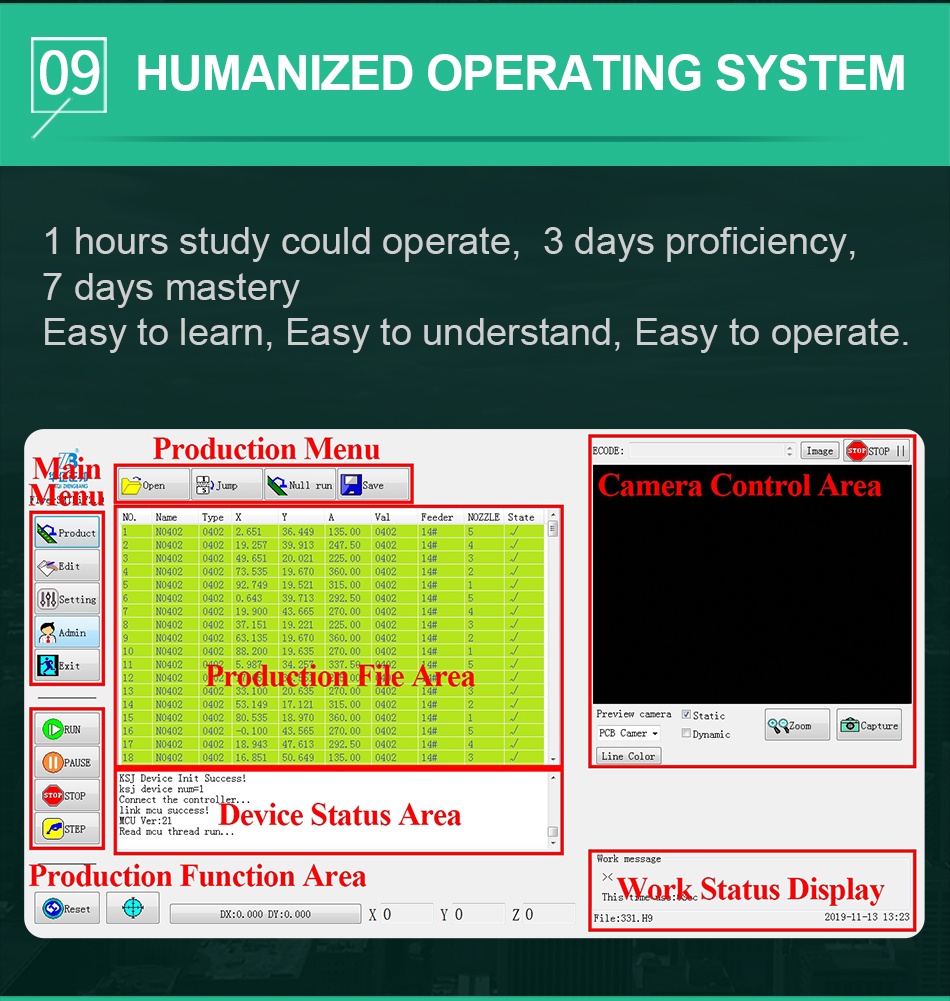

4).Manual man-machine interface.

5).Chip place zone
Put the chips here, just need to set the corresponding coordinates.

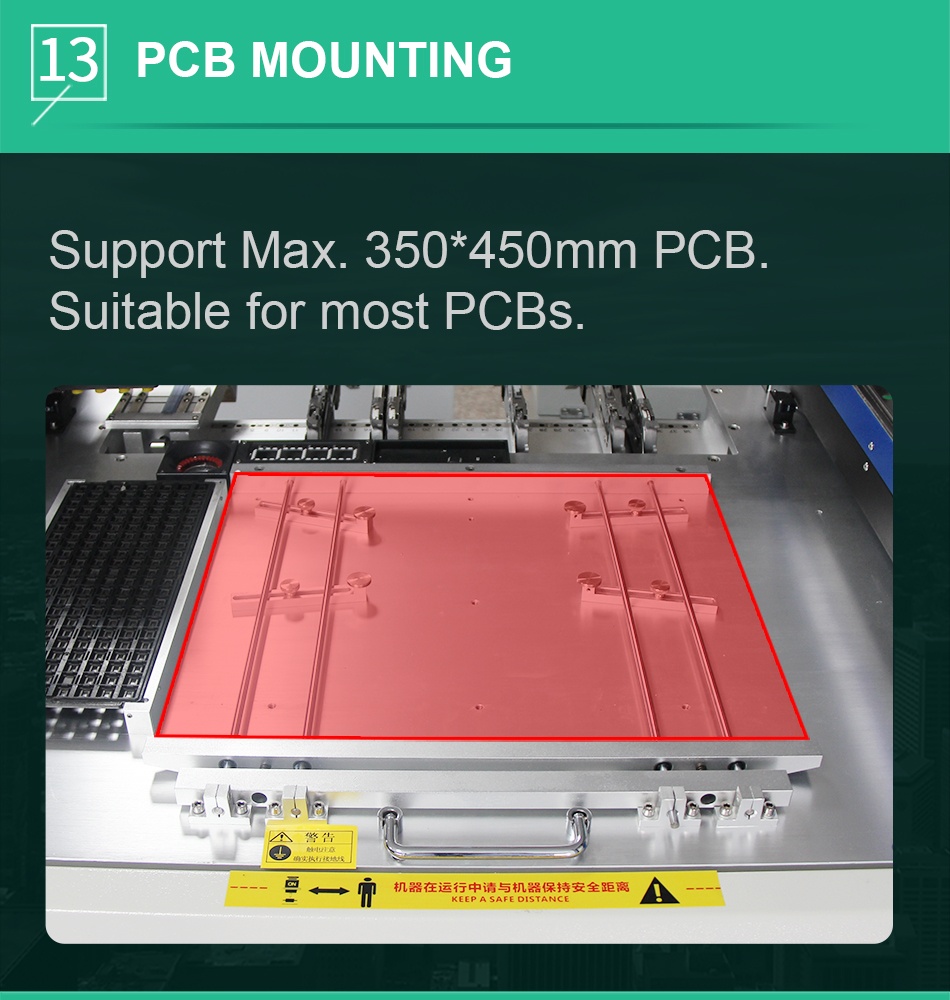

6).PCB place zone
Place the PCB here while the SMT processing.

7).Exclusive development of Ethernet Device interface
 Industrialstrength Ethernet interface connect conveniently to guarantee the machine reliable operation.

8). Industrial-strength under visual system

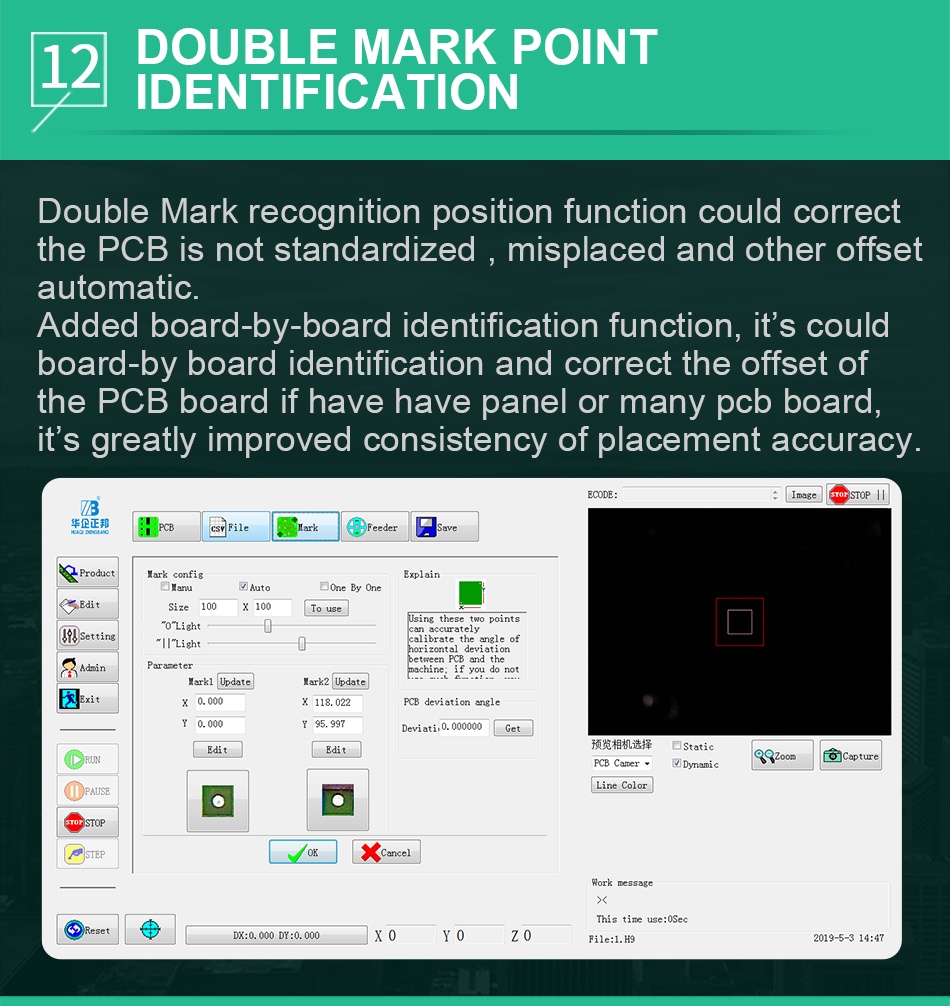

 It’s able to identify the Mark point and determine the coordinates of component by manual or automatic control.

9).Intelligent placement head
The welldesigned placement head has realized that double suction,vacuum test,missing
part check,automatic dialing materials.
