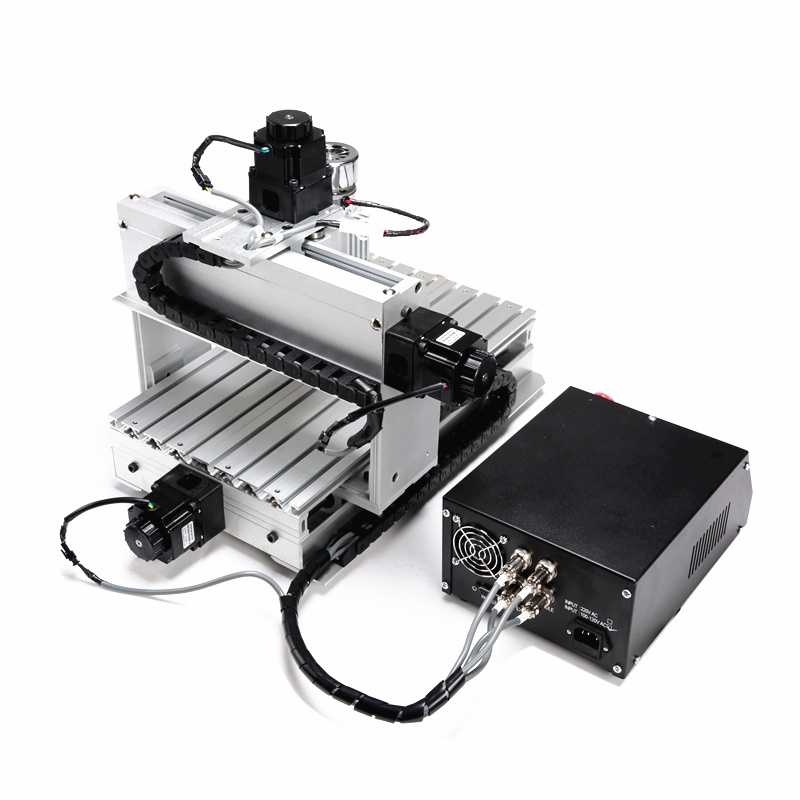

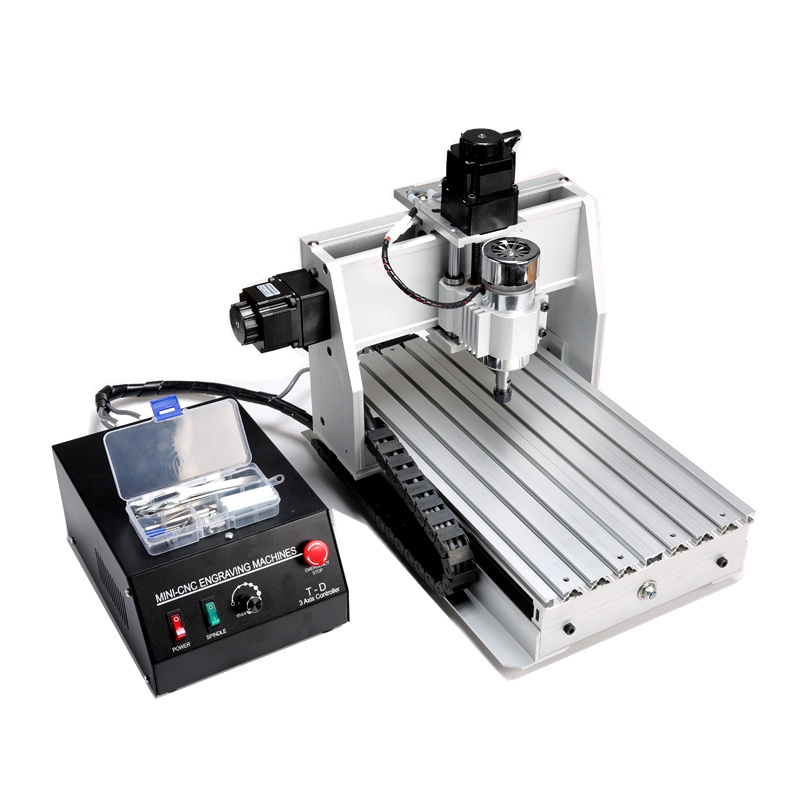

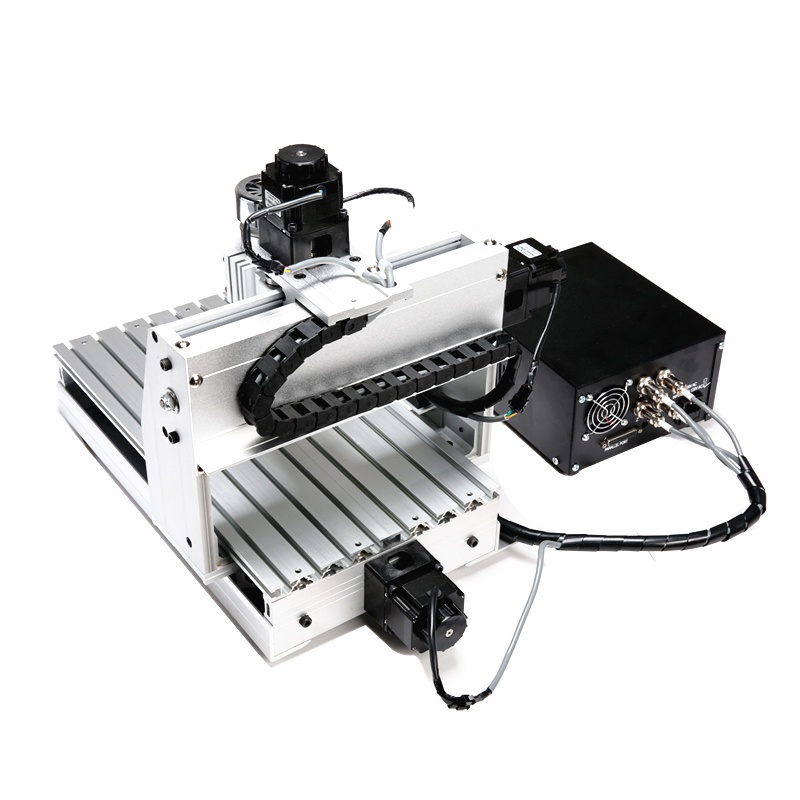

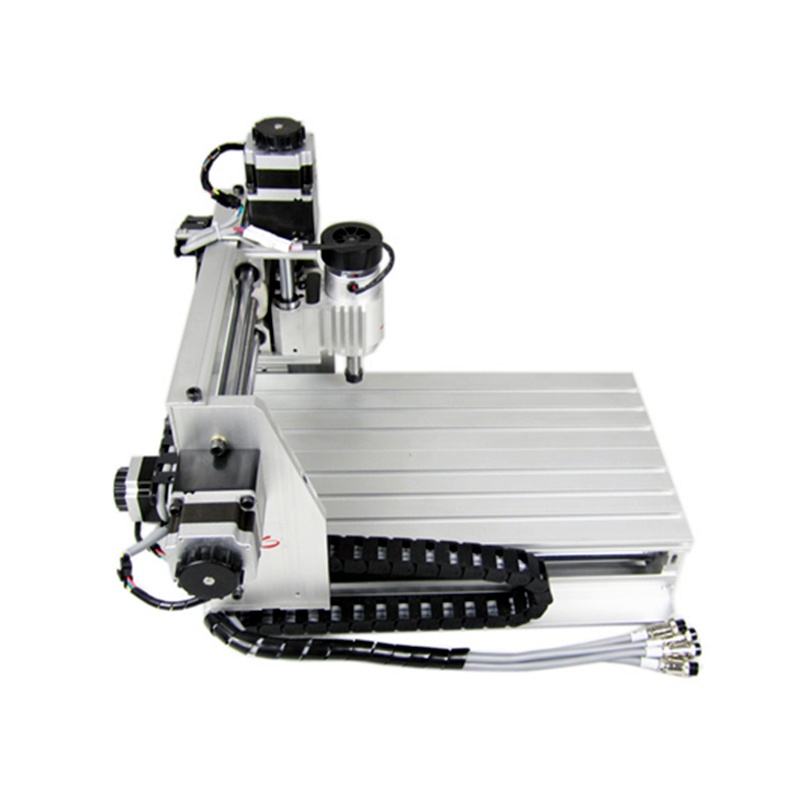

3020 Mini CNC Router Engraver/ Milling Machine

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Model and Technical Parameters

MODEL         3020
Attribute T-DJ   Z-DQ
Axis 3axis   3axis

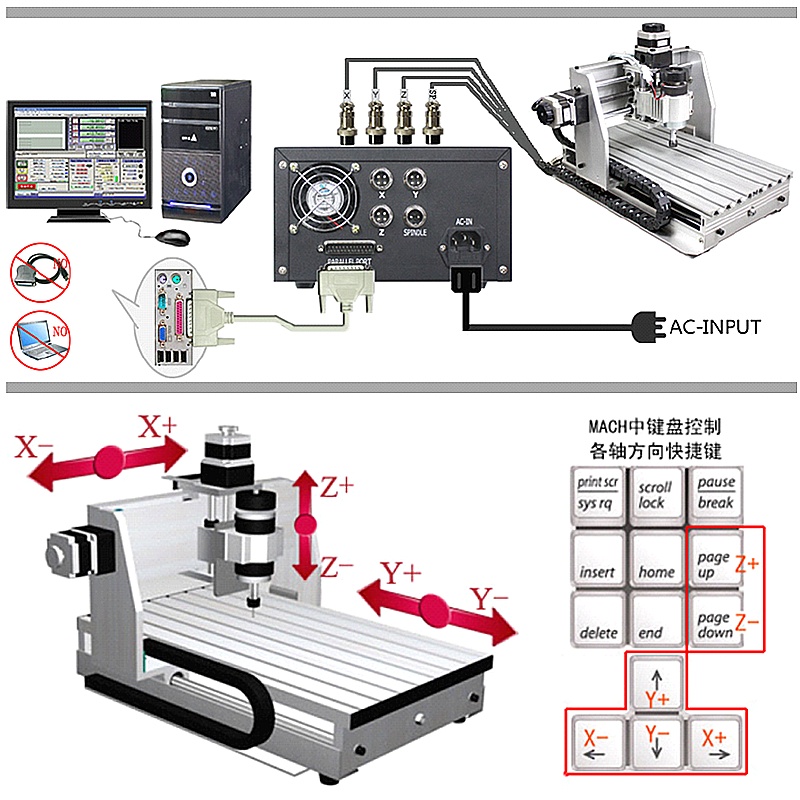

Interface LPT port   LPT port
Limit switch No   No
Tool auto-checking No   Yes
Spindle Motor: 300W   300W
Type of screw Trapezoidal Screw   Ball screw
Weigh 22KG   22KG

Machine Dimensions:

525X400X370mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

300X200mm

Z-Axis Stroke:

45mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤60mm

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Spindle motor: 300W/11000r/min (Very small noise)

Collet type:

ER11,1/8″(3.175mm) Collet

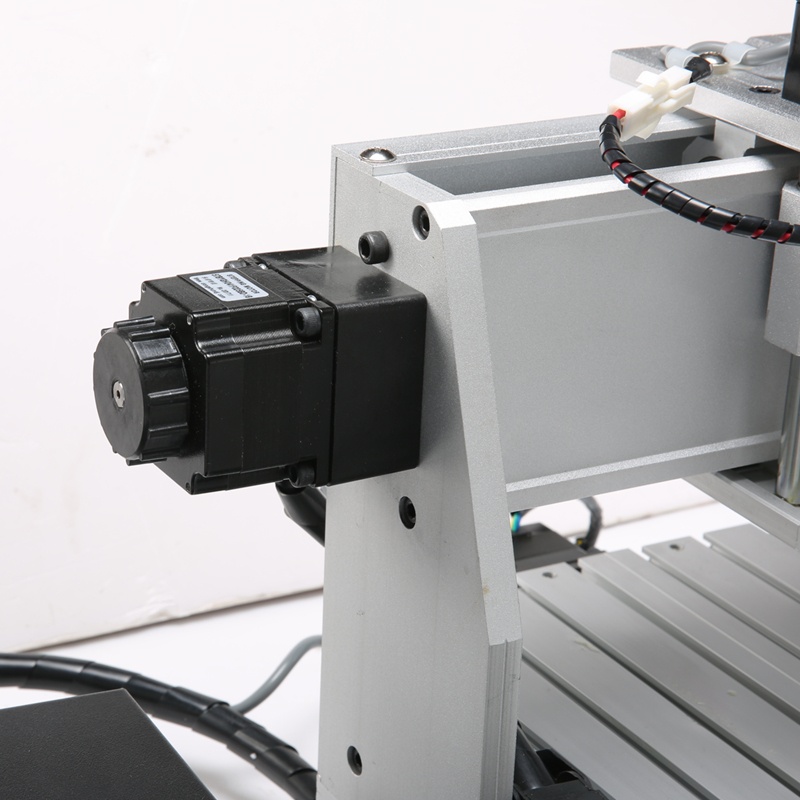

Stepper motor and drive:

two-phase hybrid stepping motor 1.8A/PHASE,40N.cm, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

≤0.04mm

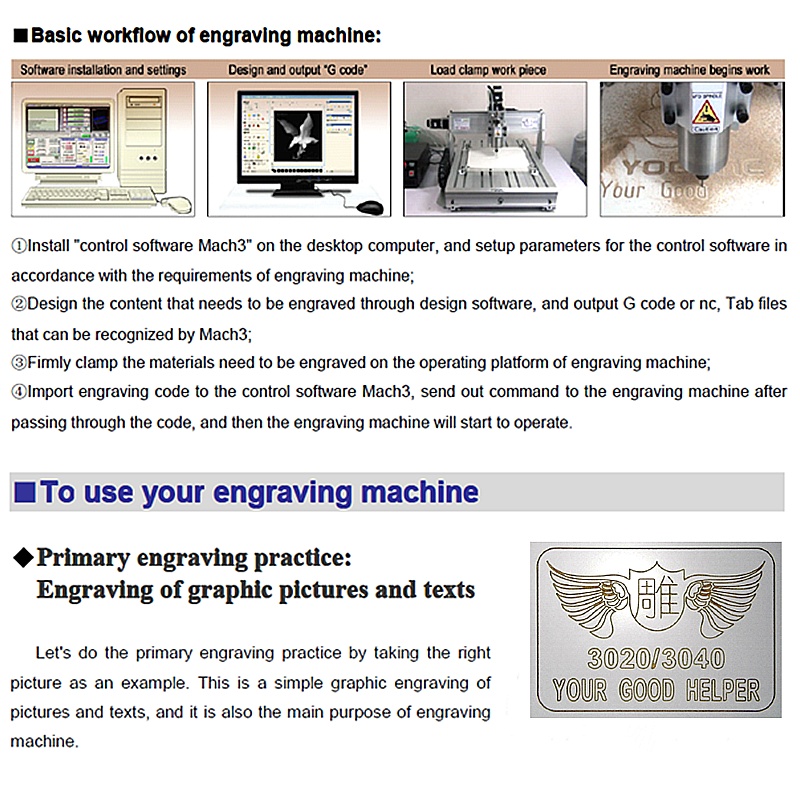

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt
