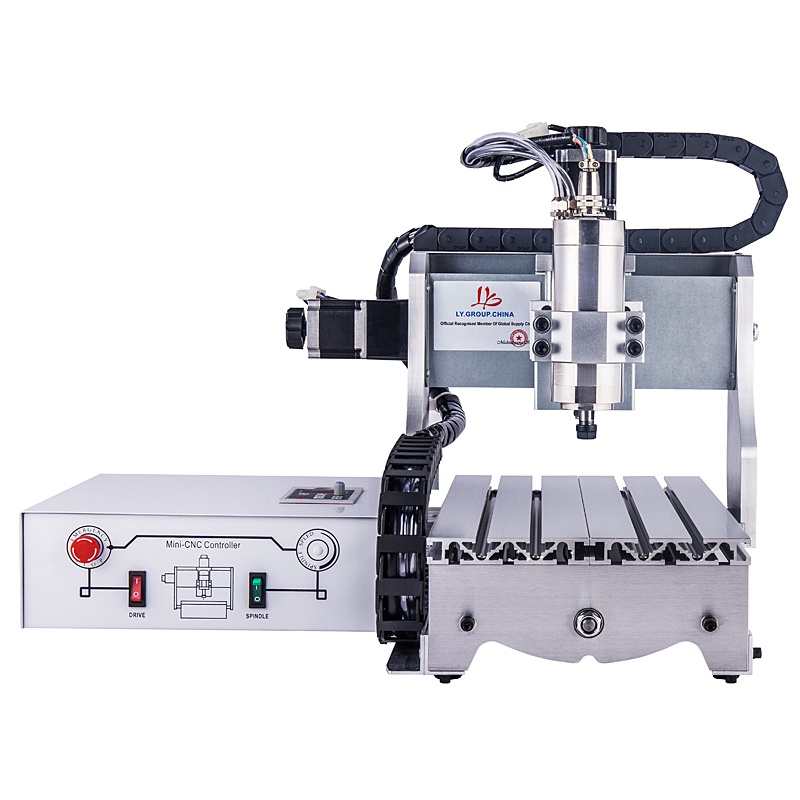

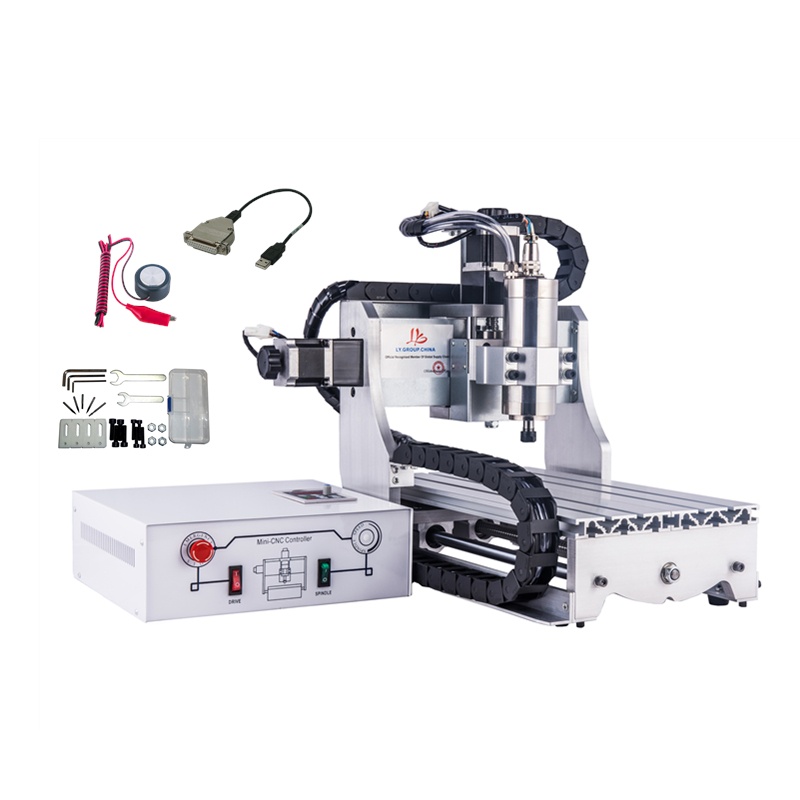

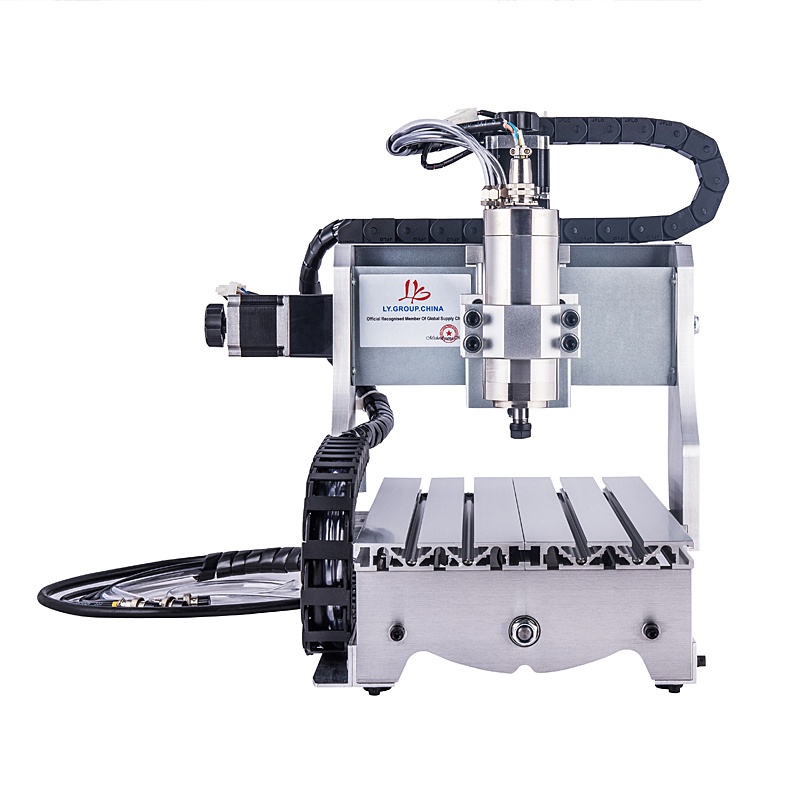

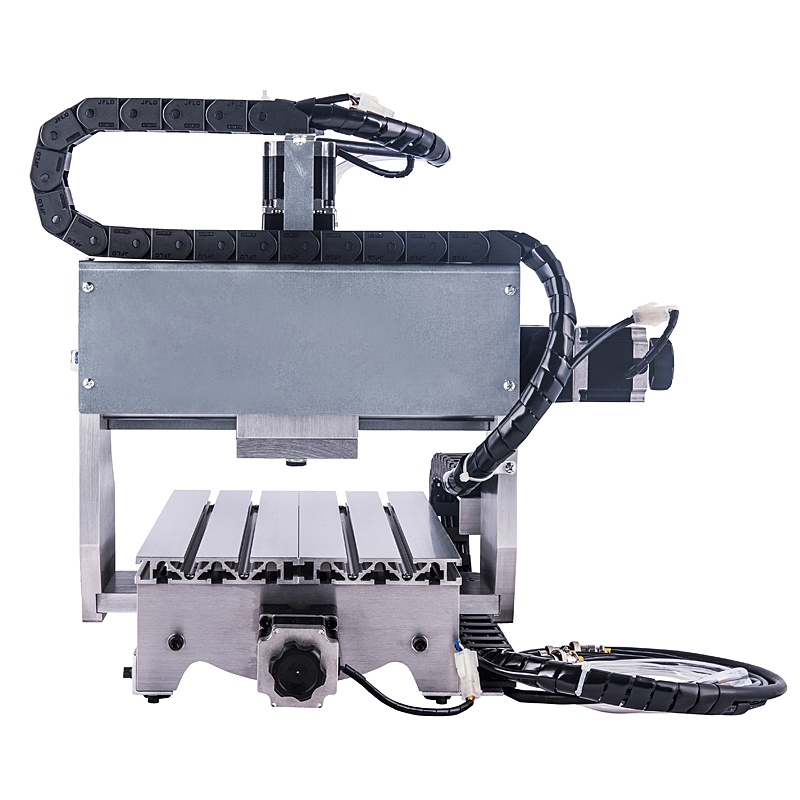

CNC Router Engraver 3020 800W 1500W 2.2KW USB Milling Machine with water tank for metal stone wood working

CNC Router Engraver 3020 800W 1500W 2.2KW USB Milling Machine with water tank for metal stone wood working

item ID: 71221
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1500 USD$844 (% off)
Payment

Product Detail

Product Tags

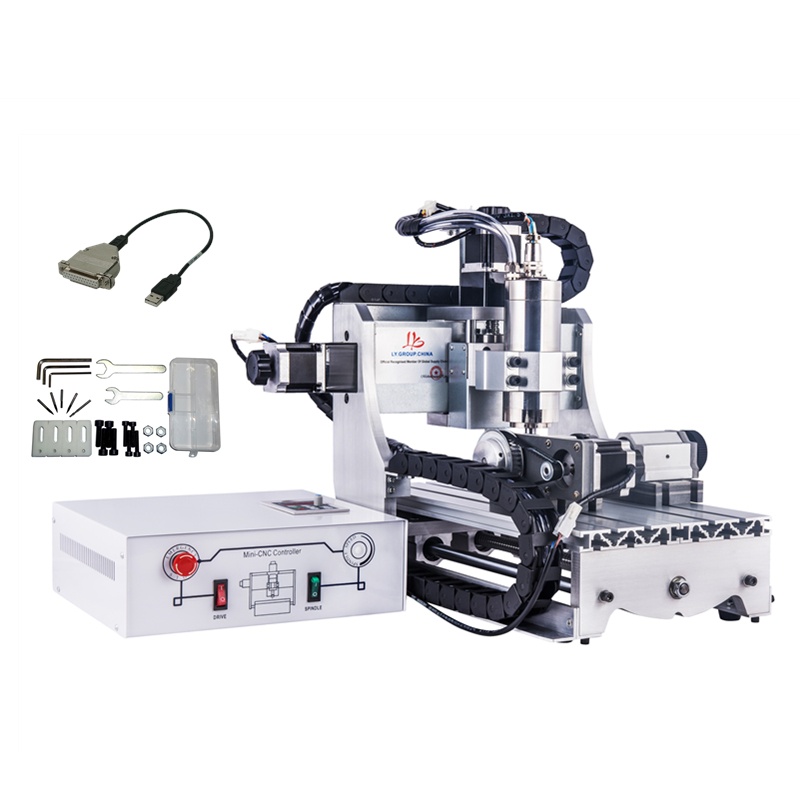

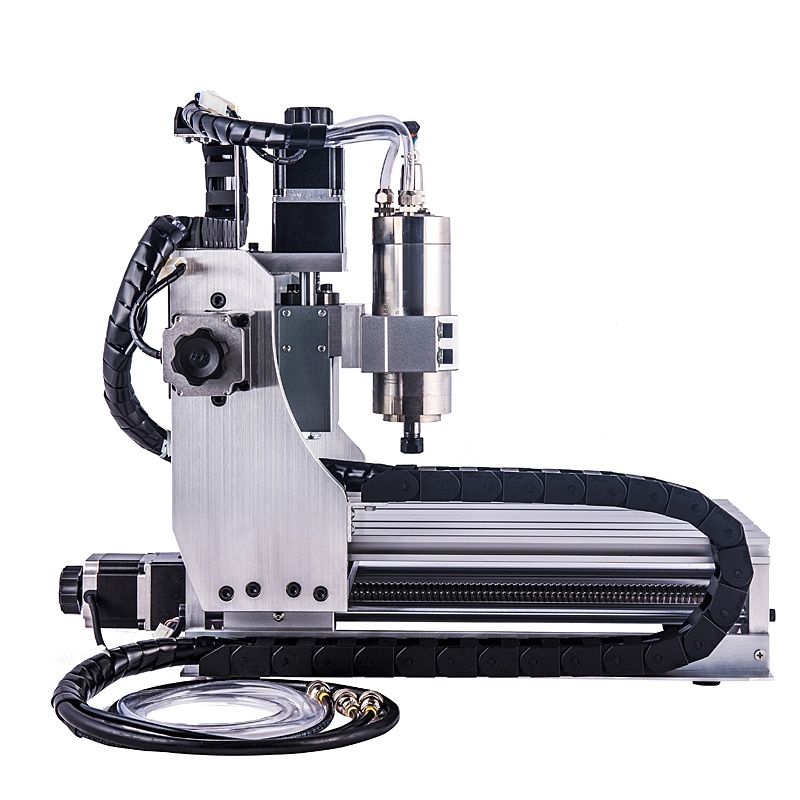

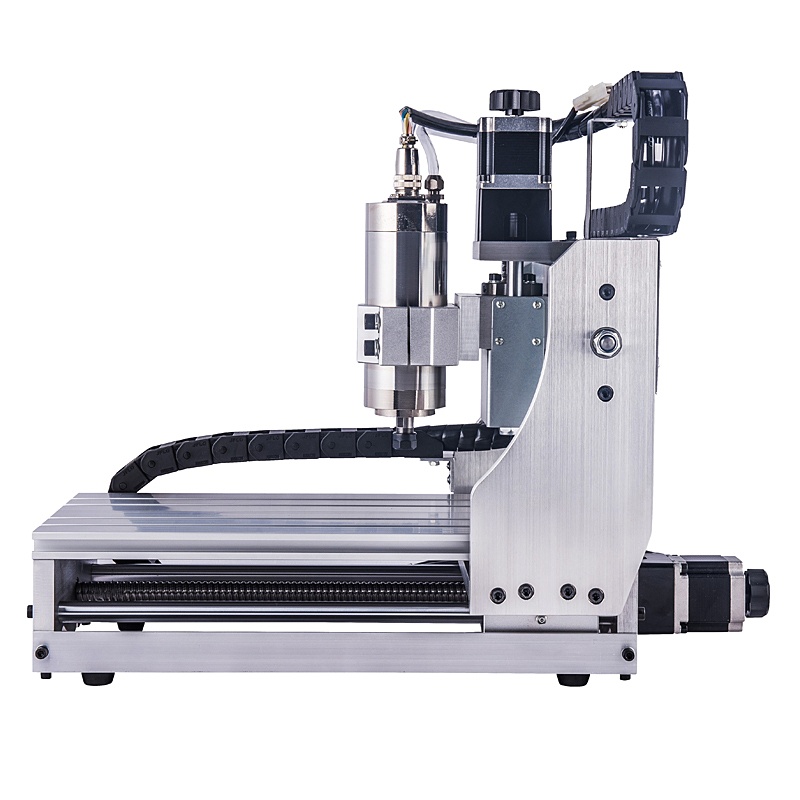

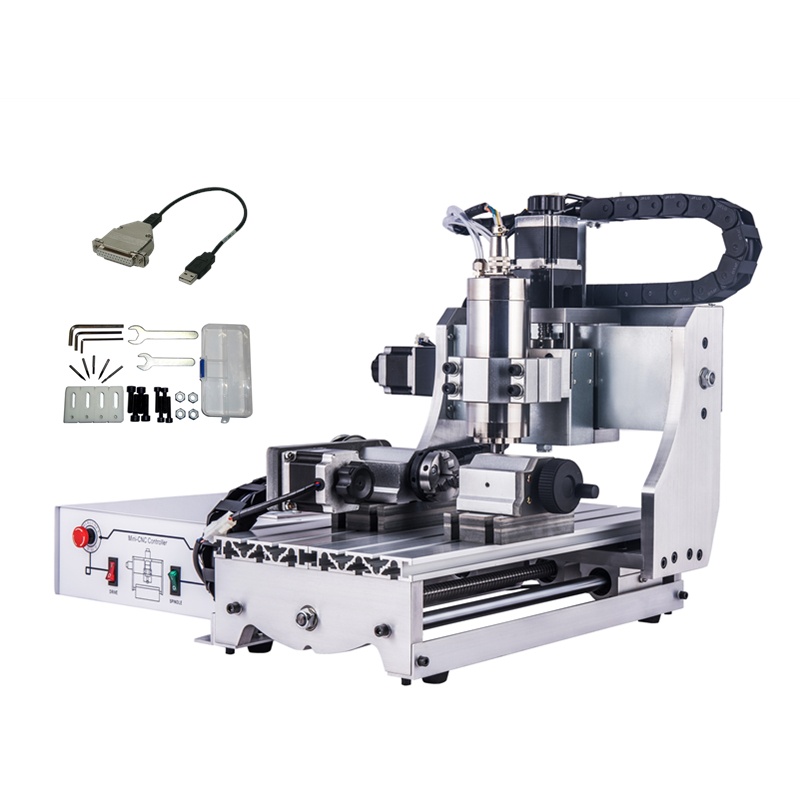

CNC Router Engraver 3020 800W 1500W 2.2KW USB Milling Machine with water tank for metal stone wood working

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Model and Technical Parameters



MODEL         CNC 3020
Axis 3axis /4axis

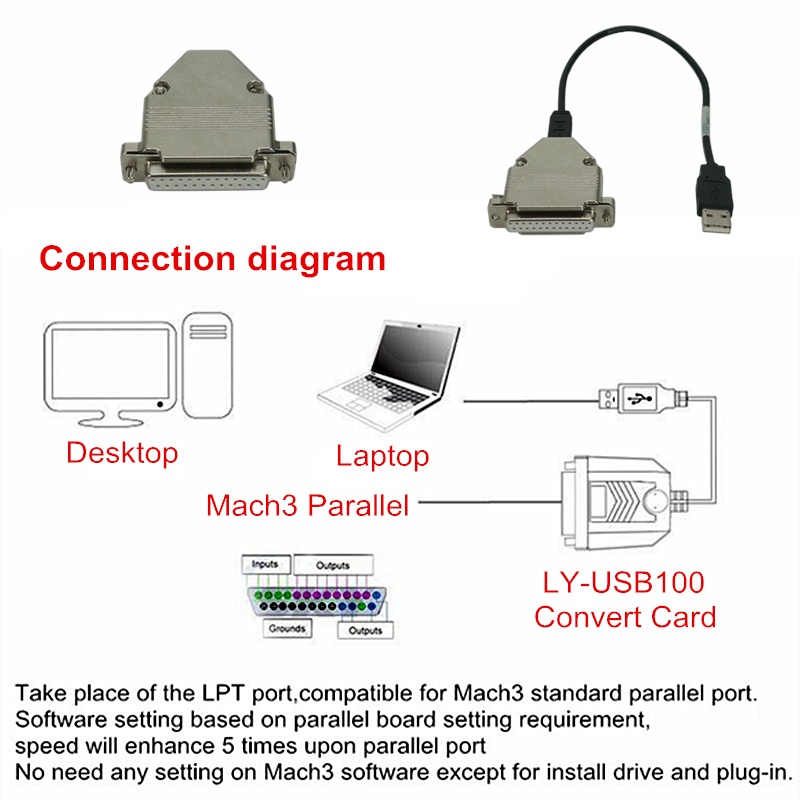

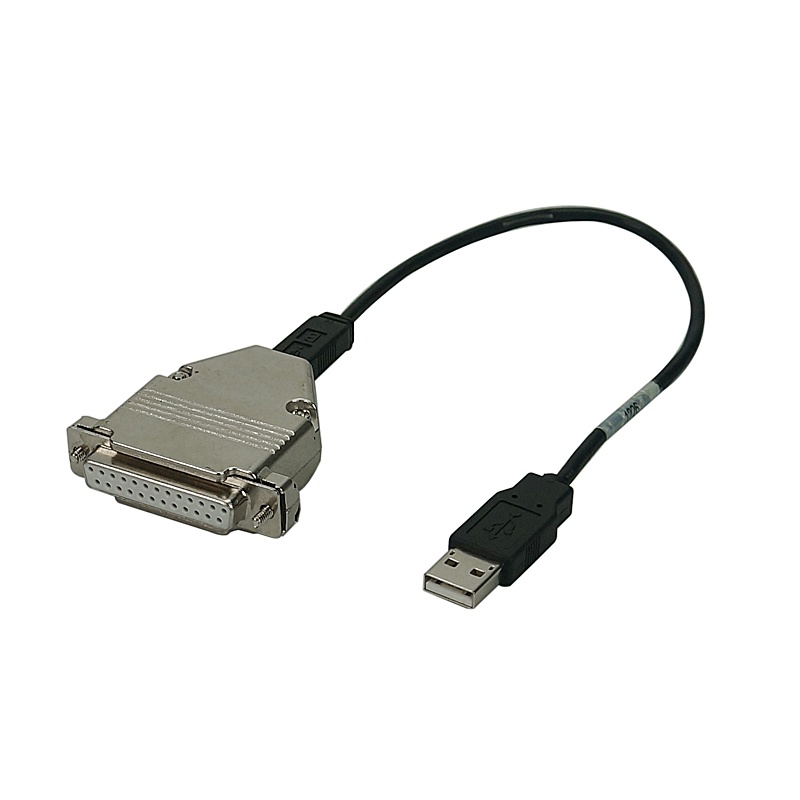

Interface LPT and USB  2 IN 1

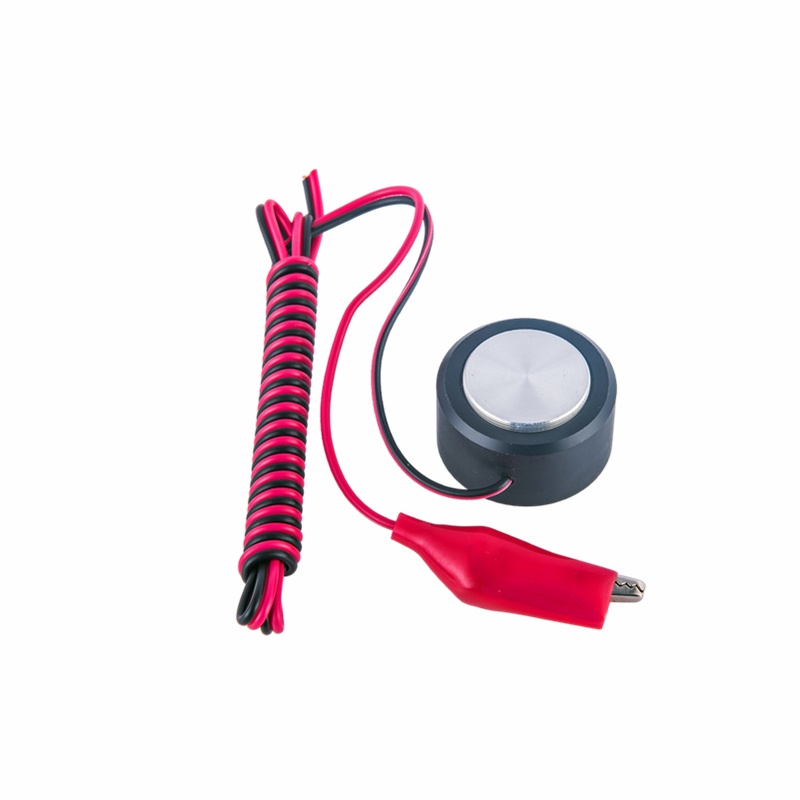

Toolauto-checking Yes

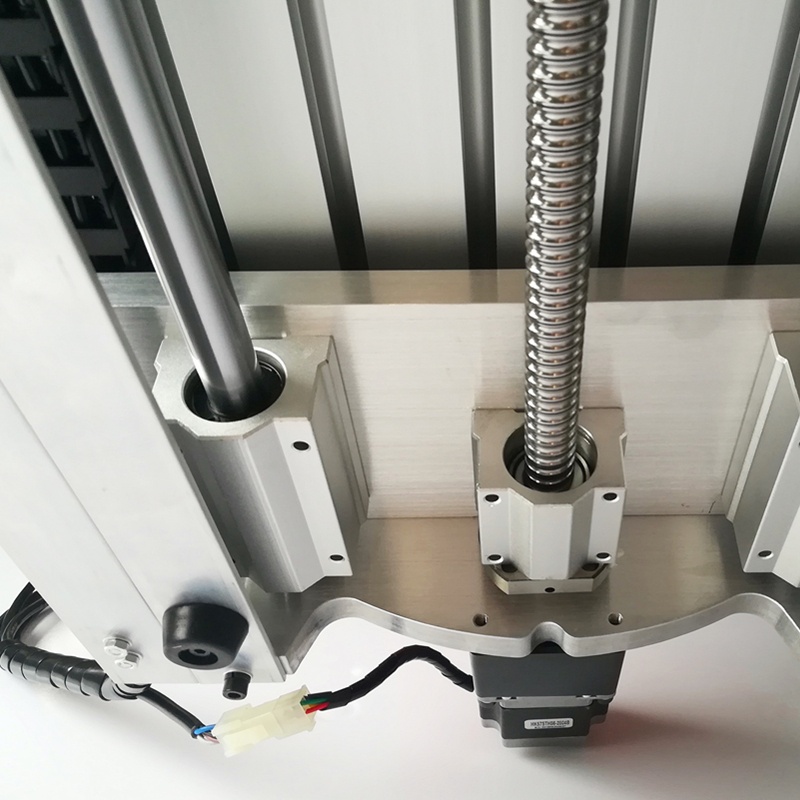

Type of screw 1605 Ball screw

Machine Dimensions:

560X450X450mm

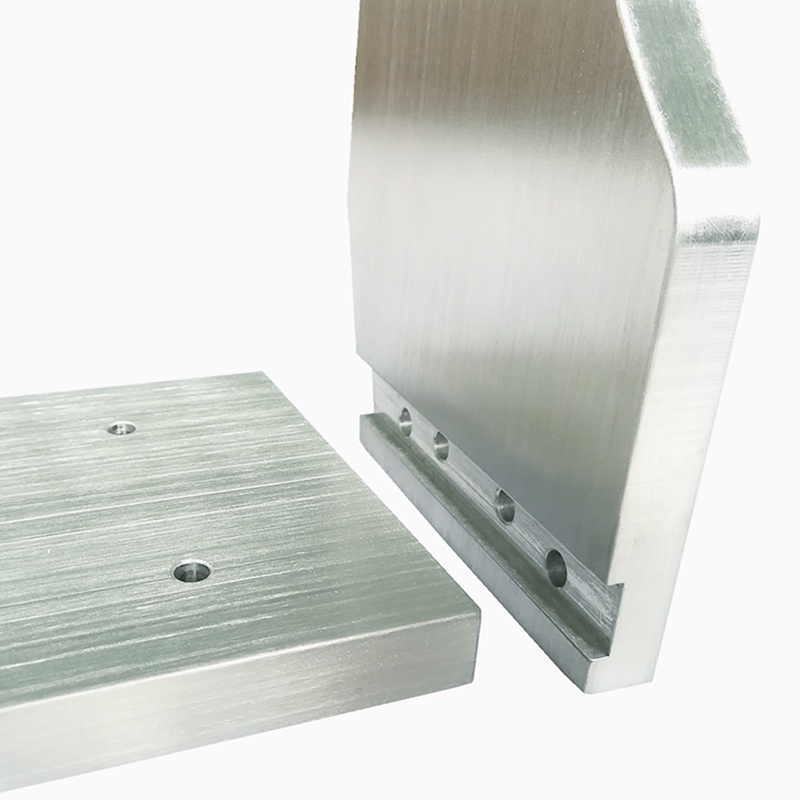

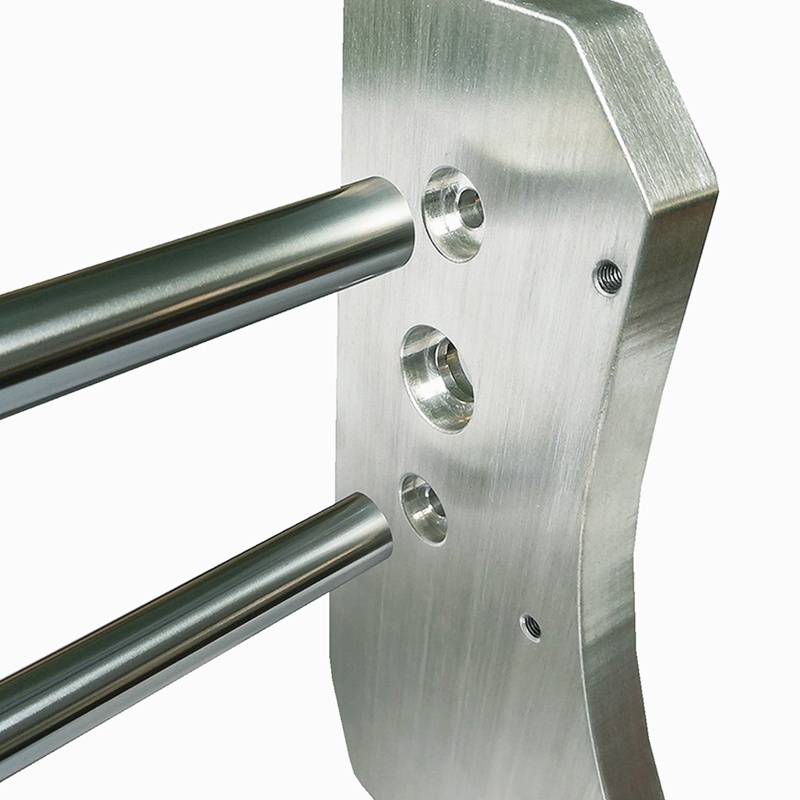

Rack material:

6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

300X200mm

Z-Axis Stroke:

60mm, Engraving depth depends on the length of the tool edge

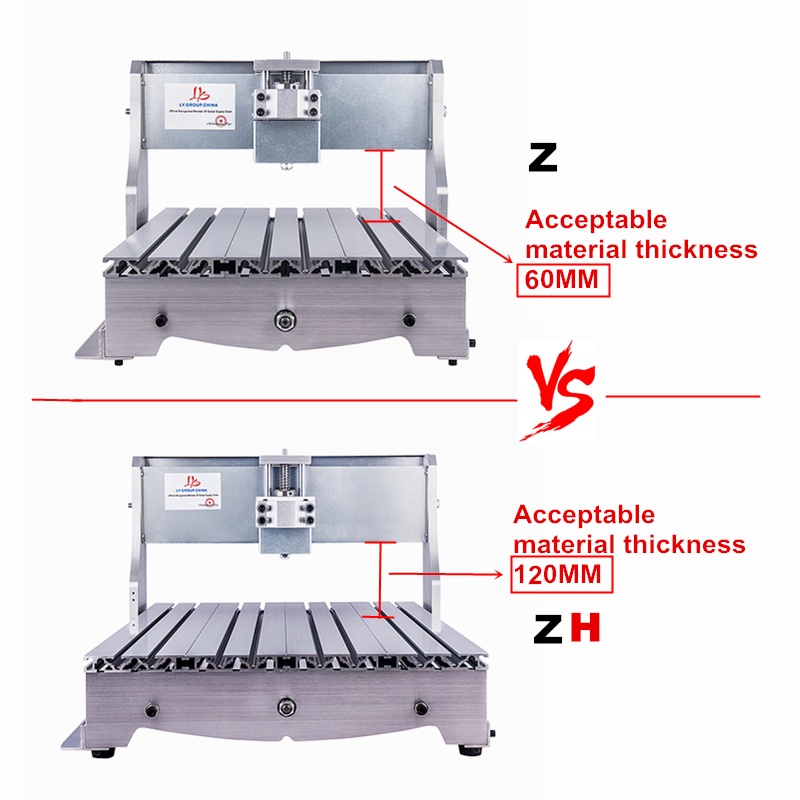

Acceptable material thickness:

≤60   &  ≤120 mm

Rail type:

Chromeplate shaft+Linear Bearings,Surface hardening 61HRC

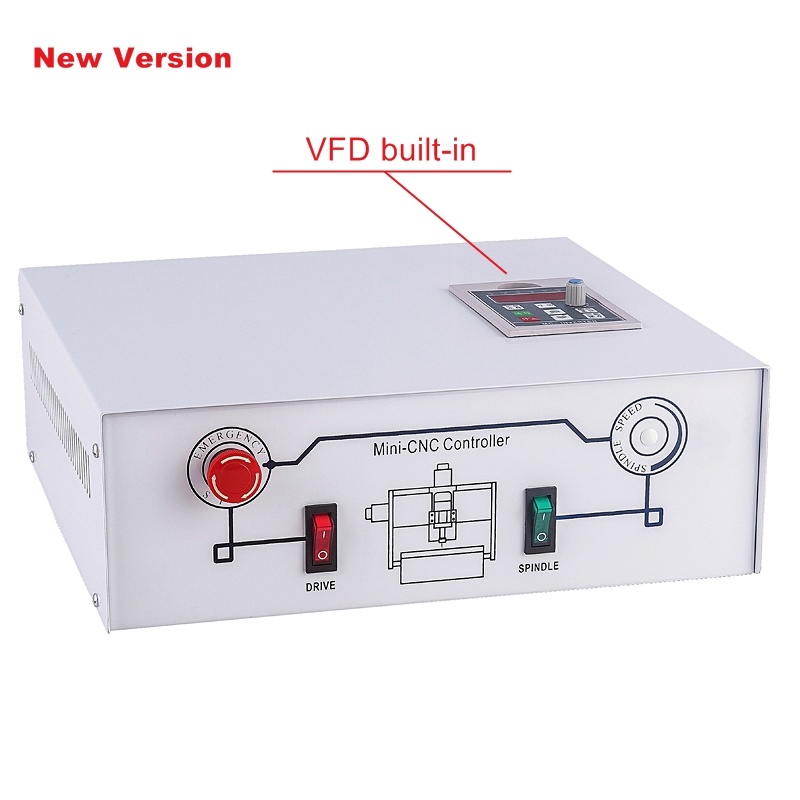

Spindle motor: 800W/1500W/2200W VFD water cooling spindle

Collet type:

ER11/ER16,1/8″(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

≤0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

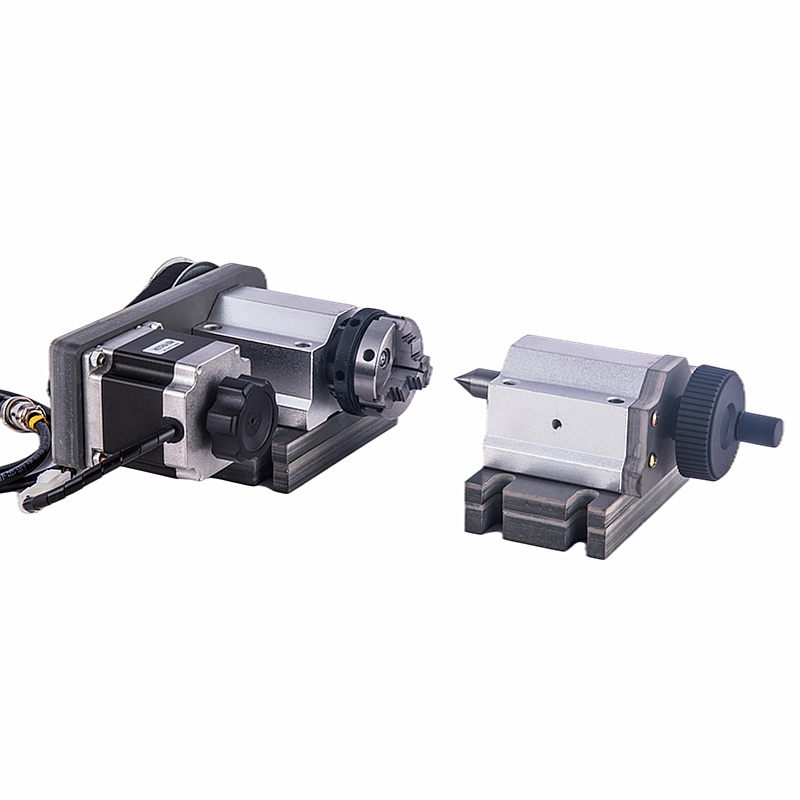

Rotation Axis (4th Axis)

Description:

Chuck Size: 50mm self-centering chuck

Center height: H = 51mm

Clamping diameter: 50mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 4:1

Stepper motor:NEW 57 type / 3A

Stepper Drive: T65-axis drive

Positioning accuracy: 0.075 °

Weight: 4kg
