Engraving Drilling and Milling Machine USB LYBGACNC XC-40V

Engraving Drilling and Milling Machine USB LYBGACNC XC-40V

item ID: 68584
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1800 USD$1245 (% off)
Payment

Product Detail

Product Tags

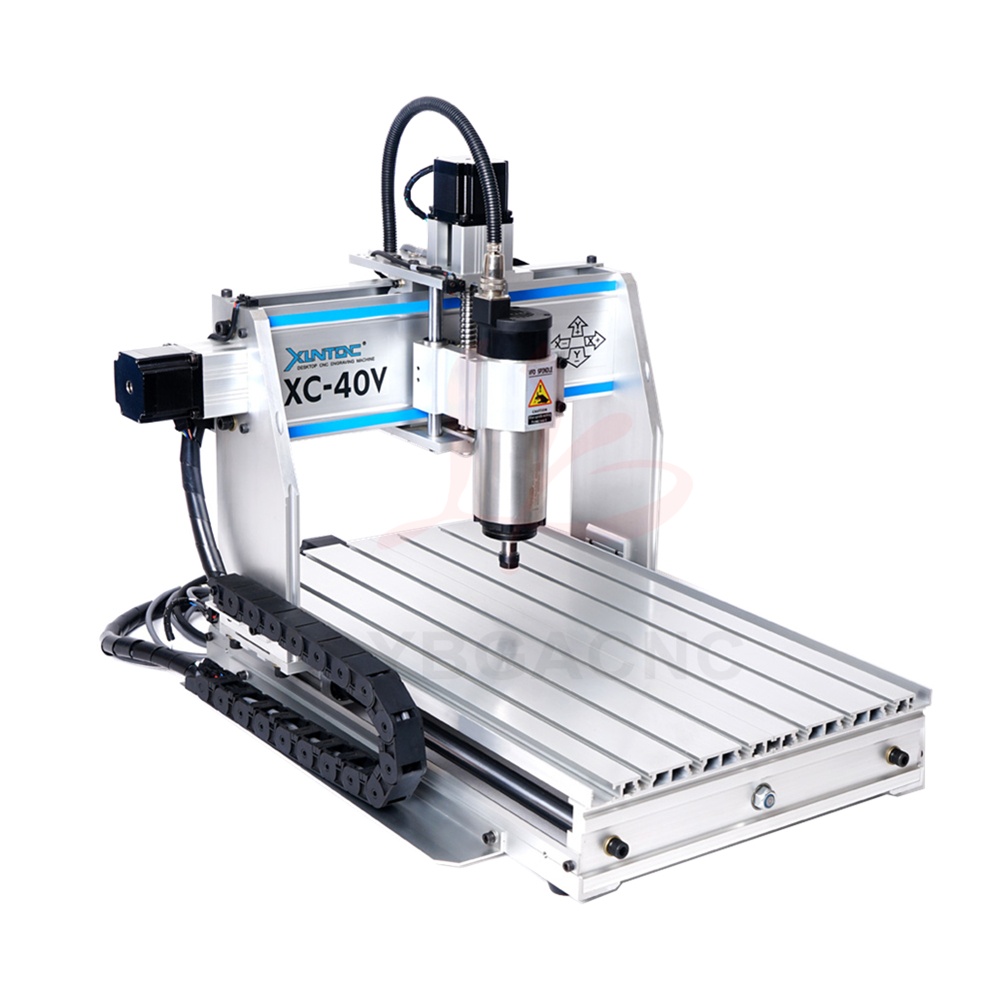

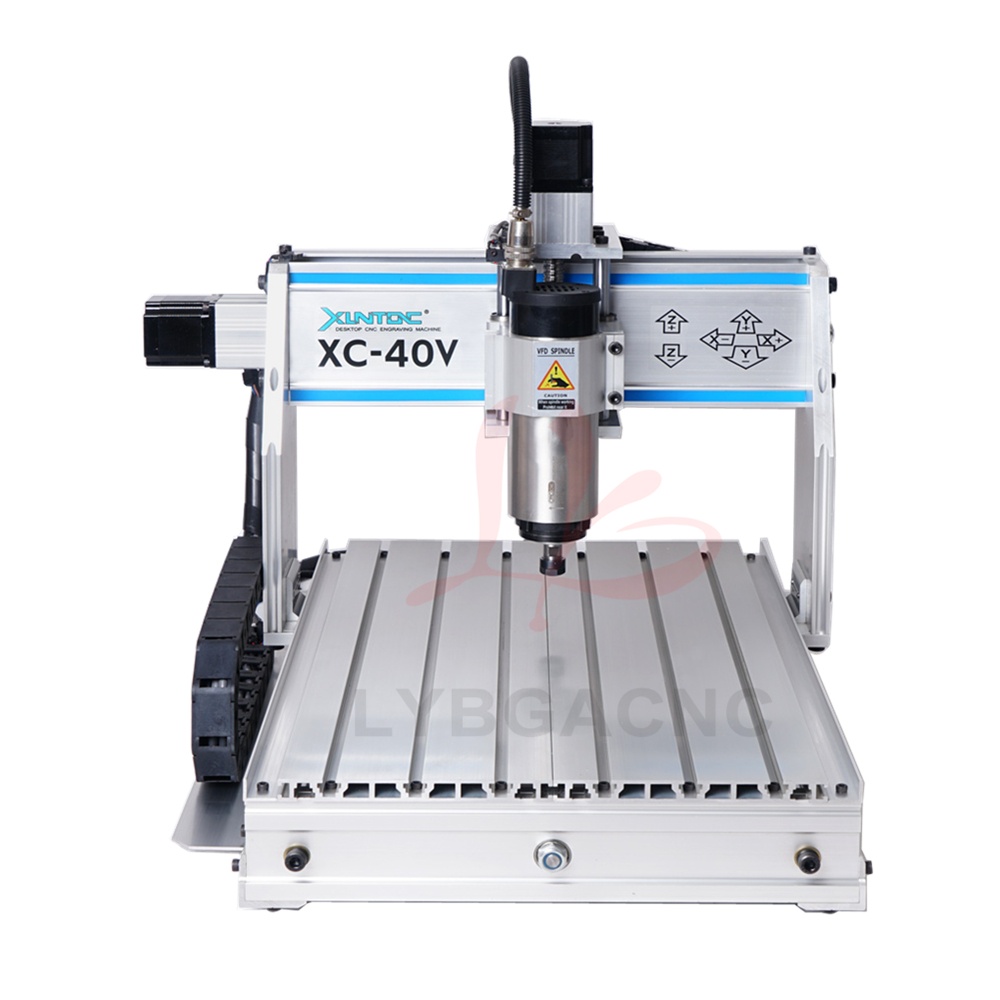

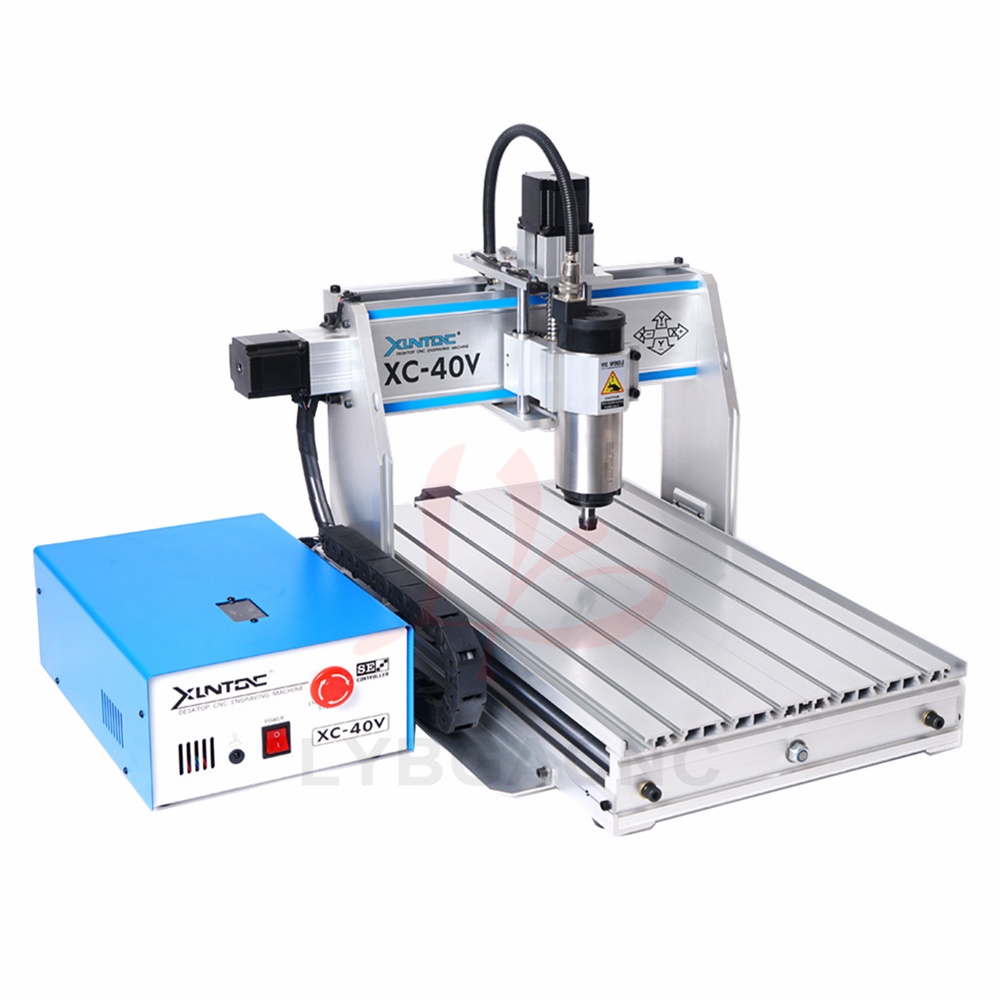

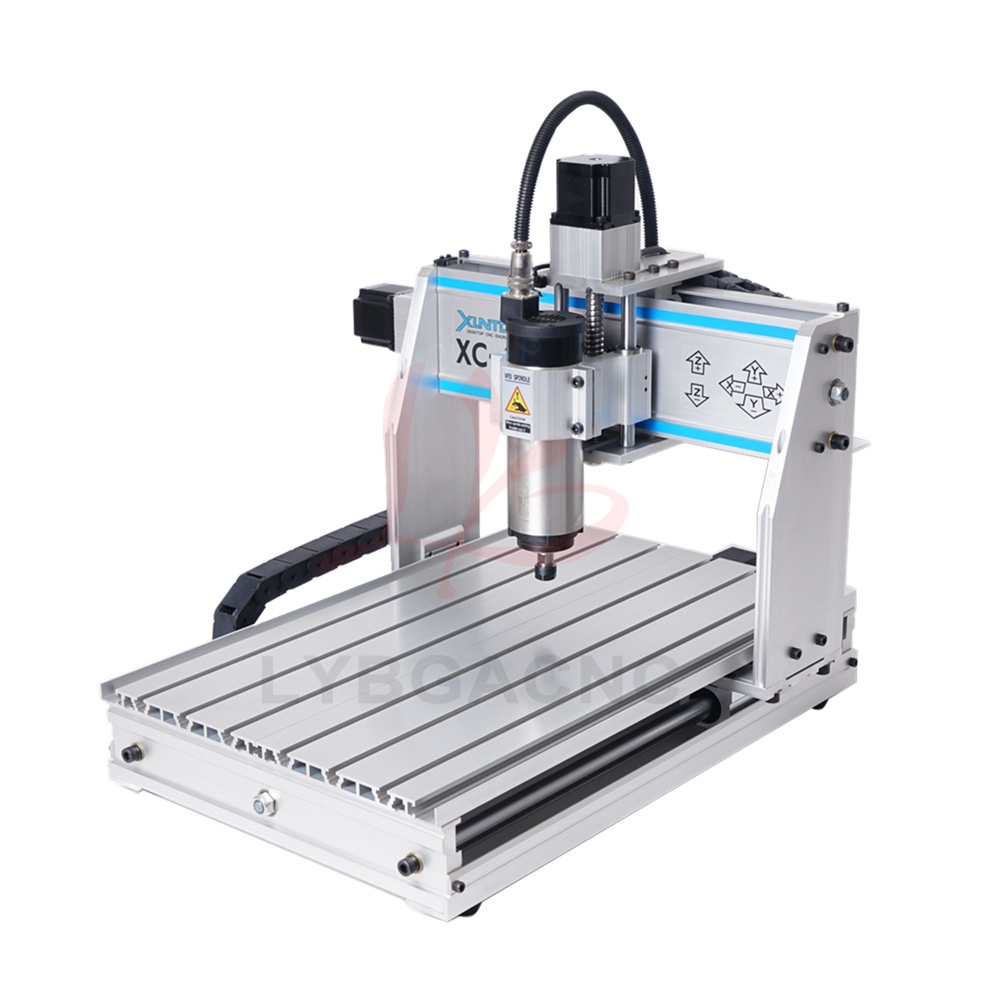

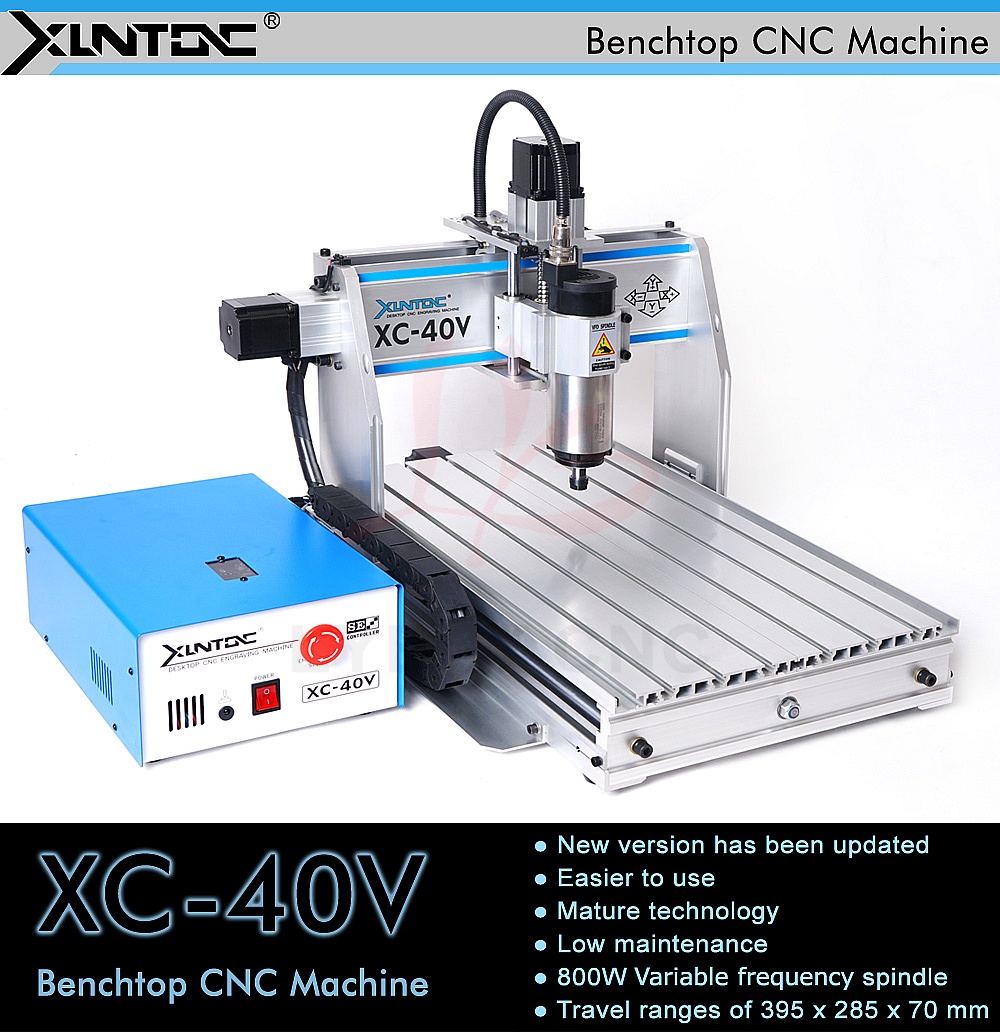

Engraving Drilling and Milling Machine USB LYBGACNC XC-40V

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

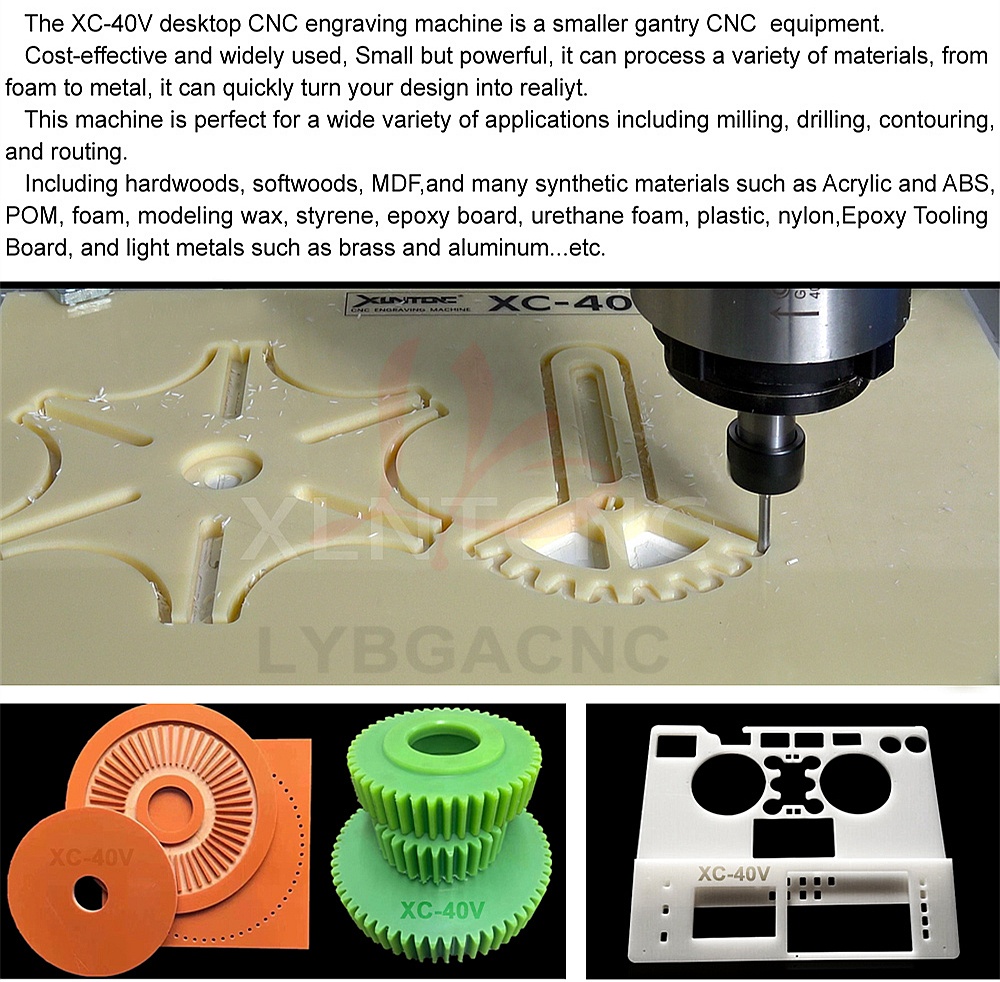

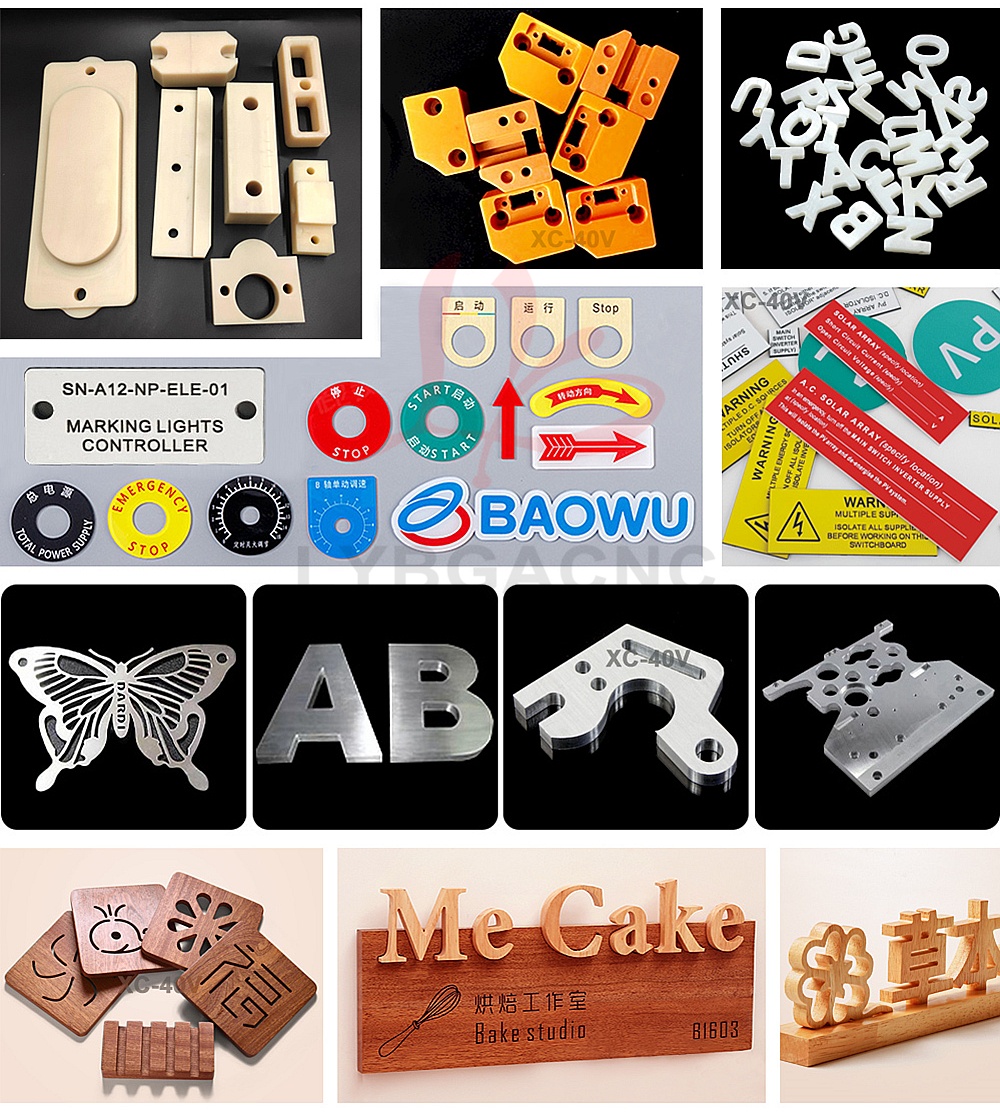

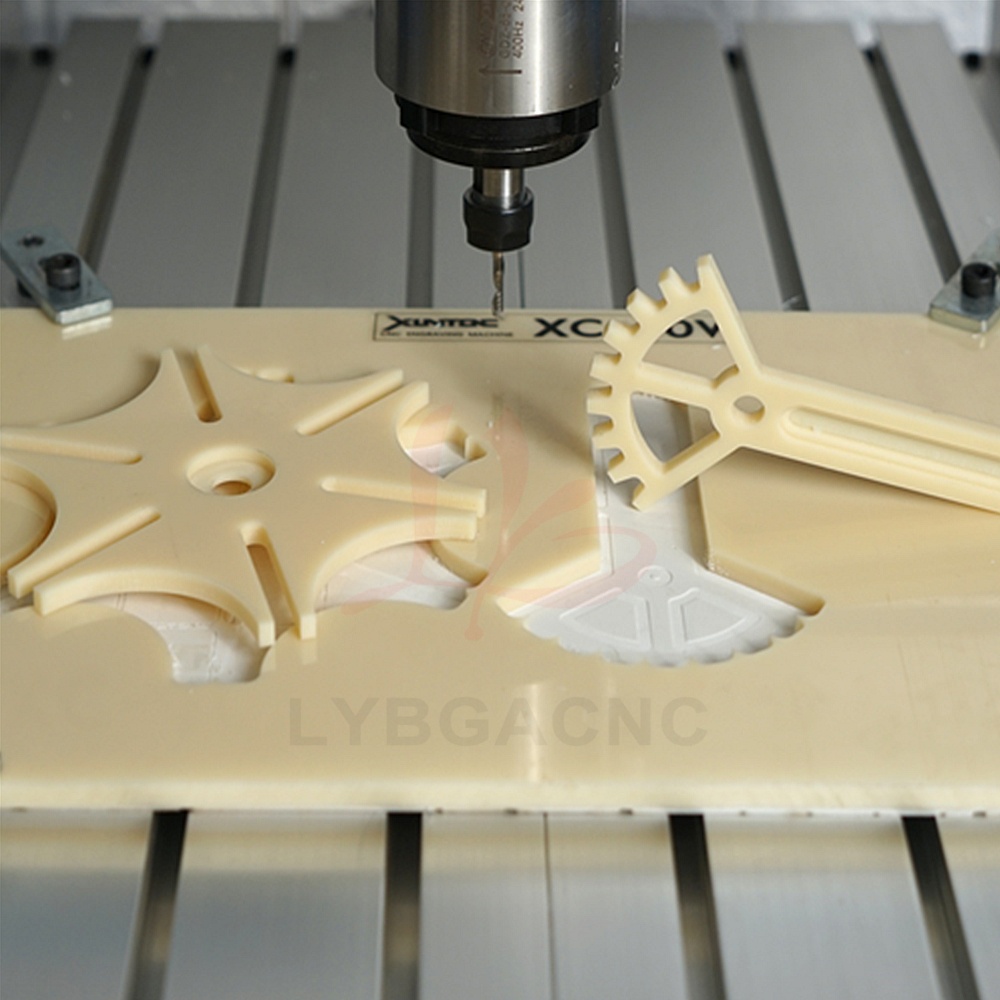

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

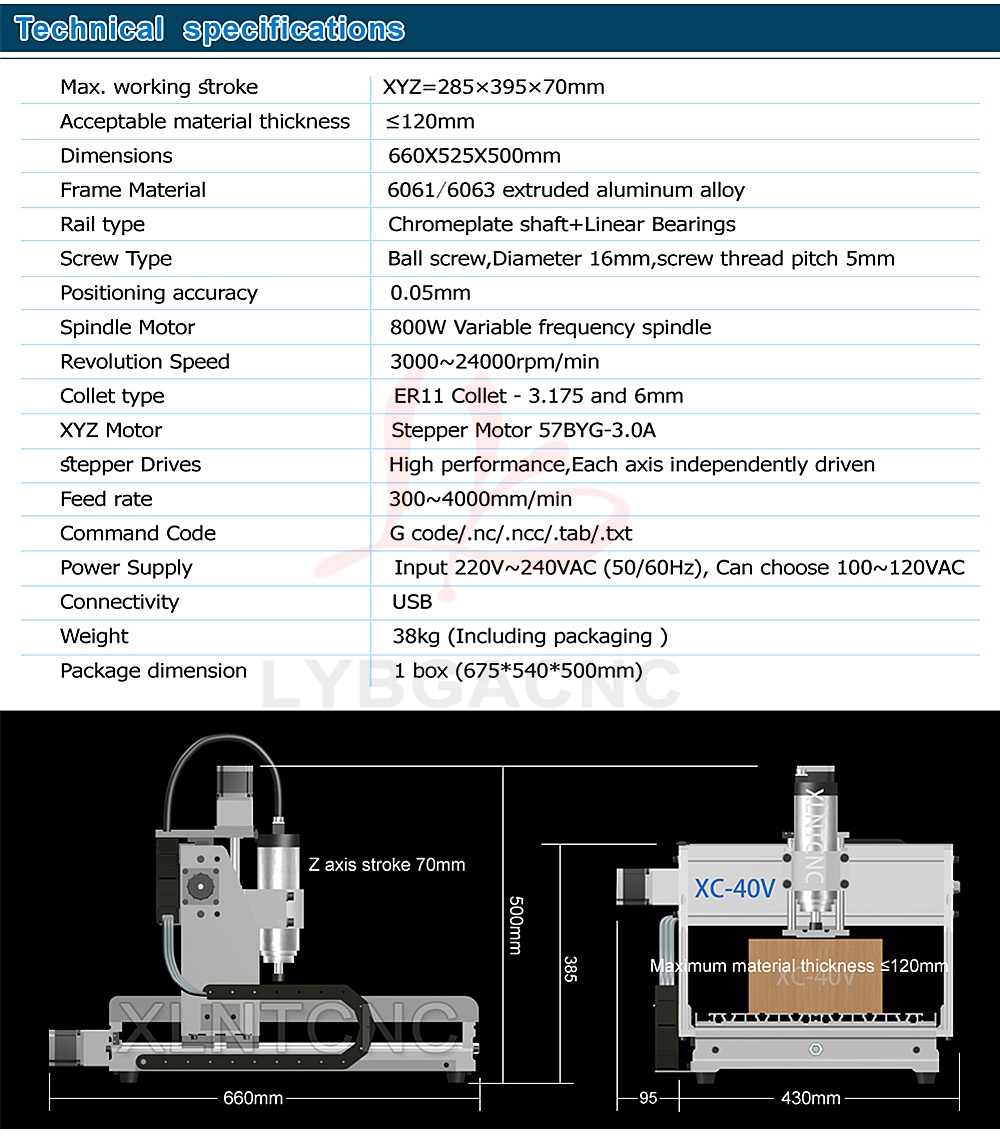

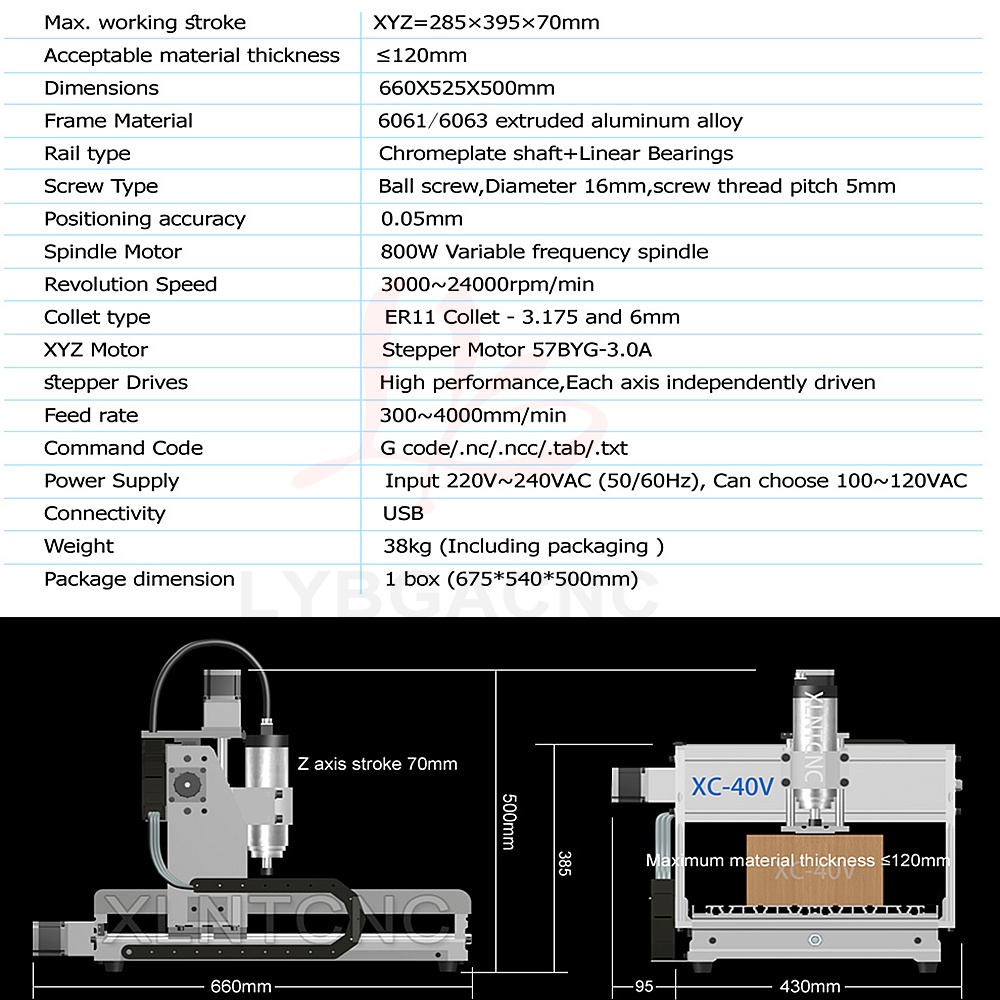

Model and Technical Parameters:

MODEL         XC-40V
Attribute 3axis
Axis 3axis
Interface USB port
Limit switch Yes

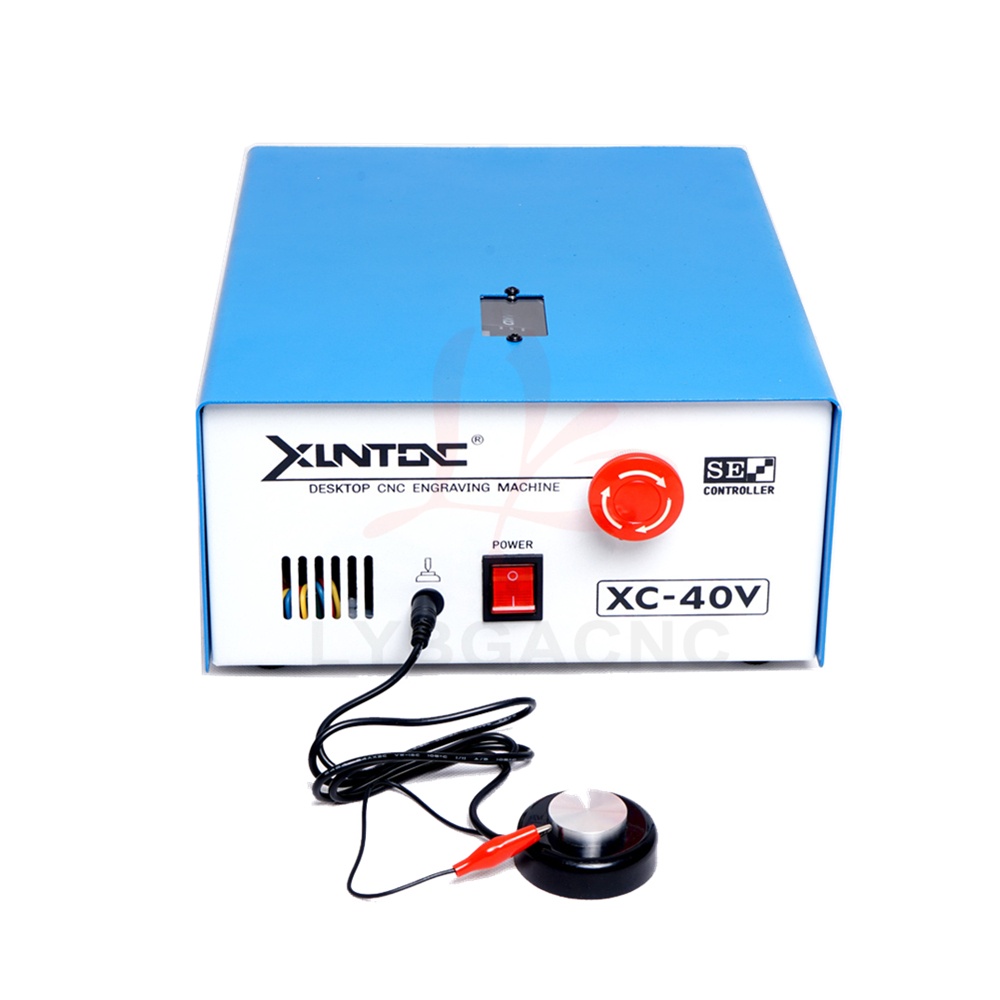

Tool auto-checking Yes
Spindle Motor: 800W VFD
Type of screw Ball screw
Weigh 38

Machine Dimensions:

660X525X500mm

Rack material:

6061 and 6063 Extruded aluminum alloy

Engraving area:

395X285mm

Z-Axis Stroke:

70mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤120mm

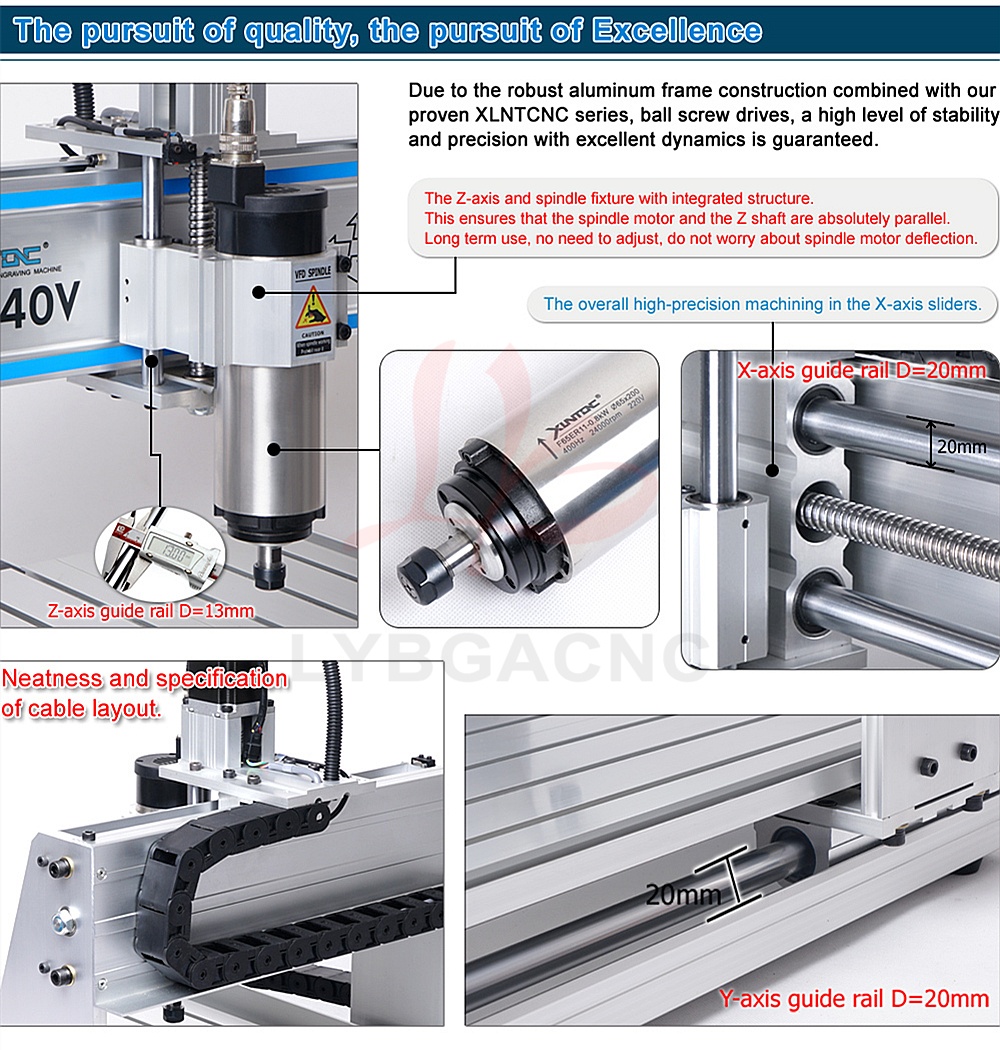

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

Ball screw 1605, Pitch 5mm

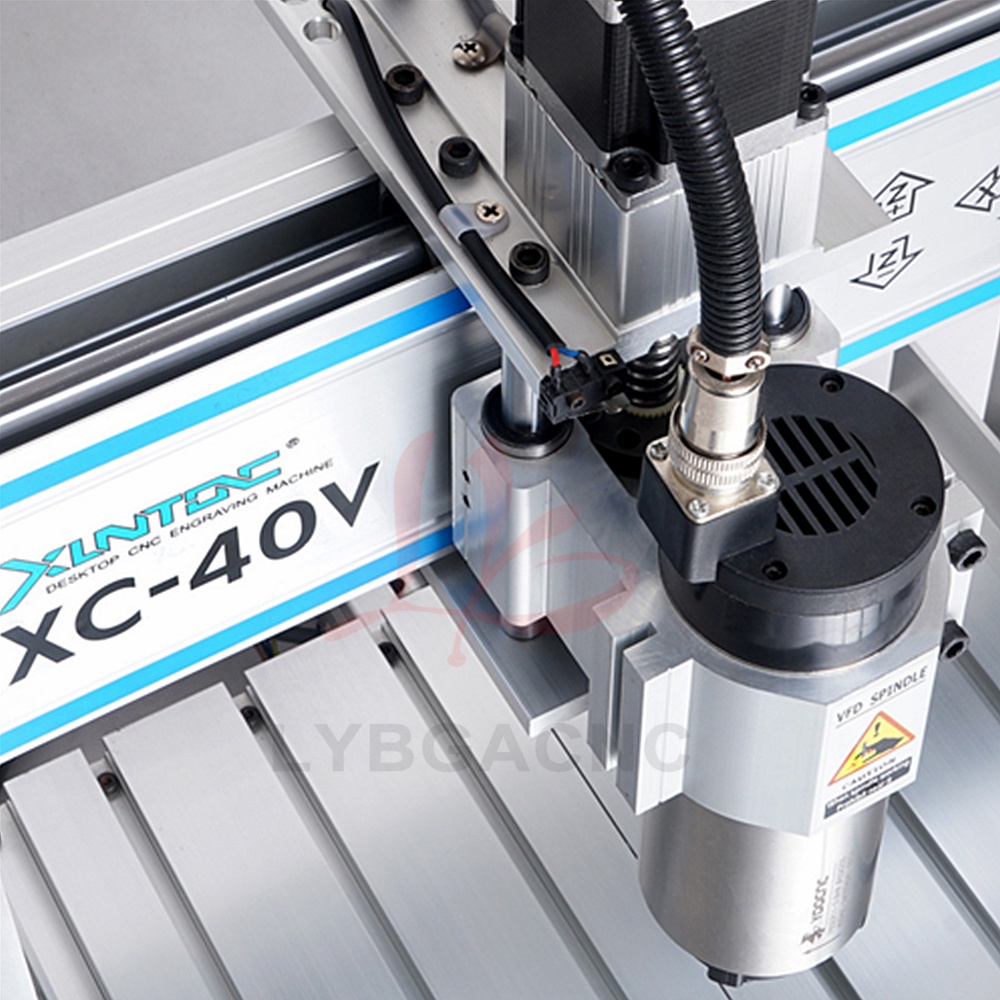

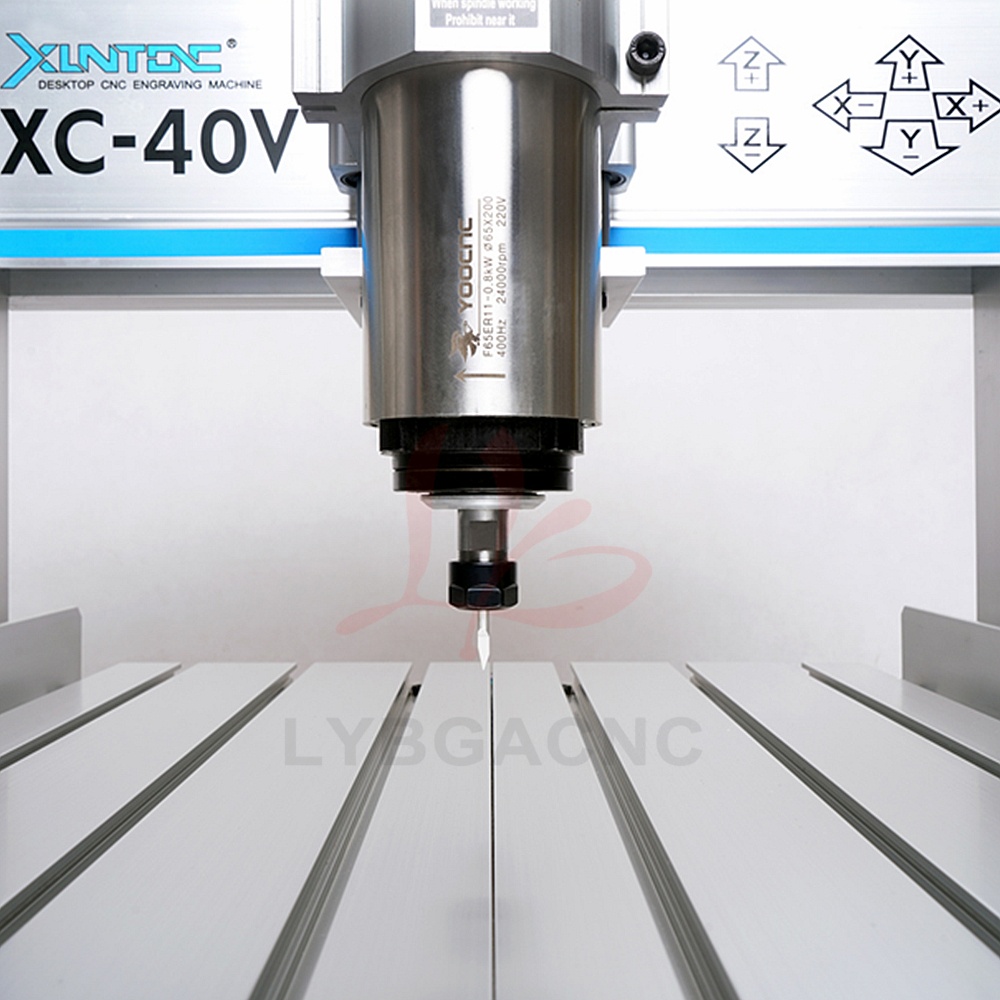

Spindle motor: 800W Variable frequency spindle   3000~24000r/min

Collet type:

ER11,1/8″(3.175mm) Collet

Stepper motor and drive:

Stepping motor 57BYG-3.0A

Maximum operating speed:

300~4000mm/min (Engraving speed: 100-2500mm/min)

Repeat positioning Accuracy:

0.03mm

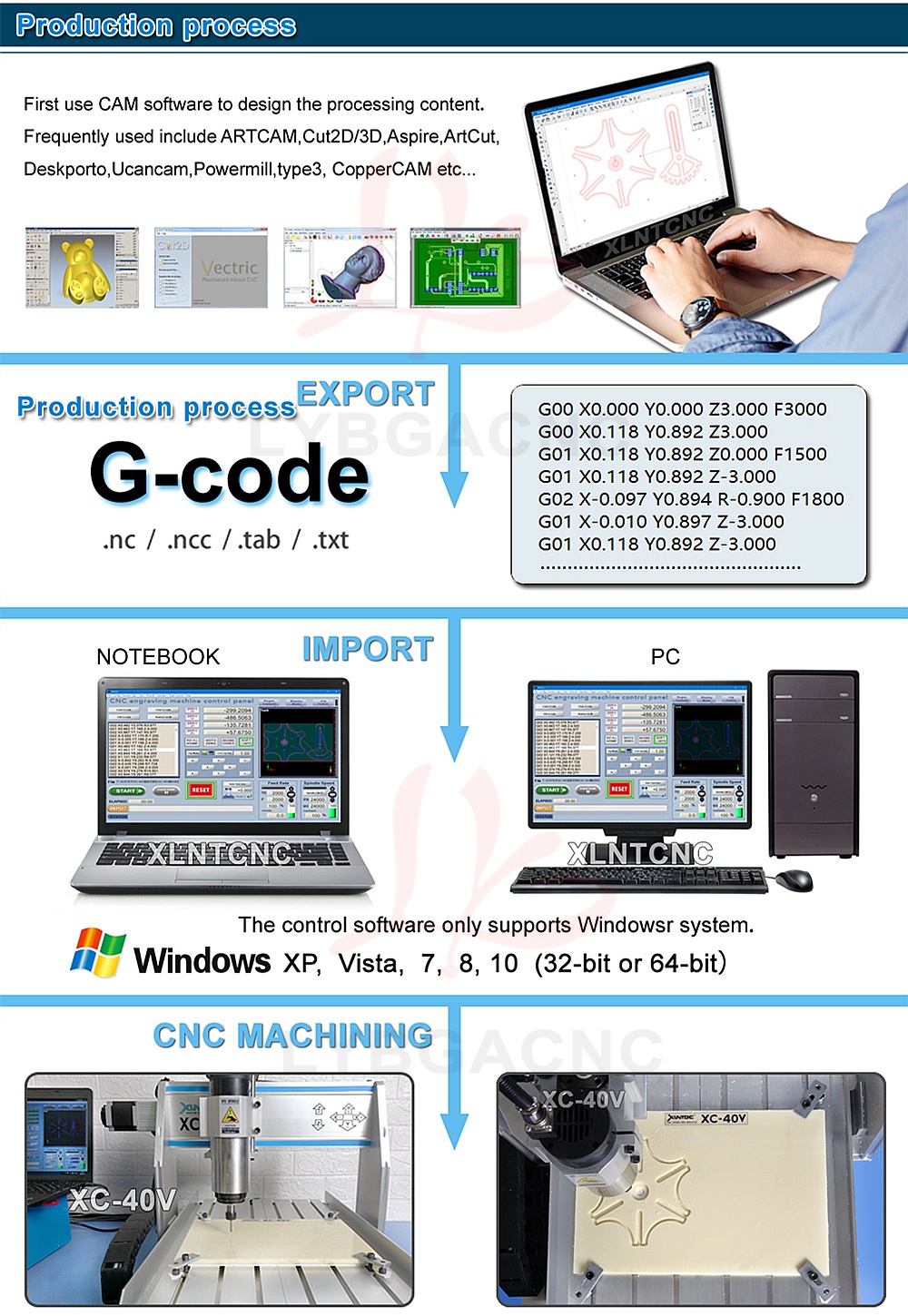

Software Compatability:

Mach3/Emc2/Kcam (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Power Supply Input 220V~ 240VAC (50/60Hz)
