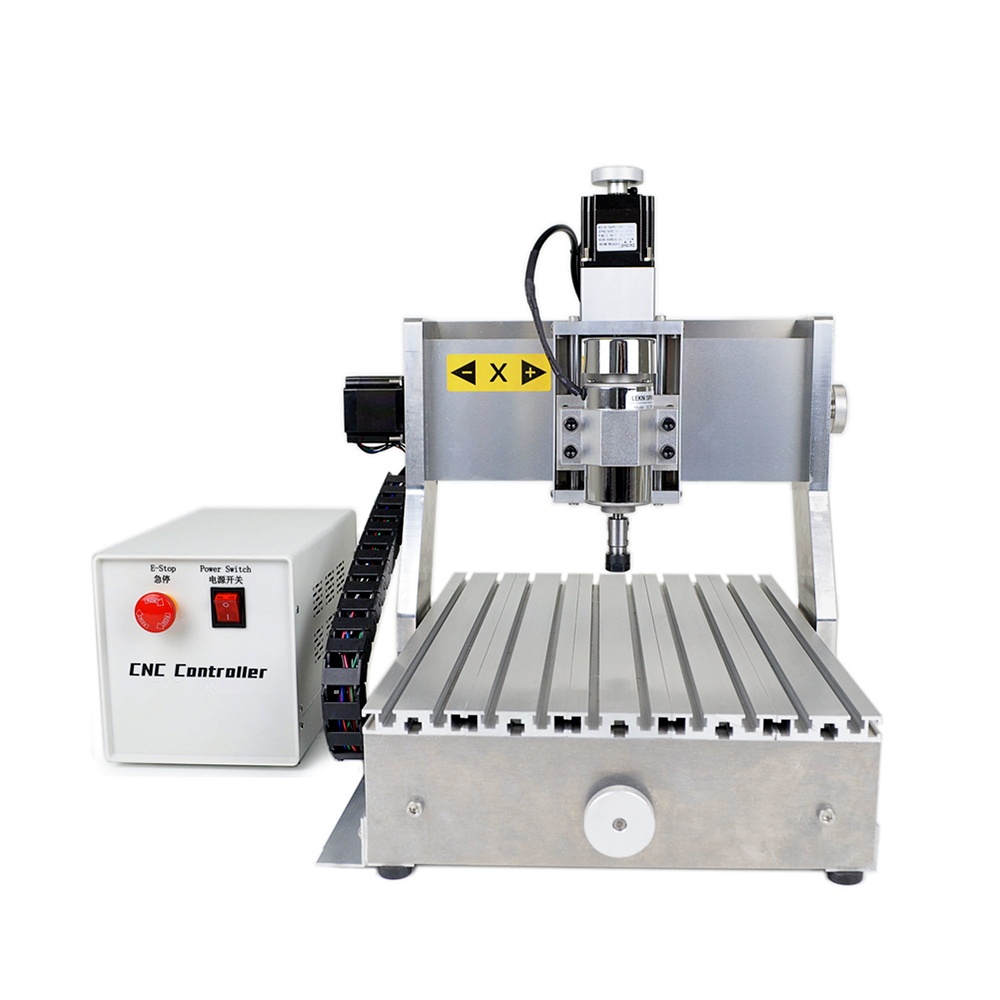

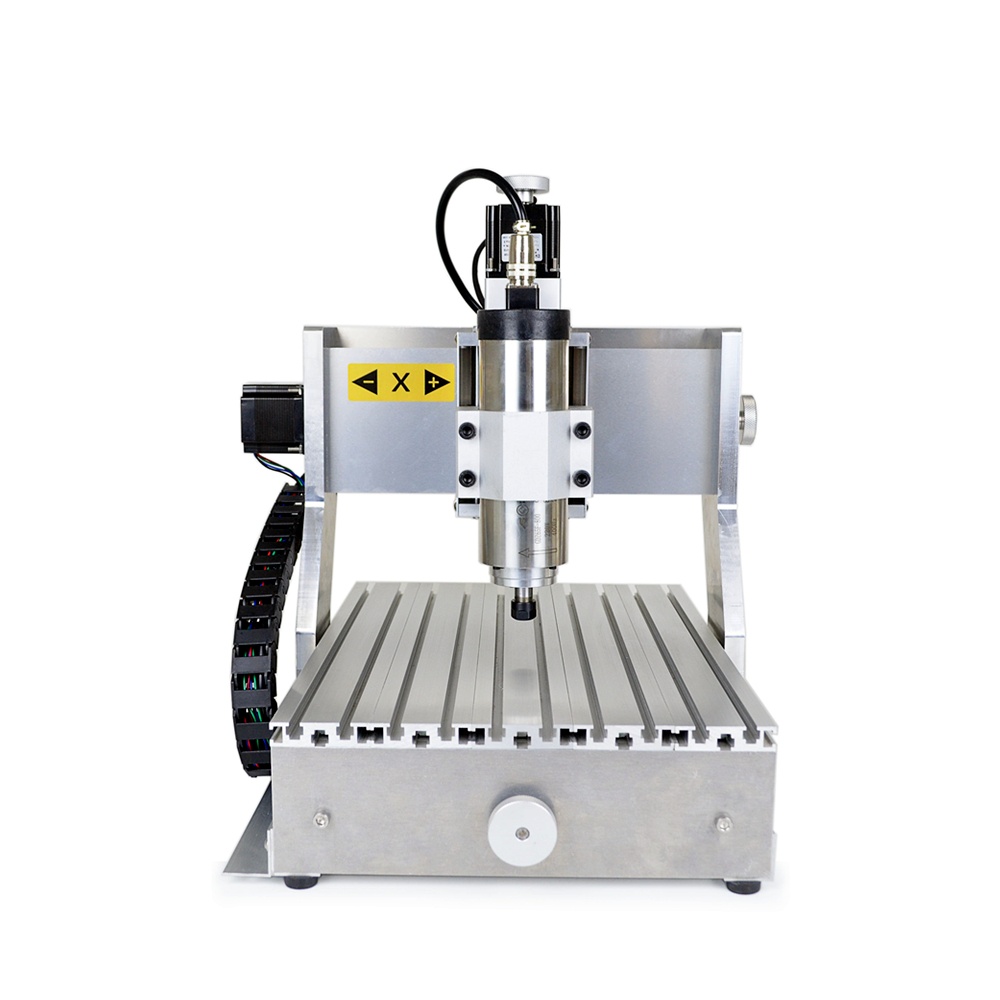

Mini CNC Router 3040 300×400 Engraving Drilling and Milling Machine

Mini CNC Router 3040 300×400 Engraving Drilling and Milling Machine

item ID: 70079
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$2000 USD$1010 (% off)
Payment

Product Detail

Product Tags

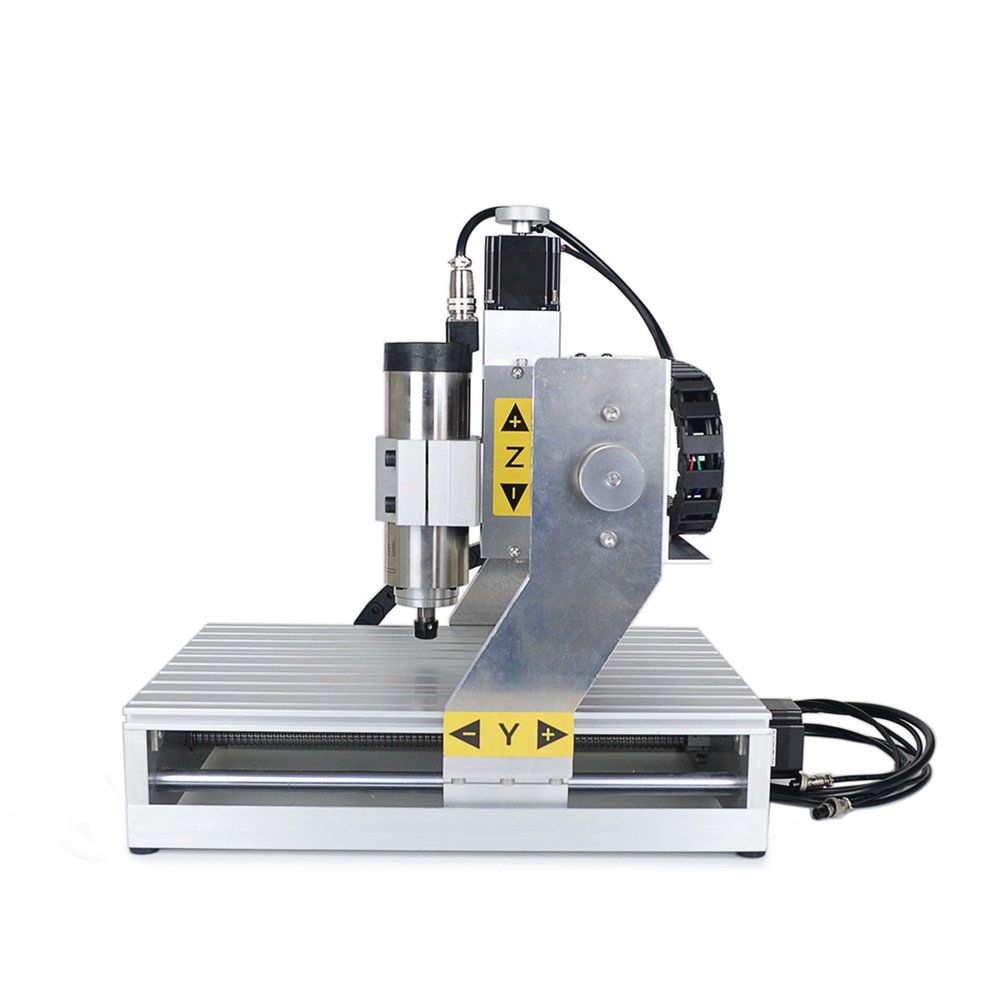

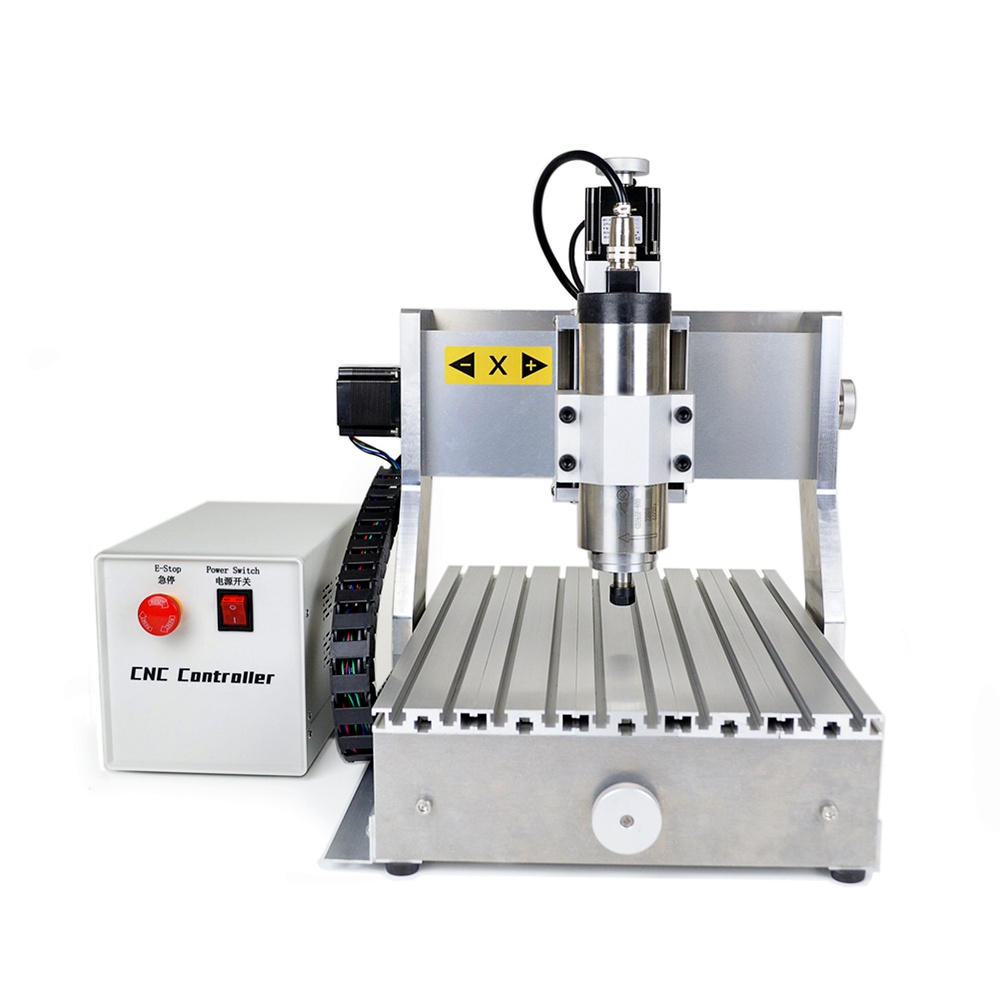

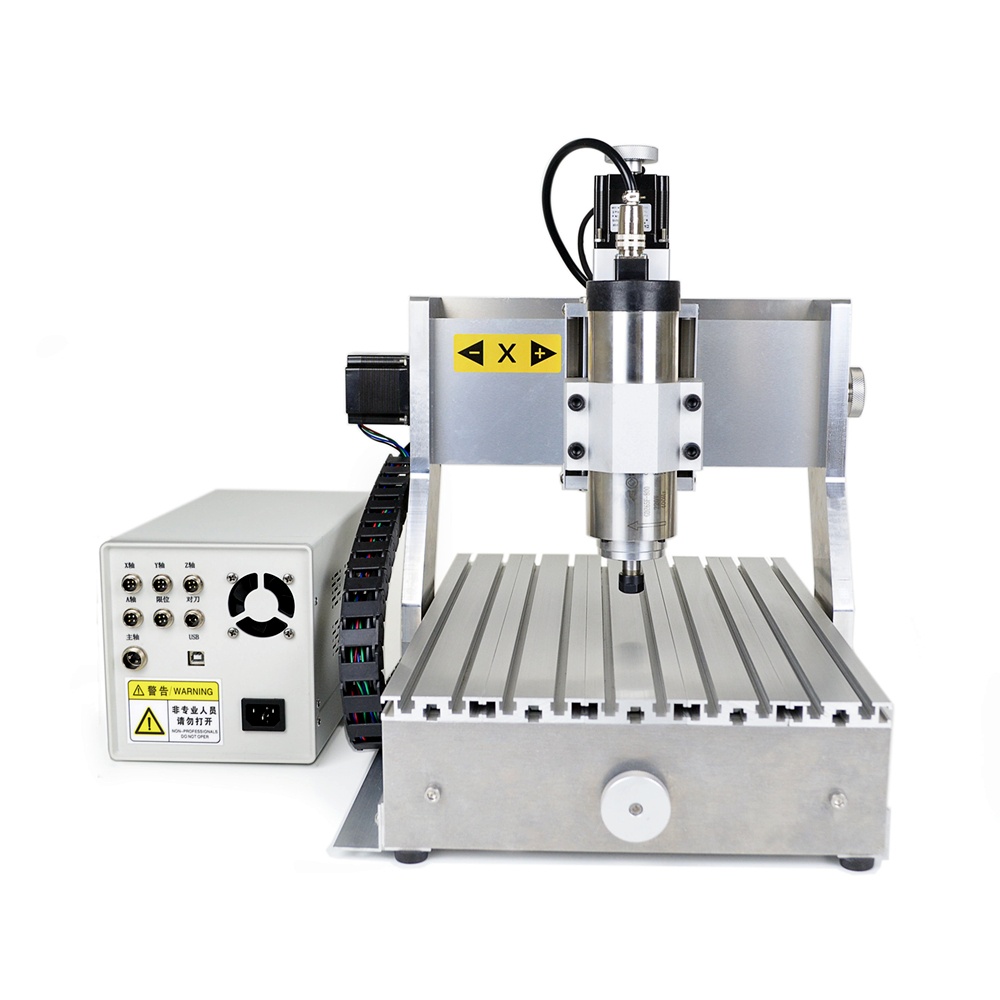

Mini CNC Router 3040 300×400 Engraving Drilling and Milling Machine

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

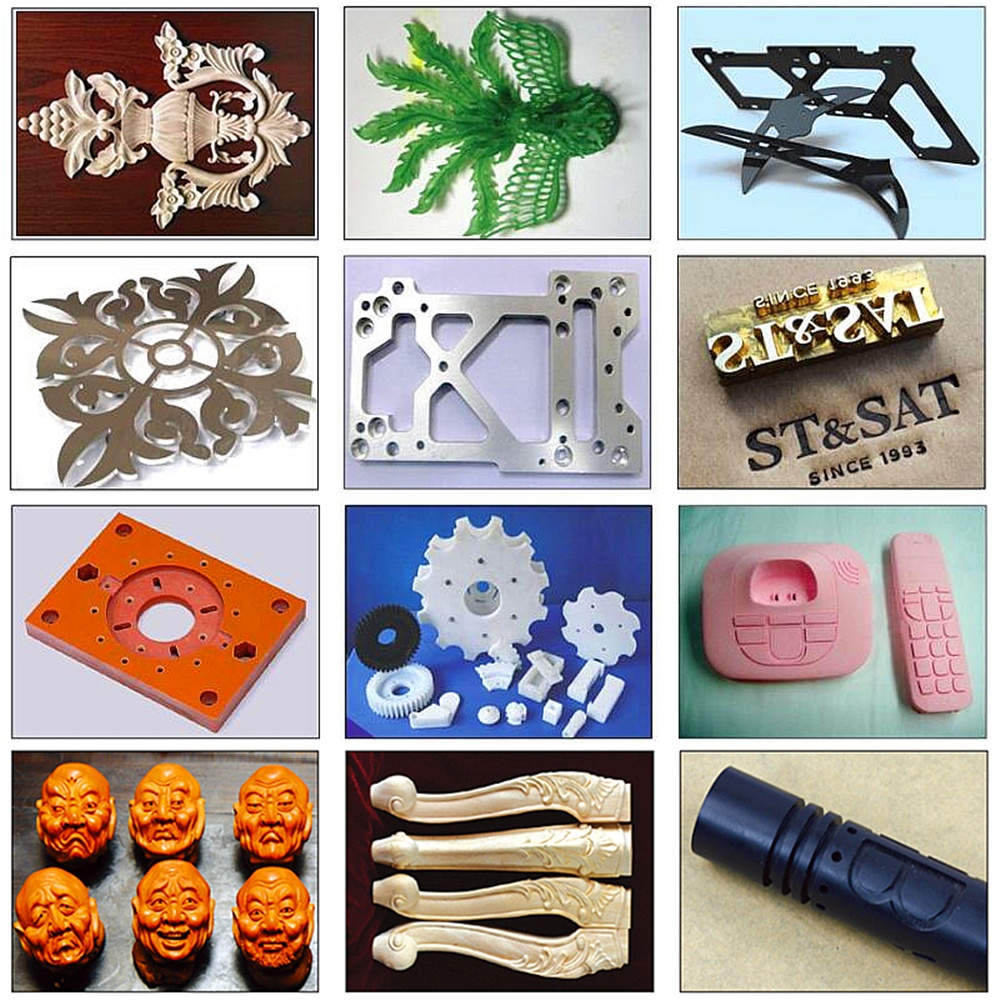

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Model and Technical Parameters

MODEL

3040

Software System

GRBL

MACH3

Spindle Motor: 300W DC 500W DC 800W VFD 300W DC 500W DC 800W VFD
Spindle speed: 0-12000r/min 0-12000r/min 0-24000r/min 0-12000r/min 0-12000r/min 0-24000r/min
Interface USB port USB port USB port USB port USB port USB port
Weigh 35 35 36 35 35 36

Machine Dimensions:

610X540X460mm

Rack material:

6061-T6 Hard aluminum alloy (15MM)
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

290X400mm

Z-Axis Stroke:

60mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤80mm

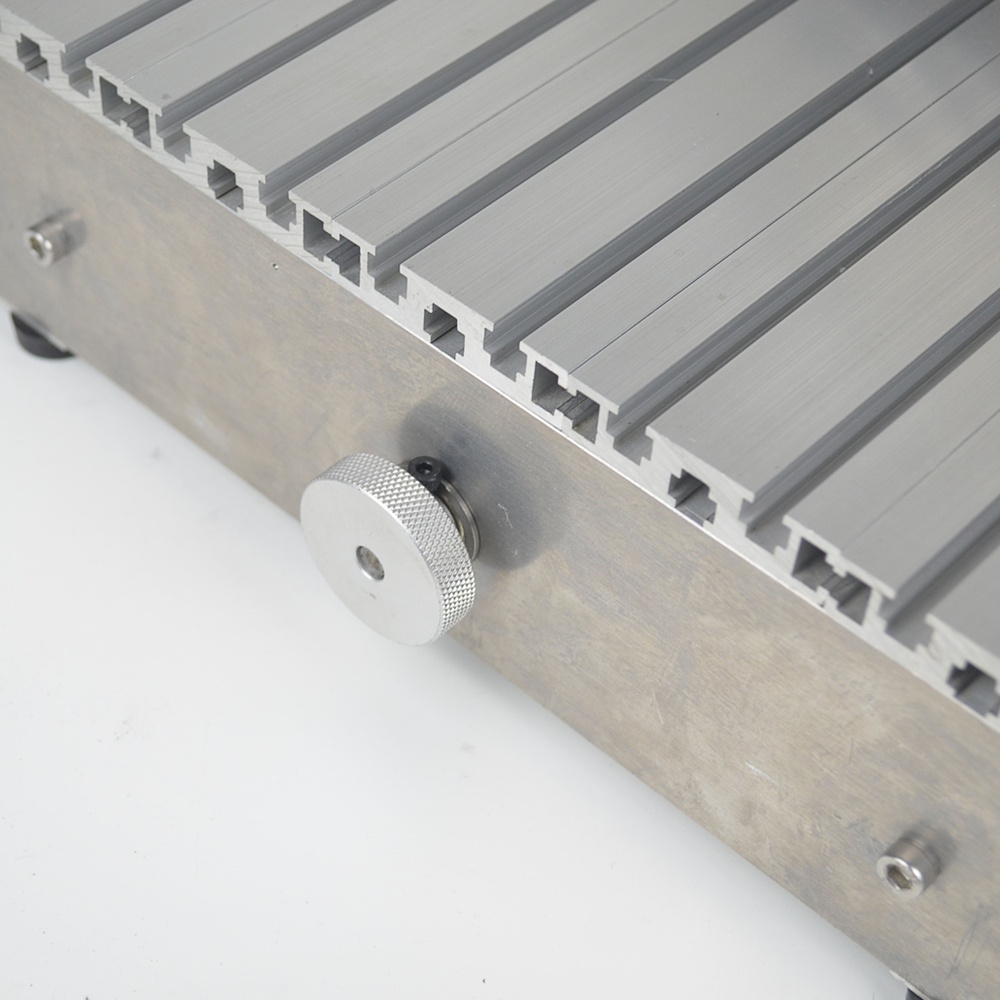

Size of table

390x540mm

Rail type:

Chromeplate shaft + Surface hardening 61HRC  (X16mm  Y16mm  Z12mm)

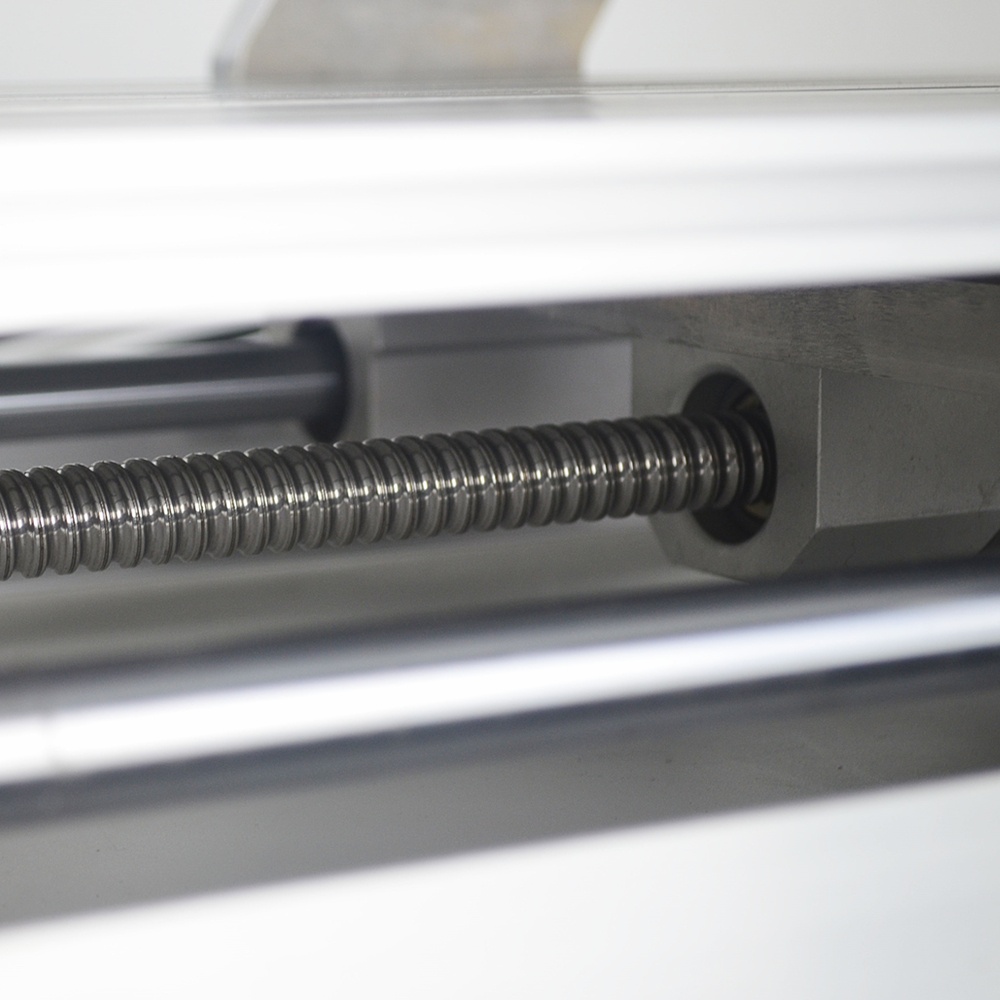

Type of screw:

Ball screw 1605

Collet type:

ER11,1/8″(3.175mm) Collet

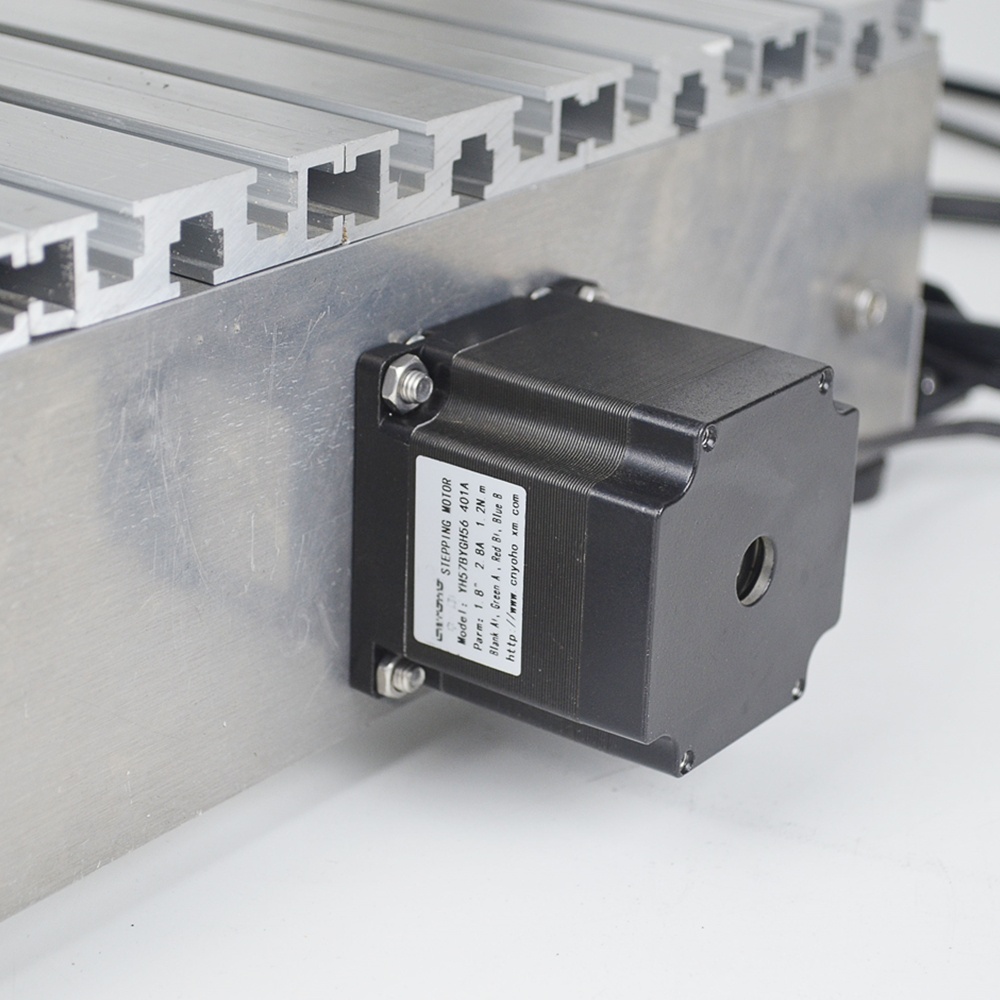

Stepper motor and drive:

two-phase hybrid stepping motor 57BYGH56

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Command code:

G code/.nc/.ncc/.tab/.txt
