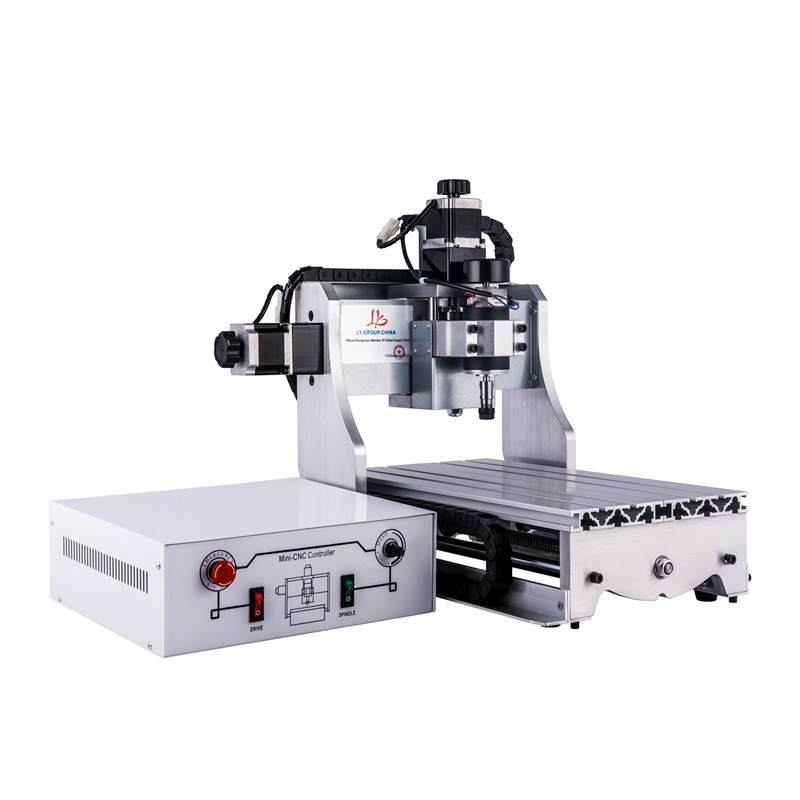

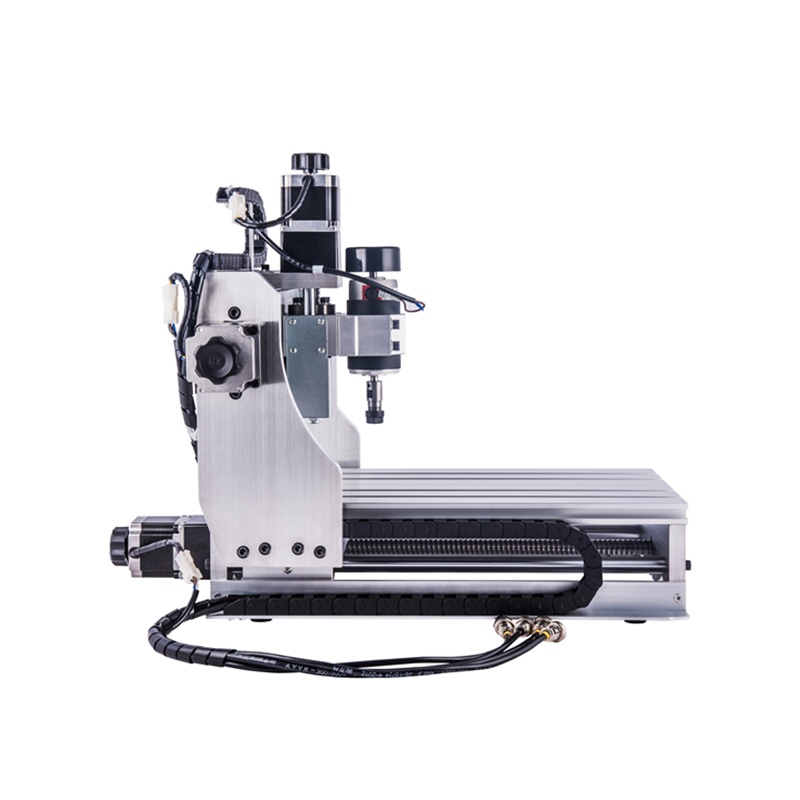

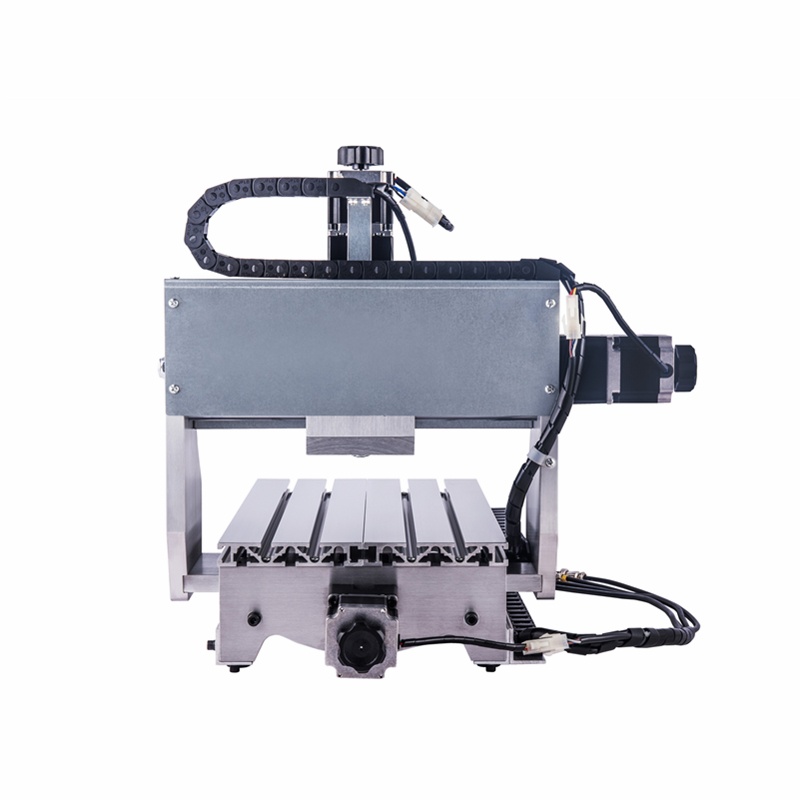

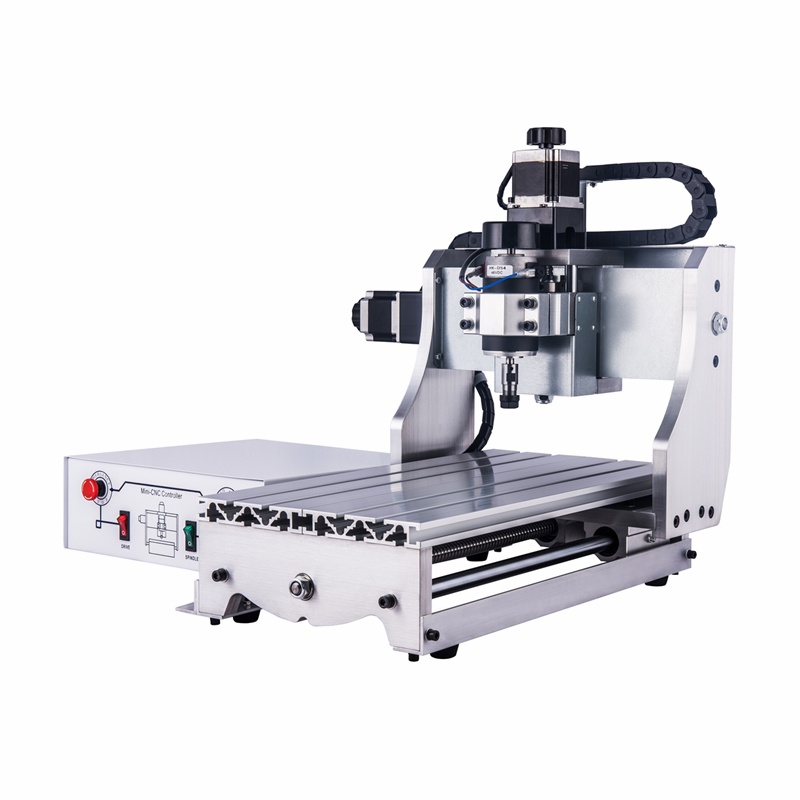

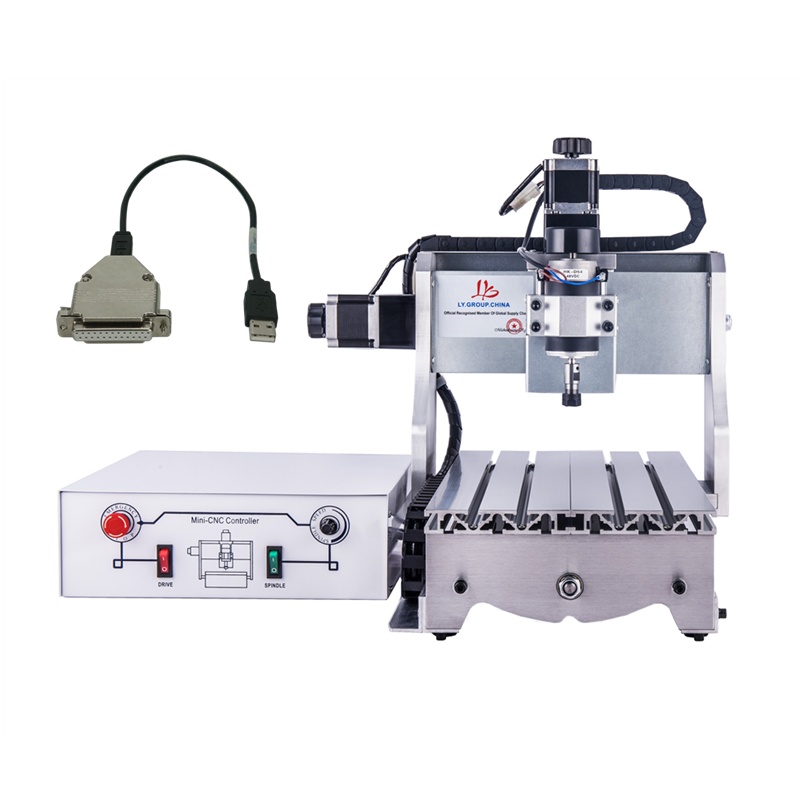

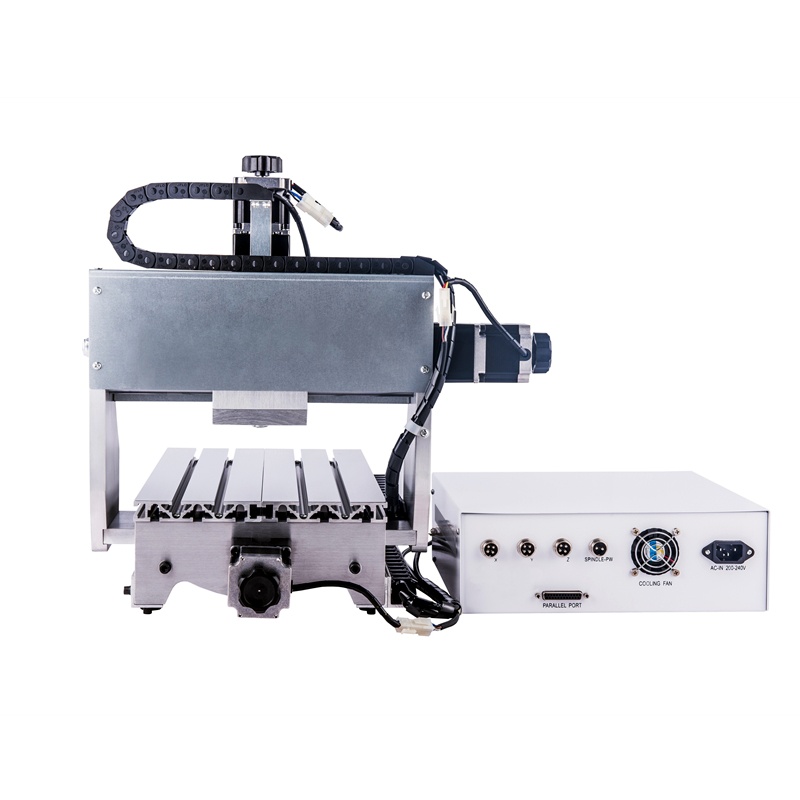

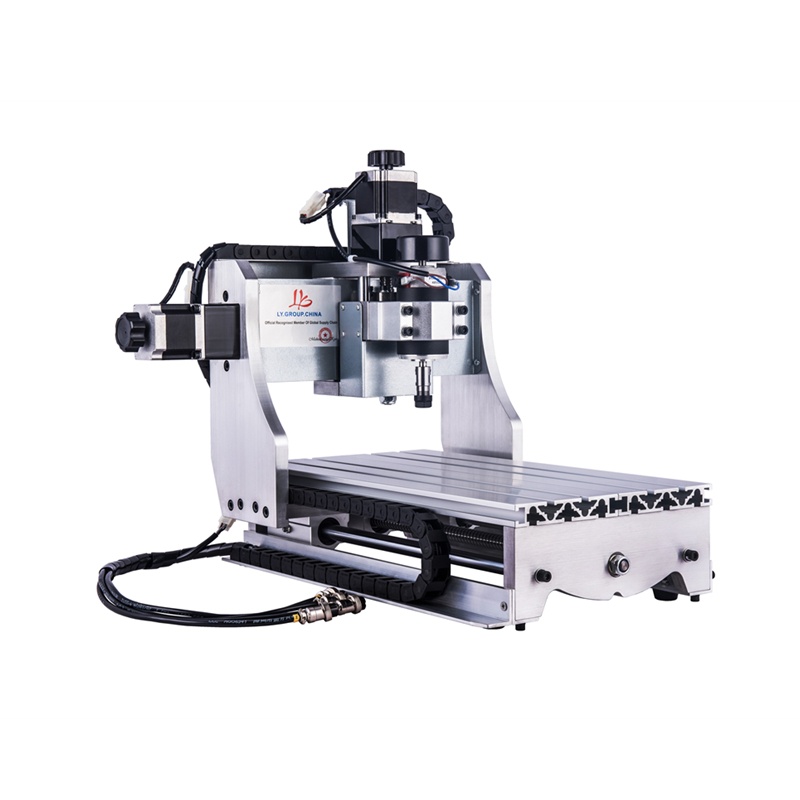

Mini CNC Router Engraver 3020 USB 500W Milling Machine

Mini CNC Router Engraver 3020 USB 500W Milling Machine

item ID: 70182
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1200 USD$694 (% off)
Payment

Product Detail

Product Tags

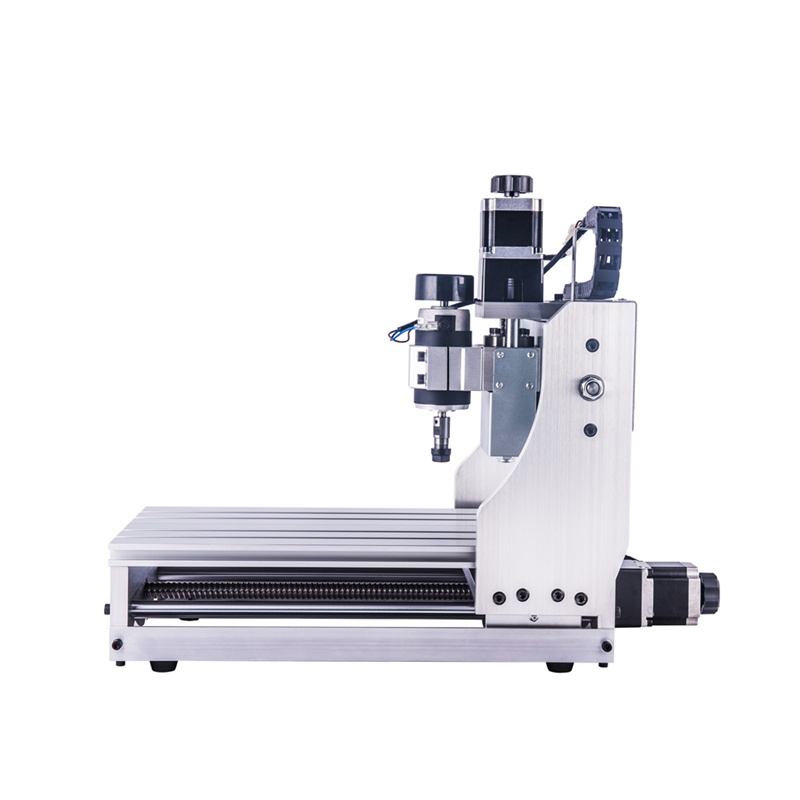

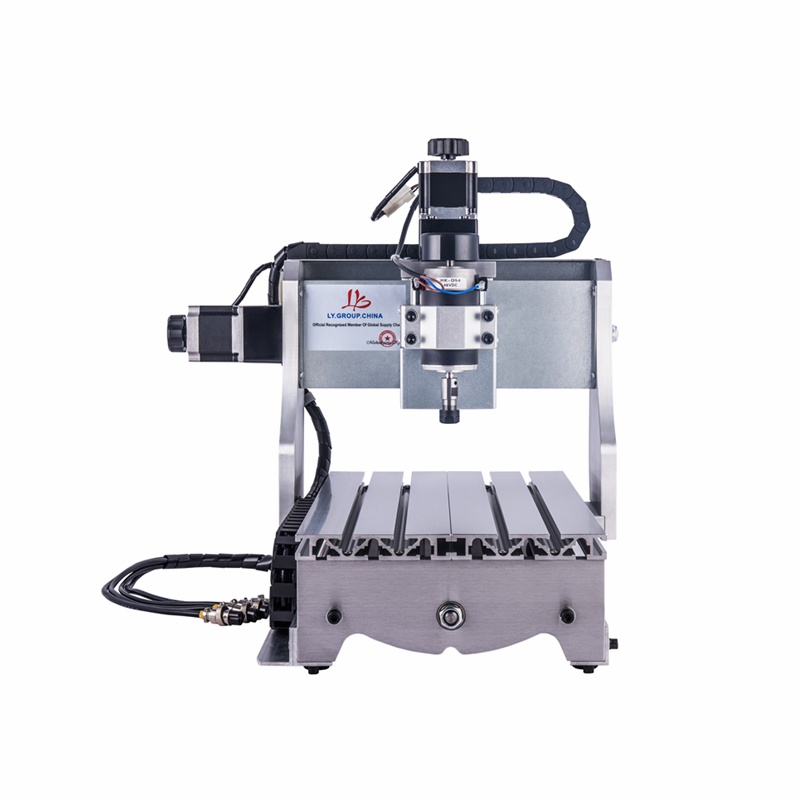

Mini CNC Router Engraver 3020 USB 500W Milling Machine

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Model and Technical Parameters

MODEL

3020

Attribute

T-500W

3axis

T-500W

4axis

Z-500W

3axis

Z-500W

4axis

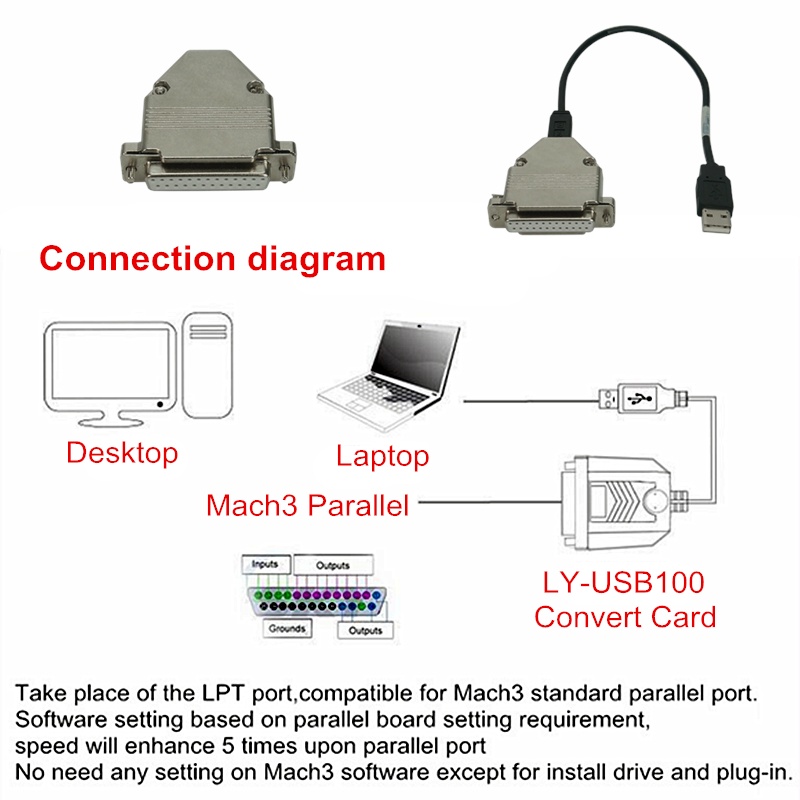

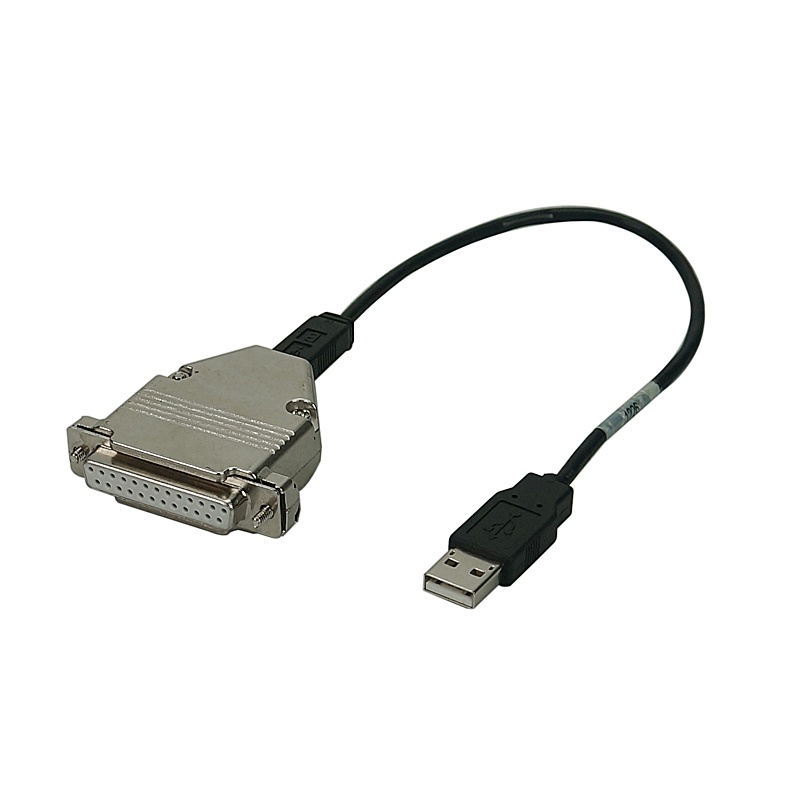

Interface

USB + LPT Port

USB + LPT Port

USB + LPT Port

USB + LPT Port

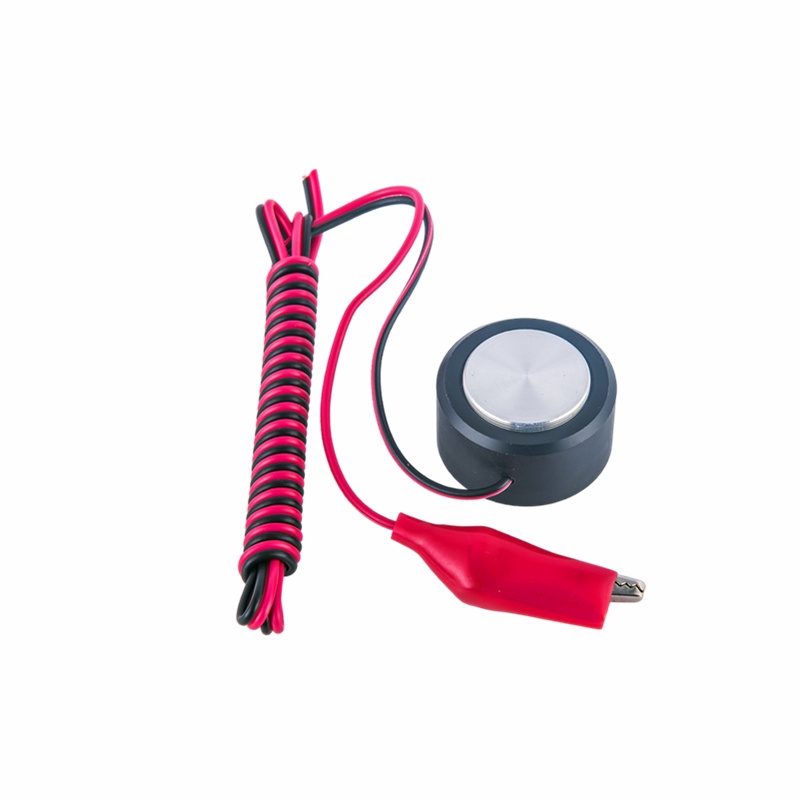

Toolauto-checking

Yes

Yes

Yes

Yes

Spindle Motor:

500W

500W

500W

500W

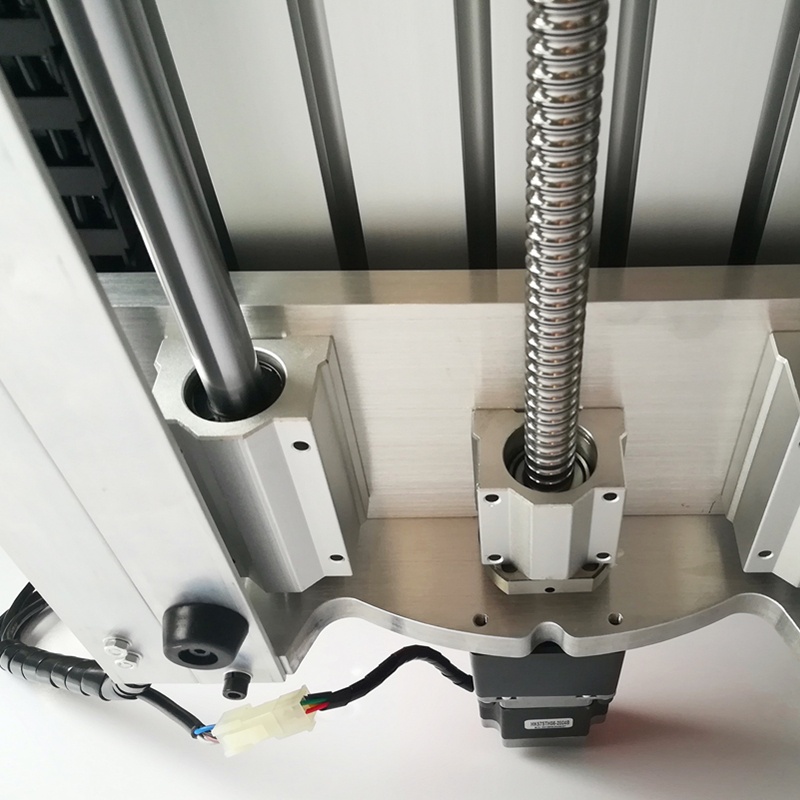

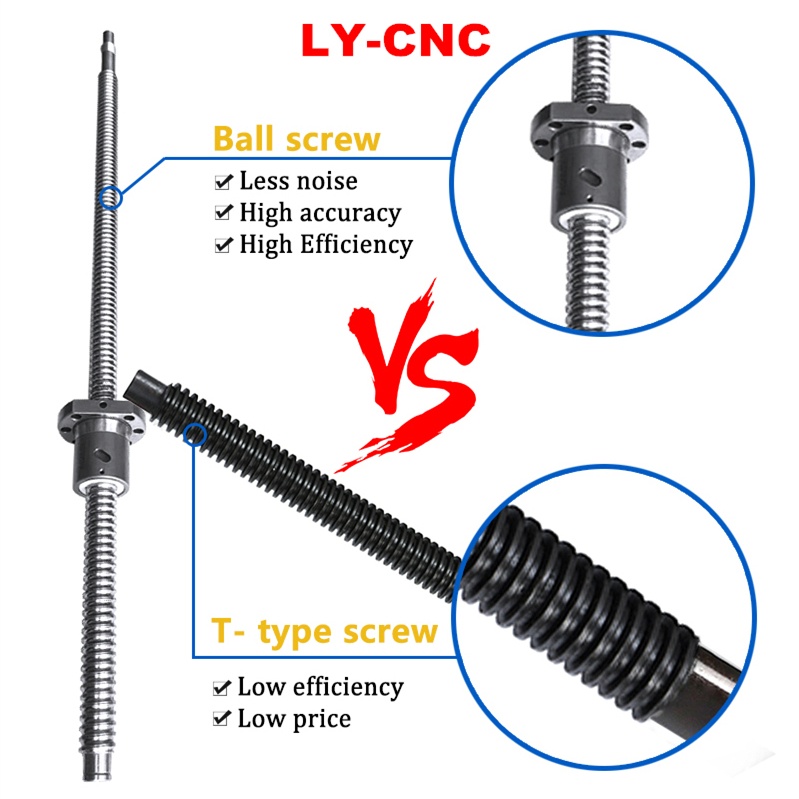

Type of screw

1404

Trapezoidal Screw

1404

Trapezoidal Screw

1605

Ball screw

1605

Ball screw

Weigh

25KG

29KG

26KG

30KG

Machine Dimensions

560X450X450mm

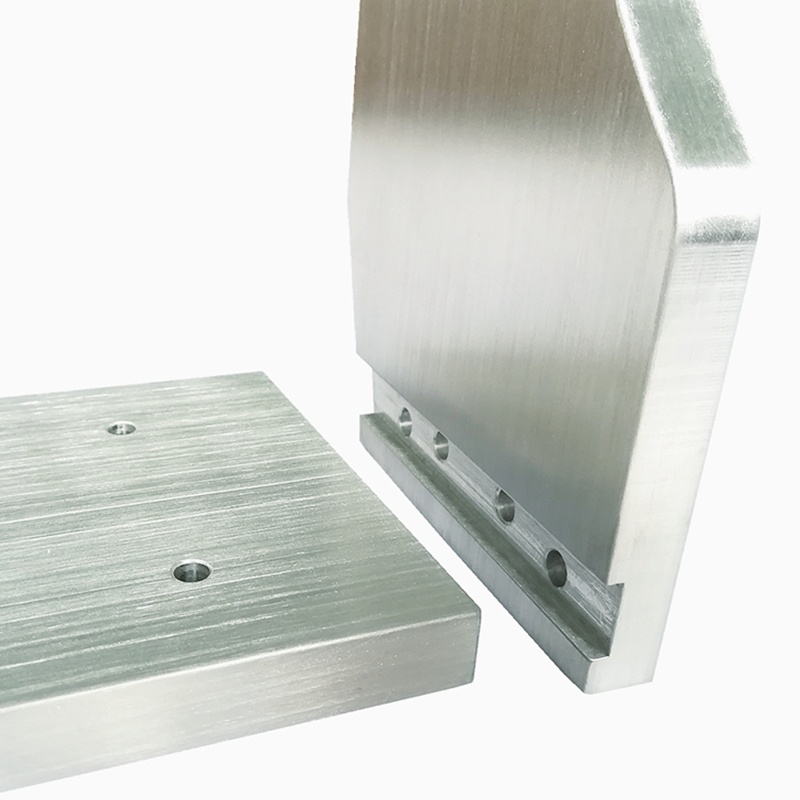

Rack material

6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area

300X200mm

Z-Axis Stroke

60mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness

≤60mm

Rail type

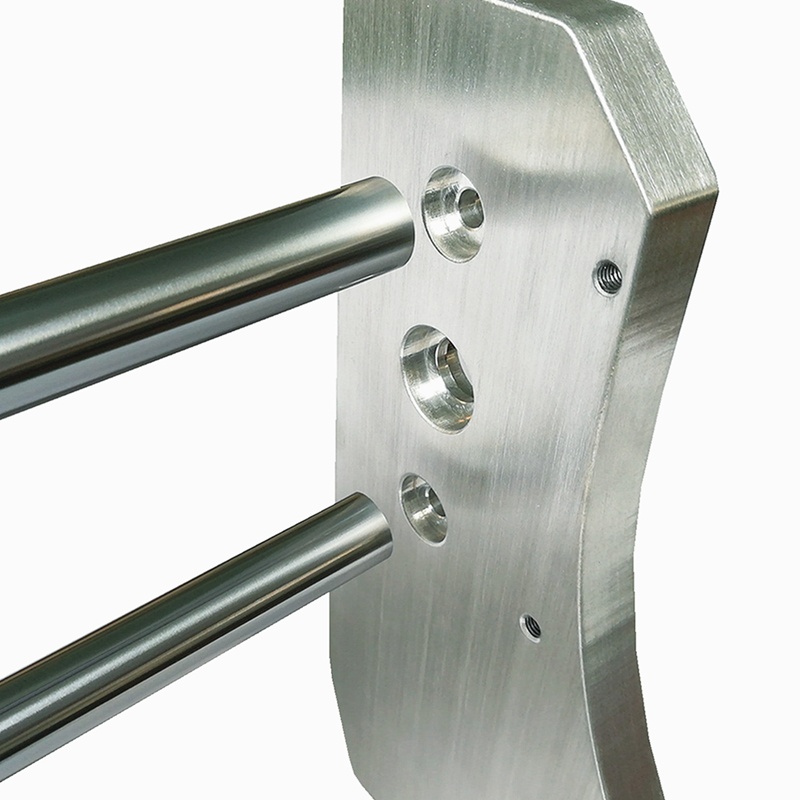

Chromeplate shaft+Linear Bearings,Surface hardening 61HRC

Spindle motor

500W/12000r/min(Very small noise)

Collet type

ER11,1/8″(3.175mm) Collet

Stepper motor and drive

two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive.

Maximum operating speed

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy

≤0.03mm

Software Compatability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

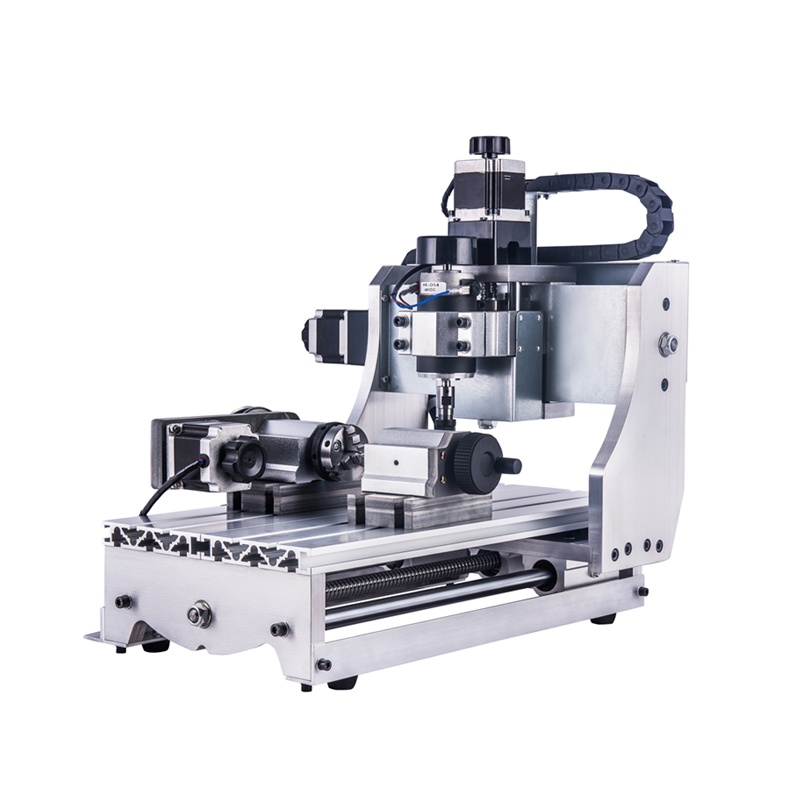

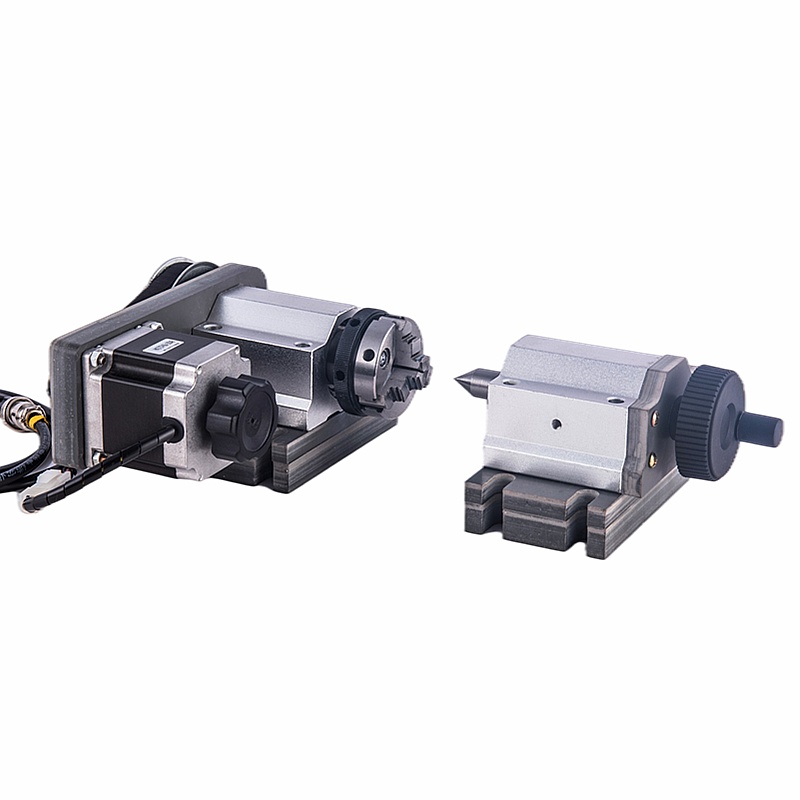

Rotation Axis (4th Axis)

Description:

Chuck Size: 50mm self-centering chuck

Center height: H = 51mm

Clamping diameter: 50mm or less

Deceleration ratio: 4:1

Stepper motor:NEW 57 type / 3A

Stepper Drive: T65-axis drive

Positioning accuracy: 0.075 °

Weight: 4kg



eters

MODEL

3020

Attribute

T-500W

3axis

T-500W

4axis

Z-500W

3axis

Z-500W

4axis

Interface

USB + LPT Port

USB + LPT Port

USB + LPT Port

USB + LPT Port

Toolauto-checking

Yes

Yes

Yes

Yes

Spindle Motor:

500W

500W

500W

500W

Type of screw

1404

Trapezoidal Screw

1404

Trapezoidal Screw

1605

Ball screw

1605

Ball screw

Weigh

25KG

29KG

26KG

30KG

Machine Dimensions

560X450X450mm

Rack material

6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area

300X200mm

Z-Axis Stroke

60mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness

≤60mm

Rail type

Chromeplate shaft+Linear Bearings,Surface hardening 61HRC

Spindle motor

500W/12000r/min(Very small noise)

Collet type

ER11,1/8″(3.175mm) Collet

Stepper motor and drive

two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive.

Maximum operating speed

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy

≤0.03mm

Software Compatability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Rotation Axis (4th Axis)

Description:

Chuck Size: 50mm self-centering chuck

Center height: H = 51mm

Clamping diameter: 50mm or less

Deceleration ratio: 4:1

Stepper motor:NEW 57 type / 3A

Stepper Drive: T65-axis drive

Positioning accuracy: 0.075 °

Weight: 4kg
