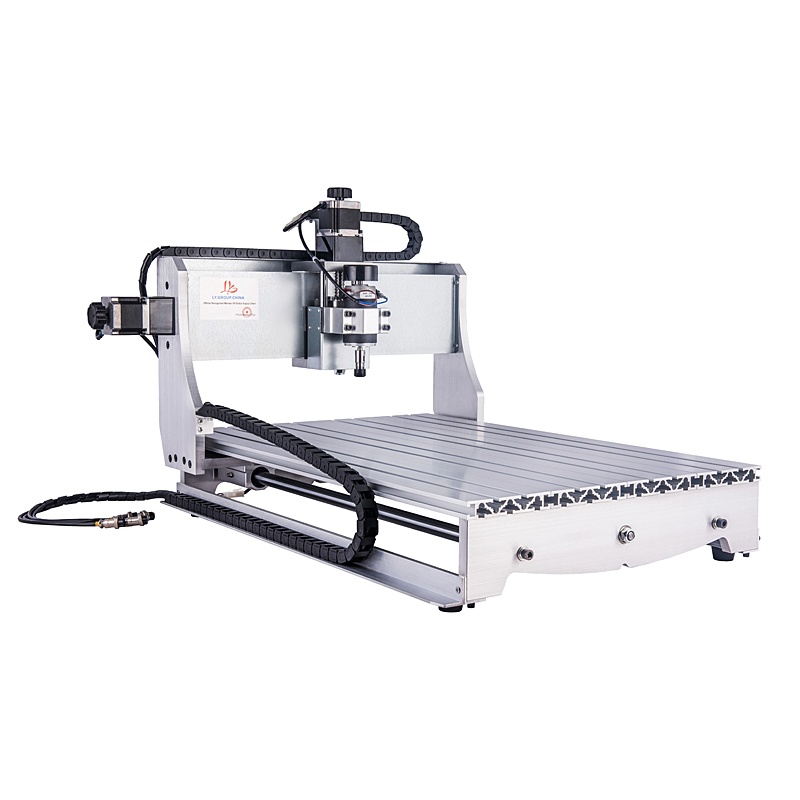

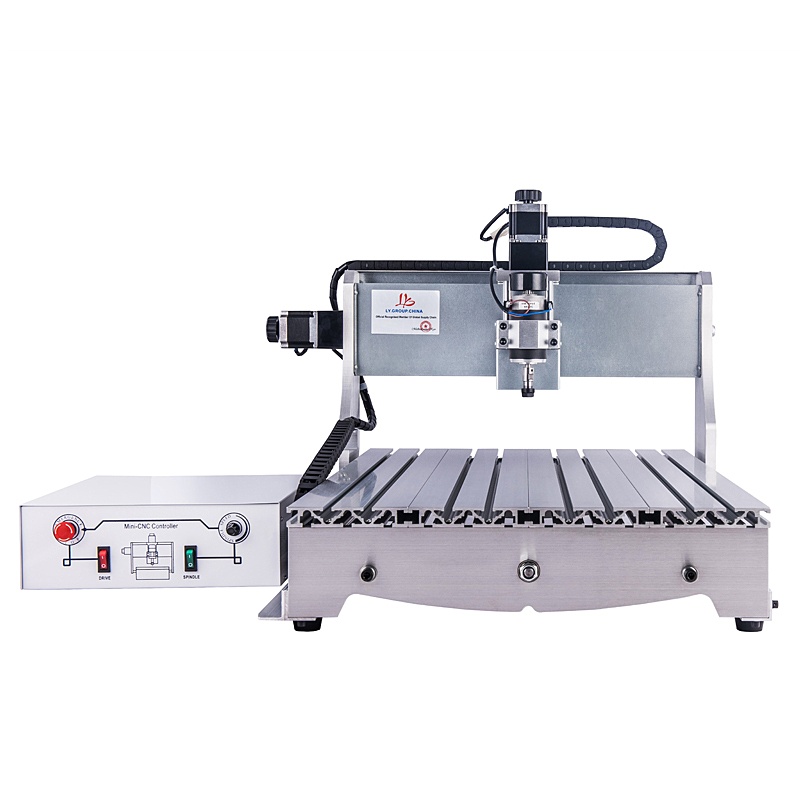

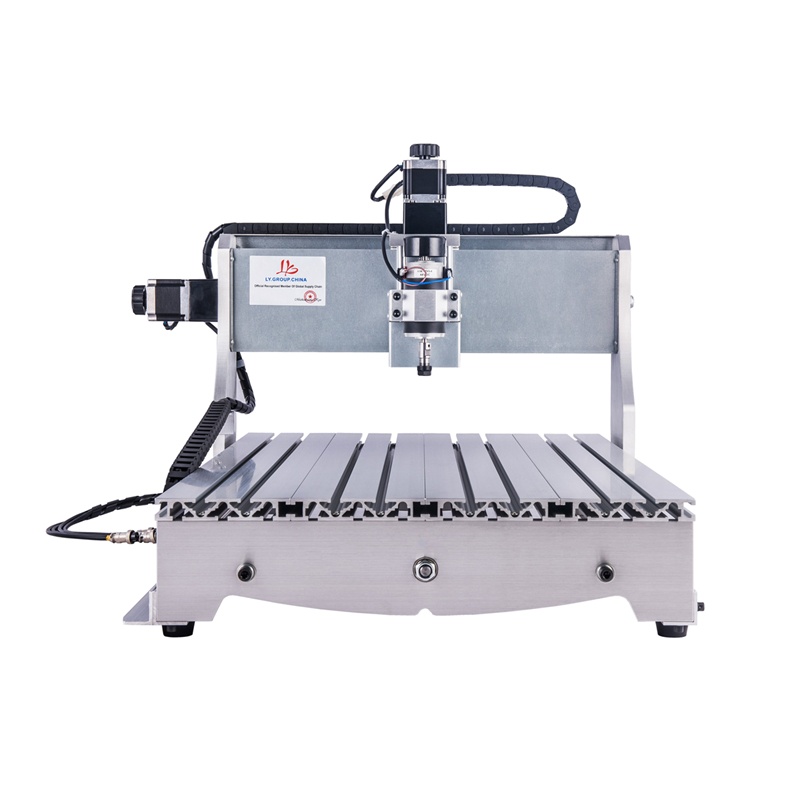

 Mini CNC Router Engraver Milling Machine 6040 USB Parallel Port 2 in 1 Frame Gantry heighten

Introduction

The cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Model and Technical Parameters

MODEL         CNC 6040
Attribute

Z-500W

3axis

Z-500W

4axis

ZH-500W

3axis

ZH-500W

4axis

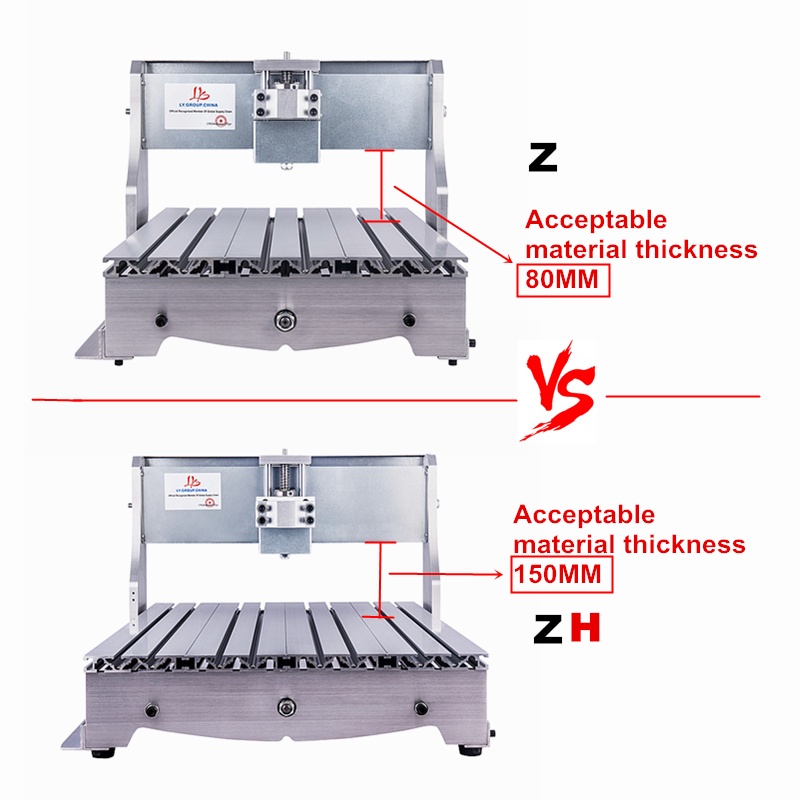

Acceptable material thickness 80MM 80MM 150MM 150MM

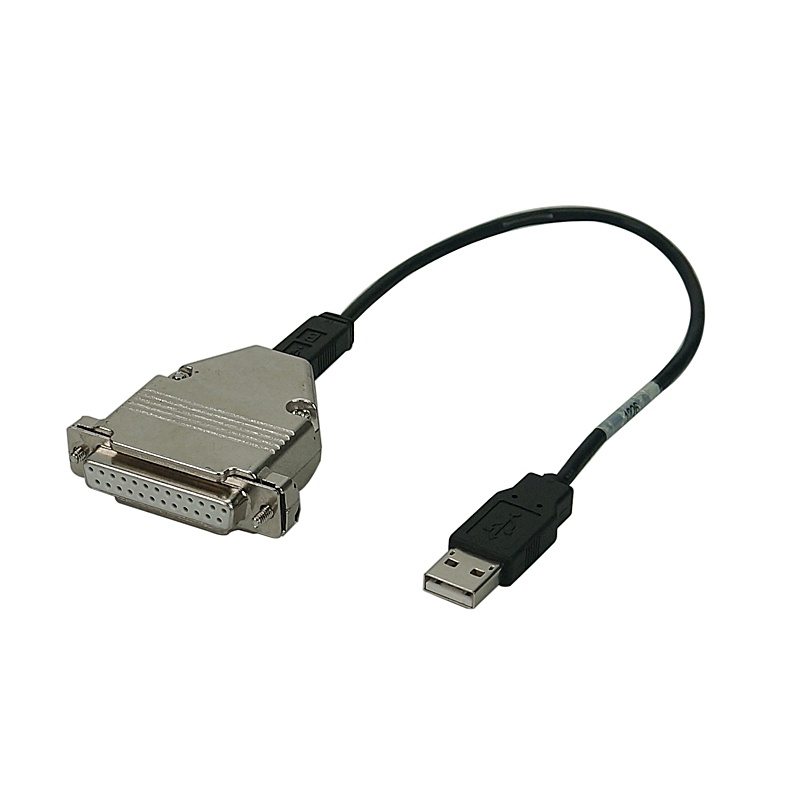

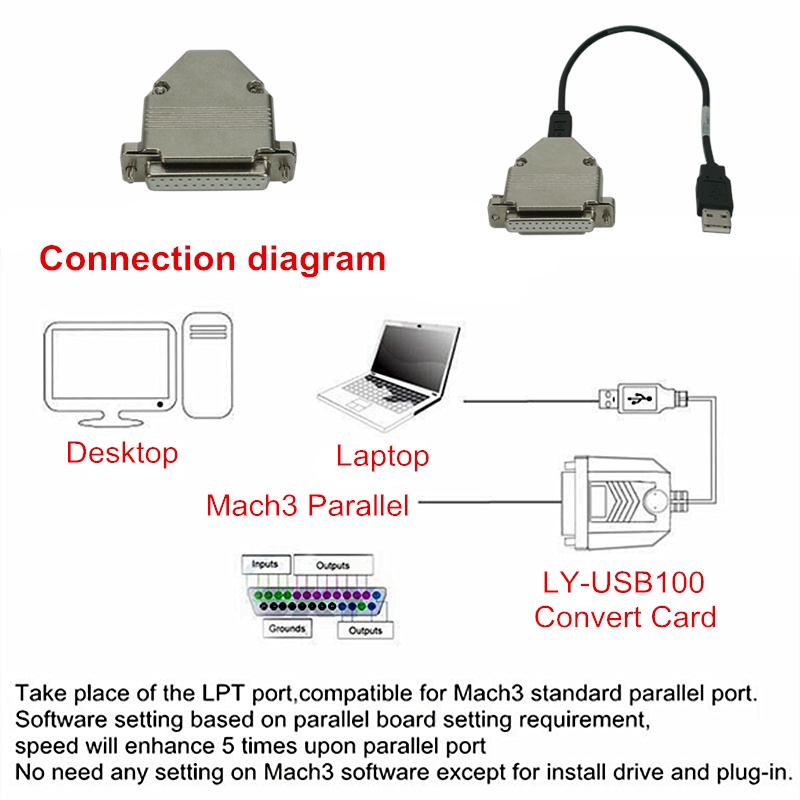

Interface USB + LPT Port USB+ LPT Port USB + LPT Port USB + LPT Port

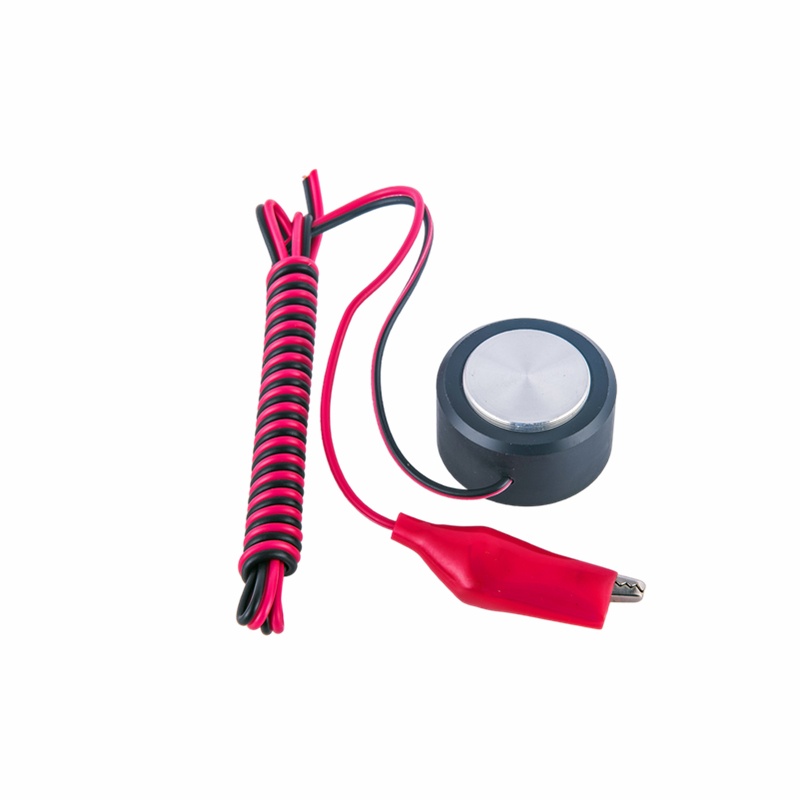

Toolauto-checking Yes Yes Yes Yes
Spindle Motor: 500W 500W 500W 500W
Type of screw 1605

Ball screw1605

Ball screw1605

Ball screw1605

Ball screwWeigh46KG50KG49KG53KG

Machine Dimensions:

860X690X550mm

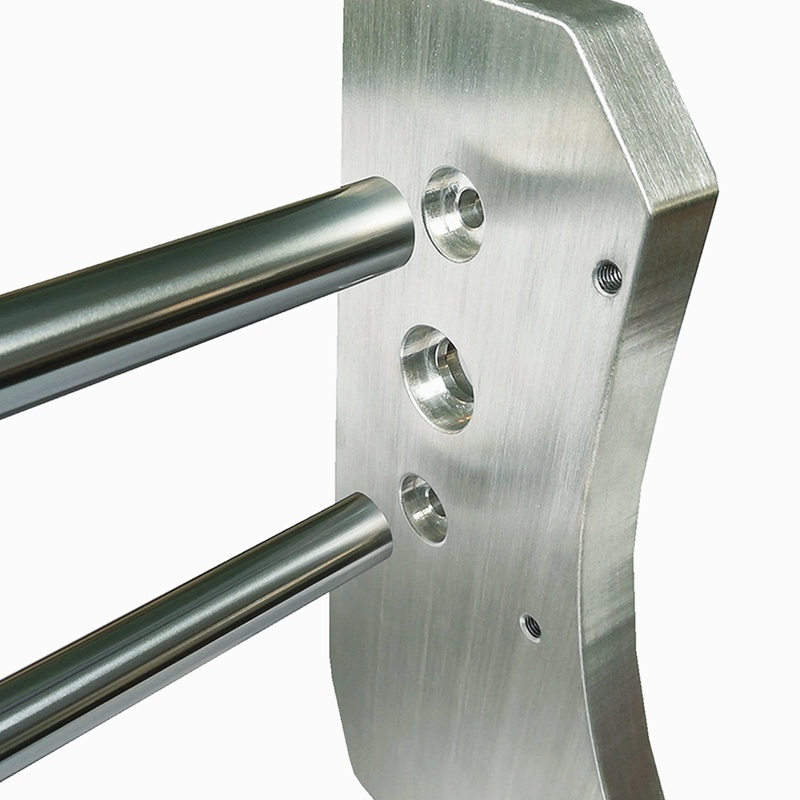

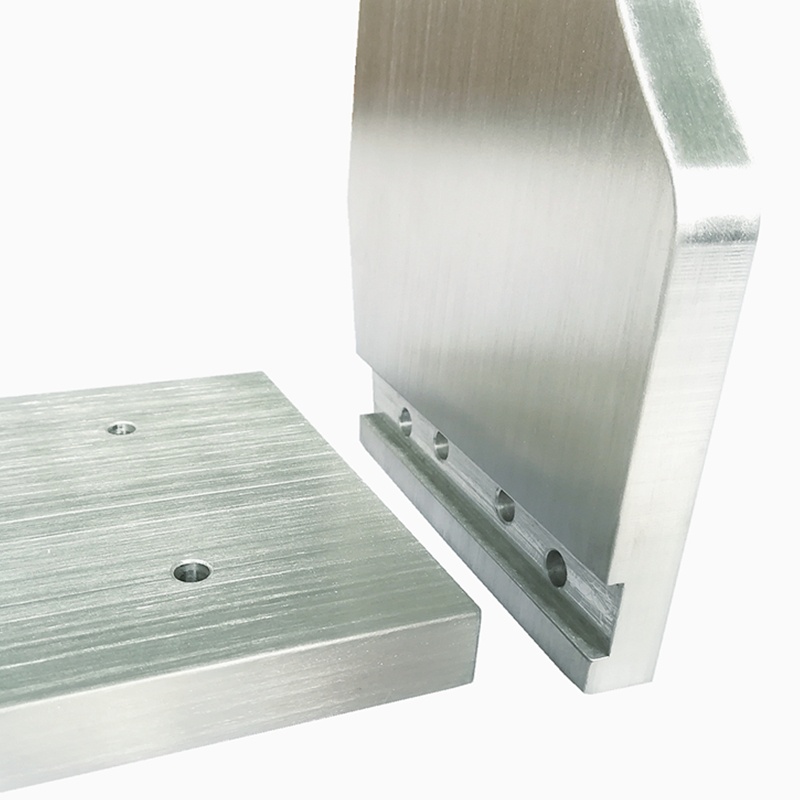

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

600X400mm

Z-Axis Stroke:

80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

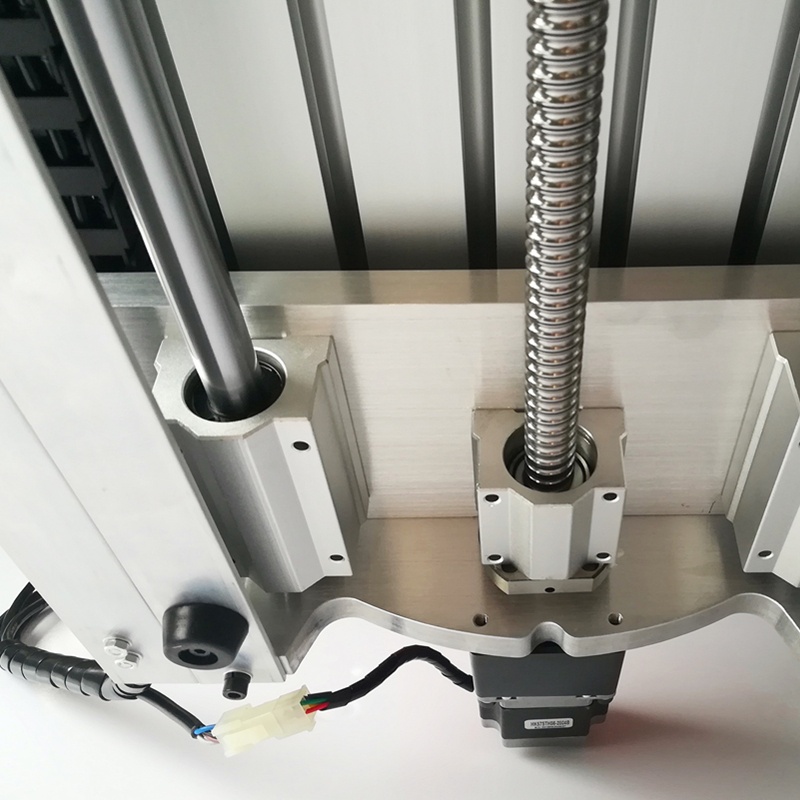

Rail type:

Chromeplate shaft+Linear Bearings,Surface hardening 61HRC

Spindle motor:500W/12000r/min(Very small noise)

Collet type:

ER11,1/8″(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

≤0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

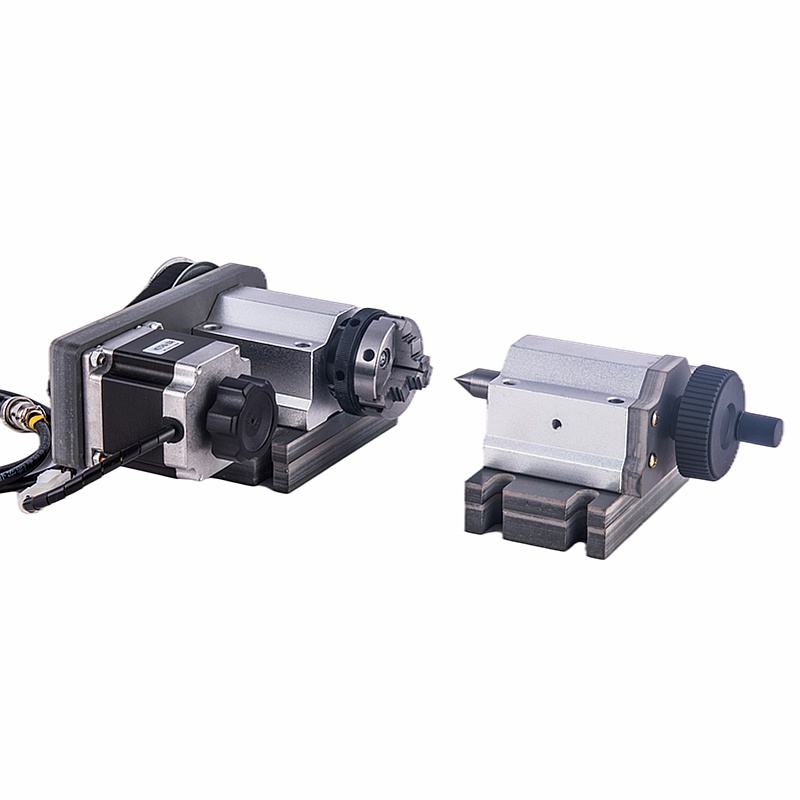

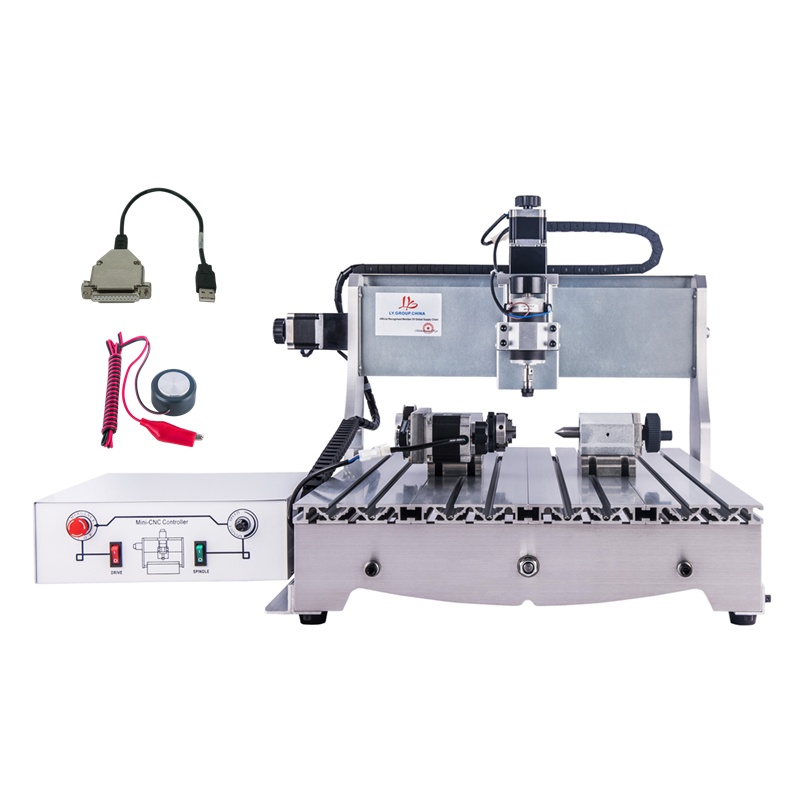

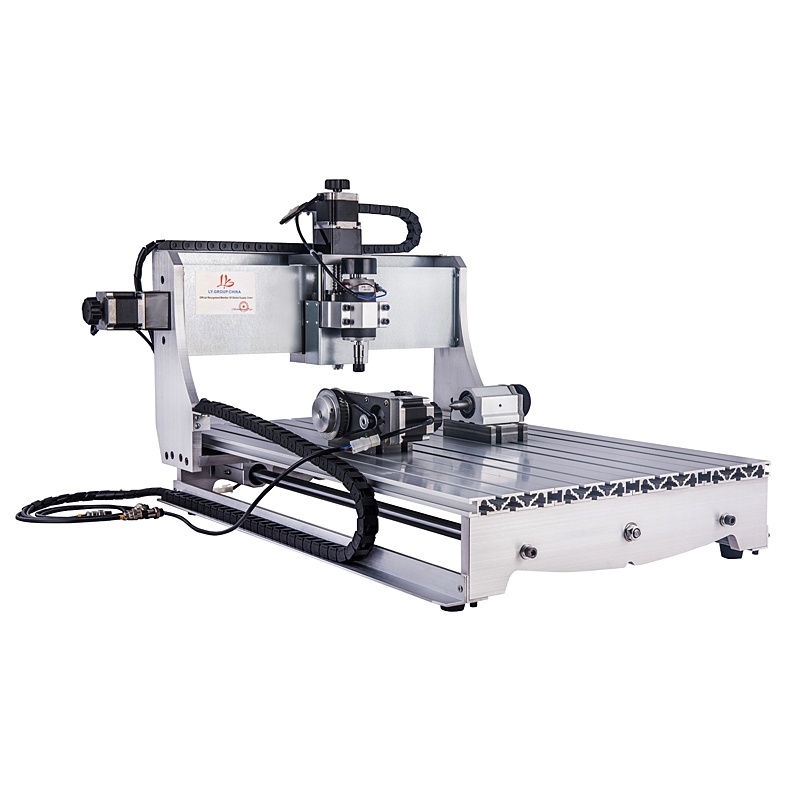

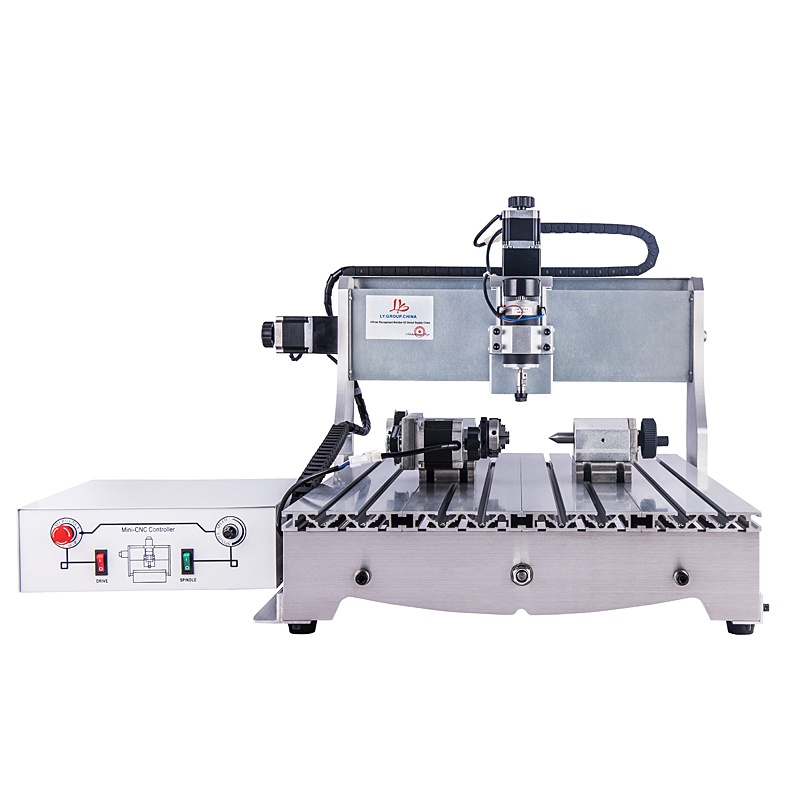

Rotation Axis (4th Axis)



Description:Chuck Size: 50mm self-centering chuck

Center height: H = 51mm

Clamping diameter: 50mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 4:1

Stepper motor:NEW 57 type / 3A

Stepper Drive: T65-axis drive

Positioning accuracy: 0.075 °

Weight: 4kg
