New LY CNC 3018 Plus 3018 Pro Max V2.0 500W Desktop Wood CNC Router Engraver Engraving Kit 52MM Spindle Holder Nema17 Stepper Motors Support Laser 5.5W 10W Function With Offline Panel Limit Switch Emergency

New LY CNC 3018 Plus 3018 Pro Max V2.0 500W Desktop Wood CNC Router Engraver Engraving Kit 52MM Spindle Holder Nema17 Stepper Motors Support Laser 5.5W 10W Function With Offline Panel Limit Switch Emergency

item ID: 71138
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$700 USD$434 (% off)
Payment

Product Detail

Product Tags

New LY CNC 3018 Plus 3018 Pro Max V2.0 500W Desktop Wood CNC Router Engraver Engraving Kit 52MM Spindle Holder Nema17 Stepper Motors Support

Laser 5.5W 10W Function With Offline Panel Limit Switch Emergency

RE:

  1. This kit is half-assembled now, needs the customer little DIY assembling, needs certain electronic and the Mechanical Foundation. Any questions pls feel free to contact us!

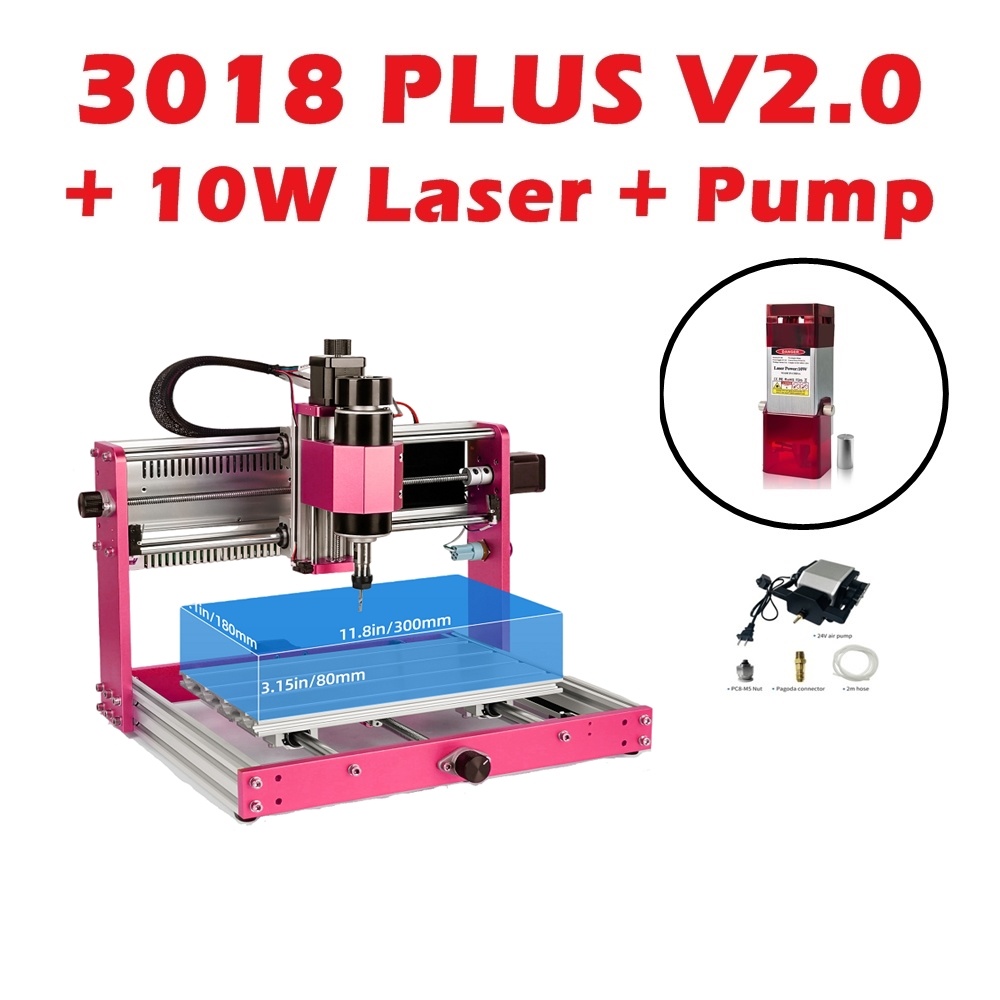

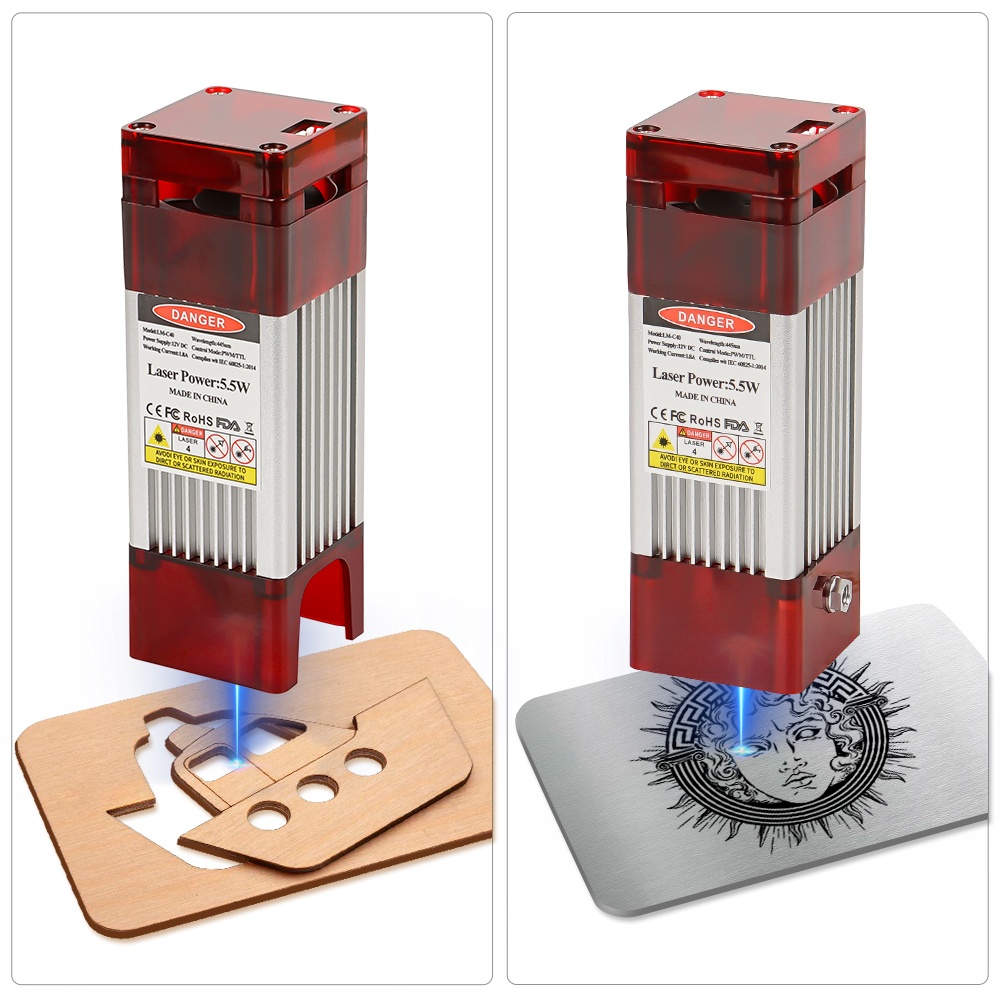

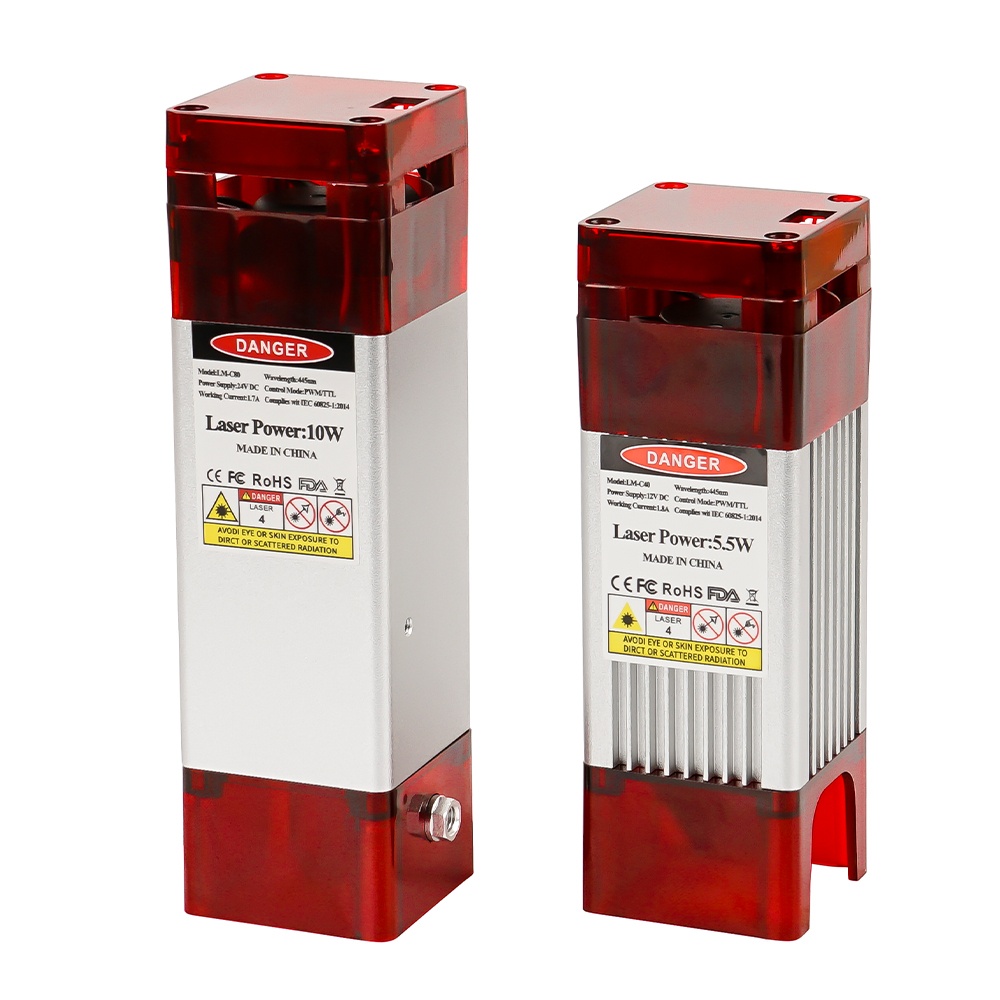

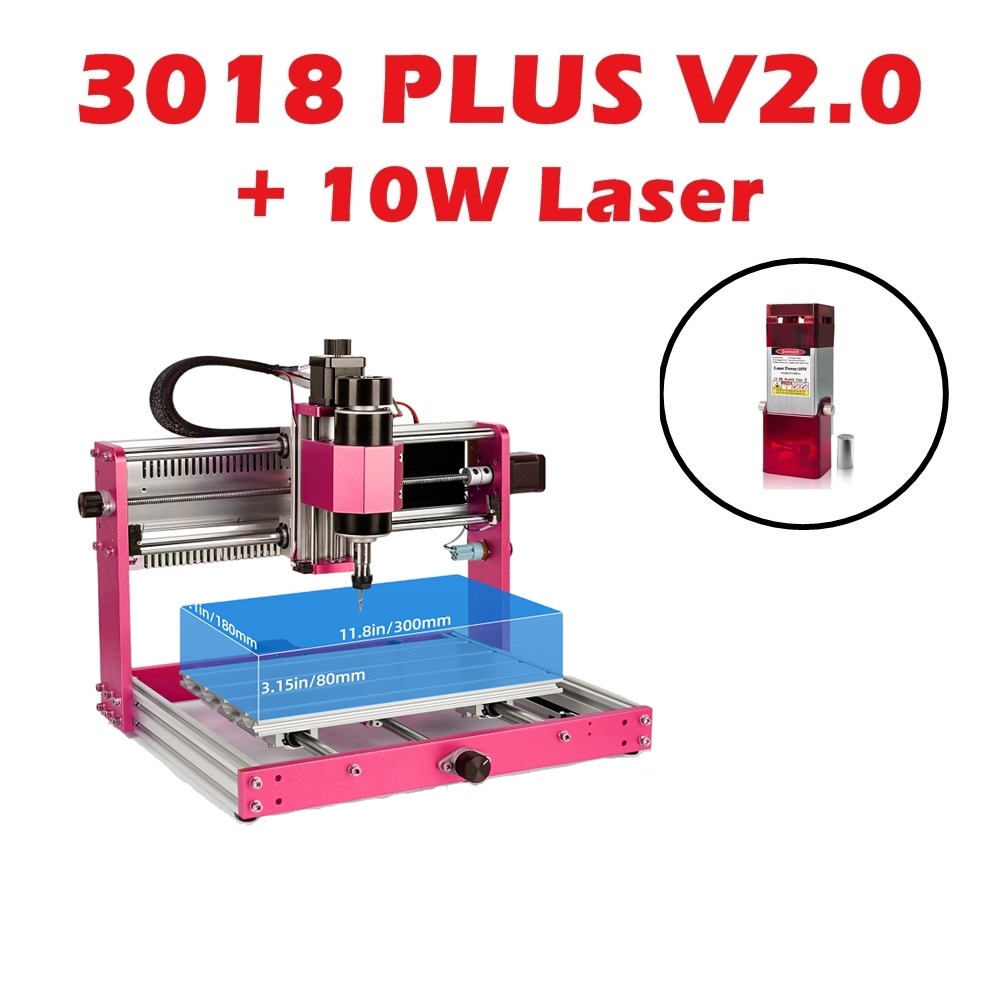

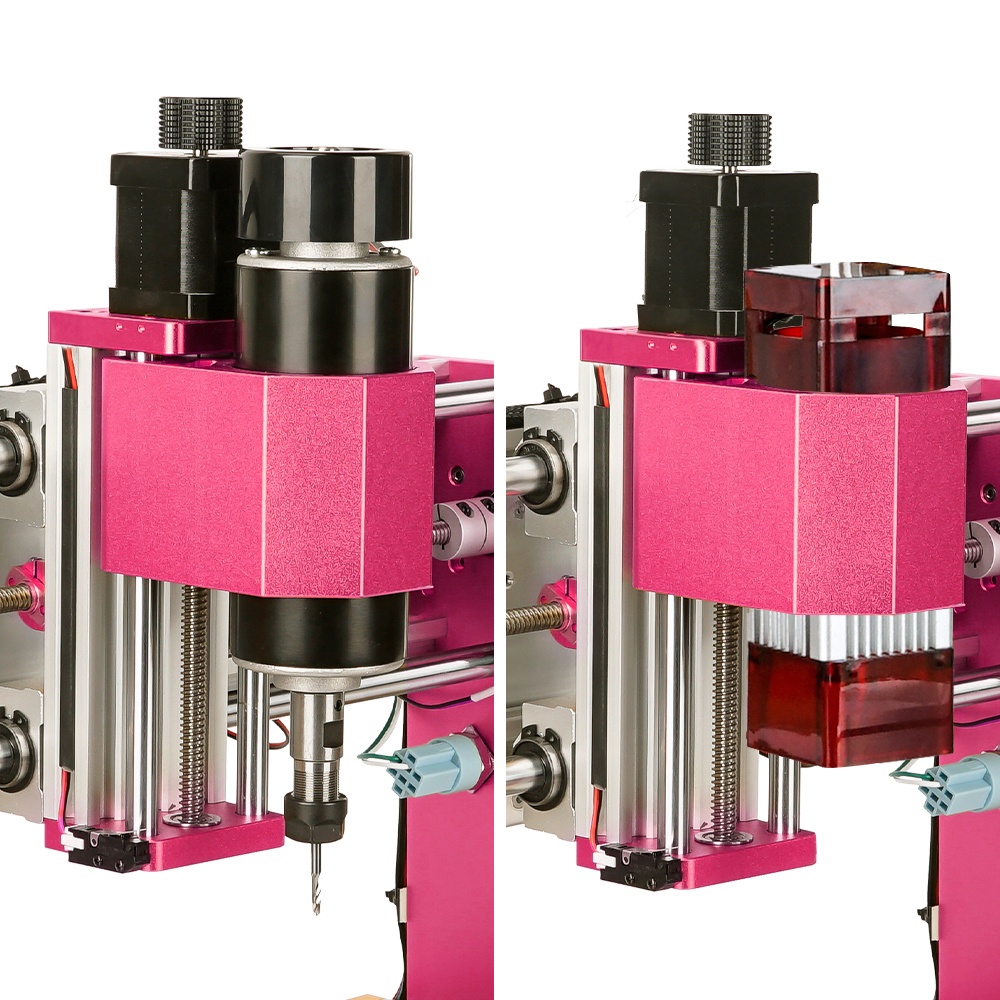

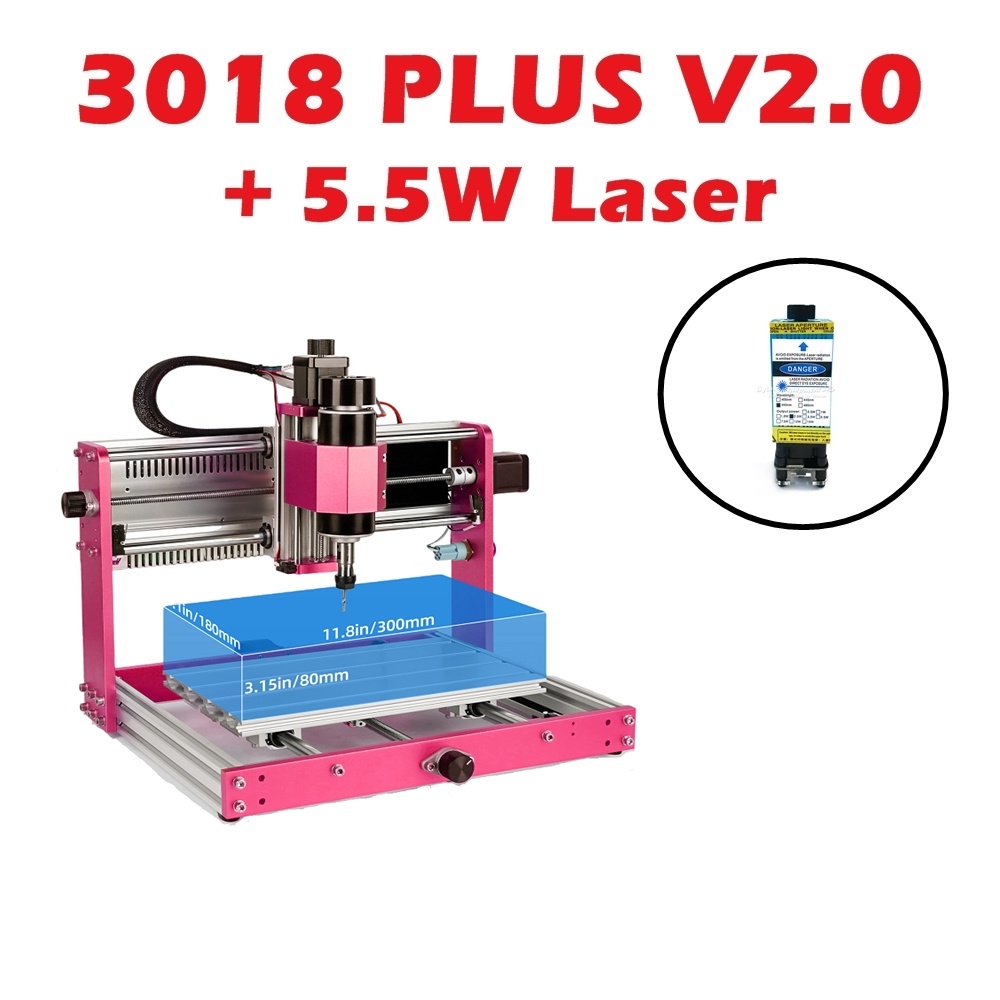

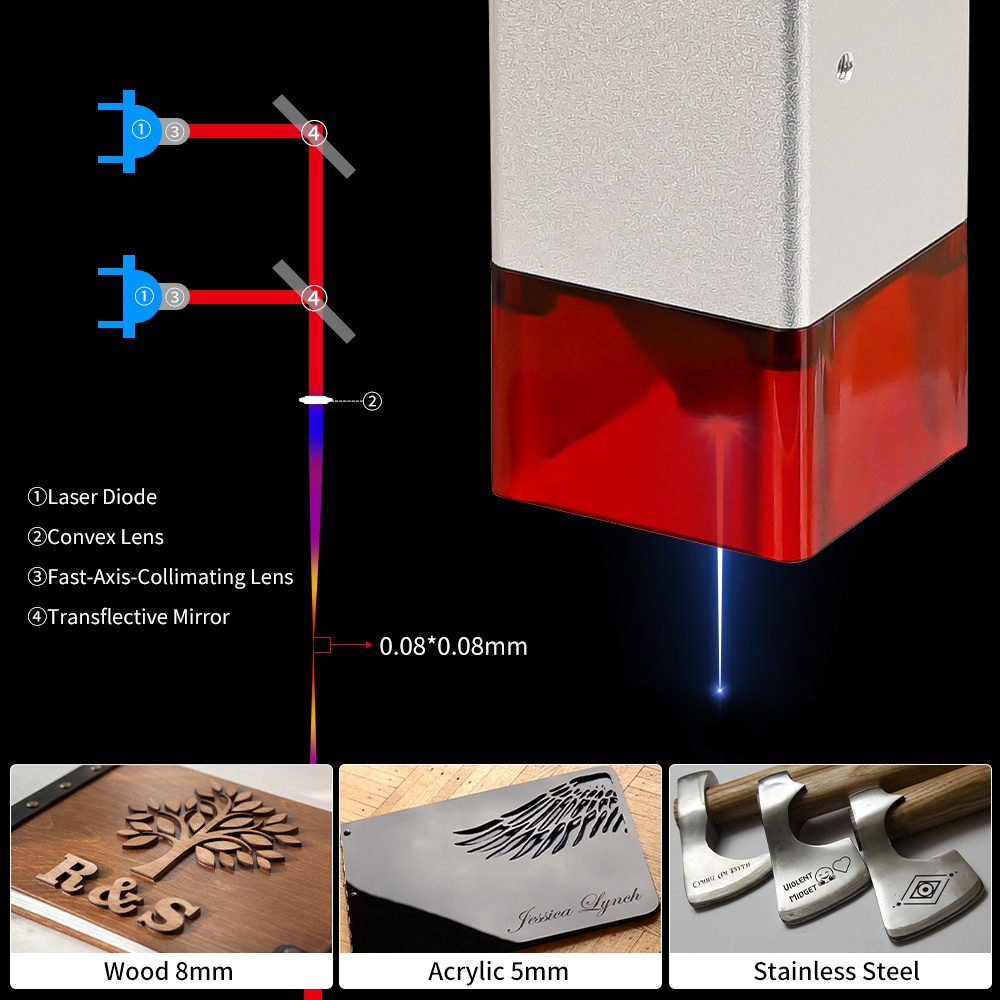

  1. Support Diameter 40MM laser module only (5.5W & 10W)





Advantages With old 3018 Plus V1.0 Version:

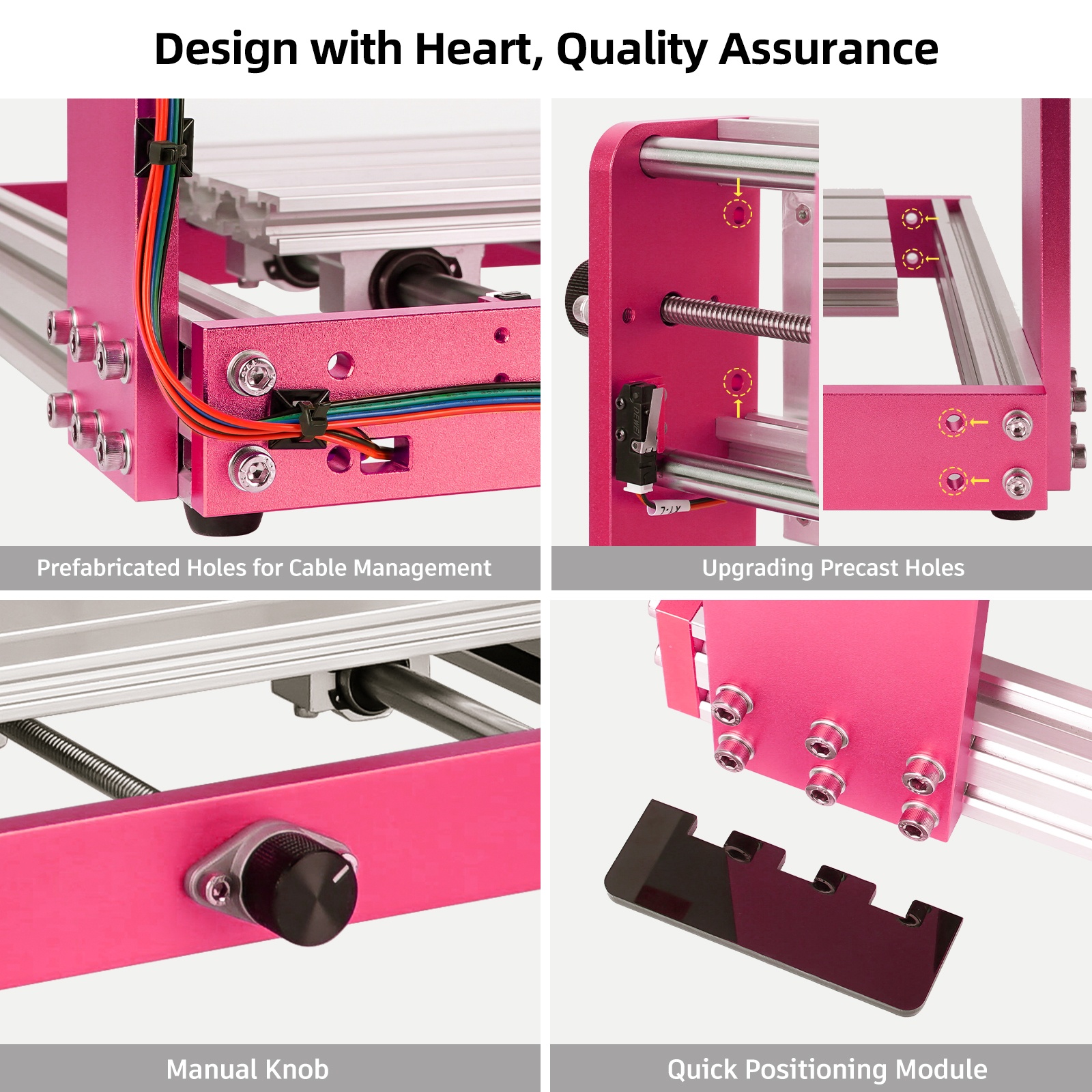

1. The installation of the control board eliminates the use of isolation columns, making it convenient for installation and use

2. The new generation of spindle wiring terminals are easy to use and not easy to loosen when pressing wires

3. Using a power supply bracket, the power supply can be fixed on the back of the machine

4. Z-axis travel is 78-80mm (with limit switch installed) (Old version Z travel 60mm,no limit switch)

5. Use a new integrated limit switch to prevent the impact of metal debris on the false triggering of the limit switch

6. Greatly improved Z-axis strength

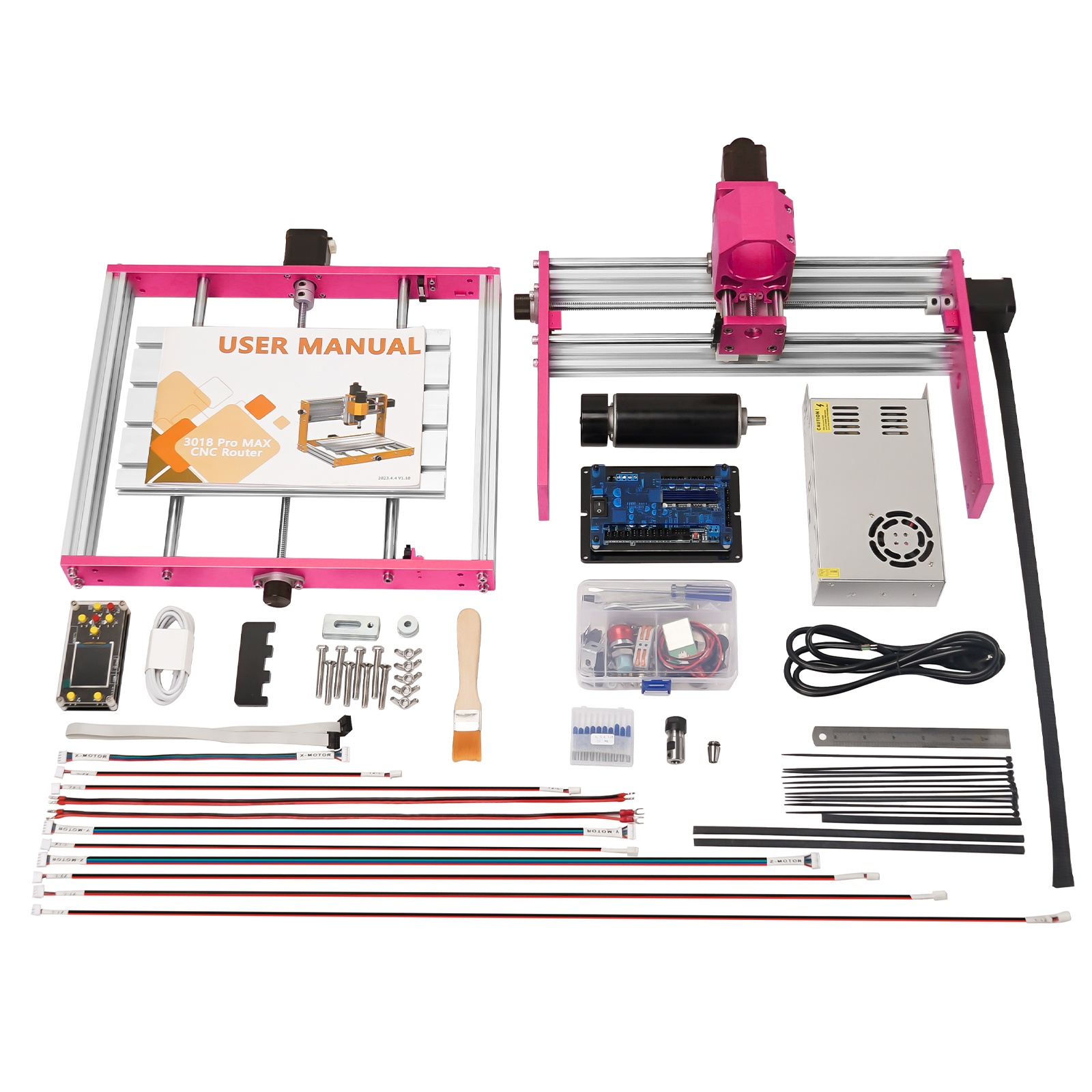

7. Convenient shipment and installation of half-assembled products, saving installation time

8. Adjusting the clearance structure of the screw nut and improving the carving accuracy

9. Auxiliary tools can sort out the spacing between slider nuts, making it convenient for machine assembly

10. Limit switch wires and motor wires are all custom lengths

11. Use tie straps to secure the base and trunking for easy wiring management

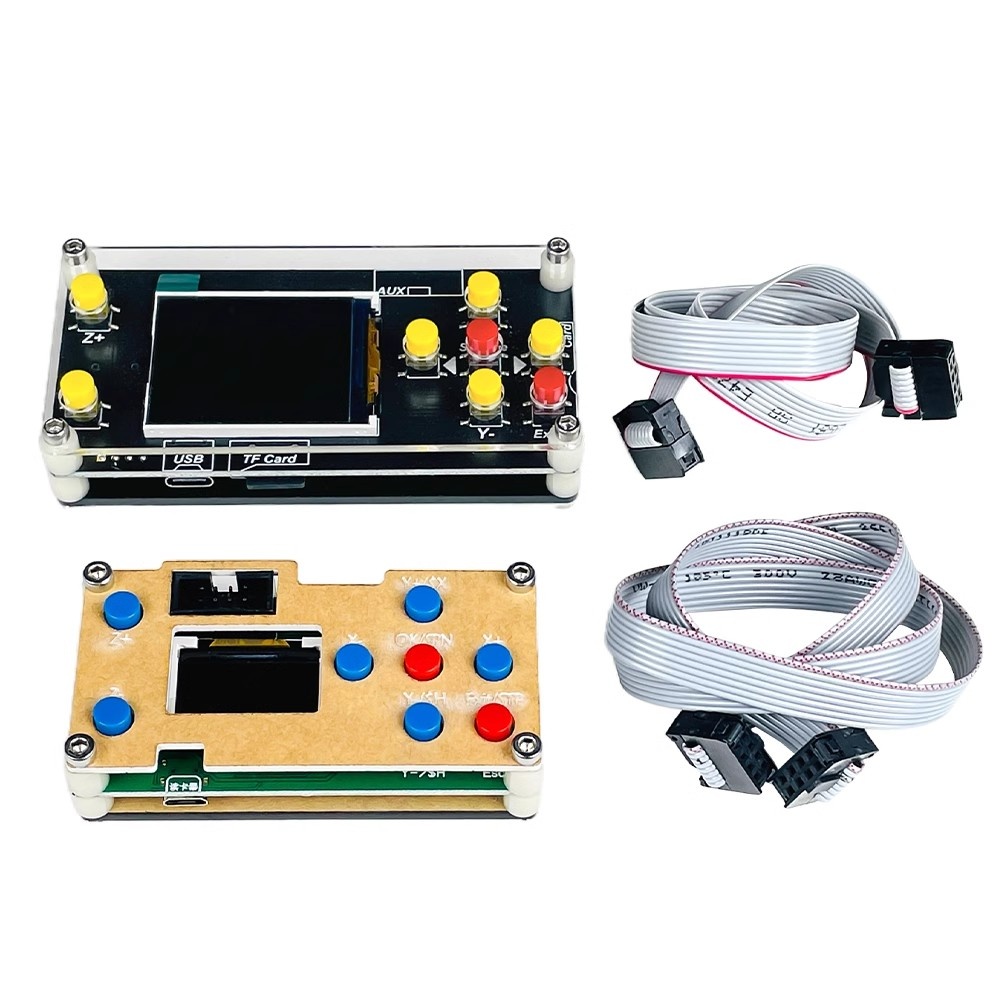

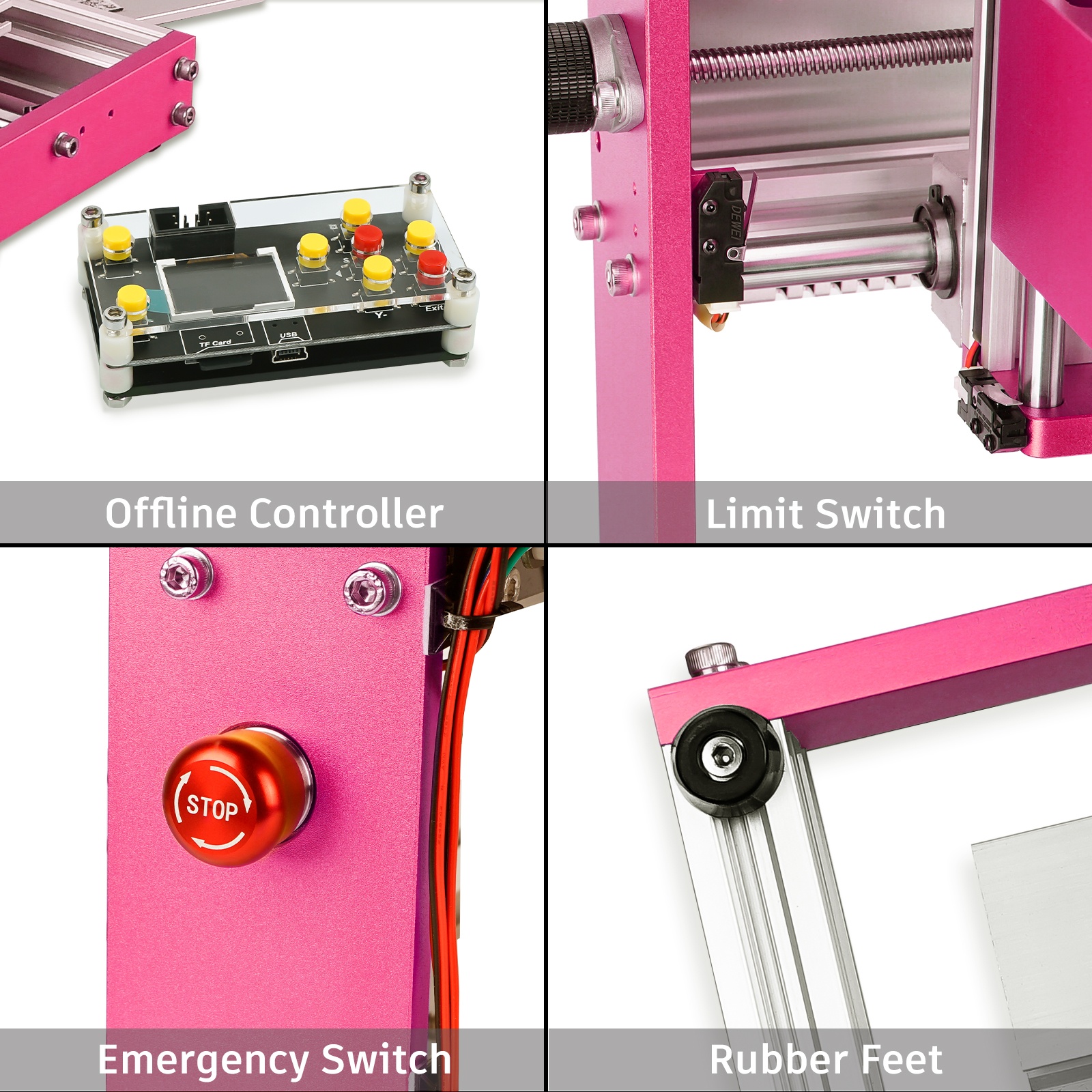

12. Limit switch, feeler block, emergency stop , offline control board, all with now.



Product Description

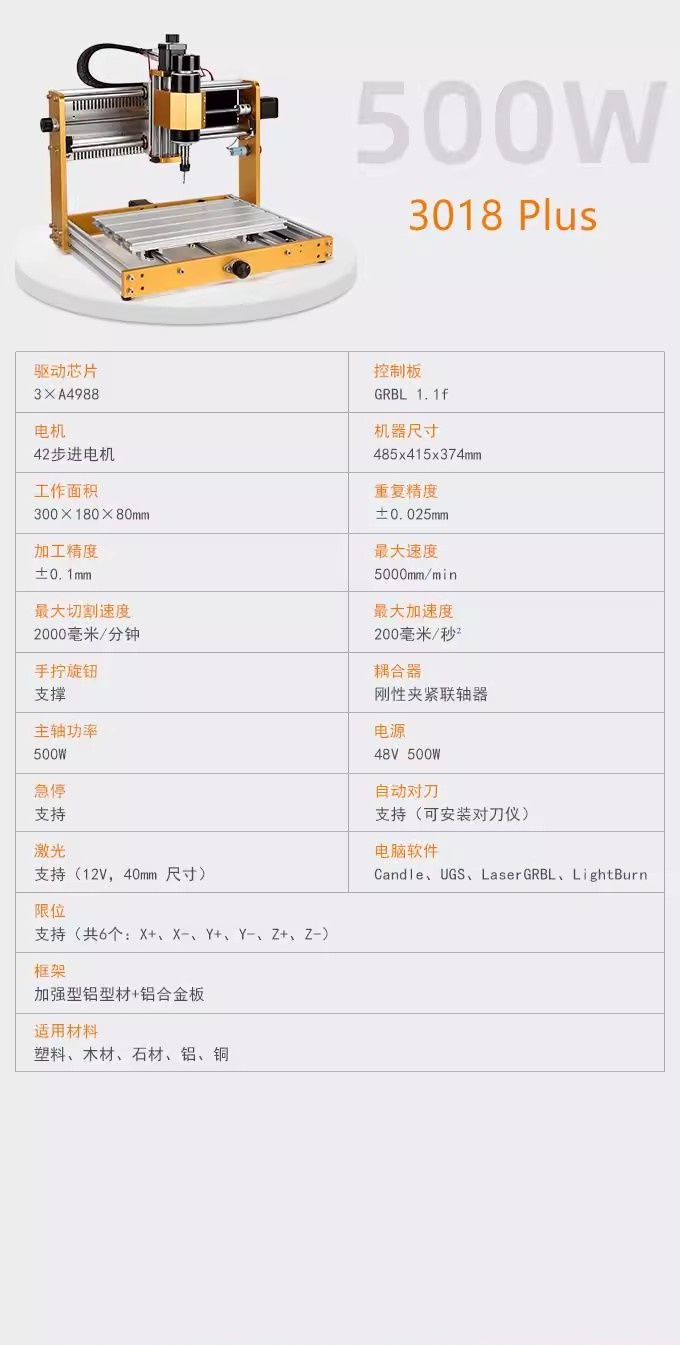

Parameter:

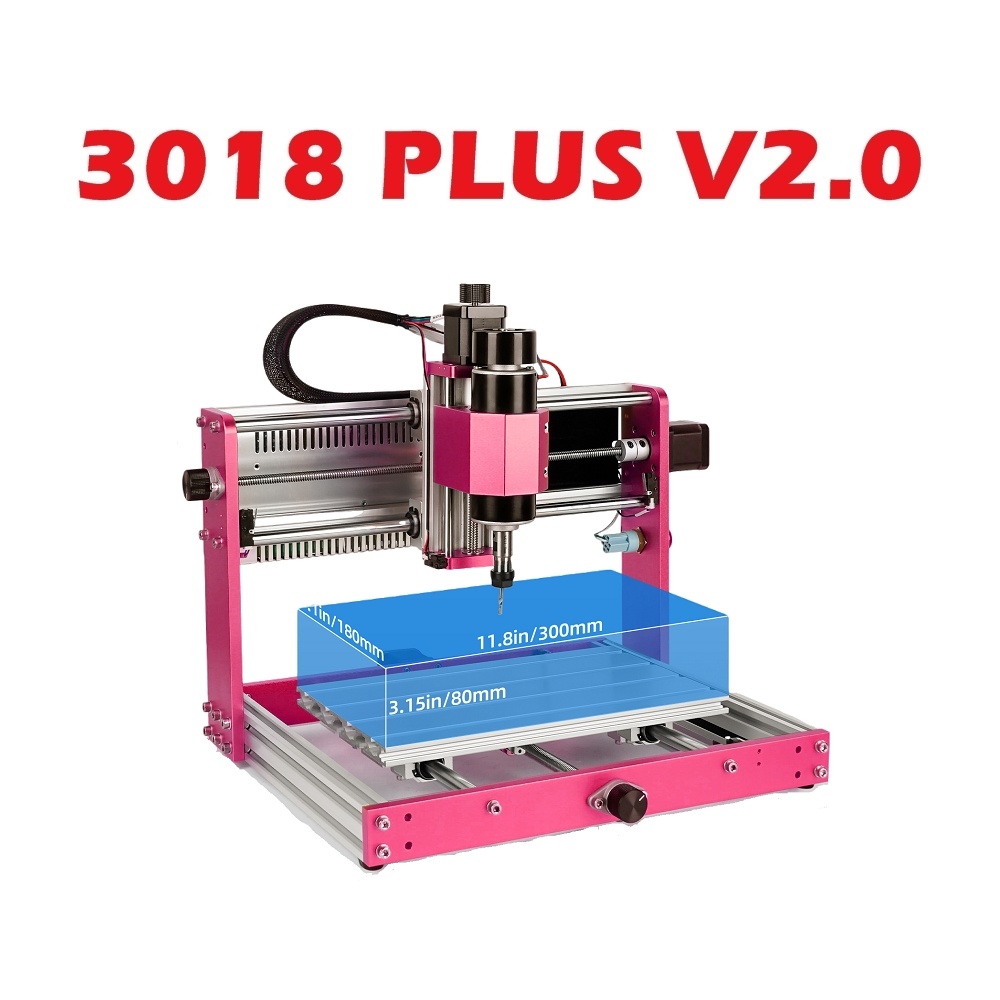

Product name 3018Plus V.2.0

Driver chip A4988

Control board three axis 5.2 GRBL 1.1f

Motor 42 stepper motor, body length 48mm

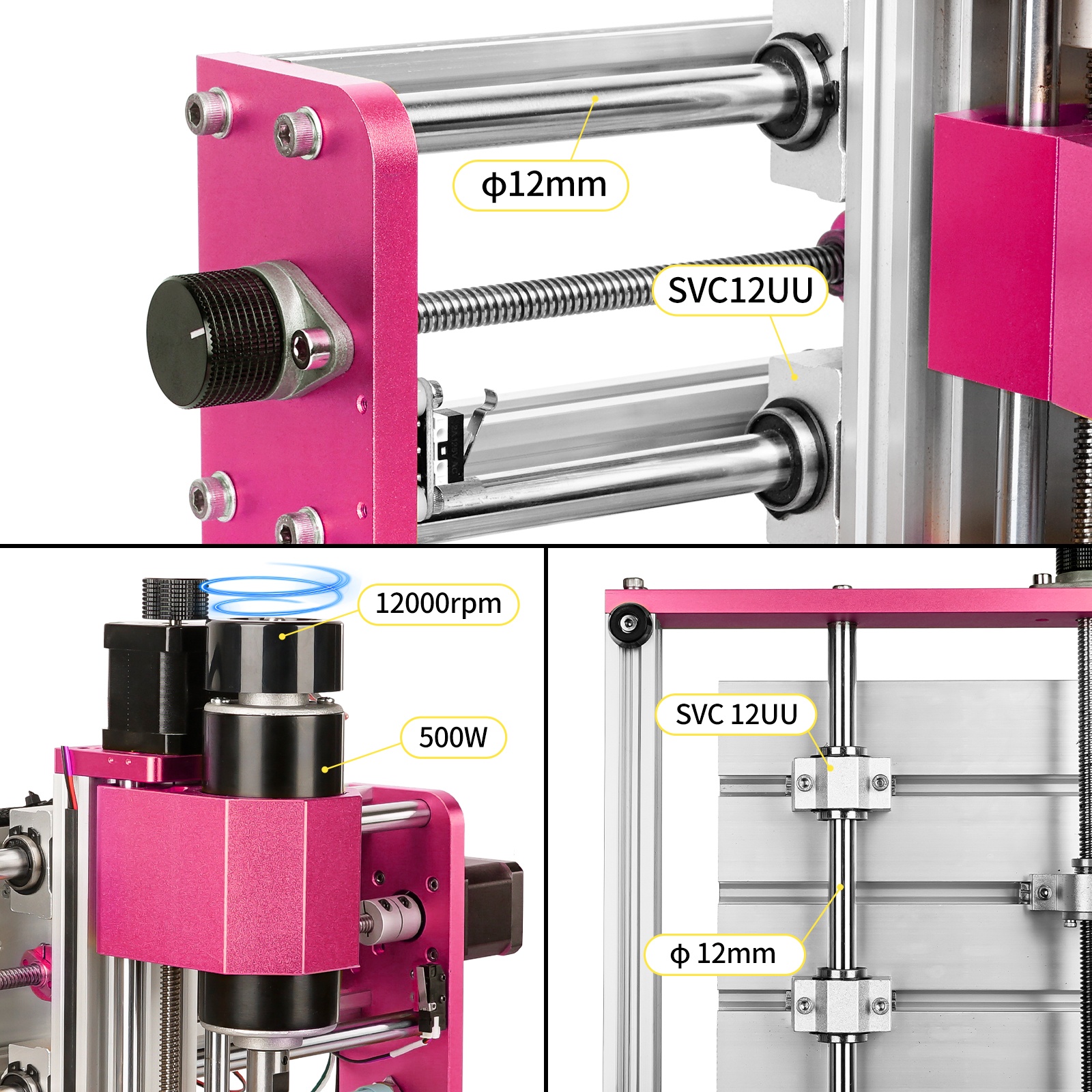

X Shaft-driven bicycle optical shaft+T8 screw rod

Y Shaft-driven bicycle optical axis+T8 screw rod

Z Shaft-driven bicycle optical axis+T8 screw rod

Screw Nut Type Double Nut Clearance Adjustment

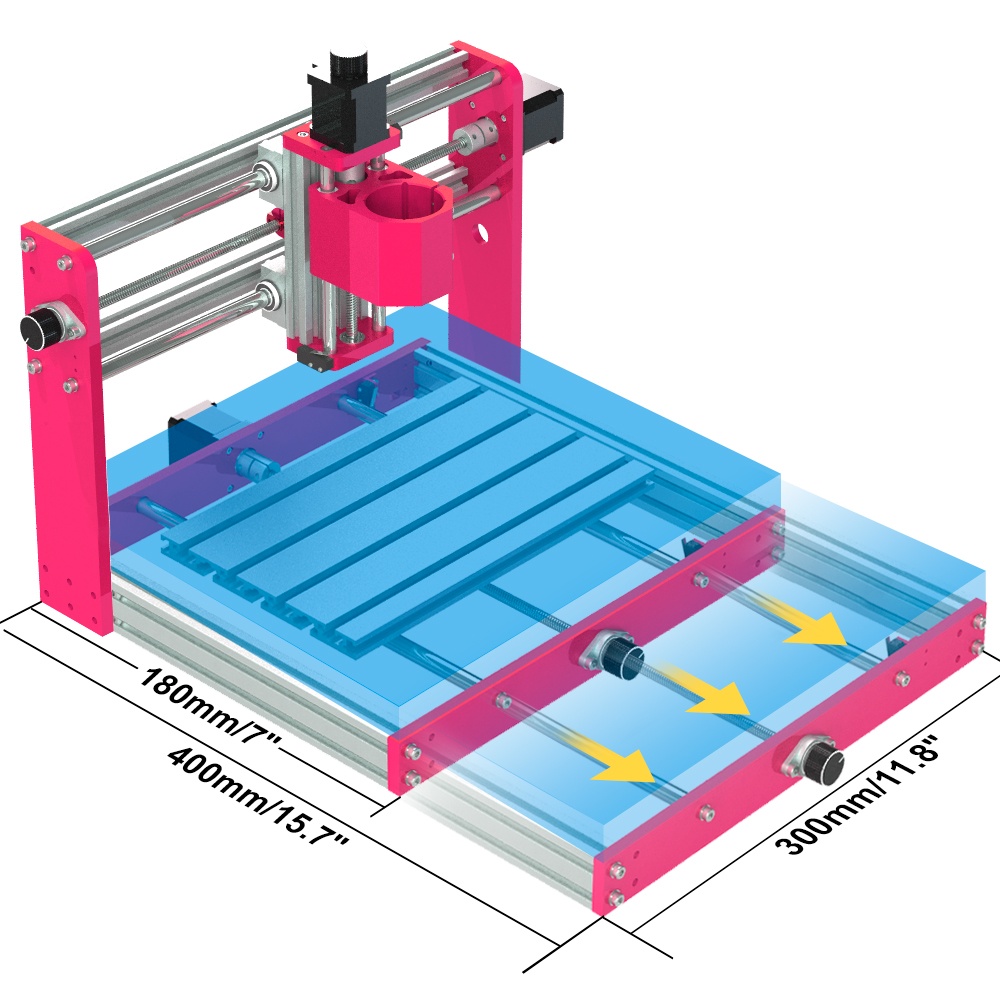

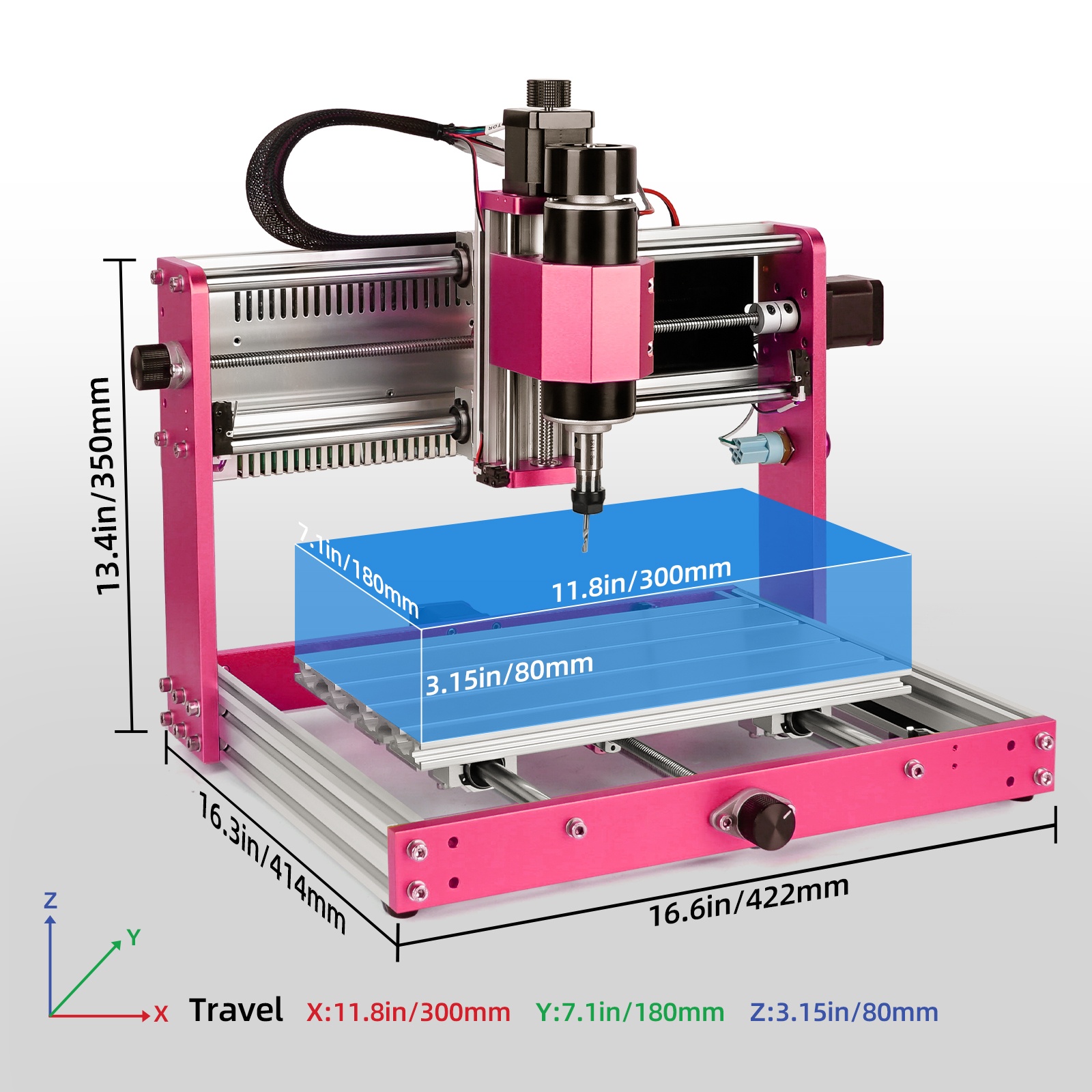

Machine size 485x415x374mm

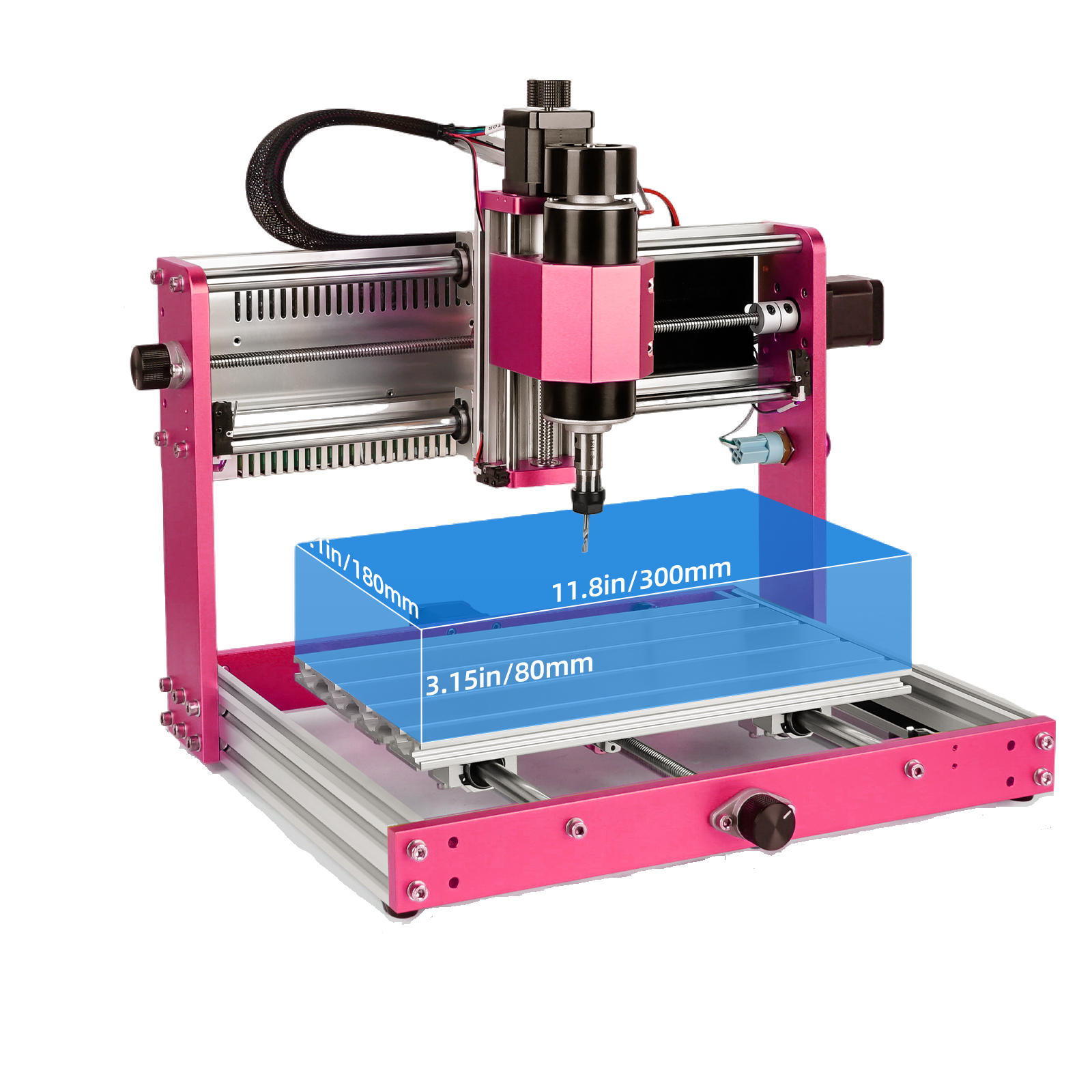

Working area 300*180*80mm

Repetitive positioning accuracy ± 0.025

Processing accuracy ± 0.1

Maximum operating speed 5000mm/min

Maximum processing speed 2000mm/min

Maximum acceleration 200mm/s ²

Manual knob support

Coupling rigid clamping coupling

Frame reinforced aluminum profiles+aluminum alloy plates

Spindle support 500W

Power supply 48V 500W

Control Board Three Axis Control Board 5.2

Emergency stop switch support

Limit switches support 6 (X+, X -, Y+, Y -, Z+, Z -)

Z-axis tool alignment support installation of tool alignment instrument

Laser support (12V 40mm size laser)

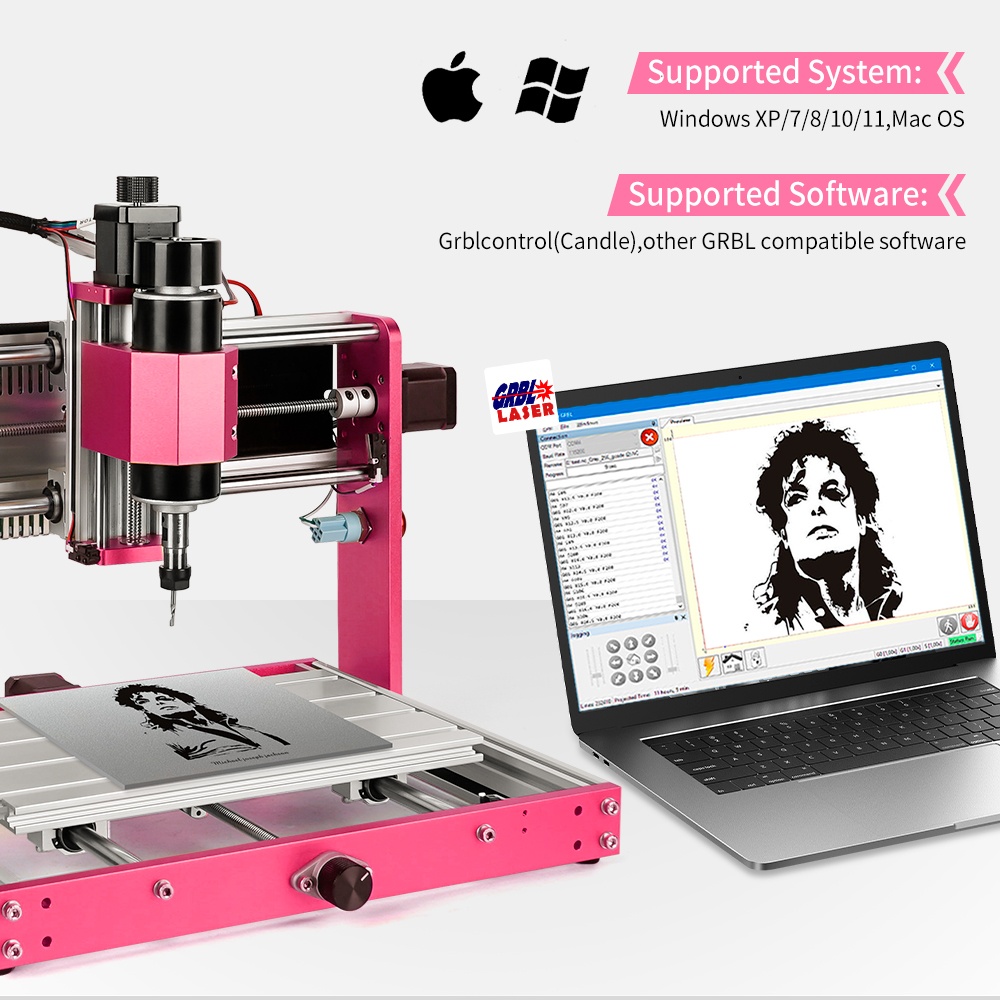

Software Candle

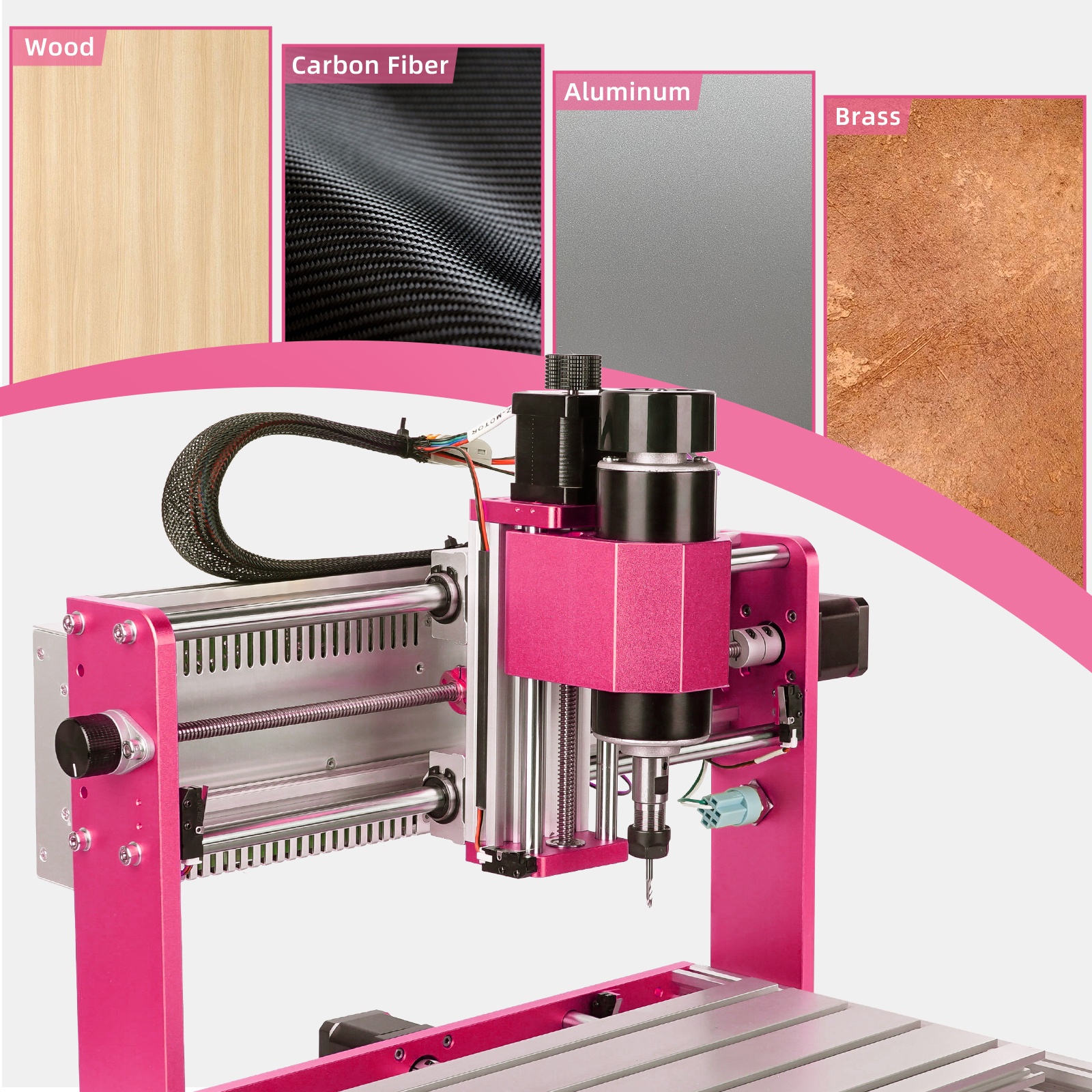

Applicable materials: plastic, wood, stone, aluminum, copper
