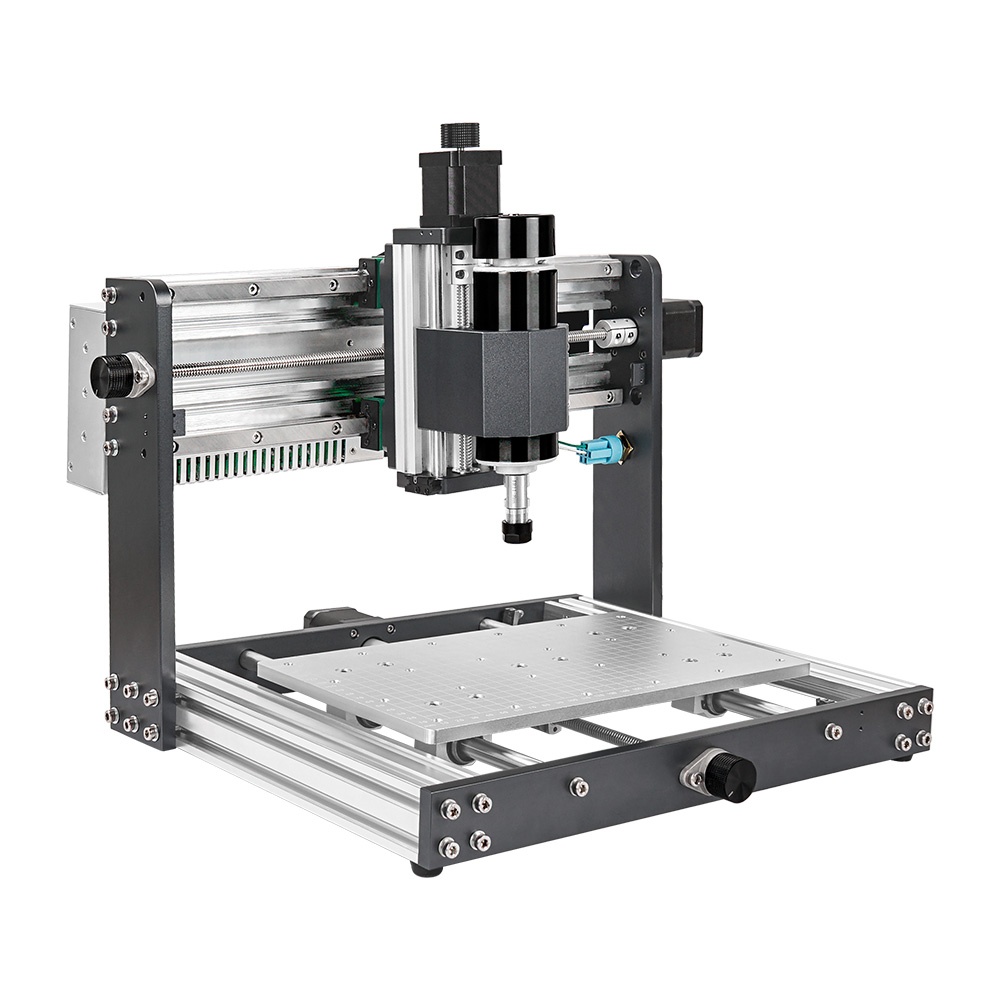

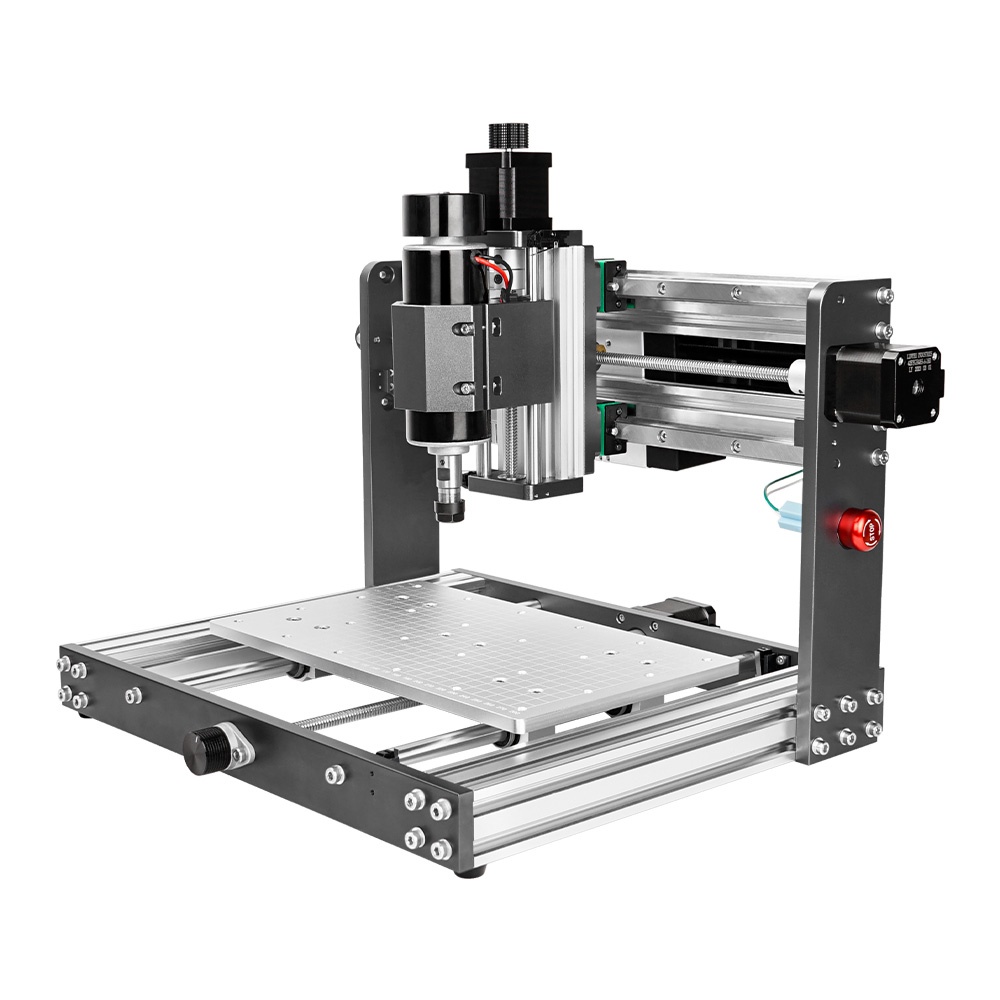

New LY CNC 3018 Plus V3.0 500W Desktop Wood CNC Router Engraver Engraving Kit 52MM Spindle Holder Support Laser 5.5W 10W Function With Offline Control Panel Limit Switch Emergency

New LY CNC 3018 Plus V3.0 500W Desktop Wood CNC Router Engraver Engraving Kit 52MM Spindle Holder Support Laser 5.5W 10W Function With Offline

Control Panel Limit Switch Emergency

RE:

1. This kit is half-assembled now, needs the customer little DIY assembling, needs certain electronic and the Mechanical Foundation. Any questions please feel free to contact us！

1. Support Diameter 40MM laser module only (5.5W & 10W)

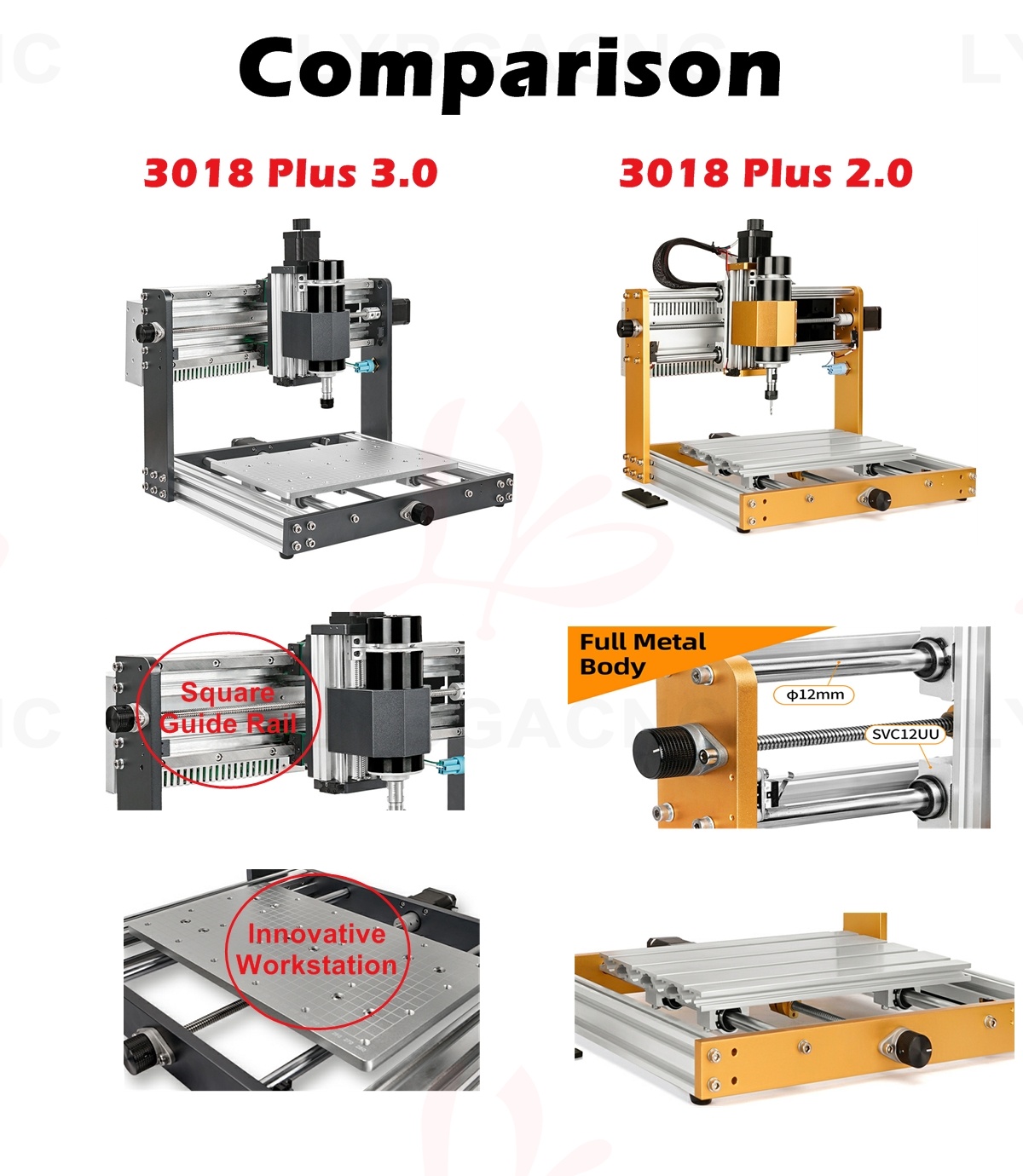

Main Differences With 3018 Plus V2.0 Version:

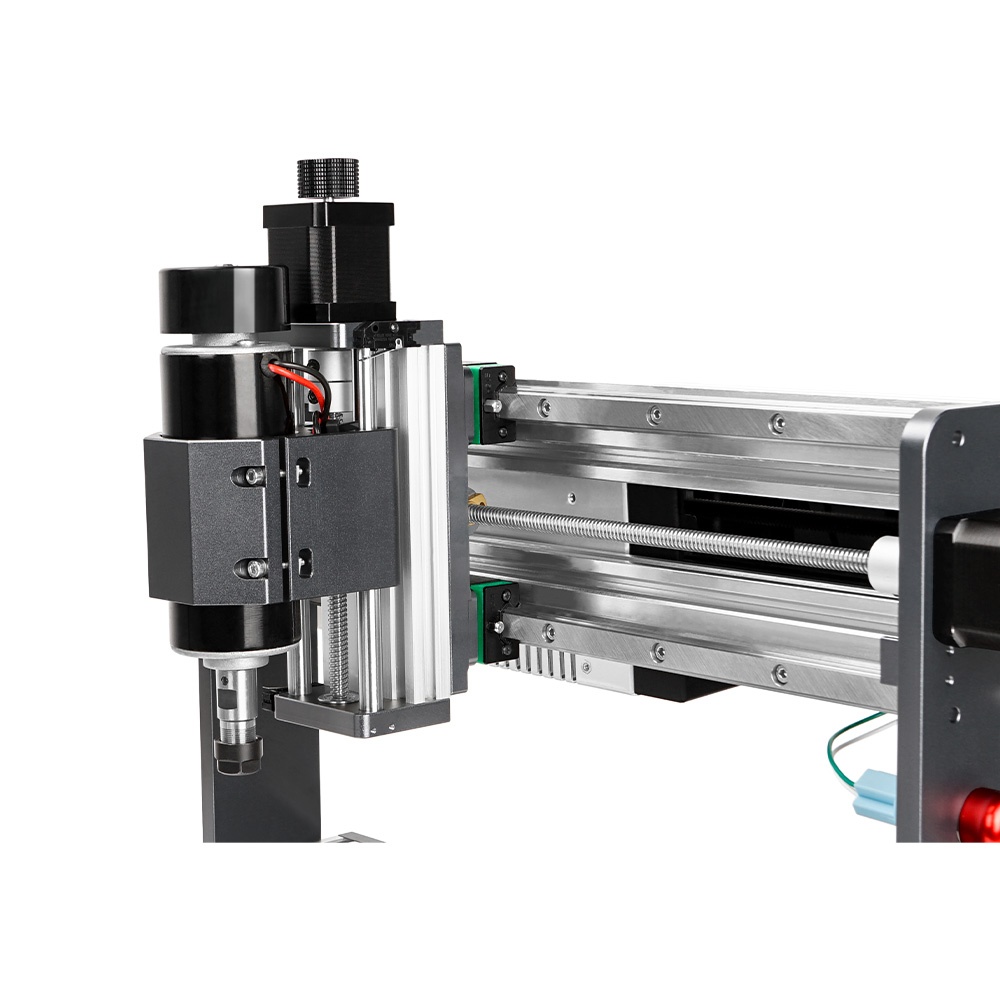

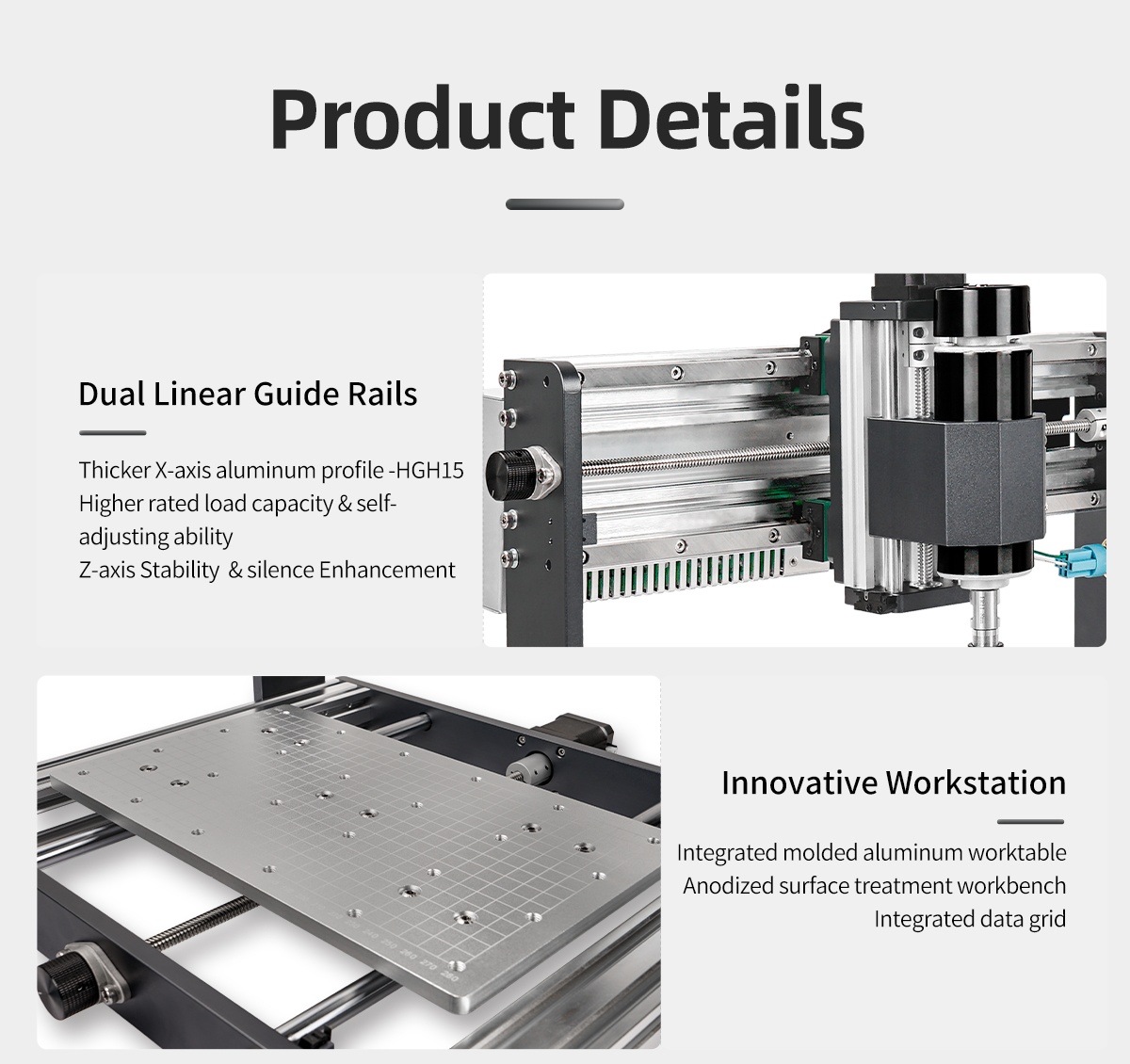

1.Dual Linear Guide Rails

Thicker X-axis aluminum profile -HGH15

Higher rated load capacity & self-adjusting ability

Z-axis Stability & silence Enhancement

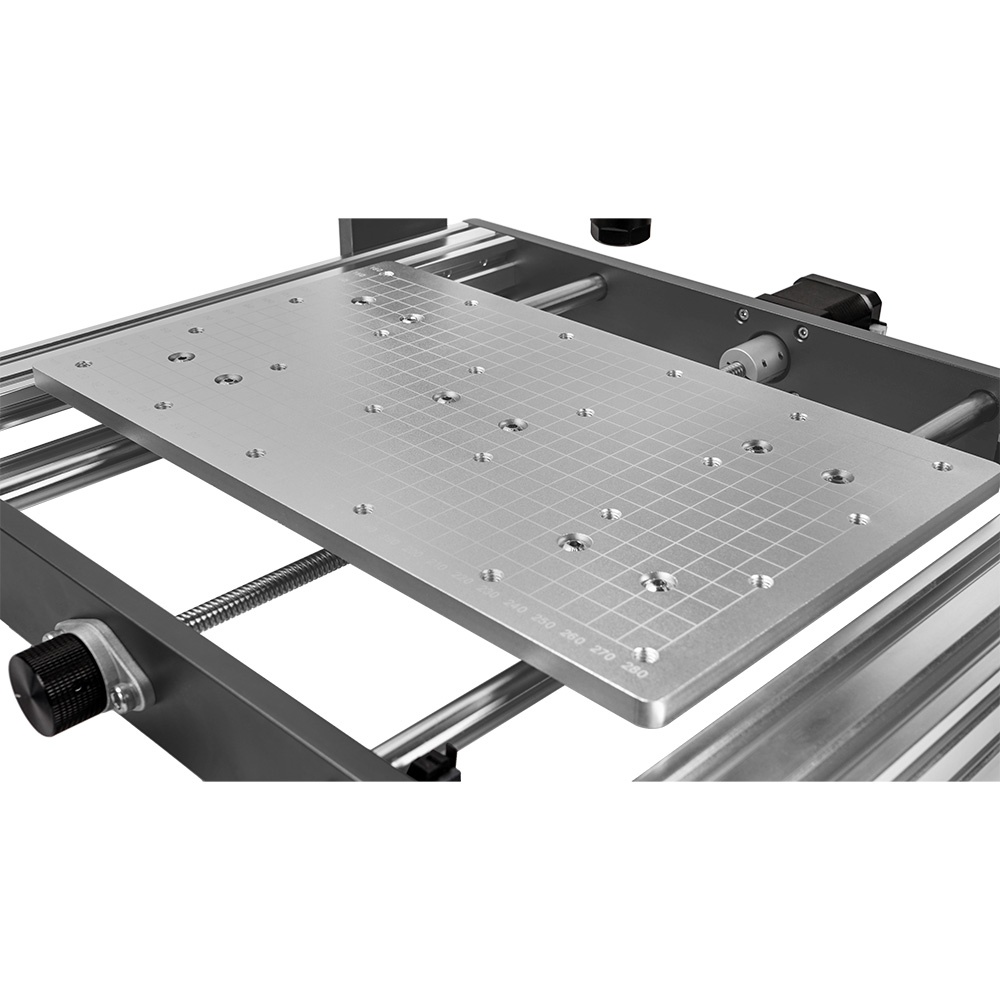

2.Innovative Workstation

Integrated molded aluminum worktable

Anodized surface treatment workbench

Integrated data grid

Product Description

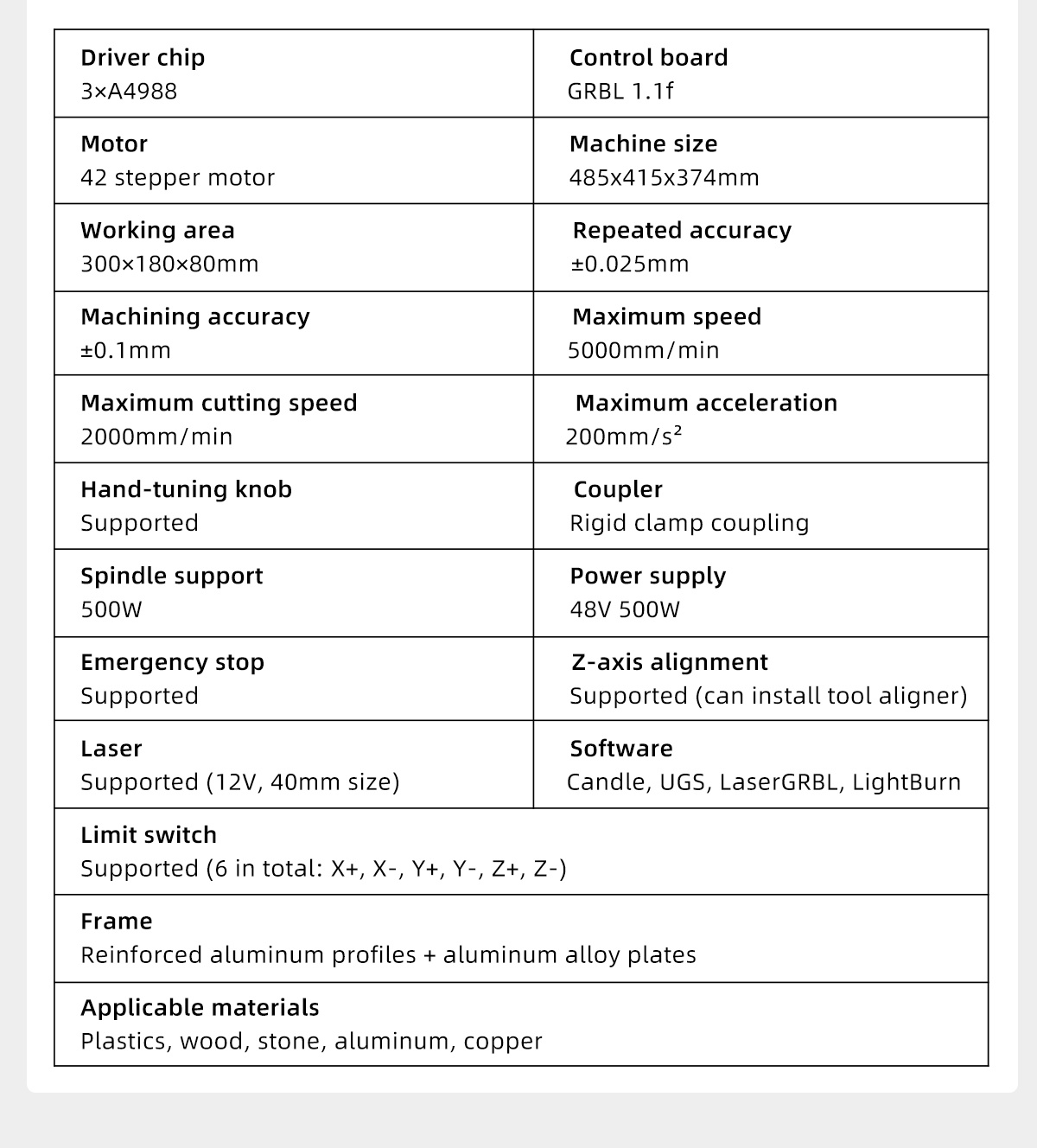

Parameter:

Product name 3018Plus V.3.0

Driver chip A4988*3

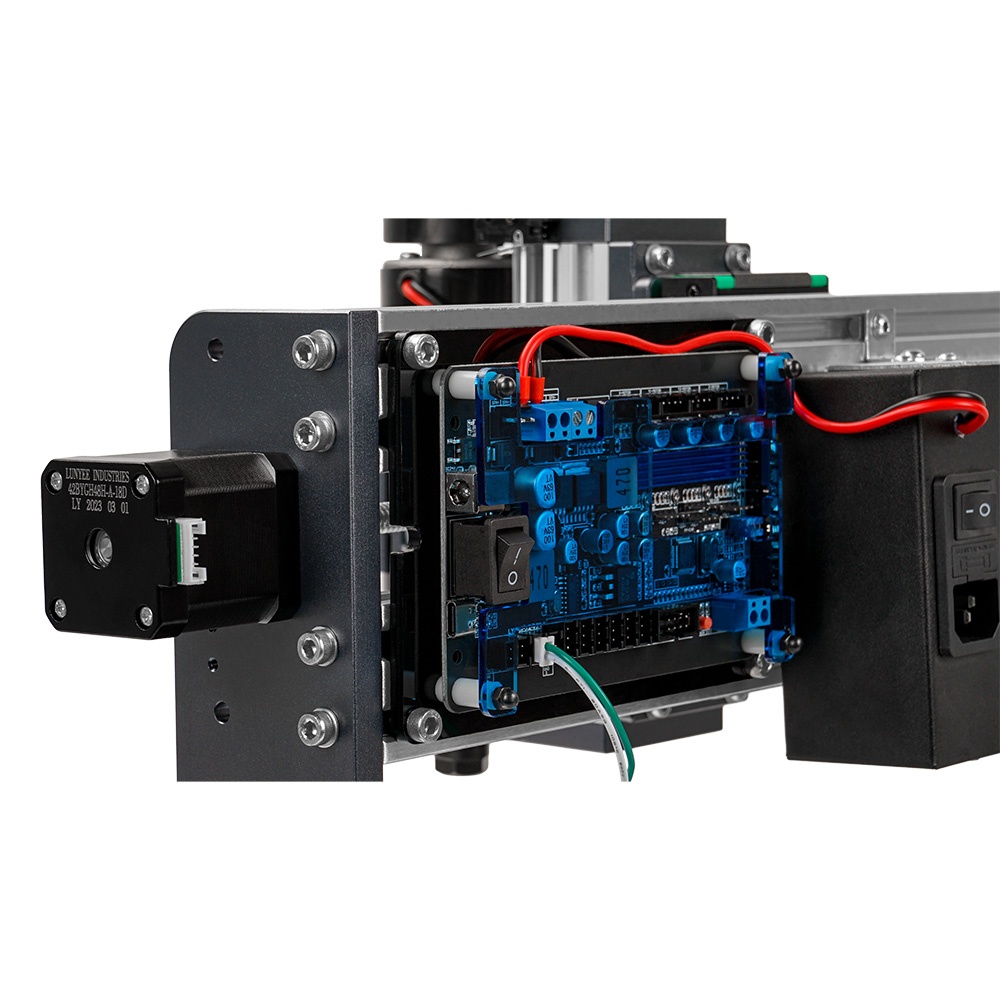

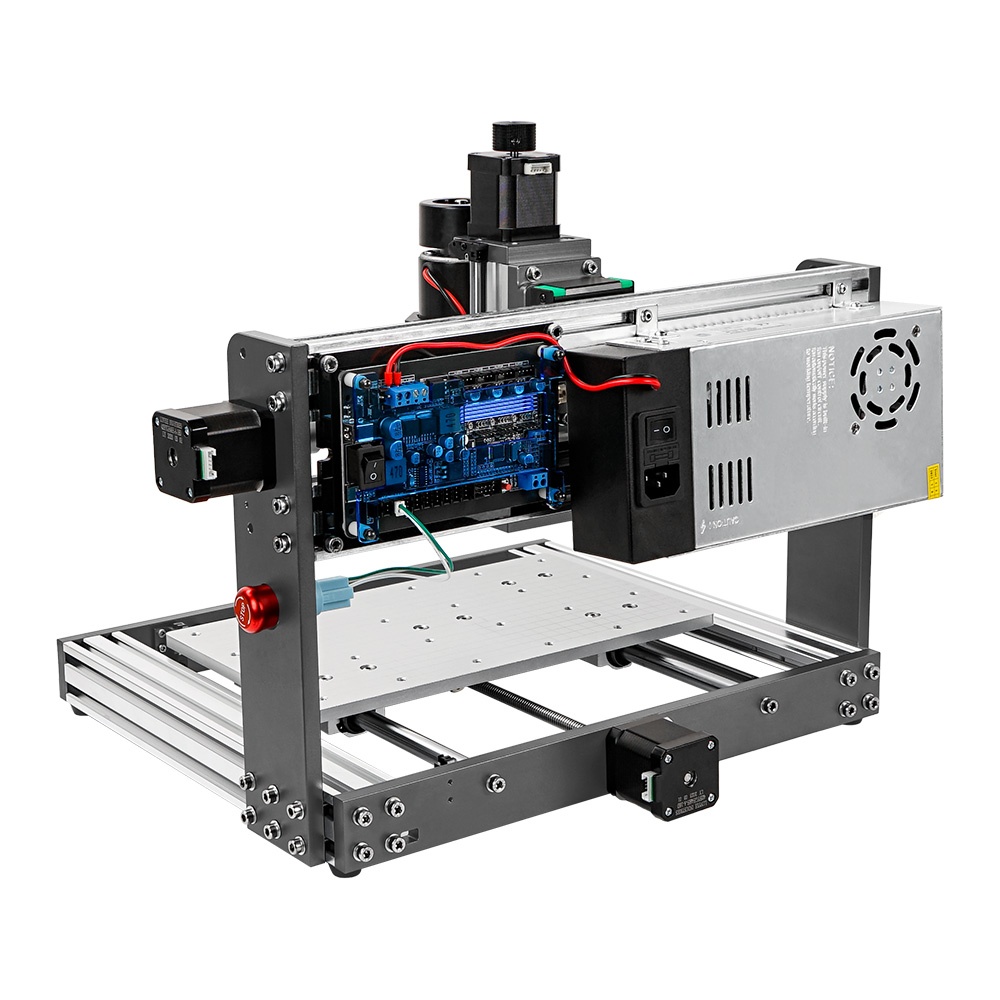

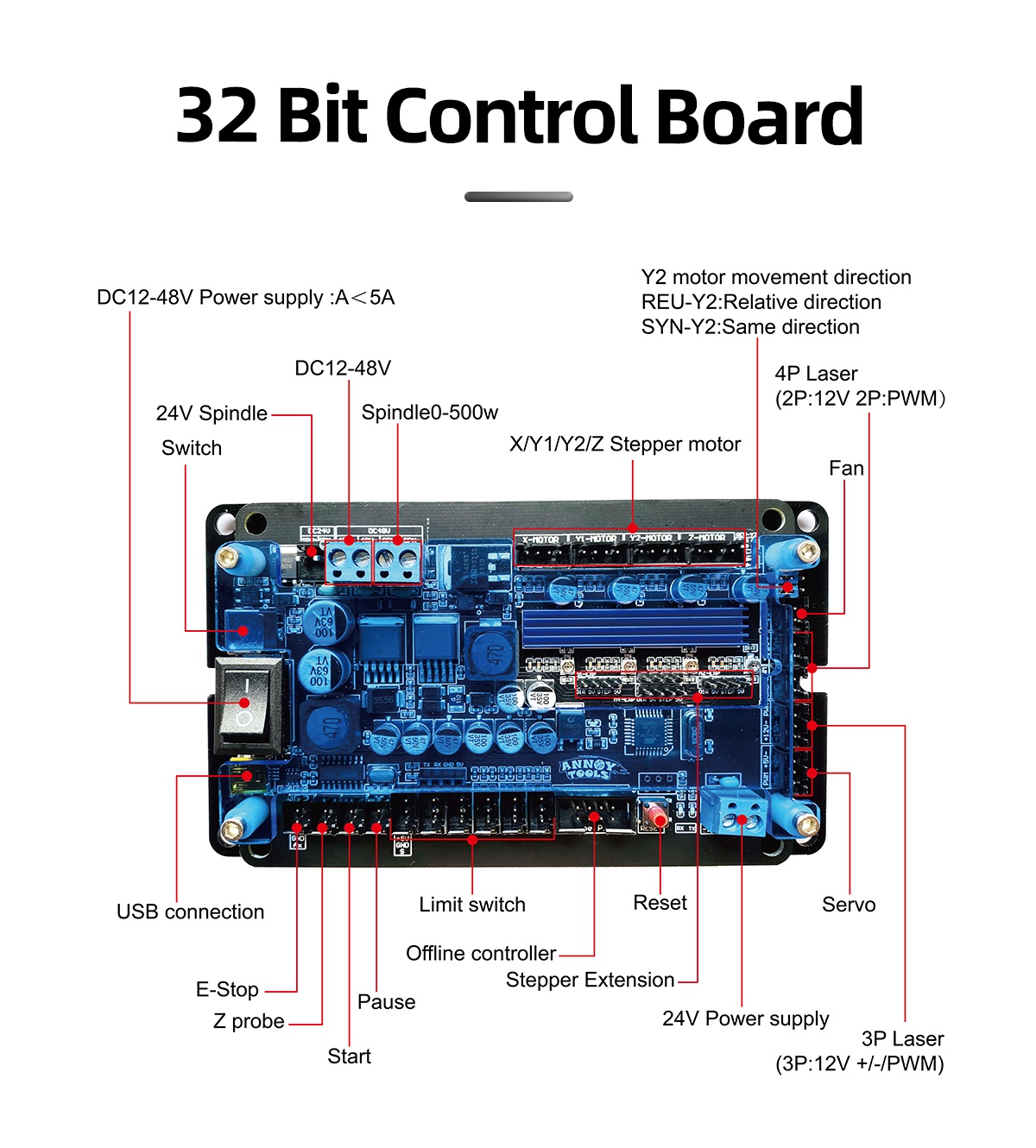

Control board 32 Bits three axis 5.2 GRBL 1.1f

Motor 42 stepper motor, body length 48mm

X Shaft-driven bicycle optical shaft+T8 screw rod

Y Shaft-driven bicycle optical axis+T8 screw rod

Z Shaft-driven bicycle optical axis+T8 screw rod

Screw Nut Type Double Nut Clearance Adjustment

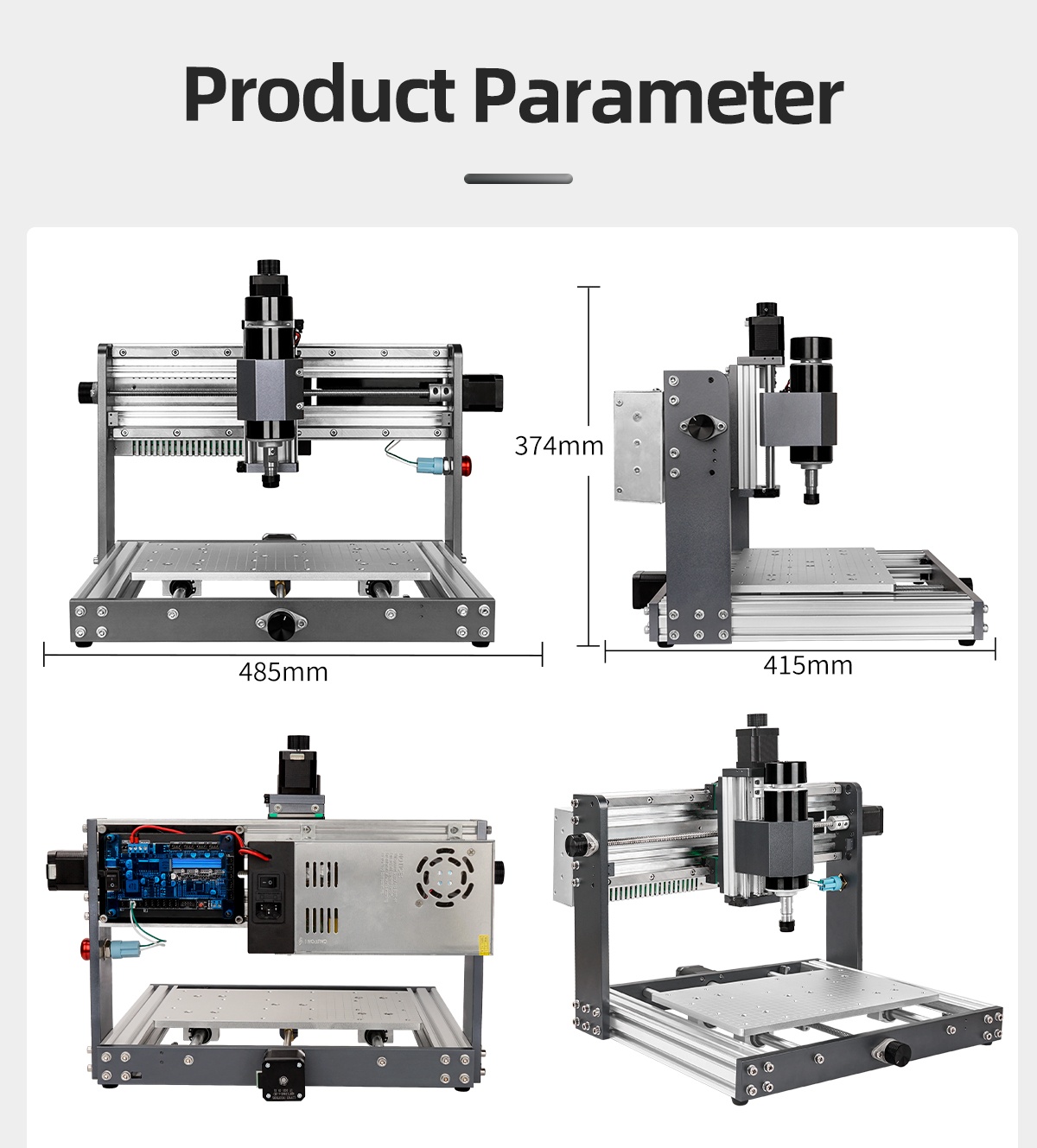

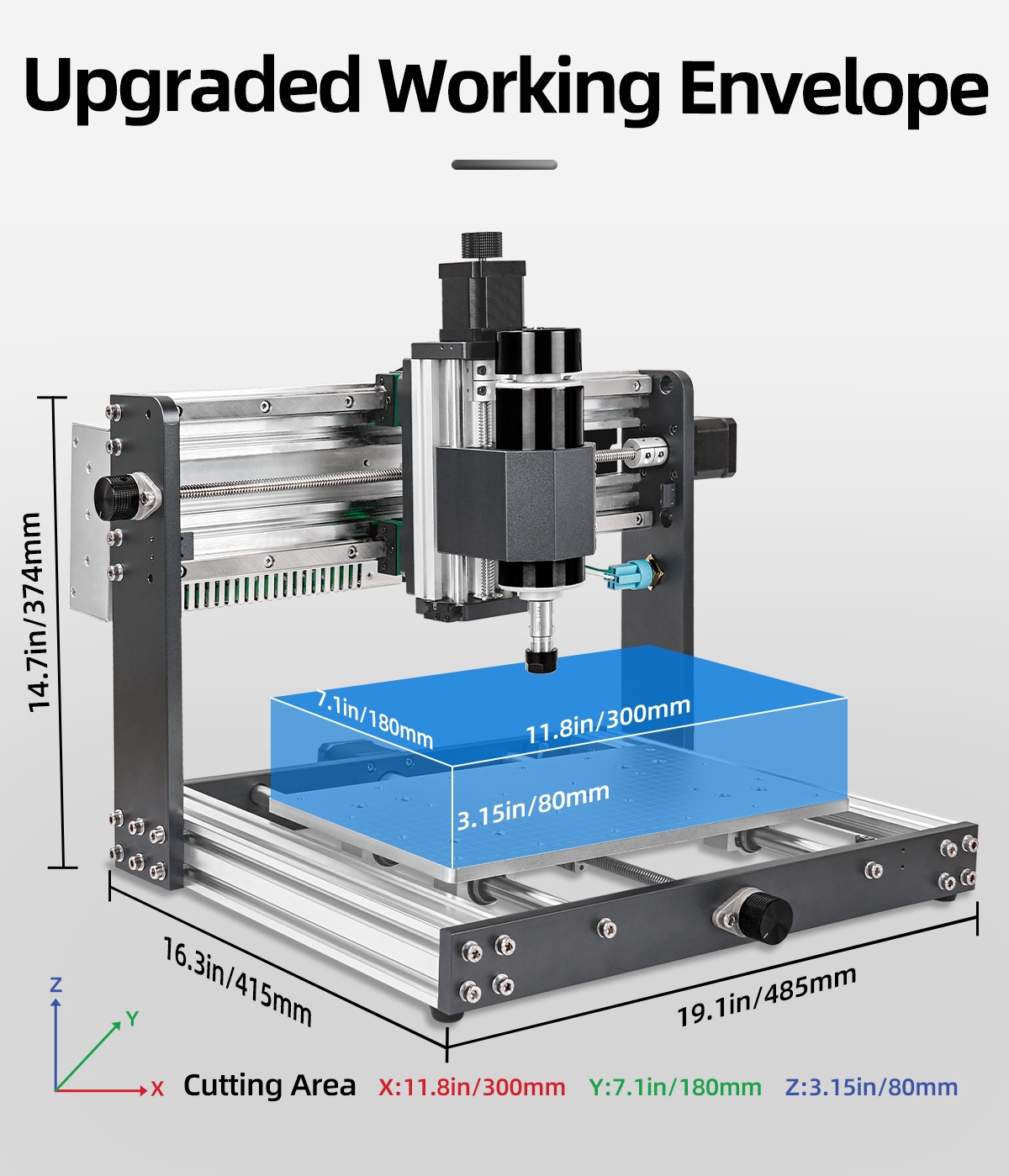

Machine size 485x415x374mm

Working area 300*180*80mm

Repetitive positioning accuracy ± 0.025

Processing accuracy ± 0.1

Maximum operating speed 5000mm/min

Maximum processing speed 2000mm/min

Maximum acceleration 200mm/s ²

Manual knob support

Coupling rigid clamping coupling

Frame reinforced aluminum profiles + aluminum alloy plates

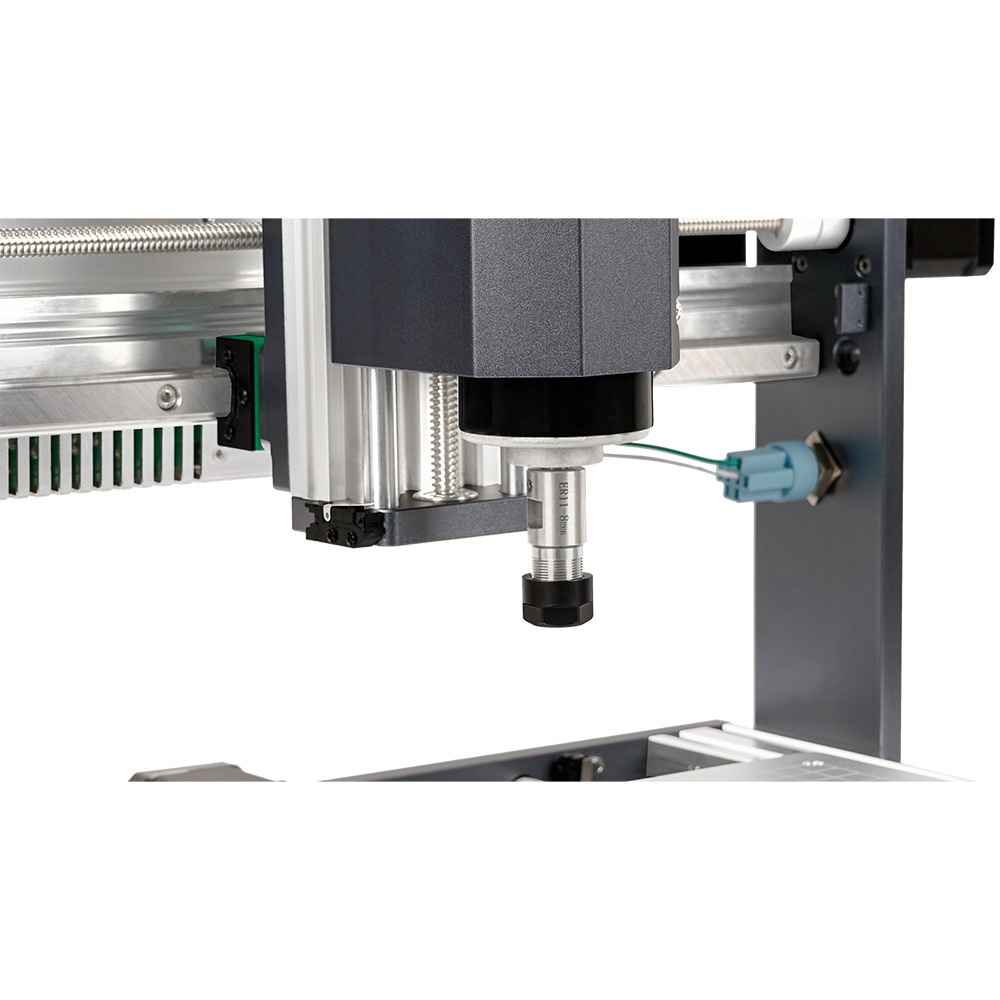

Spindle support 500W

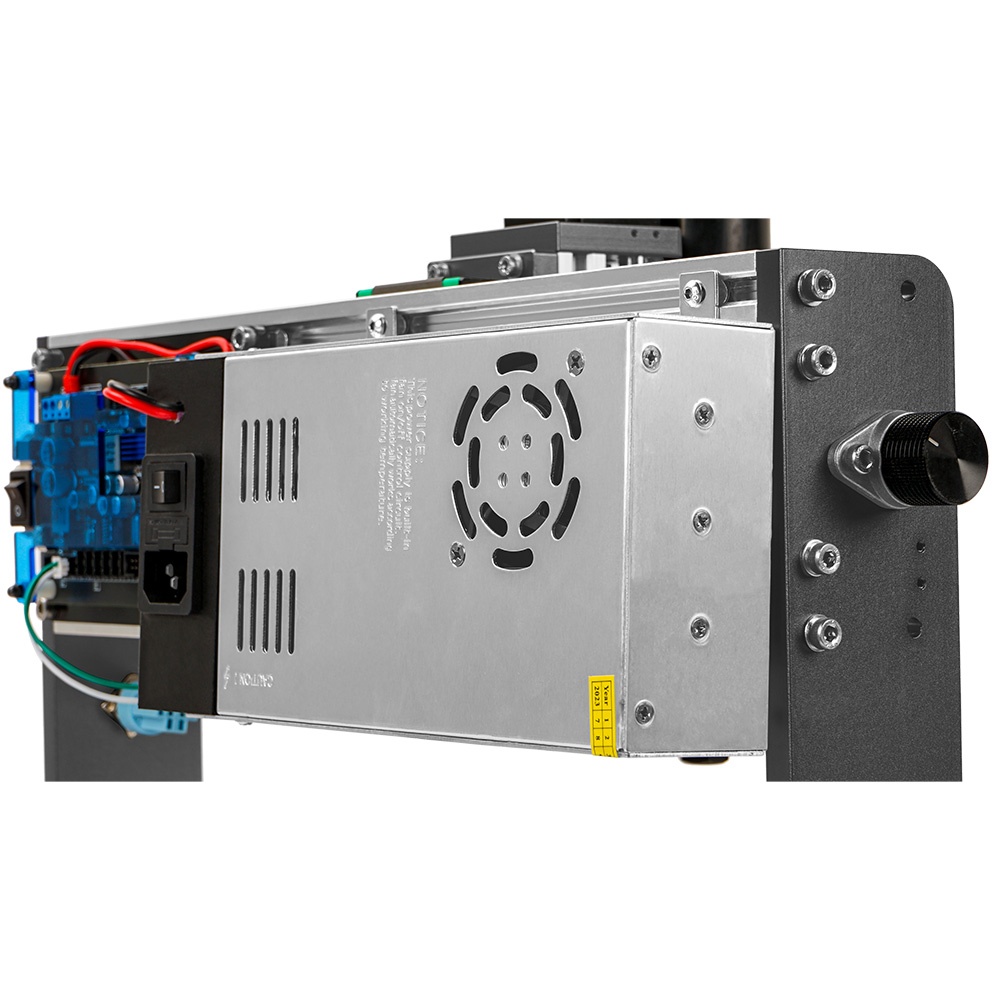

Power supply 48V 500W

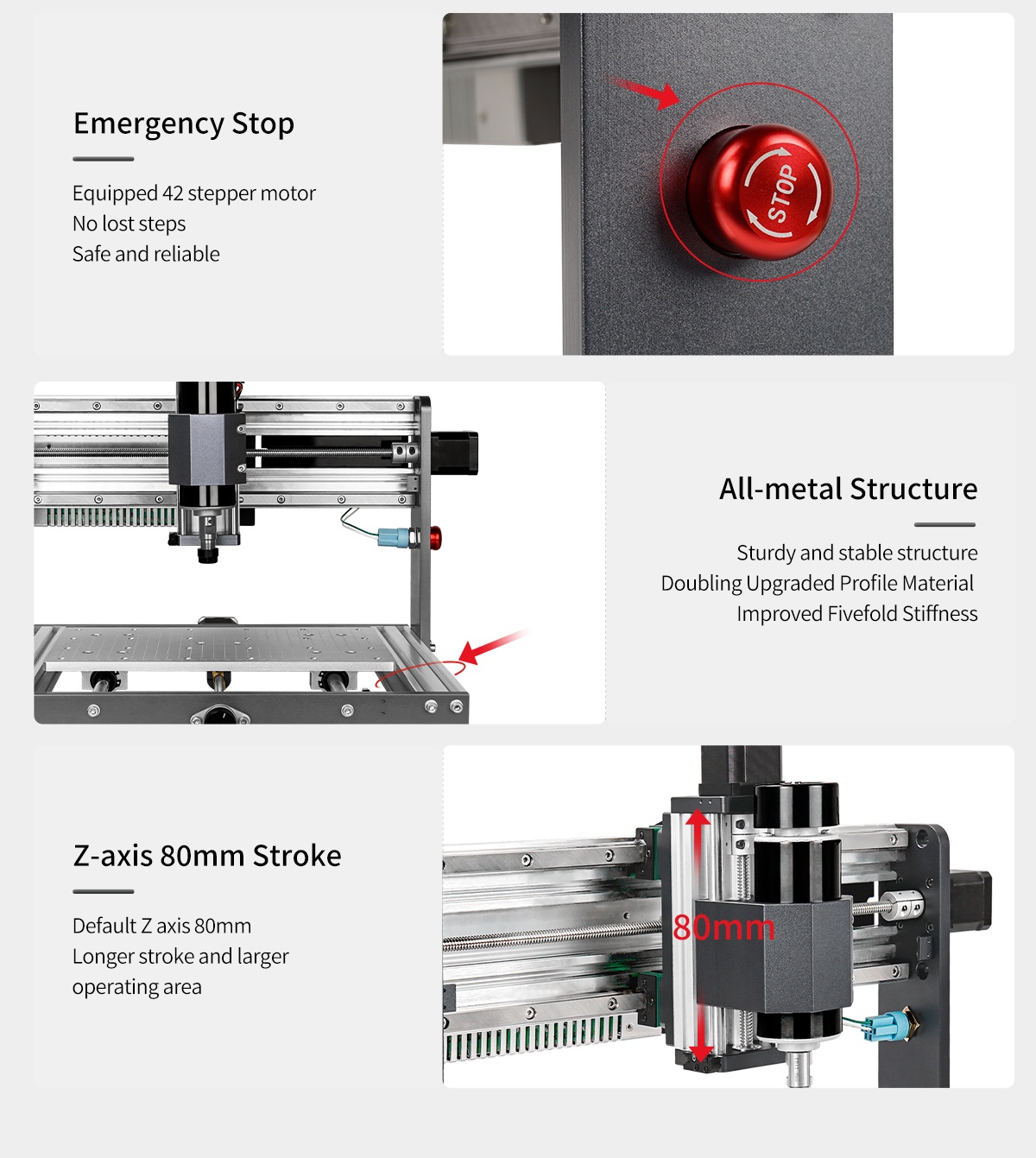

Emergency stop switch support

Limit switches support 6 (X+, X -, Y+, Y -, Z+, Z -)

Z-axis tool alignment support installation of tool alignment instrument

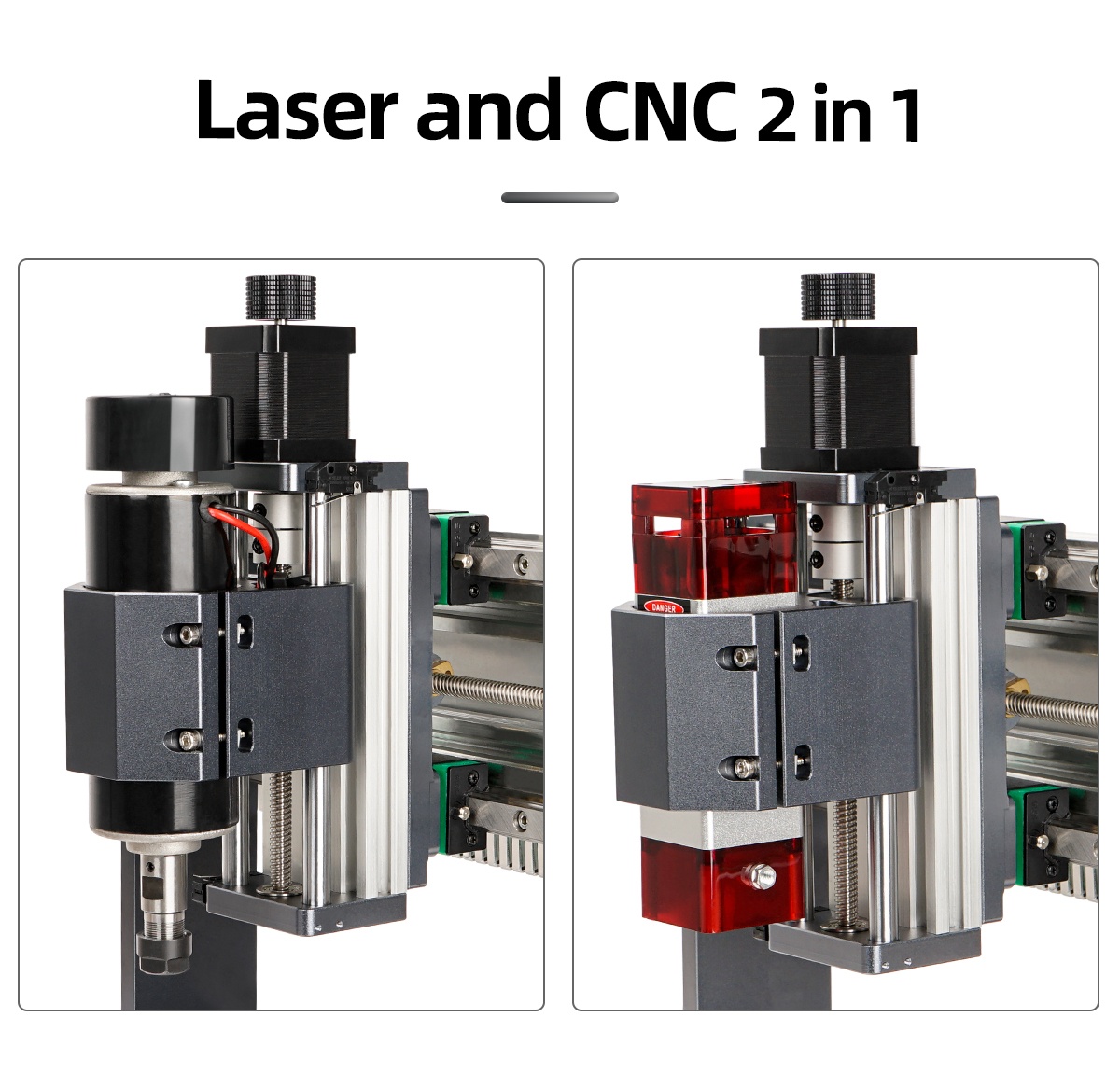

Laser support (12V 40mm size laser)

Software Candle

Applicable materials: plastic, wood, stone, aluminum, copper

Thanks for your order!
