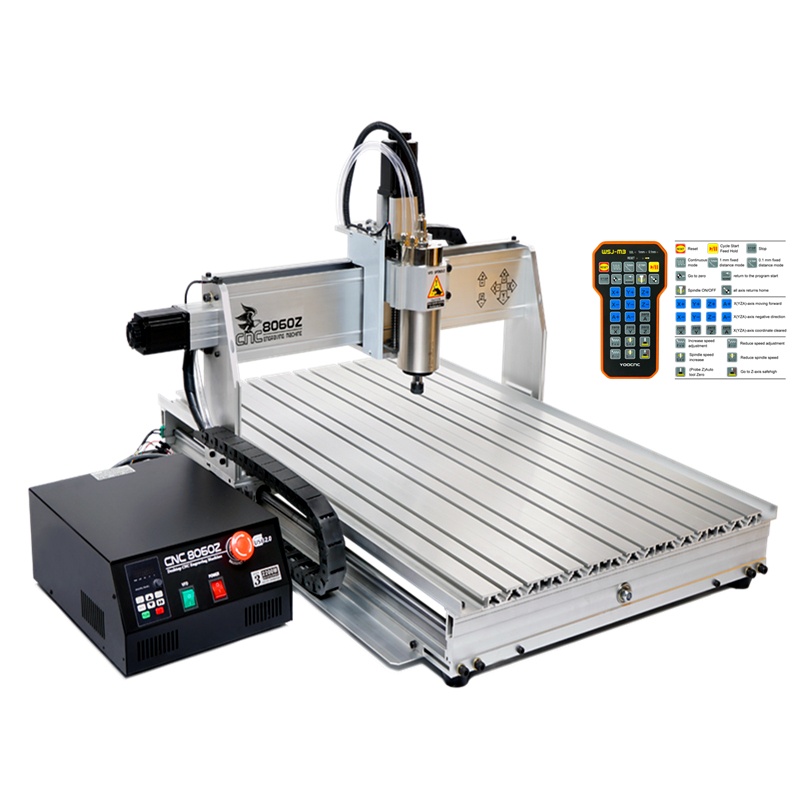

YOOCNC 8060Z CNC Engraving Machine 2200W For PVC ABS PCB Wood Aluminum Work

YOOCNC 8060Z CNC Engraving Machine 2200W For PVC ABS PCB Wood Aluminum Work

item ID: 71540
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$4200 USD$2409 (% off)
Payment

Product Detail

Product Tags

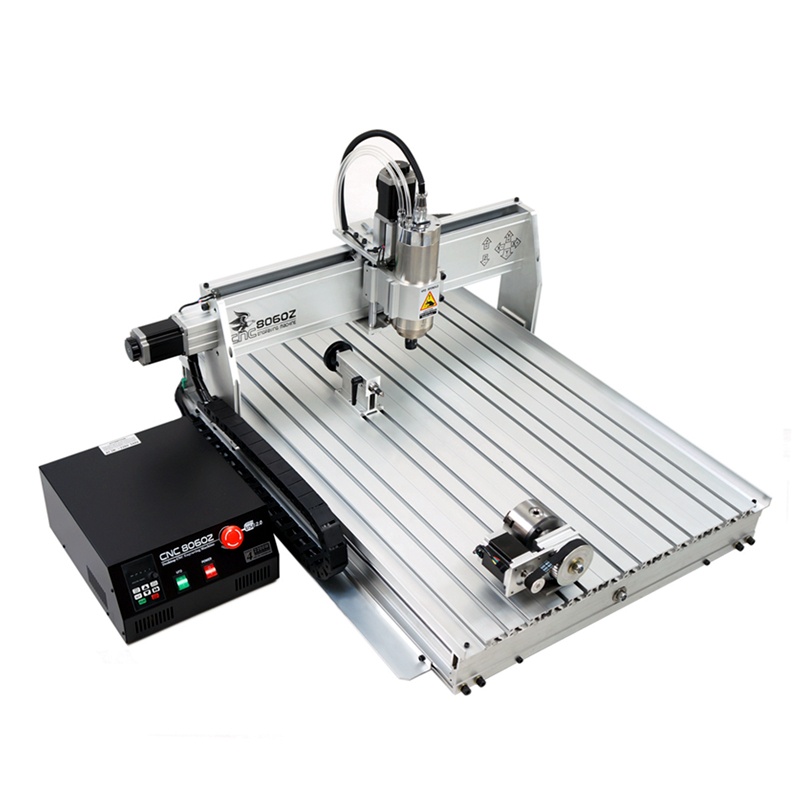

YOOCNC 8060Z CNC Engraving Machine 2200W For PVC ABS PCB Wood Aluminum Work

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

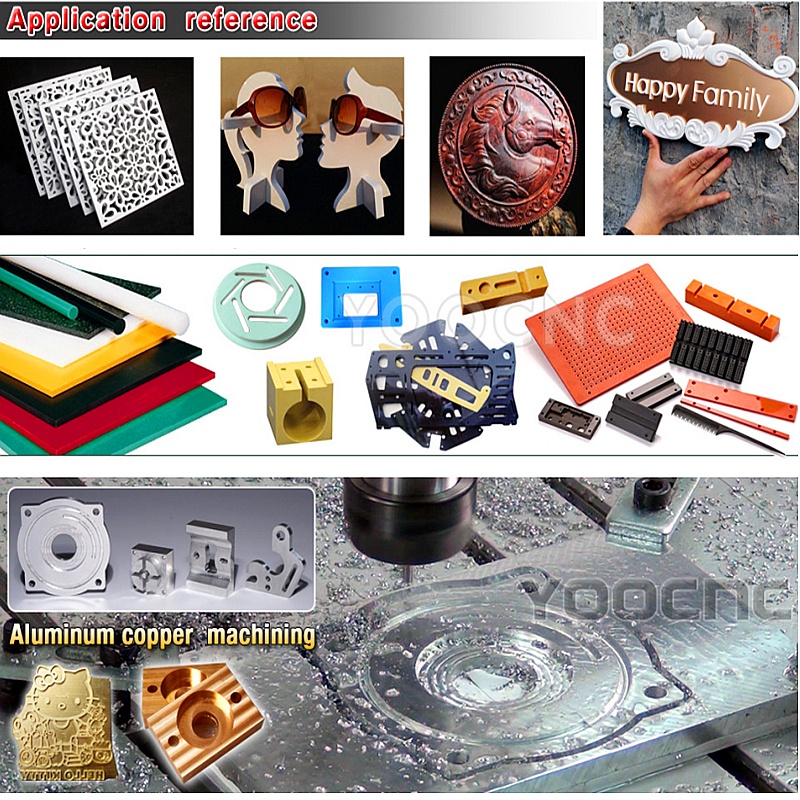

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

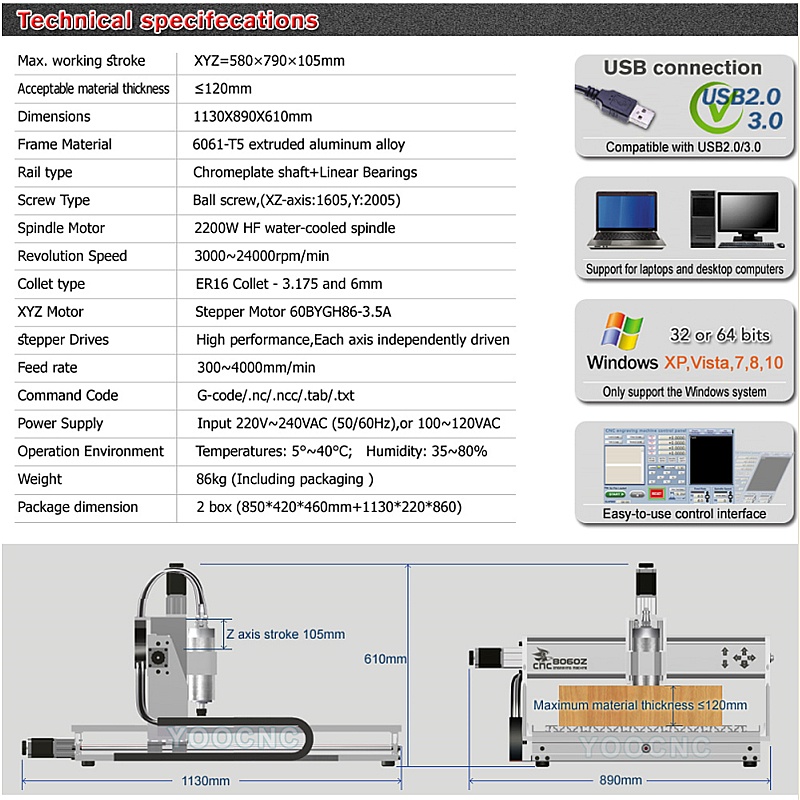

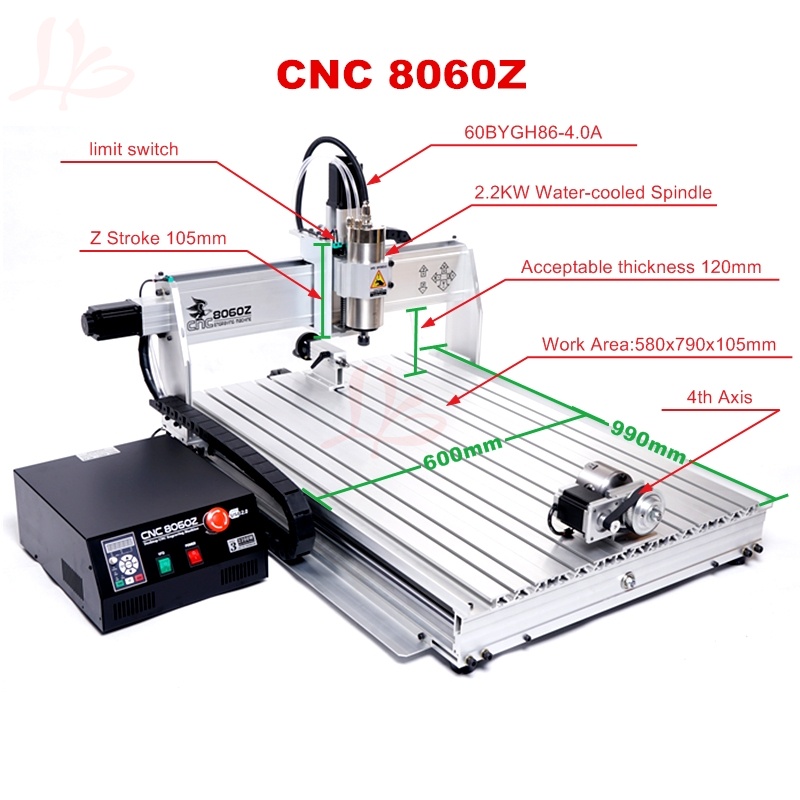

Model and Technical Parameters

MODEL         8060Z-2.2KW
Attribute 3axis 3axis+H 4axis 4axis+H
Axis 3axis 3axis 4axis 4axis
Interface USB port USB port USB port USB port
Limit switch Yes yes Yes Yes

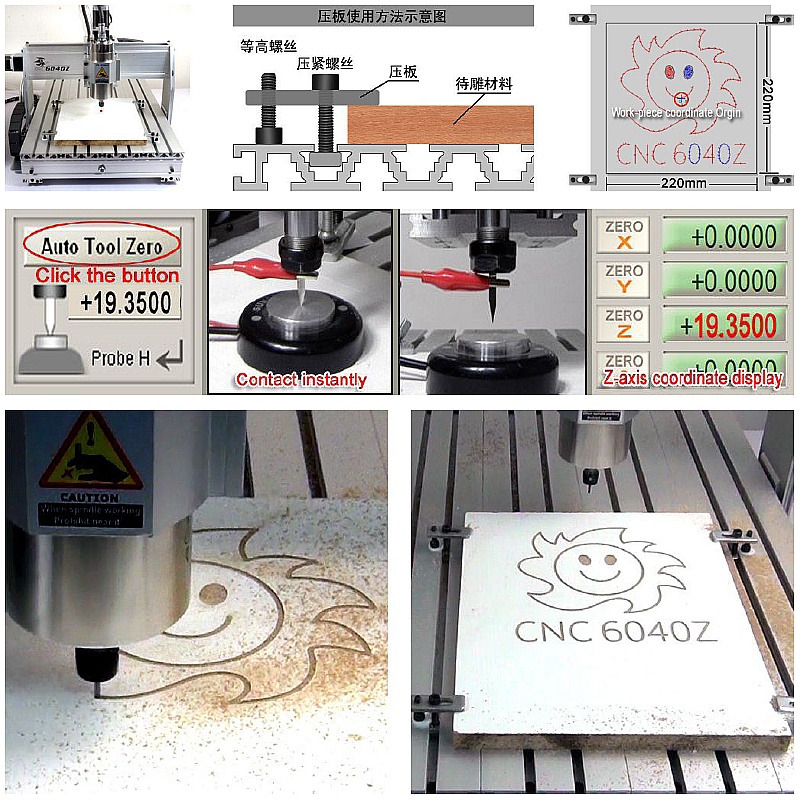

Tool auto-checking Yes Yes Yes Yes
Spindle Motor: 2200W 2200W 2200W 2200W
Weigh 87 87 93 93

Machine Dimensions:

1130X890X610mm

Rack material:

6061-T5 extruded aluminum alloy

Engraving area:

790X580mm

Z-Axis Stroke:

105mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness

≤ 120mm

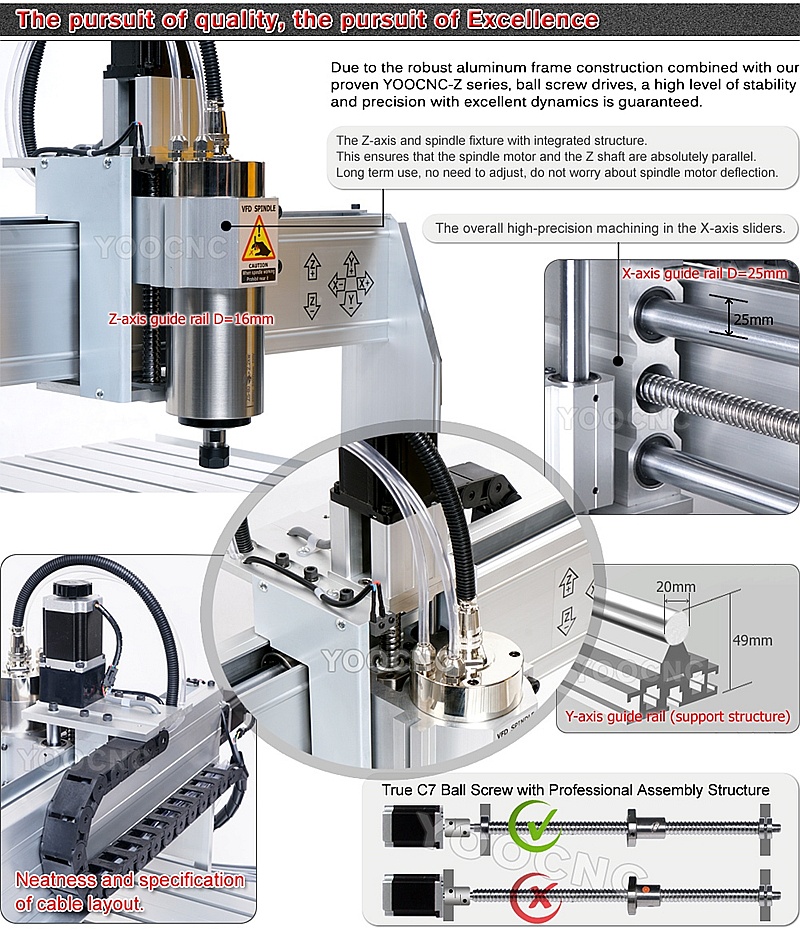

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

Ball screw (XZ axis 1605, Y axis 2005)

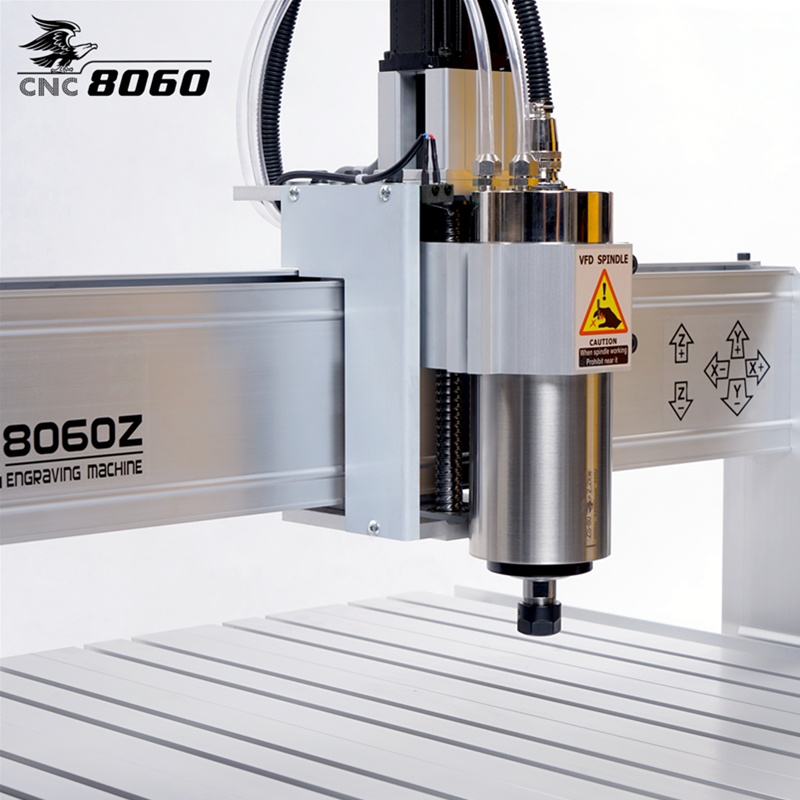

Spindle motor: HF water cooling spindle , 2200W , 0-24000r/min

Collet type:

ER16,1/8″(3.175mm and 6mm) Collet

Stepper motor and drive:

60BYGH86-3.5A, Each axis independently driven

Maximum operating speed:

4000mm/min (Engraving speed: 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

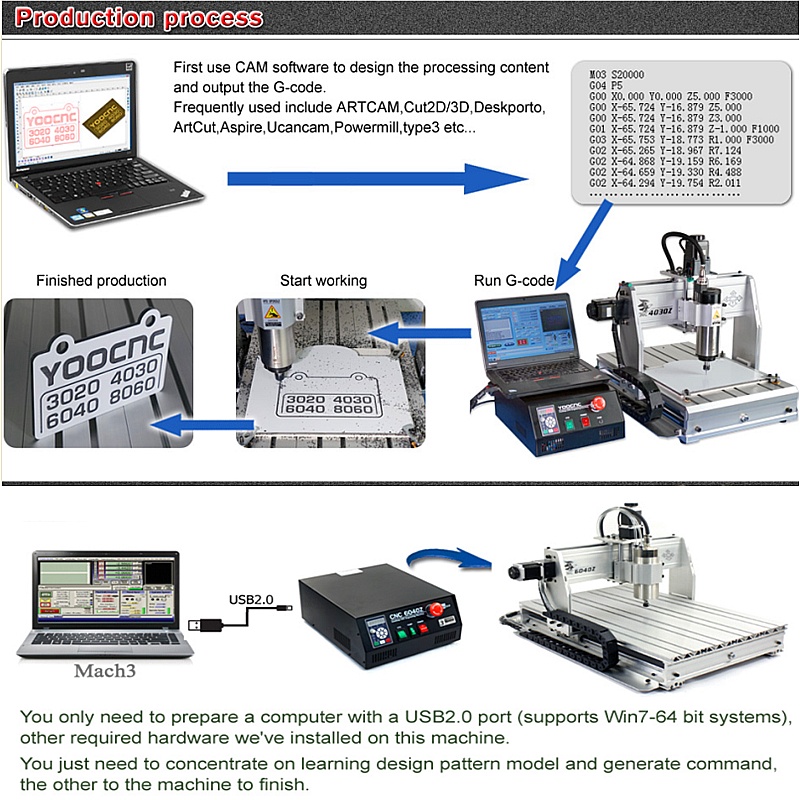

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

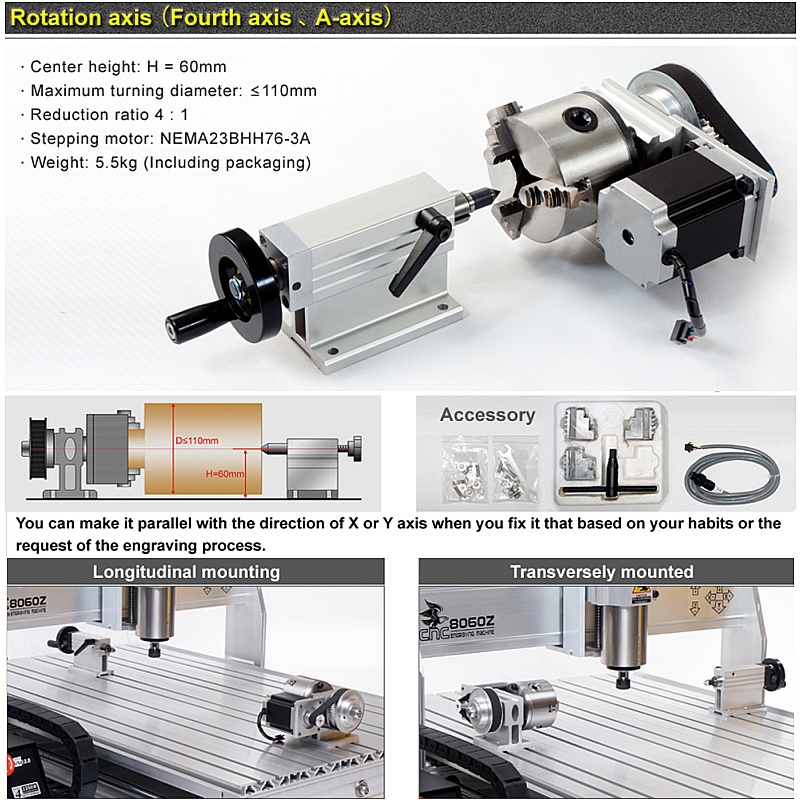

Rotation Axis (4th Axis)

Description:

Center height: H = 60mm

Maximum turning diameter: ≤ 110mm

Deceleration ratio: 4:1

Stepper motor: NEMA23BHH76-3A

Weight: 5.5KG

Tags:

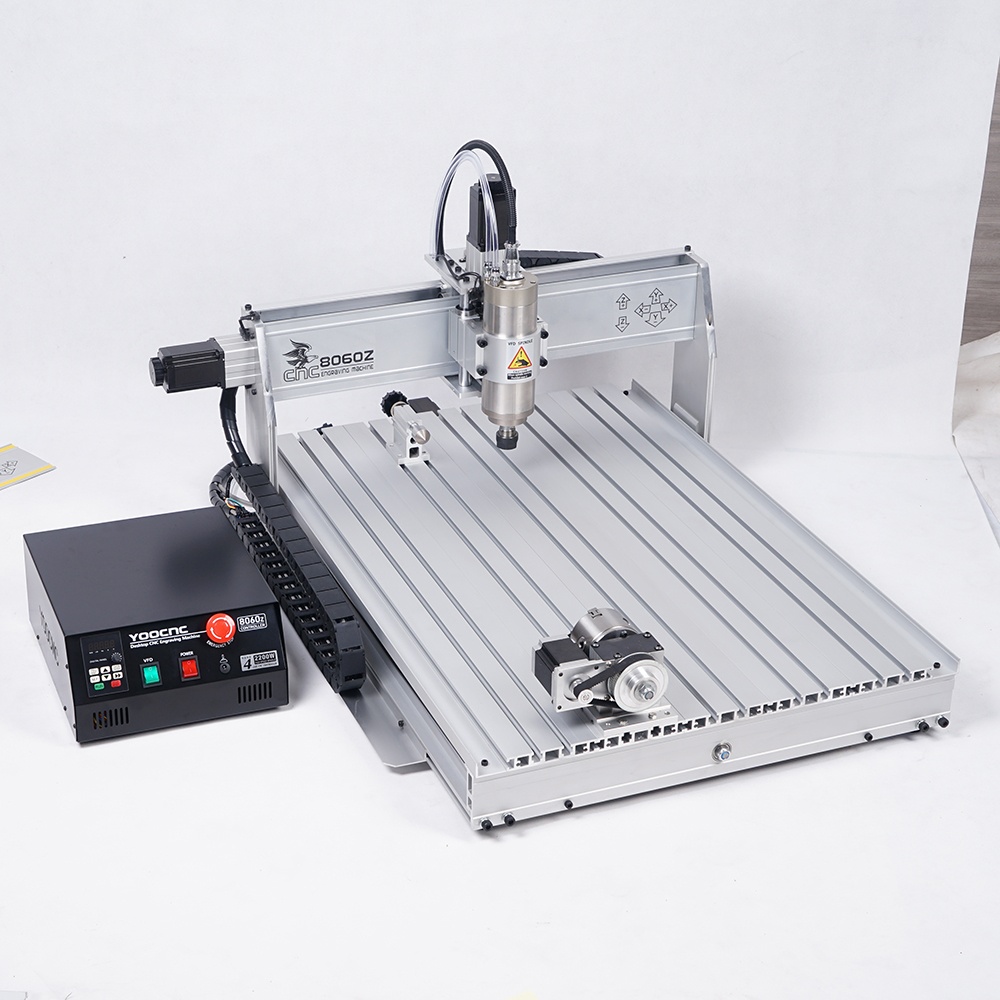

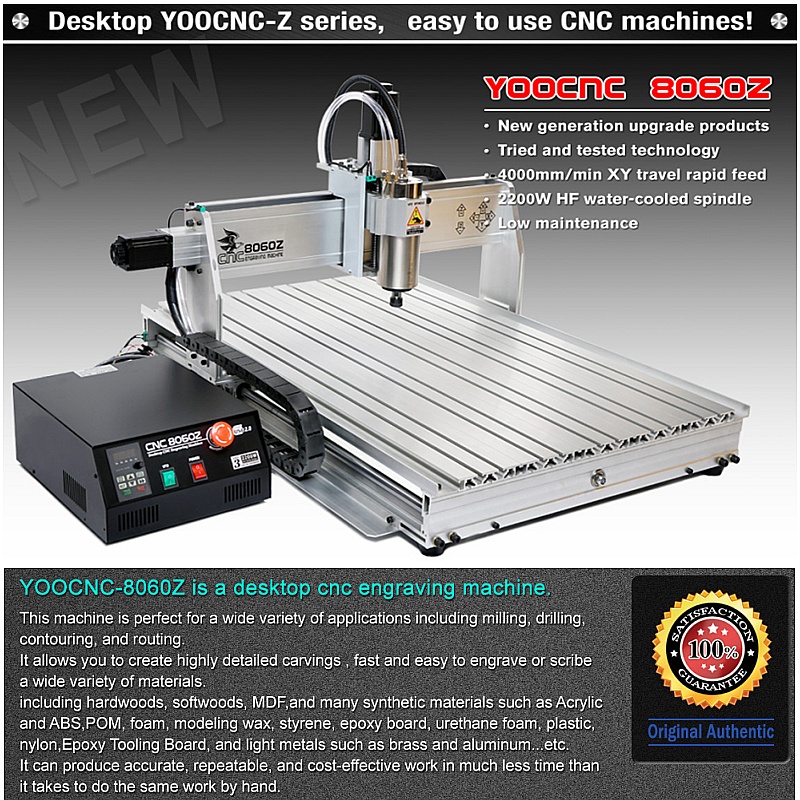

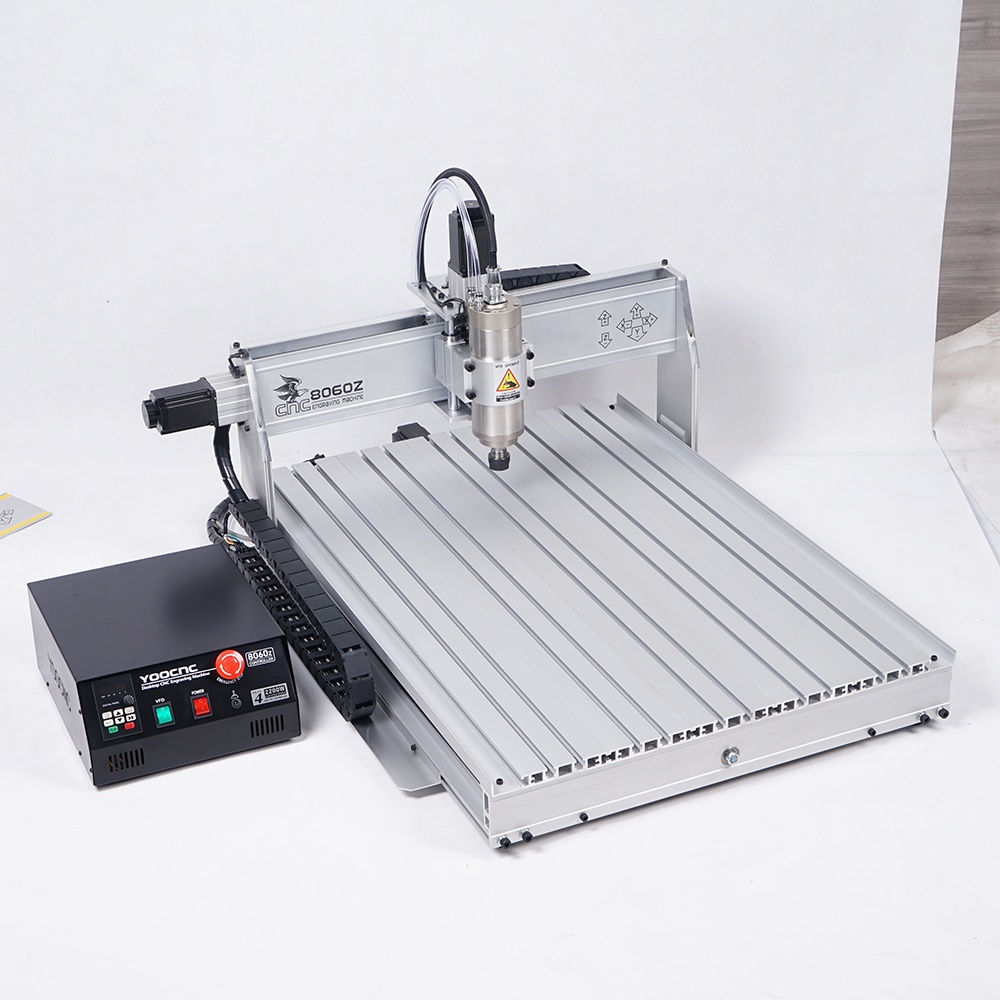

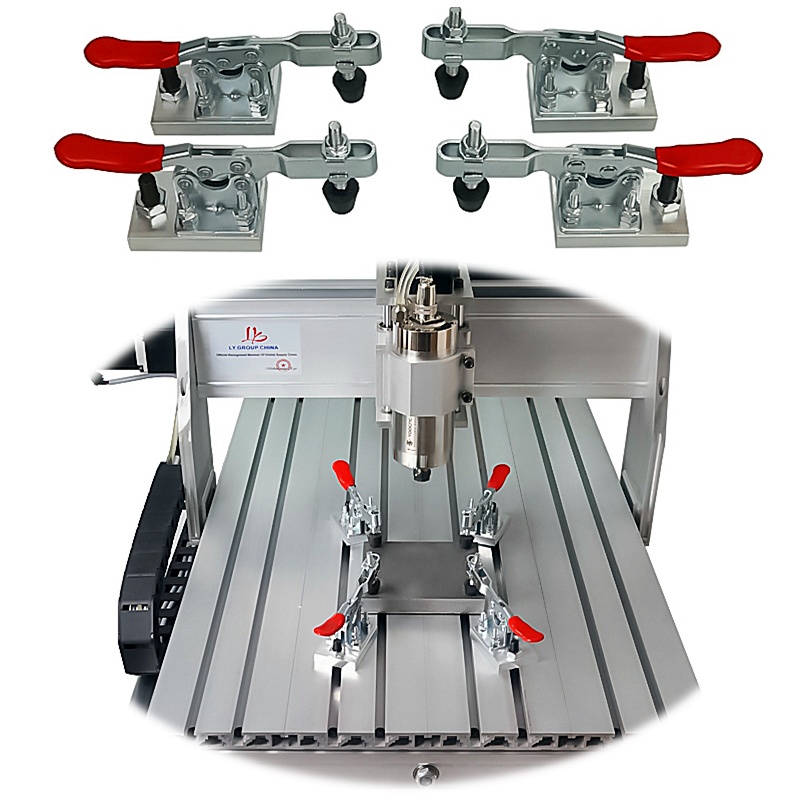

Product Pictures
