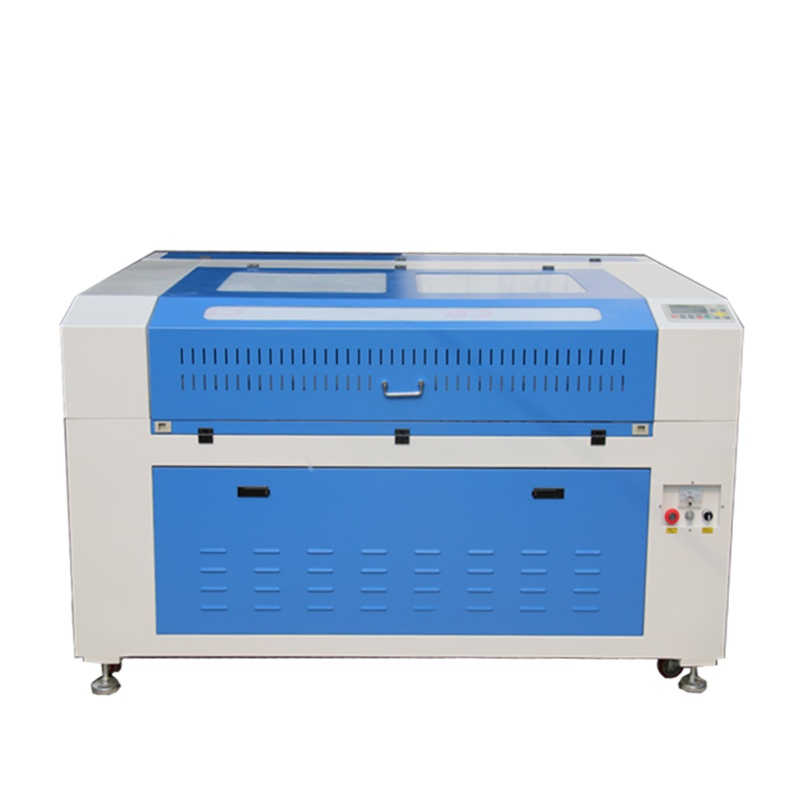

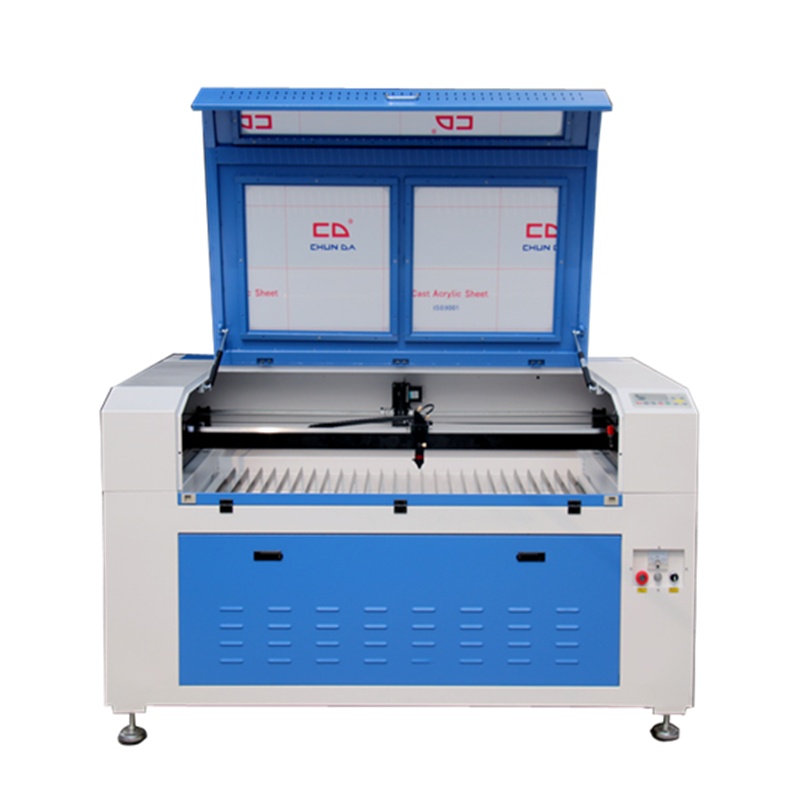

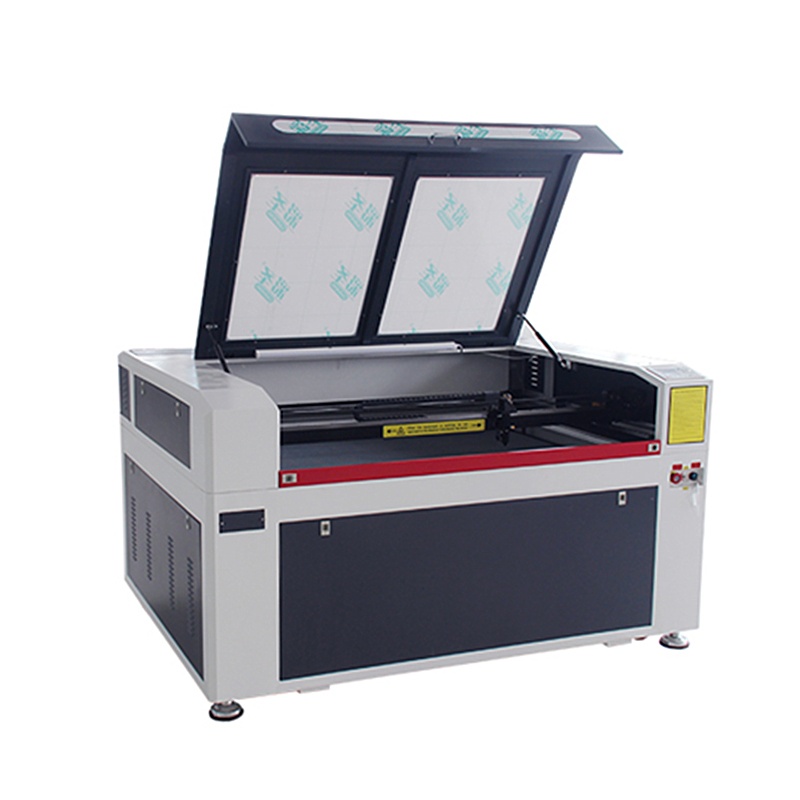

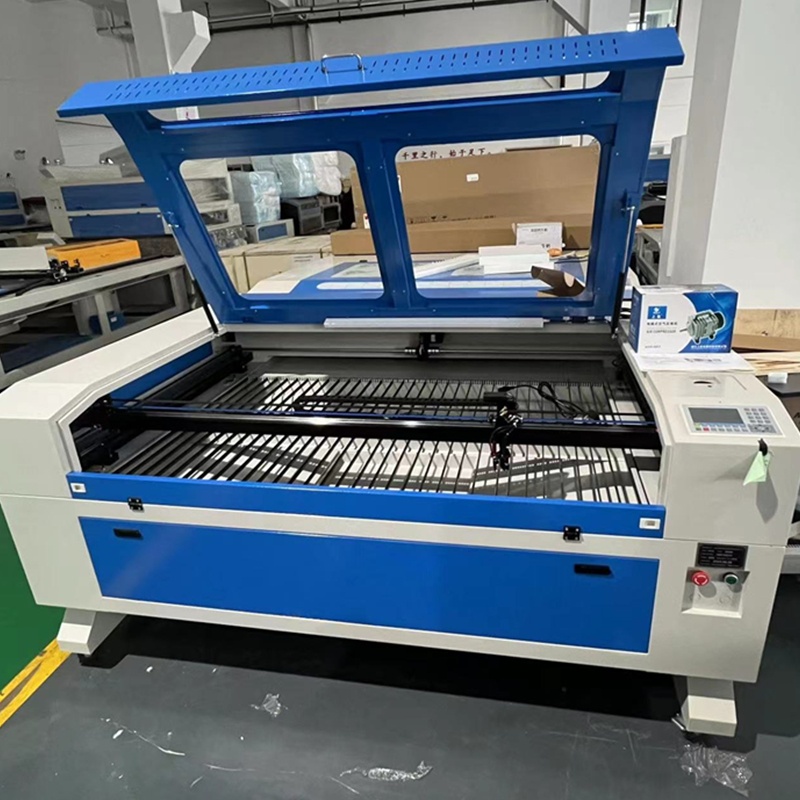

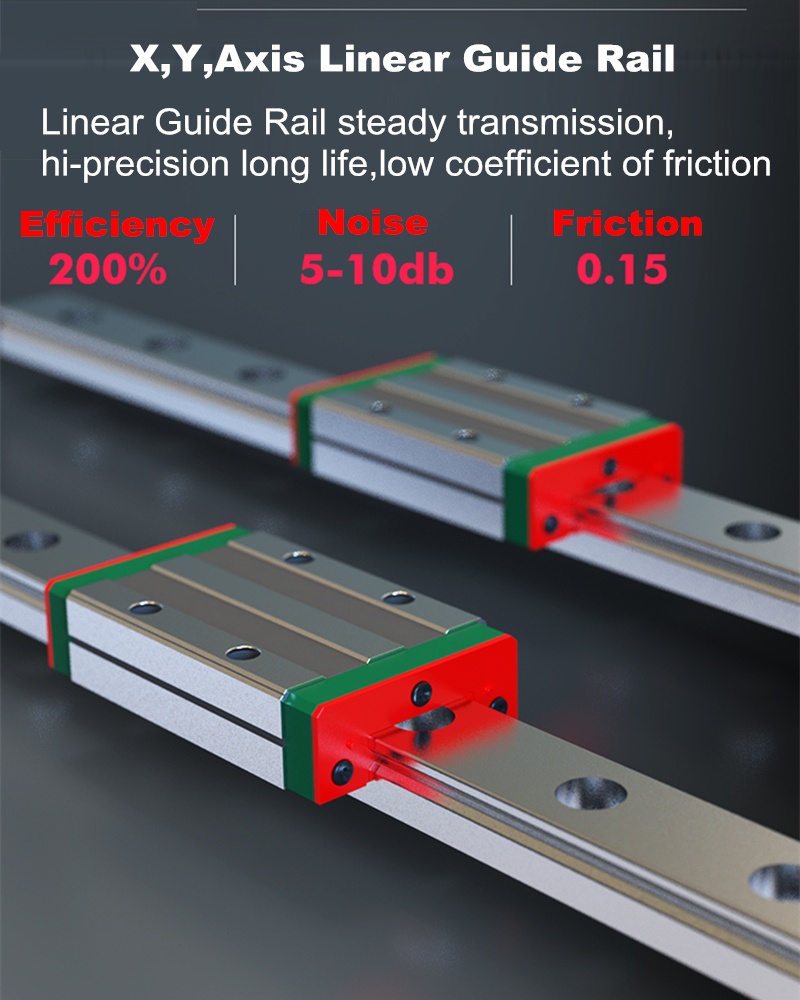

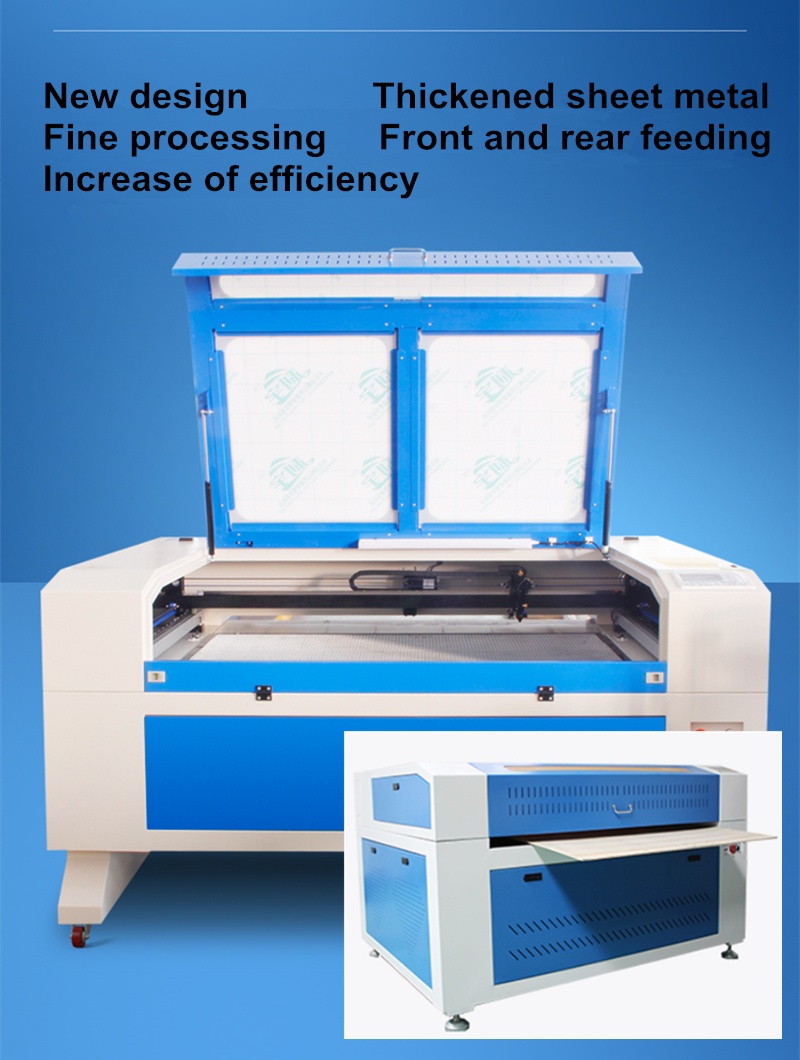

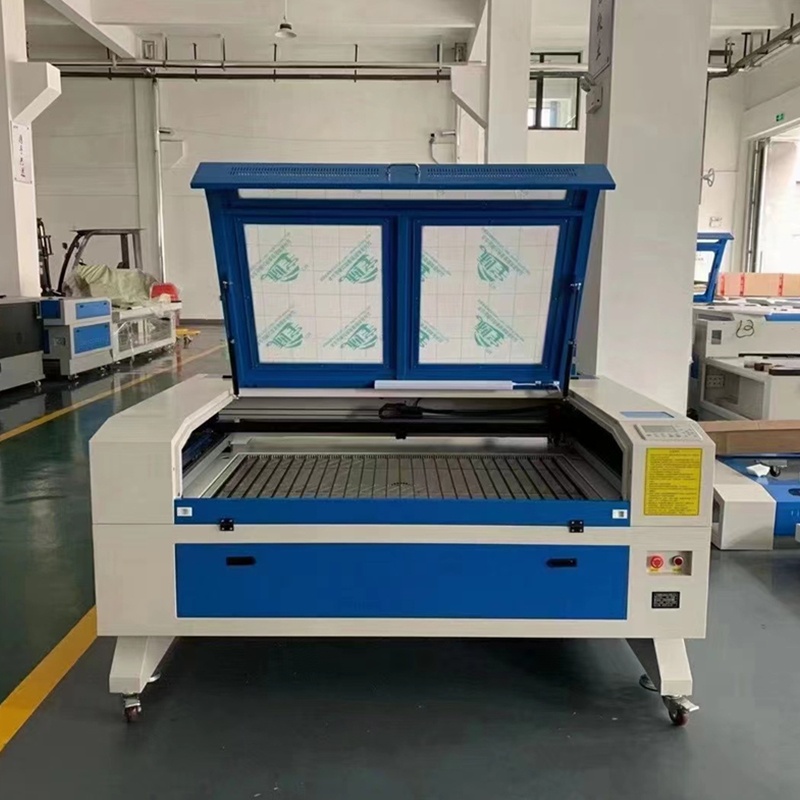

LY DSP6090 9060 USB CO2 Laser Engraving Cutting Machine RUIDA Touch Screen Offline Working System RDC6445G Optional  Water Chiller CW3000 CW5000 Auto Focus Linear Guide Rotary Axis Support Laser Cutter Engraver

LY DSP6090 9060 USB CO2 Laser Engraving Cutting Machine RUIDA Touch Screen Offline Working System RDC6445G Optional Water Chiller CW3000 CW5000 Auto Focus Linear Guide Rotary Axis Support Laser Cutter Engraver

item ID: 69729
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$5500 USD$3924 (% off)
Payment

Product Detail

Product Tags

LY DSP6090 9060 USB CO2 Laser Engraving Cutting Machine RUIDA Touch Screen Offline Working System RDC6445G Optional  Water Chiller CW3000 CW5000 Auto Focus Linear Guide Rotary Axis Support Laser Cutter Engraver



About shipping:



Russia and EU Buyes FREE TAX!!!



1/ We will ship this machine to Moscow by Toanda from China, and transfer to you from Moscow by Russia local shipping company with door to door shipping way. the machine will be deliveried to your home.

the delivery time is usually 20-40 days. and no tax fee by this way!



2/ Germany/  France/ Spain/ Italy/ Poland/Austria/ Belgium/ Czech Republic/ Denmark/ Lithuania/ Bulgaria/ Estonia/ Greece/ Romania/ Slovenia/ Croatia/ Luxembourg/ Finland/ Ireland/ Portugal/ Sweden


All above country buyers free tax!!!


We will ship the machine to EU by traincontainer, and we will pay the tax for you, please leave me your address, i will check the shipping cost and give you the best price.

3/ For other countries: We will ship from China by sea to your sea port, CIF terms.

(If you want EXW price, please contact us.)







Why buy from us?

*We order all our products directly from factory, no agents,no middle man, which guarantee the lowest prices for our customers.
*We have some stocks in Ontario ,Dallas ,New Jersey warehouse
*We are looking for distributors USA, Australia ,EU countries and some area around the world, contact us for more detail.
*For group buy for schools and club purchases up to a certain amount, we will offer a great discount.
*Customers can choose to join our membership program for reward points or discounts and we offer VIP sales or events for our members.





Feature

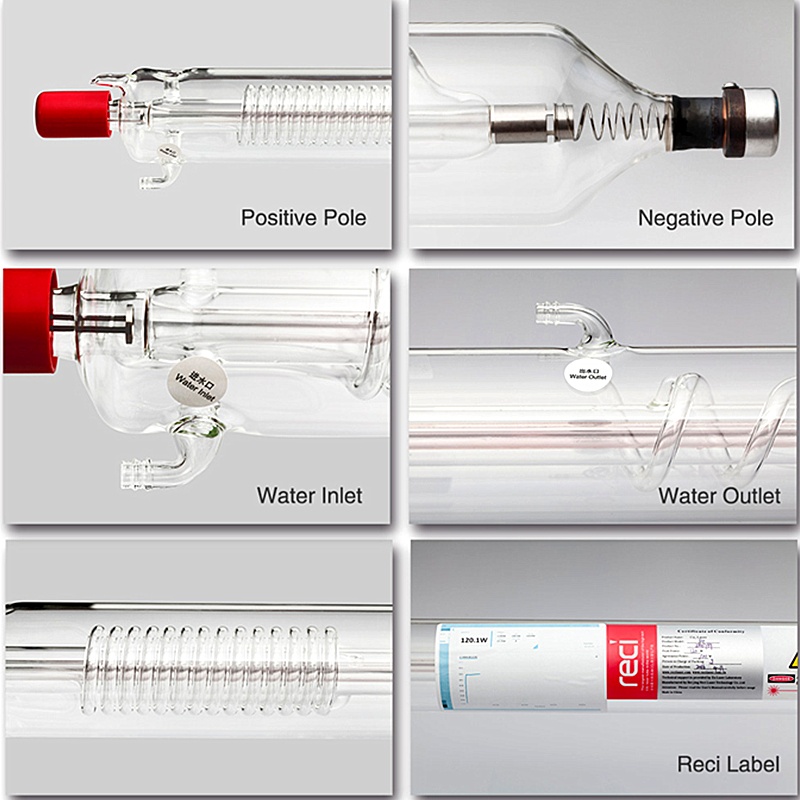

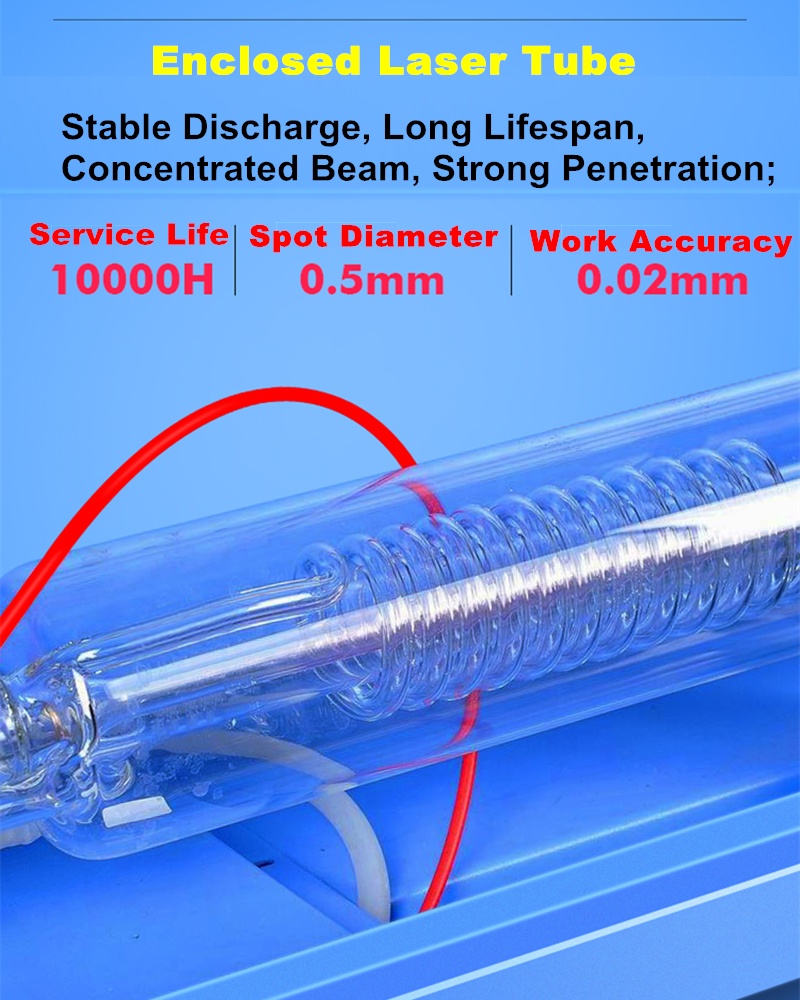

• NEW! 60/80/100/130/150W Laser tube, More power for working!!!
• NEW! 900*600MM working area, Meet the requirements of different size materials!!!

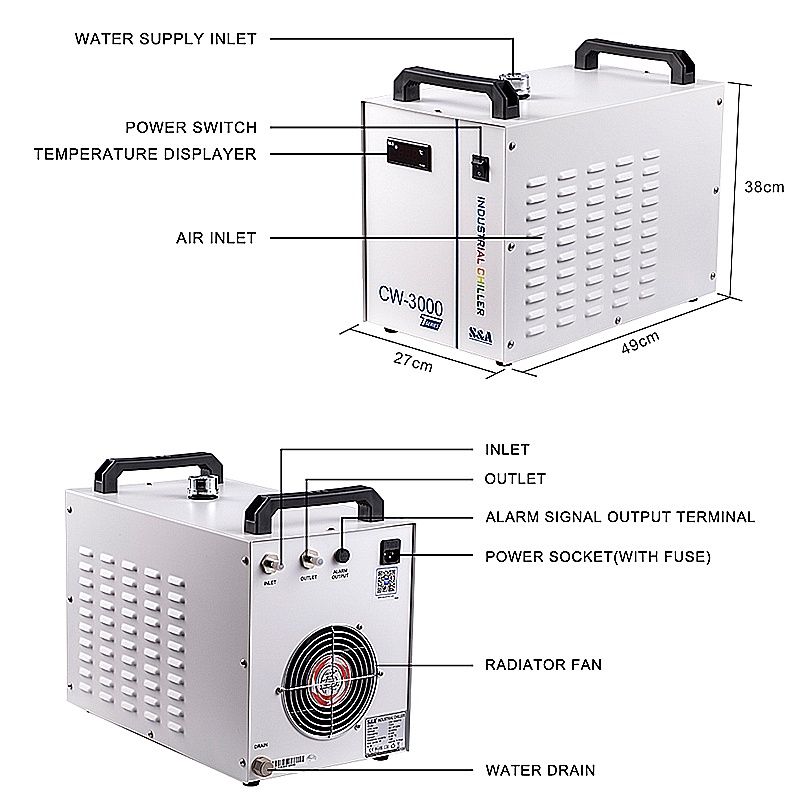

• NEW! Water Chiller w/pump CW-3000/5000 keeps water flowing thru CO2 Tube at ambient temperature!!!

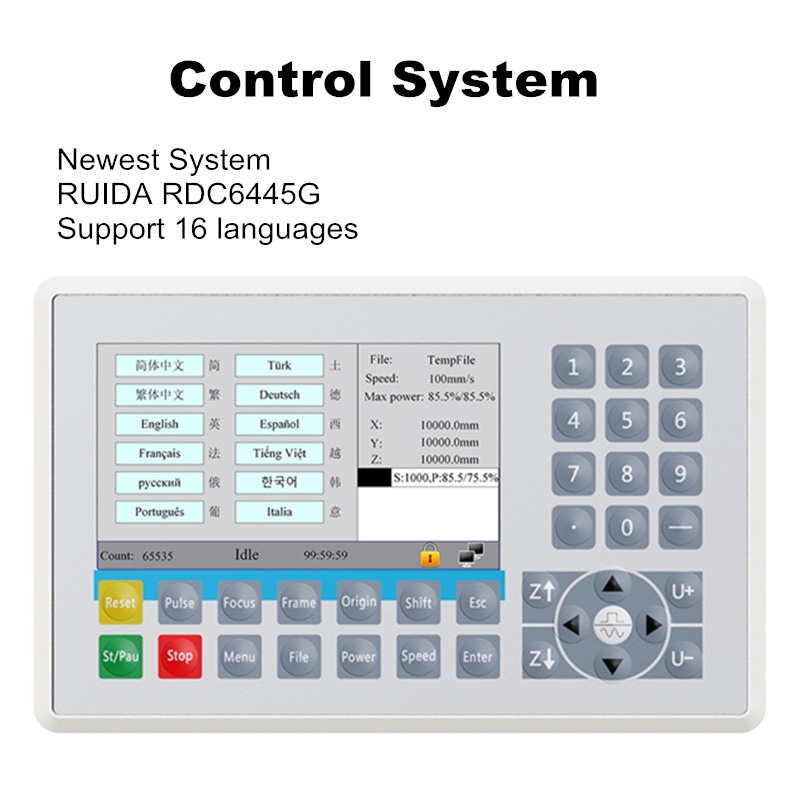

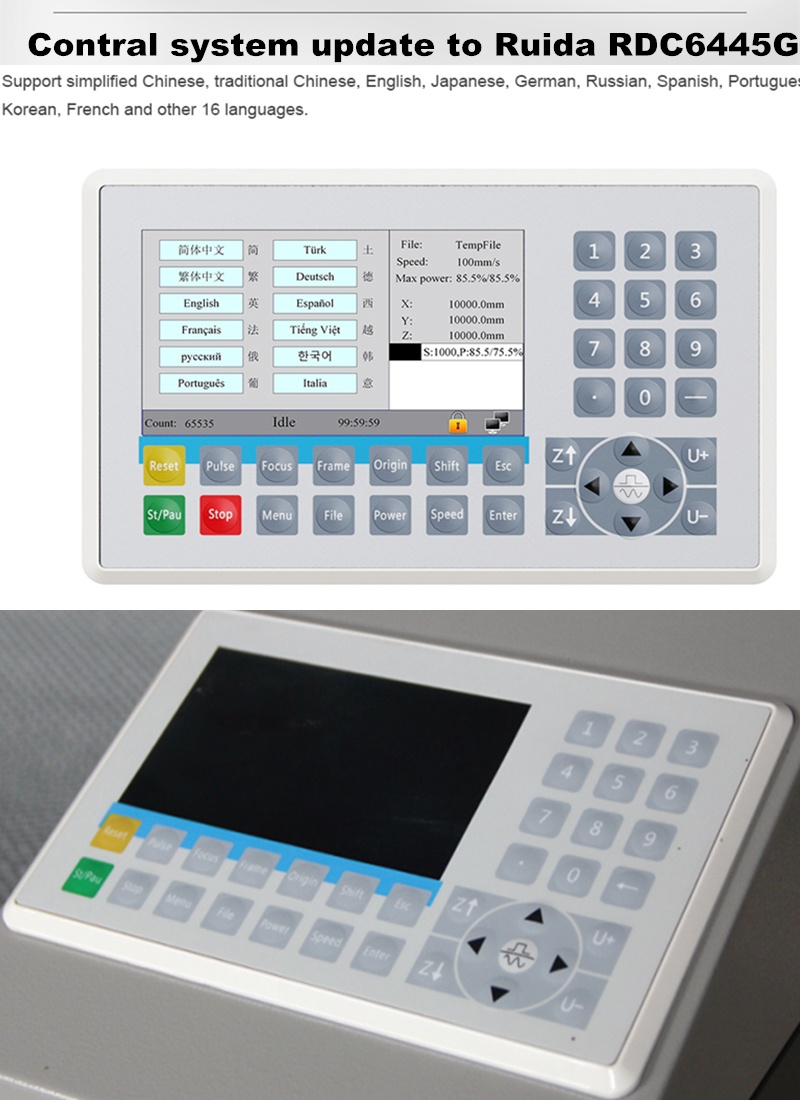

• NEW! System upgraded toRDC6445G Touch screen 5 inch control

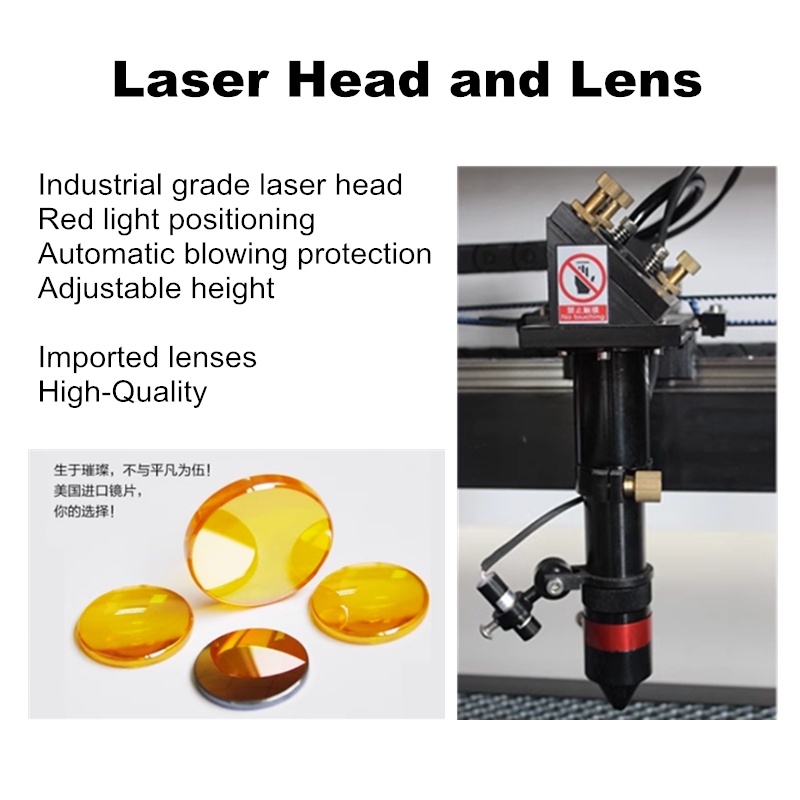

• NEW! Inline Beam Combiner precisely illuminates a red dot over the material for improved accuracy and alignment!!!
• NEW! Emergency Stop Button!!!

• More friendly control panel with Color Screen
• Separation of cutting up to 256 Colors

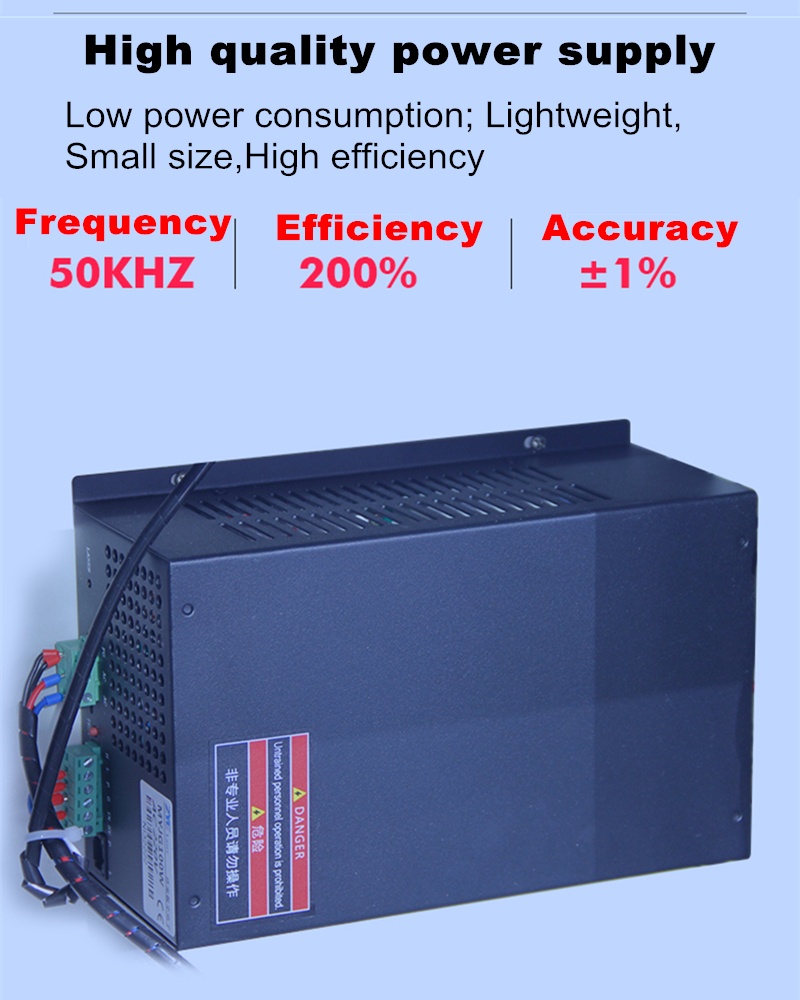

• Adopt advanced DSP digital control system, international standard laser power supply, integrated framework style
• Illuminated LCD panel for automated laser head control
• Motorized Z-Table lowers for larger materials
• Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
• USB Interface, U-Flash Disk Supported, Machine will read files from memory stick, you can work even without a PC.
• Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
• Embedded Exhaust Fan, Easier install, Safer transport.
• Drag – and – chain transmission line

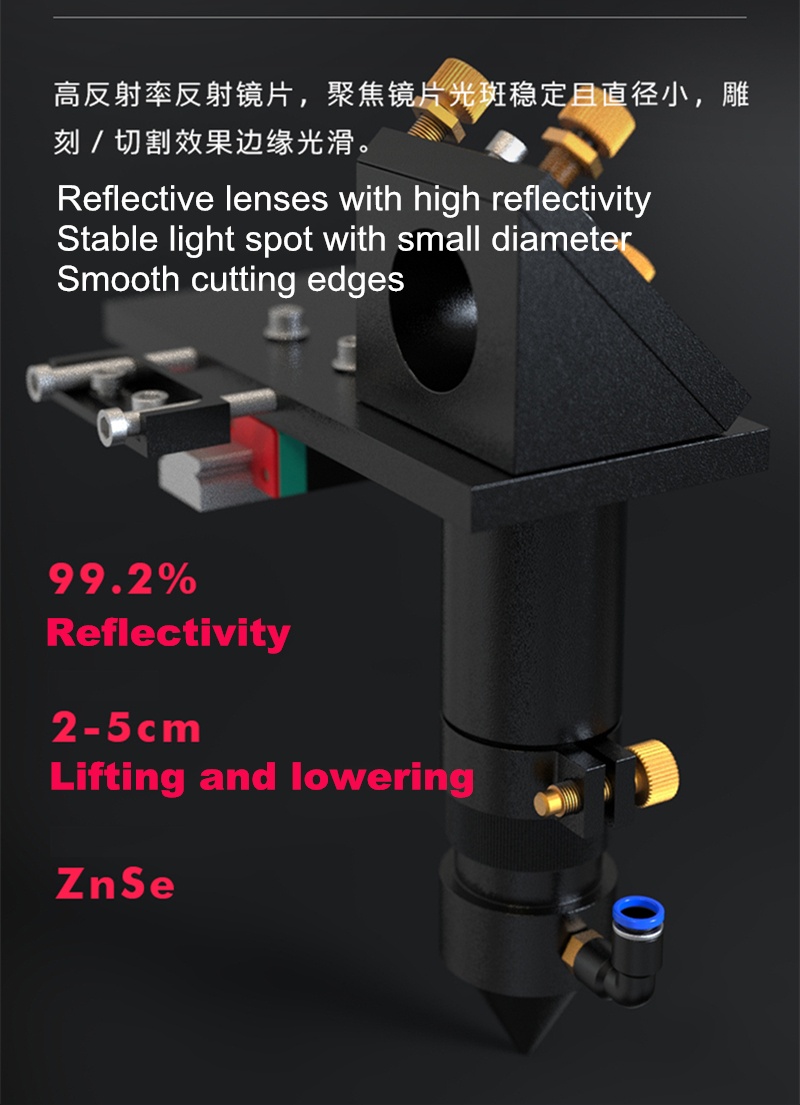

• Laser focal length: 5CM

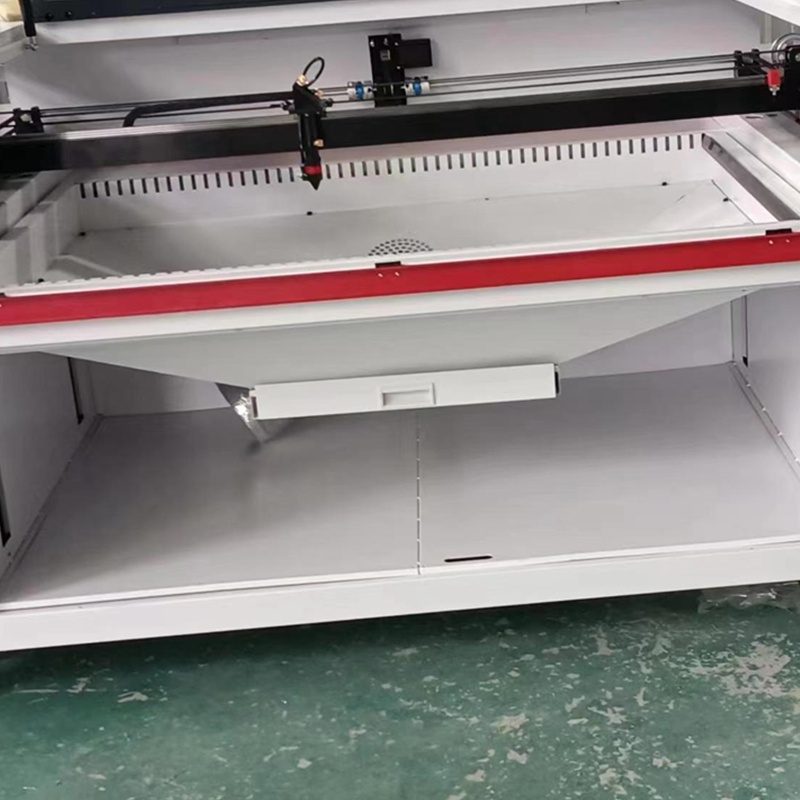

• Convenient vacuum table under the Z-table collects finished product into sliding tray
• Aluminum knife platform included for securing maximum material capacity
• Machined parts in stock for long term service and reliability

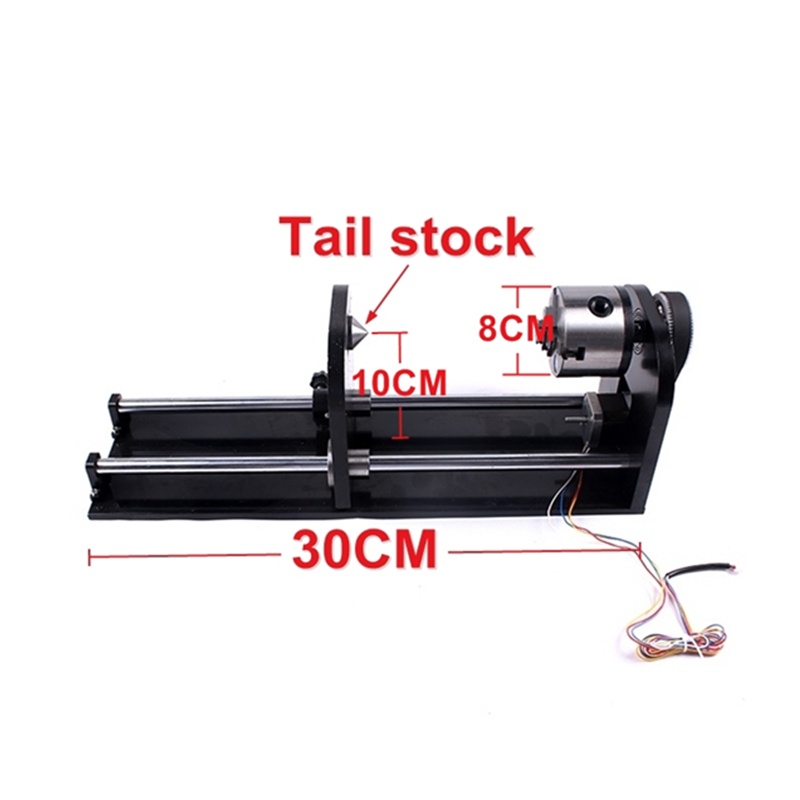

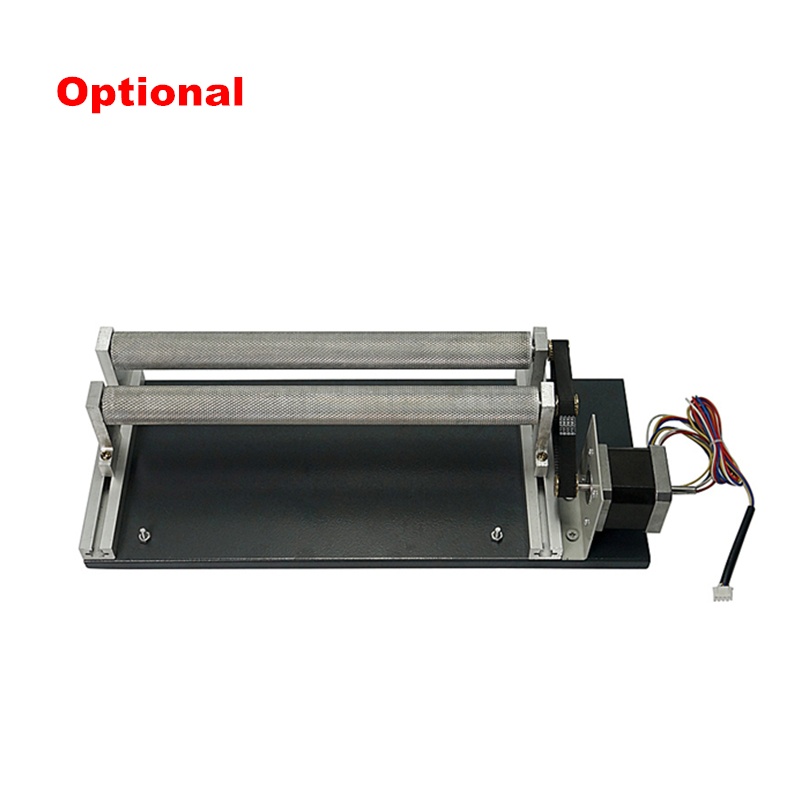

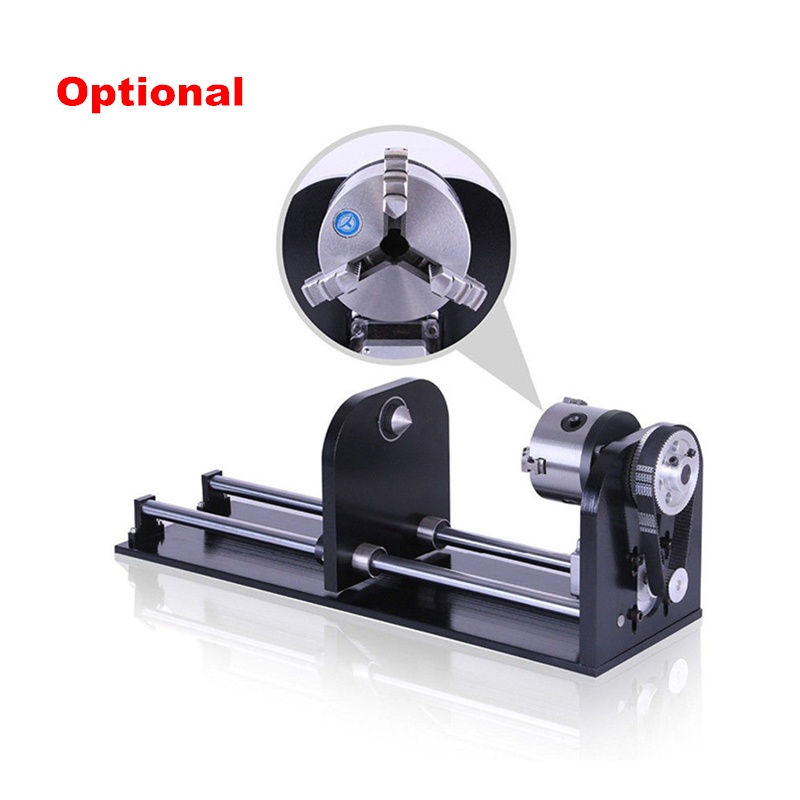

• Roller attachment for etching cylindrical objects
• Dedicated technical support from qualified service technicians and engineers
• Free Lifetime Tech Support via. phone, email, chat, or remote computer access
• Machine service life: 7200H at least for laser tube, 5-8 years for machine body
• 1-Year Warranty covers parts replacement

Parameter:

Laser type :CO2 laser engraving machine

Total power <1000W

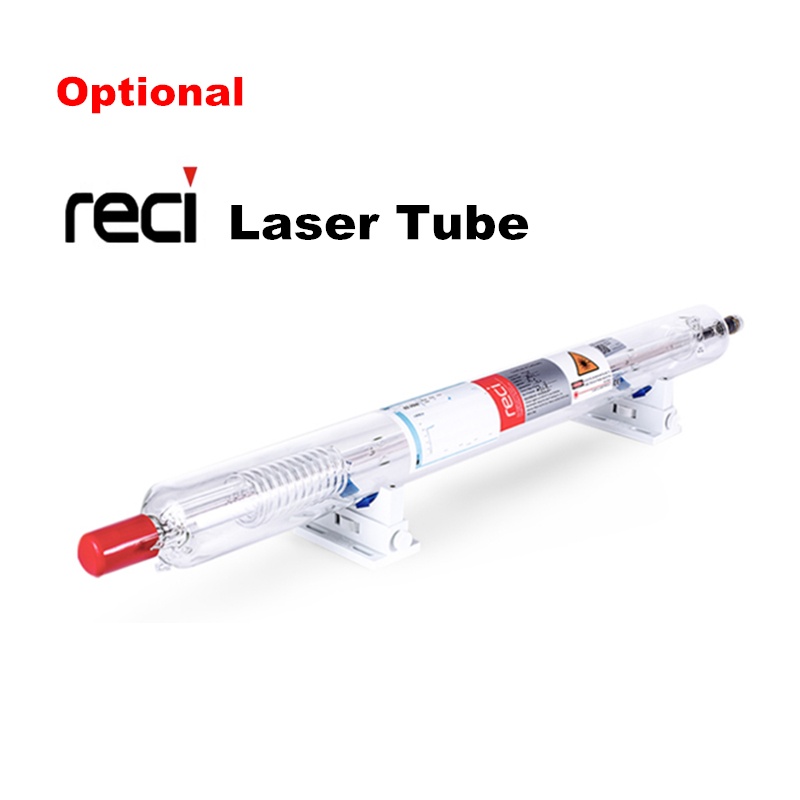

Laser power : 60W/80W/100W/130W/150W
Laser tube working time :7000-10000 hour
Power supply : AC 220V/110V
Working area :600*900 mm
Engraving depth :0-30 mm (different material differ)

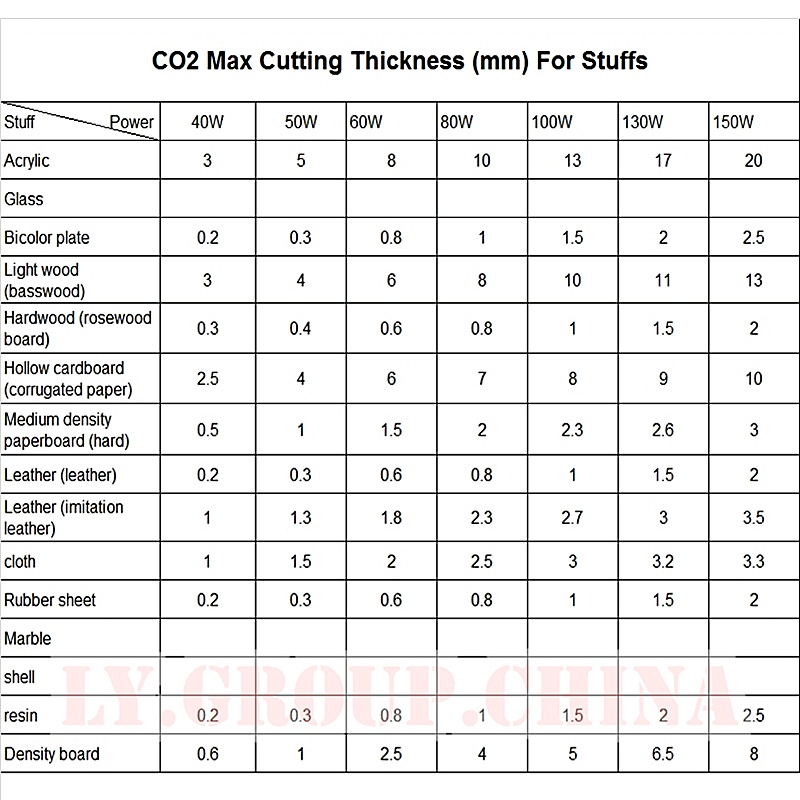

Cutting depth :0-20 mm (different material differ)
Engraving speed :0-1000mm/s (different material differ)

Cutting speed :0-300mm/s (different material differ)
Lifting platform :0-200 mm Honeycomb Worktable
Locating precision :± 0.1mm
Min shaping character Character: 1mm
Working temperature :5℃-45℃
Working humidity :5%-98%

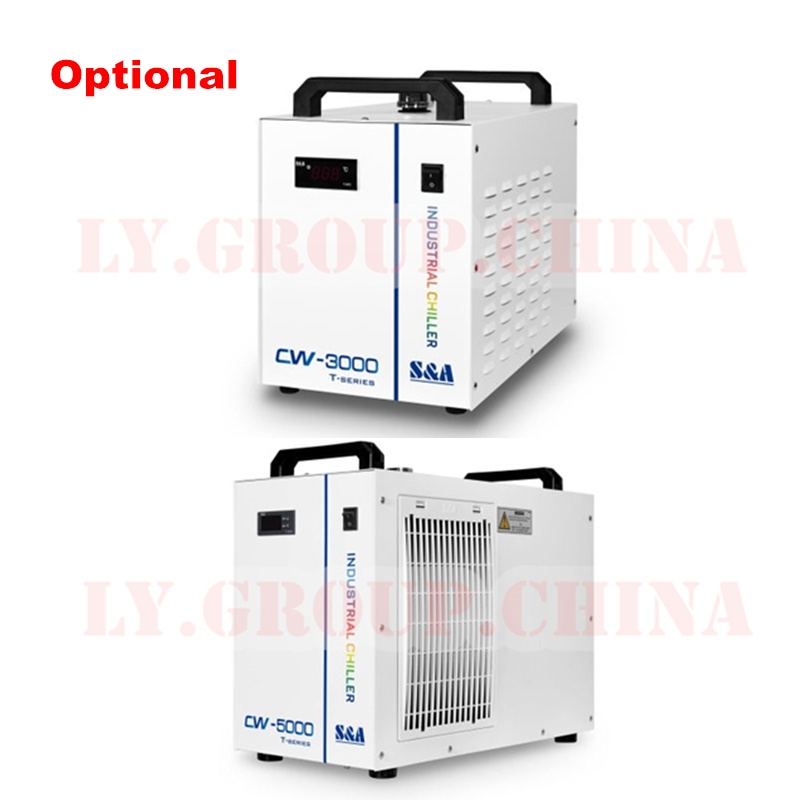

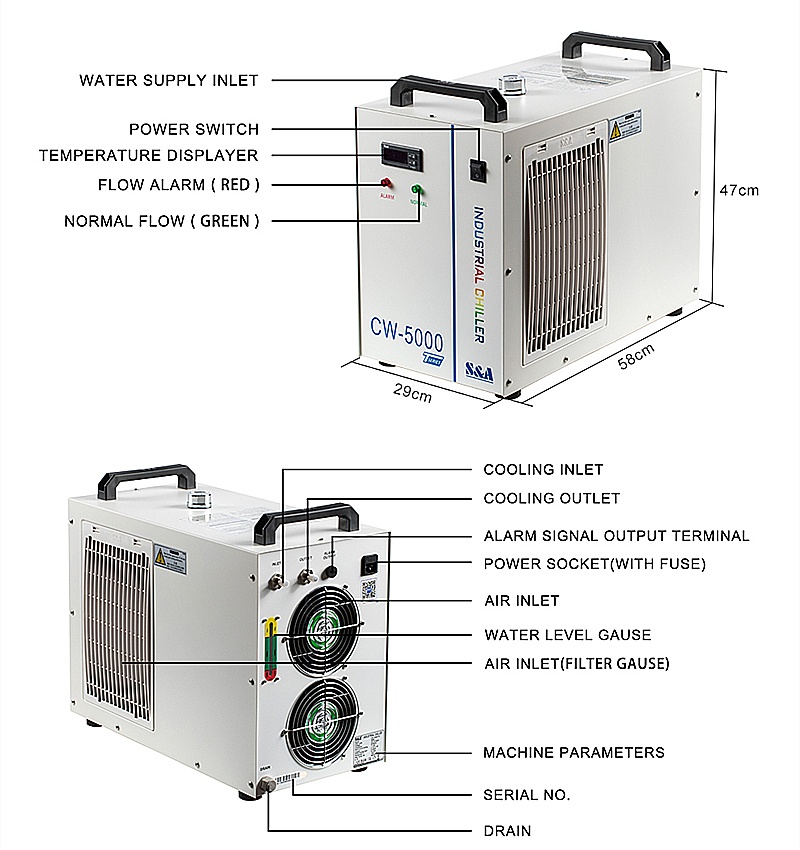

Cooling : Optional Water Cooling and protection system with CW3000/CW5000 chiller
Graphic Format :Supported BMP,PLT,DST,DXF,Al

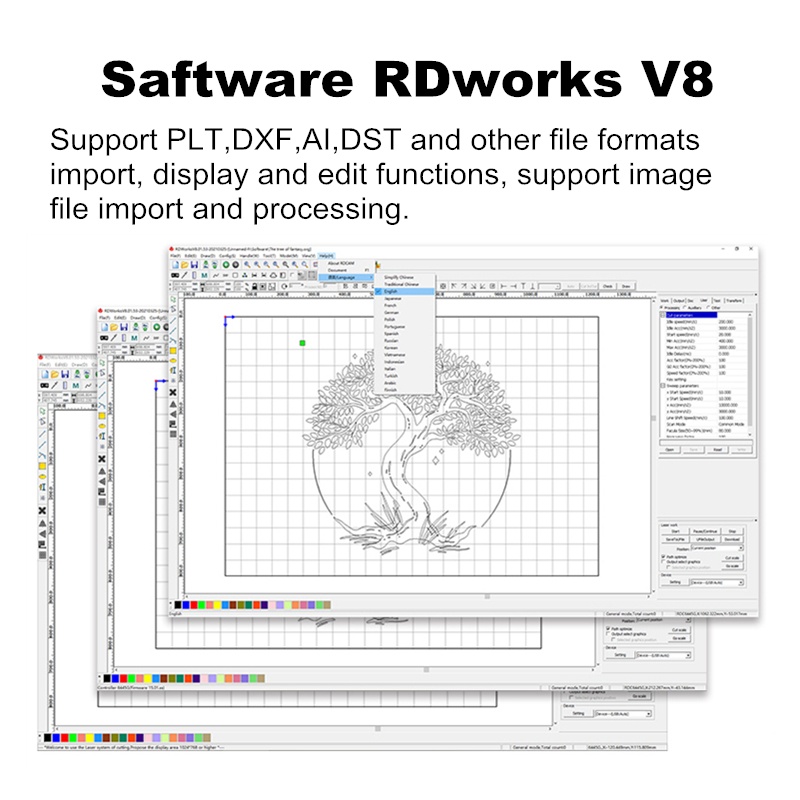

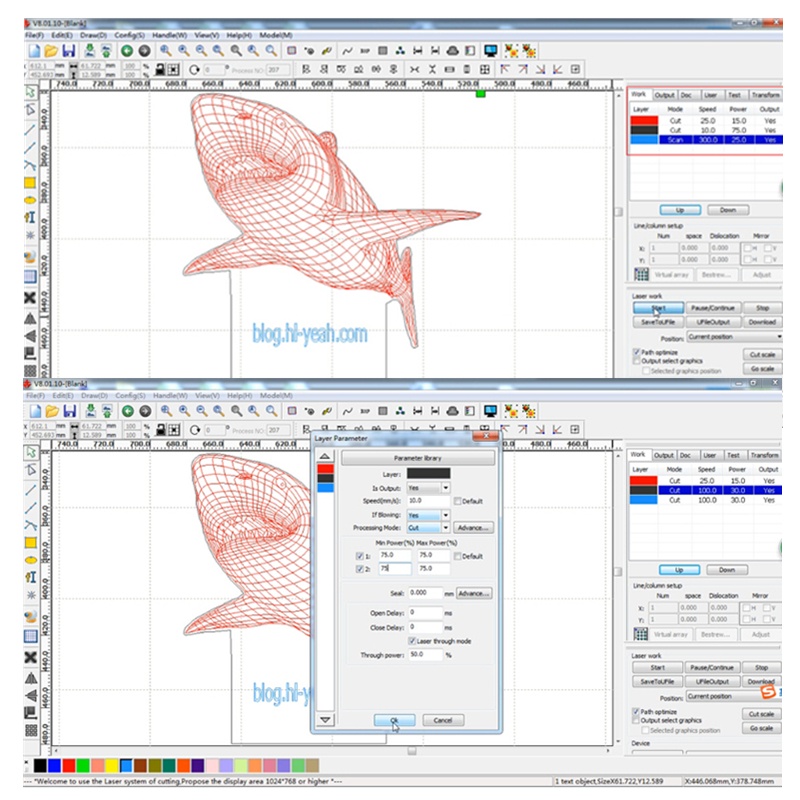

Work software :RUIDA works (RDworks)
Color separation :Yes
Auto-focus: Optional
Protection :Emergency stop button and Stop working when water broken

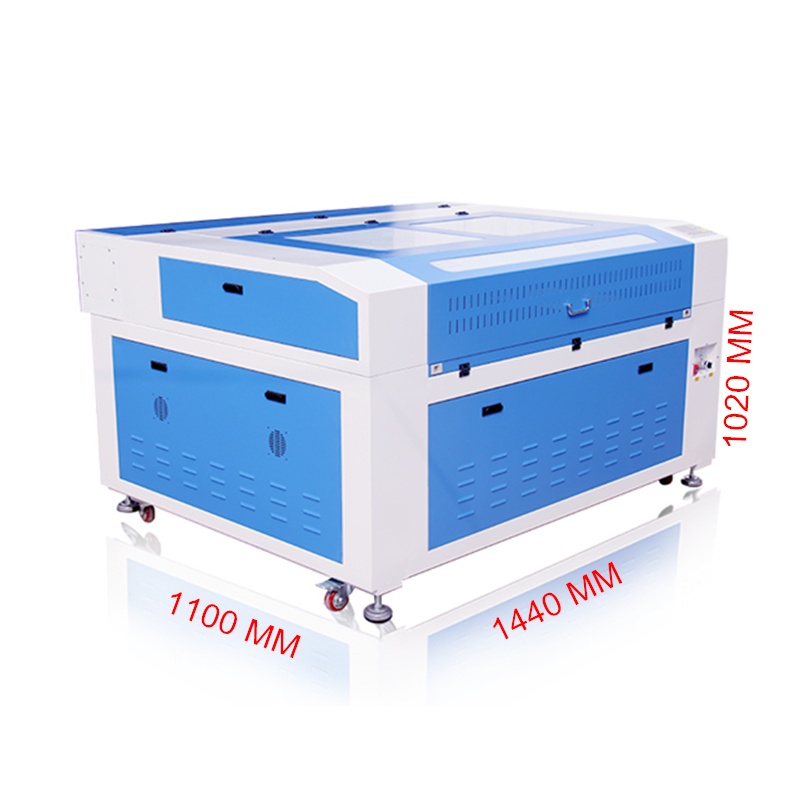

Machine Dimensions :1440*1100*1050 mm
Machine Package :Wooden box with foam inside
Package Dimension :150*115*110cm
Gross weight :250KG
CW-3000/5000 Chiller Package :Carton box with foam inside
Package dimension :63*53*35CM
Package weight :30KG

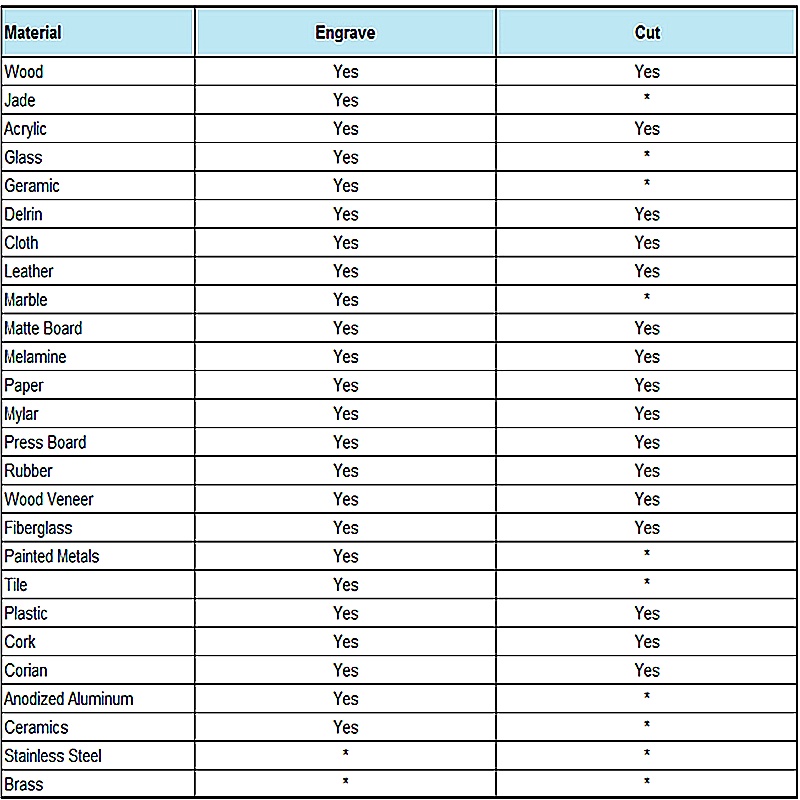

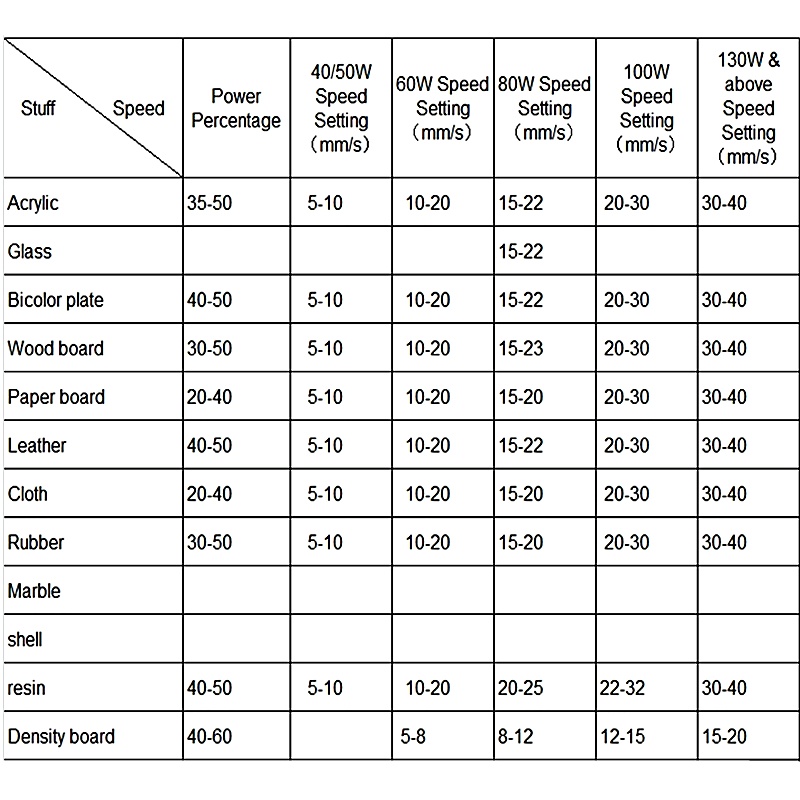

About the material ( “*”means you have to use a spray called “thermark” to spray the surface of the material and then you can mark on)
