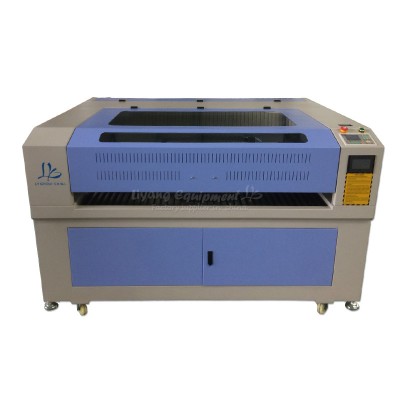

Free shipping by SEA CFR ITEM LY 1390 PRO metal and nonmetal CO2 laser mix engraving cutting machine with power 150W 180W 280W tube as optional off-line function

Free shipping by SEA CFR ITEM LY 1390 PRO metal and nonmetal CO2 laser mix engraving cutting machine with power 150W 180W 280W tube as optional off-line function

item ID: 59681
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(3)
USD$8600
Payment

Product Detail

Product Tags

Free shipping by SEA CFR ITEM LY 1390 PRO metal and nonmetal CO2 laser mix engraving cutting machine with power 150W 180W 280W tube as optional off-line function

1. Features:

Intelligent design software is installed, could help to process fast, save materials, make design files easily.

Best RECI/LY tube can provide stable laser beam, can work longtime

with stable cutting effect.

The latest software is compatible with AutoCAD Coreledraw, etc. which support original

file output directly, or definite the command of cutting by different colors to finish segment

or full image output.

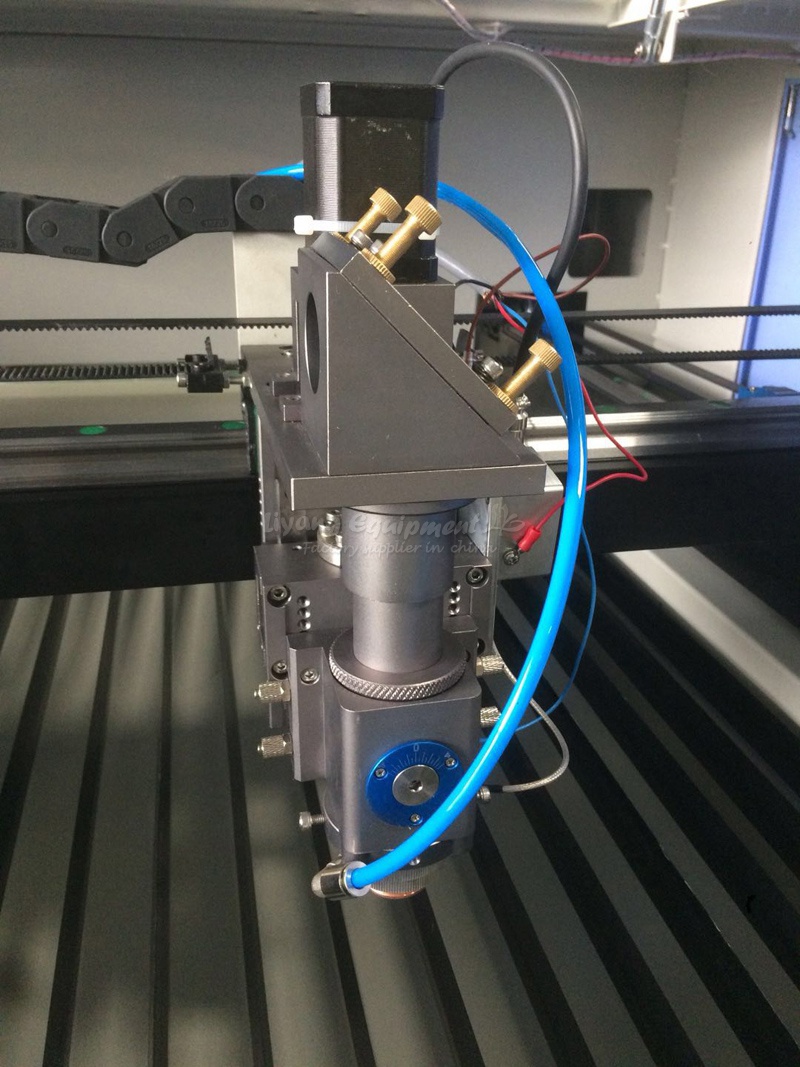

Special follow up laser cutting head, which can sense a distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance for



Technical parameter

Model LY-1390 PRO
Working Area 1300*900mm
Laser Power Brand:RECI    150W(Model:W6)/ 180W(Model:W8)
Brand:LY         280W(Model:W12)
Laser Type CO2 Sealed Laser Tube , 10.6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-36000mm/min
Laser Output Control 0-100% Set by Software
Min. Engraving Size Chinese: 2.0mm*2.0mm,English Letter:1.0mm*1.0mm
Highest Scanning Precision 2500DPI
Locating Accuracy ≤±0.01mm
Controlling Software DSP Control System
Graphic Format Supported DST. PLT. BMP. DXF. DWG.AI. LAS,etc
Compatible Software CORELDRAW,PHOTOSHOP, AUTOCAD, TAJIMA ,etc.
Color Separation Yes
Drive System LeadshineHigh-precision 3-phase Stepper Motor
Auxiliary Equipment CW5200Chiller (150W/180W)
CW6000Chiller (280W)
Airpump,tool box
Power Supply AC 220V+10%,50HZ/60HZ
(110V need to add transformer)
Working Environment Temperature:0-45C,Humidity 5-95%(No Condensate Water)



Packing:

Machine will be clean and fixed on the wood board, every auxiliary parts will be packed by film, laser tube will set in one independent box , and fixed by sponge.Then,machine will be surrounded by the film and air rubber film,after that, will packed by the standard export plywood.Finally, will surround by the metal line again. The machine will be protected well.



Shipping:

•Sea Transportation

•Land Transportation

•Air Transportation



Warranty:

1. The total machine guarantee for 2 years, Laser tube for 10 months, change the free parts within warranty.(RE:Not included consumables & man-made accidence)

2. Supply Full English manual and video.

3. Providing professional service to customers, technical help will be solved by Skype, Whats app, E-mail, Phone,wechat Video, so etc



General Packing list:

Tool box x 1 (Wrech,Power cable,CD so ect)

Manual x 1(If not get send PDF file)

Air pump x 1

Exhauster x 1

Chiller x 1(5200 or 6000 based on power)



You need to know this well before purchase:



  1. 1.   Can cut:Stainless steel.carbon steel,galvanized steel.(This is the most important character!)

Can engrave:glass,marble,stone,gravestone.

Can engrave and cut:Acrylic,perspex, glass,plywood,die board, MDF, leather,fabric, garment,paper, cloth, dual-color boards.etc.



Usually 150W can work 1mm metal

180W can work 1.5mm metal

280W can work 2mm metal



(RE:We can also make dual heads machine with different powers if need can make deeper contact !)





2.Optional parts need to add extra cost :

(If need can contact with seller later after payment of machine just before delivery is ok.)

Rotary axis (More $250)

Honeycomb board(More $100)

110V transformer (More $200)



3.Due to the machine is very big volumn,so the delivery will by SELASER 1390 PRO Metal cutting (9) LASER 1390 PRO Metal cutting (10) LASER 1390 PRO Metal cutting (11) LASER 1390 PRO Metal cutting (12) LASER 1390 PRO Metal cutting (13)A/LAND/AIR,cannot be Express.



4.180W & 280W will have extend laser tube case little more longer than machine case.
