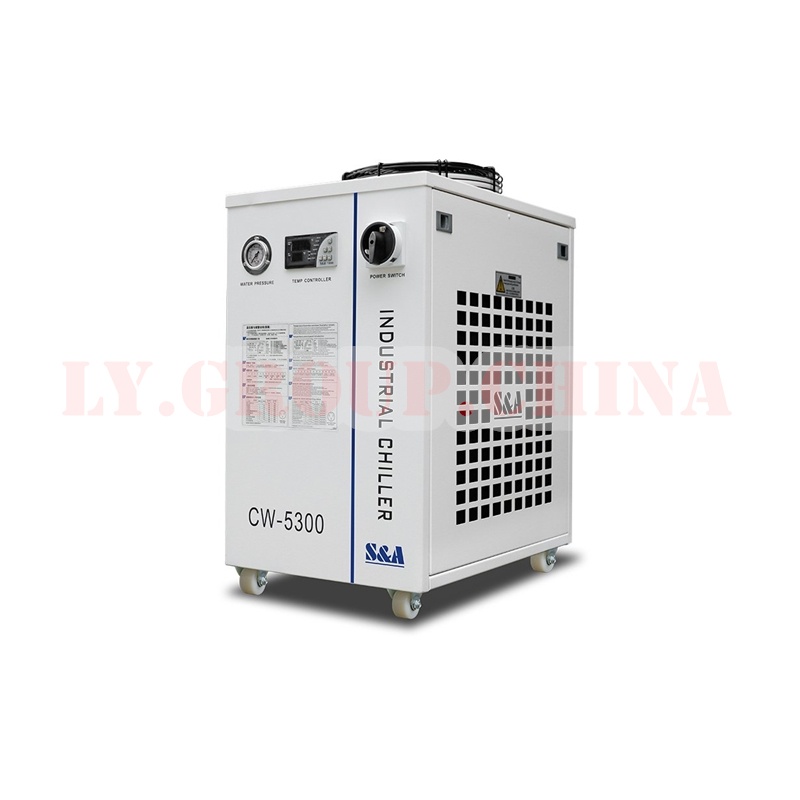

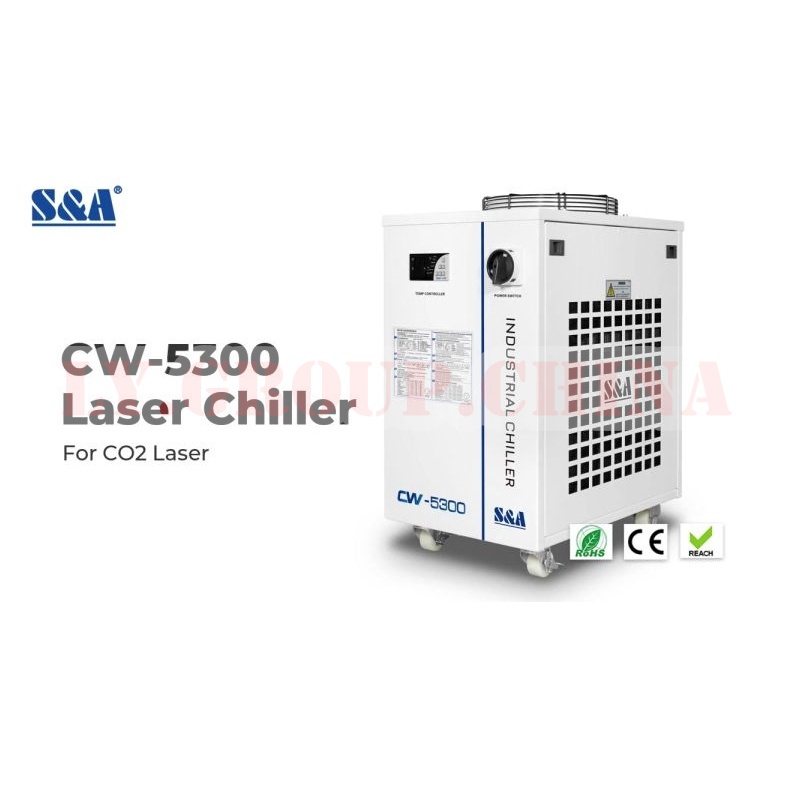

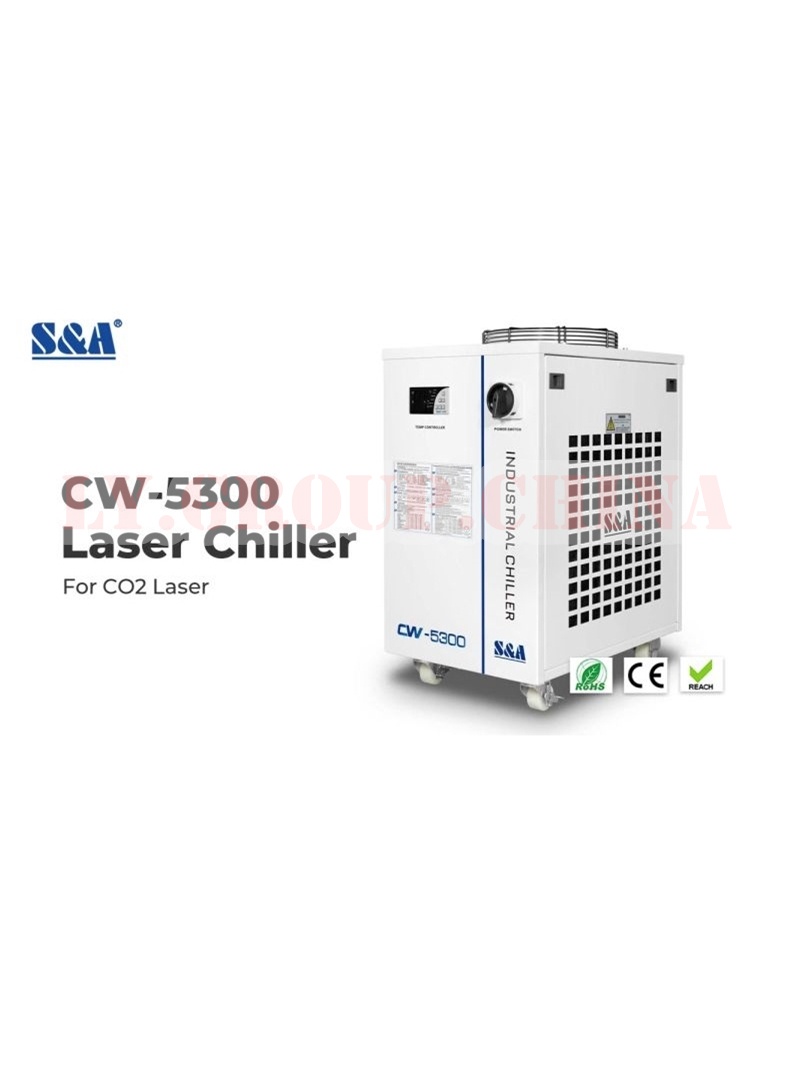

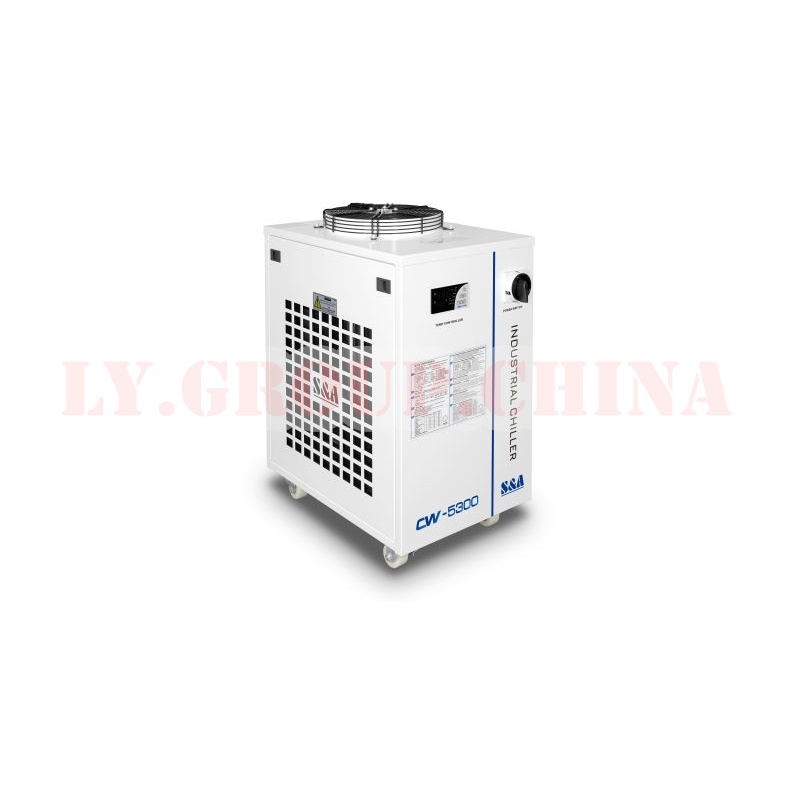

S&A Air Cooled CW – 5300 Series Process Cool Chiller for CO2 Laser Engraving Machine Thermolysis 200W Industrial Cooler for Glass Tube CNC Spindle Cooling

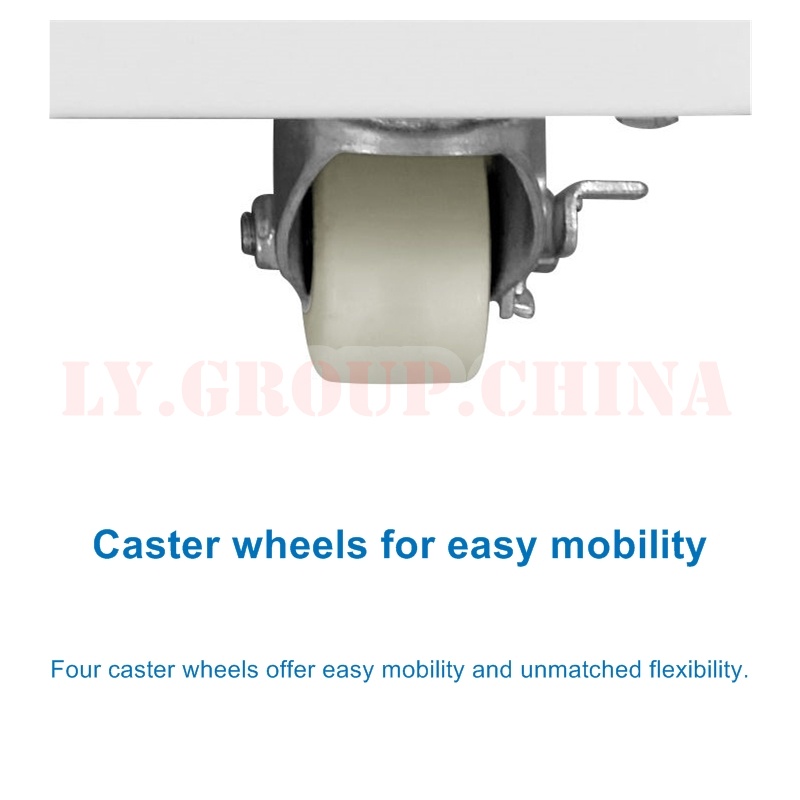

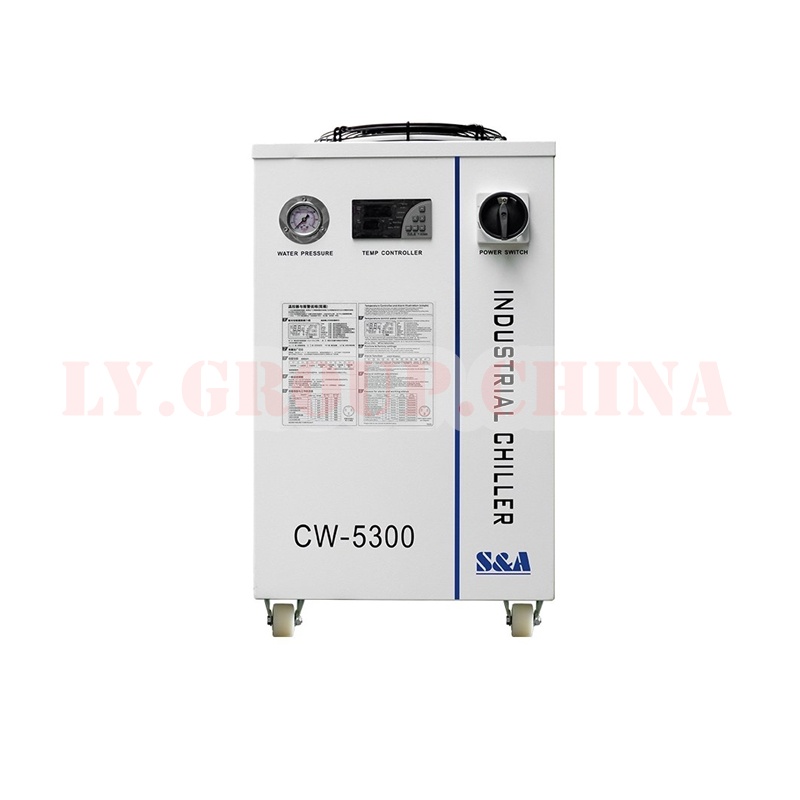

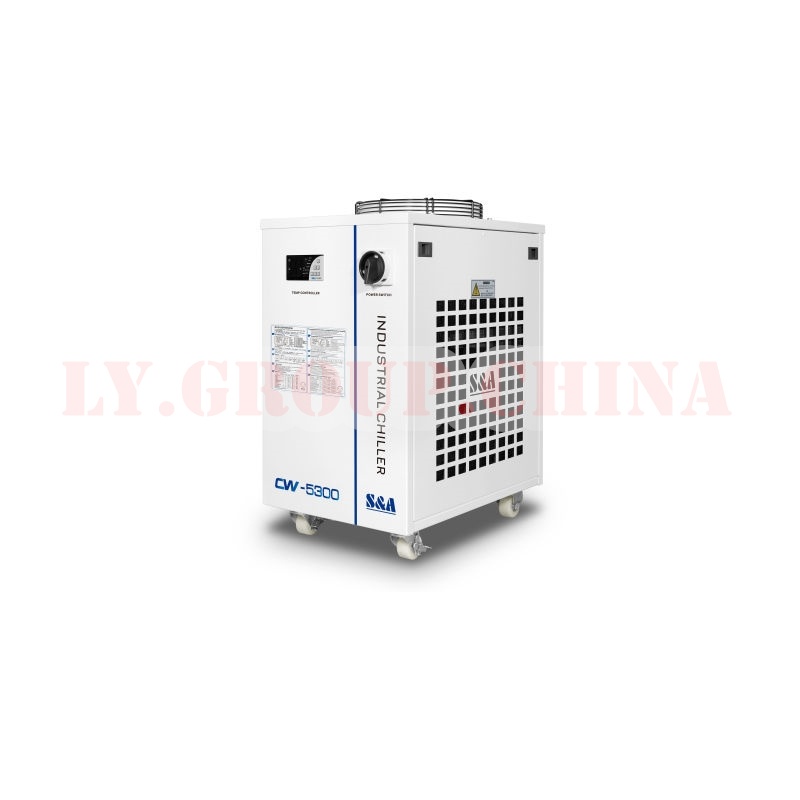

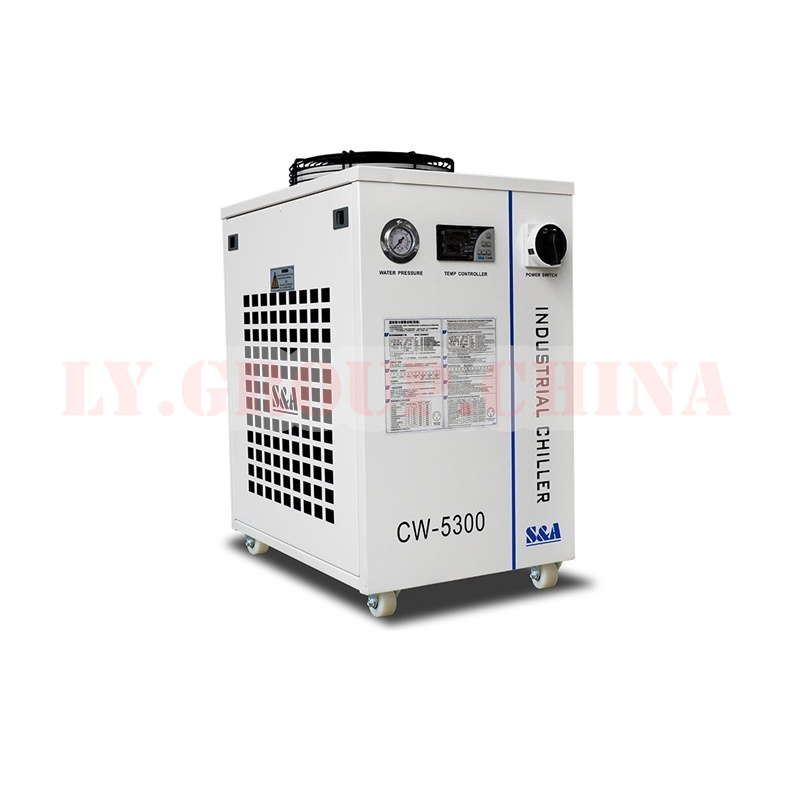

Air cooled process chiller CW-5300 can ensure highly reliable and effective cooling for 200W DC CO2 laser source or 75W RF CO2 laser source. Thanks to the user-friendly temperature controller, the water temperature can be automatically adjusted. With 1800W cooling capacity and ±0.3℃ temperature stability, CW 5300 chiller can help maximize the lifetime of the CO2 laser source. Refrigerant for this refrigerated water chiller is R-410a which is environmental friendly. An easy-to-read water level indicator is mounted on the back of the chiller. 4 caster wheels allow users to move the chiller easily.

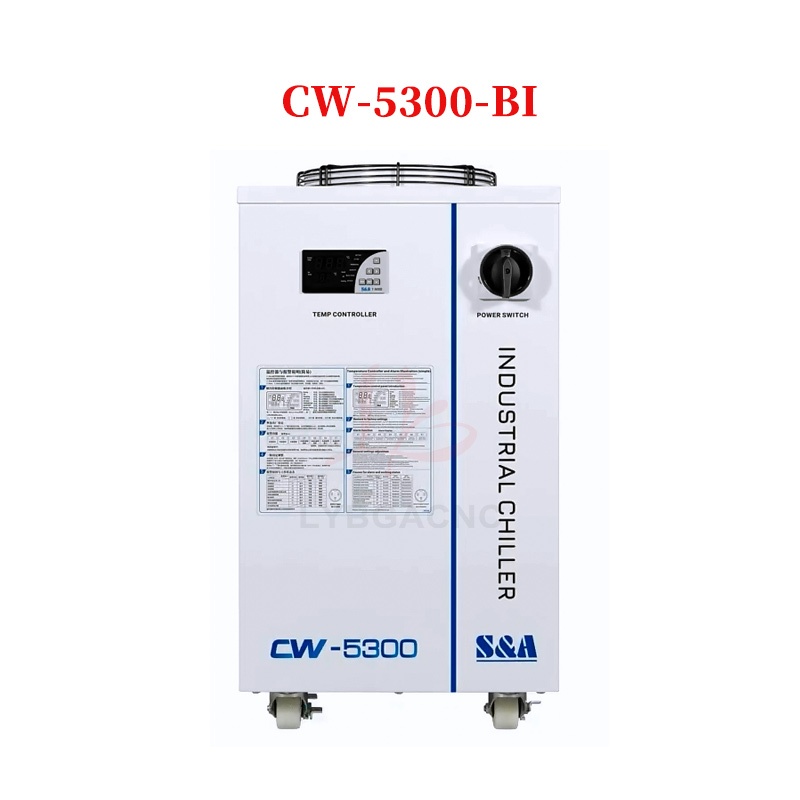

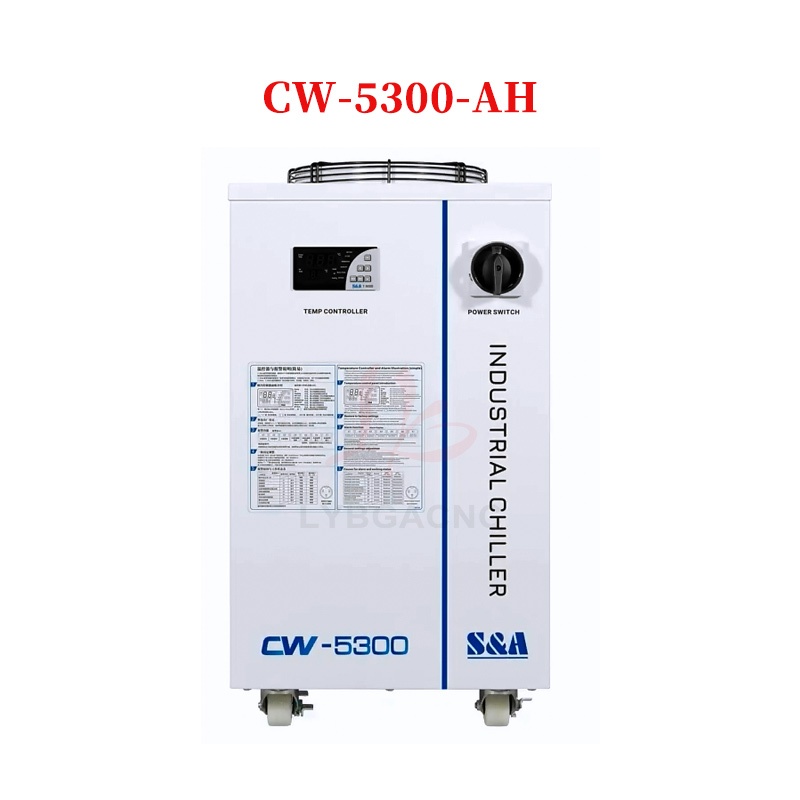

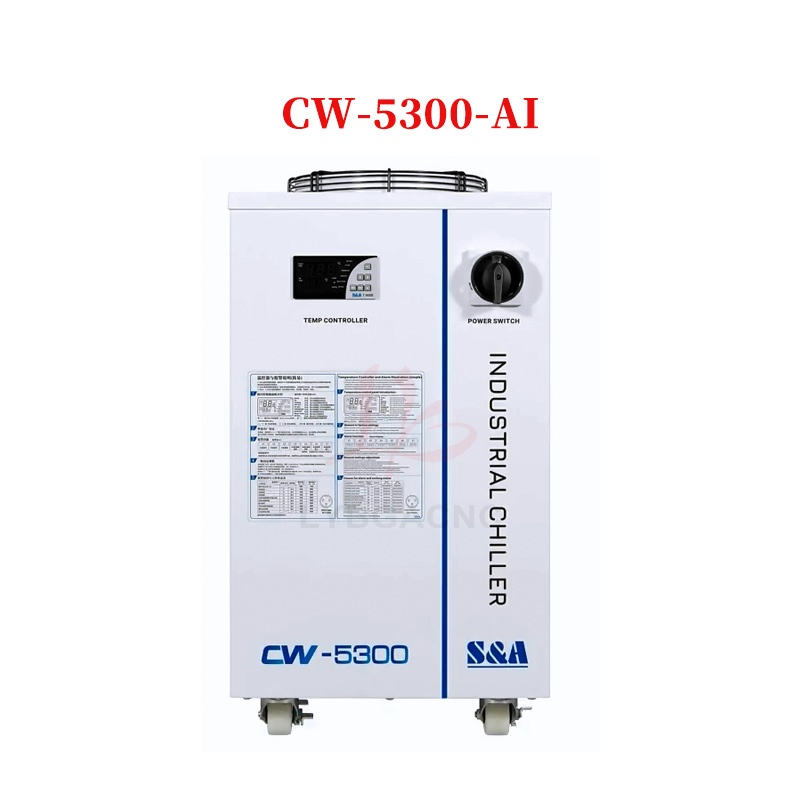

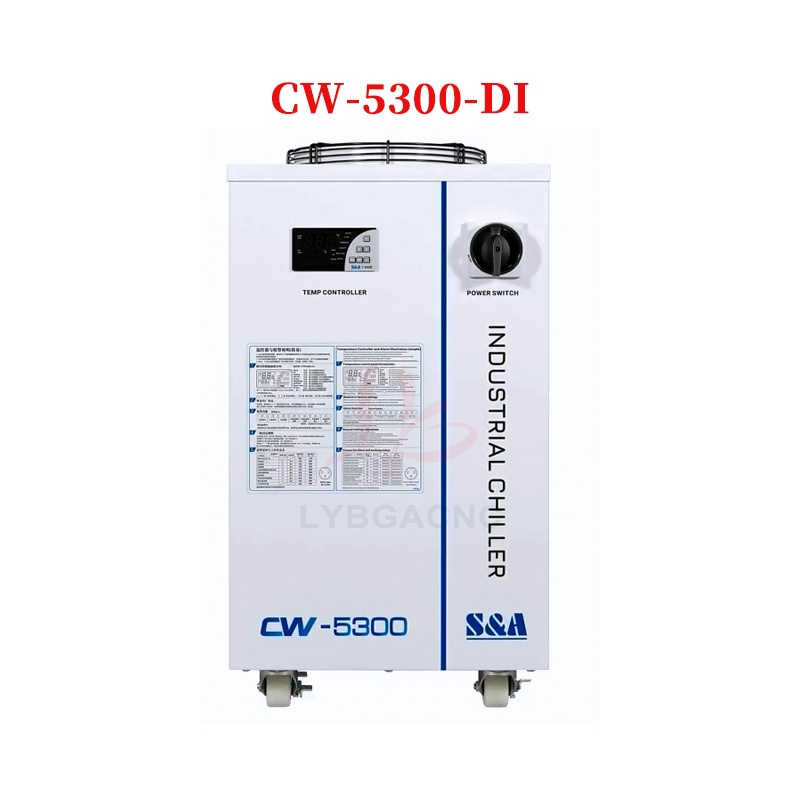

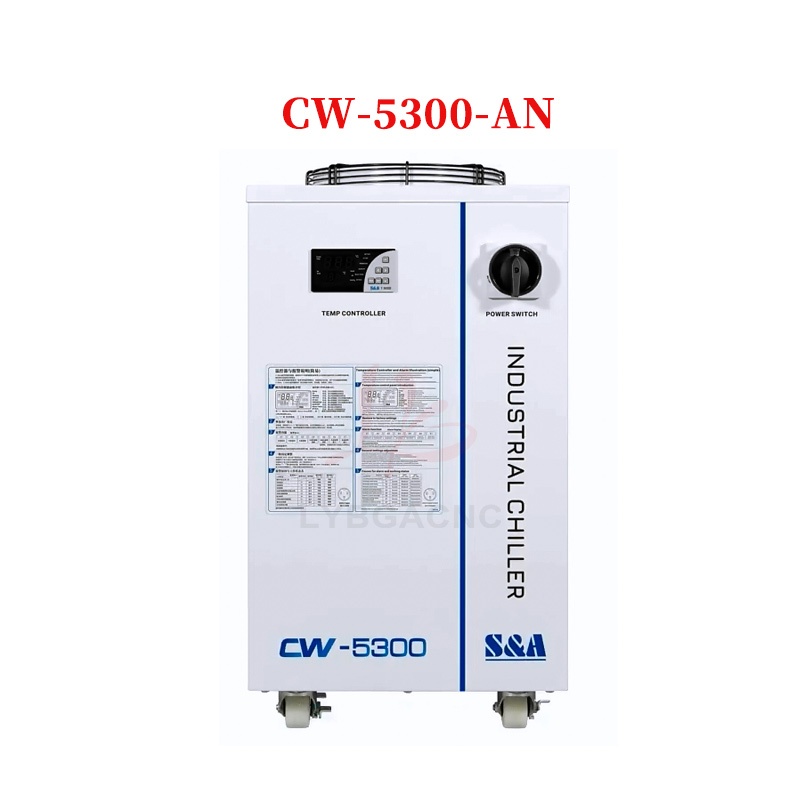

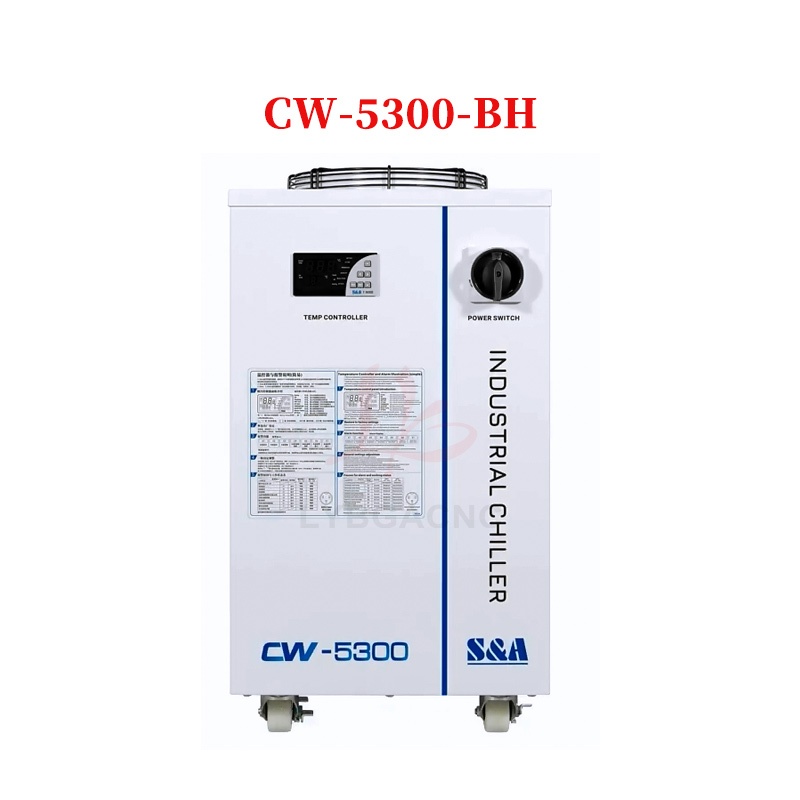

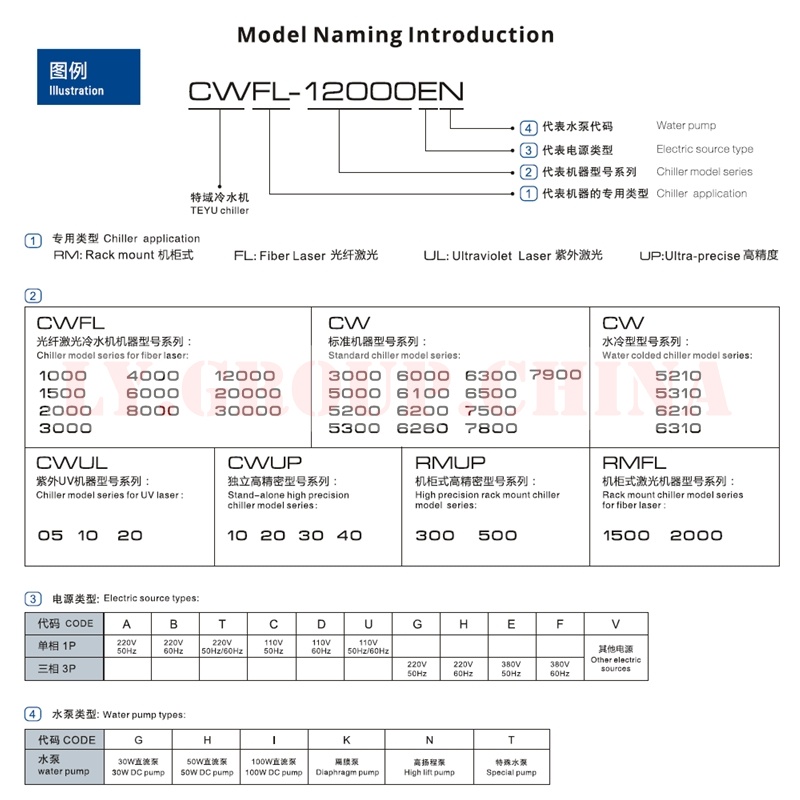

Model: CW-5300

Machine Size: 59 X 38 X 74cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 1800W

* Active cooling

* Temperature stability: ±0.3°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410a

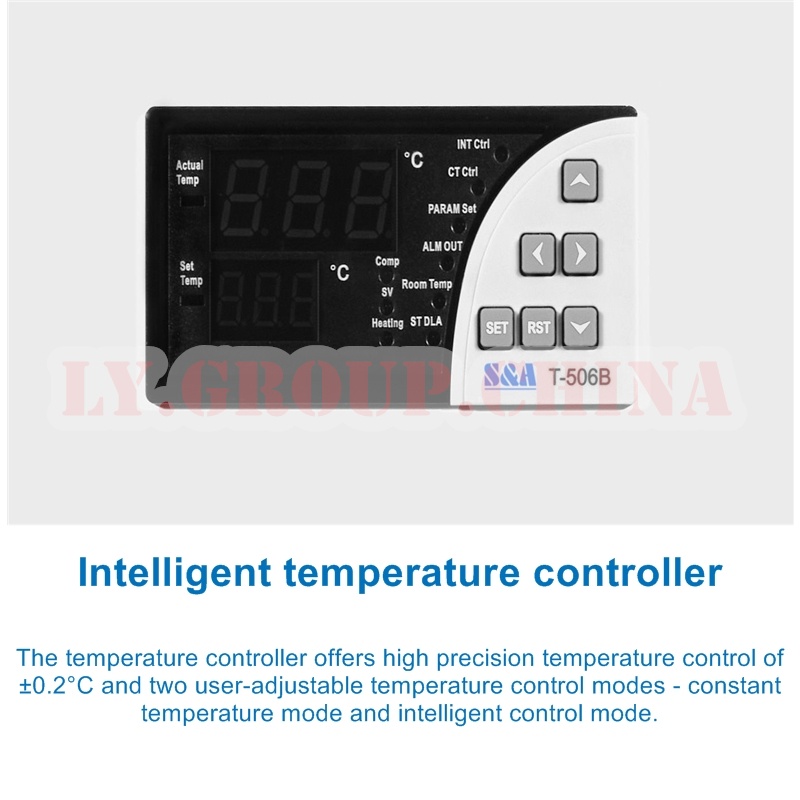

* Intelligent temperature controller

* Integrated alarm functions

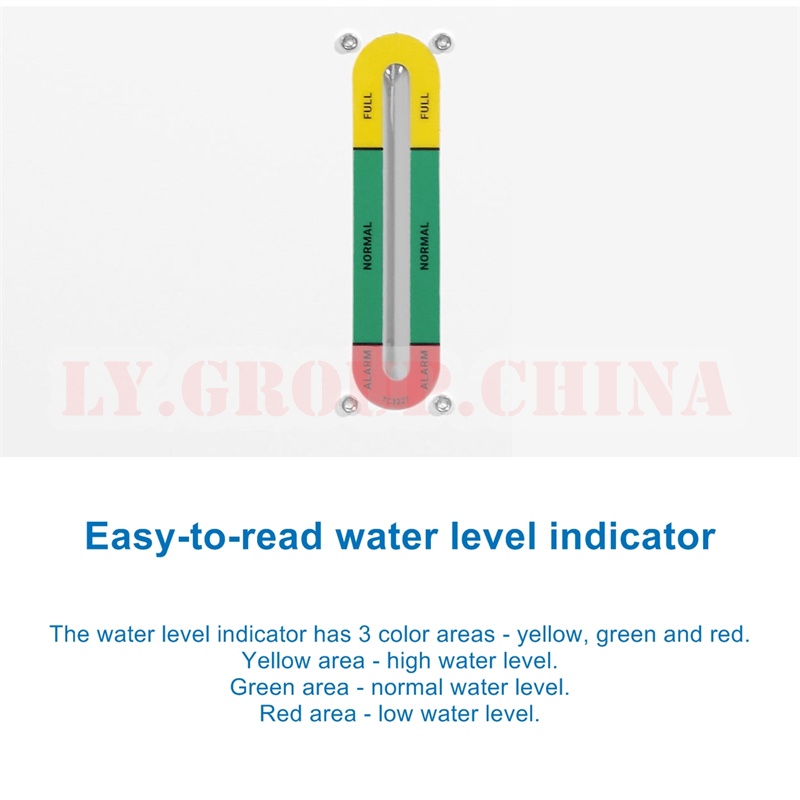

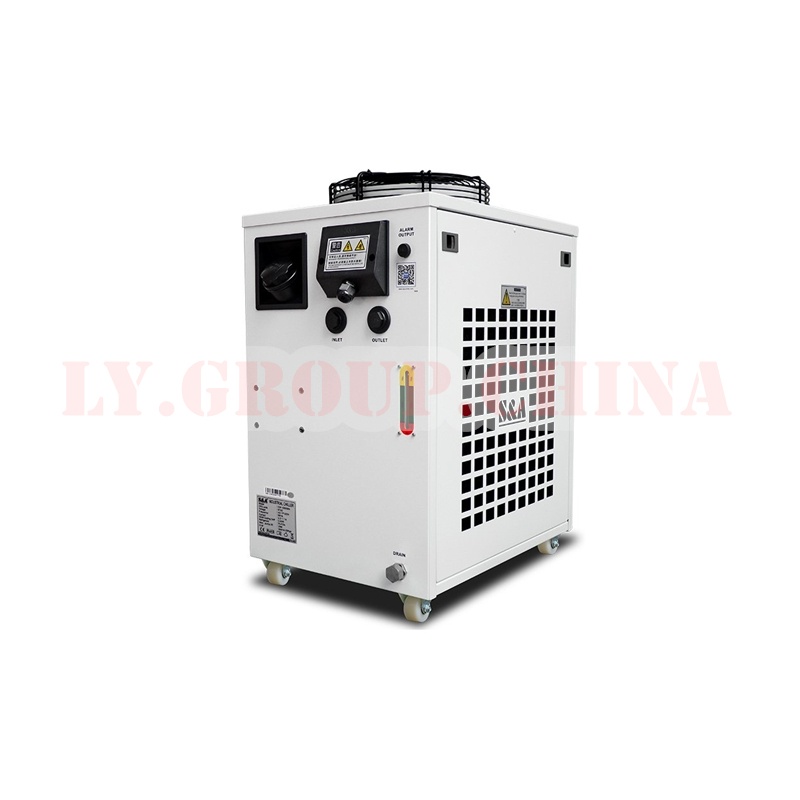

* Back mounted water fill port and easy-to-read water level indicator

* Low maintenance and high reliability

* Simple setup and operation

FAQ

Is S&A Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

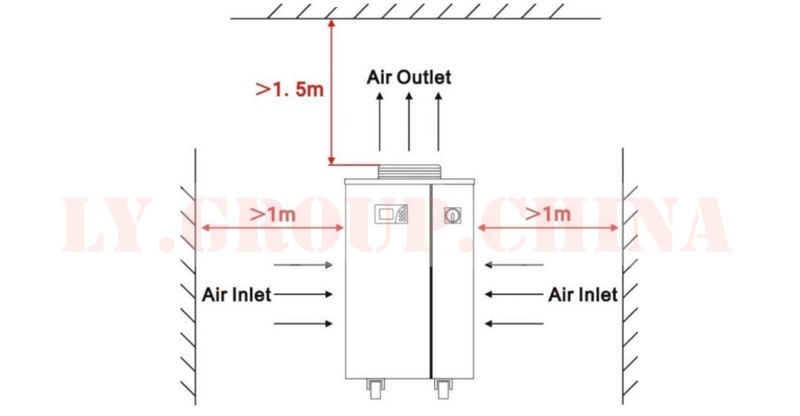

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller.
