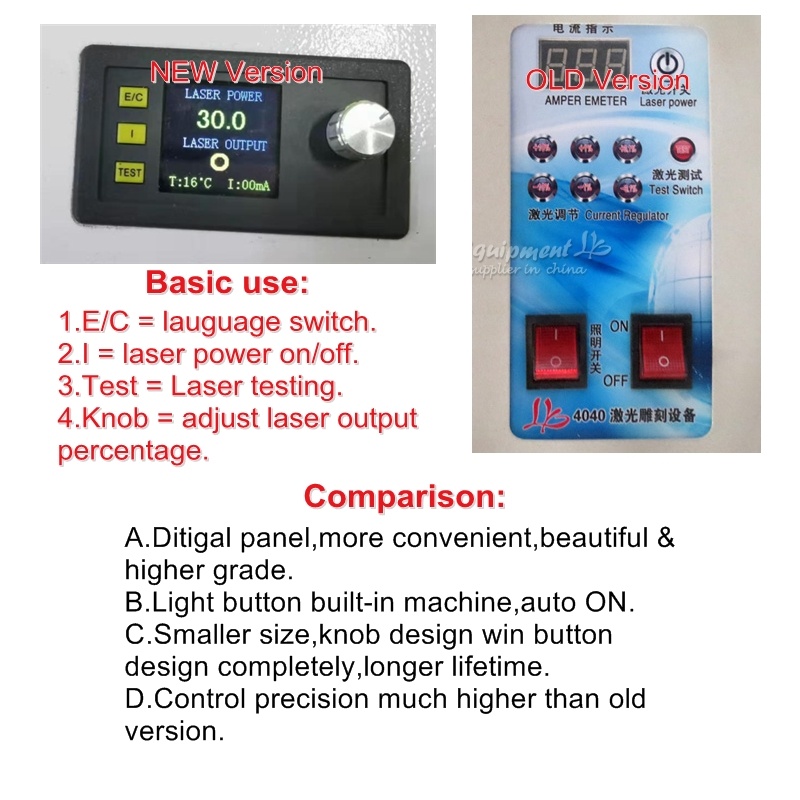

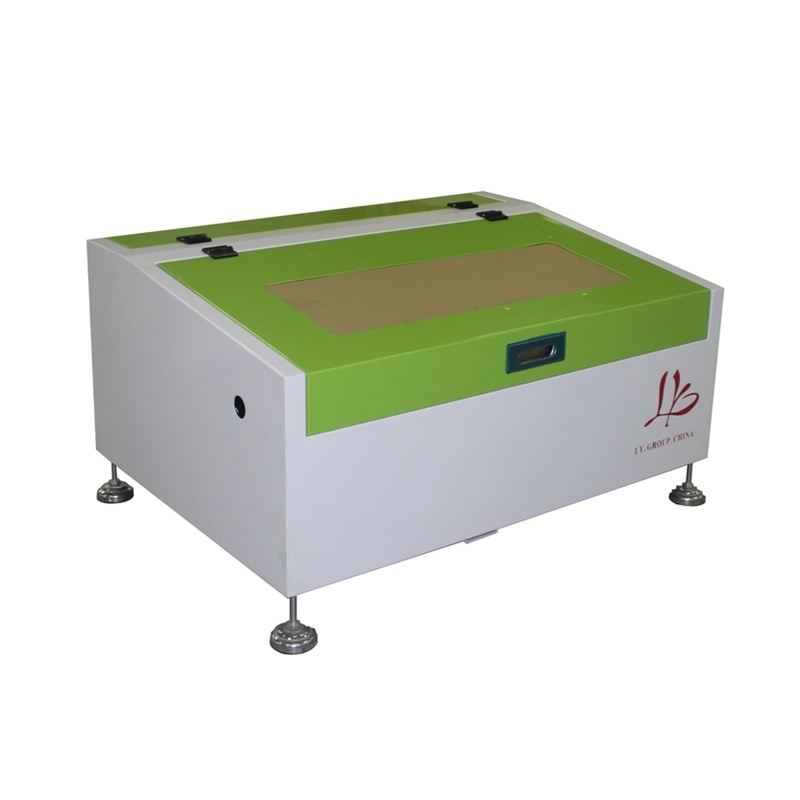

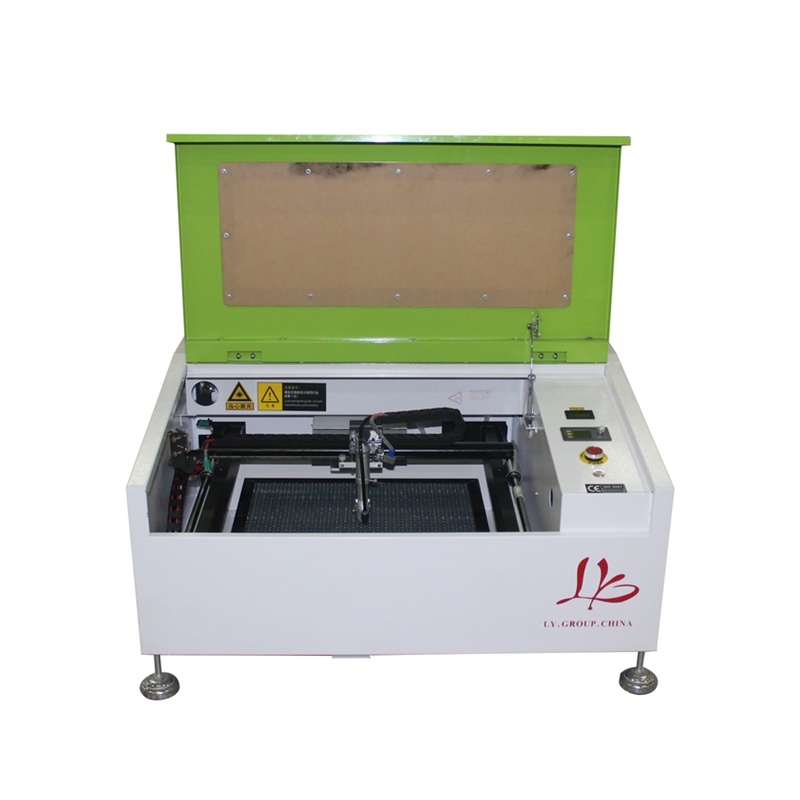

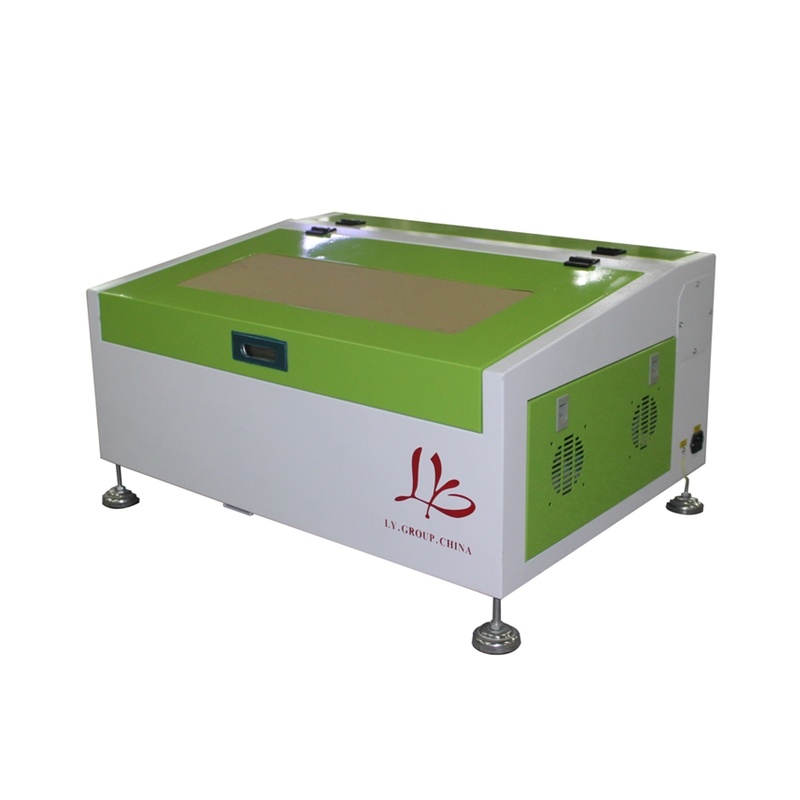

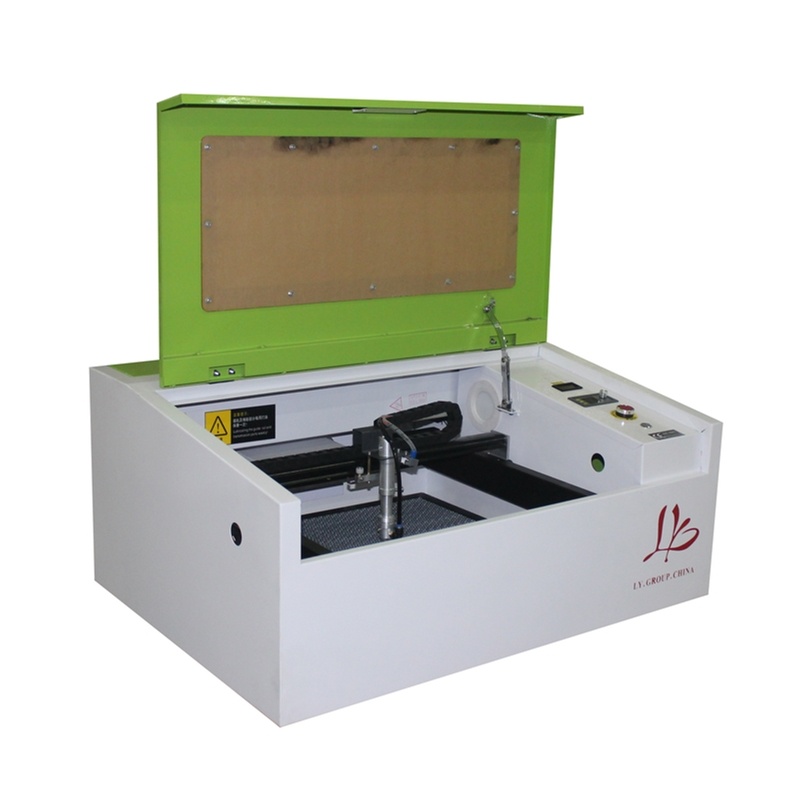

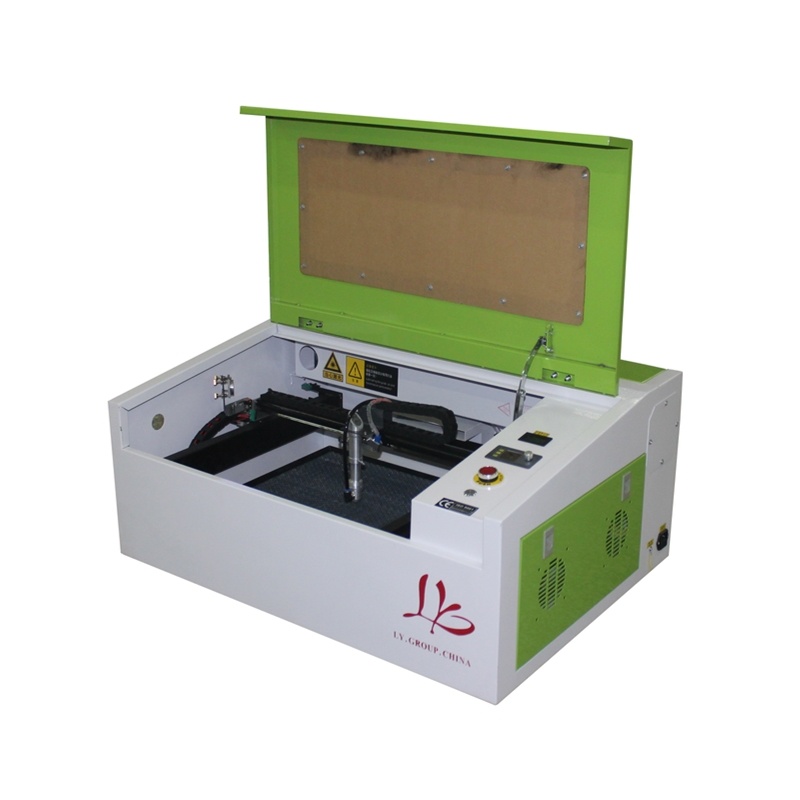

LY mini laser 3040/4030 40W CO2 Laser Engraver Engraving Cutting Machine with LCD control panel and Honeycomb board USB port Work Size 300*400mm

LY mini laser 3040/4030 40W CO2 Laser Engraver Engraving Cutting Machine with LCD control panel and Honeycomb board USB port Work Size 300*400mm

item ID: 70011
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1700 USD$901 (% off)
Payment

Product Detail

Product Tags

LY mini laser 3040/4030 40W CO2 Laser Engraver Engraving Cutting Machine with LCD control panel and Honeycomb board USB port Work Size 300*400mm



Working Table Size   300mmm *400mm
Laser Tube Sealed CO2 glass Tube

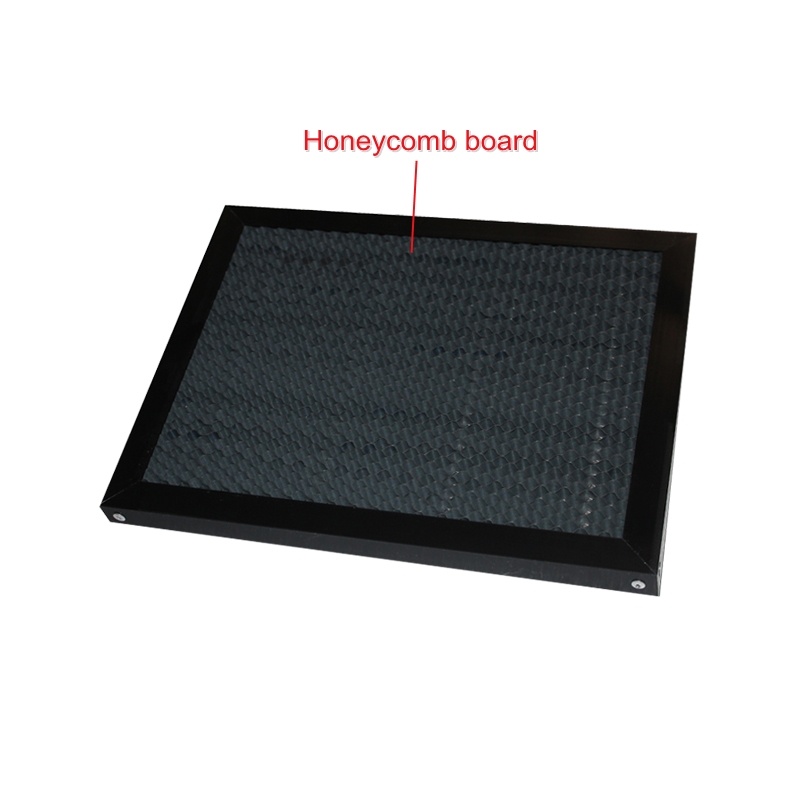

Working Table  Honeycomb
Laser Power      40W
Cutting Speed     0-60 mm/s
Engraving Speed     0-400mm/s
Resolution       ±0.05mm/1000DPI
Minimum Letter English 1×1mm (Chinese Characters 2*2mm)
Support Fils BMP,HPGL,PLT,DST and AI
Interface USB2.0
Software     Coreldraw /Laserdraw
Computer system Windows XP/win7/ win8/win10
Motor Stepper Motor
Power Voltage  AC 110 or 220V±10%,50-60Hz
Power cable European Type/China Type/America Type/UK Type
Working Environment 0-45℃(temperature)      5-95%(humidity)
Power consumption <900W (Total)
Z-Axis Movement    Manual
Position system Red-light pointer
Cooling way  Water cooling and protection system
Cutting thickness Please consult sales
Rotary device       With
Industrial Water cooler Optional

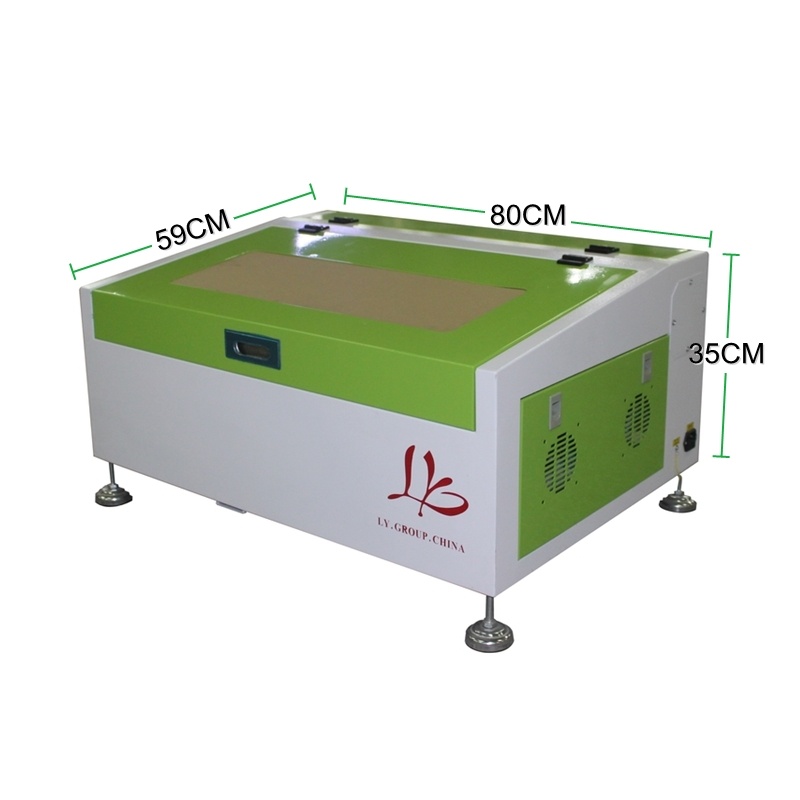

Packing Size 105*66*59cm
Gross Weight    85KG
Package Standard plywood case for export
Warranty All life free tech support, one year warranty, except consumables
Free accessories Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable
Optional parts Spare focus lens

Spare reflecting mirrorBlowing antiflaming systemWithRed light align functionWith

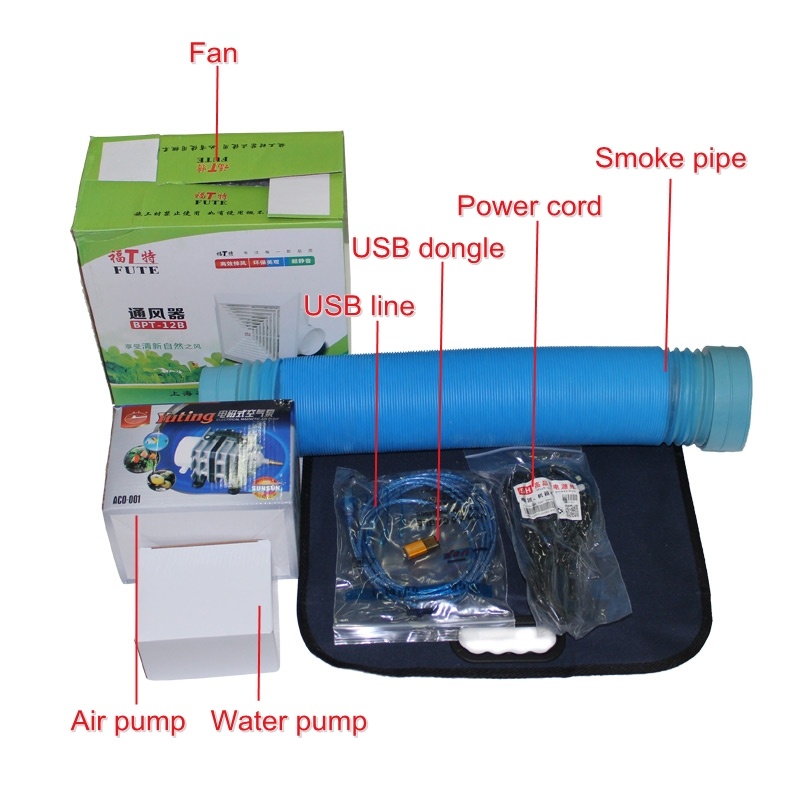

Single pack:

1.laser 3040 Engraving machine 40W.

2.Honey comb board 300*400mm

3.USB date line

4.Power line

5.USB dongle

6.Smoke pipe

7.Water pump

8.Air pump

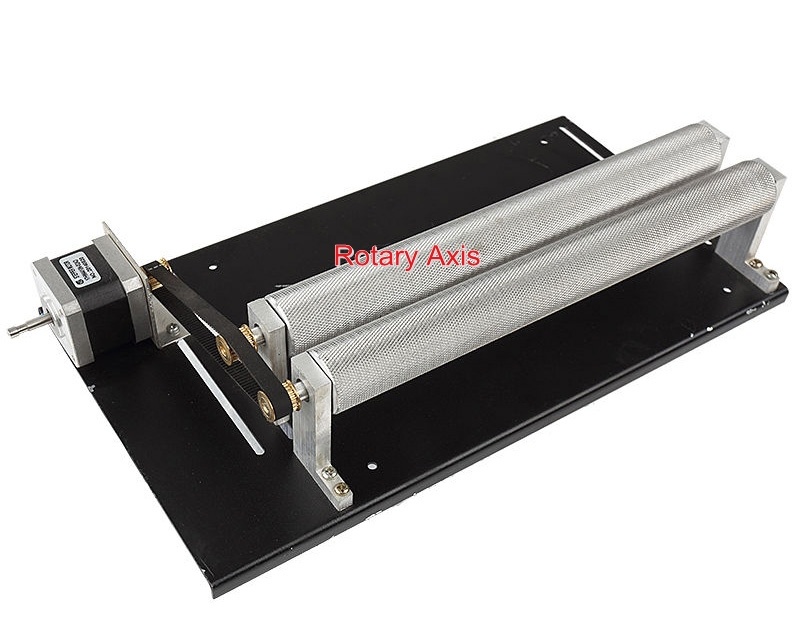

9.Rotary axis

10.Smoke fan

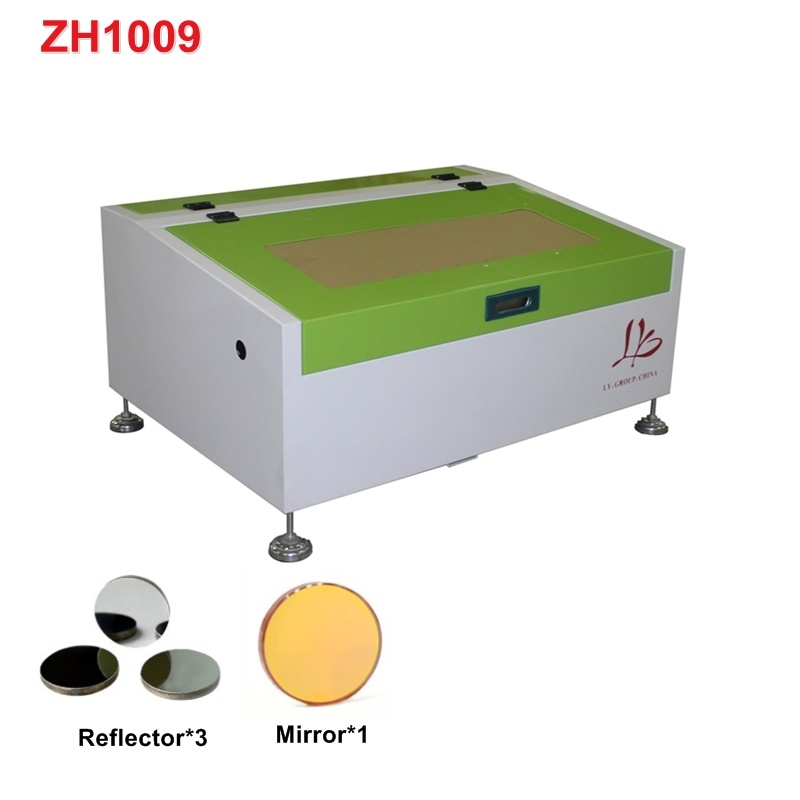

ZH1009 pack:

Single pack x 1

Reflector x 3

Mirror x 1



ZH1010 pack:

Single pack x 1

Reflector x 3

Mirror x 1

Rotary axis x 1

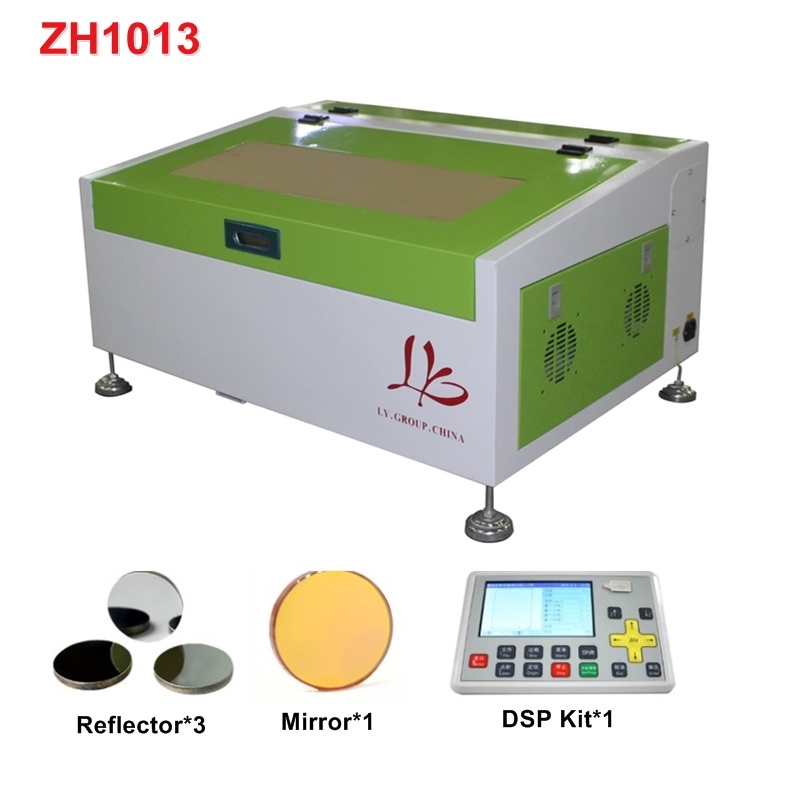

ZH1013 pack

Single pack x 1

Reflector x 3

Mirror x 1

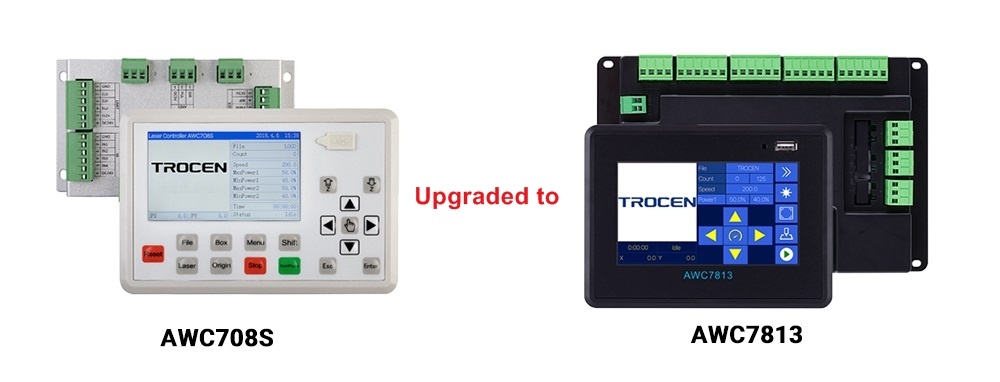

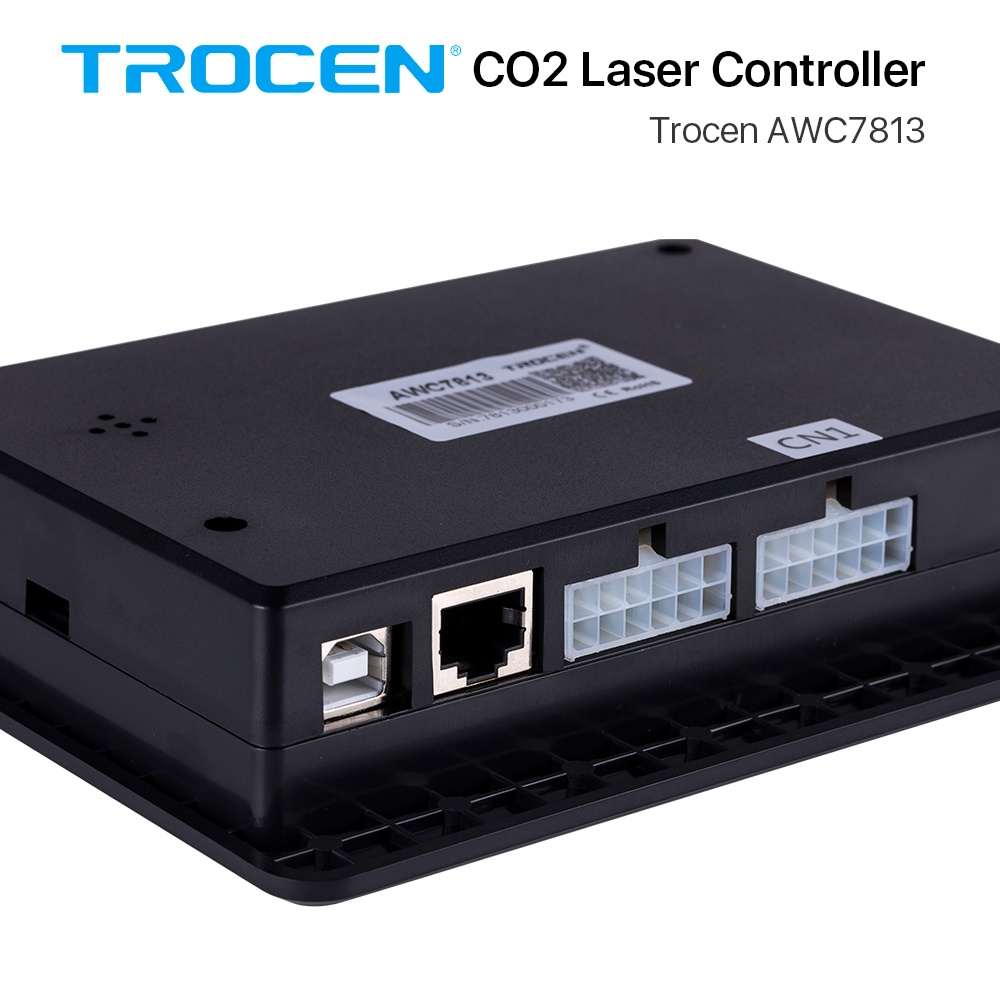

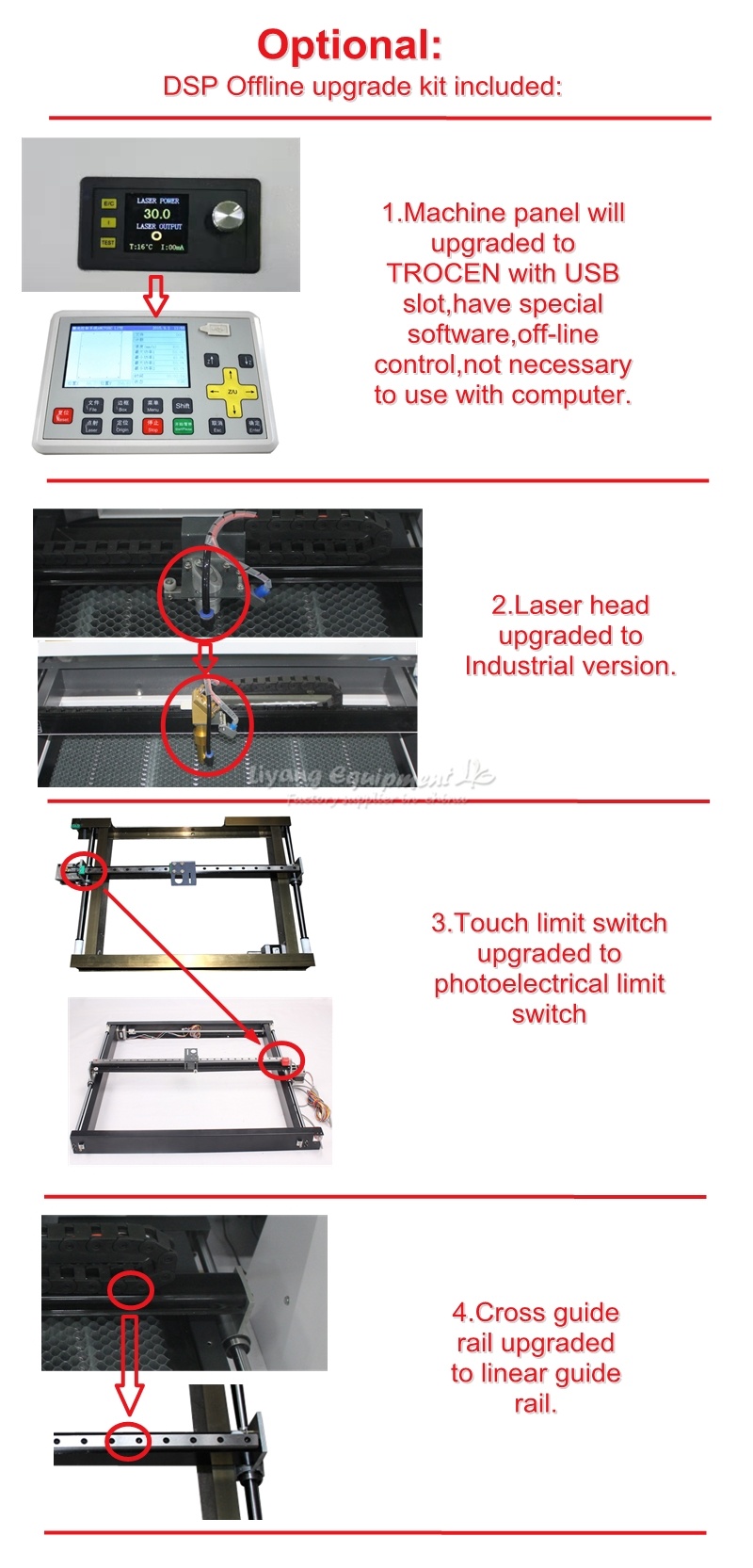

DSP Kit*1

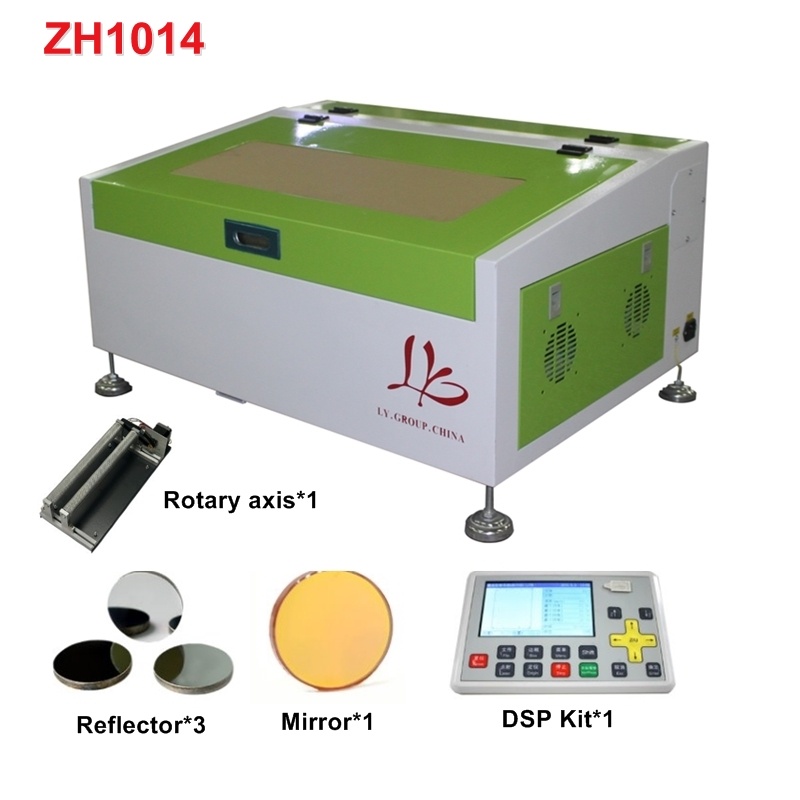

ZH1014 pack

Single pack x 1

Reflector x 3

Mirror x 1

DSP Kit*1

Rotary axis x 1



LY mini laser 4040 40W CO2 Laser Engraver Engraving Cutting Machine with LCD control panel and Honeycomb board USB port Work Size 400*400mm



110/220V 40W 400*400mm Mini CO2 Laser Engraver Engraving Cutting Machine 4040 Laser with USB Sport blowing antiflaming system red light alignment



400*400 mm Mini CO2 Laser Engraver Engraving Cutting Machine

4040 Laser with USB Sport LCD panel



Secifications:

  • Communication Interface: USB Port
  • CE Certification: Yes
  • ISO9001 Quality Certification: Yes
  • Laser Type: CO2 Gas
  • Tube Trigger Volt: 20KV
  • Tube Operating Volt: 15KV
  • Current: 18~22mA
  • Engraving Area: (40x40cm)
  • Maximum Item Size to Engrave: 400*400mm
  • Laser Tube (life hours): 1000-1300 Hours
  • Laser Power: 40W
  • Engraving Speed: 0-200mm/s (0-7 in./s)
  • Cutting Speed: 0-20mm/s (0-0.7 in./s)
  • Minimum Shaping Character: 1 X 1mm (0.04 X0.04)in.
  • Resolution Ratio: 0.026mm / 0.001 in. (1000dpi)
  • Power Supply:110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
  • Resetting Positioning: 0.01mm (0.0004 in.)
  • Motor Type: Stepper Motor
  • Software Supported: CorelLASER 2013,LaserDRW
  • Power Consumption: 300W
  • Operating Temperature: 32-113F (0-45C)
  • Graphic Format Supported: PLT/DXF/BMP/JPG/GIF/PGN/TIF
  • Water Cooling: Water Pump include
  • Recommended Spare Parts/Consumables: Laser Tube, Focal lens, Reflection lens
  • One year warranty
Communication Interface USB Port
FDA Compliant Yes
CE Certification Yes
ISO9001 Quality Certification Yes
Laser Type CO2 Gas
Tube Trigger Volt 20KV
Tube Operating Volt 15KV
Current 18~22mA
Engraving Area (40x40cm)
Maximum Item Size to Engrave 400*400mm
Laser Tube (life hours) 1000-1300 Hours
Laser Power 40W
Engraving Speed 0-200mm/s (0-7 in./s)
Cutting Speed 0-20mm/s (0-0.7 in./s)
Minimum Shaping Character 1 X 1mm (0.04 X0.04)in.
Resolution Ratio 0.026mm / 0.001 in. (1000dpi)
Power Supply 110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
Resetting Positioning 0.01mm (0.0004 in.)
Motor Type Stepper Motor
Software Supported CorelLASER 2013,LaserDRW
Power Consumption 300W
Operating Temperature 32-113F (0-45C)
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF
Water Cooling Water Pump include
Recommended Spare Parts/Consumables Laser Tube, Focal lens, Reflection lens
Warranty One year



Single pack:

1.laser 4040 Engraving machine 40W.

2.Honey comb board 400*400mm

3.USB date line

4.Power line

5.USB dongle

6.Smoke pipe

7.Water pump

8.Air pump

9.Smoke fan



LY mini laser 3050/5030 40W CO2 Laser Engraver Engraving Cutting Machine with LCD control panel and Honeycomb board USB port Work Size 500*300mm



110/220V 40W 500*300mm Mini CO2 Laser Engraver Engraving Cutting Machine 3050 Laser with USB Sport blowing antiflaming system red light alignment



300*500 mm Mini CO2 Laser Engraver Engraving Cutting Machine

3050 Laser with USB Sport LCD panel



Secifications:

  • Communication Interface: USB Port
  • CE Certification: Yes
  • ISO9001 Quality Certification: Yes
  • Laser Type: CO2 Gas
  • Tube Trigger Volt: 20KV
  • Tube Operating Volt: 15KV
  • Current: 18~22mA
  • Engraving Area: (30x50cm)
  • Maximum Item Size to Engrave: 500*300mm
  • Laser Tube (life hours): 1000-1300 Hours
  • Laser Power: 40W
  • Engraving Speed: 0-200mm/s (0-7 in./s)
  • Cutting Speed: 0-20mm/s (0-0.7 in./s)
  • Minimum Shaping Character: 1 X 1mm (0.04 X0.04)in.
  • Resolution Ratio: 0.026mm / 0.001 in. (1000dpi)
  • Power Supply:110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
  • Resetting Positioning: 0.01mm (0.0004 in.)
  • Motor Type: Stepper Motor
  • Software Supported: CorelLASER 2013,LaserDRW
  • Power Consumption: 250W
  • Operating Temperature: 32-113F (0-45C)
  • Graphic Format Supported: PLT/DXF/BMP/JPG/GIF/PGN/TIF
  • Water Cooling: Water Pump include
  • Recommended Spare Parts/Consumables: Laser Tube, Focal lens, Reflection lens
  • One year warranty
Communication Interface USB Port
FDA Compliant Yes
CE Certification Yes
ISO9001 Quality Certification Yes
Laser Type CO2 Gas
Tube Trigger Volt 20KV
Tube Operating Volt 15KV
Current 18~22mA
Engraving Area (30x50cm)
Maximum Item Size to Engrave 500*300mm
Laser Tube (life hours) 1000-1300 Hours
Laser Power 40W
Engraving Speed 0-200mm/s (0-7 in./s)
Cutting Speed 0-20mm/s (0-0.7 in./s)
Minimum Shaping Character 1 X 1mm (0.04 X0.04)in.
Resolution Ratio 0.026mm / 0.001 in. (1000dpi)
Power Supply 110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
Resetting Positioning 0.01mm (0.0004 in.)
Motor Type Stepper Motor
Software Supported CorelLASER 2013,LaserDRW
Power Consumption 250W
Operating Temperature 32-113F (0-45C)
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF
Water Cooling Water Pump include
Recommended Spare Parts/Consumables Laser Tube, Focal lens, Reflection lens
Warranty One year







Single pack:

1.laser 3050 Engraving machine 40W.

2.Honey comb board 300*200mm

3.USB date line

4.Power line

5.USB dongle

6.Smoke pipe

7.Water pump

8.Air pump

9.Smoke fan



LY laser 6040 4060 60W CO2 Laser Engraver Engraving Cutting Machine with LCD control panel and Honeycomb board USB port Work Size 600*400mm



Item specifications:

Communication Interface: USB Port

ISO9001 Quality Certification: Yes

Laser Type: CO2 Gas

Engraving Area: (60x40cm)

Laser Tube (life hours): 1000-1300 Hours

Laser Power: 60W

Engraving Speed: 500 mm/s 0-60000mm/min

Resolution Ratio: <=1000dpi

System environment WINDOWS2000/WINDOWS XP/win7/wim8

Power Supply:110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.

Carving thickness 0-5mm (depth of cut are for reference only, mainly depends on the material with the requirements of the customers on the cutting quality)

Software Provide: LaserDRW ,CorelLASER

Operating Temperature: 1 degree to 35 degree

Graphic Format Supported: PLT/DXF/BMP/Coredraw/JPG/GIF/PGN/TIF

Water Cooling: Water Pump include

Recommended Spare Parts/Consumables: Laser Tube, Focal lens, Reflection lens

Product Dimensions:102x 75x65cm

Product Weight: 220Kg (wooden box)

One year warranty



Communication Interface USB Port

ISO9001 Quality Certification Yes
Laser Type CO2 Gas
Engraving Area (60x40cm)
Laser Tube (life hours) 1000-1300 Hours
Laser Power 60W
Engraving Speed 500 mm/s 0-60000mm/min
Resolution Ratio <=1000dpi
System environment WINDOWS2000/WINDOWS XP/win7/wim8
Power Supply 110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
Carving thickness 0-5mm (depth of cut are for reference only, mainly depends on the material with the requirements of the customers on the cutting quality)
Software Provide LaserDRW ,CorelLASER
Operating Temperature 1 degree to 35 degree
Graphic Format Supported PLT/DXF/BMP/Coredraw/JPG/GIF/PGN/TIF
Water Cooling Water Pump include
Recommended Spare Parts/Consumables Laser Tube, Focal lens, Reflection lens
Product Dimensions 102x 75x65cm
Product Weight 220Kg (wooden box)
Warranty One year

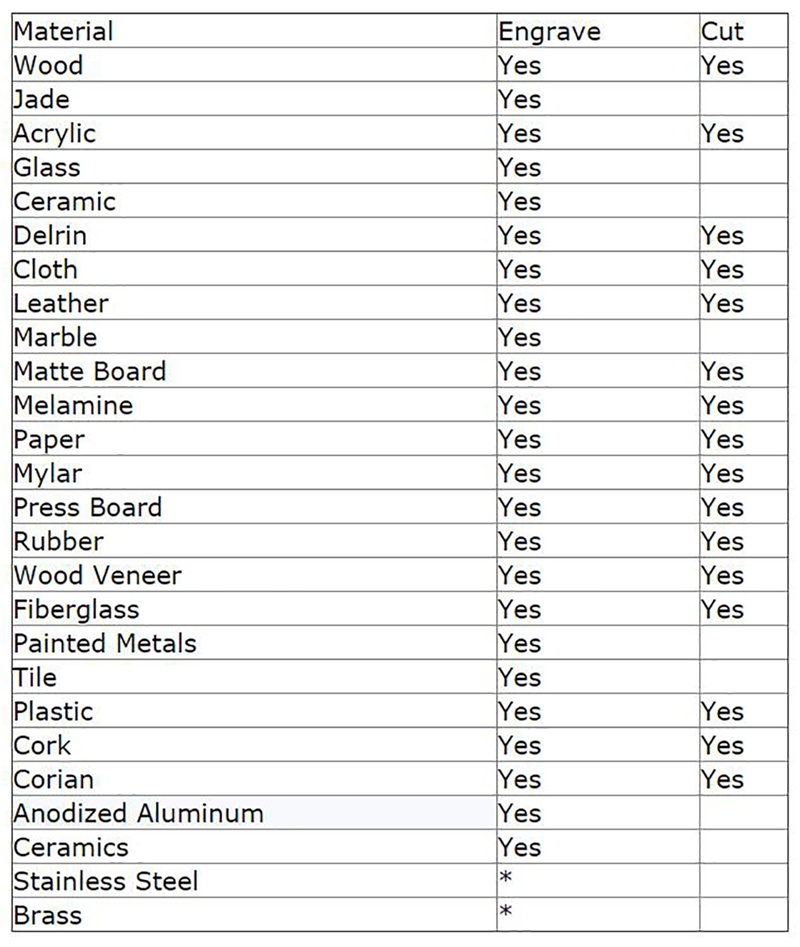

Applicable Material:

The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic, Plastics and painted/coated metals (metals that are not coated or painted will require a LMM spray). If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.



Industry:

This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, , shoemaking, furniture , model industry, craftwork and other industies.





Highlights: (Multifunction with high quality, very worthy. Best price best choice )

  • USB Port
  • Honeycomb worktable
  • Up dand down worktable
  • Red dot pointer
  • Rotary axis
  • Coreldraw software
  • 60w high quality co2 laser tube
  • free machine stand
  • Wooden box package very safe







Single pack:

1.laser 6040 Engraving machine 60W.

2.Honey comb board  600*400mm

3.USB date line

4.Power line

5.USB dongle

6.Smoke pipe

7.Water pump

8.Air pump

9.Smoke fan
