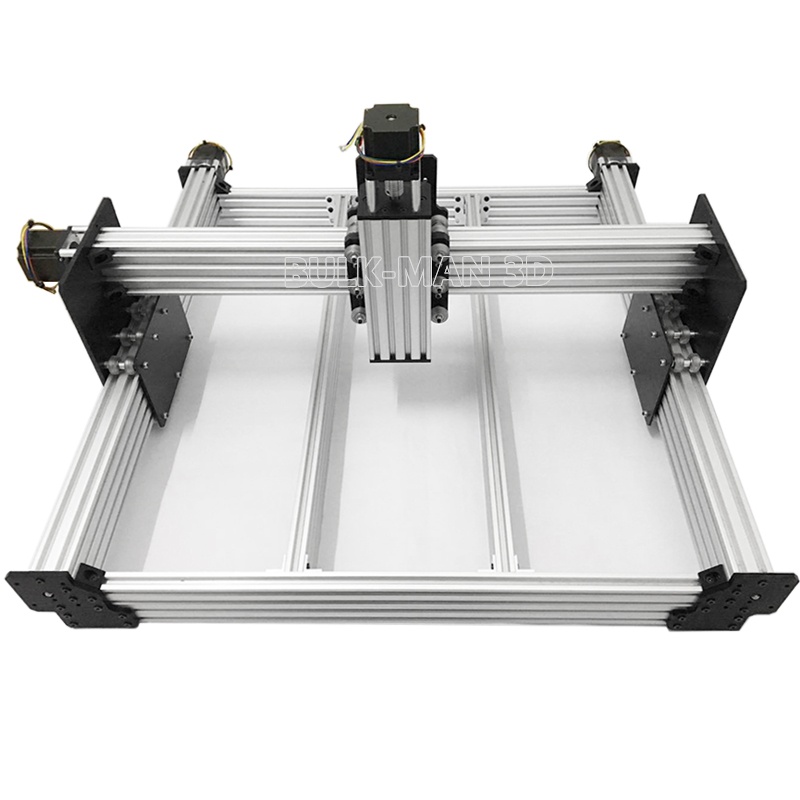

Disassembled pack DIY CNC Router frame Engraver Laser Engraving Machine 1000×1000 1500x1500mm
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Note: Disassembled delivery, need assemble by customer.
Model and Technical Parameters
| MODEL | CNC Router Frame | ||||||
|
Attribute |
Screw Driven |
Belt Driven |
|||||

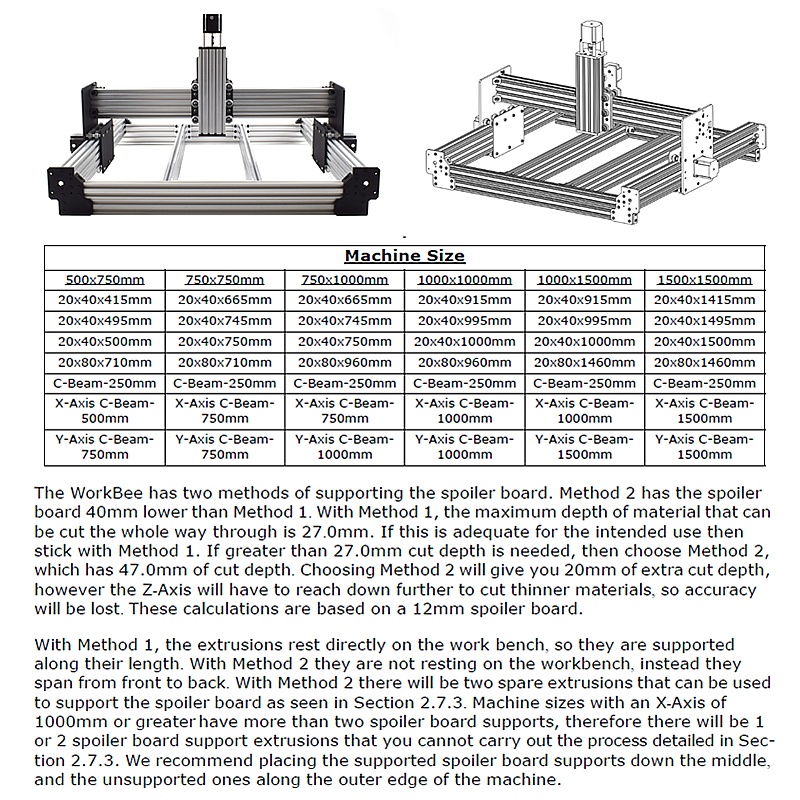

| Frame Size (mm) | 500×750 | 750×750 | 750×1000 | 1000×1000 | 1000×1500 | 1500×1500 | |
| Engraving area (mm) | 300×520 | 550×520 | 550×770 | 800×770 | 800×1270 | 1300×1270 | |
| Weigh (KG) | 22 | 24 | 26 | 28 | 35 | 42 | |
| Z Height |
54mm Or 94mm Travel, 27mm Or 47mm Workable depth, with a 12mm spoilerboard. The spoilerboard supports have two height configurations, these are the maximums for each configuration. |
||||||
| Motion | Drive System – ACME Lead Screws Or GT3 Timing Belts
Linear Guides – Polycarbonate wheels on anodised C-Beam V-Slot Extrusion. Motors – NEMA23 175oz Stepper Motors (X, Y & Z) Accuracy – 0.05 – 0.10mm (Screw Driven) Or 0.10 – 0.20mm (Belt Driven)
Note – Maximum recommended speed for Lead Screws 1000mm or greater is 400RPM. |
||||||
|

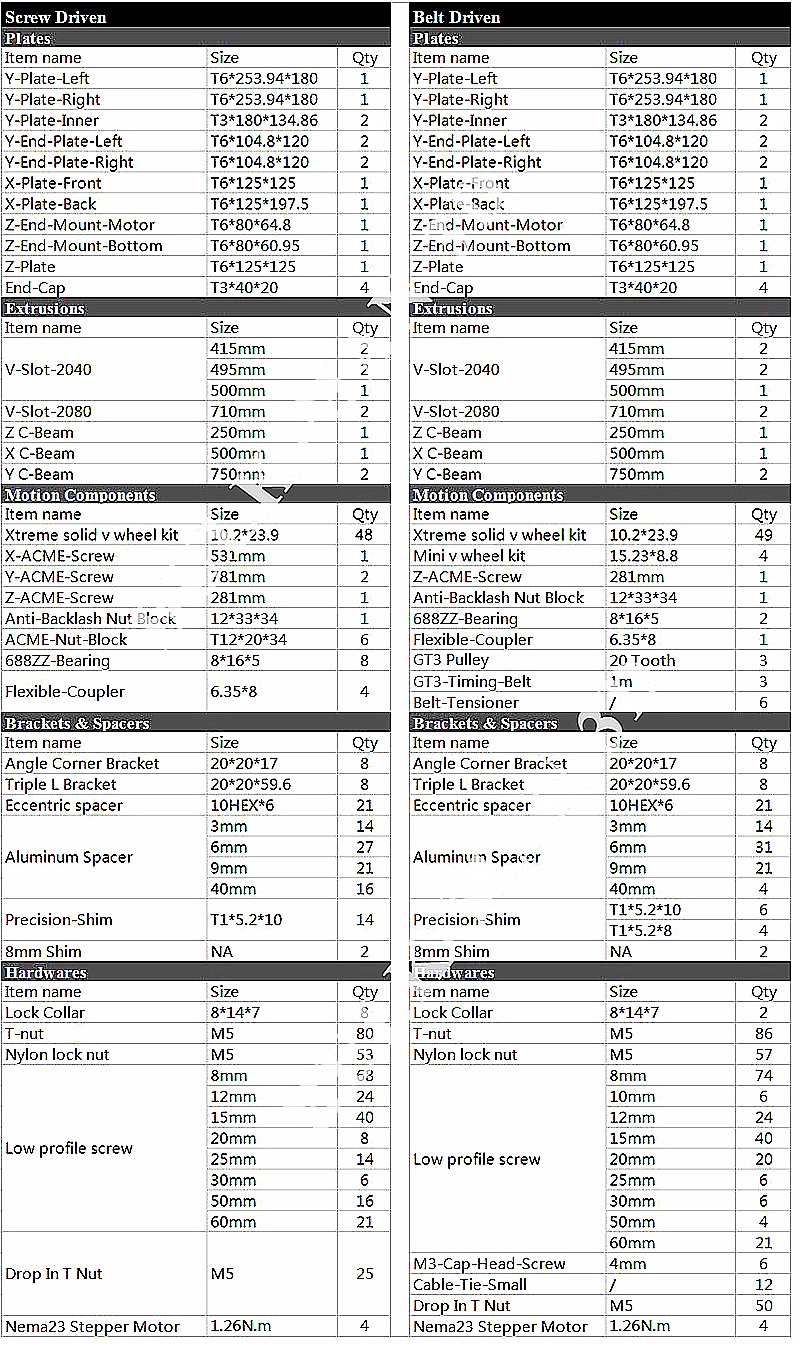

Packing list： |
1 x CNC Router frame 4 x Nema23 Stepper Motors 1 x PDF Assembly Manual is available by email |
||||||
|
|
|||||||
| Note : |
Disassembled delivery, need assemble by customer. |
||||||
Thanks for your order!
