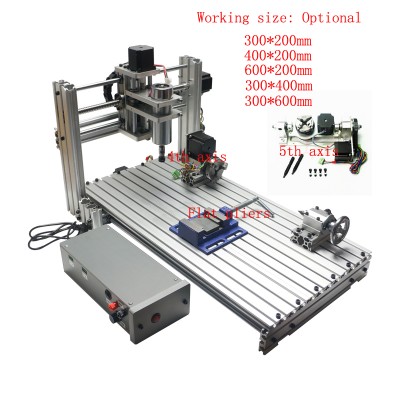

DIY Cnc 3020 3040 3060 6020 5 Axis Wood Engraving Metal Milling PCB Carving Cutting Machine Mini Lathe with 4th/5th Rotary Axis

DIY Cnc 3020 3040 3060 6020 5 Axis Wood Engraving Metal Milling PCB Carving Cutting Machine Mini Lathe with 4th/5th Rotary Axis

item ID: 60648
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$850 USD$608 (% off)
Payment

Product Detail

Product Tags

2



DIY mini cnc wood engraving machine 400w usb milling lathe metal router PCB engraving carving machine

model: 3020/4020 /6020/ 3040/ 3060 (3axis /4axis 5axis)

Package has CD , CD include detail english manual and software and operate video , it is very easy for operate the machine

Specifications:

Model and Technical Parameters

MODEL 3020/4020/3040/6020/3060 metal

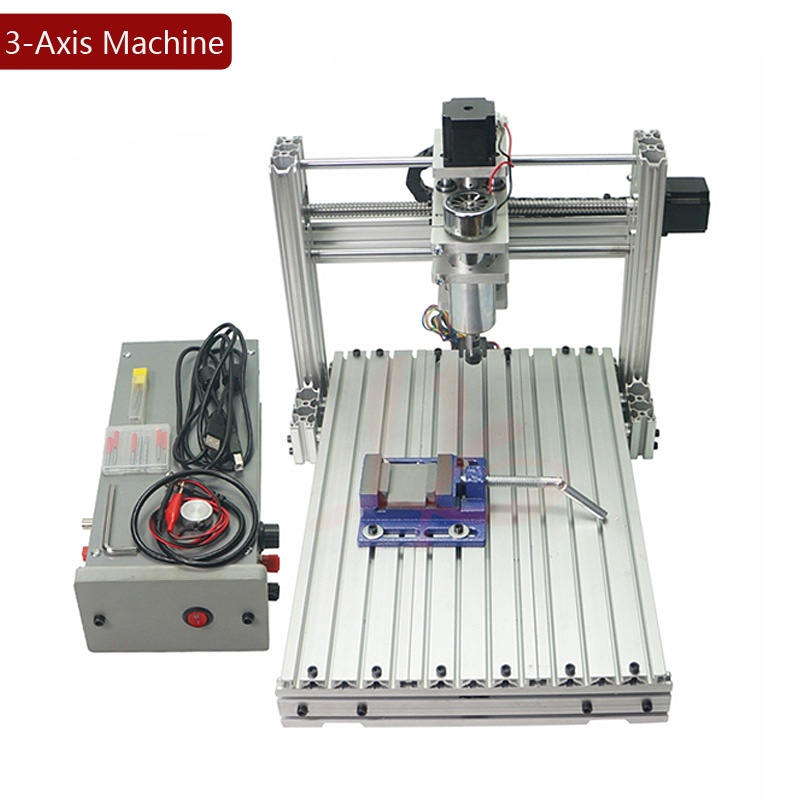

Attribute 3axis 4axis 5axis
Axis 3axis 4axis 5axis
Interface USB Port USB Port USB Port
Spindle Motor: 400W 400W 400W
Weigh

3020

4020

3040

6020

3060

22

24

30

27

31

26

27

35

31

35

29

30

35

33

39


Max. working stroke XYZ=180*270*95mm(3020)

XYZ=180*390*95mm(4020)

XYZ=290*390*95mm(3040)

XYZ=180*570*95mm(6020)

XYZ=290*570*95mm(3060)

Acceptable material thickness Cnc 3020 is ≤95mm,

cnc 4020/6020/3040/3060 is ≤120mm

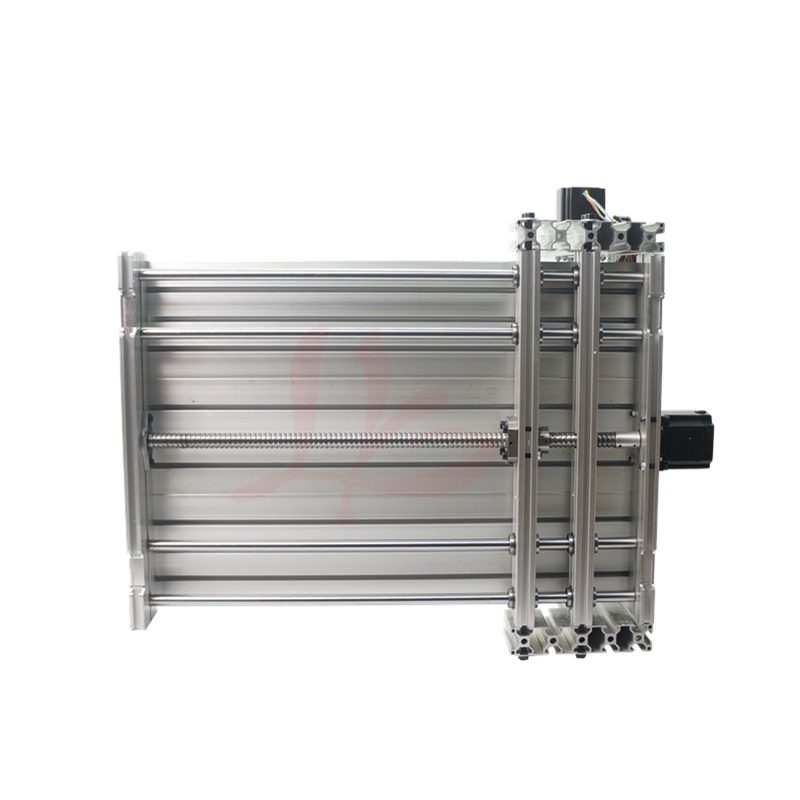

Rail type X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis
Spindle motor 400WDC spindle , 0-9000r/min
Collet type ER11,1/8″(3.175mm) Collet
Stepper motor and drive 57HS56
Repeat positioning Accuracy 0.01mm

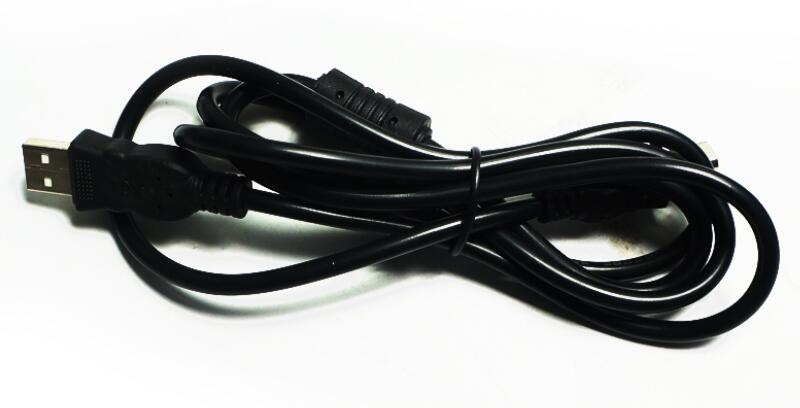

Communication interface USB Port
System requirements Win-XP / Win 7/ Win 8 /Win10
Software Co

patability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code G code/.nc/.ncc/.tab/.txt

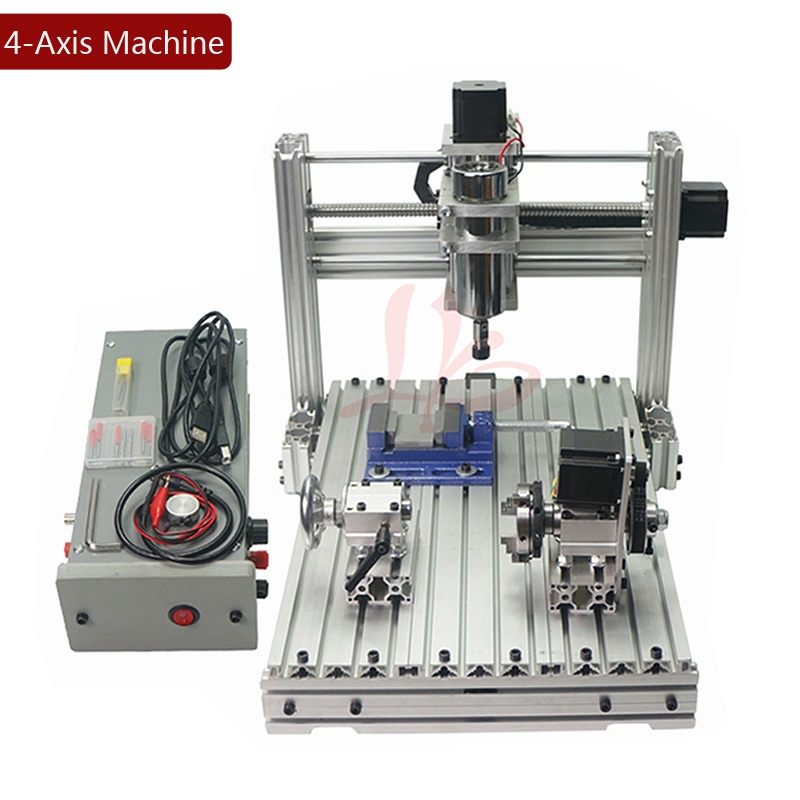

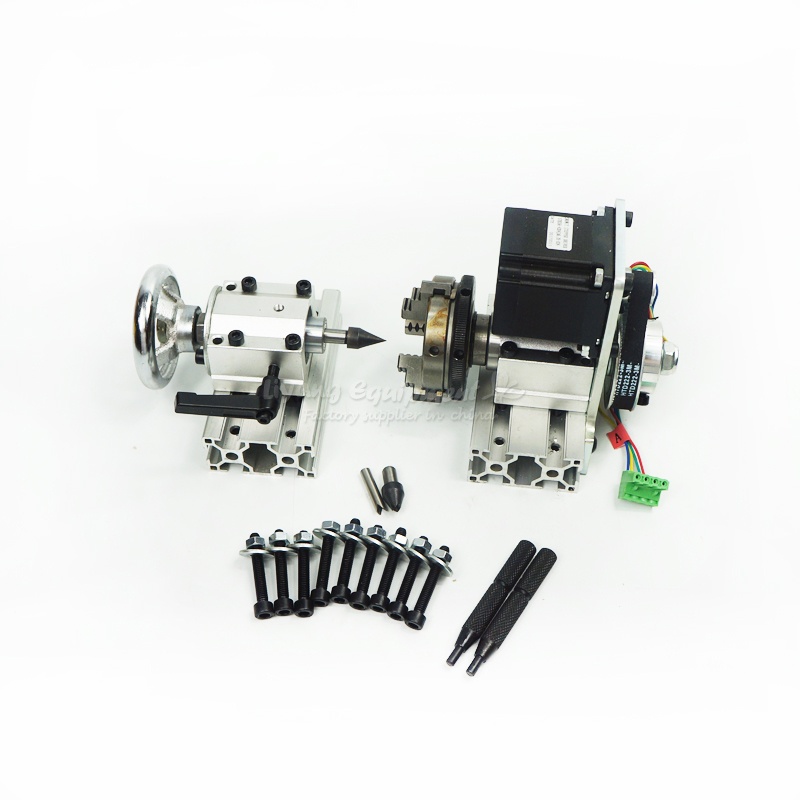

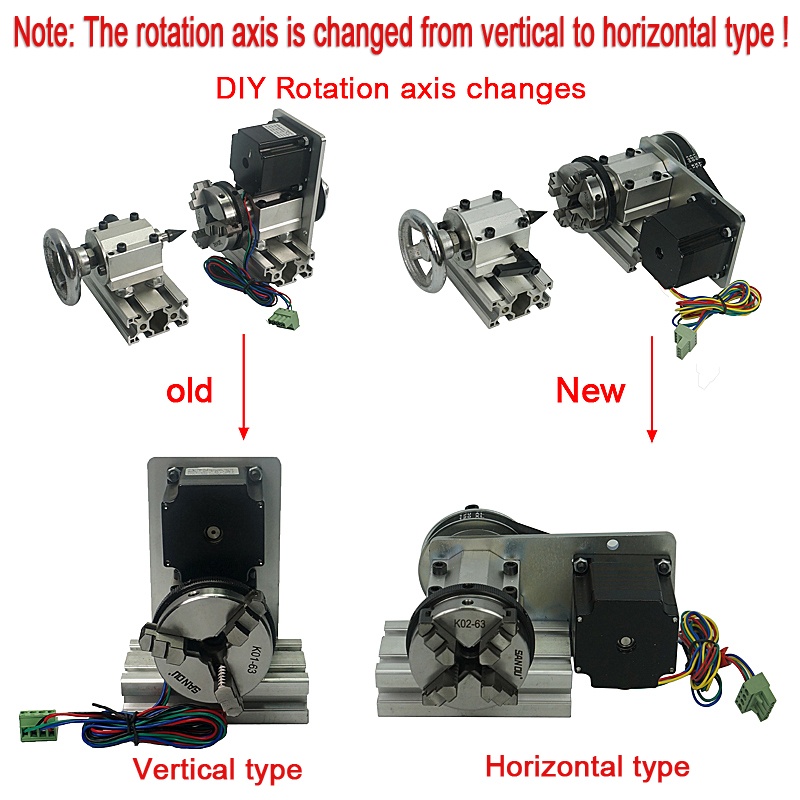

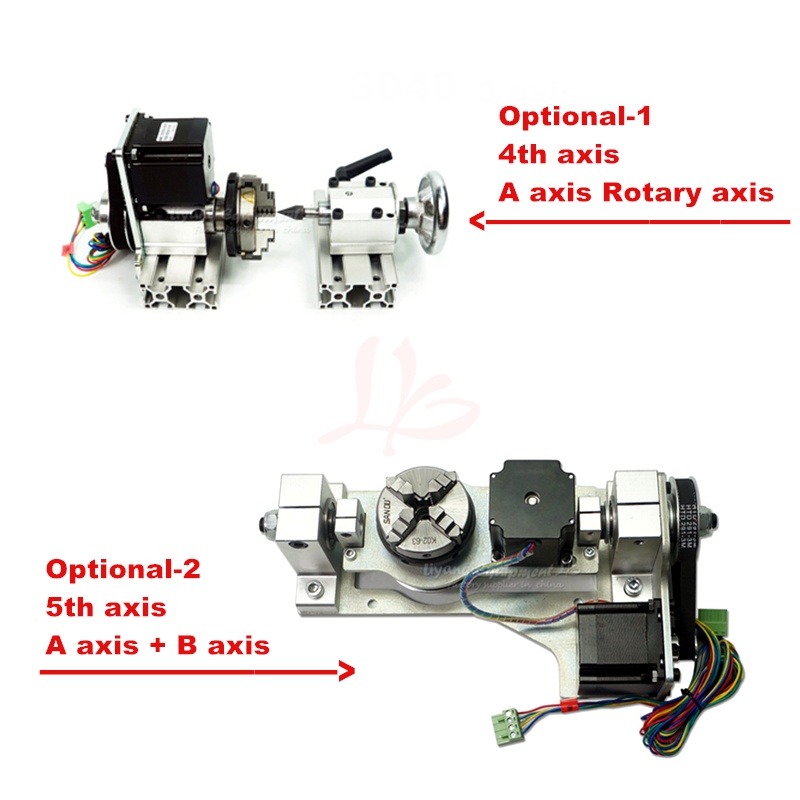

4th Axis

Description:

Center height: H = 51mm

Maximum turning diameter: ≤ 81mm

Deceleration ratio: 4:1

Stepper motor: 57HS56

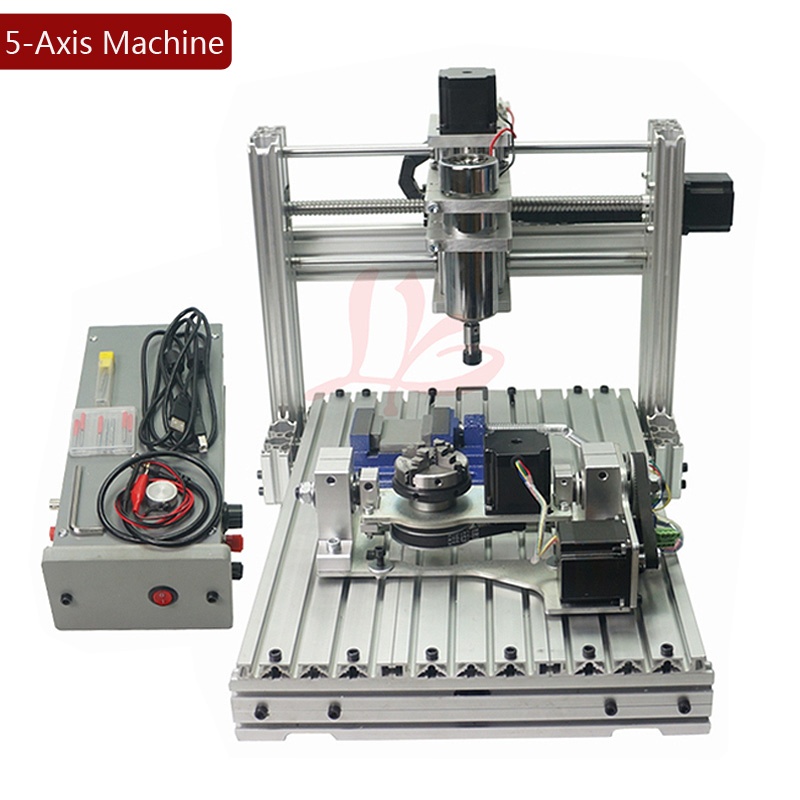

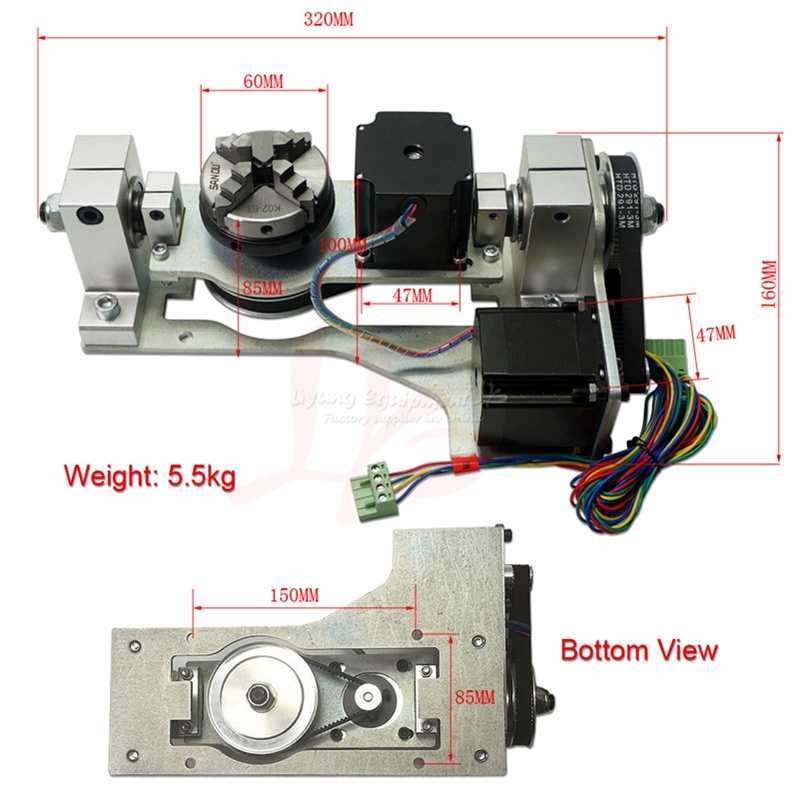

5th Axis

Description:

The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N)

The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N)

Four jaw chuck 60MM

The clamping: Positive direction:40mm; In the opposite direction:70mm

Fourth axis Center height: 55MM

The fifth axis higher than the 4th axis 44 mm

Bottom fixed hole distance: 150mm x 85mm

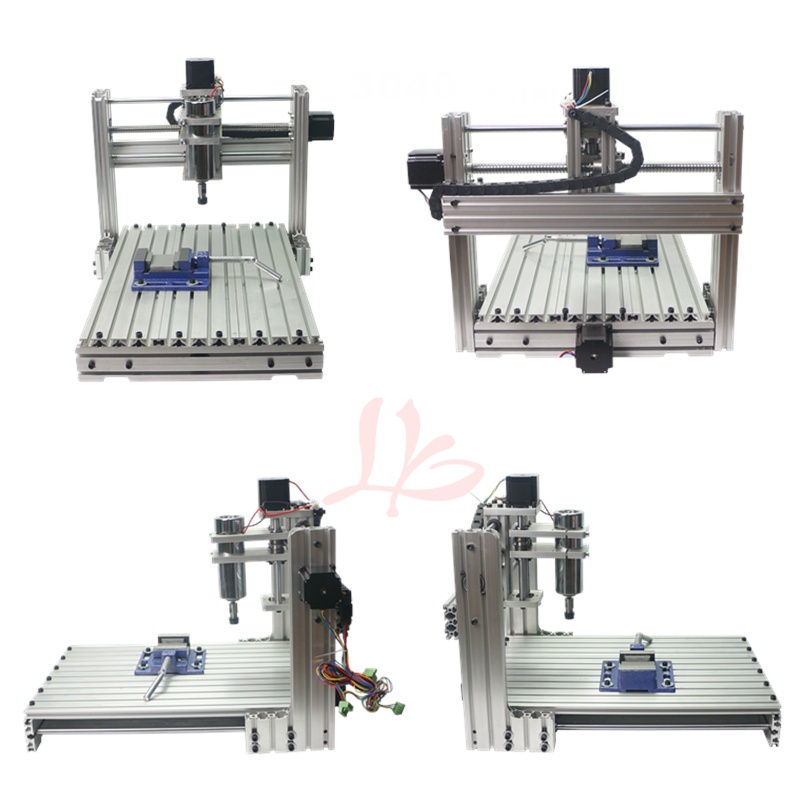

3axis 4axis 5axis 3040 metal 说明 (3) 3040 metal 说明 (4) 3040 metal 说明 (5) 3040 metal 说明 (6) 3040 metal 说明 (6)_1 3040 metal 说明 (7) 3040 metal 说明 (8) 3040 metal 说明 (9) 3040 metal 说明 (10) 3040 metal 说明 (12) 3040 metal 说明 (13)
