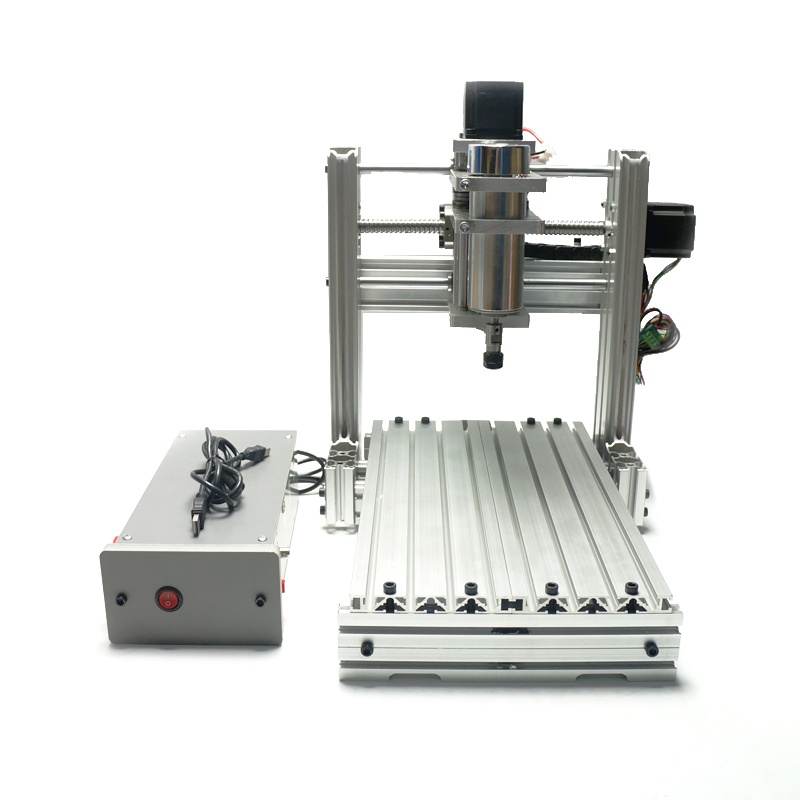

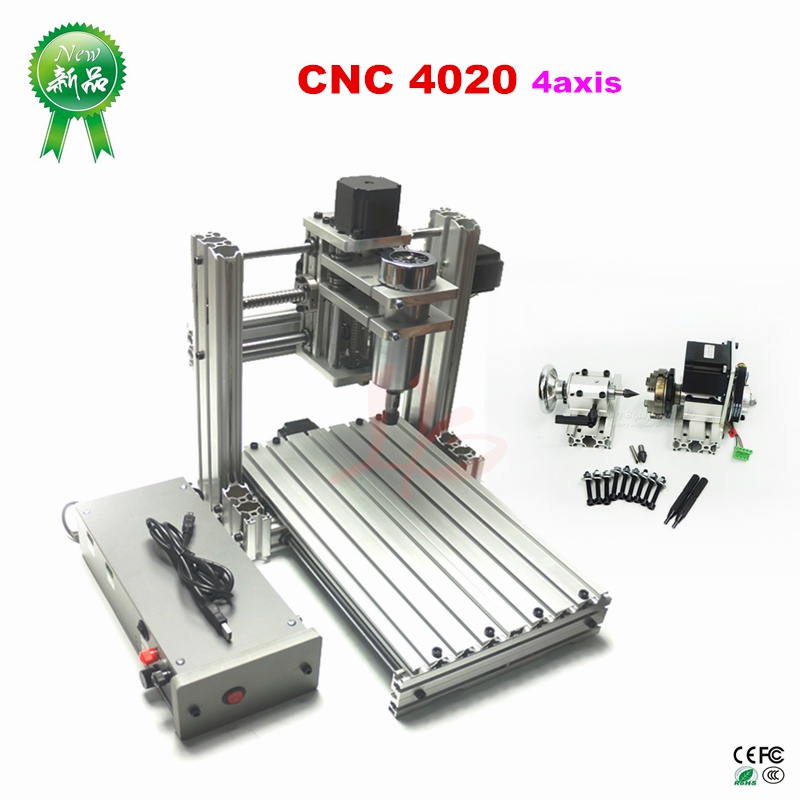

Engraving machine DIY CNC 4020 metal CNC Router 3 axis 4 axis 5 axis Engraving Drilling and Milling Machine

Engraving machine DIY CNC 4020 metal CNC Router 3 axis 4 axis 5 axis Engraving Drilling and Milling Machine

item ID: 60517
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$492
Payment

Product Detail

Product Tags

Engraving machine DIY CNC 4020 metal CNC Router 3 axis 4 axis 5 axis Engraving Drilling and Milling Machine

4020 metal 说明 (2)

Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

Warranty

More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty



Model and Technical Parameters

MODEL         4020 metal
Attribute 3axis 4axis 5axis Only frame
Axis 3axis 4axis 5axis 3axis
Interface USB Port USB Port USB Port No
Spindle Motor: 400W 400W 400W No
Weigh 24 27 30 19
Max. working stroke XYZ=180*390*95mm
Acceptable material thickness 120mm
Rail type X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis
Spindle motor

400W  DC spindle , 0-9000r/min

Collet type

ER11,1/8″(3.175mm) Collet

Stepper motor and drive

57HS56

Repeat positioning Accuracy

0.02mm

Communication interface

USB Port

System requirements Win-XP / Win 7 Win 8 Win10
Software Co

patability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

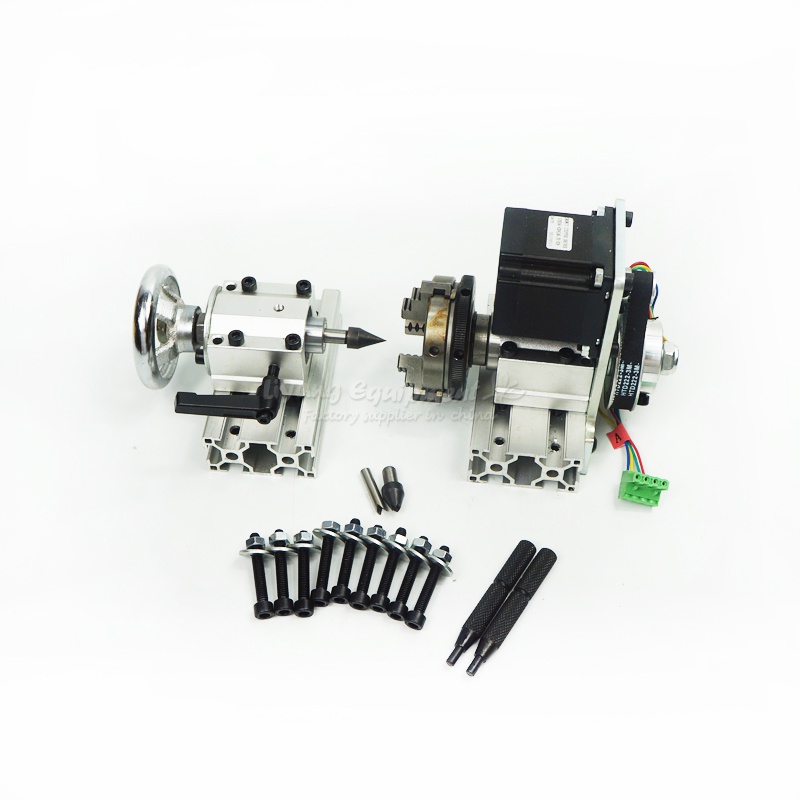

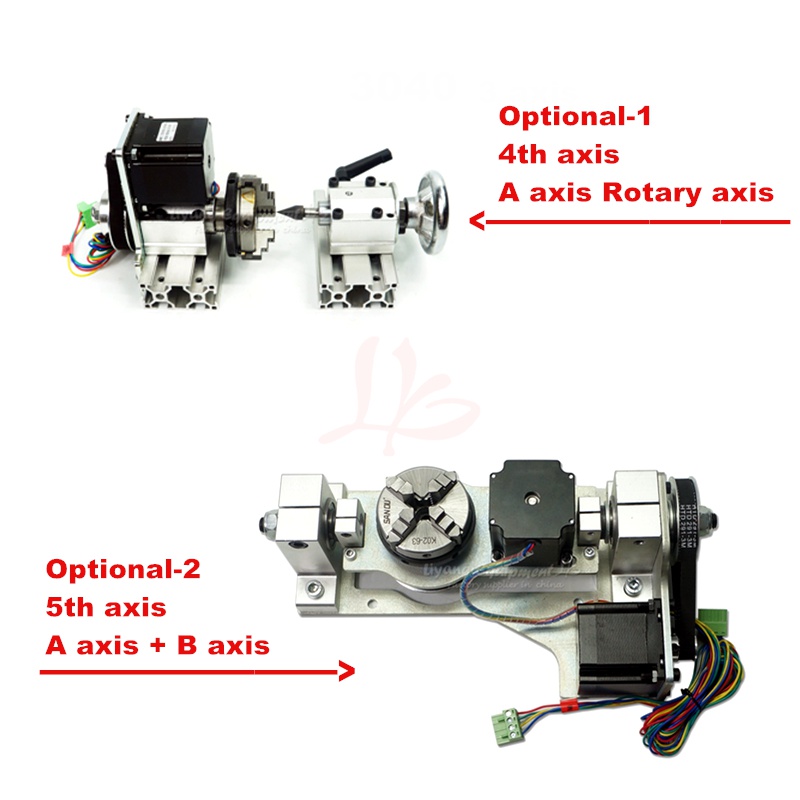

4th Axis

Description:

Center height: H = 51mm

Maximum turning diameter: ≤ 81mm

Deceleration ratio: 4:1

Stepper motor: 57HS56

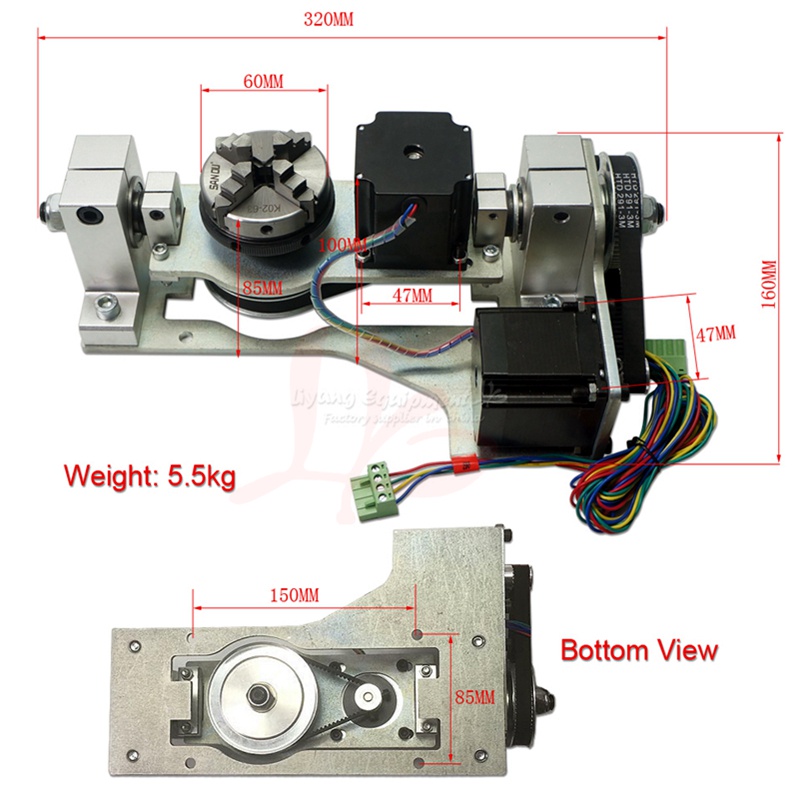

5th Axis

Description:

The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N)

The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N)

Four jaw chuck 60MM

The clamping: Positive direction:40mm; In the opposite direction:70mm

Fourth axis Center height: 55MM

The fifth axis higher than the 4th axis 44 mm

Bottom fixed hole distance: 150mm x 85mm

4020 metal (2) 4020 metal 说明 (6) 4020 metal 说明 (7) 4020 metal 说明 (8) 4020 metal 说明 (9) 4020 metal 说明 (13) 4020 metal 说明 (14)
