Engraving machine DIY CNC 3020 metal CNC Router Engraving Drilling and Milling Machine

Engraving machine DIY CNC 3020 metal CNC Router Engraving Drilling and Milling Machine

item ID: 60491
1 vote, average: 2.00 out of 51 vote, average: 2.00 out of 51 vote, average: 2.00 out of 51 vote, average: 2.00 out of 51 vote, average: 2.00 out of 5
Reviews(1)
USD$425
Payment

Product Detail

Product Tags

Engraving machine DIY CNC 3020 metal CNC Router Engraving Drilling and Milling Machine

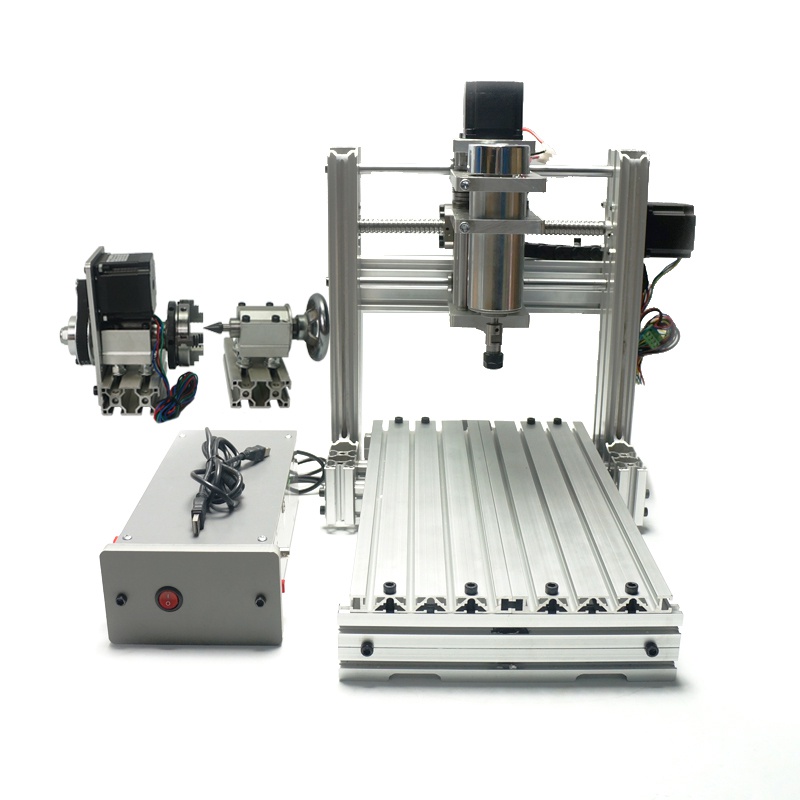

DIY 3020 metal 主图 (4)

Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

Model and Technical Parameters

MODEL         3020 metal
Attribute 3axis   4axis Only frame
Axis 3axis   4axis 3axis
Interface USB Port   USB Port No
Spindle Motor: 400W   400W No
Weigh 22   26 16
Max. working stroke XYZ=180*270*95mm
Acceptable material thickness ≤95mm
Rail type X Y 1605 ball screw, Z 1204 ball screw,

12 mm optical axis

Spindle motor

400W  DC spindle , 0-9000r/min

Collet type

ER11,1/8″(3.175mm) Collet

Stepper motor and drive

57HS56

Repeat positioning Accuracy

0.02mm

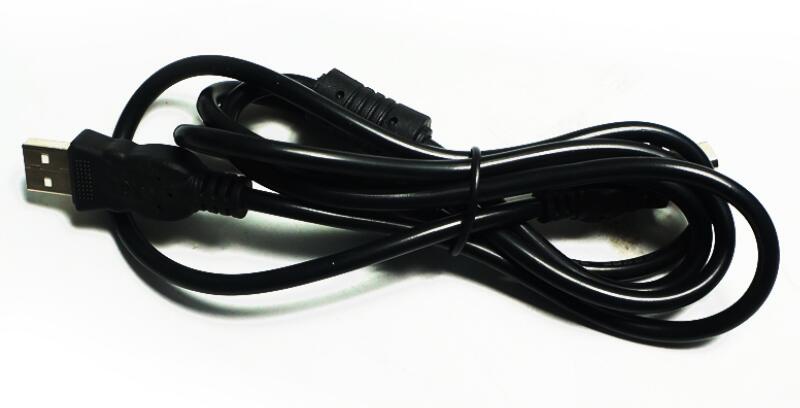

Communication interface

USB Port

System requirements Win-XP / Win 7 Win 8 Win10
Software Co

patability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Machine weight

22kg

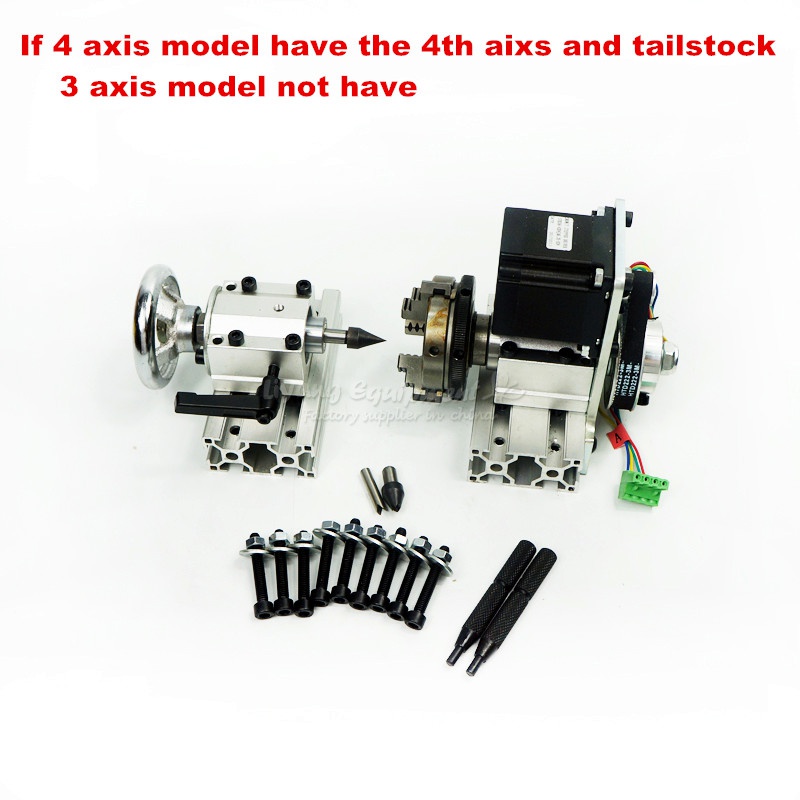

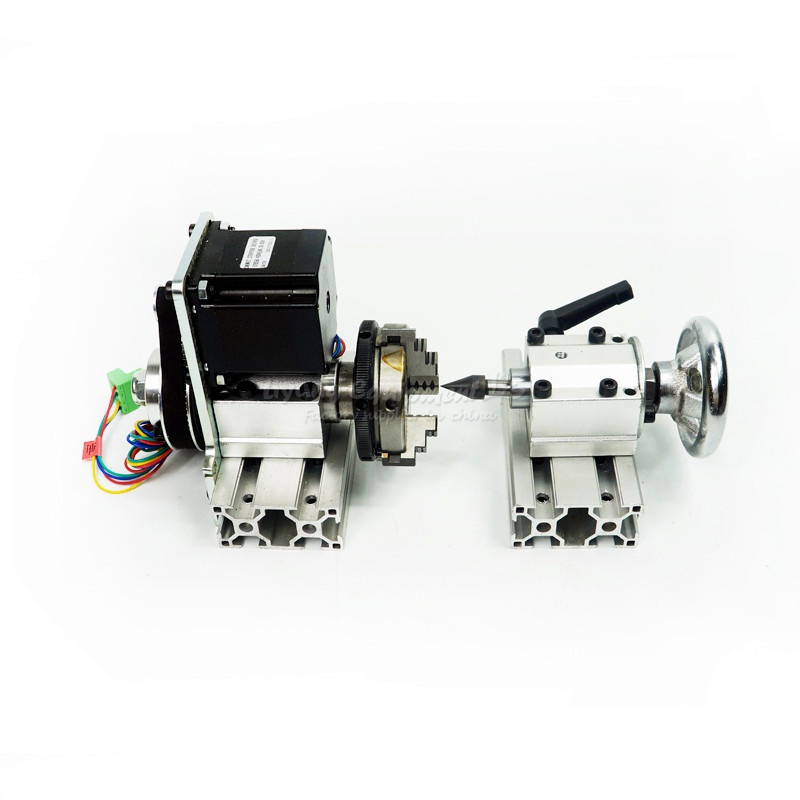

Rotation Axis (4th Axis)

Description:

Center height: H = 51mm

Maximum turning diameter: ≤ 81mm

Deceleration ratio: 4:1

Stepper motor: 57HS56

Weight: 4.0KG

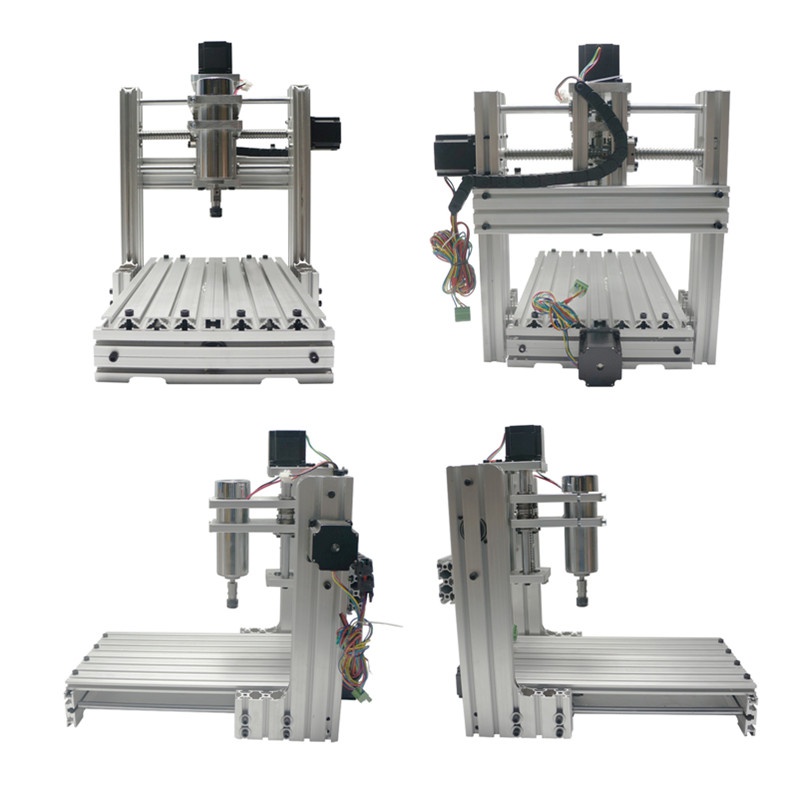

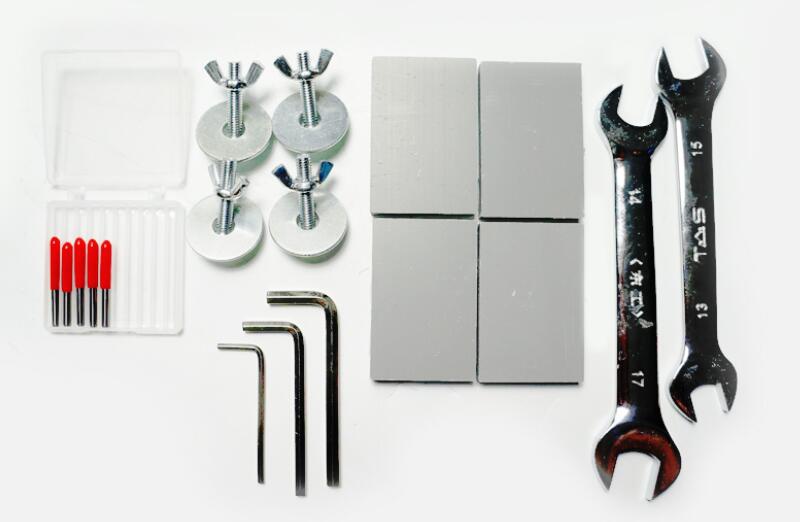

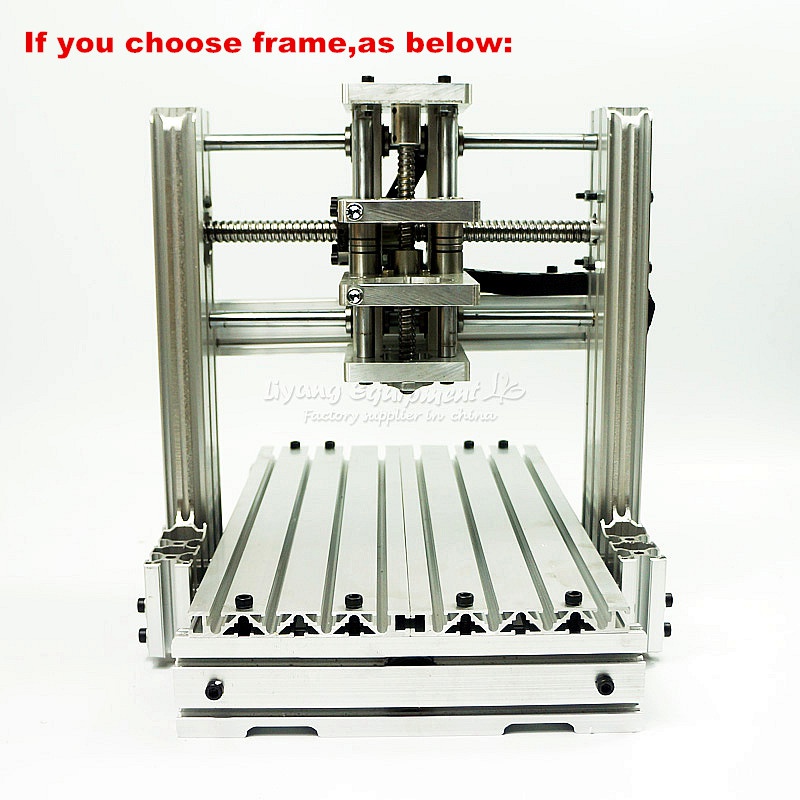

DIY 3020 metal 说明 (2) DIY 3020 metal 说明 (3) DIY 3020 metal 说明 (4) DIY 3020 metal 说明 (5) DIY 3020 metal 说明 (6) DIY 3020 metal 说明 (7) DIY 3020 metal 说明 (8) DIY 3020 metal 说明 (9)

Warranty

More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty
