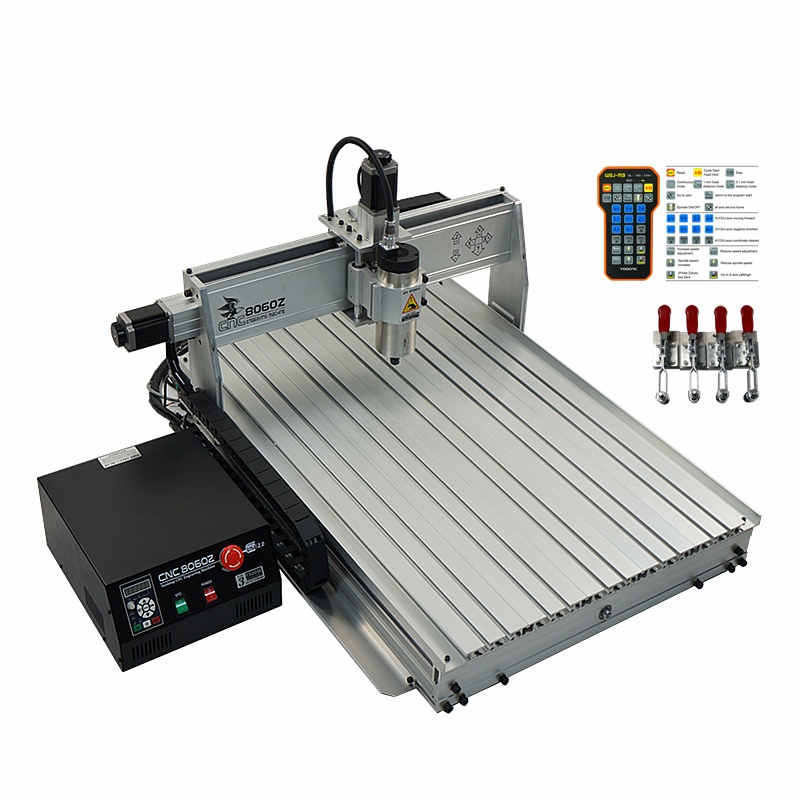

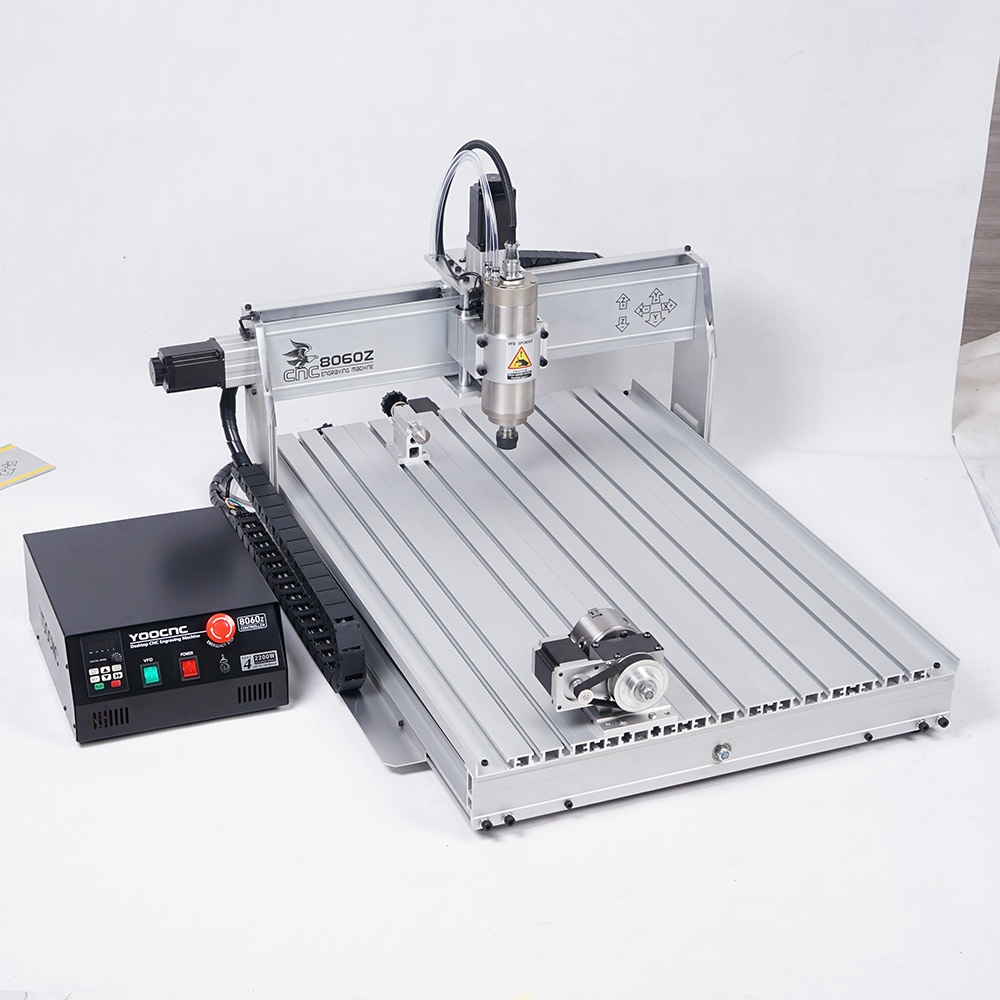

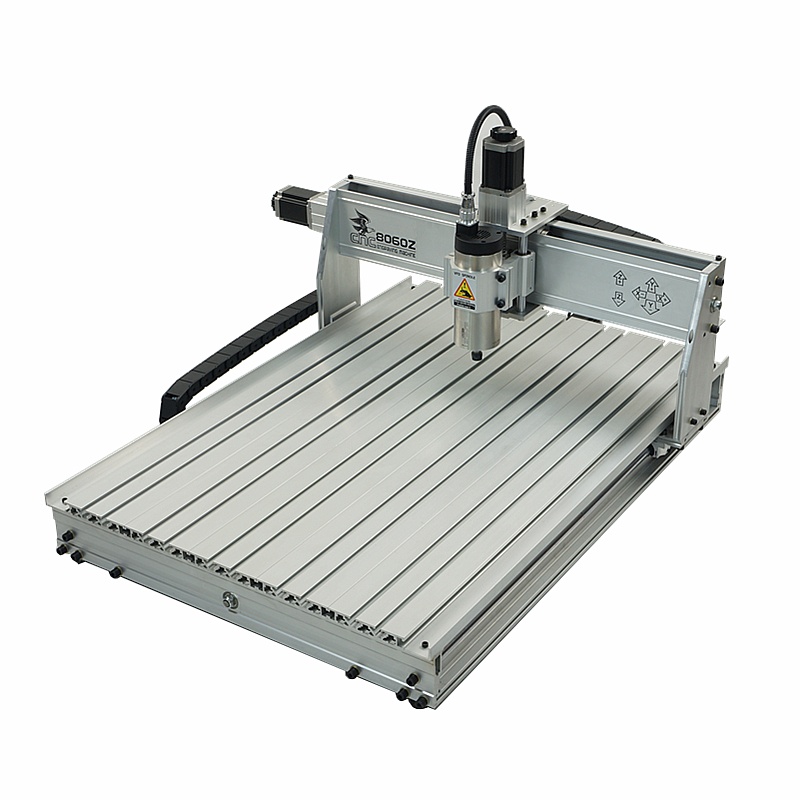

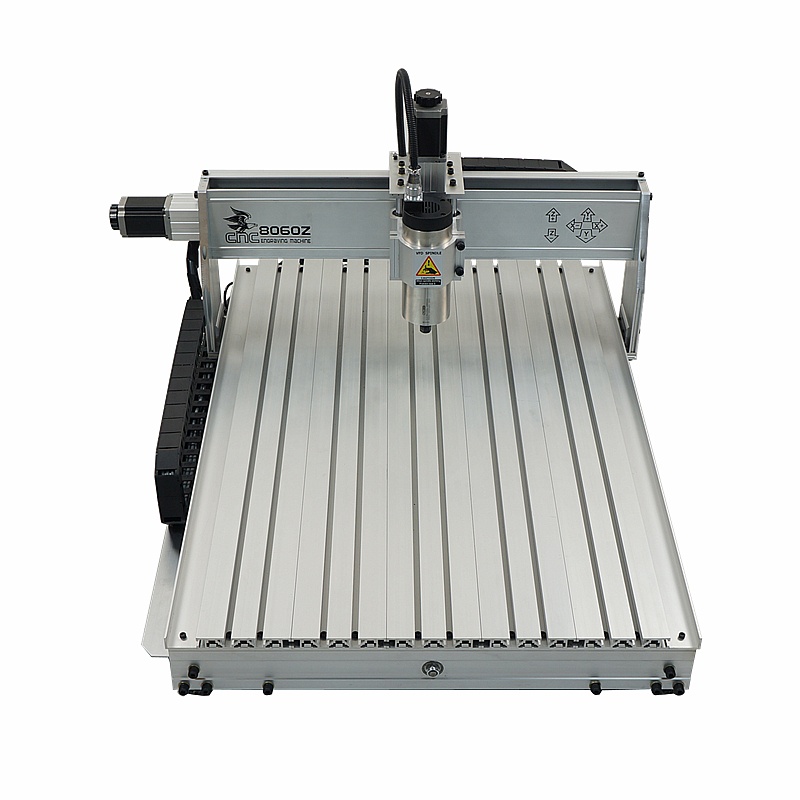

LYCNC Router Engraver YOOCNC Engraving Drilling and Milling Machine 8060Z 1.5KW Spindle Mach3 USB Port

LYCNC Router Engraver YOOCNC Engraving Drilling and Milling Machine 8060Z 1.5KW Spindle Mach3 USB Port

item ID: 71520
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$4000 USD$2291 (% off)
Payment

Product Detail

Product Tags

LYCNC Router Engraver YOOCNC Engraving Drilling and Milling Machine 8060Z 1.5KW Spindle Mach3 USB Port

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

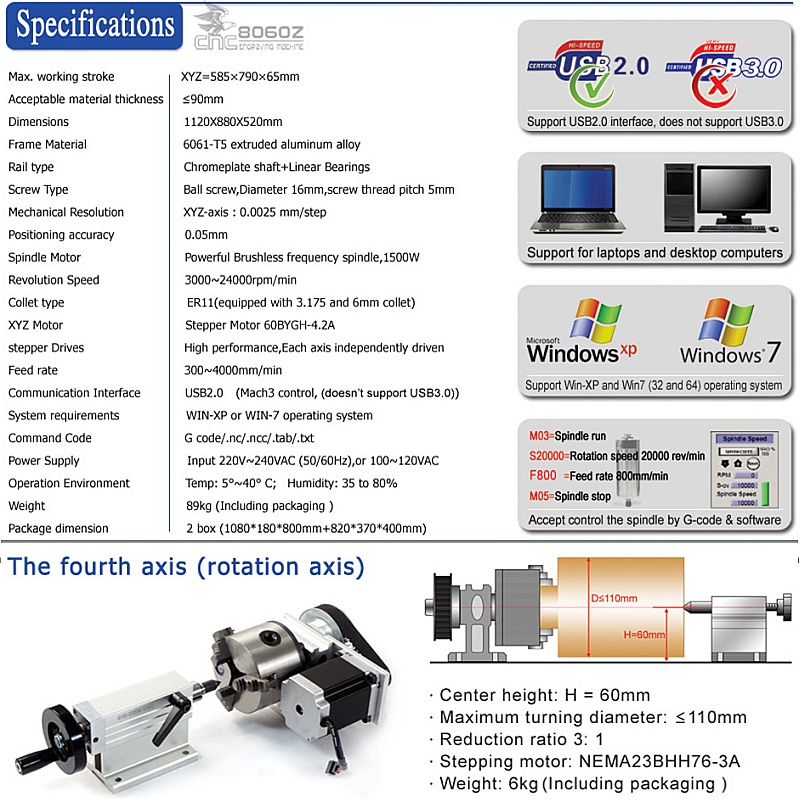

Model and Technical Parameters

MODEL         8060Z-1500W USB
Attribute 3axis 3axis+H 4axis 4axis+H
Axis 3axis 3axis 4axis 4axis
Interface USB port USB port USB port USB port
Limit switch Yes yes Yes Yes
Tool auto-checking Yes Yes Yes Yes

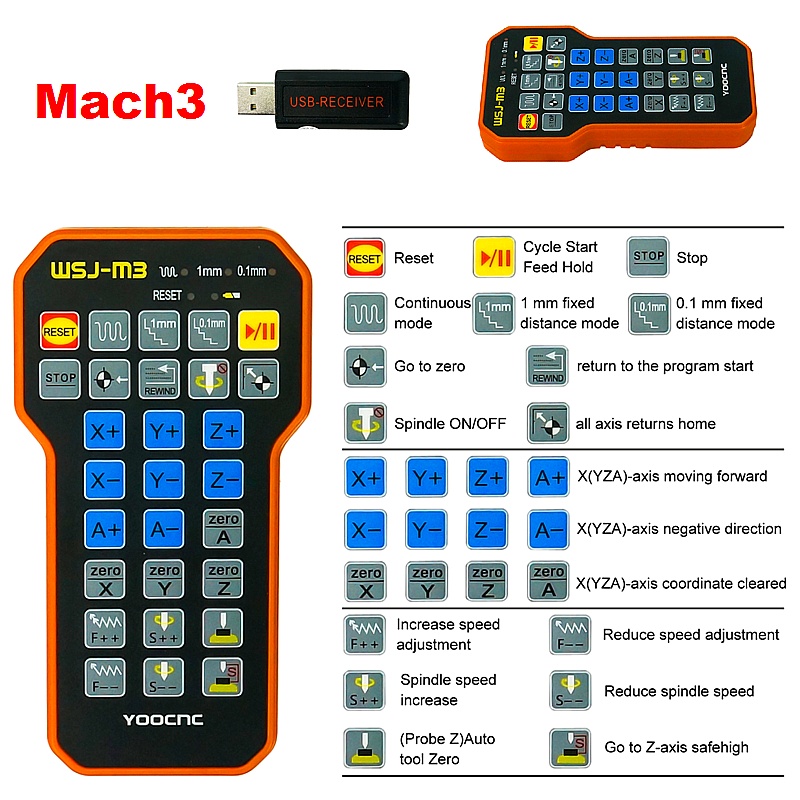

With control handle No Yes No yes
Spindle Motor: 1500W 1500W 1500W 1500W
Type of screw Ball screw Ball screw Ball screw Ball screw
Weigh 84 84 90 90

Machine Dimensions:

1120X880X520mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

790X585mm

Z-Axis Stroke:

65mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤ 90mm

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

Ball screw 1605, Pitch 5mm

Spindle motor: 1.5KW Powerful Brushless frequency spindle ,  (2.2KW optional)

Collet type:

ER11,1/8″(3.175mm) Collet

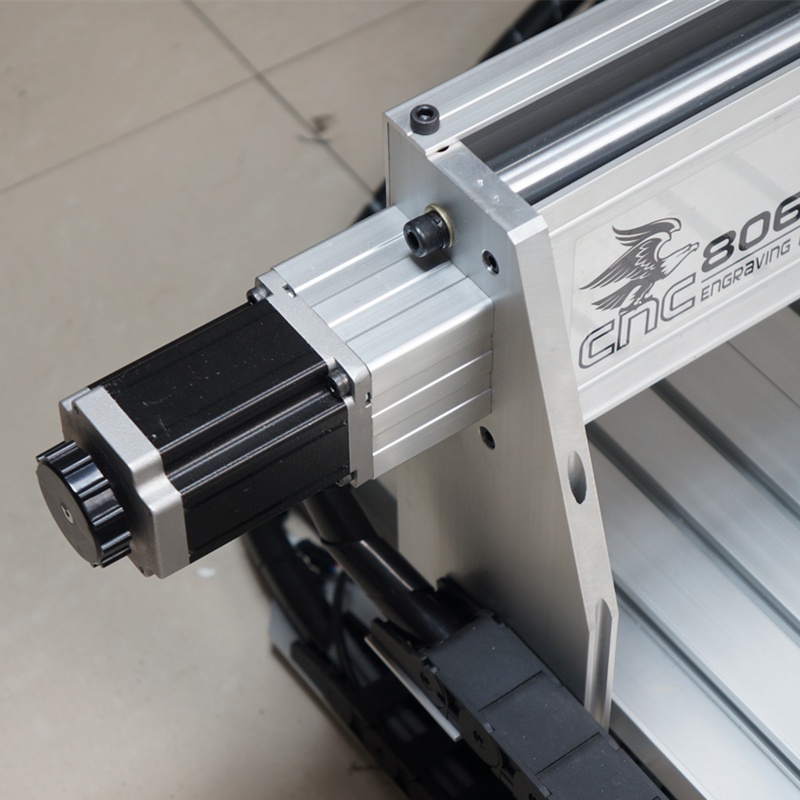

Stepper motor and drive:

60BYGH-4.2A, Each axis independently driven

Maximum operating speed:

4000mm/min (Engraving speed: 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

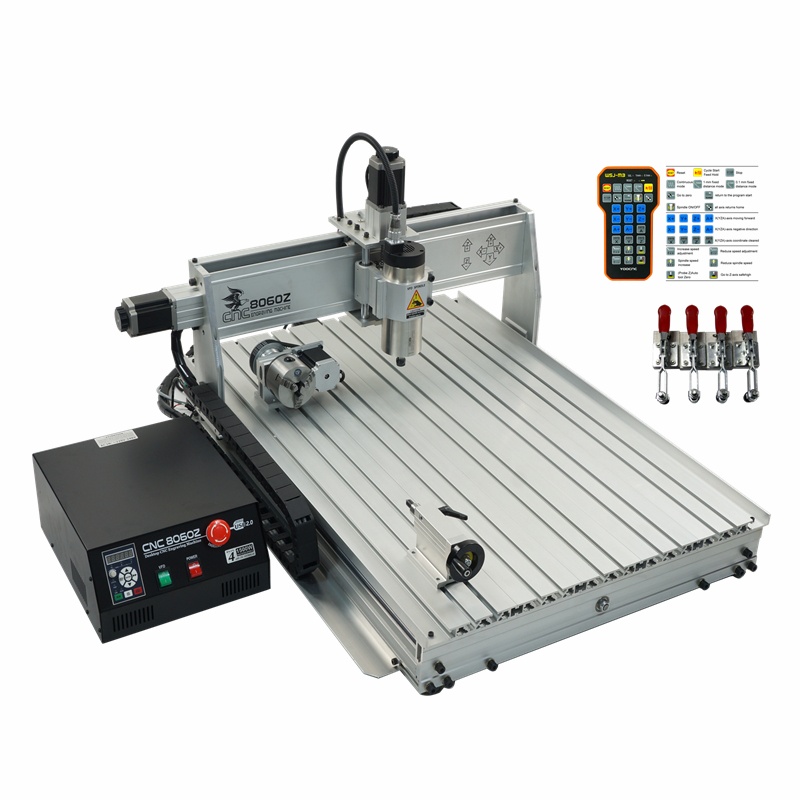

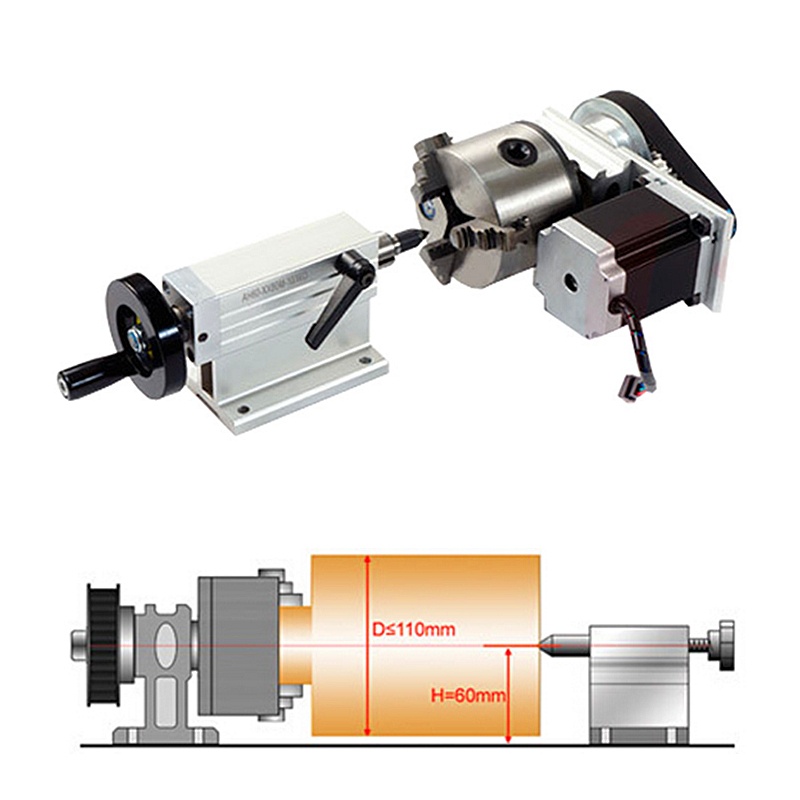

Rotation Axis (4th Axis)

Description:

Center height: H = 60mm

Maximum turning diameter: ≤ 110mm

Deceleration ratio: 3:1

Stepper motor: NEMA23BHH76-3A

Weight: 6KG
