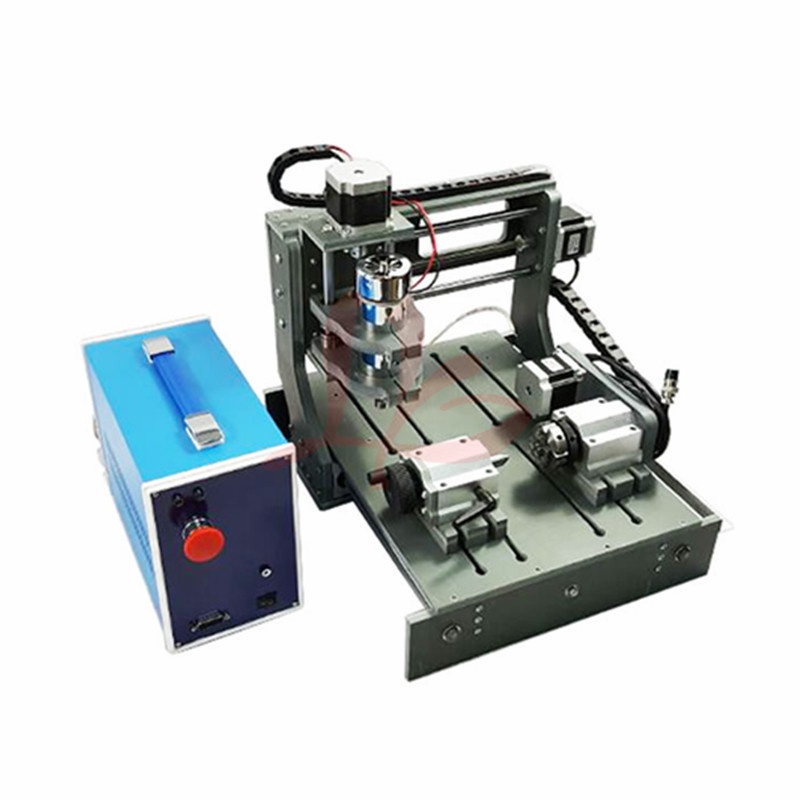

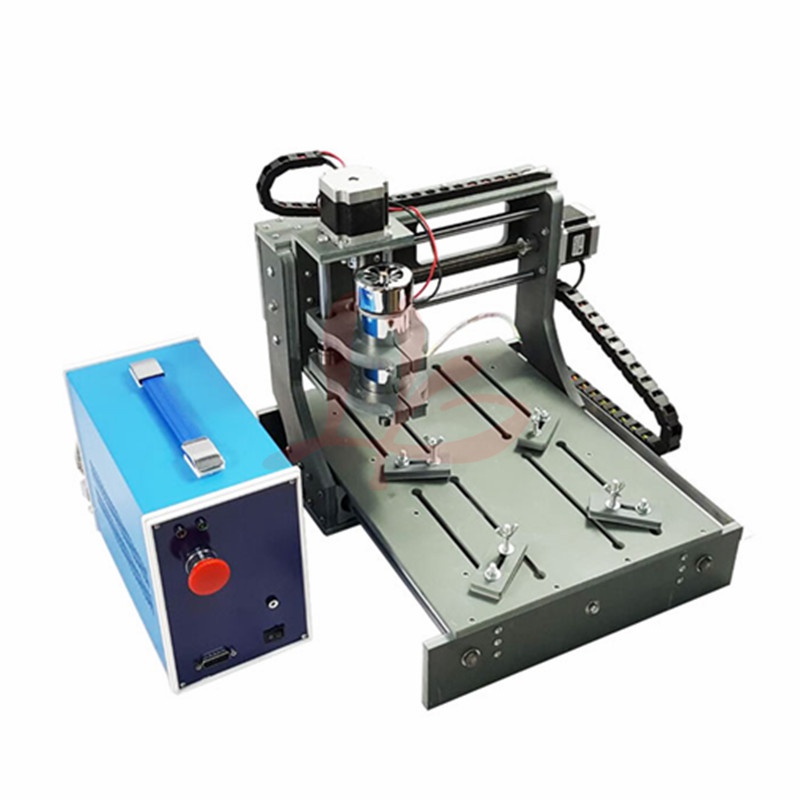

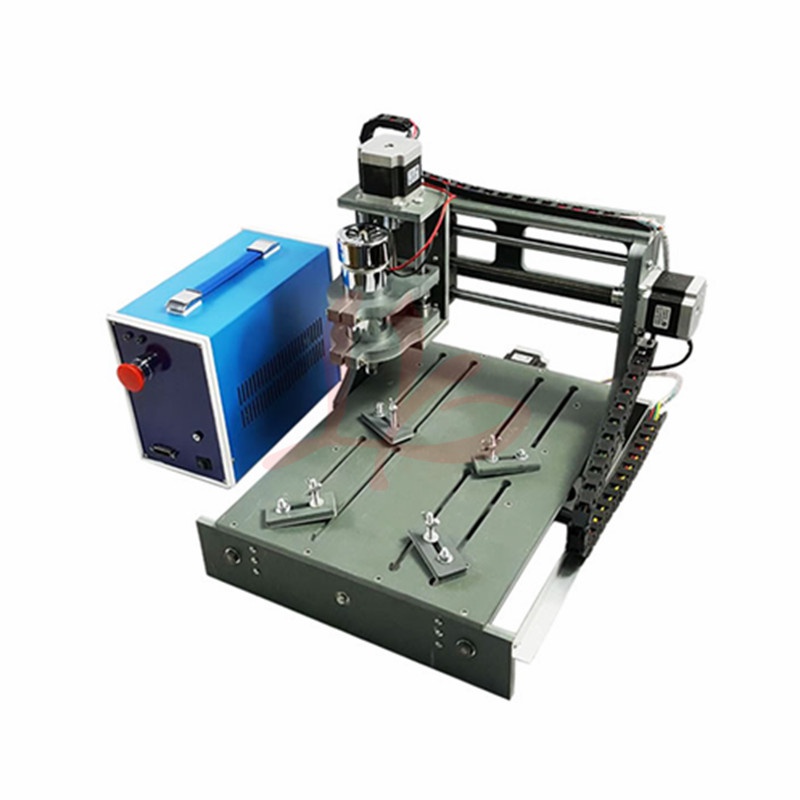

Engraving machine 2030 2 in 1 CNC Router Engraving Drilling and Milling Machine LPT with USB

Engraving machine 2030 2 in 1 CNC Router Engraving Drilling and Milling Machine LPT with USB

item ID: 60453
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$280
Payment

Product Detail

Product Tags

Engraving machine 2030 2 in 1 CNC Router Engraving Drilling and Milling Machine LPT with USB

Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

Warranty

More Precise Stepping Motor

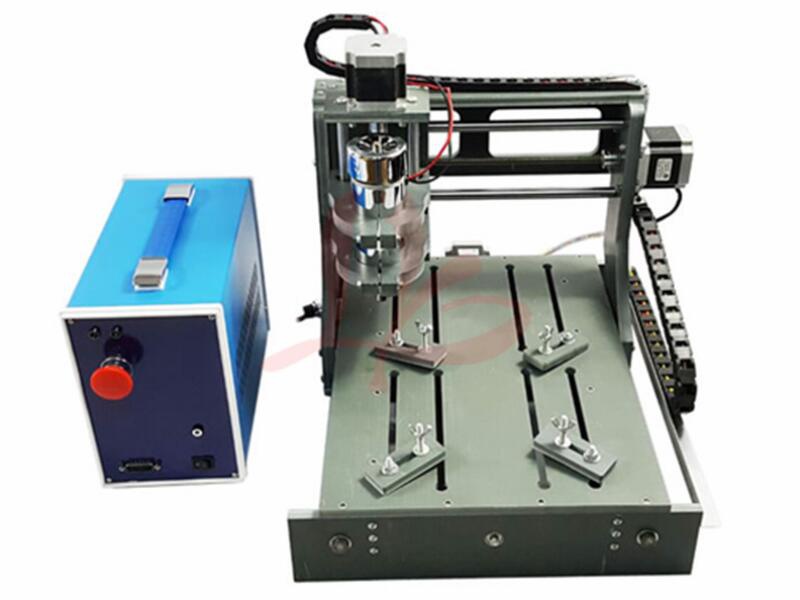

Simple operation and installDIY 2030 说明 (2) DIY 2030 说明 (1)ation

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty



Model and Technical Parameters

MODEL         CNC 2030
Attribute 3axis LPT 3axis 2 in 1 4axis LPT 4axis 2 in 1
Axis 3axis 3axis 4axis 4axis
Interface LPT LPT+USB port LPT port LPT+USB port
Spindle Motor: 300W 300W 300W 300W
Weigh 24 25 28 29
Max. working stroke XYZ=200*300*58mm
Acceptable material thickness ≤80mm
Rail type X and Z axis to hard shaft diameter of 12 mm,

Y axis is hard shaft diameter 16 mm;
Three axis are M8 stainless steel screw, with double nut back to poor organization

Spindle motor

300W  DC spindle , 0-11000r/min

Collet type

ER11,1/8″(3.175mm) Collet

Stepper motor and drive

57BYGH-2.4A,

Maximum operating speed

2500mm/min (Engraving speed : 300-2500mm/min)

Repeat positioning Accuracy

0.03mm

Communication interface

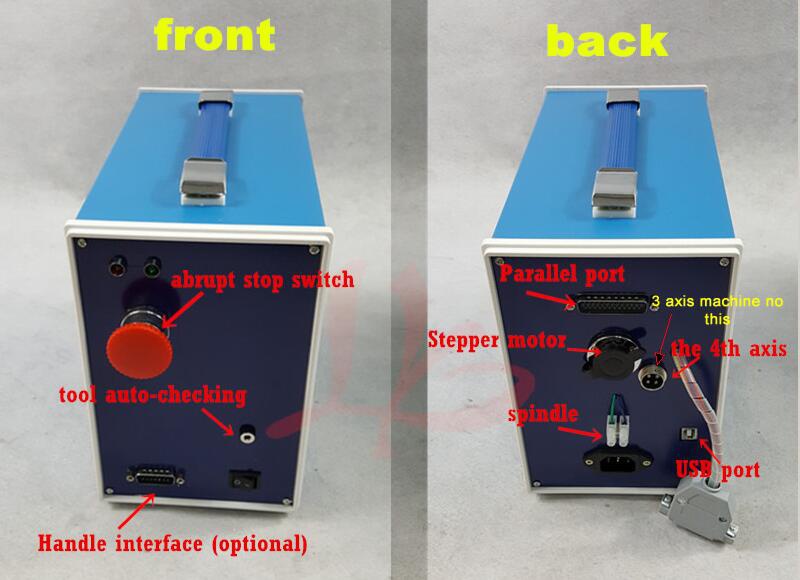

Only LPT or 2 in 1-Parallel port and USB port  ( CNCUSBController )

Software Co

patability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Machine weight

26kg

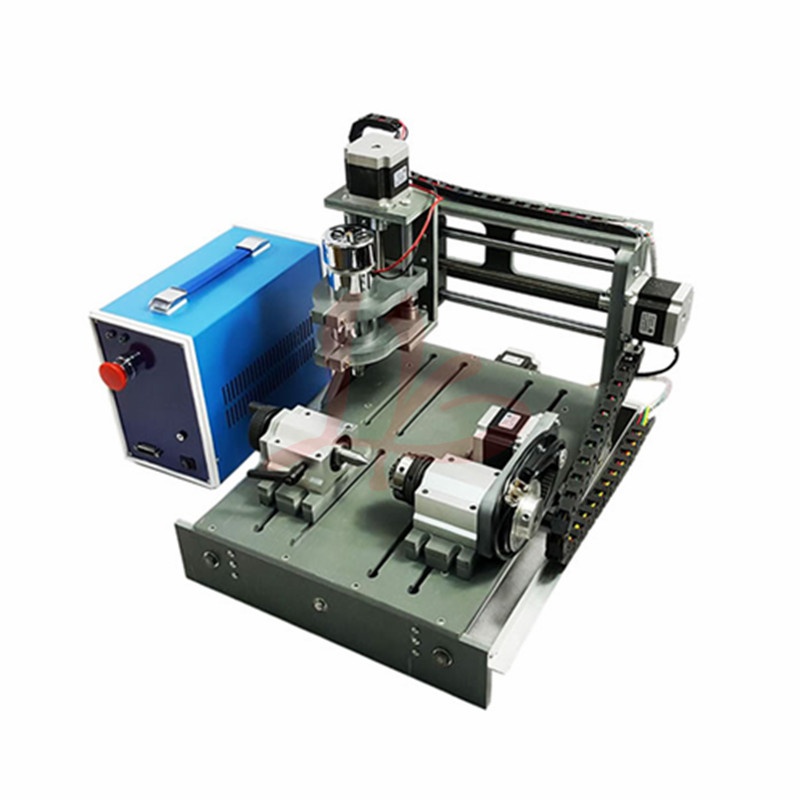

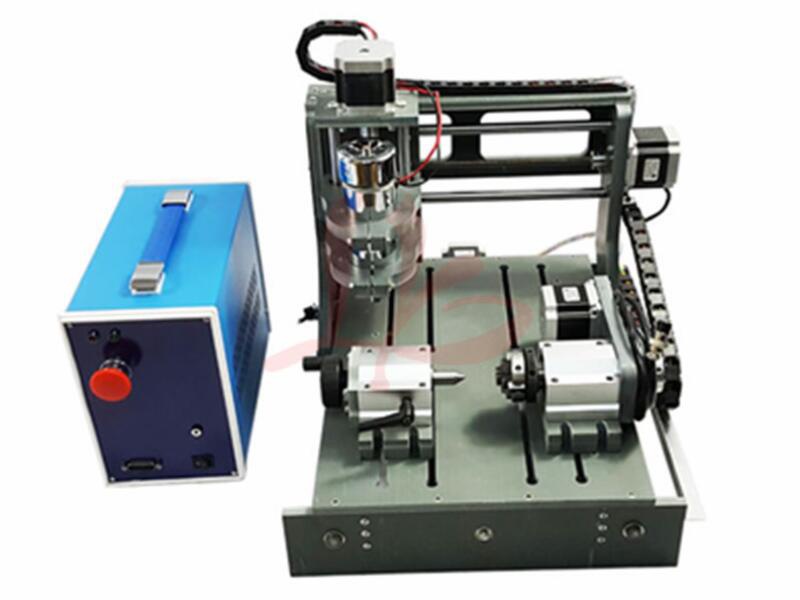

With Rotation Axis (4th Axis)

Description



Center height: H=50mm

Reduction ratio 4:1

Stepping motor: 57-2.4A

Weight: 4kg

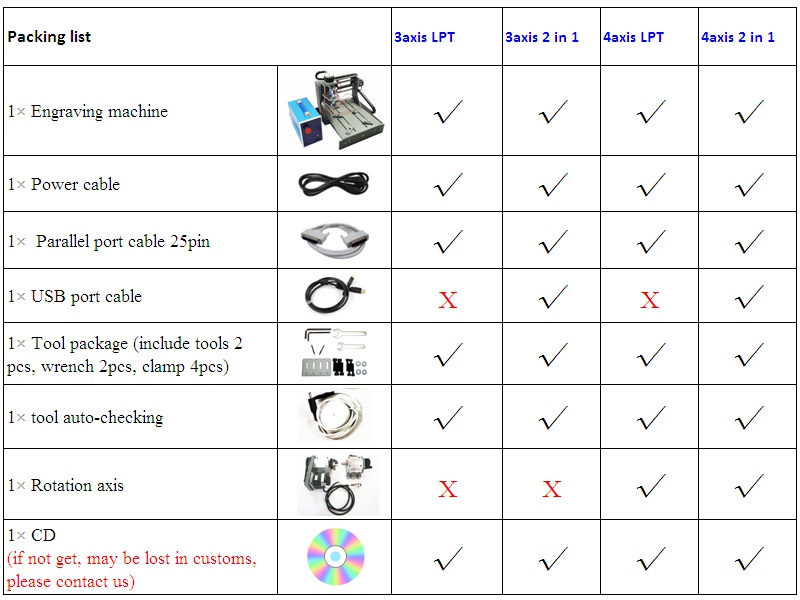

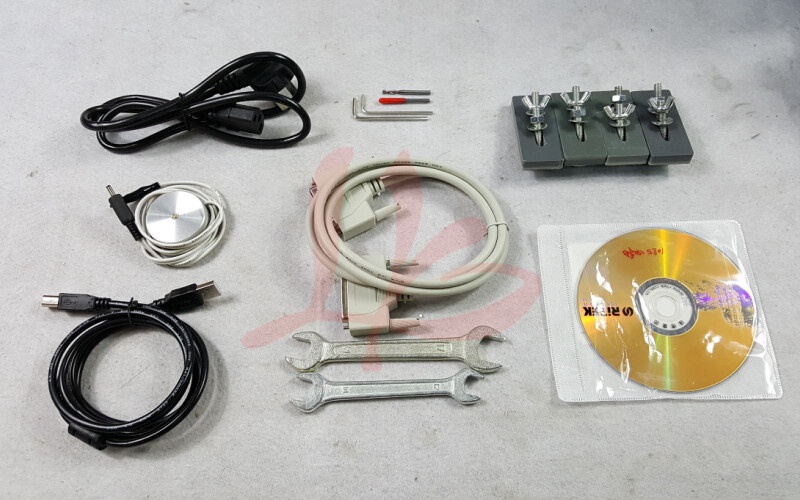

DIY 2030 说明 (3) DIY 2030 说明 (4) DIY 2030 说明 (0) DIY 2030 说明 (5)
