Engraving machine DIYCNC mini CNC Router Engraving Drilling and Milling Machine

Engraving machine DIYCNC mini CNC Router Engraving Drilling and Milling Machine

item ID: 60465
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(3)
USD$246
Payment

Product Detail

Product Tags

Engraving machine DIYCNC mini CNC Router Engraving Drilling and Milling Machine

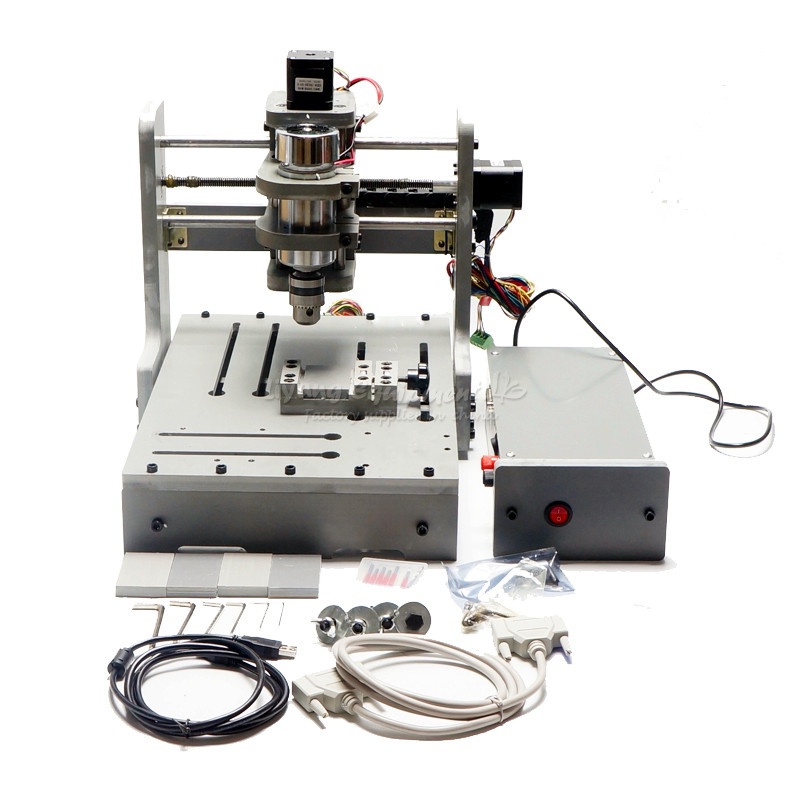

DIY mini 主图 (0) DIY mini 主图 (1) DIY mini 主图 (2) DIY mini 主图 (3) DIY mini 说明 (1) DIY mini 说明 (2)

Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

Model and Technical Parameters

MODEL         CNC mini
Attribute USB-3axis   USB-4axis
Axis 3axis   4axis
Interface USB Port   USB Port
Spindle Motor: 300W   300W
Weigh 17   21
Max. working stroke XYZ=200*300*80mm
Acceptable material thickness ≤80mm
Rail type 12 mm optical axis, 10 mm trapezoidal screw

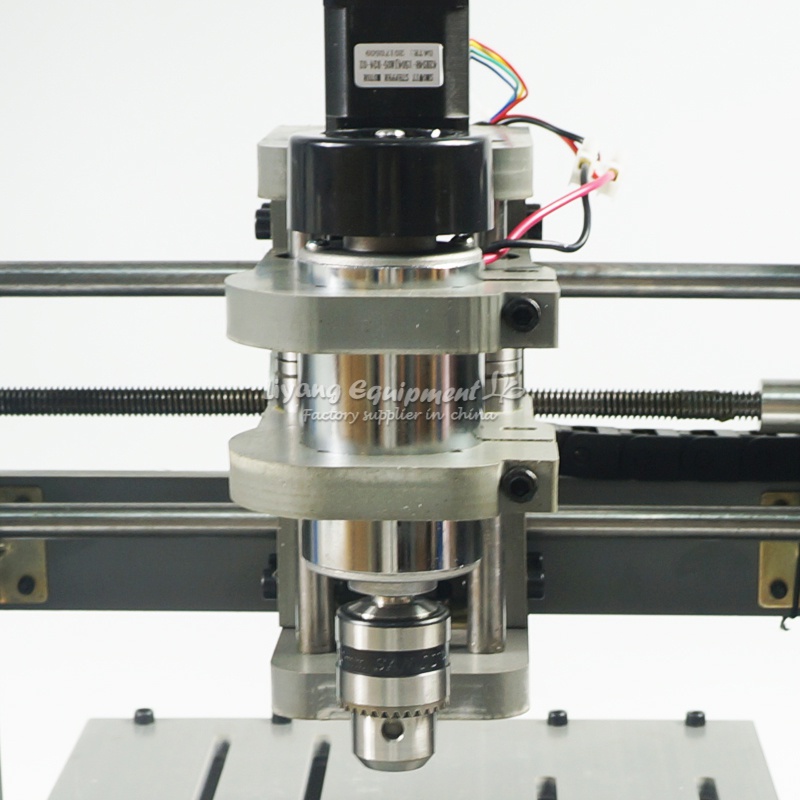

Spindle motor

300W DC spindle ,0-11000r/min

Collet type

Drill Chuck

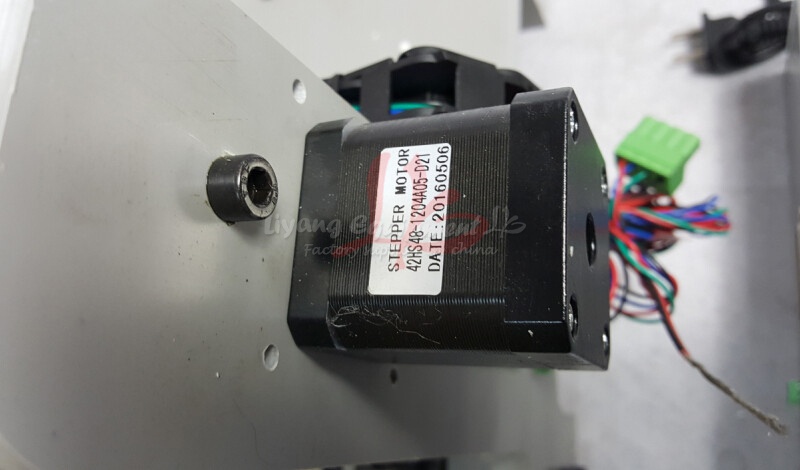

Stepper motor and drive

42HS48

Maximum operating speed

2500mm/min (Engraving speed : 300-2500mm/min)

Repeat positioning Accuracy

0.03mm

Communication interface

USB port

System requirements Win-XP / Win 7 32 bit or 64 bit operating system
Software Co

patability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Machine weight

17kg

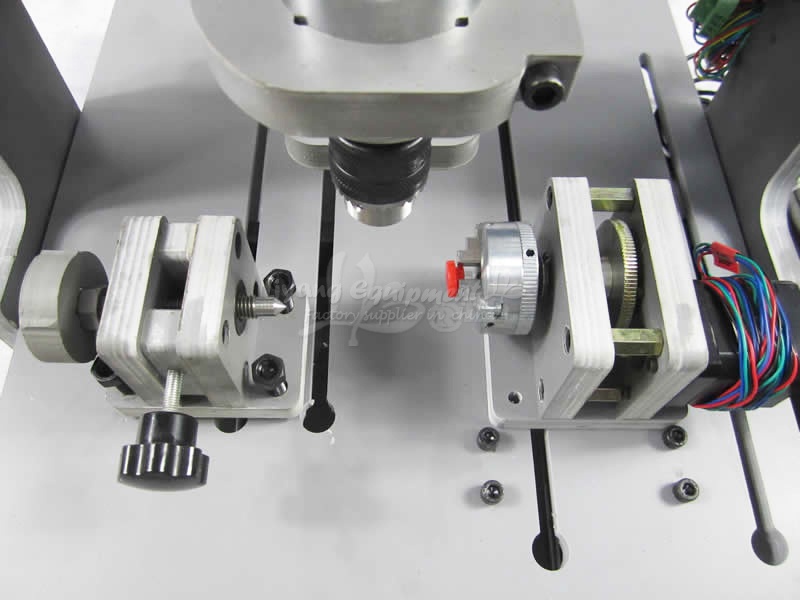

Rotation Axis (4th Axis) Weight: 3kg

DIY mini 说明 (3) diy mini 说明 (4) DIY mini 说明 (5) DIY mini 说明 (6) DIY mini 说明 (8)

Warranty

More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty
