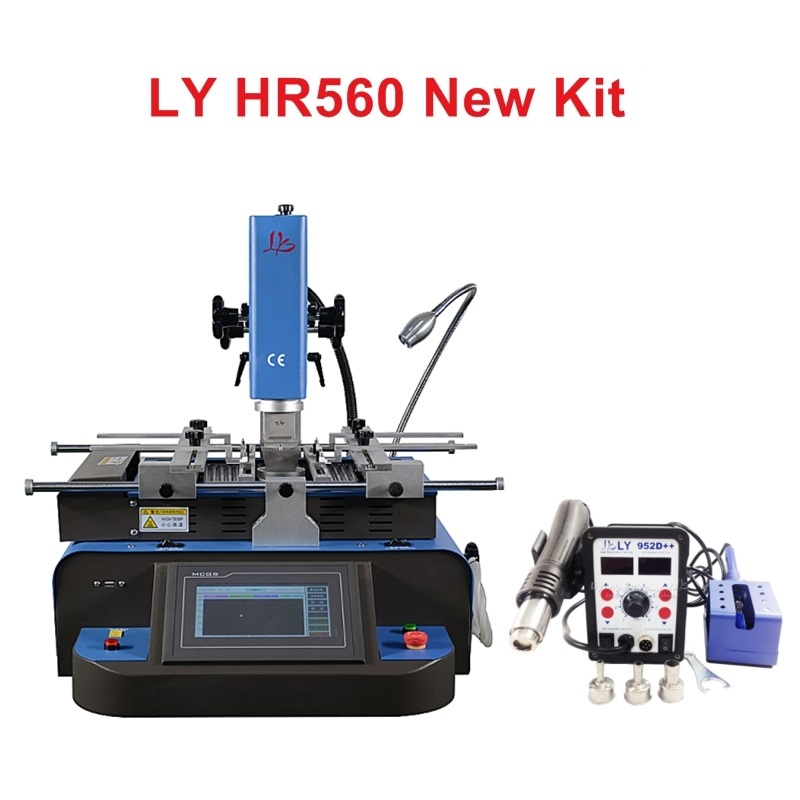

LY HR560 BGA Rework Station kit 3 zones Separated 4800W with external solder station hot air blower 650W iron 60W 220V

LY HR560 BGA Rework Station kit 3 zones Separated 4800W with external solder station hot air blower 650W iron 60W 220V

item ID: 65137
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$3000 USD$1815 (% off)
Payment

Product Detail

Product Tags

LY HR560 BGA Rework Station kit 3 zones Separated 4800W with external solder station hot air blower 650W iron 60W 220V

Feature:

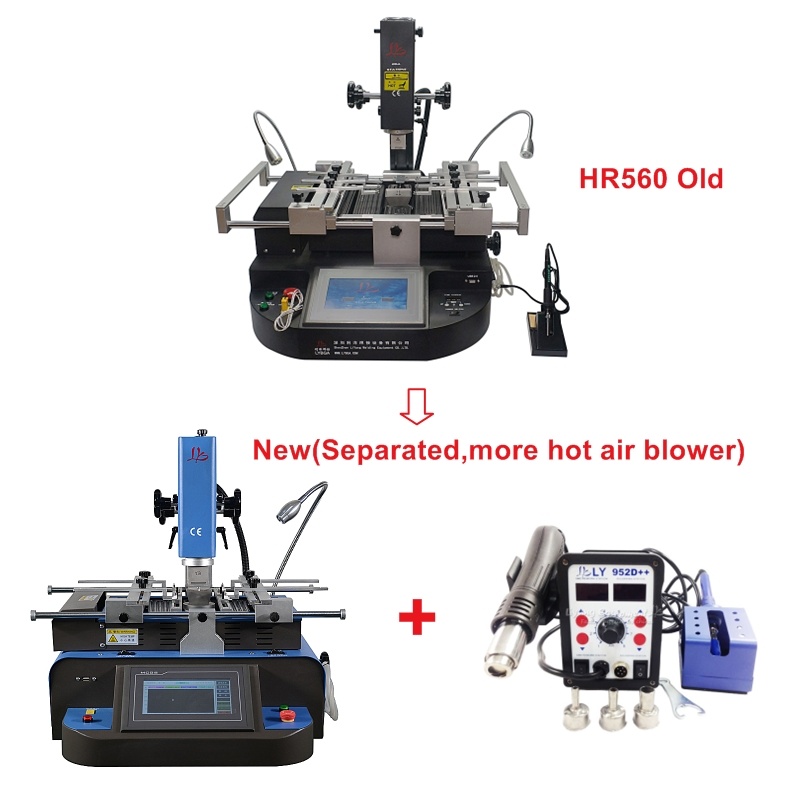

Separated design,more easier for repair and maintance,and added more auto-sleep solder iron with big power hot air blower to use together with BGA rework station.

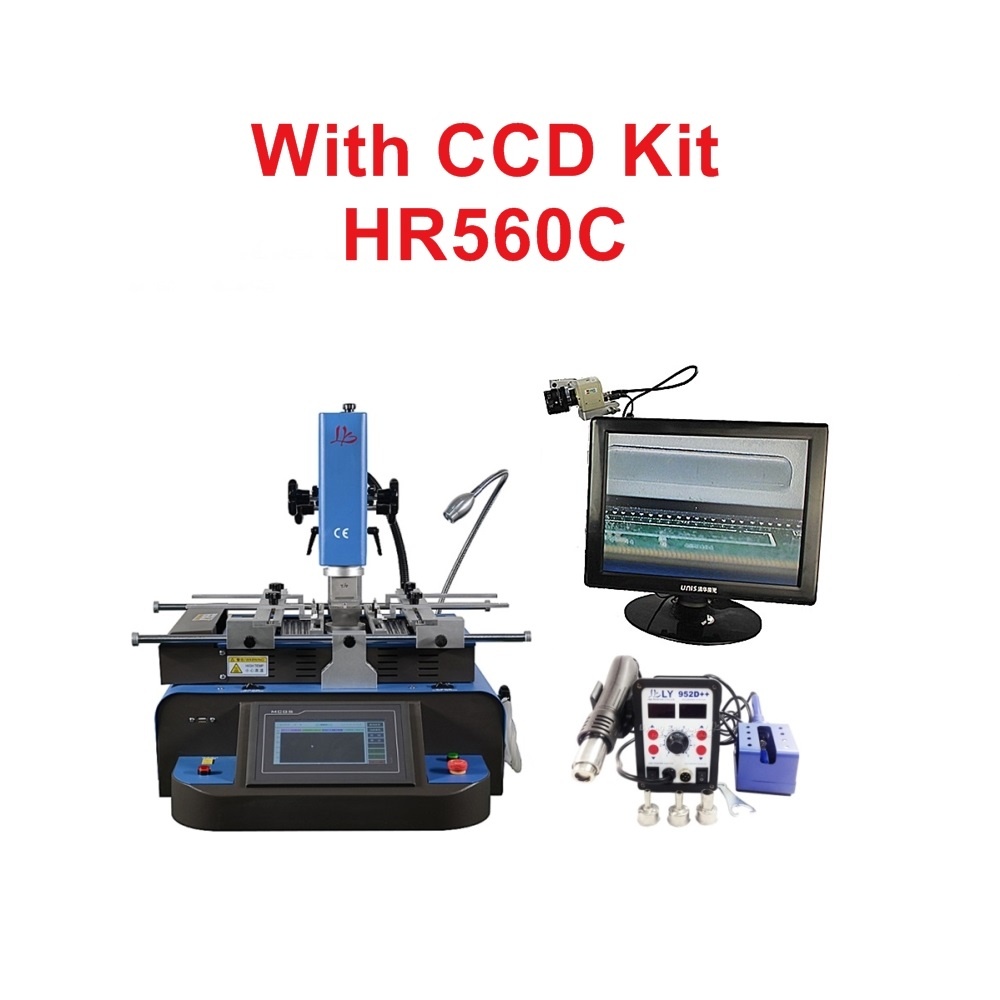

Optional:CCD with monitor 15’’ (If you need this add on equipment,can contact with our saleman.

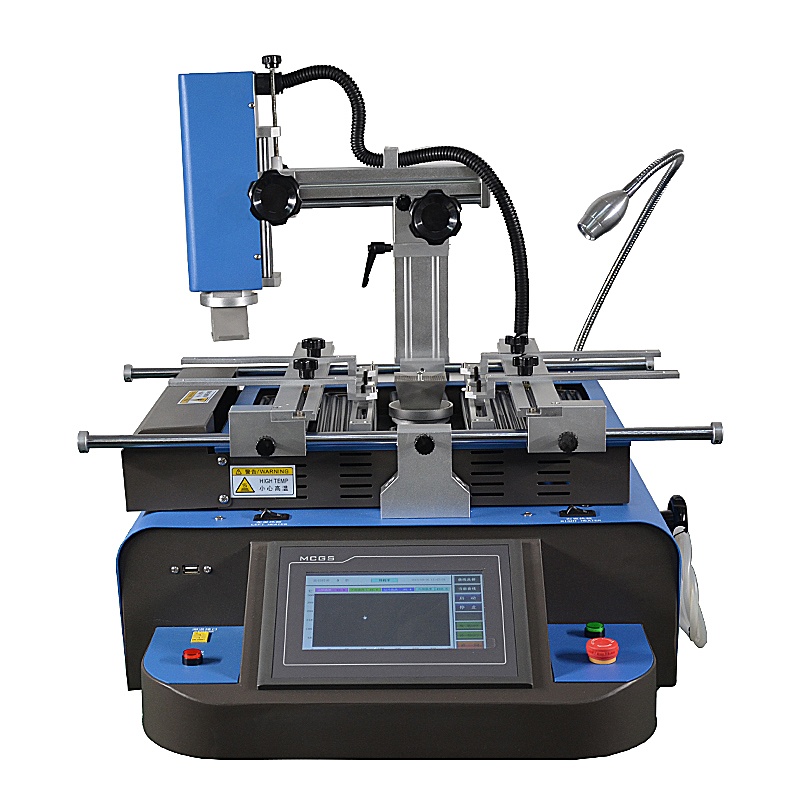

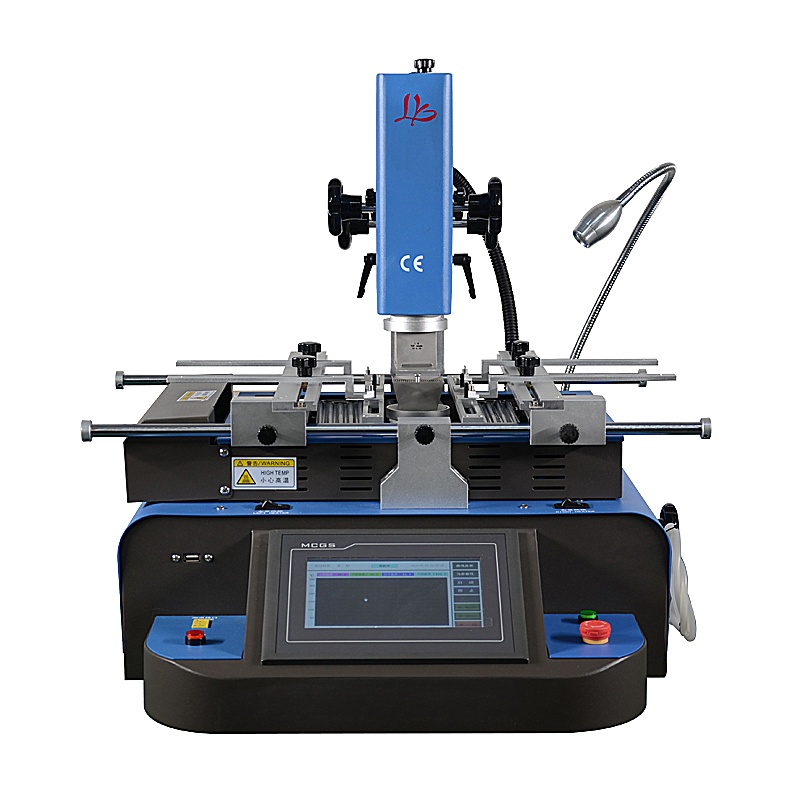

LY G580 BGA rework station

Parameter:

Total Power 4800W
Upper Heating Power 800W
Lower Heating Power 1200W

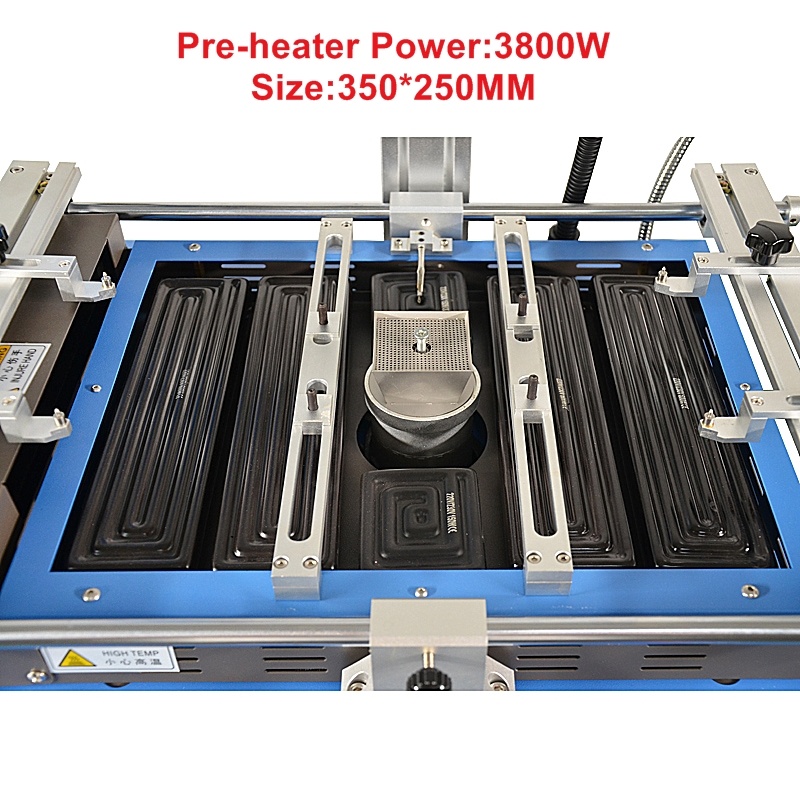

Infrared Heating Power 2700W(1200W is controlled)
Power supply  (Single Phase)  AC 220V±10  50Hz
Location way  V-shape card slot + Universal jigs
Temperature Controlling K-type thermocouple closed loop control, independent temperature

control, precision up to ±3 degree

Electrical  Material  Touch screen + Temperature control module + PLC control
 Max PCB size 400×370mm
 Min PCB size 10×10mm
 Sensor  1 unit
PCB Thickness 0.3-5mm
 Suitable Chip Size 2*2mm-60*60mm
Machine Size 500×590×650mm
 Weight  Net 40kg

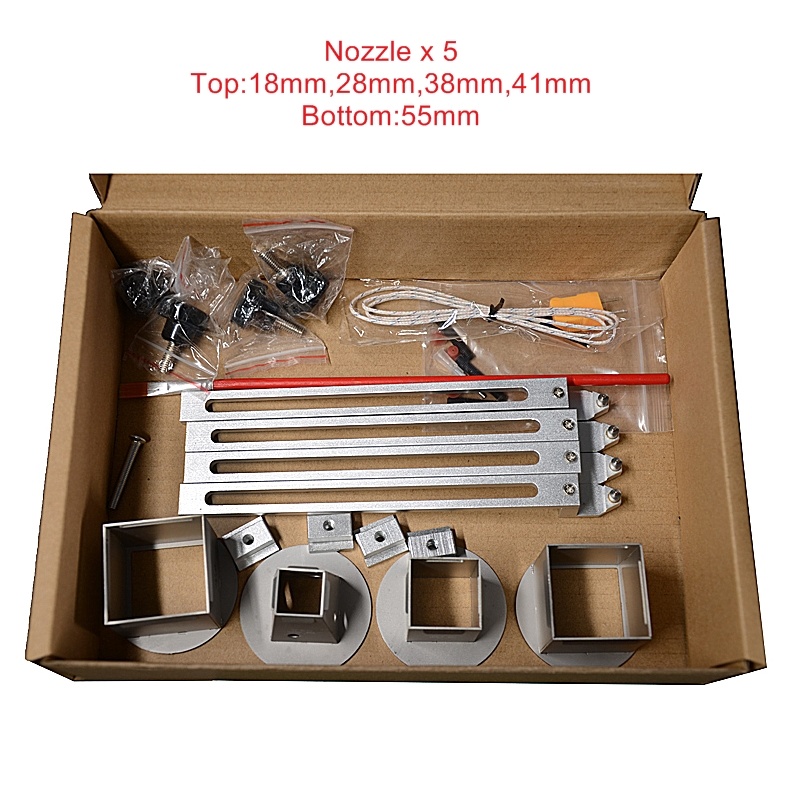

Nozzle x 5(top 18,28,38,41mm; bottom 55mm)

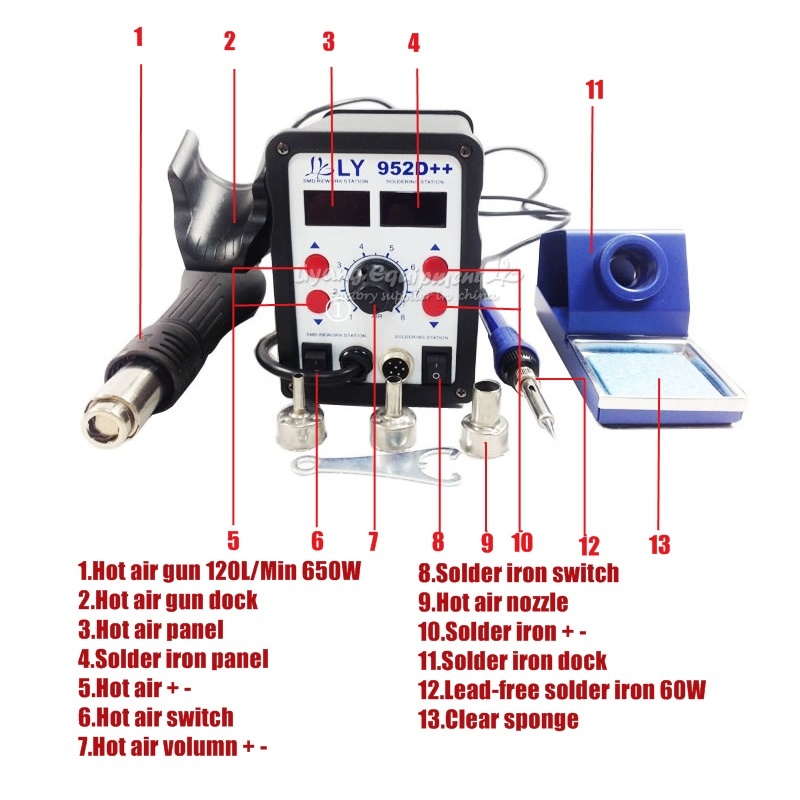

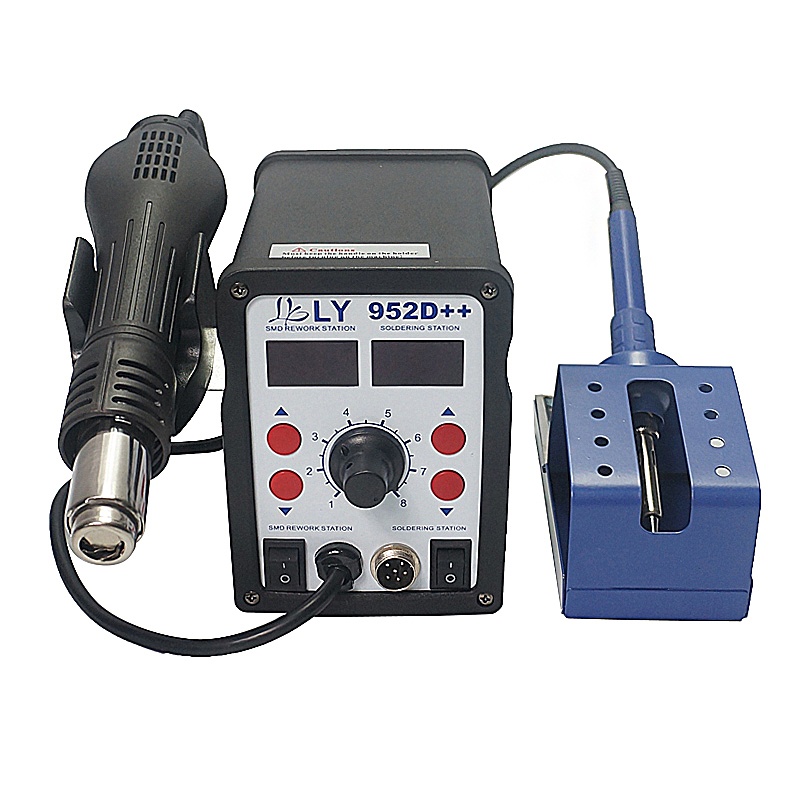

Model: LY 952D++

Power <= 700W

Size:L 150 X W 100 X H 130MM +- 5MM

Weight:3KG

Work circumstance: 0-40 degree /32-104F

Storage circumstance: -20-80 degree/-4-176F

Storage humidity:35%-45%

—————————————————————-

Solder iron:

Power:60W

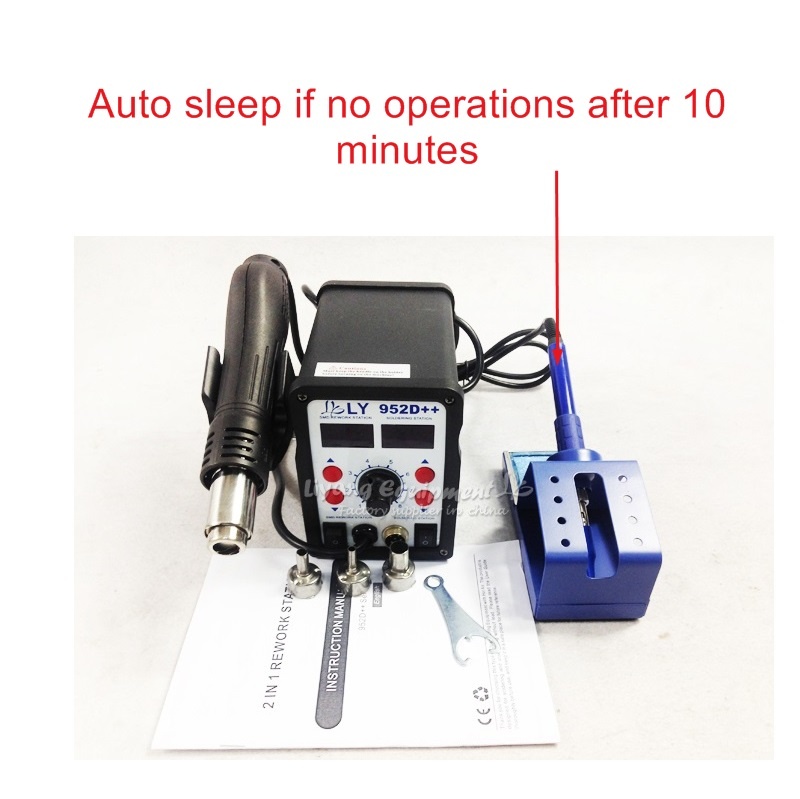

Auto sleep gap time: 10 minutes

Auto sleep maintain temperature:200 dgree

Awaken method: Make it leave stand & shake it slightly

Temperature range:200-480 Degree/392-896F

Tempareture stability:+-1 dgree

Heat element: Big power imported

Solder tip voltage against ground:<2MV

Solder tip resistance against ground:<20hm

—————————————————————-

Hot air gun:

Power: 650W

Auto drop to 100 degree then stop blow when put on hot air gun stand

Temperature range:100-480 degree/282-896F

Tempareture stability:+-1 dgree

Output air type:brushless soft air

Out put air cube:120L/Min,lifetime more than 30K hours.





Packing list:

LY 952D++ X 1 (220V or 110V)

Solder handle x 1

Hot air gun x 1

Solder iron dock x 1

High temperature-proof sponge x 1

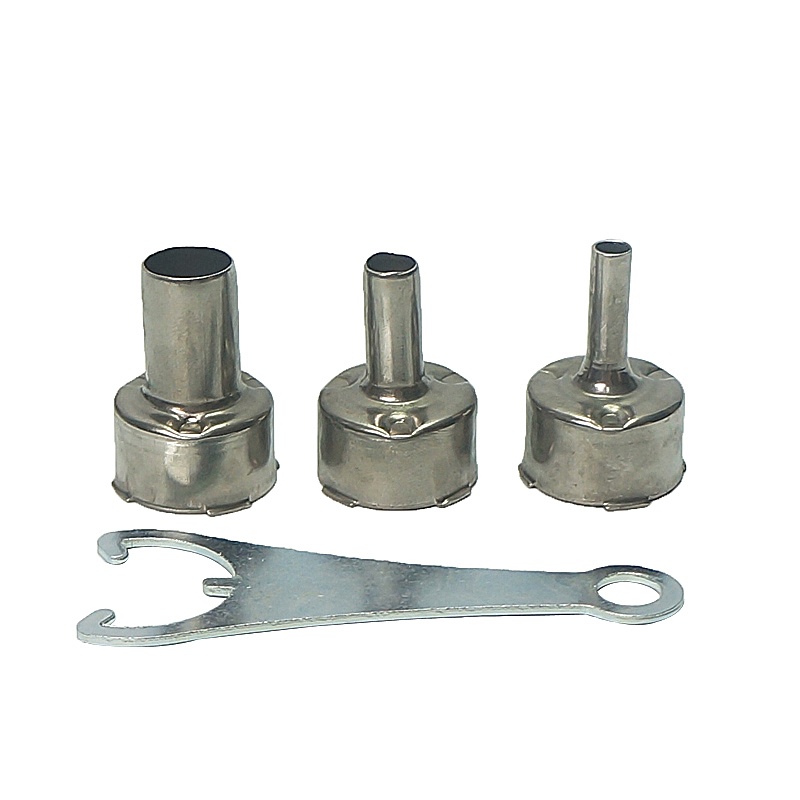

Wrech x 1

Hot air nozzle x 3 (5mm,8mm,10mm)

Manual x 1
