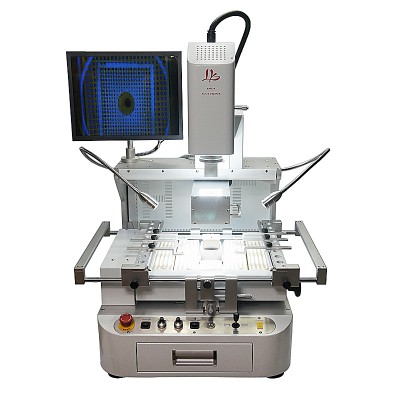

LY-R890A Automatic align BGA rework station with CCD alignment system and HD touch screen 220V

LY-R890A Automatic align BGA rework station with CCD alignment system and HD touch screen 220V

item ID: 59996
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(2)
USD$5764.7
Payment

Product Detail

Product Tags

Video:


R890A(1)

Technical parameters:

1 Total Power 4300W

2 Upper heating power 800W (first zone)

3 lower heating power 800W (second temperature zone)

4 The third zone 2700W (about infrared heating panels can be independently controlled)

5 Power AC 220V ± 10 50 / 60Hz

6 electrical material selected Dalian temperature control system

7 outer shape dimensions 600 × 640 × 850mm

8 Temperature control K-type thermocouple closed-loop control

9 Positioning V-slot mode, with universal clamps

9 P C B Size Max 430 × 400mm; Min50 × 50mm

10 applicable chip 1 × 1 ~ 80 × 80mm

11 outside the mouth of a set temperature

12 Net weight LY 58kg machine

13 Gross weigth 88KG

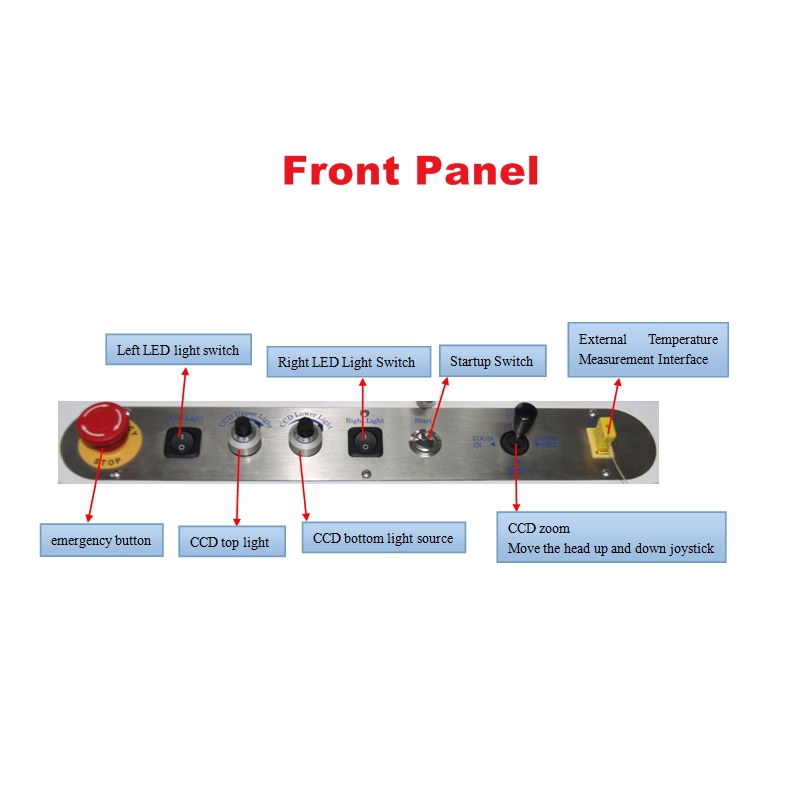

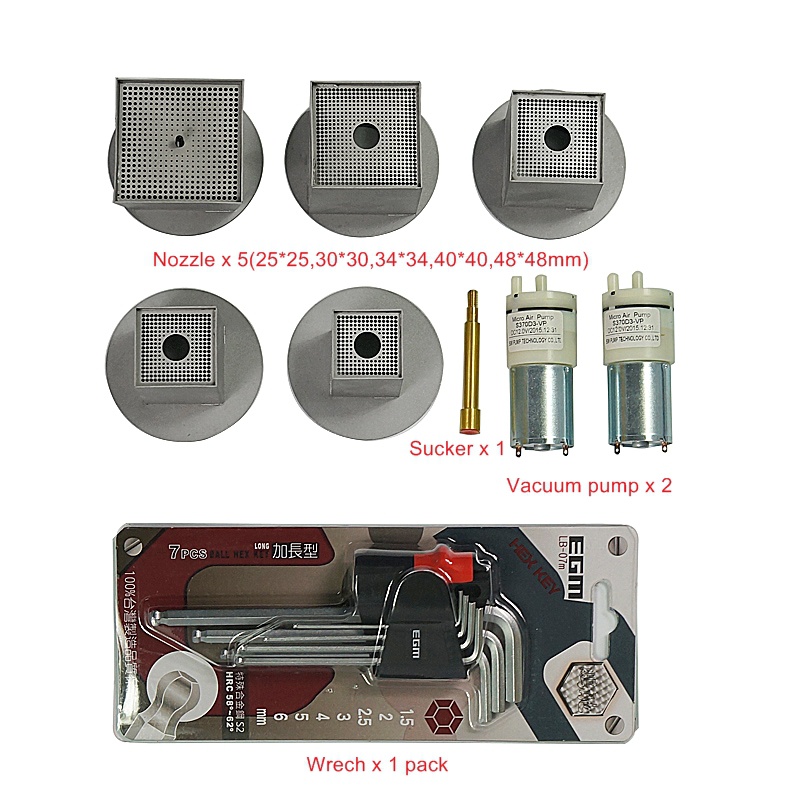

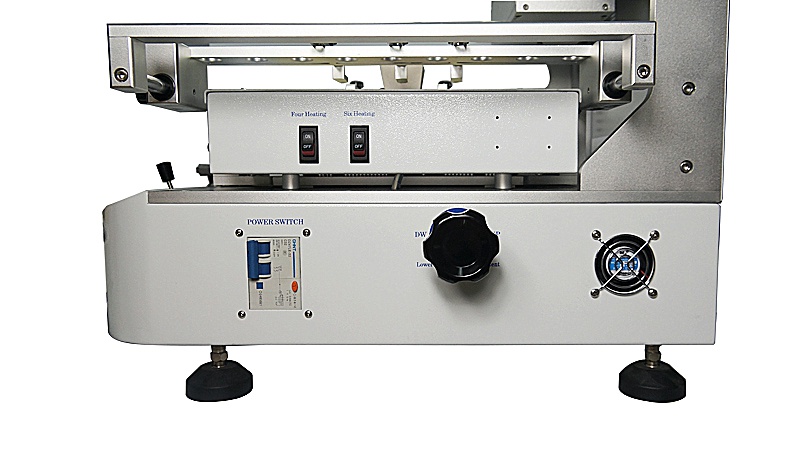

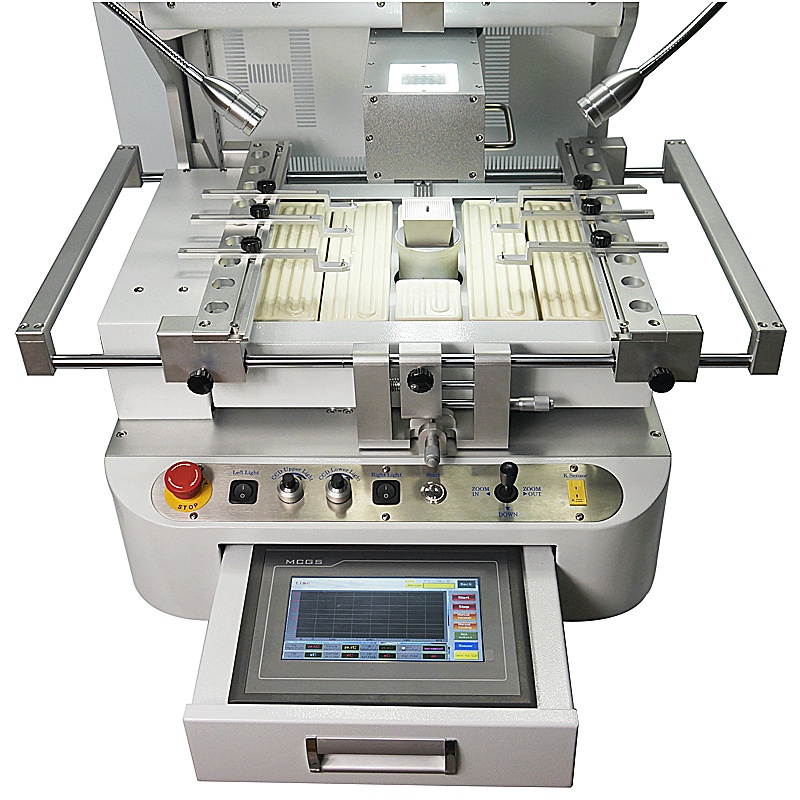

R890A(8) R890A(8.1) R890A(9) R890A(10)

separate three-zone temperature control system



  LY-R890A can be carried out from the top and bottom of the PCB components while hot air circulation local heating, supplemented by a large area of infrared heating, can be completely avoided in the process of PCB rework upturned sink, freedom of choice through software alone or upper or lower heating element, and a combination of upper and lower heating elements energy freedom, making the double BGA, CCGA, QFN, CSP, LGA, SMD rework and other devices easier. At the same time the external interface for precise temperature detection of temperature can be collected at any time of the actual temperature profile BGA analysis and proofreading.



precise optical alignment system



  LY-R890A optical alignment system image is clear, enlarged to 200 times the maximum component placement accuracy up to +/- 0.01mm. And has a spectral color, zoom and fine-tuning, configuration, 12 “high-definition LCD display.



versatile user-friendly operating system



LY-R890A with touch screen interface, K-type thermocouple closed loop control and intelligent automatic temperature compensation system. Upper hot thunder and mounting head integration design, with soldering and desoldering functions. While the temperature can be set to 6 and 6 segment thermostatically controlled heating and storage temperature setting parameters N group, can be called at any time depending on the BGA.



superior security features



LY-R890A is designed after soldering or desoldering finished with alarm function, temperature abuse case, the circuit can automatically power, with dual over-temperature protection. Temperature parameters with password protection to prevent arbitrary changes and foolproof security and many other features, with superior security features to ensure that PCB and components to avoid damage and repair the machine under any abnormal condition itself damaged.

R890A(11)
