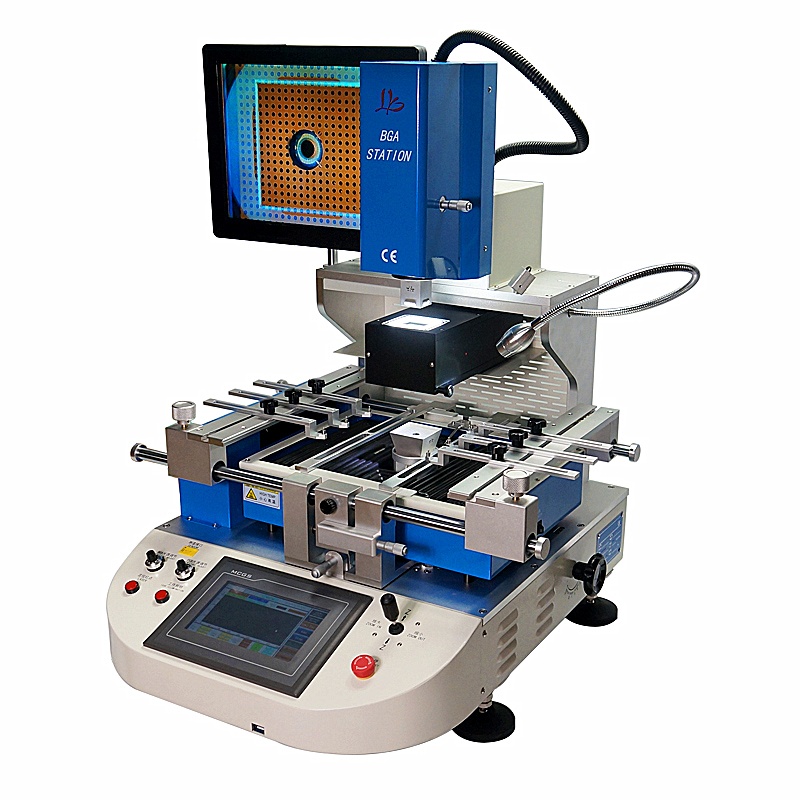

LY G720 G-720 Semi-automatic align BGA Rework Station With Reball Kit for Laptops/Game consoles 220V 110V

LY G720 G-720 Semi-automatic align BGA Rework Station With Reball Kit for Laptops/Game consoles 220V 110V

item ID: 65221
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$8000 USD$4100 (% off)
Payment

Product Detail

Product Tags

LY G720 G-720 Semi-automatic align BGA Rework Station With Reball Kit for Laptops/Game consoles 220V 110V

Video:

1.Basic Operations:

https://youtu.be/rX_J061xtVc



2.Work with mobile motherboard chipsets

https://youtu.be/71-DBp-cfmM

  The Features of LY-G720 bga rework station :



1.HD Optical alignment system for precisely mounting BGA and components



2.Touch screen and PLC controlling to ensure it work stably and reliably.



3.Components mounting accuracy within 0.01mm , Repair success rate 99.9%



4.Laser Positioning function for fast positioning the BGA Chip and motherboard



5.Precise Temperature Control, accuracy within 2



6. Upper temperature zone can be moved freely, Second zone can be adjusted up and down.



7. Three temperature zones to heat up independently.



8. Hot air nozzle can be rotated in 360 degree



9.Perfect support Soldering, Desoldering, Removing and Reballing the BGA Chip



10. Rework BGA, VGA, CCGA, QFN, CSP, LGA, SMD, etc



11. With CE certification, double over temperature protection function

  The Parameter of bga rework station :

Place of Origin

   Guang dong , China

Brand Name

   LY

Moed Number

 LY-G720 bga rework station

Superior function

  Can create relevant temp,curves according to     chips      size

 Detail Specification

 Power

    AC 220V±10% 50/60Hz

 Total Power



5100W

 Heater power



upper temp.zone 1200w, second temp.zone 1200w, IR teom.zone 2700w

 Temperature  Controlling

 K-type thermocouple close-loop control,independent temp.controller, the precision can reach  ±1

 PCB size



 Max:420*380mm  Min:10*10mm

 Applicable  chips



 Max: 80*80mm  Min 1x1mm

Thermocouple Ports

 1 units

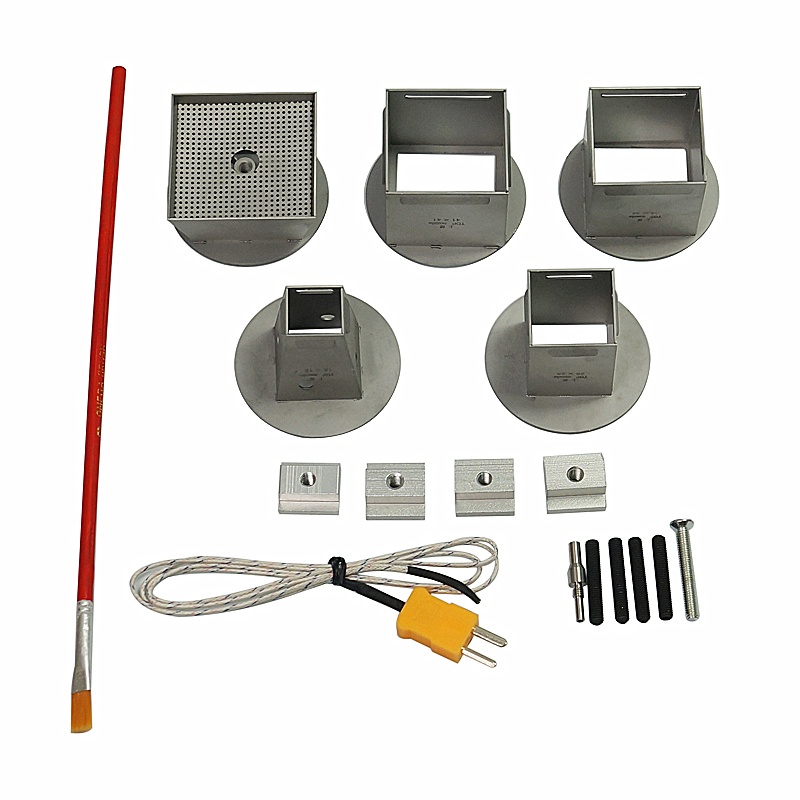

 Nozzles x 5: 18mm,28mm,38mm,41mm,50mm

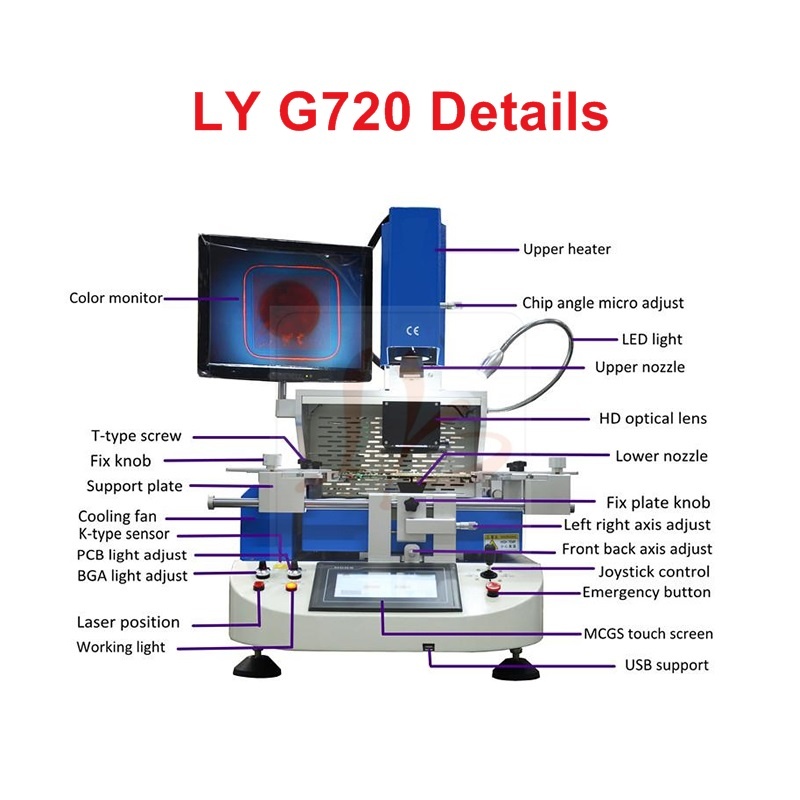

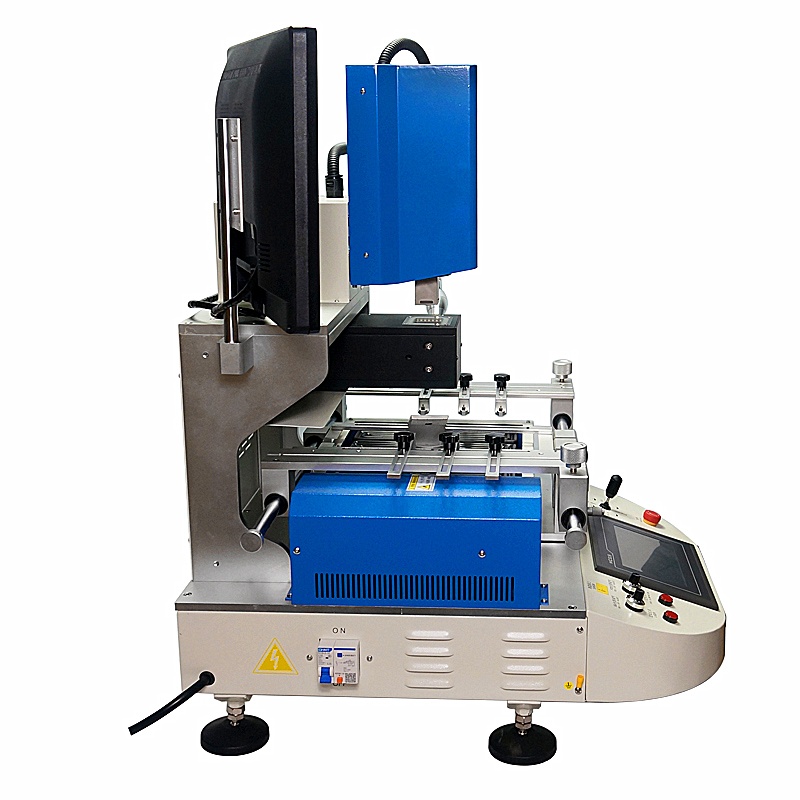

 LY-G720 BGA Rework Station Detailed  SHOW

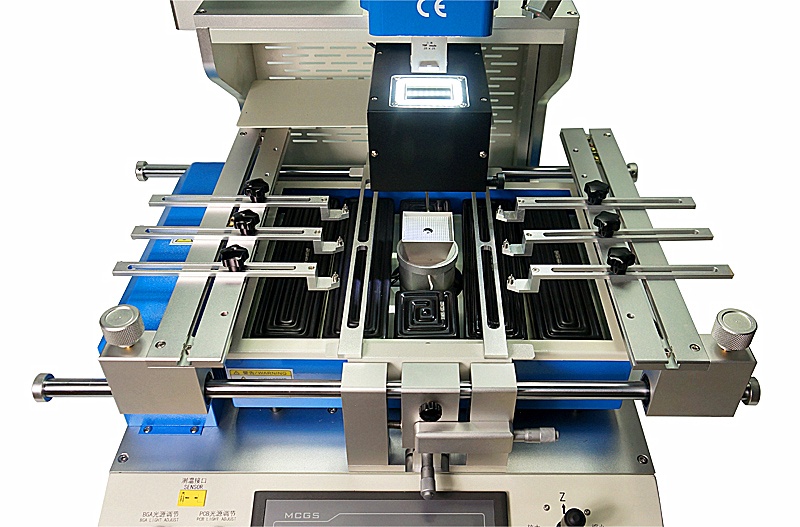

Independent 3 heating zones temperature control system

1.The upper and lower hot air heating,which can heat up at the same time from the top of the

component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1

8 segment temperature control independently.  bga welding machine

2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up

for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower

temperature zones could be used alone and combine freely the energy of up and lower

heating element.   bga welding machine

3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting

system; bga welding machine

4.temperature curves can be displayed with instant curve analysis function and multi-group

user data can be saved;temperature can be tested precisely through external measurement

interface,curves can be analysed,set and correct on the touch screen at any time.





Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution

and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition

LCD monitor.

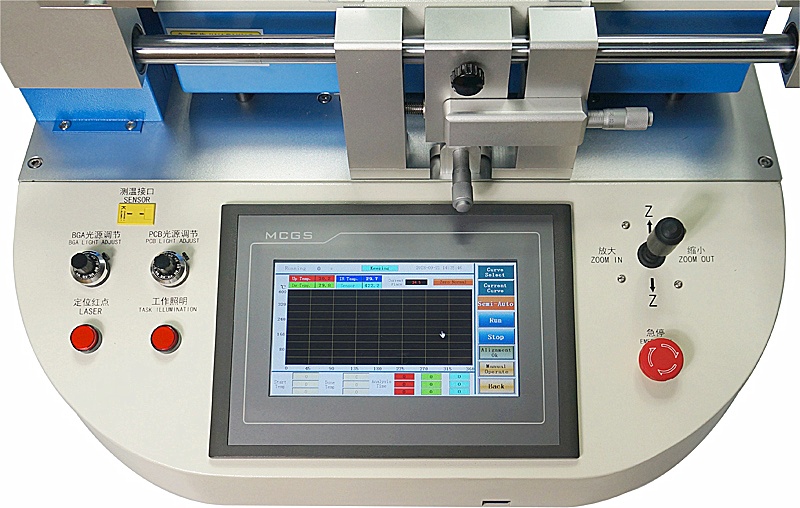

 Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.



2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.





 Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.

Temperature parameter having password protection to prevent any modification.   bga welding machine.
