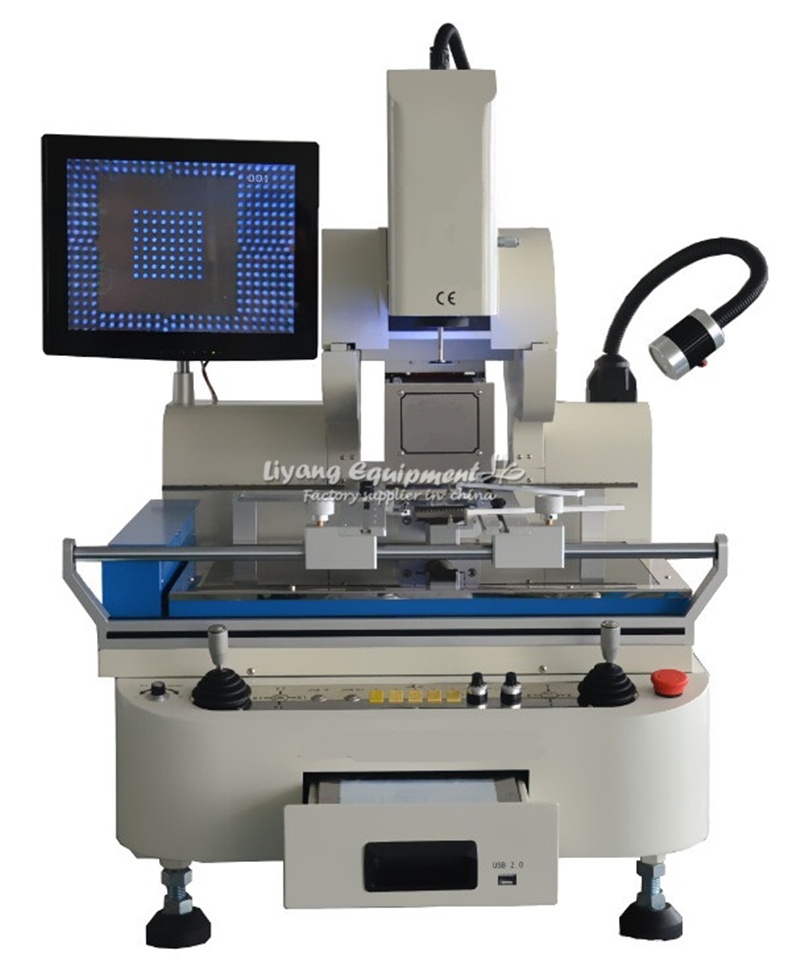

LY-G900A semi-automatic 3 zones max 65x55cm big area hot air Align BGA rework station 220V 9600W with tube type pre-heating

LY-G900A semi-automatic 3 zones max 65x55cm big area hot air Align BGA rework station 220V 9600W with tube type pre-heating

item ID: 65293
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$25000 USD$19151 (% off)
Payment

Product Detail

Product Tags

LY-G900A semi-automatic 3 zones max 65x55cm big area hot air Align BGA rework station 220V 9600W with tube type pre-heating

Specification and Feature:

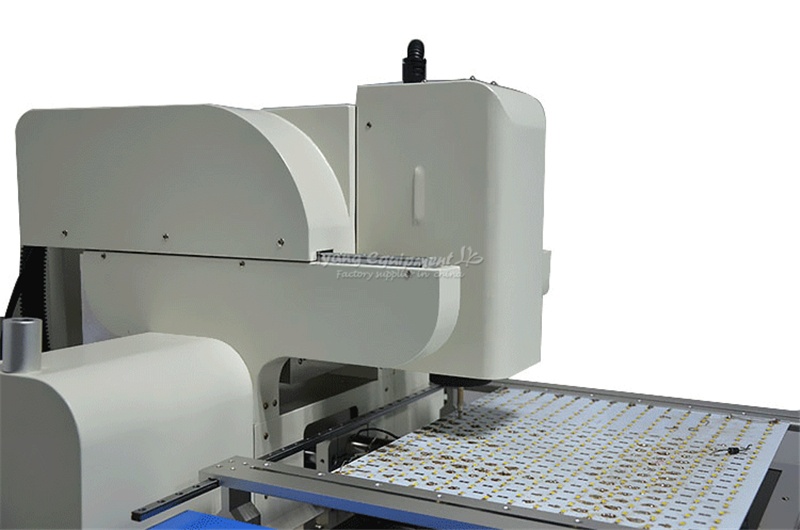

1.Hot air head and mounting head integration design, with auto soldering and desoldering functions.

2.Upper heaters adopt hot air system,heating faster,temperature evenness,cooling faster.(the temperature can be up to 50 to 80 centigrade)It can better meet technological requirements about lead-free soldering.Lower heaters adopt Hot air & IR mix heating. IR acts on the heating area directly; in the meanwhile, hot air works. They interact to heat quickly, and keep temperature even. (heating-up speed is up to 10 centigrade per minute.

3.Independent 3 heaters, upper and lower heaters can realize move synchronously and automatically,can reach IR every position.Lower heater zone can remove up and down,support PCB board. bottom pre-heating area along X/Y axis. Lower heater can move up/down and support PCB,auto-controlled by motors. It can realize the upper and lower heater able to move towards target BGA, without moving PCB.

4.PCB board adopts high accuracy slider to make sure the mount precision of BGA and PCB.

5.Unique bottom preheating table made of Germany-imported good quality heating  materials  plated IR tube & constant temperature glass anti-dazzle (heat-resist up to 1800 C), pre-heating area up to 500*420mm.

6.Preheating table, clamping device and cooling system can move integrally in X axis that make PCB locating & desoldering safer and conveniently.

7.X and Y axis adopt motor automatic control moving way to make the alignment faster and more convenient,make the most use of the equipment space,realization of repairing large area PCB with a smaller volume of equipment.The Max.plate size can reach 650*610mm,no repair dead corner.

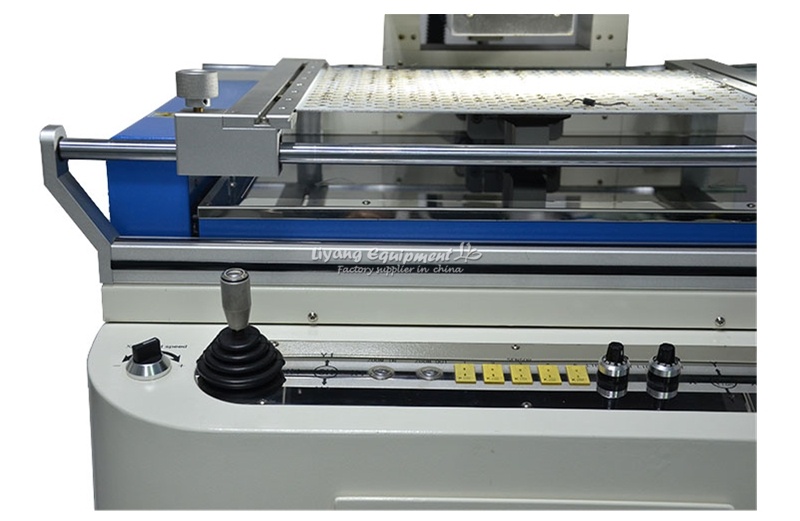

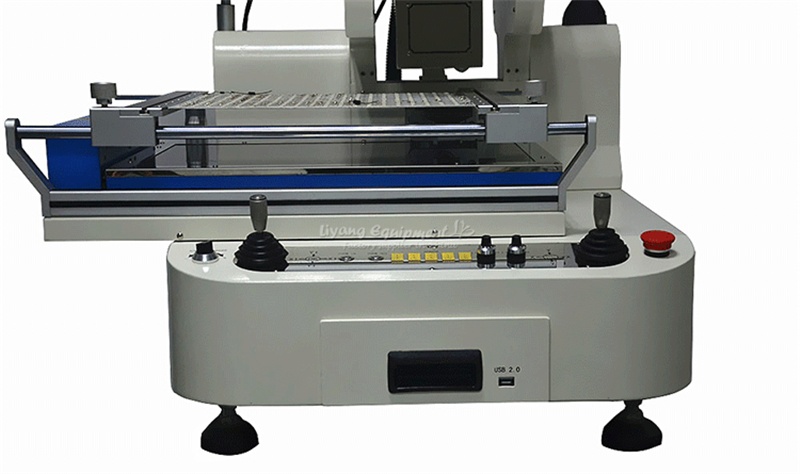

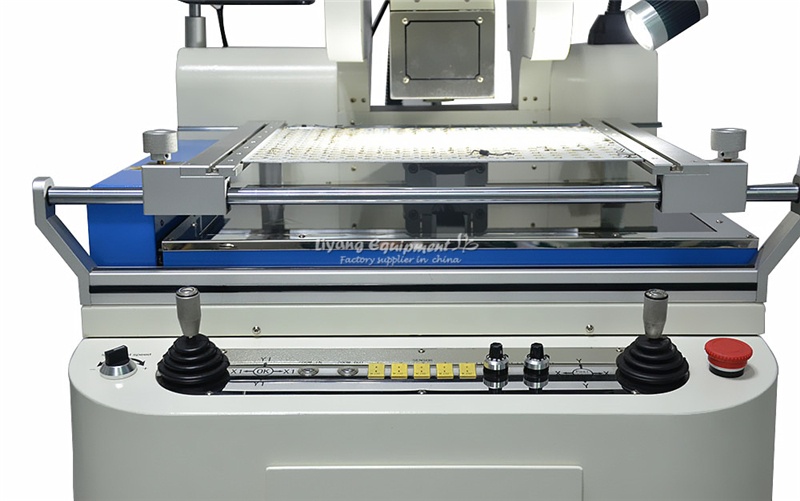

8.Double rocker control the camera and upper and lower heating platform to make sure the alignment precision accuracy.

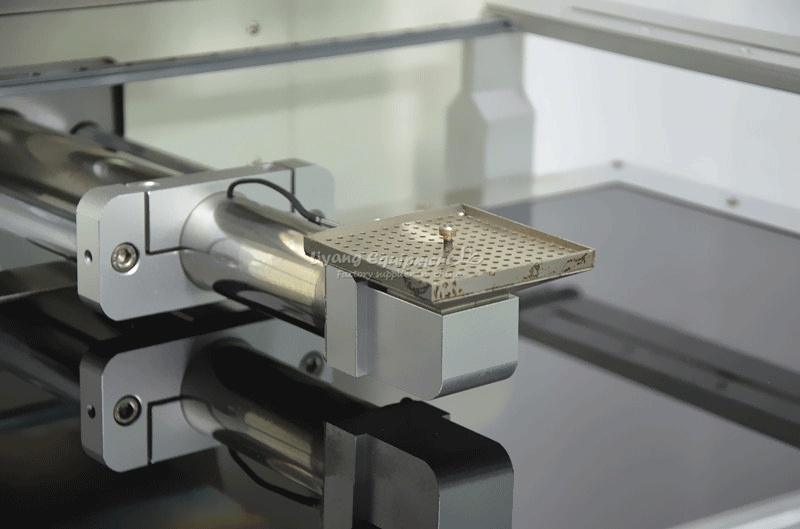

9.Inbuilt vacuum pump, rotate 360 in angel; fine-adjusting mounting suction nozzle.

10.Suction nozzle can detect BGA pickup and mounting height automatically with pressure controllable within 10 grams;  zero pressure available to smaller BGA pickup and mounting.

11.Color high-resolution optical vision system, movable by hand in X/Y axis, with split vision, zoom in and fine-adjusting functions, aberration distinguish device included, auto-focus, software operation, 22x optical zoom; reworkable max. BGA size 80*80MM;

12.With 10 segments of temperature up (down) and 10 segments of constant temperature control,can save many segments of temperature.analyze the temperature parameter curves on the touch screen.

13.Many sizes of alloy nozzle, easy for replacement; can locate at all angle.

14.With 5 thermocouple ports, can real-time detect and analyze temperatures at multipoint.

15.With a solid operation display function to make the temperature control more reliable.

16.It can generate SMT standard temperature removing curve automatically in different regions and different environment temperature,don’t need to set curves manually, anybody can use it even without experience, realize machine intelligence

17.With the camera that can observe the melting point of solder side, it is convenient to determine the curve (this feature is optional items).





Technology Parameter

technical parameters

1. Total power: 9.6 KW MAX
2. Up heater 1.2KW
3. Bottom heater : Second temperature zone 1.2KW ,third temperature zone 7.2KW
4. power: 3H AC380V±10% 50/60Hz
5. Machine size: 750×950×1050mm (the support jigs not including)
6. PCB size: MAX 650×550mm Min 10×30 mm
7. BGA size: MAX 80×80 mm Min 2×2 mm
8. Mount accuracy: ±0.01 mm
9. Position way V shape neck + universal jigs
10.Position system: Original CCD colurful high precision optical system from Japan+joystick controller
11. Blow up diploid: 10X-50X
12.Electrical material: Panasonic PLC+Servo drive+Panasonic touch screen+Germany temperature control module



13.temperature control: K Sensor closed loop,independent temperature controller

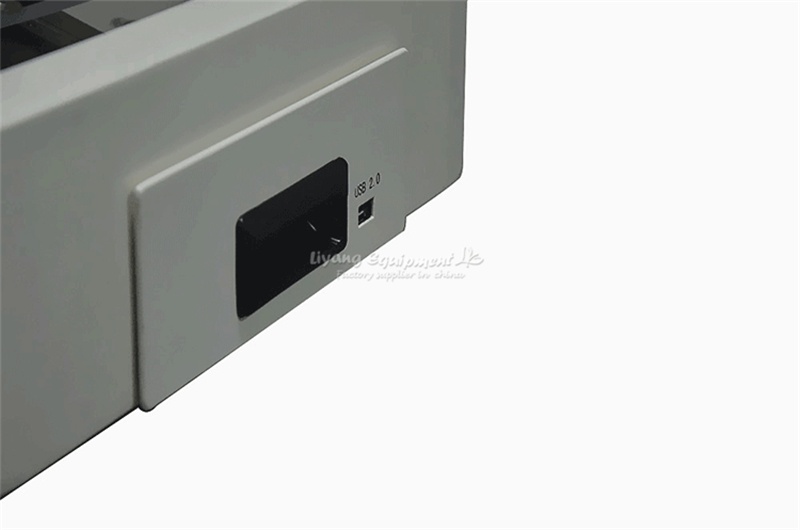

14. Touch screen: 8"diagonal line,resolution 640×480,can external usb 4 pcs
15. External temperature interface: 4pcs
16. Working way: armature
17. weight: 150kg
18. colour: white
