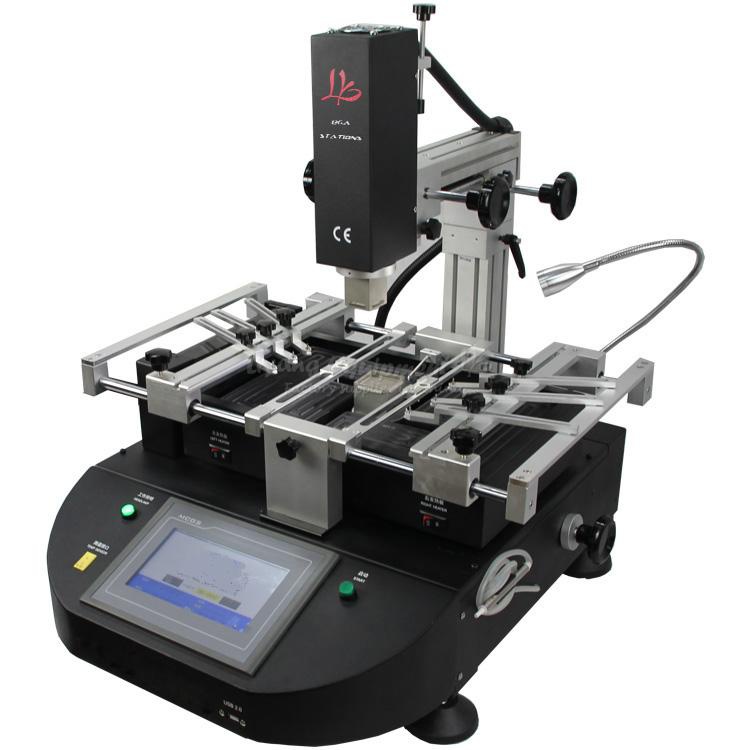

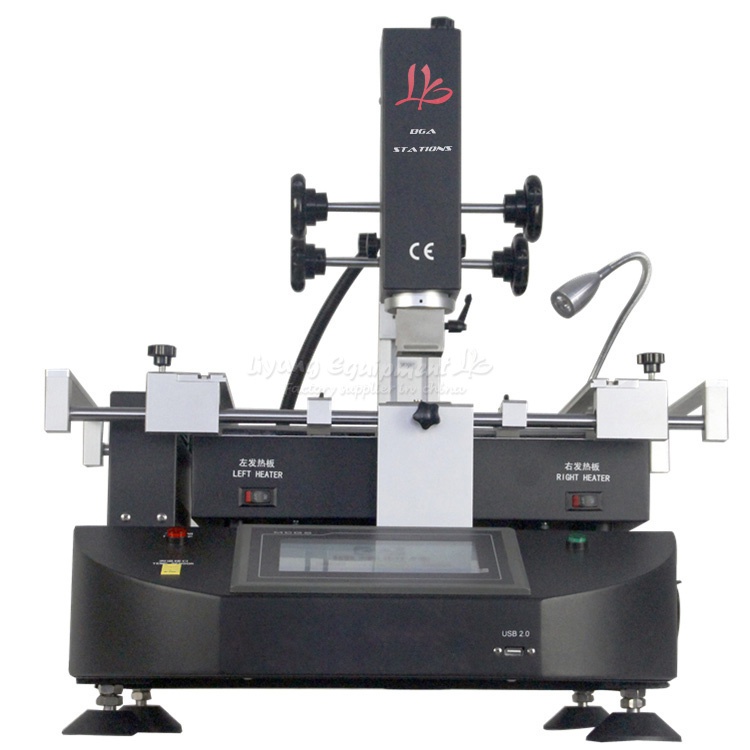

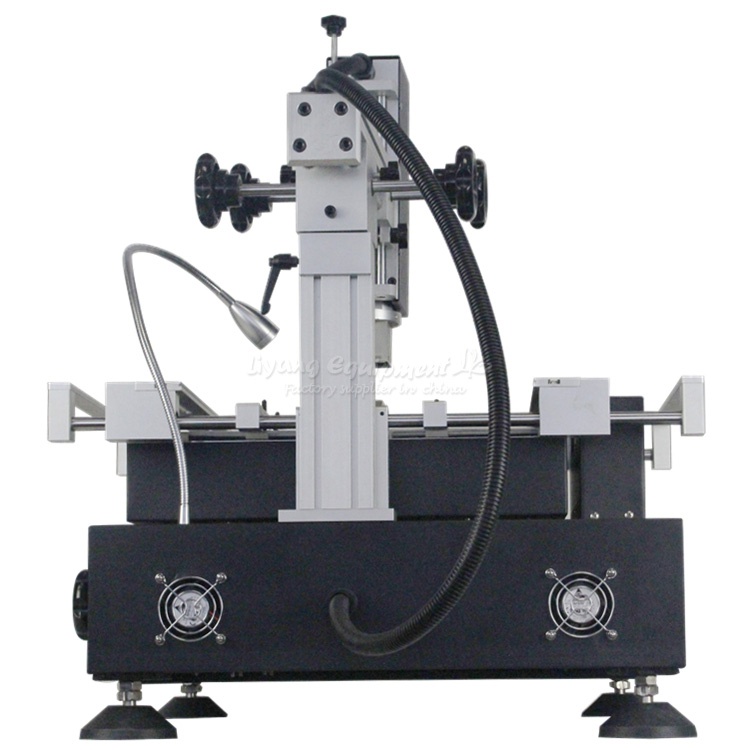

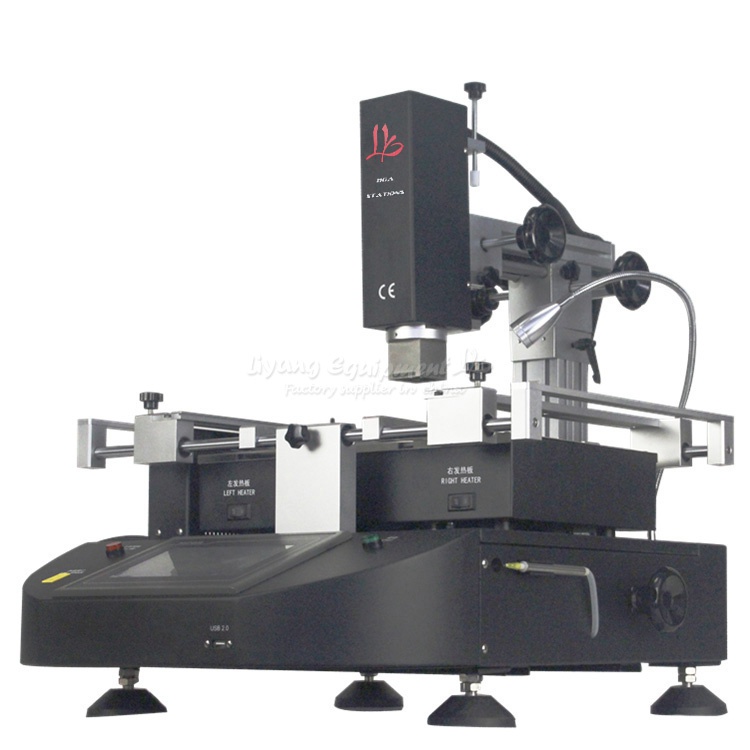

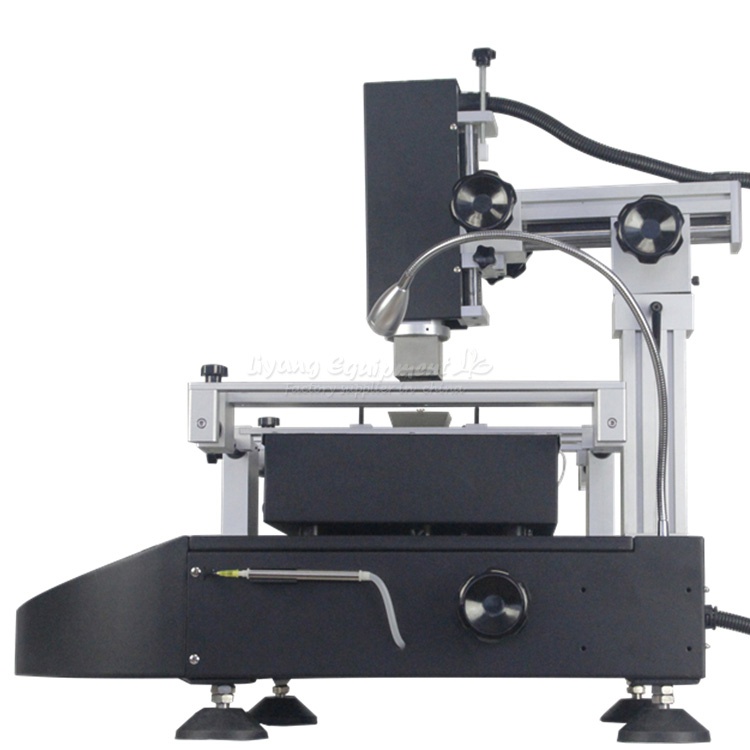

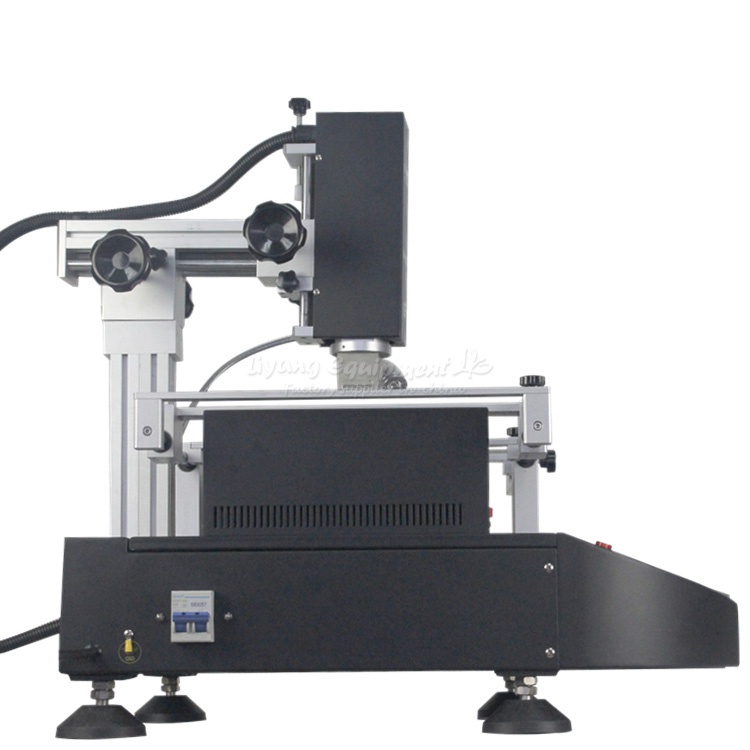

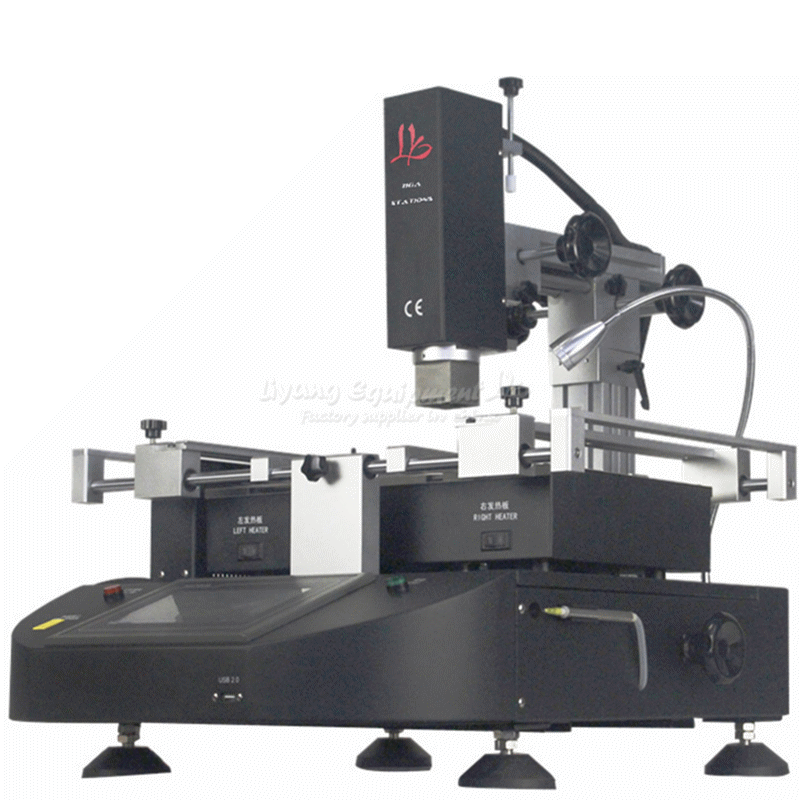

LY-R5830 R5830C touch screen BGA Rework Station hot air 3 zones for Laptop Motherboard Chip Repair 4500W ZM-R5830

LY-R5830 R5830C touch screen BGA Rework Station hot air 3 zones for Laptop Motherboard Chip Repair 4500W ZM-R5830

item ID: 58810
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(1)
USD$1070.6
Payment

Product Detail

Product Tags

LY-R5830 R5830C touch screen BGA Rework Station hot air 3 zones for Laptop Motherboard Chip Repair 4500W ZM-R5830

Specifications

1.3 independent heater,7 inch HD touch screen
2.PLC control BGA rework staton
3.Orignal factory
4.Movable top, bottom heater

Specifications:



Power 4500W
Top heater Hot air 800W
Bottom heaterIron heater Hot air 1200W, Infrared 2400W90w
Power supply AC220V±10%  50/60Hz
Dimension L535*W650*H600mm



Positioning V-groove, PCB support can be adjusted in any direction with externaluniversal fixture
Temperature control K type thermocouple, closed loop control, independent heating
Temp accuracy ±. degrees
PCB size Max 355*335mm Min 50*50 mm
BGA chip 2*2-80*80mm
Minimum chip spacing 0.15mm
External Temperature Sensor 1(optional)
Net weight 40kg





Specifications:

Laser Assist position system,

Integrated high precisely digital solderingiron.

USB 2.0 connect, can be controlled by mouse.

HD touch screen interface, PLC control.

Three independent heatersall can set 8 segments heating, cooling and constanttemperature, saved temperature profile is unlimited. IR preheat area can be controlledaccording to PCB size

K-sensorcloseloopcontrolandautomatictemperaturecompensationsystem.Itcombineswithtemperaturemodule,whichenablestemperature accuracy to ±3°C

Moveable heater, easy to operate.

Hot air nozzles,360 degree rotation, easy to install and replace, customized is available.

V-groove PCB supportfor rapid, convenience and accurate positioning that fits for all kindsof PCB board

Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it fromdeformation.

Sound hint system. There is an alarm before thecompletion of each desoldering andsoldering.

CE certification,with emergency switch and automatic power-off protection device whenemergency happens

Three years warranty(Two years longer than other companies), free life-long technicalsupport

Applications:

Complete range of rework applications in medium and large scale service centers

Mobile and radio systems devices repairment

Cellular phones, PDAs, handhelds, laptops, notebooks & motherboards repairment

LAN devices, network nodes and militarycommunication equipment repairment

Portable medical equipment repairment

Thanks for your order!

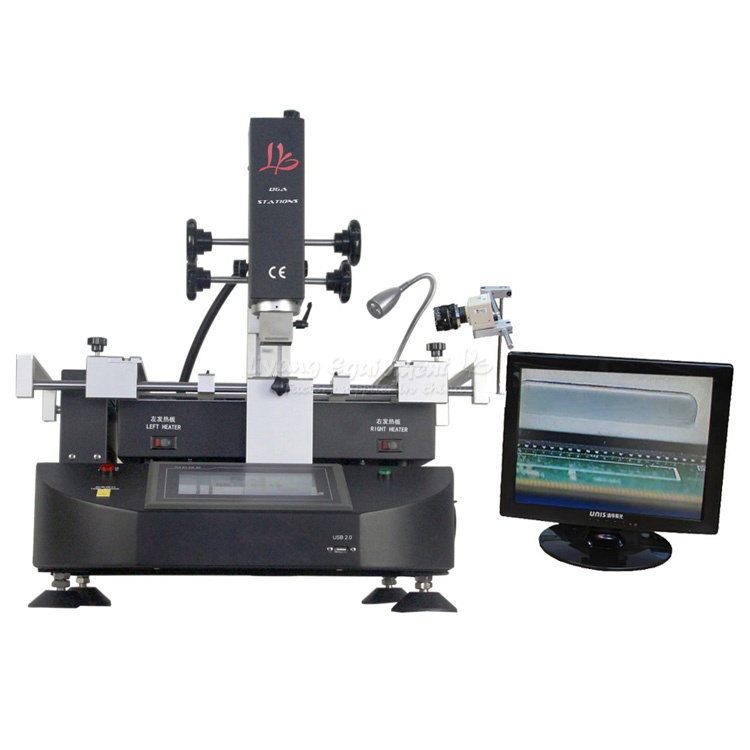

14'' CCD Cemara:
